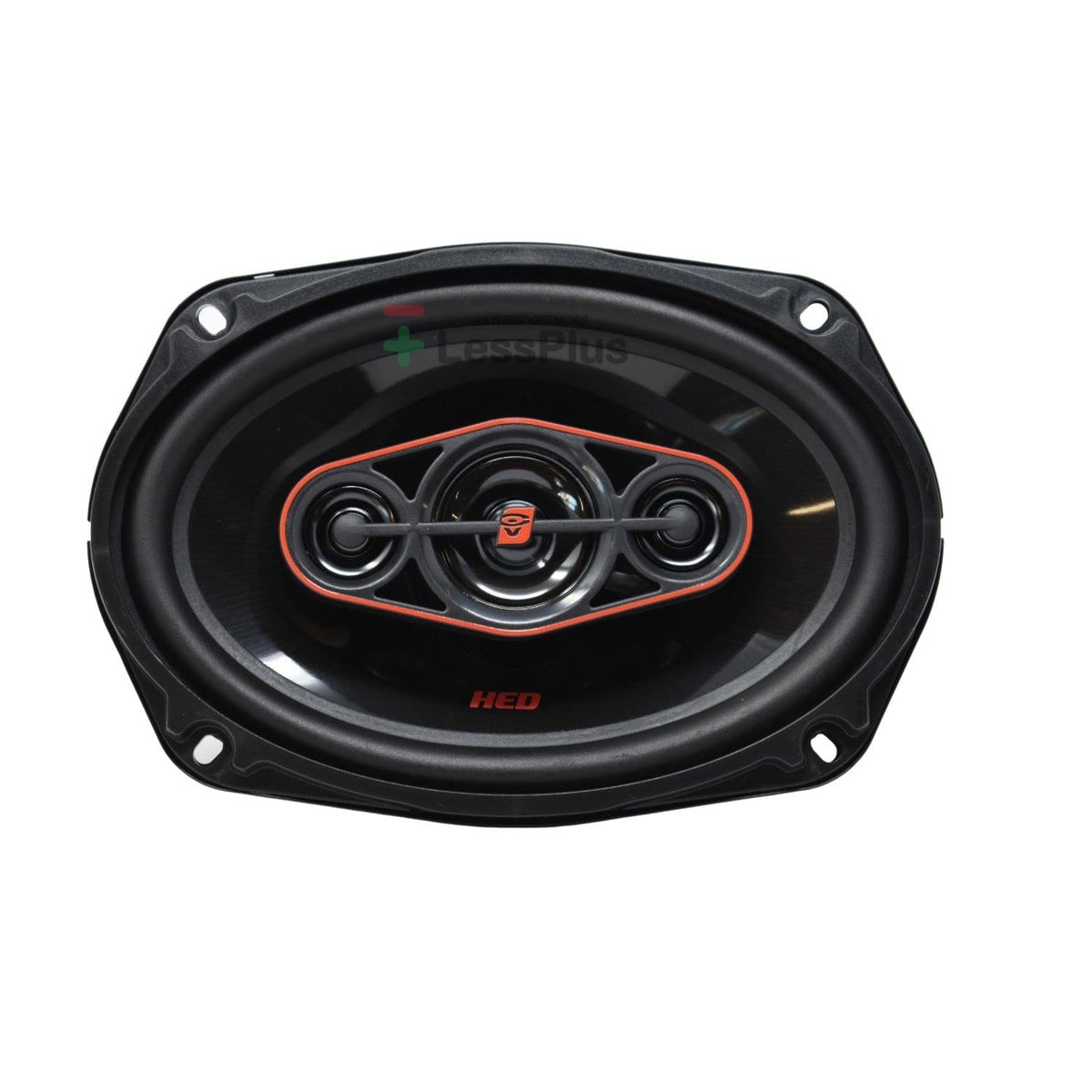

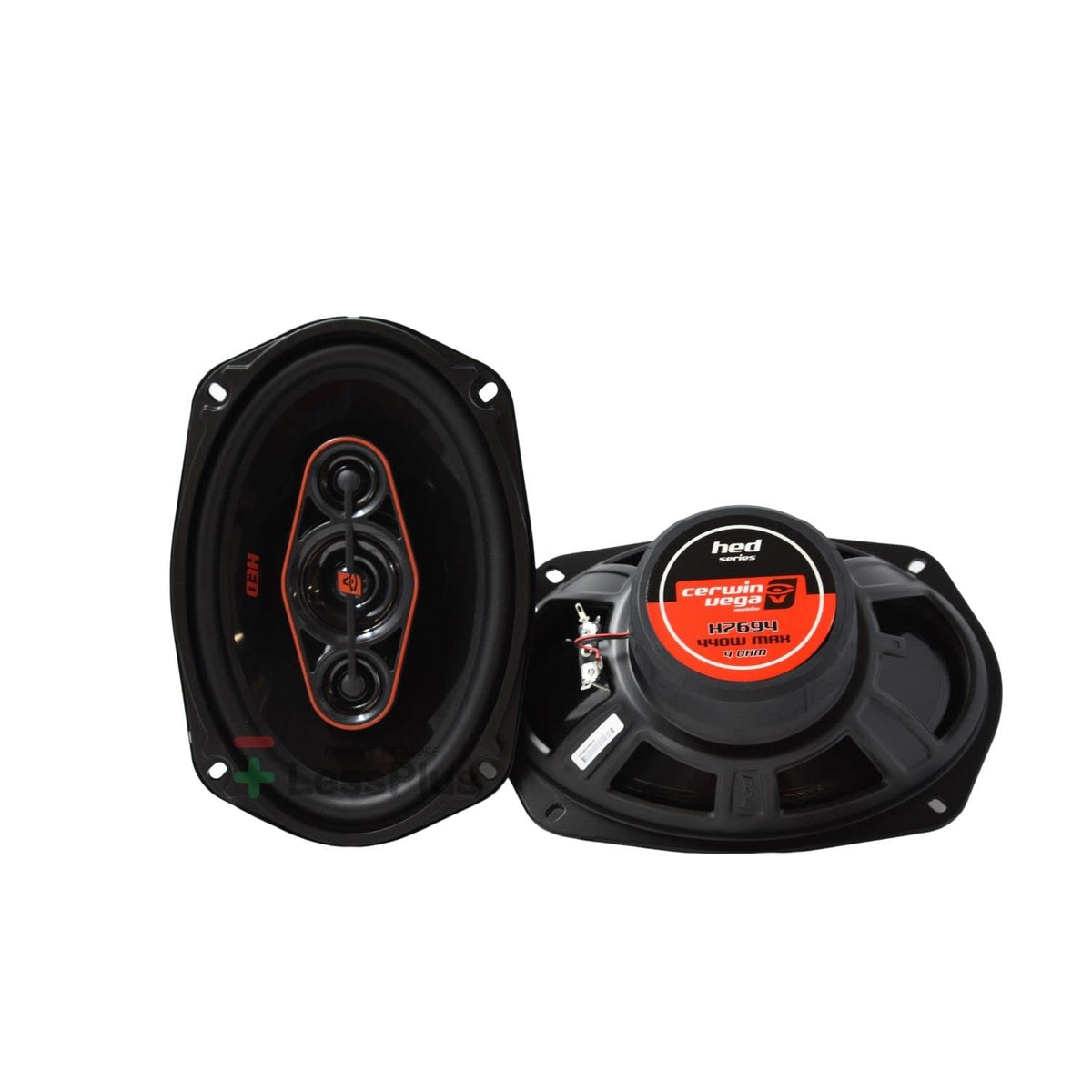

Cerwin-Vega H7694 6x9" 4-Way Coaxial Car Speakers

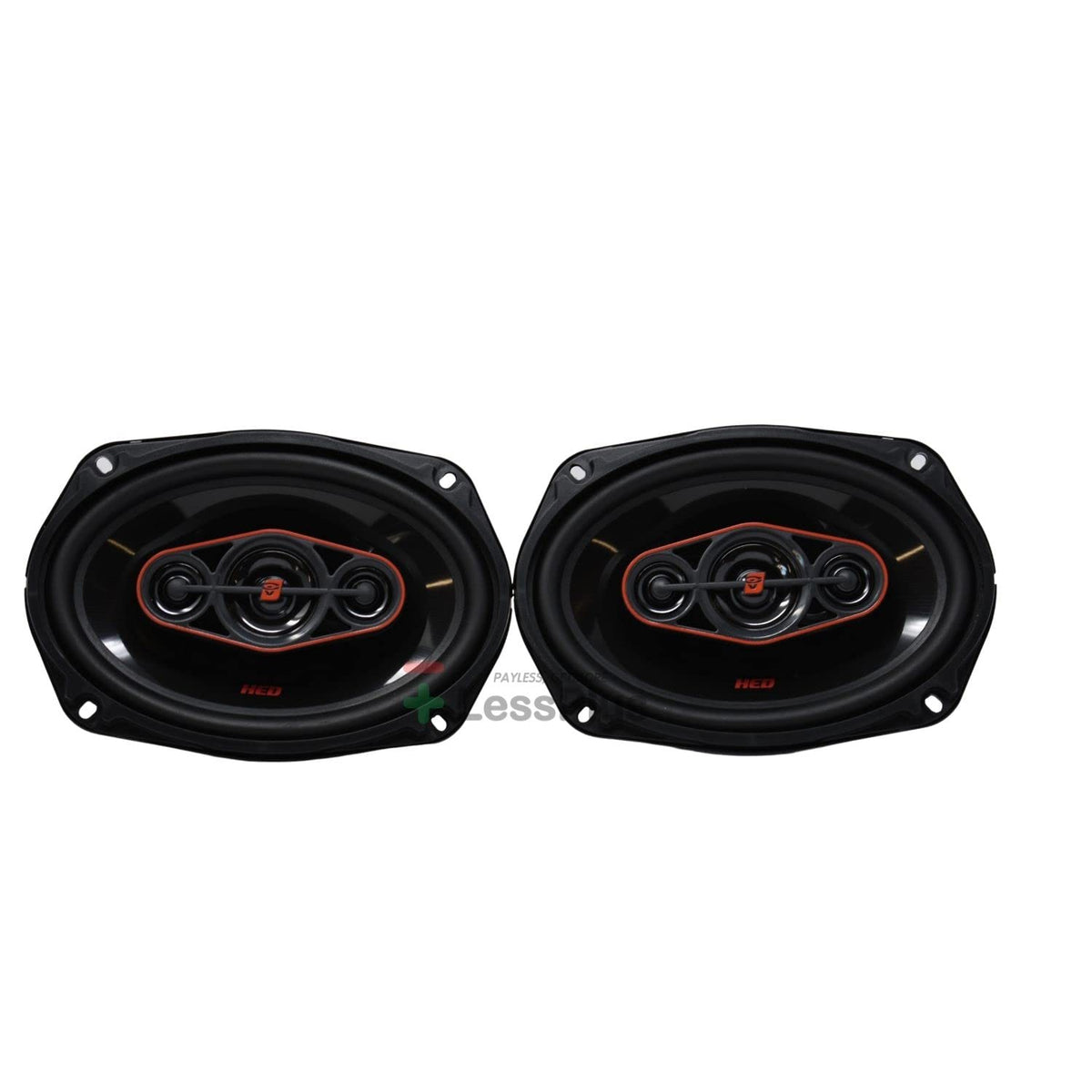

The Cerwin-Vega H7694 is a pair of 6x9-inch HED Series 4-way coaxial car speakers designed as a full-range replacement for factory-installed speakers. They provide an all-in-one speaker solution for vehicles with compatible 6x9 mounting locations. The coaxial layout places multiple drivers in each speaker assembly, helping simplify an audio upgrade without separate external tweeter mounting.

These speakers are intended for listeners who want stronger, more detailed sound from a factory or aftermarket stereo system. With 75 watts RMS power handling per speaker and a 4-ohm nominal impedance, the H7694 can be used with compatible head-unit power or an appropriately matched external amplifier. Their 86.5 dB sensitivity specification and 50 Hz to 20 kHz frequency response support broad full-range reproduction.

The H7694 uses a 4-way coaxial design to combine low-, mid-, and high-frequency output from a compact 6x9-inch footprint. A 1-inch balanced-dome PEI tweeter is incorporated into the speaker assembly for high-frequency reproduction. This makes the pair a practical choice for rear-deck, door, or custom-panel speaker locations that accept the required dimensions.

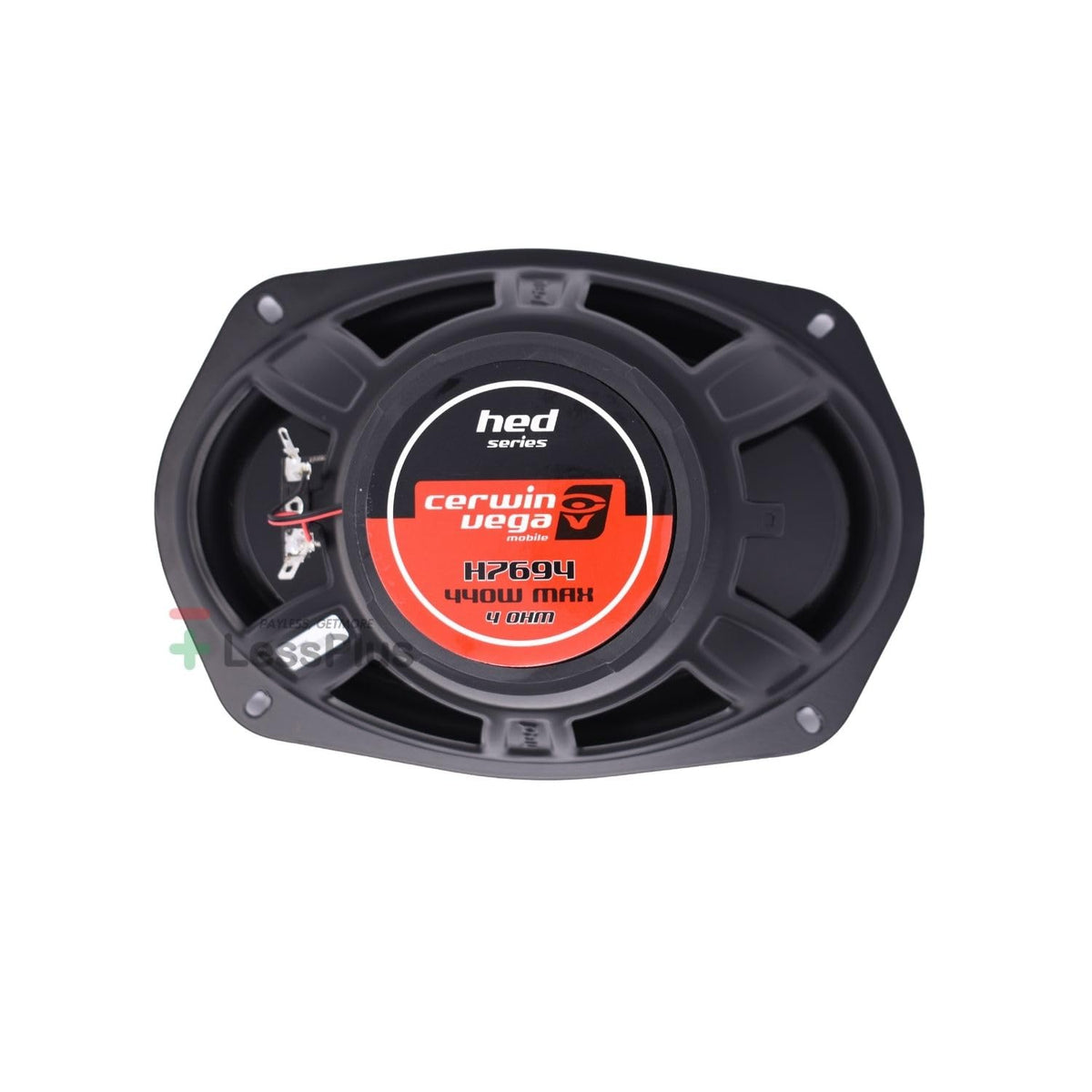

Its construction combines a polypropylene cone, treated-foam surround, Mylar diaphragm, ferrite magnet structure, and stamped-steel basket. The stamped-steel frame provides a rigid mounting foundation, while the internal crossover is built into the speaker design. These materials are selected for conventional automotive speaker installation and daily music playback.

The H7694 can serve as a direct speaker upgrade in a stock system or as part of a larger car-audio build with an aftermarket amplifier. Verify the vehicle's available mounting depth, cutout dimensions, mounting-hole layout, and window or trunk clearance before installation. For amplified systems, match amplifier output conservatively to the speaker's 75-watt RMS rating per speaker rather than selecting equipment solely by maximum-power figures.

Key Features

• 4-Way Coaxial Design: Integrates multiple driver elements into each 6x9-inch speaker.
• 75W RMS Handling: Supports amplifier matching at 75 watts RMS per speaker.
• 4-Ohm Impedance: Works with many conventional car-audio speaker outputs.
• Polypropylene Cone: Provides a durable cone material for automotive use.
• Stamped-Steel Basket: Creates a solid structure for mounting the speaker.
• Internal Crossover: Built-in crossover supports the coaxial driver arrangement.

Design & Installation

The H7694 uses a stamped-steel basket, ferrite ceramic magnet, polypropylene cone, treated-foam surround, and Mylar diaphragm. Its 1-inch voice coil and single-voice-coil configuration are paired with a 1-inch PEI balanced-dome tweeter. Speaker grilles are included with the pair.

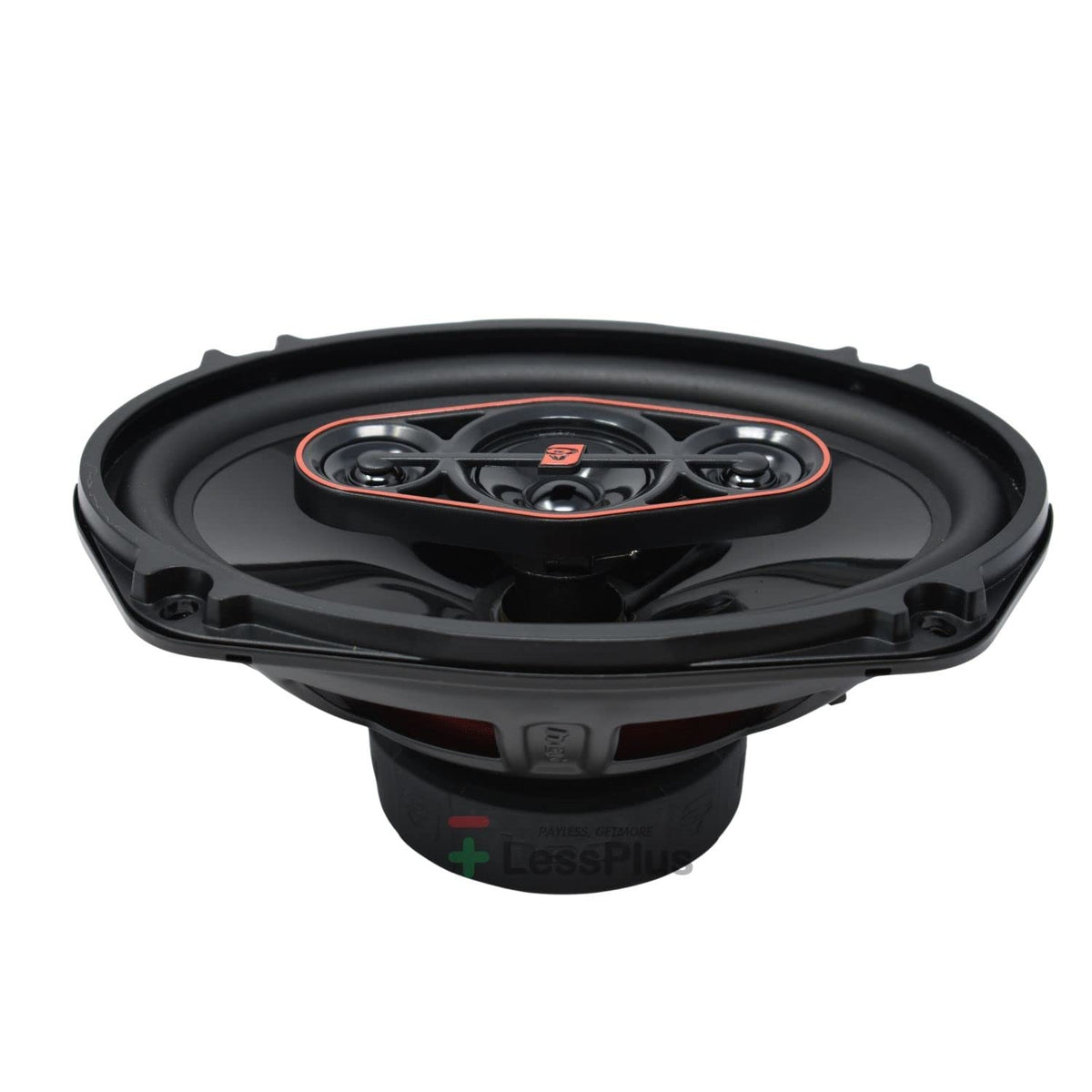

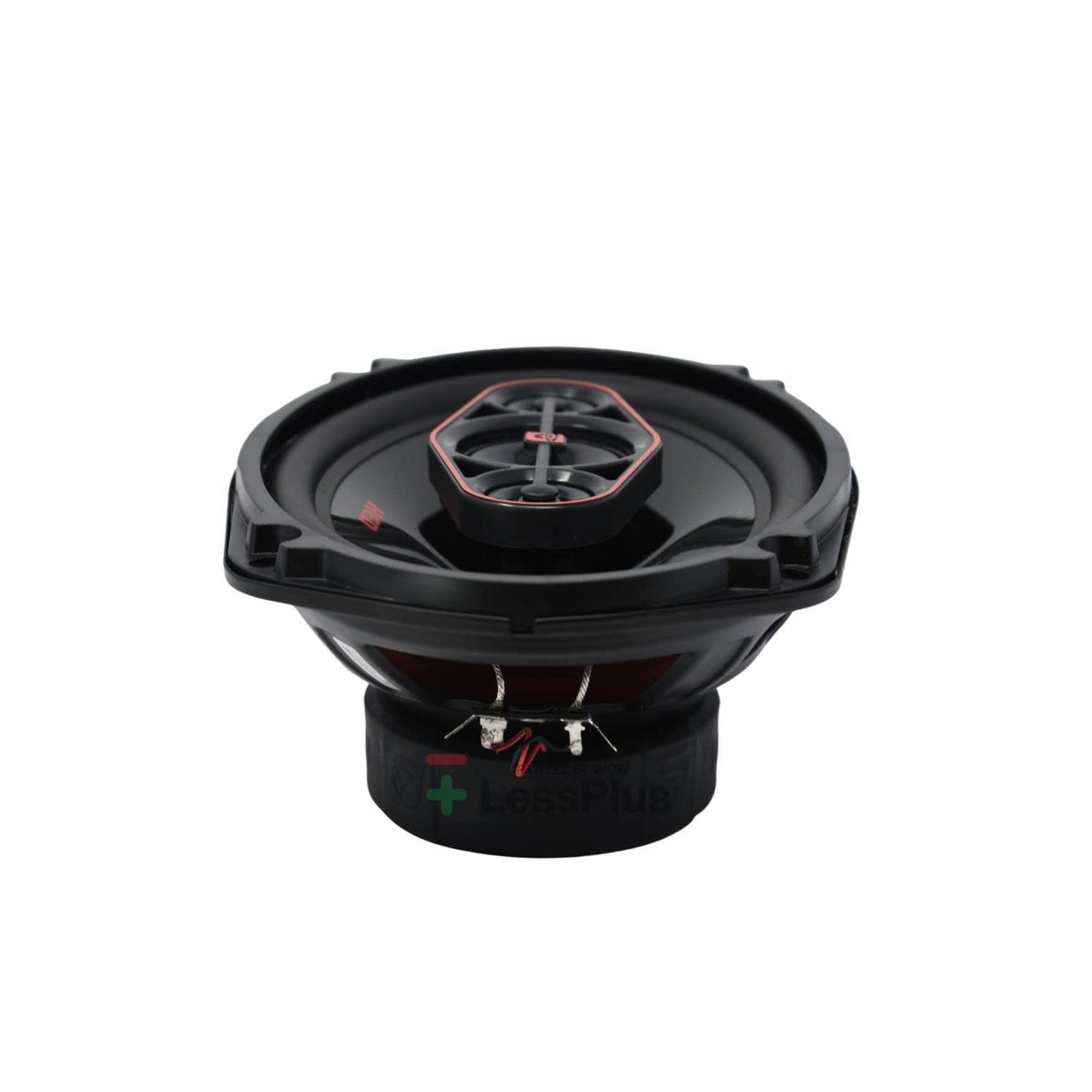

Confirm that the vehicle can accept a 6x9-inch speaker, the 7.71 x 6.4-inch mounting cutout, and approximately 3.3 inches of mounting depth before purchase. Mount the speakers securely on a flat surface and seal the frame area to reduce air leaks; when wiring through metal, use suitable protection such as grommets. Maintain correct positive and negative polarity at both speakers, and check clearance for windows, trunk hardware, and interior panels before final assembly.
