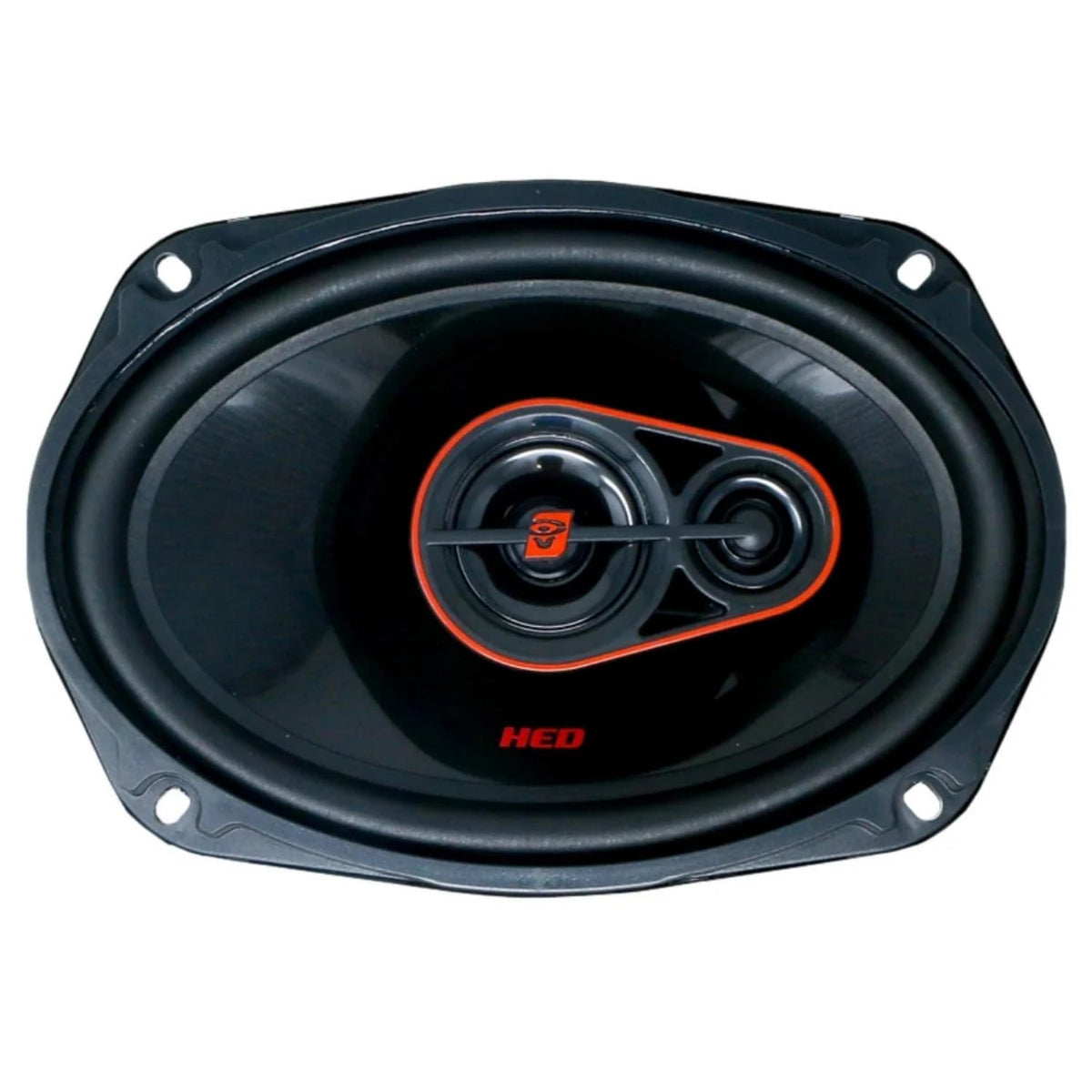

Cerwin-Vega H7693 6x9" 3-Way Coaxial Speakers

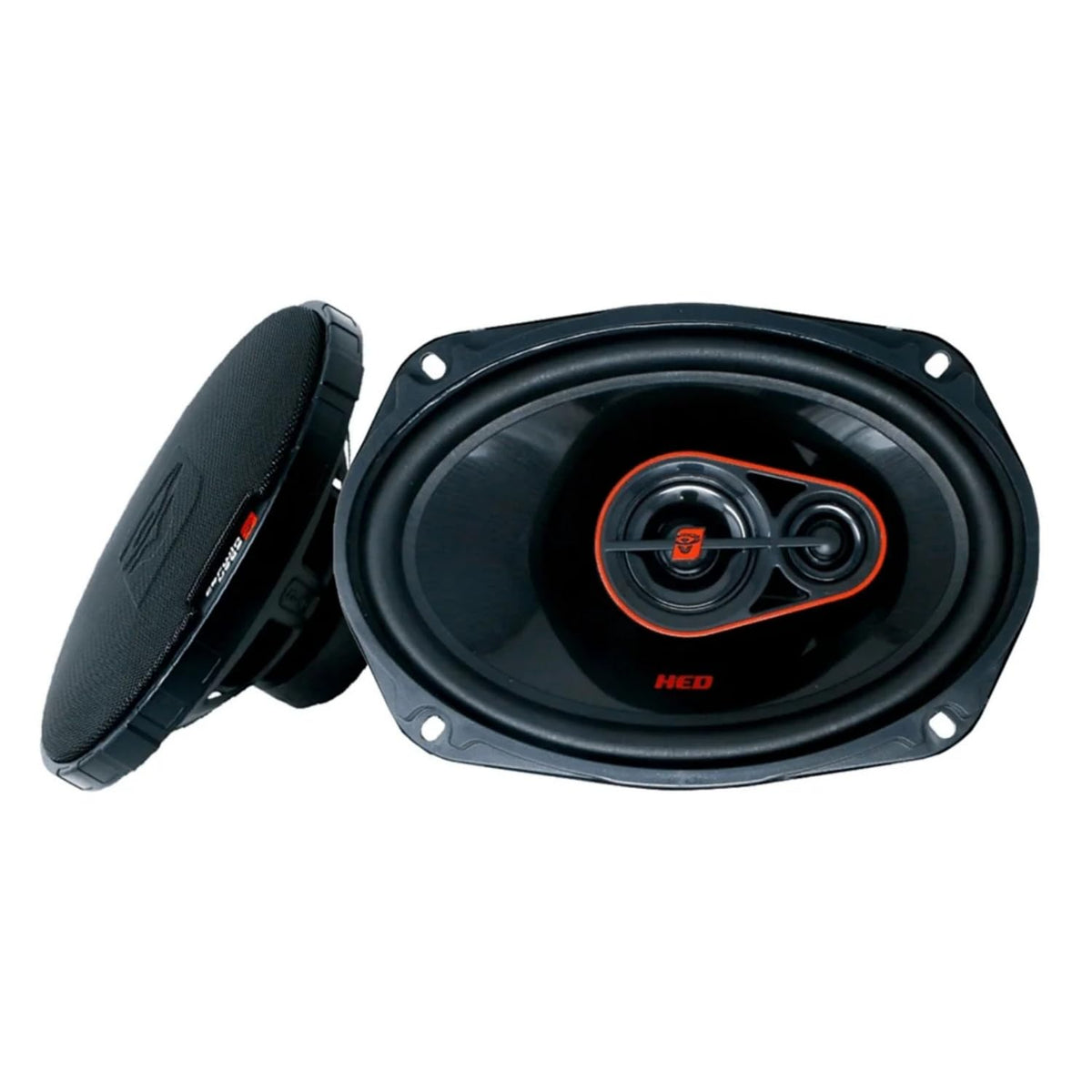

The Cerwin-Vega H7693 is a pair of 6x9-inch HED Series 3-way coaxial car speakers designed to replace factory speakers in compatible vehicle locations. They provide a full-range upgrade in a single speaker assembly, helping simplify installations where separate component speakers are not required. The pair is suited to rear decks, doors, and custom panels when the vehicle has adequate mounting clearance.

Its 3-way coaxial layout combines woofer, midrange, and high-frequency drivers in each speaker. This arrangement is intended to cover bass, vocal, and treble ranges from one mounting location. With a 50 Hz to 20 kHz frequency-response rating, the H7693 is designed for broad everyday music playback.

The H7693 is rated for 70 watts RMS and 420 watts maximum power handling per speaker. Its 4-ohm single-voice-coil design is compatible with many factory and aftermarket car-audio systems. An amplifier should be selected and configured with its continuous RMS output and impedance compatibility in mind.

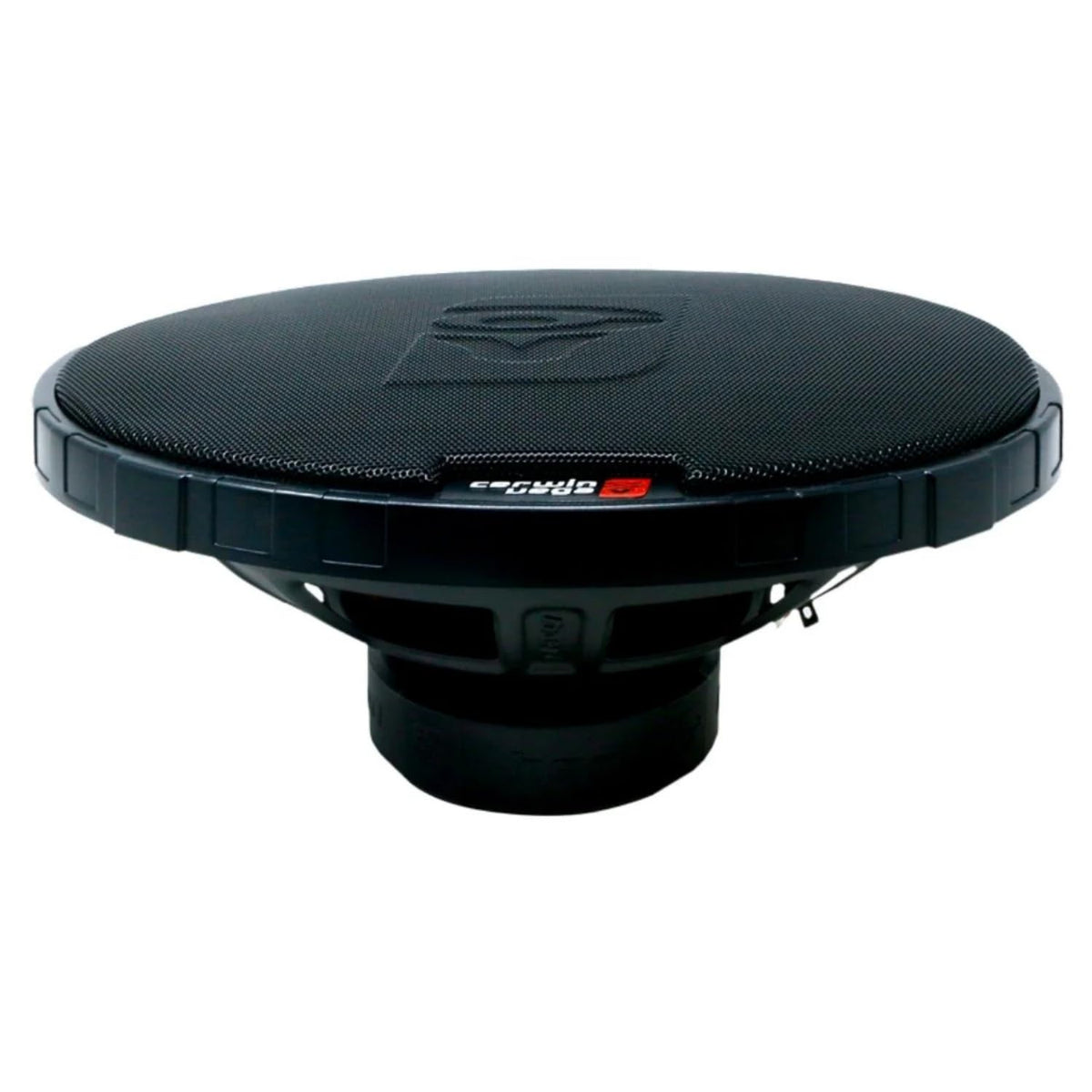

Construction includes a polypropylene cone, treated-foam surround, ferrite magnet, and stamped-steel basket. Cerwin-Vega specifies a Mylar diaphragm and a PEI black polypropylene dome tweeter for high-frequency reproduction. An internal crossover is included to divide the signal among the coaxial drivers.

For an upgrade path, the H7693 can be used as a direct full-range speaker replacement or paired with an appropriately matched aftermarket amplifier. Its 86.5 dB sensitivity rating and 4-ohm impedance should be considered when planning output levels and amplifier power. Verify vehicle-specific fitment, mounting-hole dimensions, and panel clearance before installation.

Key Features

• 6x9-Inch Format: Fits compatible rear-deck, door, and custom-panel locations.
• 3-Way Coaxial Design: Integrates woofer, midrange, and high-frequency drivers.
• 70W RMS Rating: Supports appropriately matched continuous amplifier power.
• Internal Crossover: Divides frequencies within each speaker assembly.
• Polypropylene Cone: Provides a durable woofer cone material.
• Stamped-Steel Basket: Supports stable mounting and speaker structure.

Design & Installation

The H7693 uses a stamped-steel basket with a ferrite ceramic magnet, polypropylene cone, treated-foam surround, and single 1-inch voice coil. Its coaxial architecture keeps the drivers together in one assembly, while the internal crossover is built into the speaker. Cerwin-Vega specifies a 3-way configuration with a Mylar diaphragm and PEI black polypropylene dome tweeter.

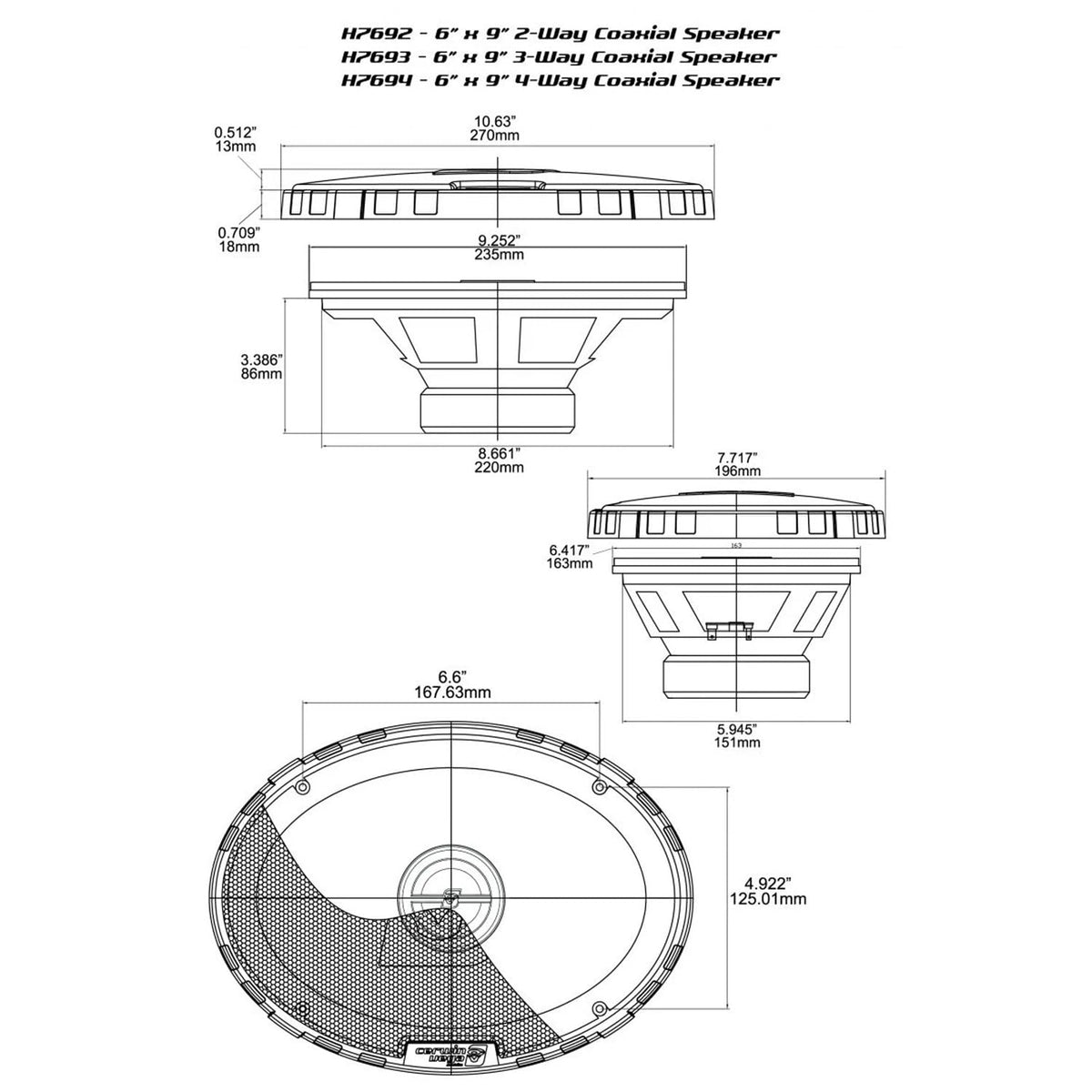

Confirm that the intended location accepts a 6x9-inch speaker and accommodates the 3.3-inch mounting depth before purchase. The specified mounting opening is 7.71 x 6.4 inches, so vehicle-specific brackets, adapters, or wiring connections may be needed depending on the application. Use correct polarity and match the speakers with a compatible 4-ohm factory radio or amplifier.
