Rockford Fosgate T1692 Power 6x9" 2-Way Speakers

The Rockford Fosgate T1692 is a pair of 6x9-inch, 2-way coaxial full-range car speakers designed for vehicles that use this common oval speaker size. They provide a direct speaker-upgrade path for listeners who want greater power handling and a more capable driver design than many factory-installed speakers. Each speaker combines a woofer and tweeter in one assembly, helping simplify installation where a 6x9 coaxial speaker fits.

Rated at 100 watts RMS and 4 ohms per speaker, the T1692 is suited to a properly matched aftermarket amplifier or a system designed around higher-output speaker channels. Its 50 Hz to 22 kHz frequency-response rating covers bass, midrange, and treble duties in a full-range location. With 90 dB sensitivity at 1 watt/1 meter, it is intended to deliver useful output while remaining compatible with conventional 4-ohm car-audio amplification.

The woofer uses an injection-molded carbon-fiber and polypropylene cone with a butyl-rubber surround. This material combination is designed to keep the cone supported during excursion while providing a durable moving assembly. A 1-inch aluminum-dome tweeter with polyurethane suspension handles upper-frequency reproduction.

Rockford Fosgate integrates the tweeter crossover into the speaker basket through its ICC, or Integrated Concealed Crossover, design. This avoids a separate external crossover box for the coaxial pair and keeps the installation more contained. The built-in tweeter crossover uses a 12 dB/octave Butterworth high-pass design.

The T1692 also uses VAST surround geometry to increase effective cone area without enlarging the speaker basket. Its offset cantilever tweeter placement is intended to reduce reflections between the rear of the tweeter and the woofer cone. For a balanced upgrade, use the pair in compatible 6x9 factory locations, confirm available mounting depth, and match amplifier output to the speakers' RMS rating.

Key Features

• 6x9-Inch Coaxial Design: Combines woofer and tweeter in each full-range speaker.
• 100-Watt RMS Handling: Supports higher-powered car-audio amplification when properly matched.
• Carbon-Fiber Polypropylene Cone: Provides a lightweight, reinforced woofer cone construction.
• 1-Inch Aluminum Dome Tweeter: Reproduces high frequencies through a dedicated dome tweeter.
• ICC Built-In Crossover: Places the tweeter crossover inside the speaker assembly.
• VAST Surround: Increases effective cone area without increasing basket size.

Design & Installation

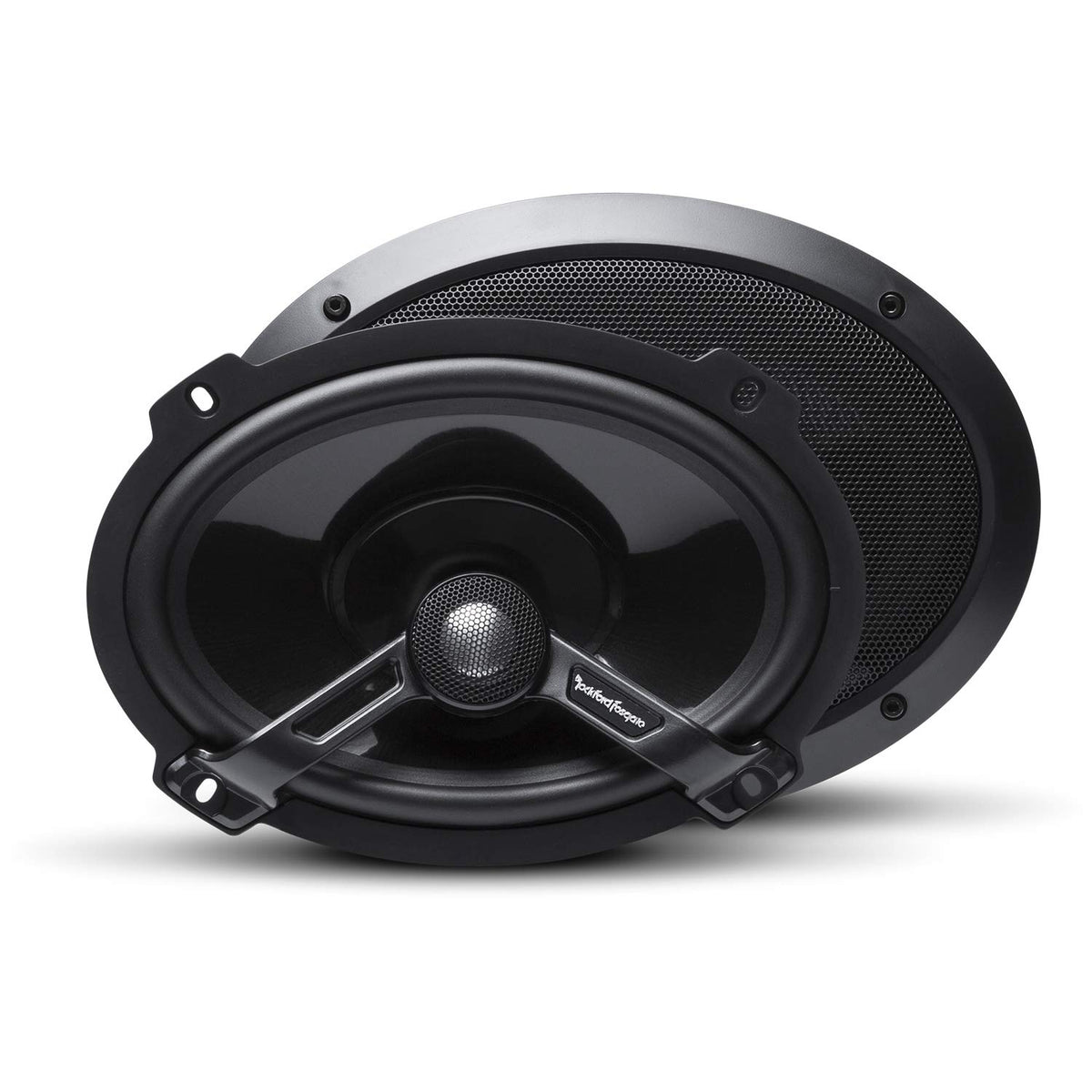

The T1692 uses a carbon-fiber and polypropylene injection-molded woofer cone, butyl-rubber surround, and aluminum-dome tweeter with polyurethane suspension. Its FlexFit basket uses slotted mounting provisions to help accommodate varying factory mounting-hole positions. Grilles or trim rings are included with this model.

Verify that the vehicle accepts a 6x9-inch speaker, a 5.77 by 8.51-inch cutout, and approximately 3.39 inches of mounting depth before installation. Connect each speaker with correct polarity and use an amplifier channel stable at 4 ohms; Rockford Fosgate specifies 30 to 100 watts RMS of recommended amplifier power per speaker. The built-in crossover means no separate external tweeter crossover is required for normal coaxial installation.
