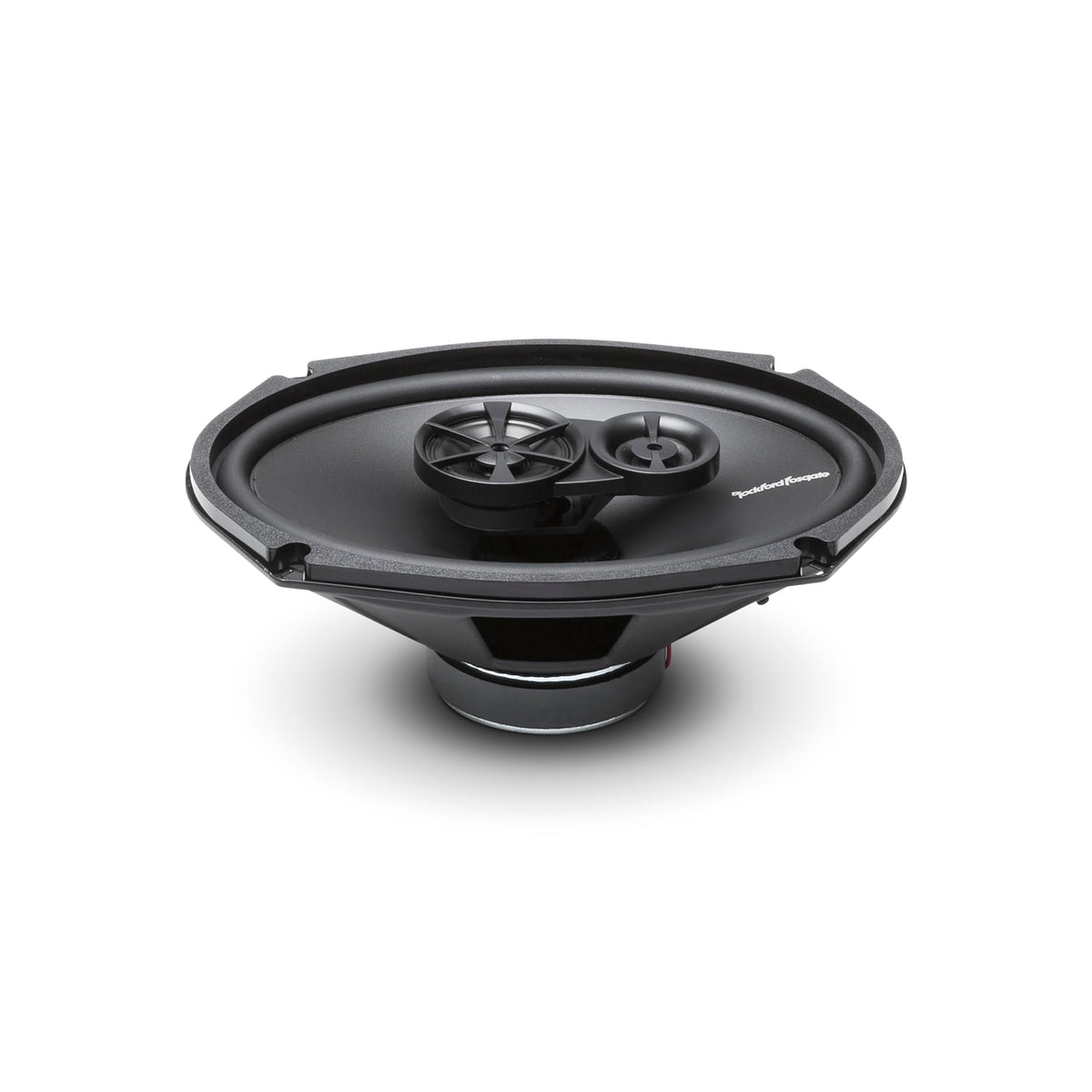

Rockford Fosgate R169X3 6"x9" 3-Way Speakers

The Rockford Fosgate Prime R169X3 is a pair of 6"x9" 3-way full-range coaxial speakers designed for replacing compatible factory speakers. They provide a straightforward upgrade path for vehicles that use 6"x9" speaker locations and need more capable replacement drivers. Each speaker uses a 4-ohm design suitable for many aftermarket and factory audio systems. Vehicle-specific fitment should be verified before purchase.

With a 65-watt RMS and 130-watt peak power rating per speaker, the R169X3 is suited to systems powered by a factory radio or a properly matched aftermarket amplifier. Its 90 dB sensitivity rating helps it produce useful output from modest amplifier power. The 47 Hz to 20 kHz frequency response covers bass, midrange, and treble duties in a single coaxial speaker assembly. It is intended as a full-range solution rather than a dedicated subwoofer replacement.

The 3-way configuration combines a polypropylene woofer cone with a 1/2-inch silk-dome tweeter and a piezo supertweeter. This arrangement distributes upper-frequency reproduction across dedicated drivers while the woofer handles the primary midbass and midrange range. A rubber surround supports the woofer cone, and an integrated high-pass tweeter crossover is built into the design. The crossover is specified with a 6 dB high-pass slope.

Rockford Fosgate uses a stamped steel basket to provide a stable mounting structure for the speaker assembly. The R169X3 is CEA-2031 compliant for power handling and is identified as Verified with Klippel. Its 1.0-inch voice coil, 63 Hz free-air resonance, and 2.6 mm Xmax are documented manufacturer specifications. These details help define its performance and installation requirements.

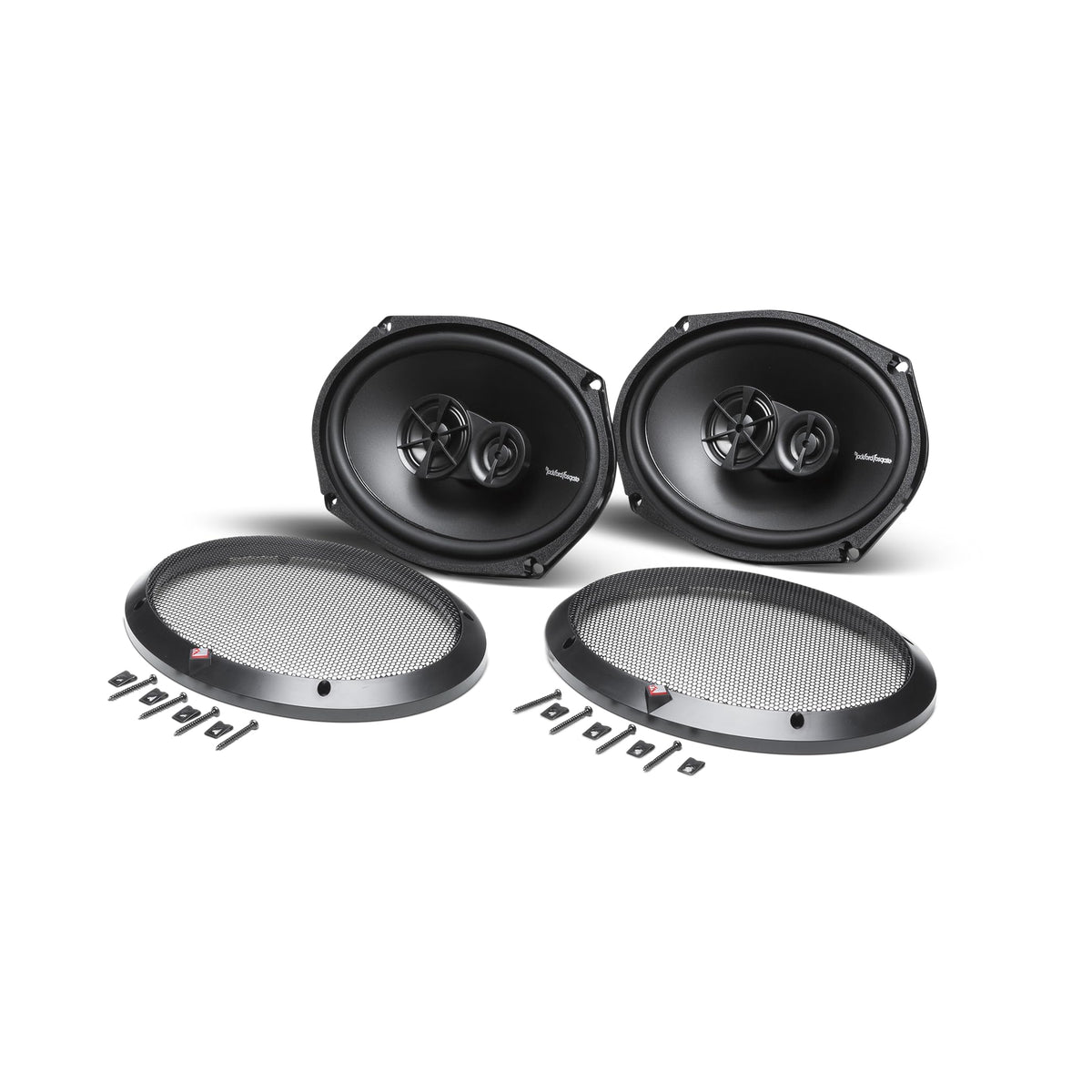

For an upgrade system, the R169X3 can be used as a matched pair in compatible front-door, rear-deck, or other 6"x9" factory locations. The package includes grilles or trim rings, speaker wire, speed clips, and mounting screws for installation support. An external amplifier is optional, but if one is used, it should be selected and adjusted appropriately for the speakers' 65-watt RMS rating. Confirm cutout size, mounting depth, wiring polarity, and clearance for windows or other moving vehicle components before installation.

Key Features

• 3-Way Coaxial Design: Combines woofer, silk-dome tweeter, and piezo supertweeter.
• 65-Watt RMS Handling: Supports properly matched factory-radio or amplifier power.
• Polypropylene Woofer Cone: Provides a durable cone for full-range reproduction.
• Integrated High-Pass Crossover: Directs high frequencies to the tweeter section.
• 4-Ohm Impedance: Matches many common car-audio speaker circuits.
• Included Installation Accessories: Supplies grilles, wire, clips, and mounting screws.

Design & Installation

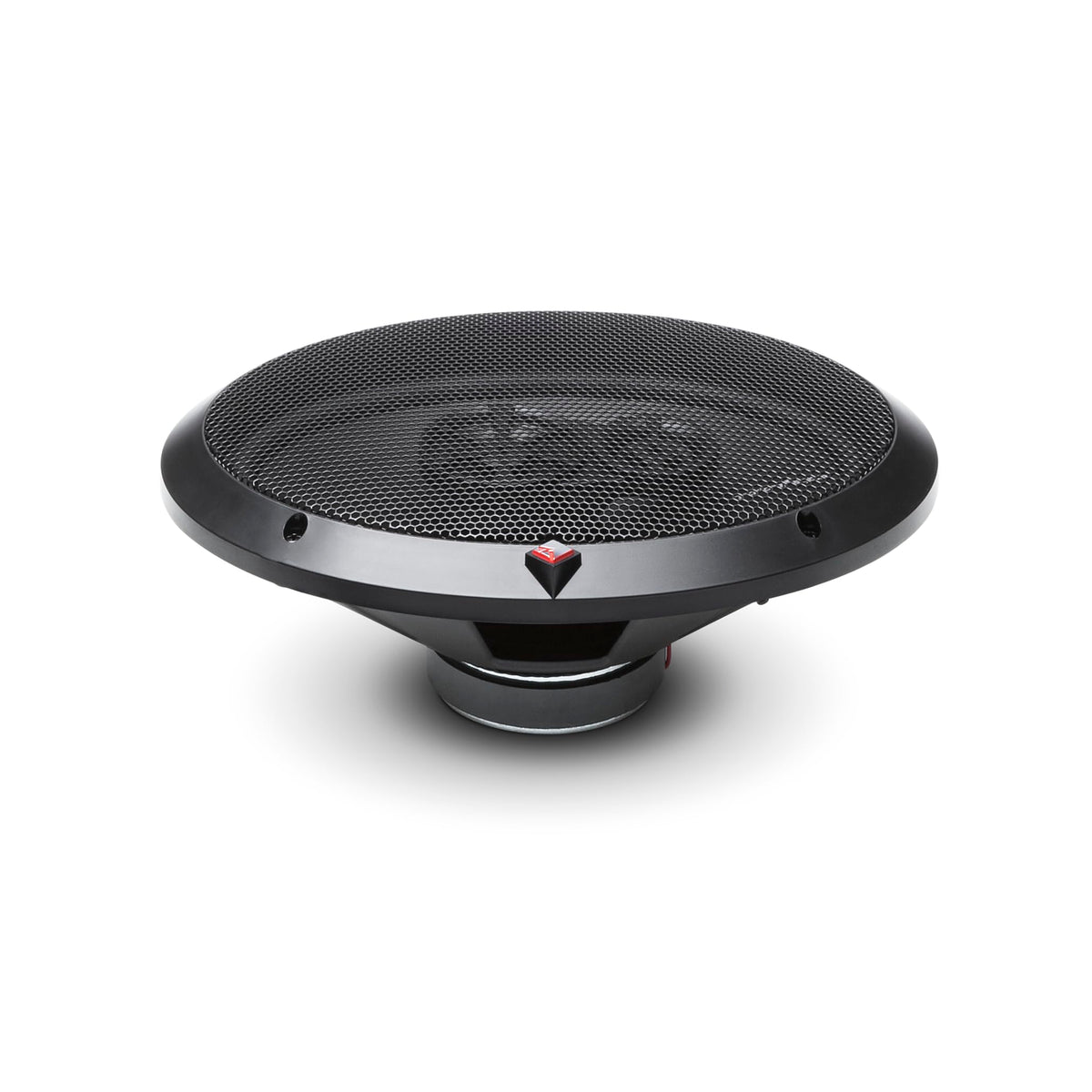

The R169X3 uses a vacuum polypropylene woofer cone, rubber surround, and stamped steel basket. A 1/2-inch silk-dome tweeter and piezo supertweeter are pole-mounted above the woofer. Grilles or trim rings are included for installations where the speakers are visible. The speaker has a 1.0-inch voice coil and a 4-ohm nominal impedance.

Allow for a 5.93"x8.59" mounting cutout and 2.85 inches of mounting depth. Check that the speaker clears window tracks, locks, and other moving parts when installing in a door. Observe the marked positive terminal for correct polarity, use the included mounting hardware as appropriate, and confirm whether your vehicle requires separate vehicle-specific mounting brackets or wiring adapters.
