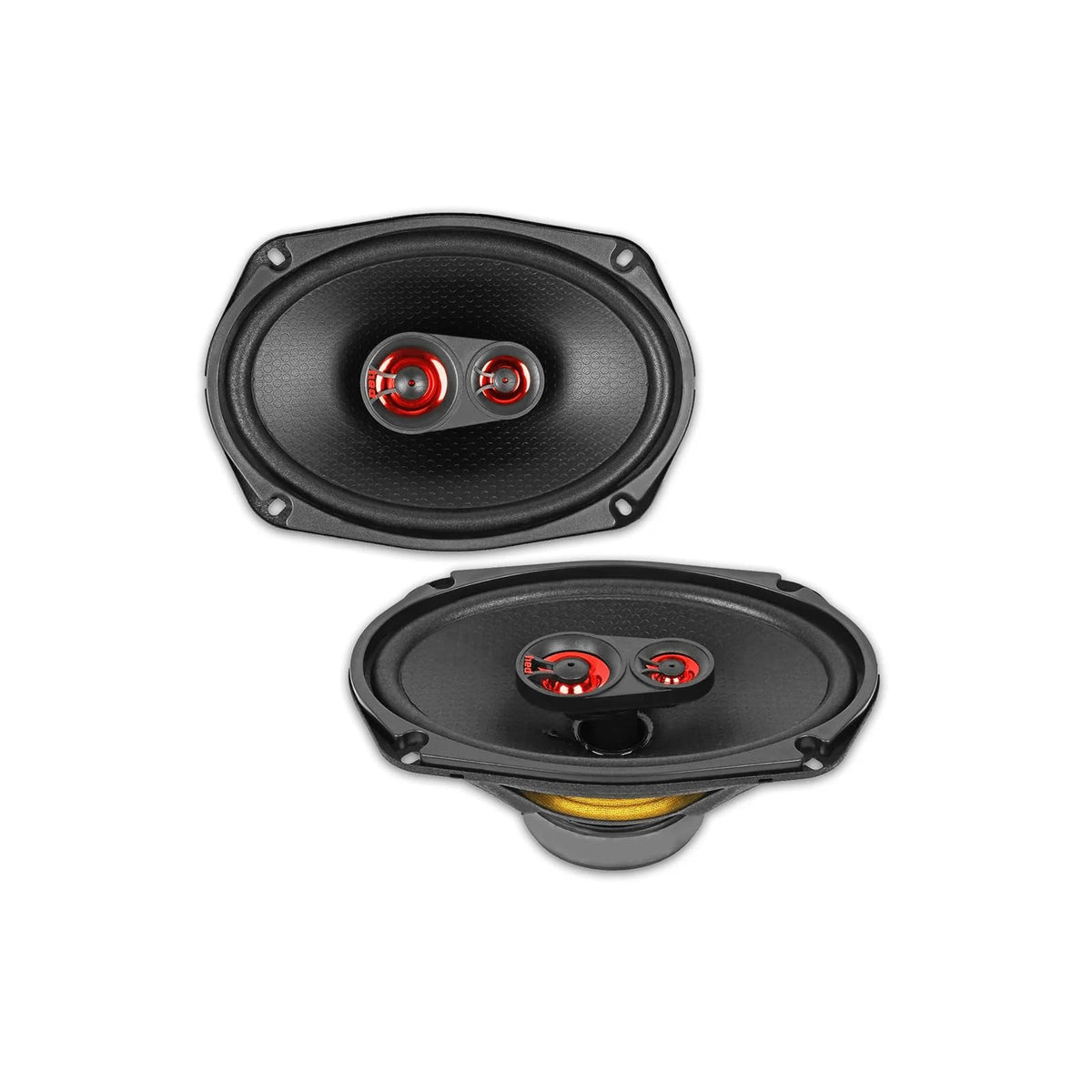

Cerwin-Vega H693 6x9-Inch 3-Way Coaxial Speakers

The Cerwin-Vega H693 is a pair of 6x9-inch, 3-way coaxial car speakers for replacing factory door, rear-deck, or hatch-area speakers where this size is supported. Each speaker combines its woofer, midrange, and tweeter in a single assembly to simplify a full-range upgrade. It is designed for vehicle audio systems using 4-ohm speakers.

This speaker set is suited to listeners who want a more complete frequency presentation from a conventional 6x9-inch location without installing separate component drivers. The 6x9-inch woofer handles the main bass and midrange range, while the dedicated 2.5-inch midrange and 1-inch tweeter support higher-frequency detail. Its published response range is 90 Hz to 20 kHz.

A polypropylene woofer cone and UV-treated foam surround form the primary moving assembly. This combination is intended to provide controlled cone movement while supporting long-term use in an automotive environment. The woofer uses a ferrite magnet motor structure.

The H693 uses a dynamically balanced 1-inch PEI tweeter to reproduce treble information. An integrated crossover directs frequencies among the speaker elements, and built-in tweeter protection is included. Together, these features keep the installation self-contained rather than requiring a separate external crossover.

With 60 watts RMS and 150 watts maximum power handling, the H693 can be used with a compatible factory radio or a properly configured external amplifier. It is sold as a pair for left/right stereo installation. Verify vehicle fitment, mounting clearance, and wiring connections before installation.

Key Features

• 3-Way Coaxial Layout: Combines woofer, midrange, and tweeter in each speaker.
• 6x9-Inch Woofer: Fits applications designed for the common oval speaker size.
• 2.5-Inch Midrange: Adds dedicated coverage for vocal and instrument frequencies.
• 1-Inch PEI Tweeter: Reproduces upper-frequency detail within the coaxial assembly.
• Polypropylene Cone: Provides the woofer’s primary sound-producing surface.
• Integrated Crossover: Directs frequencies internally and includes tweeter protection.

Design & Installation

The H693 uses a responsive polypropylene cone, UV-treated foam surround, ferrite woofer magnet, and powder-coated rigid stamped-steel basket. The coaxial driver assembly places the 2.5-inch midrange and 1-inch PEI tweeter within the 6x9-inch speaker format. This construction is intended for an all-in-one full-range car-speaker installation.

Check that the intended location accepts a 6x9-inch speaker and confirm the published 90 mm (3.54-inch) mounting-depth requirement before purchase. The manufacturer lists overall and cutout dimensions of 236 x 162.5 mm (9.29 x 6.40 inches), so vehicle-specific adapters, brackets, harnesses, or hardware may be needed depending on the application. Connect each speaker with correct polarity and use an amplifier or radio that supports a 4-ohm load.
