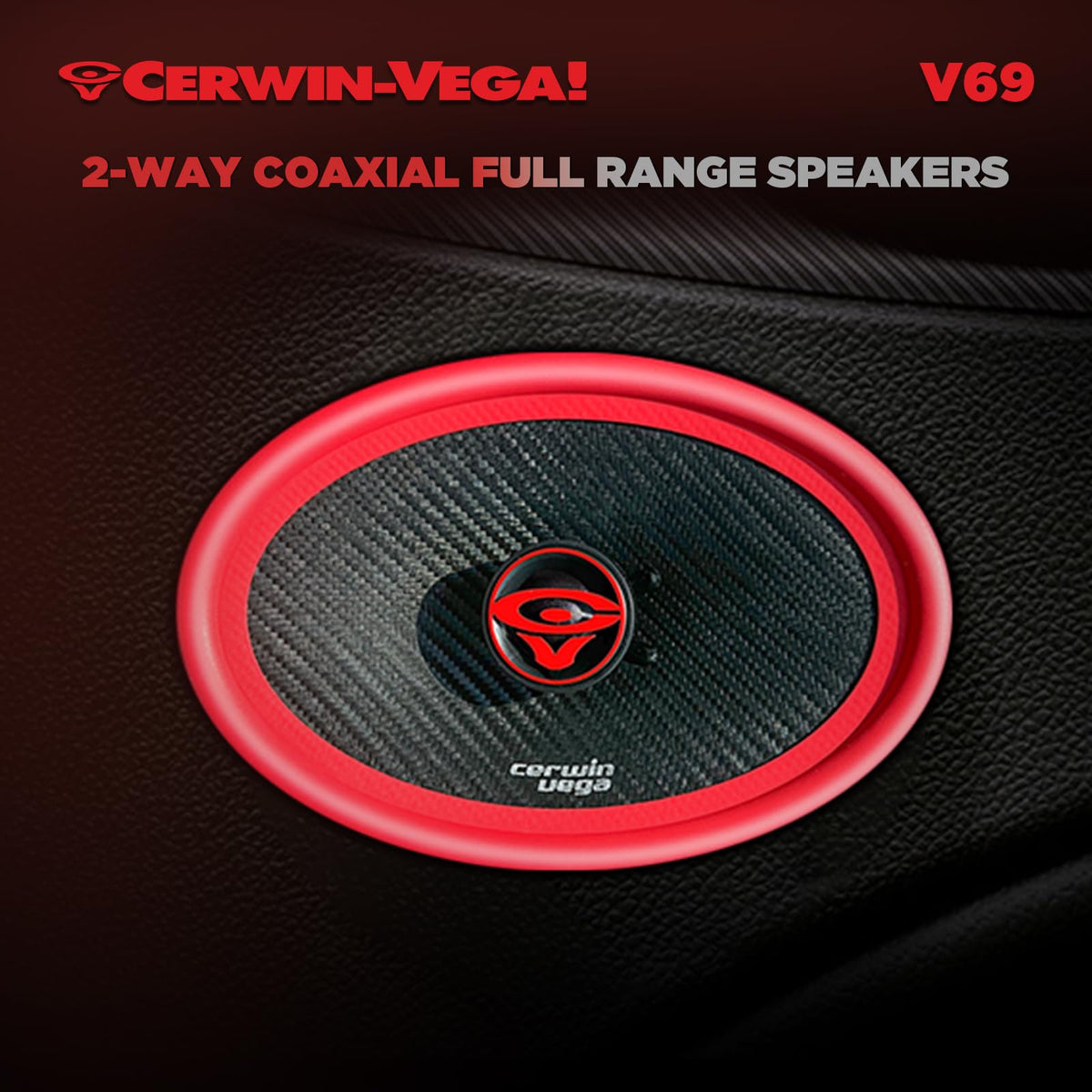

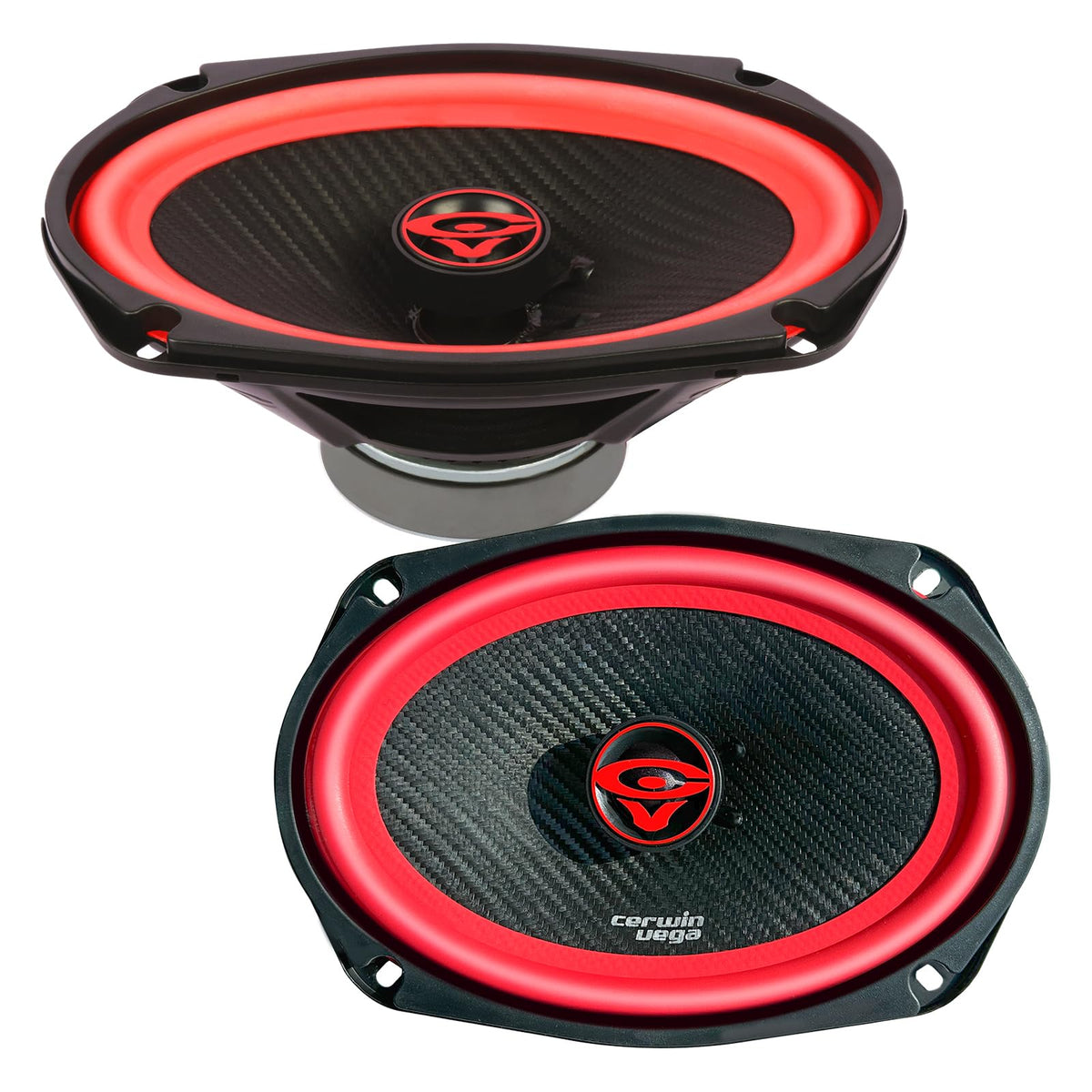

Cerwin-Vega V69 6 x 9-Inch 2-Way Coaxial Speakers

The Cerwin-Vega V69 is a pair of 6 x 9-inch, 2-way coaxial full-range car speakers for replacing or upgrading compatible factory speaker locations. Each set combines a woofer and centrally mounted tweeter in one assembly, helping simplify a vehicle speaker upgrade. With a 4-ohm nominal impedance, these speakers are intended for standard car-audio speaker connections.

The V69 is suited to listeners who want a larger oval speaker format with dedicated high-frequency reproduction built into the speaker. Its 140-watt RMS and 420-watt maximum power-handling ratings provide useful information for matching an amplifier or receiver. The published 90 Hz to 20 kHz frequency response covers bass, midrange, and treble duties within a full-range speaker system.

A hybrid carbon fiber/polypropylene cone forms the woofer diaphragm, while a Santoprene rubber surround supports cone movement. This material combination is paired with a strontium ferrite woofer magnet. The result is a purpose-built coaxial design for everyday vehicle listening and speaker-system upgrades.

High frequencies are handled by a dynamically balanced silk dome tweeter with a neodymium magnet. An integrated crossover directs the appropriate frequency range to the woofer and tweeter. The crossover also incorporates tweeter protection as part of the speaker assembly.

The V69 can be used as a replacement pair where vehicle mounting space and opening dimensions are compatible. Its 3.20-inch mounting depth and 8.68 x 5.93-inch cutout requirement should be checked before purchase. Mesh steel grilles and speaker fitment adapters are included to support installation options.

Key Features

• 6 x 9-Inch Coaxial Design: Combines woofer and tweeter functions in each speaker.
• 140W RMS Power Handling: Supports power matching with compatible car-audio amplification.
• Hybrid Carbon Fiber/Polypropylene Cone: Forms the woofer diaphragm for sound reproduction.
• Silk Dome Tweeter: Handles high-frequency output within the 2-way design.
• Integrated Tweeter Protection: Helps protect the tweeter through the built-in crossover.
• Included Grilles And Adapters: Adds protection and fitment flexibility during installation.

Design & Installation

The V69 uses a hybrid carbon fiber/polypropylene cone, Santoprene rubber surround, silk dome tweeter, and rigid stamped steel basket. Its basket has a powder-coated finish, while the woofer uses a strontium ferrite magnet and the tweeter uses a neodymium magnet. Mesh steel grilles are included with the speaker pair.

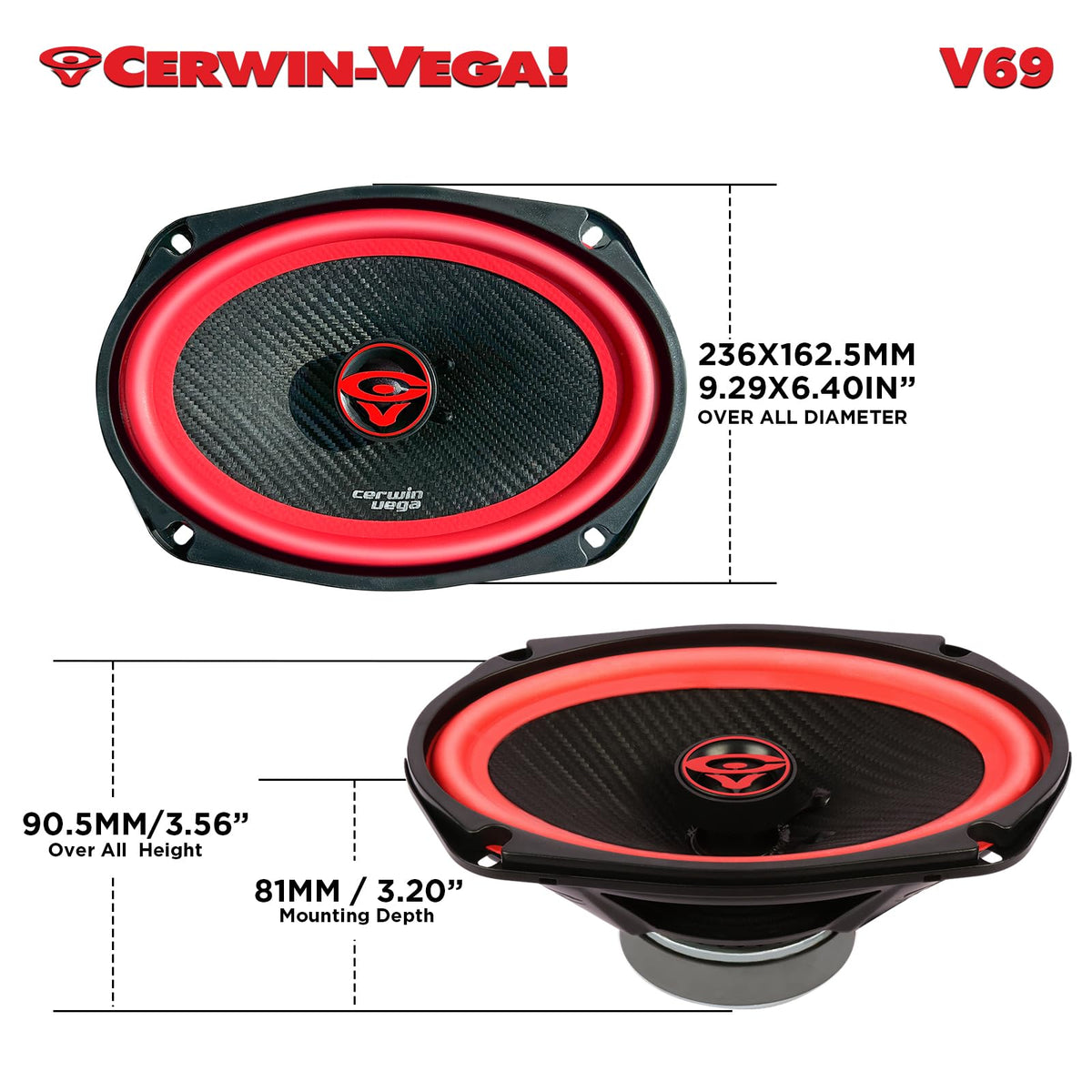

Confirm that the mounting location accepts a 6 x 9-inch speaker and allows the published 3.20-inch mounting depth before installation. The required cutout is 8.68 x 5.93 inches, and the overall speaker size is 9.29 x 6.40 inches. Connect the pair to a compatible 4-ohm car-audio source and observe correct speaker polarity during wiring.
