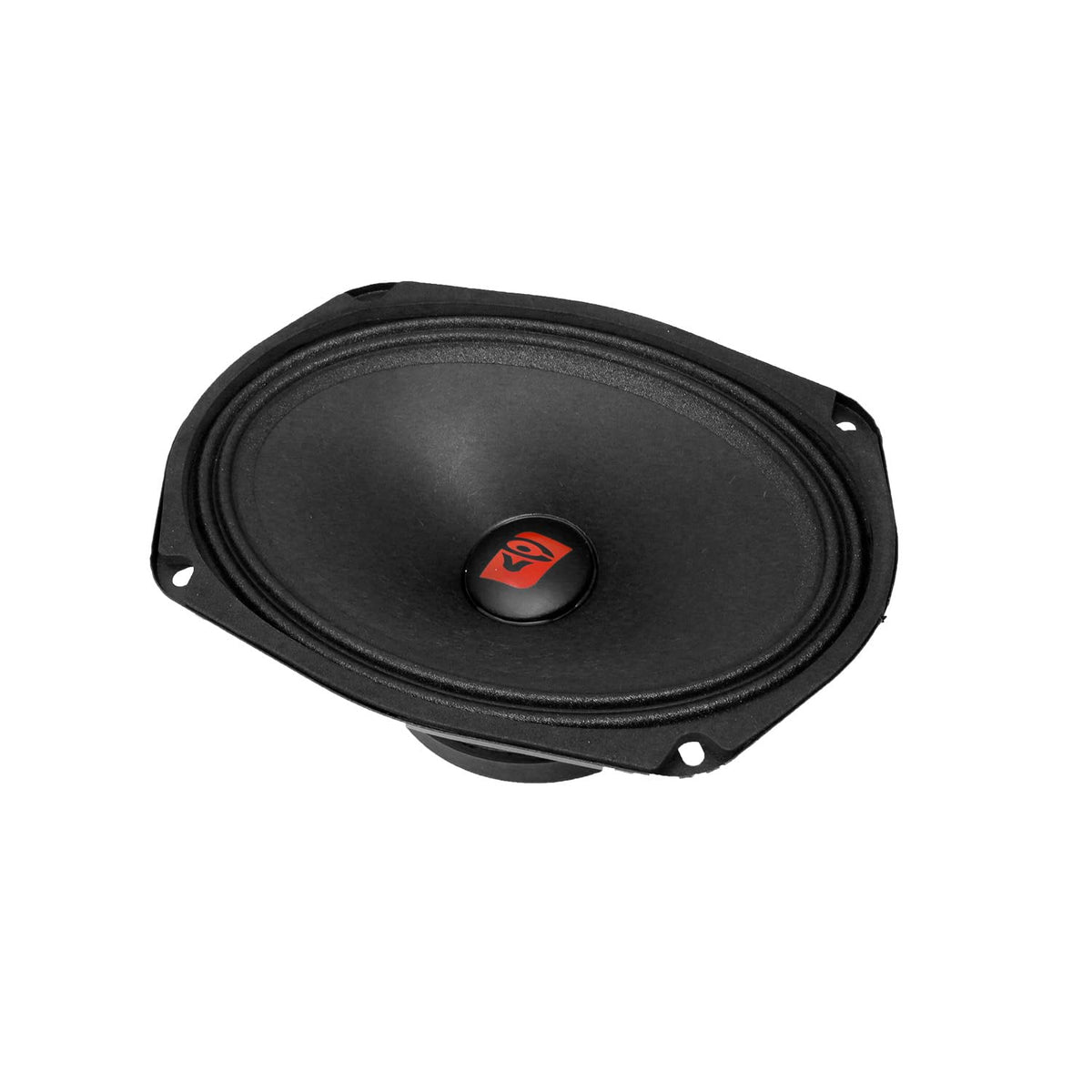

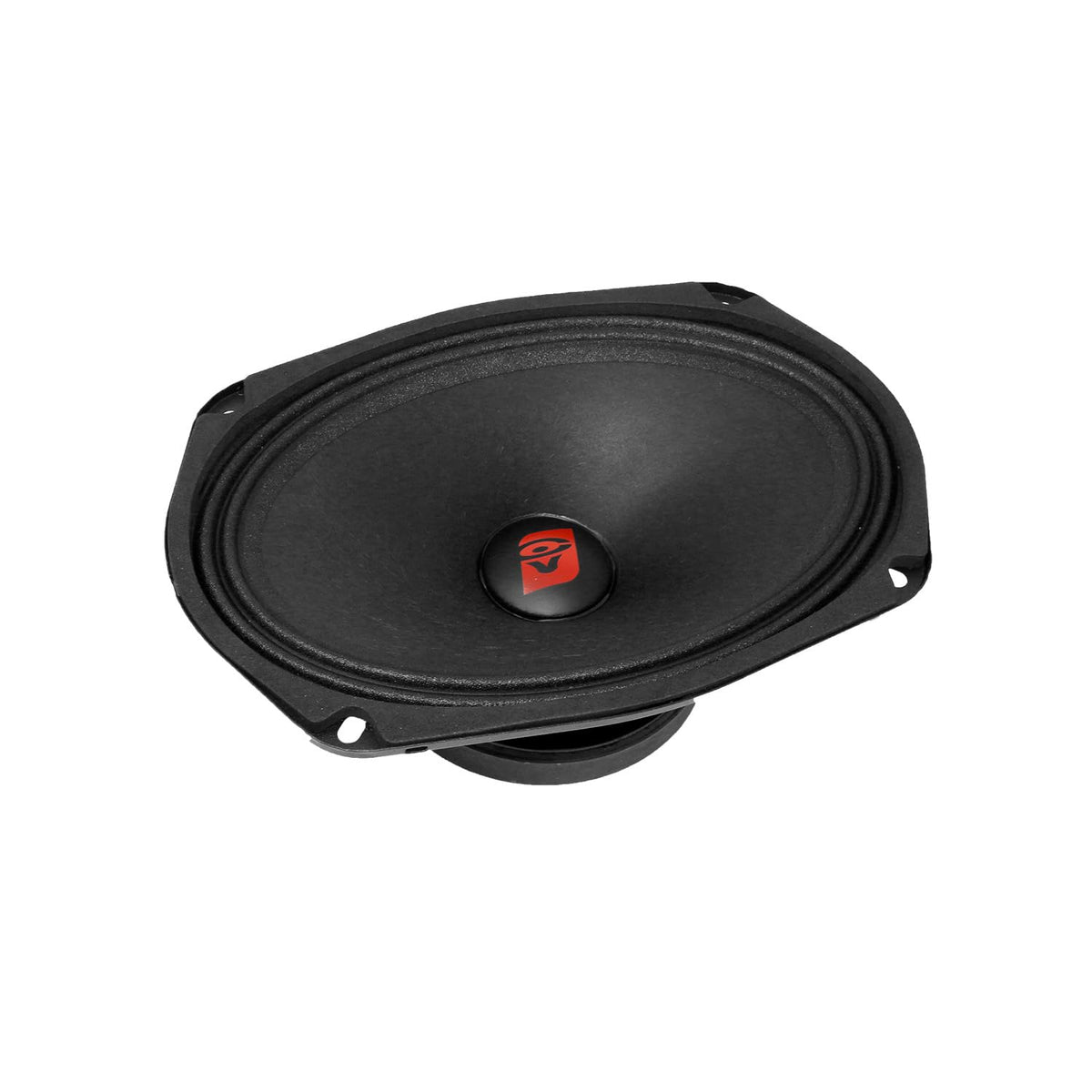

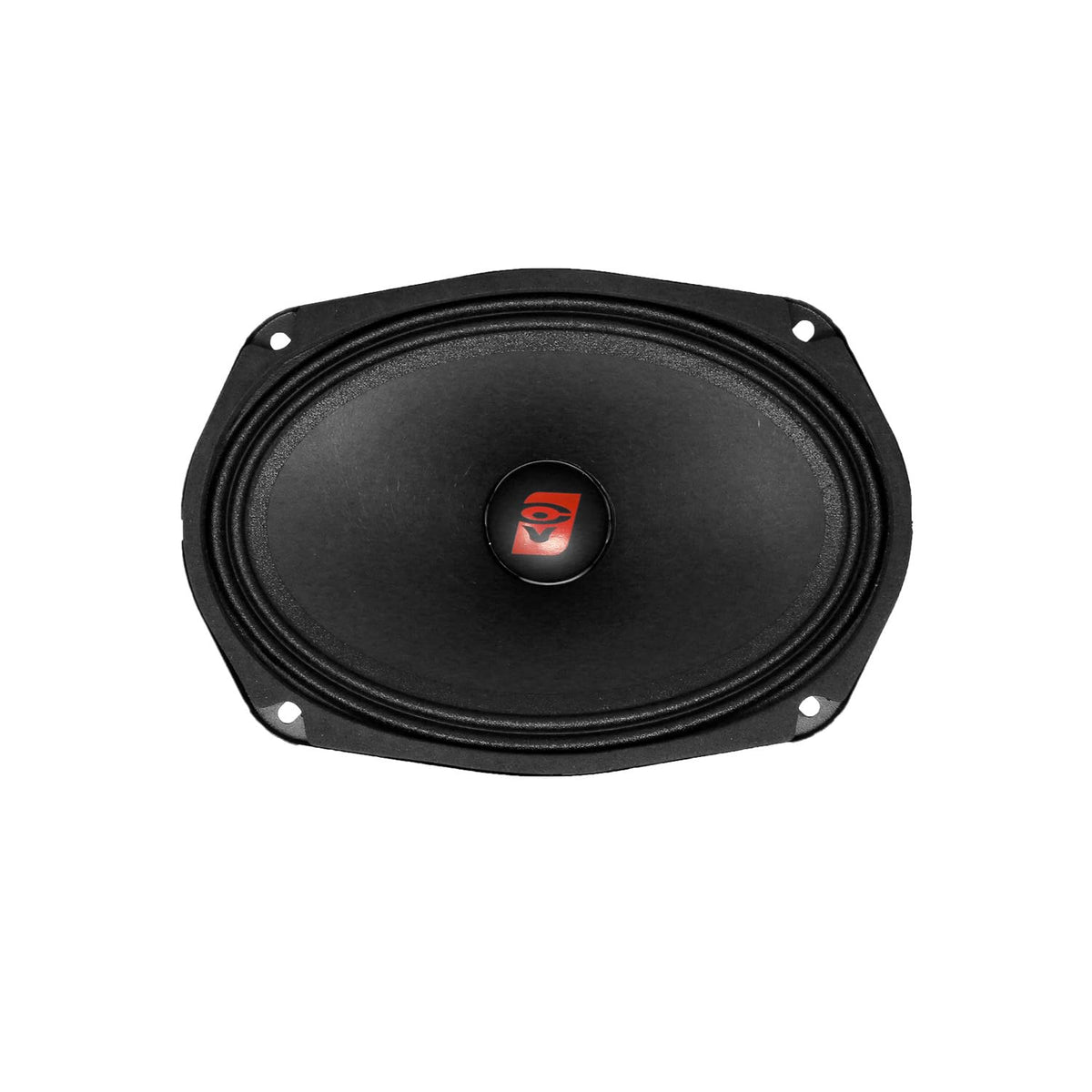

Cerwin-Vega CVP69 6x9" 4-Ohm Full-Range Speaker

The Cerwin-Vega CVP69 is a single 6x9-inch PRO Series full-range car speaker designed for vehicle audio systems that need higher output capability than typical factory speakers. Its 4-ohm impedance makes it suitable for common car-audio amplifier channels and compatible system designs. It is intended for custom installations in cars, trucks, SUVs, vans, motorcycles, and other vehicle-based audio applications.

With a 150-watt RMS and 300-watt maximum power rating, the CVP69 is built for systems that prioritize strong output and controlled midrange presence. Its 94 dB sensitivity rating helps it produce substantial output from available amplifier power. The published 50 Hz to 20 kHz frequency-response range supports broad-band reproduction from a single pro-style driver.

The CVP69 uses a treated paper cone and treated cloth surround to provide a durable moving assembly for high-output use. A 1.5-inch high-temperature, single-layer voice coil supports its stated power handling. Its ferrite motor uses a high-density, high B/L design intended to maintain driver control under demanding playback conditions.

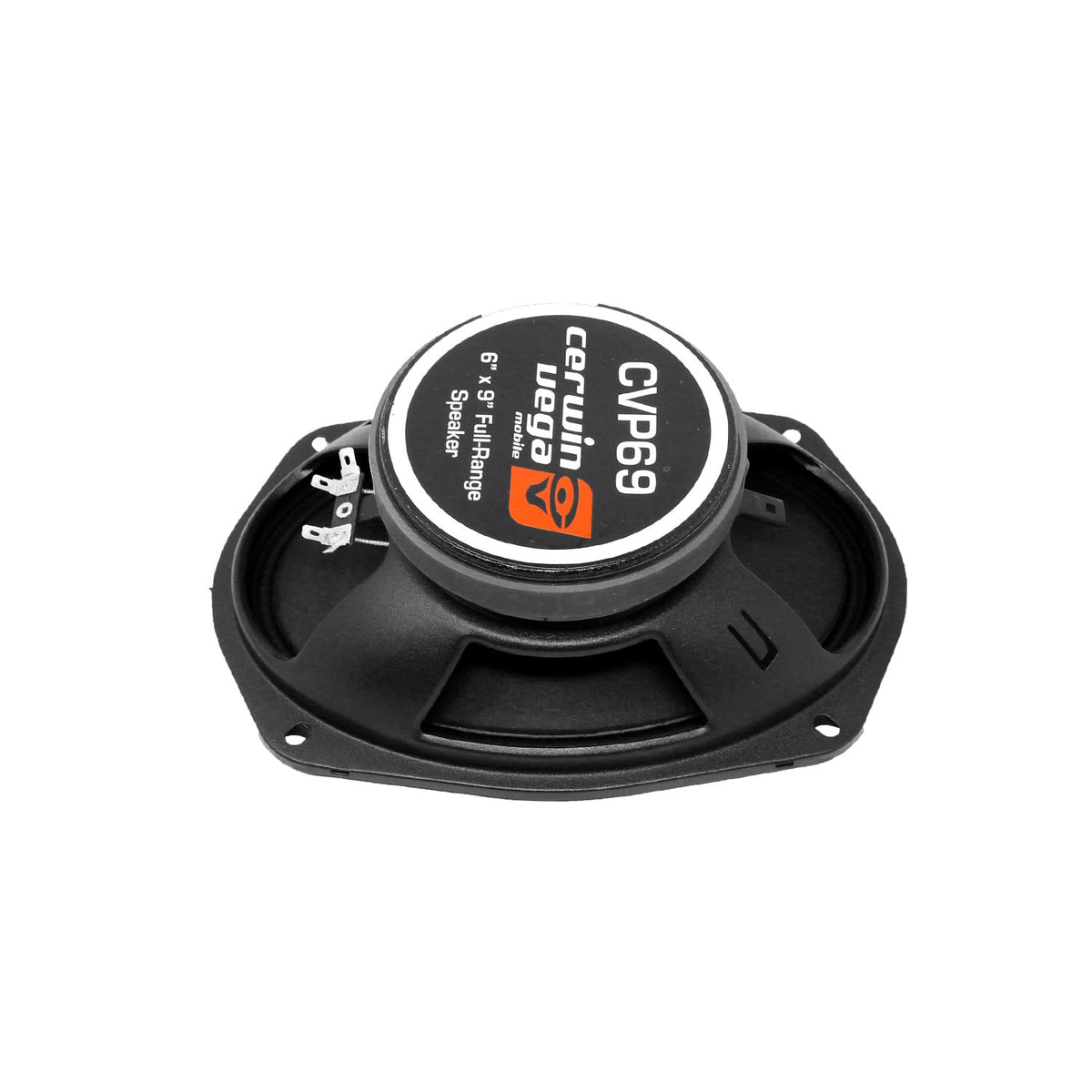

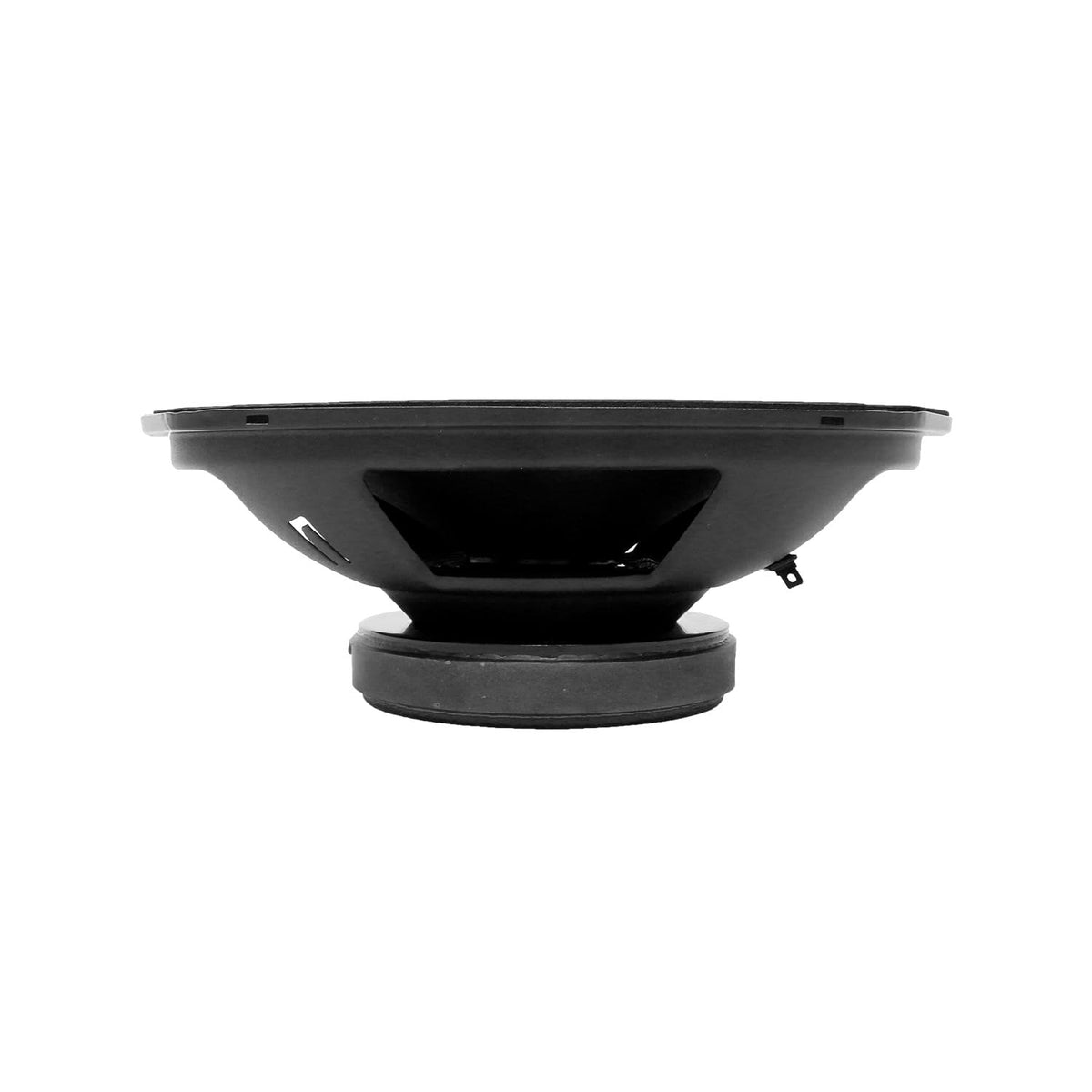

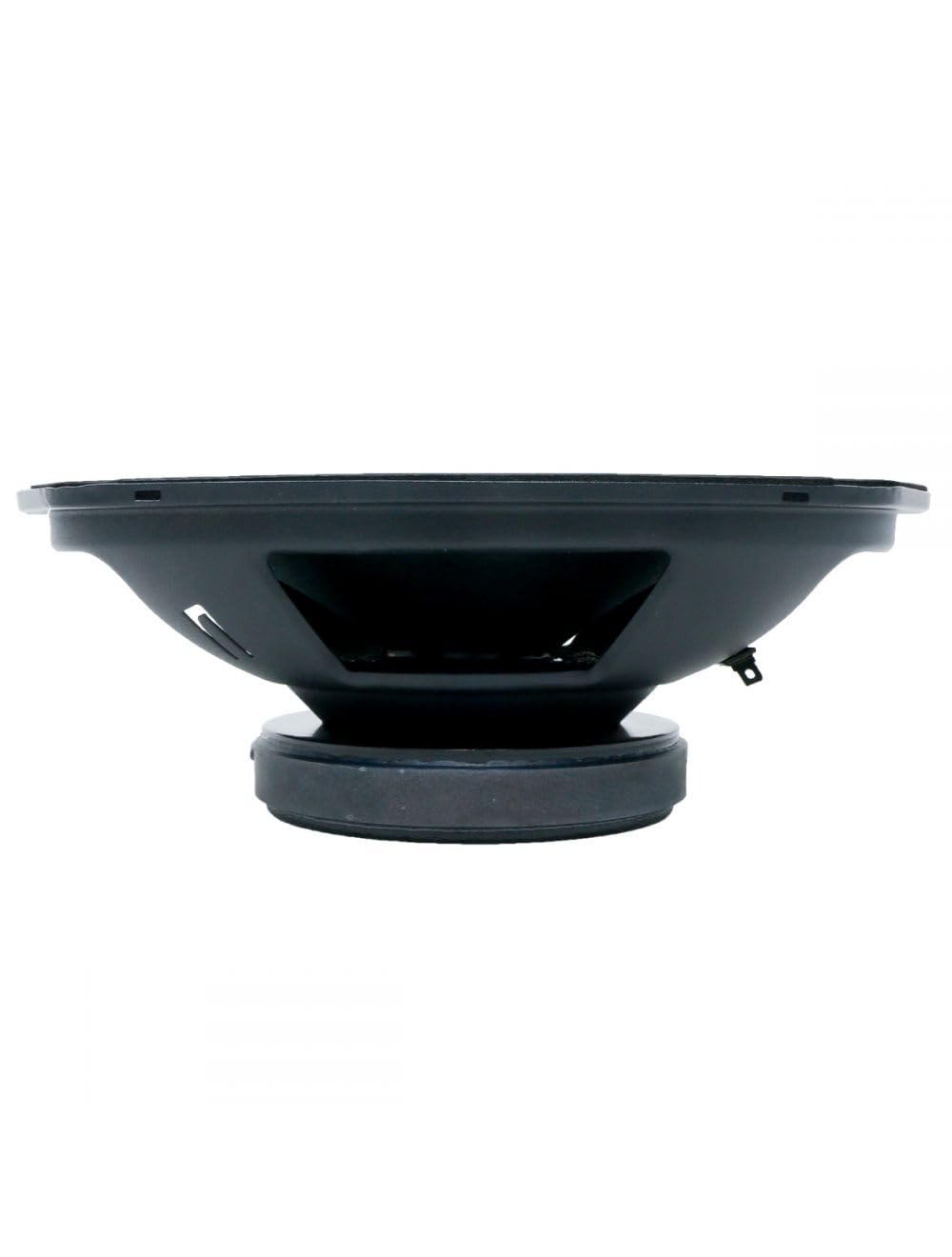

A heavy-duty stamped-steel basket provides a rigid mounting platform for the speaker assembly. The driver has a 20-ounce ferrite magnet structure and a 4.53-inch magnet diameter. This construction makes it a practical choice for installations where a pro-driver format and physical durability are priorities.

The CVP69 is sold individually, allowing installers to build a matched pair or larger multi-speaker layout as needed. It can be used as part of a high-output system with compatible amplification and optional dedicated tweeters or subwoofers. Verify the vehicle's mounting opening, mounting depth, wiring, and available power before installation.

Key Features

• 150W RMS Power Handling: Supports amplifier-powered systems designed around substantial continuous output.
• 6x9-Inch PRO Driver: Fits applications designed for an oval 6x9-inch speaker format.
• 4-Ohm Impedance: Matches many conventional car-audio amplifier channels.
• 94 dB Sensitivity: Helps produce strong output from available amplifier power.
• Treated Paper Cone: Provides a lightweight cone material for responsive sound reproduction.
• Stamped-Steel Basket: Provides a durable structural base for secure mounting.

Design & Installation

The CVP69 combines a treated paper cone, treated cloth surround, ferrite magnet, high-temperature voice coil, and stamped-steel basket. Its pro-driver construction is focused on output capability and mechanical durability. The speaker uses a single 4-ohm voice coil and does not include a grille.

Allow for an 8.74 x 5.98-inch mounting cutout and 3.07 inches of mounting depth behind the mounting surface. Confirm that the vehicle panel has sufficient clearance for the 9.29 x 6.46-inch overall frame and 3.17-inch total depth. For best results, use secure mounting hardware, correct-polarity speaker wiring, and an amplifier channel matched appropriately to the speaker's 4-ohm load and 150-watt RMS rating.
