Rockford Fosgate T1650-S 6.5" Component Speaker System

The Rockford Fosgate T1650-S is a 6.5-inch, 2-way component speaker system designed for a front-stage car audio upgrade. Unlike a coaxial speaker, it separates the woofer and tweeter so each driver can be mounted where it performs most effectively. This helps replace limited factory sound with clearer detail and more controlled midrange reproduction.

This set is intended for listeners who want a component system with separate tweeters, external crossover networks, and practical vehicle-fitment flexibility. Each side is rated for 80 watts RMS at 4 ohms, making it appropriate for a properly matched aftermarket amplifier or a conservative factory-radio installation. The separate crossover networks direct the appropriate frequencies to the woofer and tweeter.

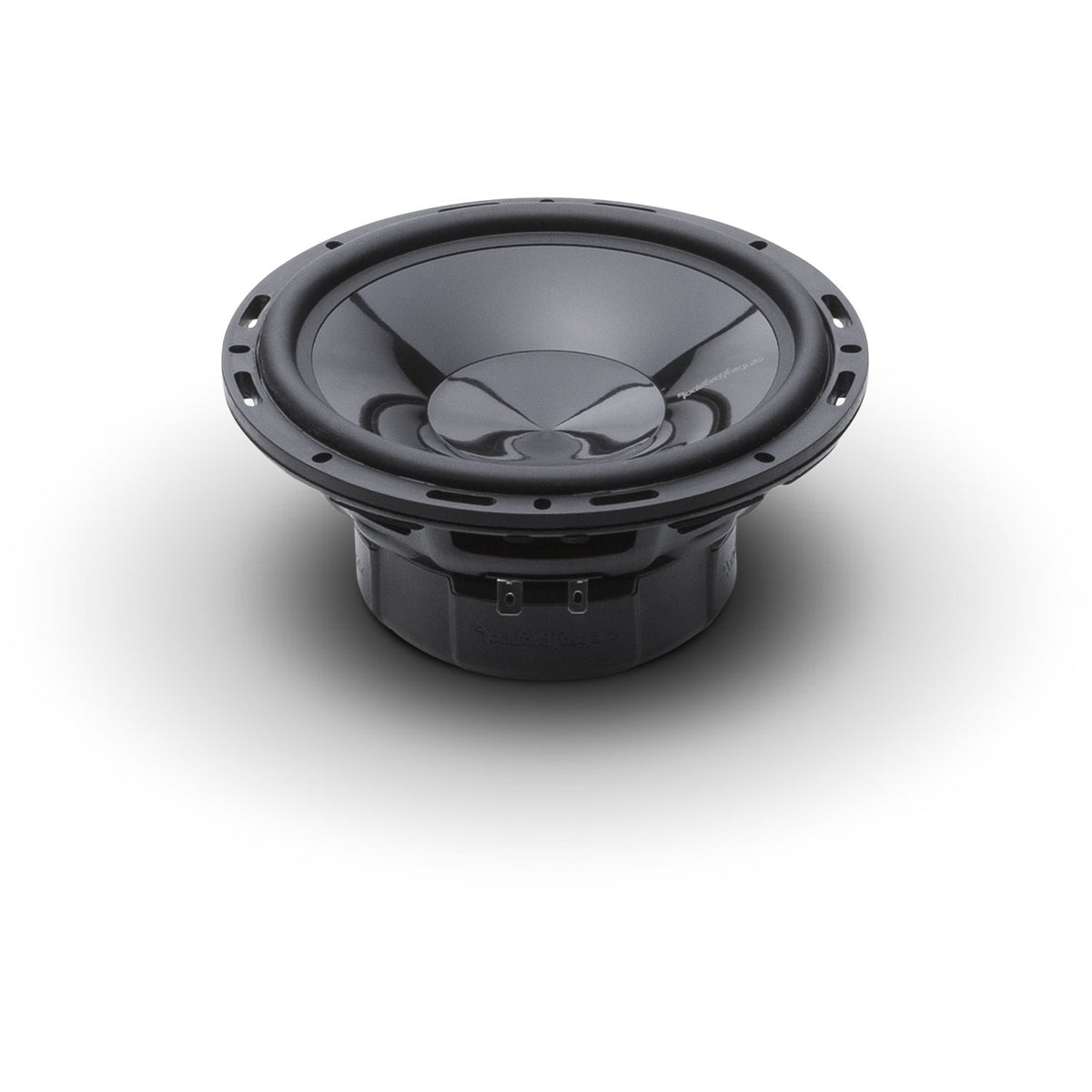

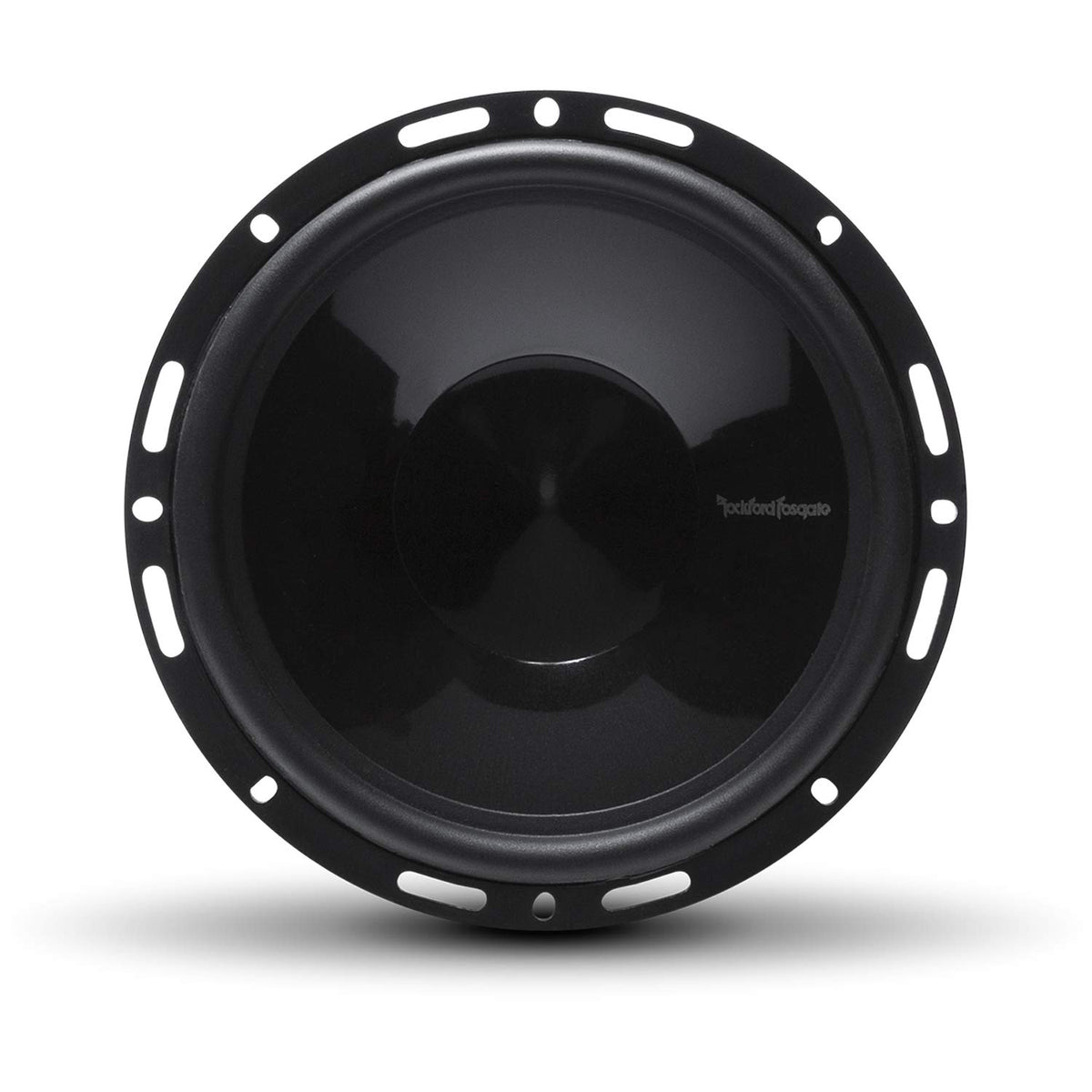

The 6.5-inch woofers use carbon-fiber-reinforced polypropylene cones, Santoprene rubber surrounds, and 1.2-inch high-temperature aluminum voice coils. Their 47 Hz to 20 kHz frequency-response rating covers the midbass and midrange range needed for door-speaker installations. A treated fabric-dome tweeter handles high frequencies with a separate mounting location.

Rockford Fosgate incorporates VAST technology to increase effective cone area and uses a FlexFit 2 basket intended to support mounting adjustments. The system also uses external asymmetric crossovers with 18 dB-per-octave high-pass and 12 dB-per-octave low-pass sections. Tweeter-level, tweeter-axis, and bi-amp settings provide setup flexibility when placement varies by vehicle.

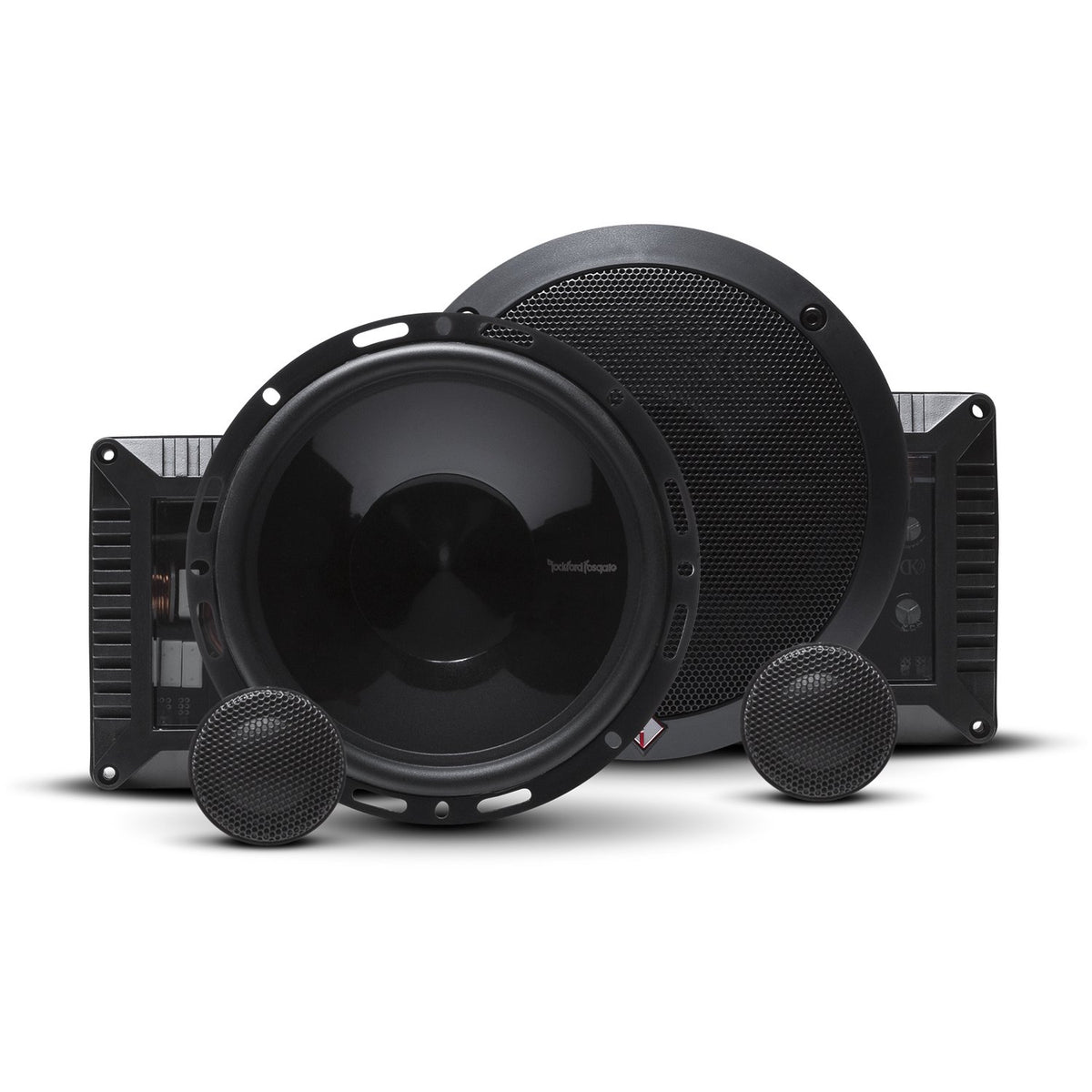

The T1650-S works well as a front-door and dash, sail-panel, or A-pillar component upgrade where separate tweeter placement is possible. It includes the major speaker-system pieces needed for installation, including woofers, tweeters, crossover networks, grilles, and mounting hardware. Confirm vehicle-specific cutout, depth, panel clearance, and wiring needs before installation.

Key Features

• 2-Way Component Design: Separates woofer and tweeter placement for a more tailored front-stage installation.
• 80W RMS Per Side: Supports amplifier matching up to 80 watts RMS at 4 ohms.
• Carbon-Fiber Reinforced Cone: Provides a rigid woofer diaphragm for midrange and midbass reproduction.
• Treated Fabric-Dome Tweeters: Handle high-frequency playback through dedicated external crossovers.
• External Crossover Networks: Use 18 dB high-pass and 12 dB low-pass slopes.
• FlexFit 2 Basket: Provides mounting adjustment flexibility for compatible vehicle locations.

Design & Installation

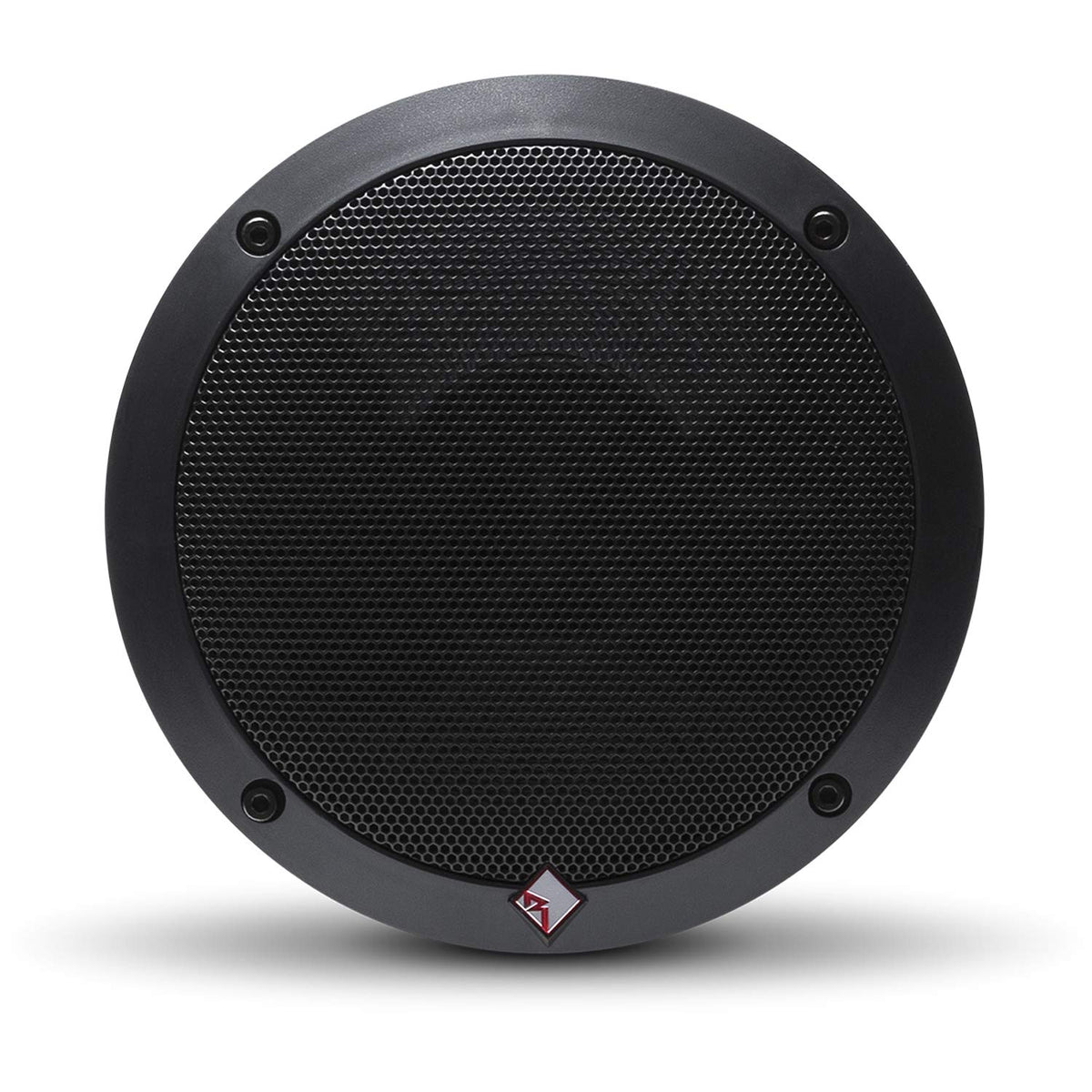

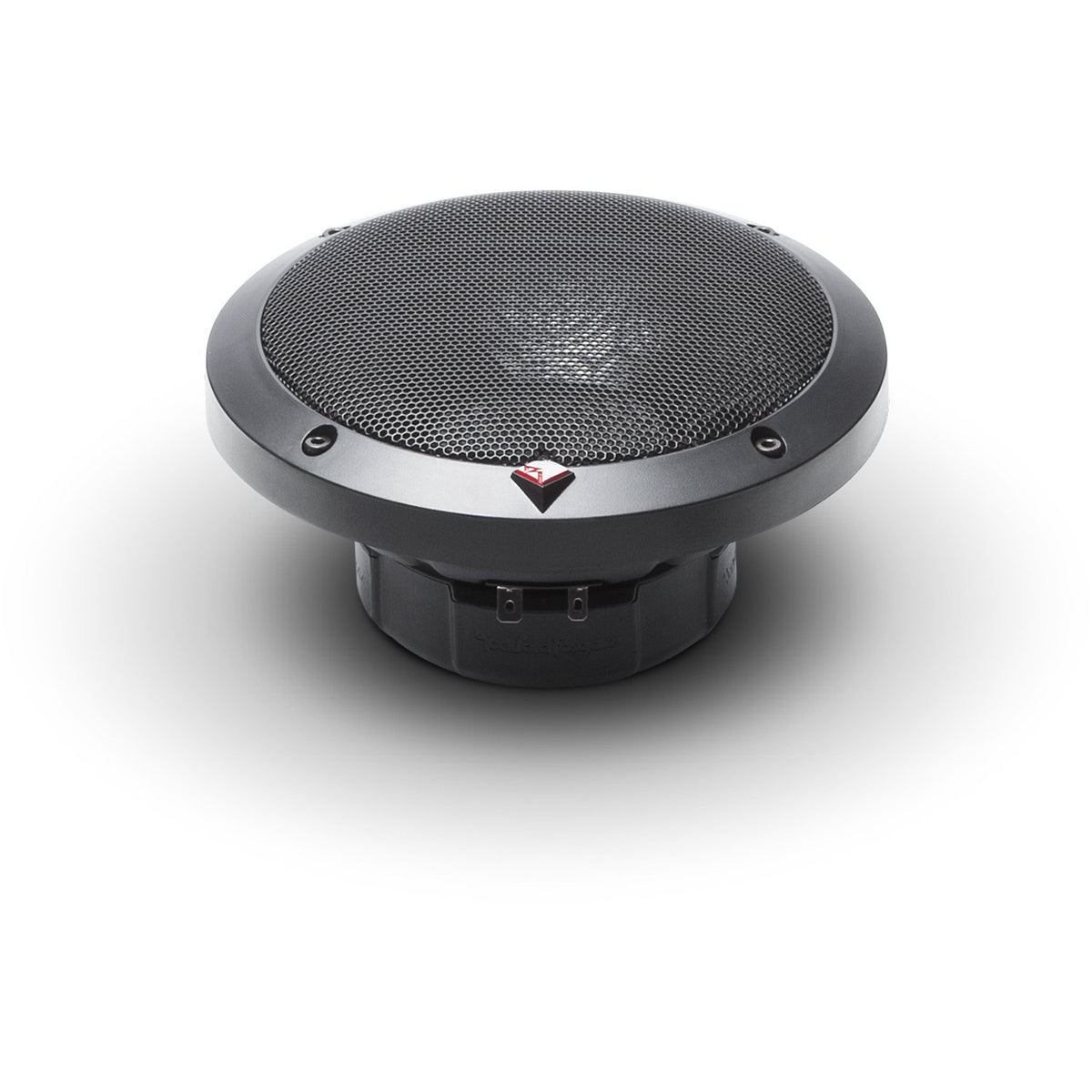

The T1650-S combines carbon-fiber-reinforced polypropylene woofer cones, Santoprene rubber surrounds, high-temperature aluminum voice coils, and treated fabric-dome tweeters. Its woofer design also incorporates VAST technology, while the FlexFit 2 basket is designed for mounting flexibility. Protective woofer grilles are included.

Install each woofer in a location that accepts its 5.51-inch mounting diameter and 2.52-inch mounting depth, allowing additional clearance for window mechanisms and door structure. Mount the tweeters using the supplied flush, surface, or angle-mount hardware as appropriate, then wire each woofer and tweeter through its included passive crossover. Use the crossover's selectable tweeter-level, axis, and bi-amp provisions only according to the system wiring plan and installation manual.
