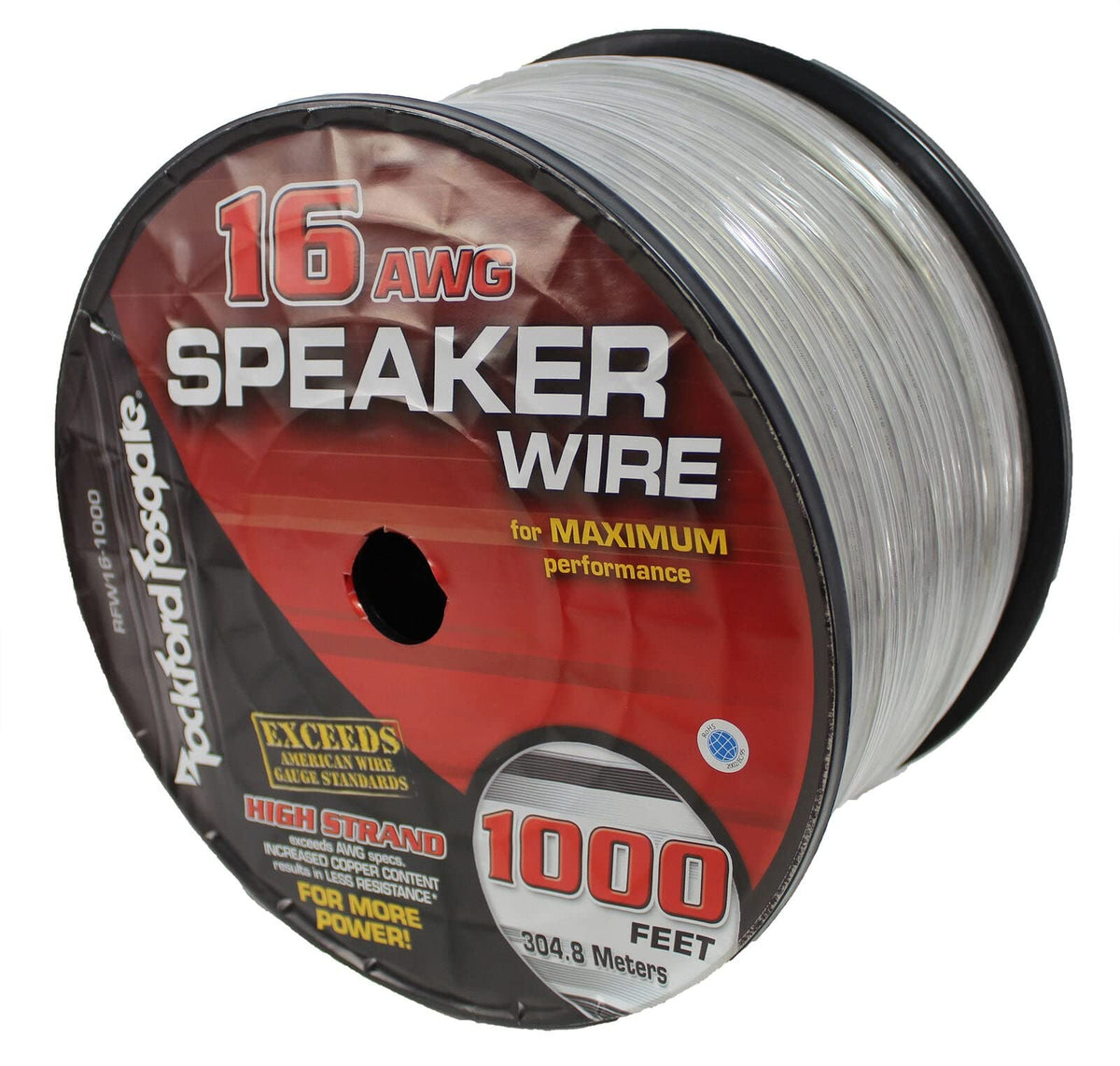

Rockford Fosgate RFW16-1000 16 AWG Speaker Wire

The Rockford Fosgate RFW16-1000 is a 1,000-foot bulk spool of 16 AWG speaker wire for vehicle audio installations. It provides two insulated conductors for running signal from an amplifier or head unit to speakers. The large spool format is suited to installers, fabrication shops, and multi-speaker projects that require substantial cable length.

This cable uses pure crystal oxygen-free copper (PC-OFC) conductors in a true-spec 16 AWG design. Its 65-strand construction is intended to combine consistent conductor sizing with useful routing flexibility. The black and silver conductor colors help distinguish polarity during installation.

A frosted outer jacket supports flexible handling when routing wire through vehicle panels, doors, dash areas, and amplifier locations. The cable is not a twisted-pair design, making it a straightforward two-conductor speaker-wire solution. It is intended for speaker connections and may also be used for low-power subwoofer applications.

Rockford Fosgate rates the RFW16-1000 as meeting or exceeding American Wire Gauge requirements. It also conforms to the CEA-2015 cable standard and carries BC-5W2 compliance. These specifications make it appropriate for automotive audio wiring as well as boats and non-commercial marine vessels.

The RFW16-1000 fits naturally into a system build where speakers, crossovers, and amplifiers need long cable runs from a central equipment location. Its bulk-spool configuration allows installers to cut individual runs to the needed length rather than joining short pre-cut cables. Terminals, heat shrink, loom, and other finishing accessories are selected separately for the installation.

Key Features

• 1,000-Foot Bulk Spool: Provides substantial cable length for large installations and repeated projects.
• True-Spec 16 AWG: Meets or exceeds stated American Wire Gauge requirements.
• PC-OFC Conductors: Uses pure crystal oxygen-free copper conductor material.
• 65-Strand Construction: Supports flexible routing compared with solid-conductor wire.
• Frosted Flexible Jacket: Helps make the cable easier to route through vehicle interiors.
• BC-5W2 Compliance: Suitable for boats and non-commercial marine vessels.

Design & Installation

The RFW16-1000 is a two-conductor, insulated multi-strand copper speaker cable with a frosted black and silver jacket. Its 16 AWG conductors use PC-OFC material and a 65-strand construction. The contrasting conductor colors provide a practical visual reference when maintaining speaker polarity.

Measure each speaker run before cutting wire from the spool, leaving adequate length for service loops and clean routing. Keep the wire protected from sharp metal edges, moving parts, and heat sources, using grommets or protective loom where needed. Strip the ends carefully and terminate the cable with connectors or direct connections that match the equipment being installed.
