Pioneer DMH-2000NEX 6.8" Double DIN Digital Media Receiver

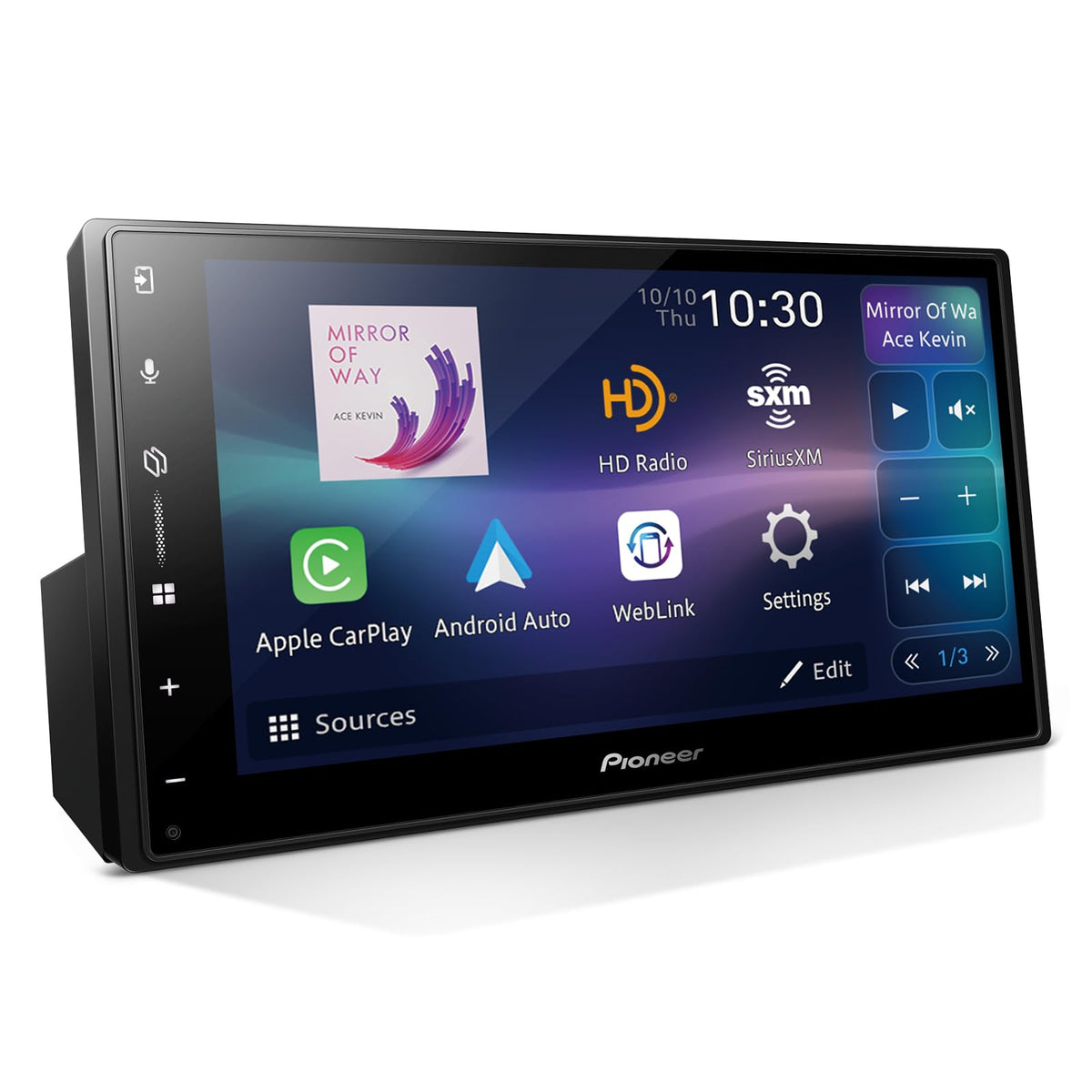

The Pioneer DMH-2000NEX is a double-DIN digital media receiver designed to bring current smartphone connectivity and touchscreen control to compatible vehicles. Its 6.8-inch capacitive WVGA display provides a central interface for music, calls, navigation apps, radio, and supported media. It is a practical upgrade for drivers replacing a factory radio or older aftermarket receiver without adding a CD or DVD player.

Wired Apple CarPlay and wired Android Auto place supported phone apps on the in-dash display while keeping familiar voice-control options available. Built-in Bluetooth supports hands-free calling and wireless audio streaming, while the rear USB connection handles phone integration and compatible media devices. The receiver also includes HD Radio and is SiriusXM-ready when paired with a compatible tuner sold separately.

For sound tailoring, the DMH-2000NEX uses a built-in MOSFET amplifier, 13-band graphic equalizer, selectable loudness, bass boost, listening-position adjustment, and time alignment. Its audio controls support both Standard Mode and Network Mode crossover configurations. Six-channel, 4-volt RCA preouts provide a clean path for adding external amplifiers and a subwoofer system.

The receiver uses an ARM Cortex-based system-on-chip with an N13 coprocessor and 1 GB of DDR2 internal memory for its touchscreen interface and media functions. QuickSwipe access buttons and configurable shortcut keys are intended to reduce menu steps for common actions. The fixed-face design combines a capacitive touchscreen with a compact L-shaped chassis for dashboard integration.

The DMH-2000NEX can serve as the command center of a staged audio or convenience upgrade. A dedicated rear-camera input supports the addition of a compatible backup camera and parking assist lines, while iDatalink Maestro compatibility can support retained vehicle features in compatible applications. Vehicle-specific mounting hardware, wiring adapters, steering-wheel-control interfaces, cameras, amplifiers, and satellite-radio hardware may be required separately depending on the installation.

Key Features

• Wired Smartphone Integration: Supports wired Apple CarPlay and wired Android Auto through the rear USB connection.

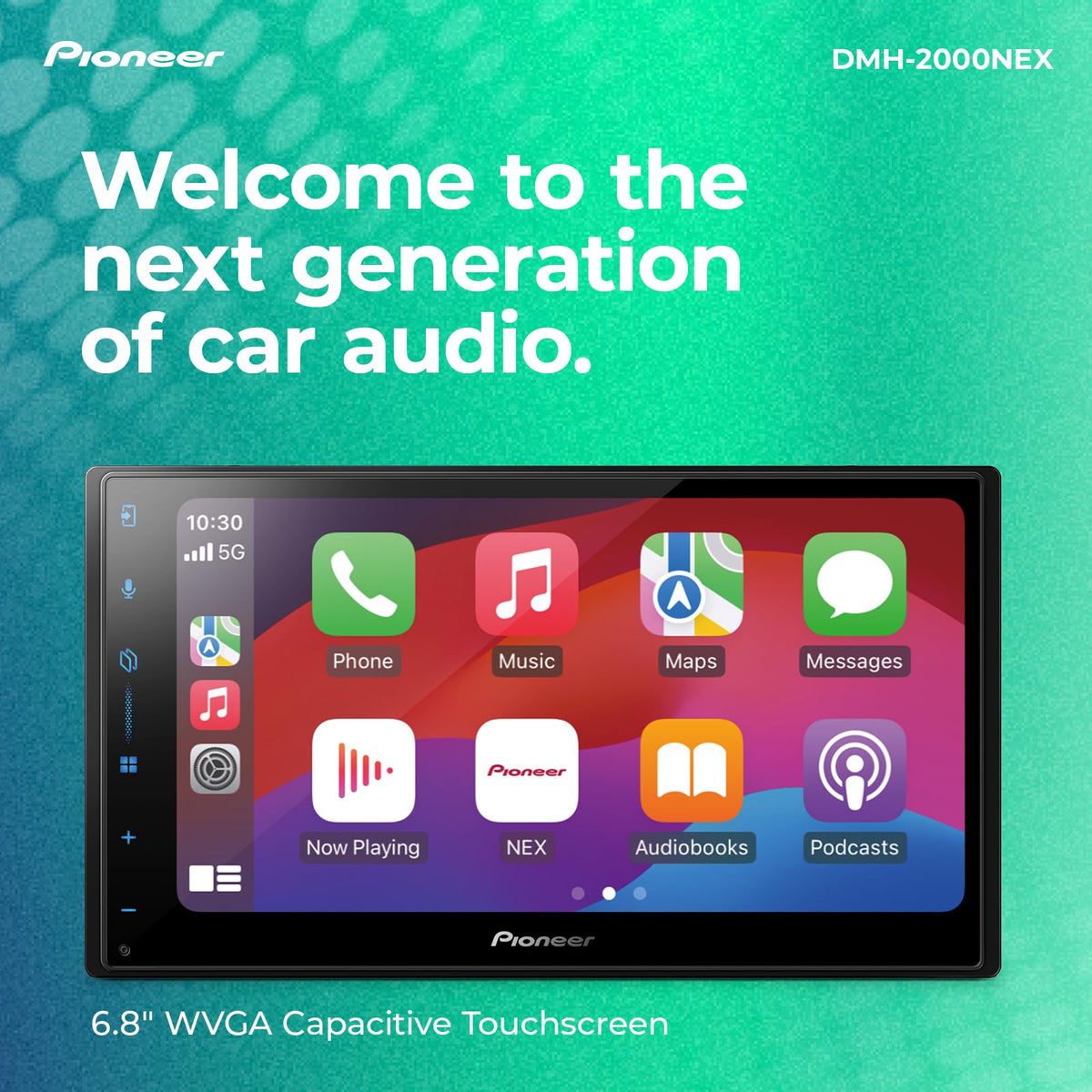

• 6.8-Inch Capacitive Display: WVGA touchscreen provides direct control of compatible apps, sources, and receiver settings.
• Built-In Bluetooth: Enables hands-free calling, wireless music streaming, and connection registration for up to five phones.
• 13-Band Audio Tuning: Graphic EQ, crossover controls, time alignment, and subwoofer adjustment help tailor system sound.
• Camera-Ready Input: A dedicated backup-camera input supports an optional rear-view camera and parking assist lines.
• System Expansion: Six-channel 4-volt RCA preouts, HD Radio, SiriusXM readiness, and Maestro compatibility support further upgrades.

Design & Installation

The DMH-2000NEX has a fixed-face, 2-DIN L-shaped chassis with a 6.8-inch, 16:9 capacitive TFT display. Its LED-backlit screen supports brightness, dimmer, illumination timer, and color-customization settings. The chassis measures 7 inches wide by 3-7/8 inches high by 4-7/8 inches deep, with a compact 1/8-inch nose depth beyond the chassis face.

Confirm double-DIN dash opening, mounting depth, trim-panel requirements, and vehicle electronics compatibility before installation. The included harnesses, USB extension, microphone, GPS antenna, and installation hardware support the receiver itself, but most vehicles require a vehicle-specific dash kit and wiring interface. Use the rear USB connection for CarPlay or Android Auto, add a compatible camera for reverse-view capability, and use the 4-volt preouts when integrating external amplification.
