Pioneer AVH-1550NEX 6.2" Double DIN CarPlay DVD Receiver

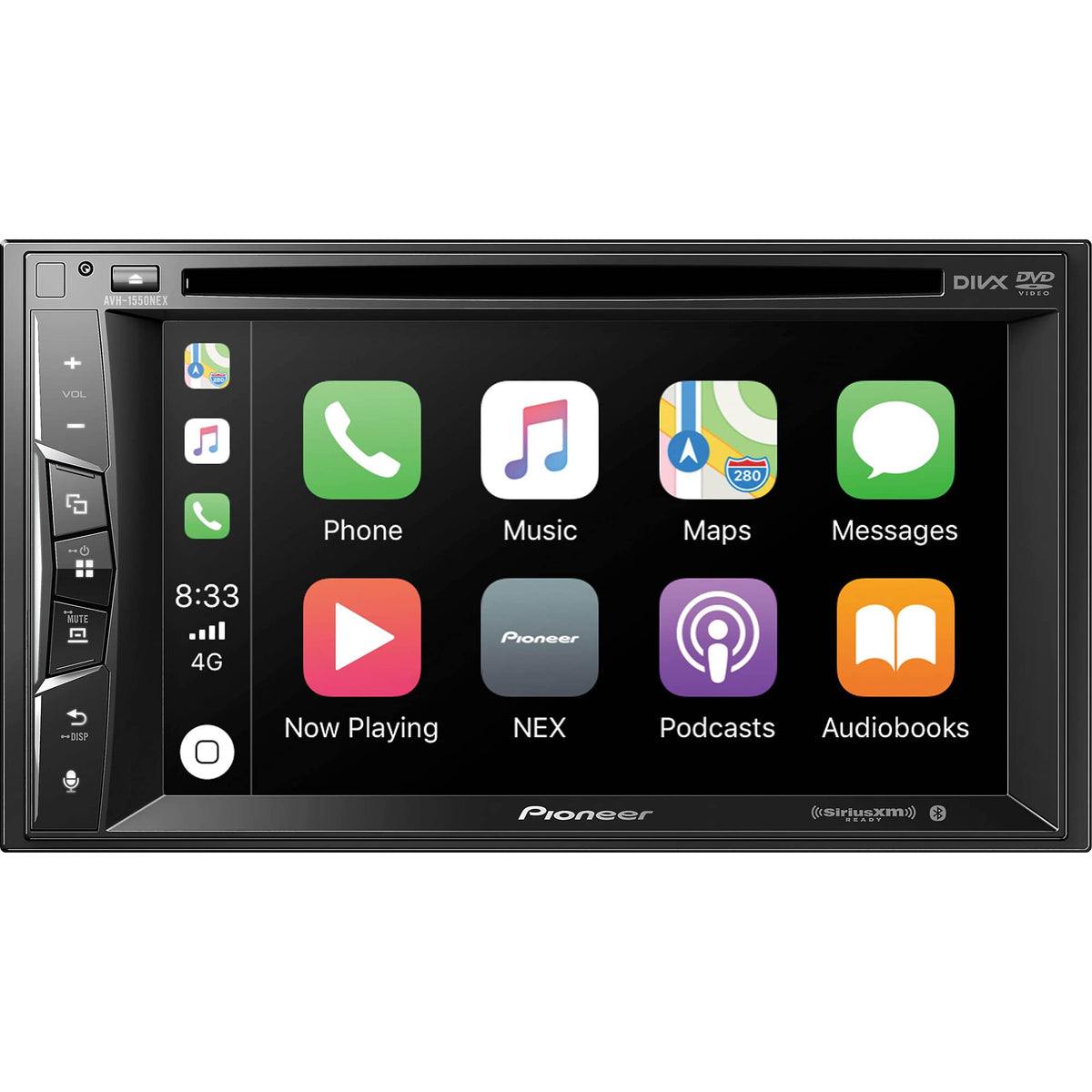

The Pioneer AVH-1550NEX is a double-DIN DVD multimedia receiver designed to bring touchscreen control, smartphone access, and expanded audio adjustment to a compatible vehicle. Its 6.2-inch widescreen display provides a central interface for music, calls, camera viewing, and supported mobile apps. It is a practical upgrade for drivers replacing a factory radio with a system that supports modern phone connectivity while retaining a traditional disc drive.

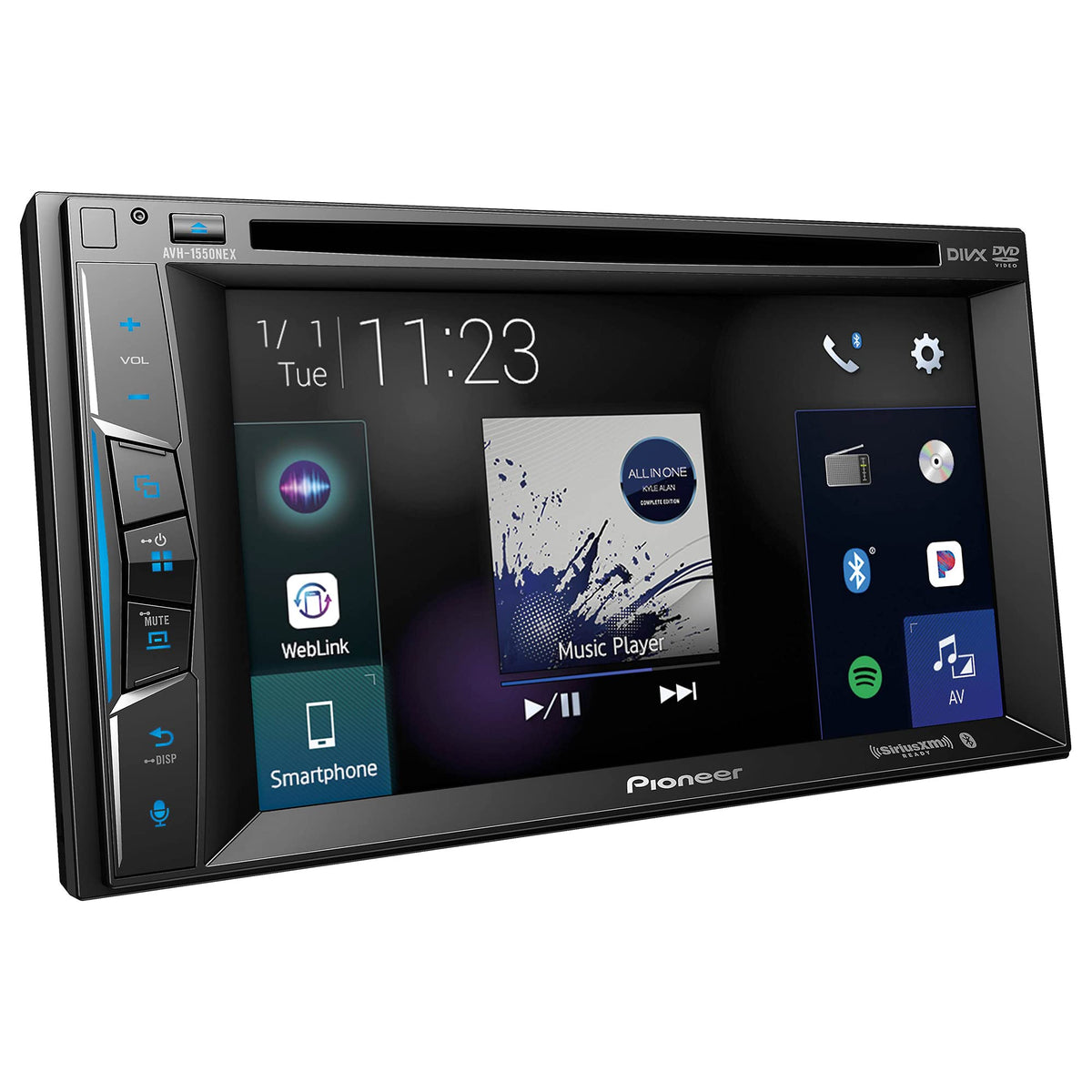

Wired Apple CarPlay places compatible iPhone functions on the receiver display for navigation, calling, messaging, and music control through an in-dash interface. Built-in Bluetooth supports hands-free calling and wireless audio streaming, while WebLink offers access to supported smartphone applications through a USB connection. Alexa voice-control compatibility adds another supported voice-command option when used with a compatible mobile device and app setup.

The AVH-1550NEX combines its internal four-channel amplifier with 4-volt front, rear, and subwoofer preamp outputs for flexible system planning. Its 13-band graphic equalizer, crossover controls, time alignment, and subwoofer adjustment tools help tailor the system to the vehicle and installed speakers. This makes it suitable for a straightforward speaker replacement as well as a system using external amplifiers and a subwoofer.

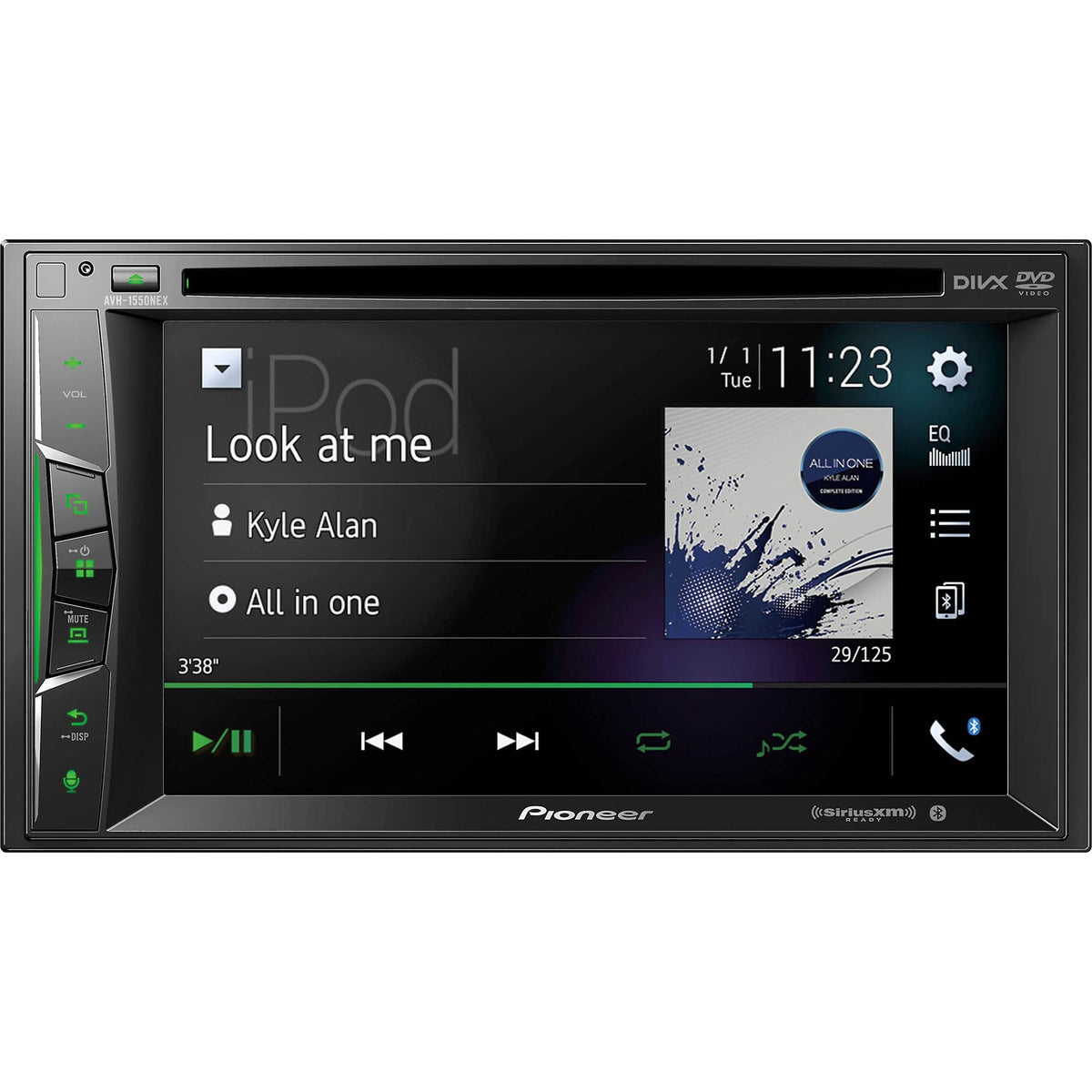

For entertainment, the receiver plays CD, DVD, USB, Bluetooth audio, AM/FM radio, and compatible connected-device content. MIXTRAX adds an automated music-mix presentation with visual effects for supported audio playback. The built-in tuner also supports RDS information, and SiriusXM capability is available with a compatible optional tuner and subscription.

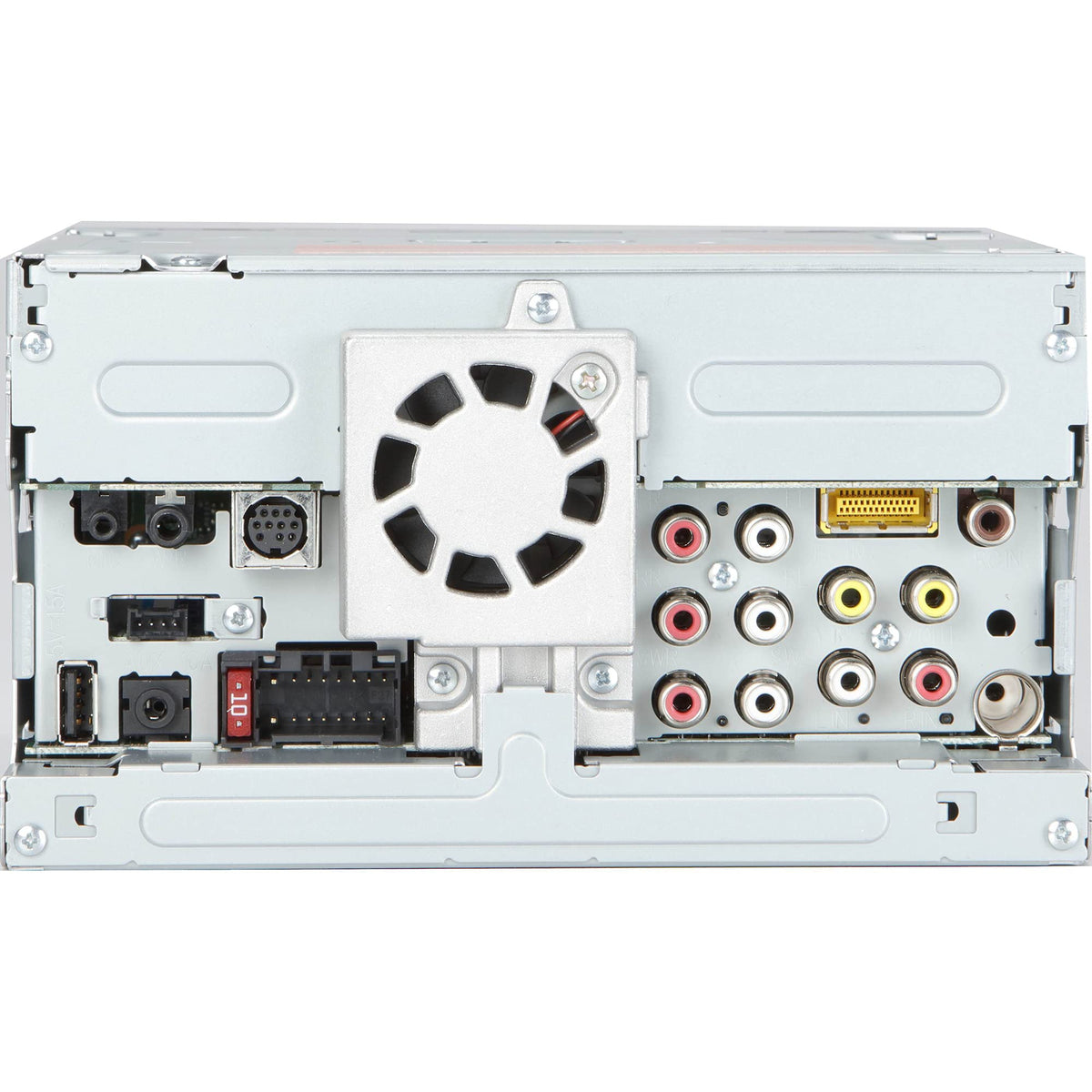

The AVH-1550NEX is designed as a system hub rather than just a radio replacement. It includes rear USB, AV, auxiliary, camera, video-output, and preamp connections to support accessories and future expansion. Compatibility with iDatalink Maestro, where applicable and with the required module, can help integrate select factory vehicle features and information screens.

Key Features

• 6.2-Inch Touchscreen: Widescreen TFT display provides direct control of audio, video, settings, and supported apps.
• Wired Apple CarPlay: Connect a compatible iPhone by USB for in-dash access to supported CarPlay functions.
• Bluetooth 4.1: Supports hands-free calling, phone-book access, and wireless music streaming from compatible devices.
• 4-Volt Six-Channel Preouts: Front, rear, and subwoofer outputs support external amplifiers and a more expandable audio system.
• DVD And USB Playback: Plays compatible discs and USB media, including common audio, video, and image formats.
• Dual Camera Inputs: Supports a rear camera plus a second compatible camera input for added visibility options.

Design & Installation

The AVH-1550NEX uses a 6.2-inch, 16:9 TFT active-matrix touchscreen within a standard double-DIN chassis. Its chassis measures 178 mm wide by 100 mm high by 164 mm deep, with a 171 mm by 97 mm nose section. Pioneer specifies the physical dimensions and display construction, but does not publish a material composition for the receiver housing.

Confirm that the vehicle accepts a double-DIN radio and plan for the appropriate vehicle-specific dash kit, wiring harness, antenna adapter, and steering-wheel-control interface if needed. Apple CarPlay requires a wired USB connection to a compatible iPhone, while camera, SiriusXM, iDatalink Maestro, and external-amplifier functions require their respective compatible accessories or modules. Connect the parking-brake lead correctly; several setup and video functions are intended for use only when the vehicle is safely parked.
