JVC KW-V960BW 6.8" Double DIN DVD Receiver With Wireless CarPlay

The JVC KW-V960BW is a Double DIN multimedia receiver designed to bring modern smartphone control, disc playback, camera integration, and system-tuning capability to an in-dash upgrade. Its 6.8-inch clear resistive touchscreen provides a central interface for music, calls, navigation-compatible apps, and vehicle entertainment. It is a practical fit for drivers replacing an older factory radio while retaining access to physical media and AM/FM radio.

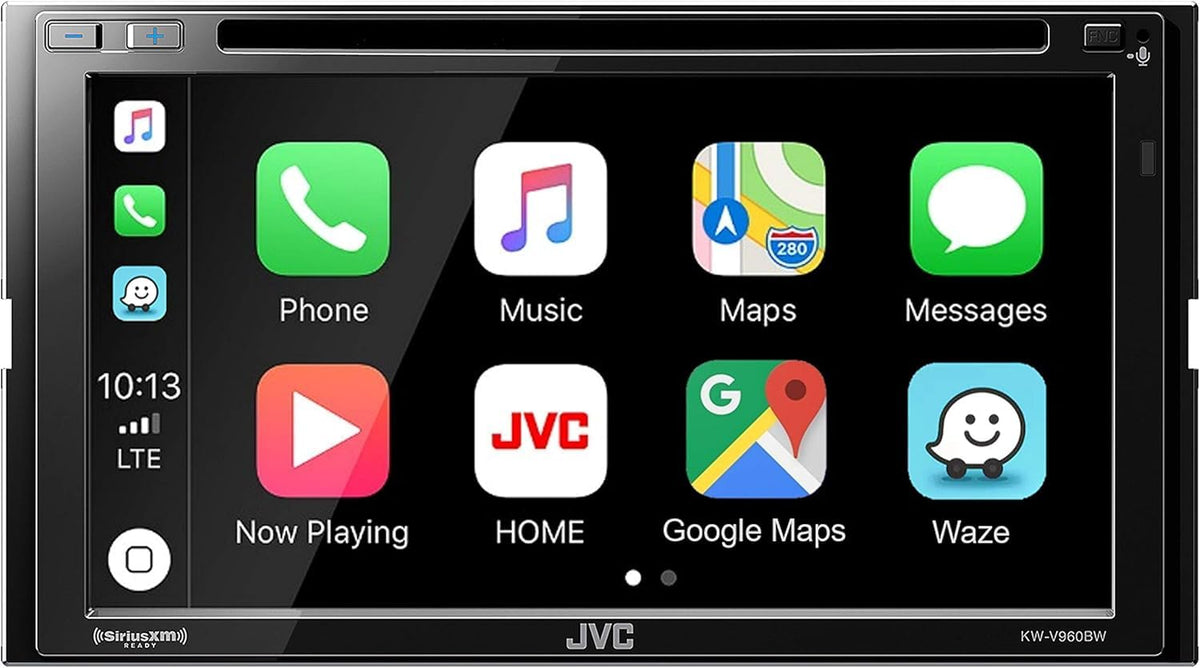

Wireless and wired Apple CarPlay and Android Auto let compatible phones connect without relying solely on a permanent cable connection. The receiver also supports Bluetooth hands-free calling, audio streaming, dual-phone connection, and JVC Streaming DJ for up to five connected Bluetooth audio devices. Built-in Wi-Fi supports its wireless smartphone functions and mirroring features.

For sound systems ranging from factory-speaker replacements to amplified aftermarket builds, the KW-V960BW includes a 13-band graphic equalizer, digital time alignment, crossover controls, and subwoofer adjustment. Its built-in amplifier is rated at 22 watts by four channels of full-bandwidth power at less than 1% THD. Three pairs of 5-volt preouts provide a clean signal path for external front, rear, and subwoofer amplifiers.

The receiver supports CDs, DVDs, USB media, and a wide variety of audio and video file formats, including high-resolution FLAC playback up to 192 kHz/24-bit. JVC K2 technology is included to enhance digital music playback by expanding frequency content from compatible sources. Dual-zone capability can also support separate front and rear entertainment use within the system's available source limitations.

Expansion options include SiriusXM readiness, iDatalink Maestro compatibility, steering-wheel-control adapter support, and inputs for up to four cameras. The rear-mounted USB connections, camera connections, and preamp outputs make it suitable for a clean custom installation. It is especially well suited to vehicles with a standard Double DIN opening and owners who want navigation-capable smartphone integration alongside DVD playback.

Key Features

• Wireless Smartphone Integration: Connect compatible Apple CarPlay or Android Auto devices through Wi-Fi or USB.
• 6.8-Inch Touchscreen: Clear resistive display offers gesture control, live wallpaper, and adjustable viewing angle.
• DVD And USB Playback: Play CDs, DVDs, USB media, and supported music or video files.
• 13-Band Sound Tuning: Equalizer, time alignment, crossovers, and subwoofer controls tailor system response.
• 5-Volt Preamp Outputs: Three pairs of high-voltage outputs support external front, rear, and subwoofer amplifiers.
• Four-Camera Capability: Supports rear, front, third-view, and switchable AV-IN/CAM4 camera connections.

Design & Installation

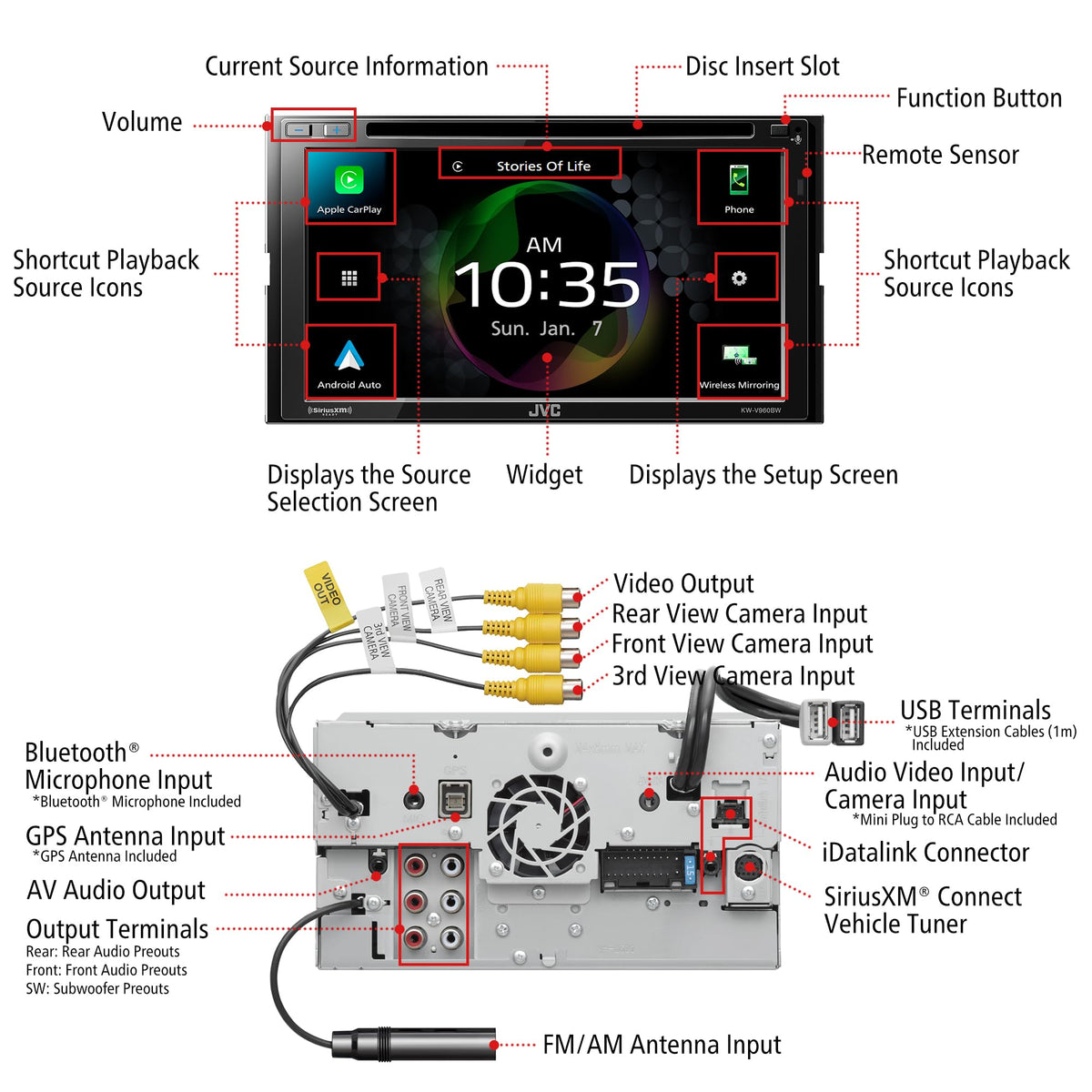

The KW-V960BW uses a 6.8-inch clear resistive touch monitor with blue key illumination, dimmer functionality, live wallpaper support, and four-step viewing-angle adjustment from 0 to 20 degrees. Its front-panel layout includes volume controls, a function key, and a disc slot for CD and DVD playback. Rear-mounted connections keep USB extensions, camera wiring, and amplifier connections out of sight after installation.

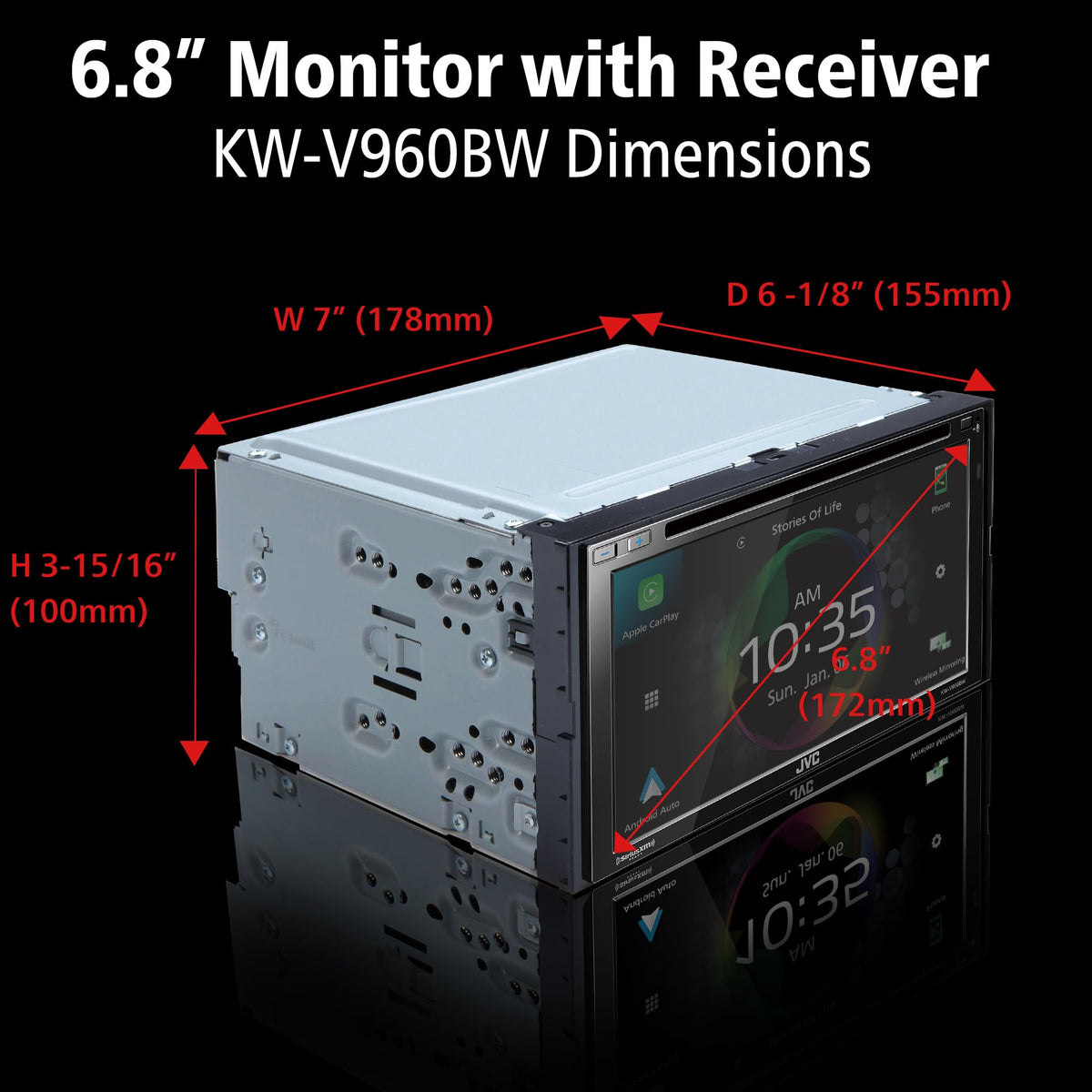

This receiver is sized for a Double DIN dash opening, with an installation size of 7 x 3-15/16 x 6-2/16 inches. Professional installation is recommended for vehicle-specific mounting, power wiring, camera connections, iDatalink Maestro integration, and retention of factory steering-wheel controls through a compatible third-party adapter. Connect the parking-brake detection wire as instructed for safety-related video and setup functions, and use the supplied microphone and GPS antenna in suitable mounting locations.
