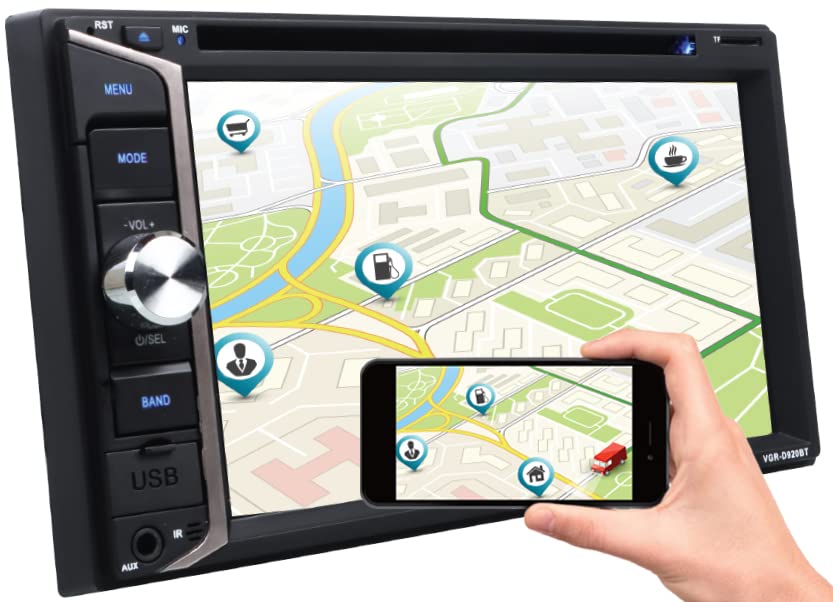

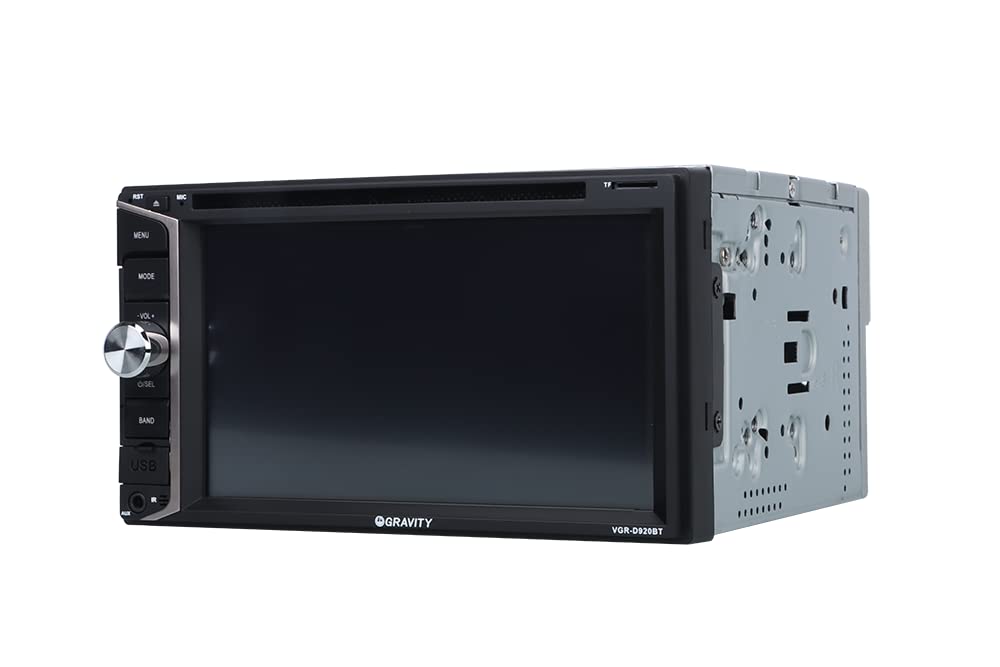

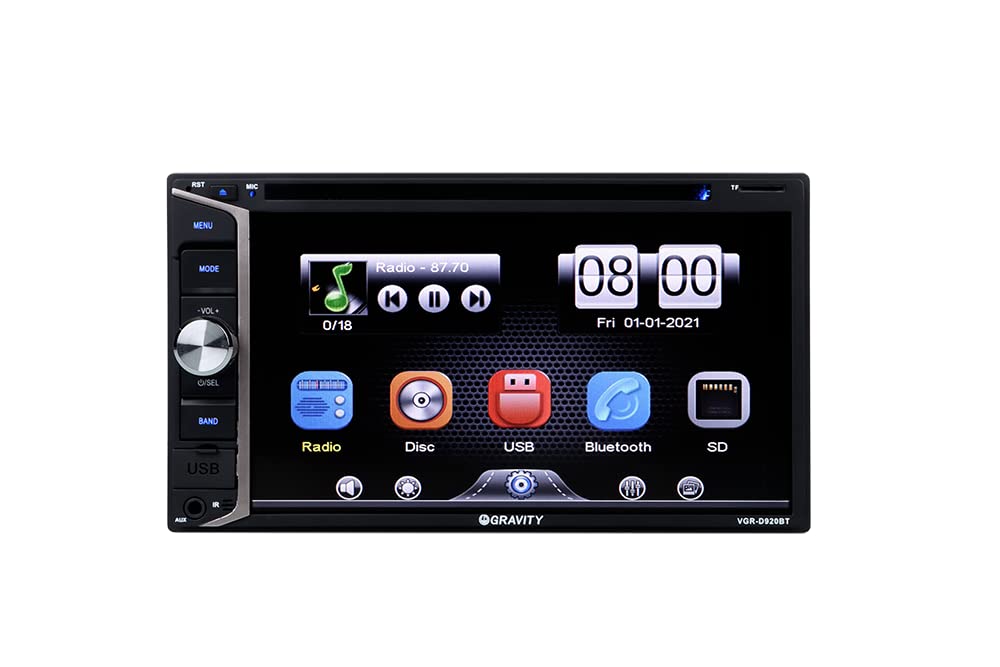

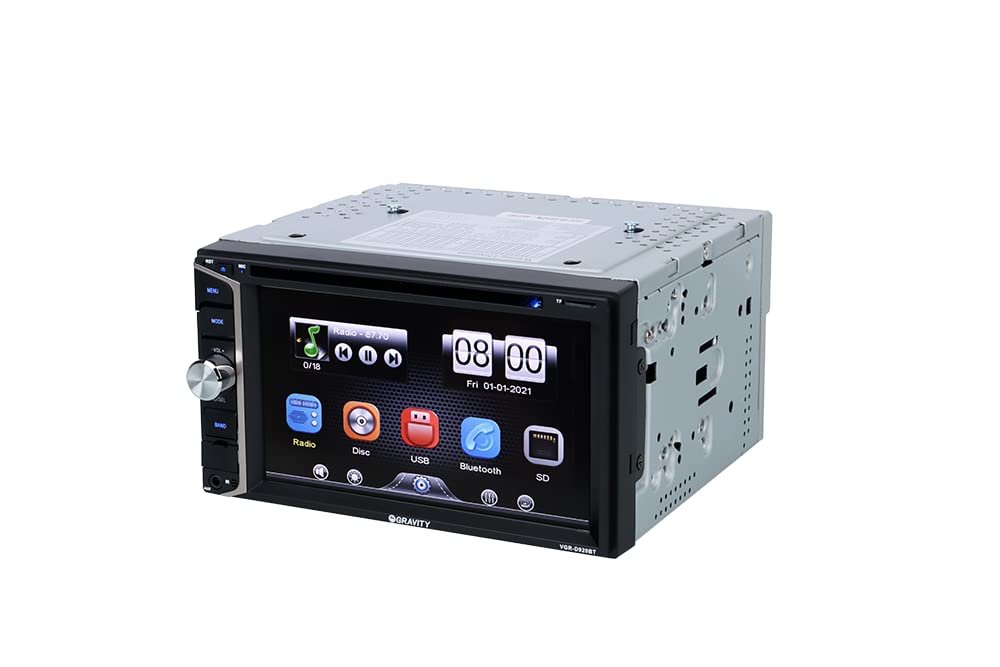

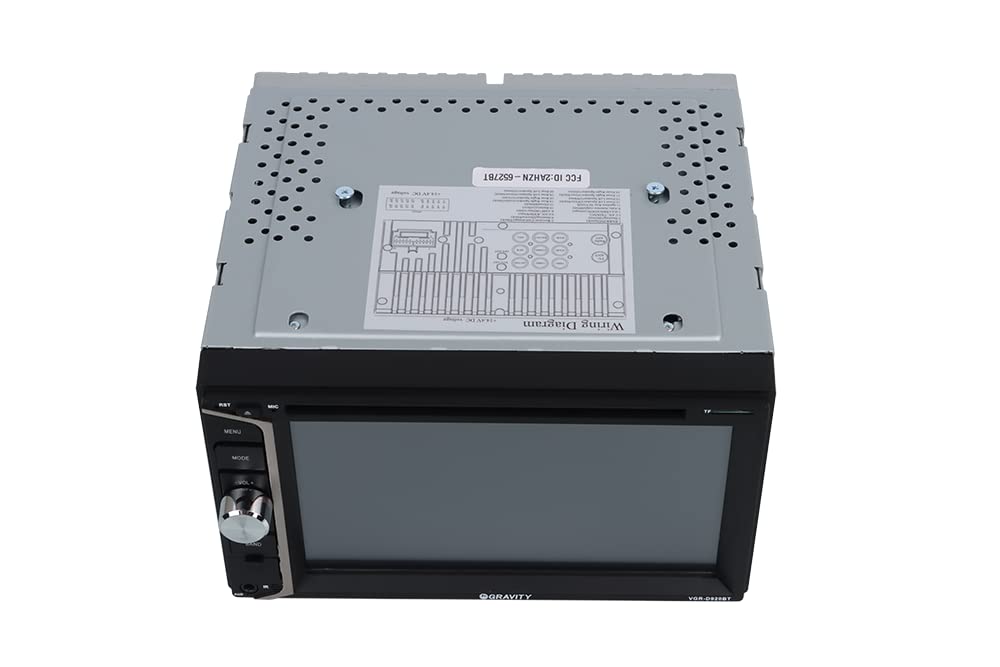

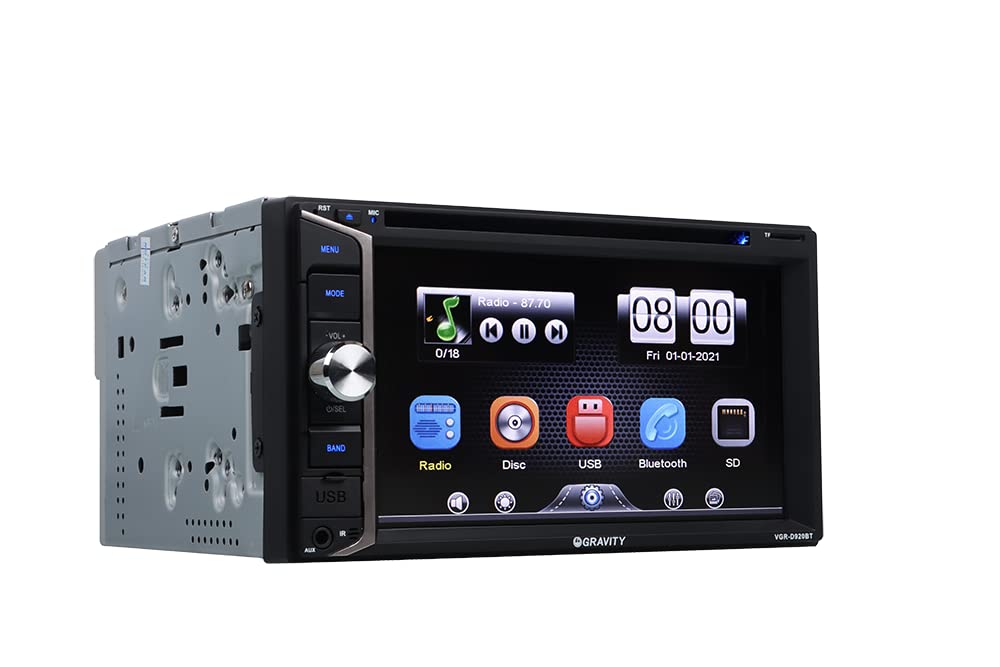

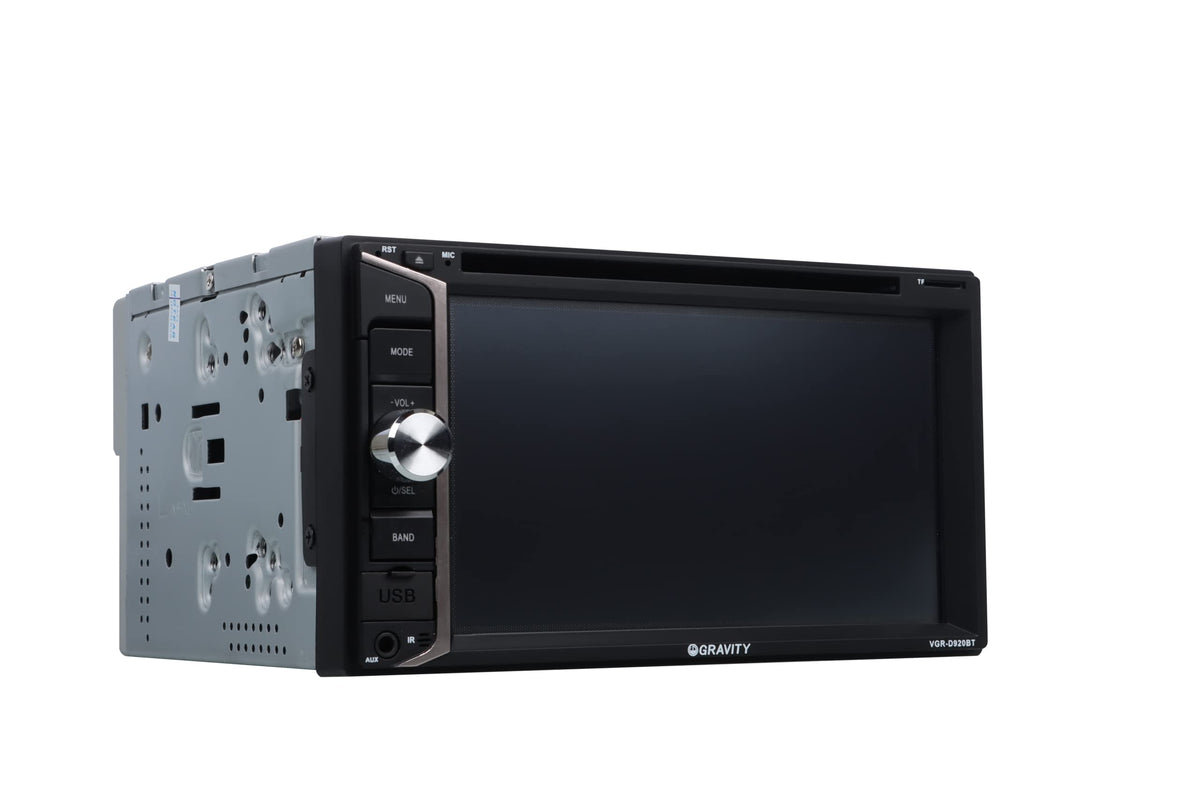

Gravity VGR-D920BT 6.2" Double DIN DVD Receiver

The Gravity VGR-D920BT is a Double DIN multimedia receiver designed for vehicles needing a traditional in-dash CD/DVD stereo with touchscreen control. Its 6.2-inch fixed-panel TFT/LCD touchscreen brings radio, disc, USB, SD-card, auxiliary, and Bluetooth sources into one dashboard component. It is suited to drivers who want to retain physical-media playback while adding wireless phone pairing and camera-ready video connectivity.

This receiver supports multiple entertainment sources, including DVD, VCD, CD, MP3, MPEG4, USB, and SD media. Built-in Bluetooth is provided for pairing with a smartphone, while the front USB 2.0 connection and front auxiliary input add convenient wired options. AM/FM/MPX radio reception with 30 presets covers everyday broadcast listening.

Sound adjustment centers on an 8-band equalizer along with preset EQ modes including Rock, Pop, and Classic. The unit is specified for 4-ohm speaker systems and includes two subwoofer outputs for systems using external bass amplification. Its controls are intended to make source selection, fader/EQ adjustment, and phone-related Bluetooth functions accessible from the dash.

The VGR-D920BT uses a 6.2-inch touchscreen TFT/LCD fixed panel and supports multicolor illumination for integration with different dashboard lighting schemes. Electronic anti-shock operation is listed for disc playback, helping maintain playback continuity during normal vehicle movement. ID3 display support and Bluetooth phonebook functionality are also listed for compatible media and paired devices.

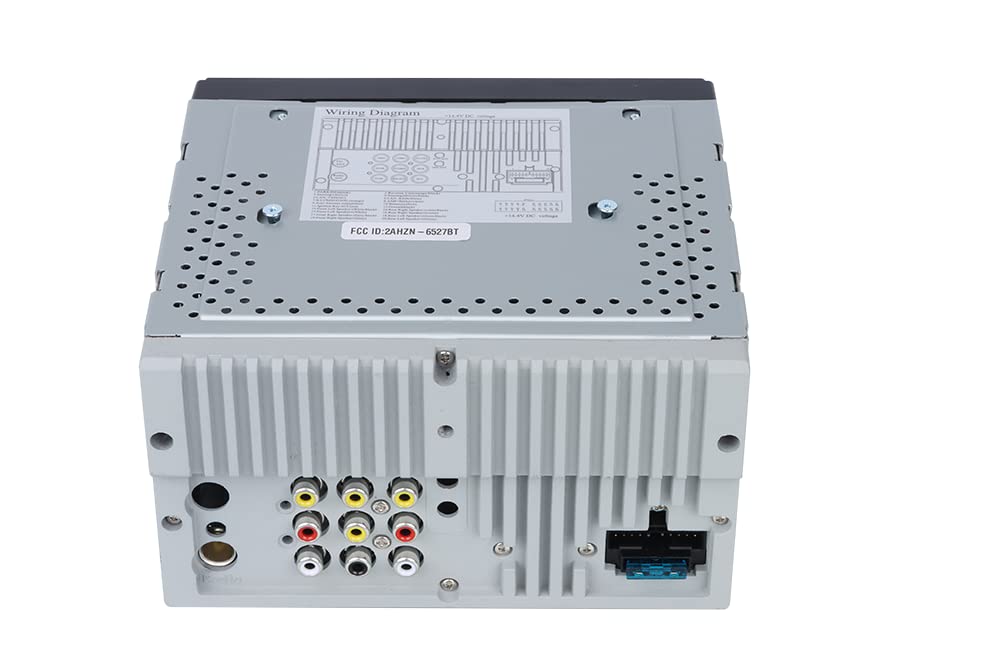

For an expanded vehicle system, the receiver provides two pairs of RCA outputs, an AV input, two video outputs, and a camera input with parking-video capability. These connections allow it to serve as a source unit for external audio components, rear video displays, or a compatible backup camera. Apple CarPlay and Android Auto are not listed features of this model, so it is best selected for conventional Bluetooth and physical-media use rather than phone-projection integration.

Key Features

• 6.2-Inch Touchscreen: Provides centralized control of media, radio, and connected video sources.
• Bluetooth Connectivity: Pairs with compatible smartphones for wireless audio and phone functions.
• CD/DVD Multimedia Playback: Supports physical discs alongside USB and SD media.
• 8-Band Equalizer: Lets users tailor tonal balance for their speakers and music.
• Camera-Ready Video Connections: Includes a camera input and parking-video capability.
• RCA and Subwoofer Outputs: Supports expansion with external amplifiers and subwoofer systems.

Design & Installation

The VGR-D920BT uses a fixed-panel Double DIN layout with a 6.2-inch TFT/LCD touchscreen, front USB 2.0 port, and front auxiliary input. Multicolor illumination allows the button lighting to be coordinated with many dashboard color themes. Published product information does not specify the chassis or faceplate material.

Verify that the vehicle accepts a Double DIN receiver and use the correct vehicle-specific dash kit, wiring harness, and antenna adapter where required. Connect the unit to a 10.8V-16V automotive electrical system and match it with 4-ohm speakers. A compatible backup camera, external amplifiers, and rear video displays require separate wiring and components.
