Audiotek AT-68BTN Double DIN 6.2" Touchscreen Receiver

The Audiotek AT-68BTN is a double-DIN multimedia receiver designed to add a touchscreen, Bluetooth calling, phone mirroring, and rear-camera viewing to a compatible vehicle dashboard. Its 6.2-inch touch display brings radio, wired media, and selected phone functions together in one in-dash control center. It is suited to drivers replacing a basic factory radio or building an affordable multimedia upgrade.

Bluetooth connectivity supports hands-free calls and wireless music streaming from a paired phone. The receiver also offers FM radio plus USB, TF/SD card, AUX, DVD, CD, and MP3/MP5 playback options, giving users several ways to access entertainment on the road. Its listed 200-watt maximum output is specified as 50 watts across four channels.

Mirror Link functionality is included for displaying compatible smartphone content on the receiver screen through a USB connection. Listed compatibility covers Android 4.0 through 7.0 devices and iPhone screen mirroring. This is a phone-mirroring feature rather than built-in Apple CarPlay or Android Auto.

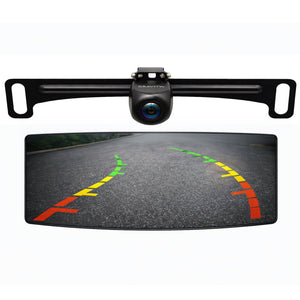

The included rearview camera is intended to support parking and reversing. When correctly connected to the vehicle reverse circuit and the receiver's camera input, the camera image is designed to appear automatically when reverse is selected. This makes the AT-68BTN a practical choice for vehicles that do not already have a reverse-view display.

For system integration, the AT-68BTN provides four speaker-channel wiring, a front AUX input, USB and TF/SD media support, video input, and an input for a compatible driving recorder. A supplied remote and steering-wheel-control connection support add convenience after installation. Use a vehicle-specific dash kit, wiring harness, antenna adapter, and steering-wheel-control interface when required by the vehicle.

Key Features

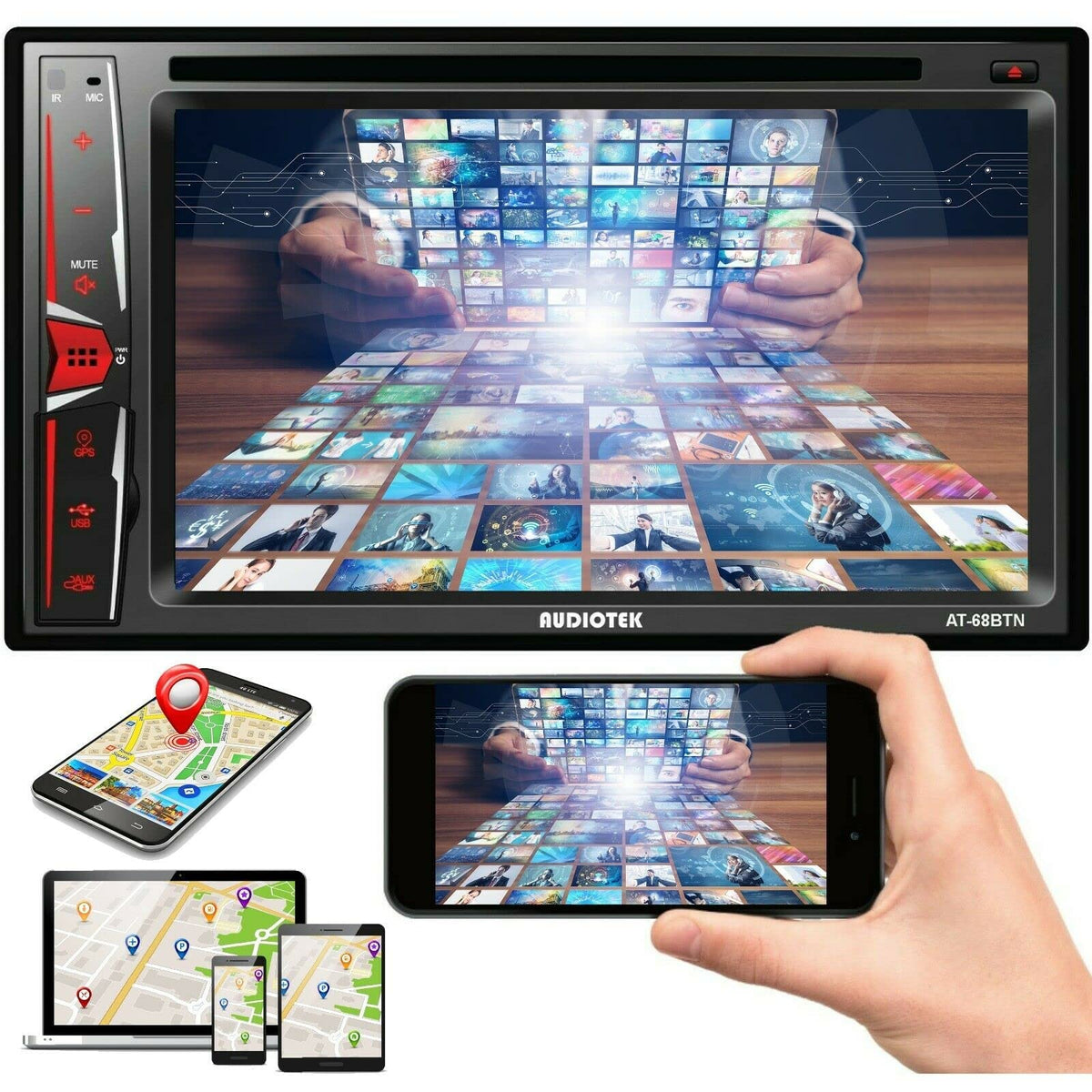

• 6.2-Inch HD Touchscreen: Provides a central touch interface for media, radio, Bluetooth, and camera viewing.
• Bluetooth 3.0: Enables hands-free calling and wireless audio streaming from compatible mobile devices.

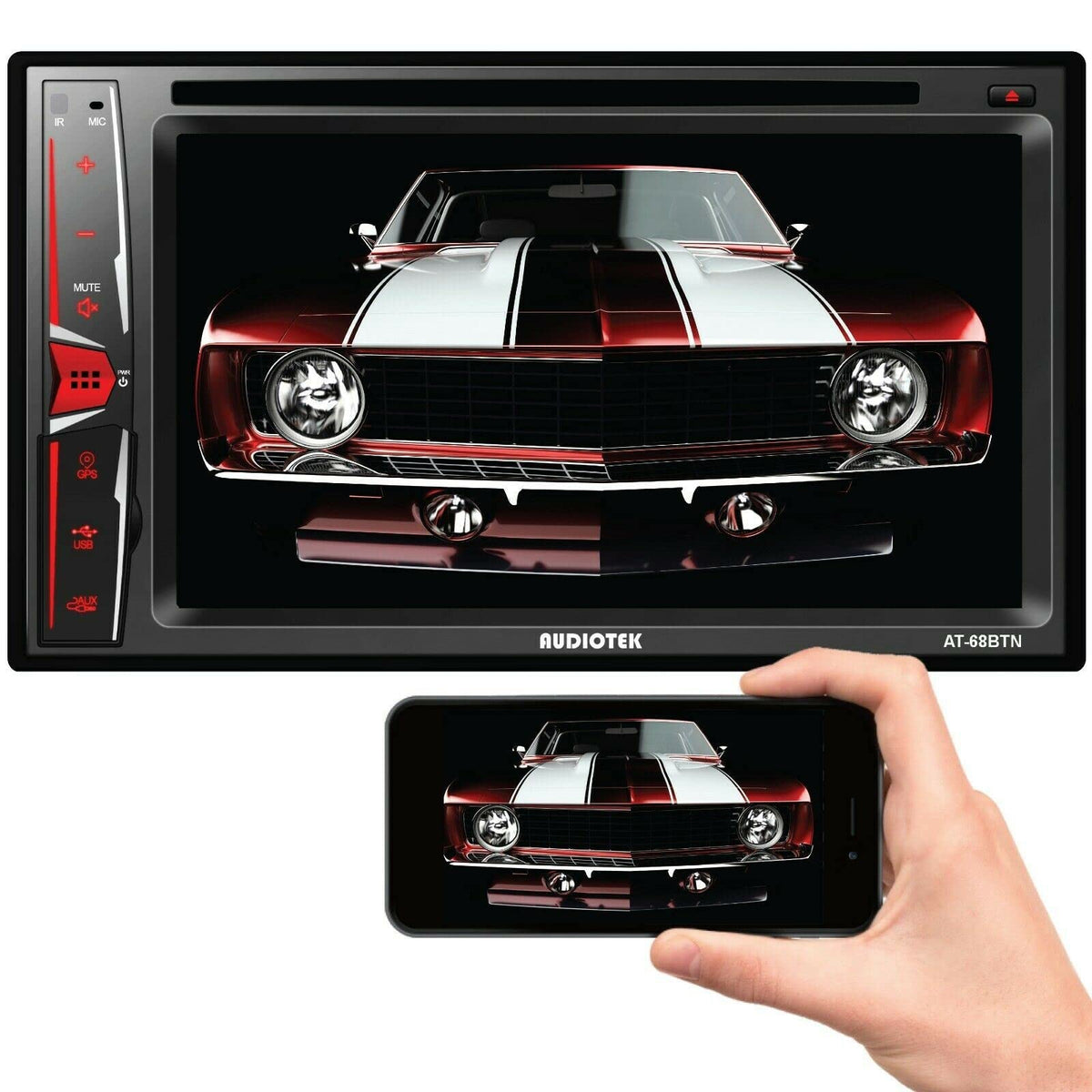

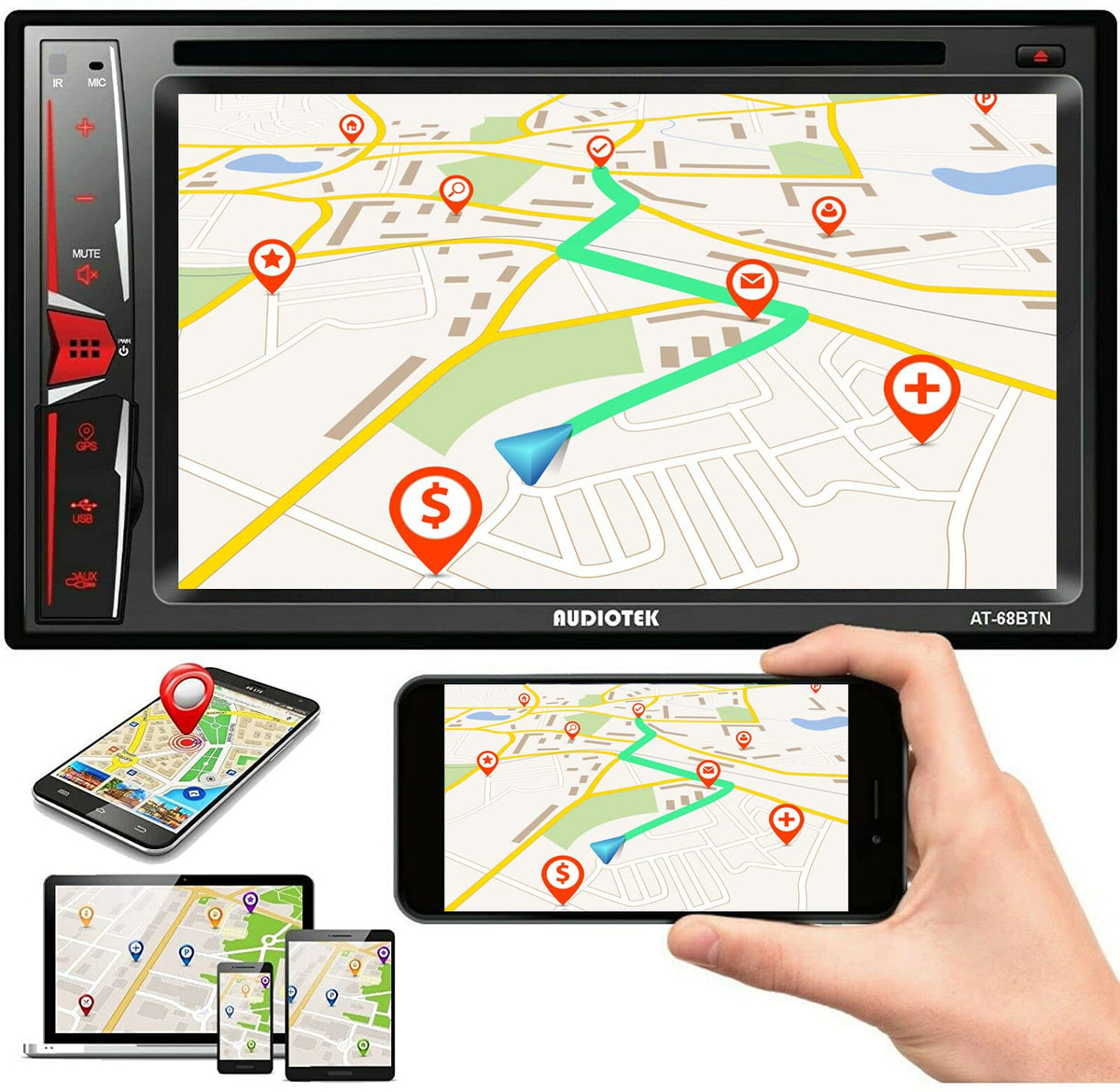

• Mirror Link: Displays compatible Android or iPhone screen content through a USB connection.
• Included Rearview Camera: Adds reverse-view capability when wired to the camera and reverse circuits.
• Multiple Media Sources: Supports FM radio, DVD, CD, USB, TF/SD card, and AUX playback.
• Four-Channel Output: Supplies listed maximum power of 50 watts to each of four channels.

Design & Installation

The AT-68BTN uses a standard double-DIN in-dash format with an integrated 6.2-inch touchscreen and physical controls. Its approximately 178 x 100 x 65 mm chassis dimensions are intended for double-DIN dashboard openings, subject to vehicle-specific clearance and mounting requirements. The design combines touchscreen operation with a supplied remote for convenient source and playback control.

Professional installation is recommended when vehicle wiring, dash fitment, camera wiring, or steering-wheel controls are involved. Connect constant 12V power, switched accessory power, ground, and the four speaker channels according to the supplied wiring diagram; the rear camera video lead connects to CAM IN and its power is commonly tied to the reverse-light circuit. A vehicle-specific dash kit and wiring interface may be needed for a clean installation and retention of factory features.
