sE Electronics sE6160(P) Matched Pair Shotgun Microphones

The sE Electronics sE6160(P) is a factory-matched pair of compact shotgun condenser microphones for professional live sound, location recording, broadcast, and stereo ambient capture. Its focused shotgun pickup pattern helps capture a desired source while reducing pickup from the sides and rear. This makes the pair well suited to audience ambience for in-ear-monitor mixes, concert recording, dialogue, and spot-miking applications.

Each sE6160 uses a hand-crafted small-diaphragm true condenser capsule with a gold-sputtered diaphragm. The microphone is designed for a natural, controlled sound character with low equivalent noise and strong off-axis rejection. As a matched pair, the two microphones provide a consistent option for stereo and ambient recording setups.

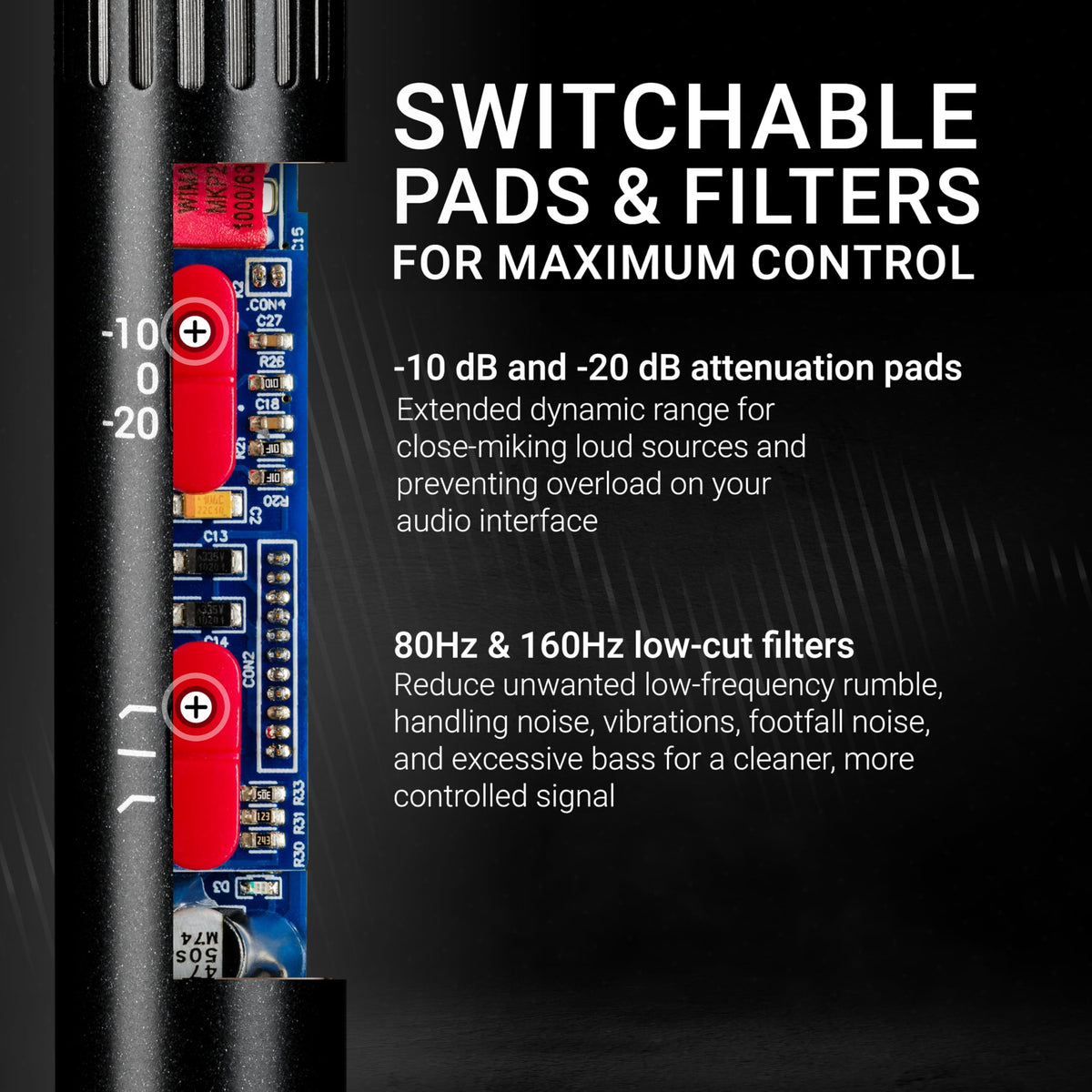

The sE6160 provides practical control for changing recording conditions. Its switchable attenuation pad offers 0 dB, -10 dB, and -20 dB settings for high-level sources, while the selectable low-cut filter provides 80 Hz and 160 Hz positions to help reduce rumble, footfall noise, and excess low-frequency buildup. With the -20 dB pad engaged, each microphone is rated to handle up to 157 dB SPL at 0.5% THD.

A supercardioid/lobar shotgun pattern gives the sE6160 a narrow, forward-focused pickup area. This can help improve gain before feedback in live environments and reduce unwanted bleed when working around PA systems, stage noise, or nearby instruments. The transformerless output and 3-pin XLR connection support integration with standard professional microphone inputs.

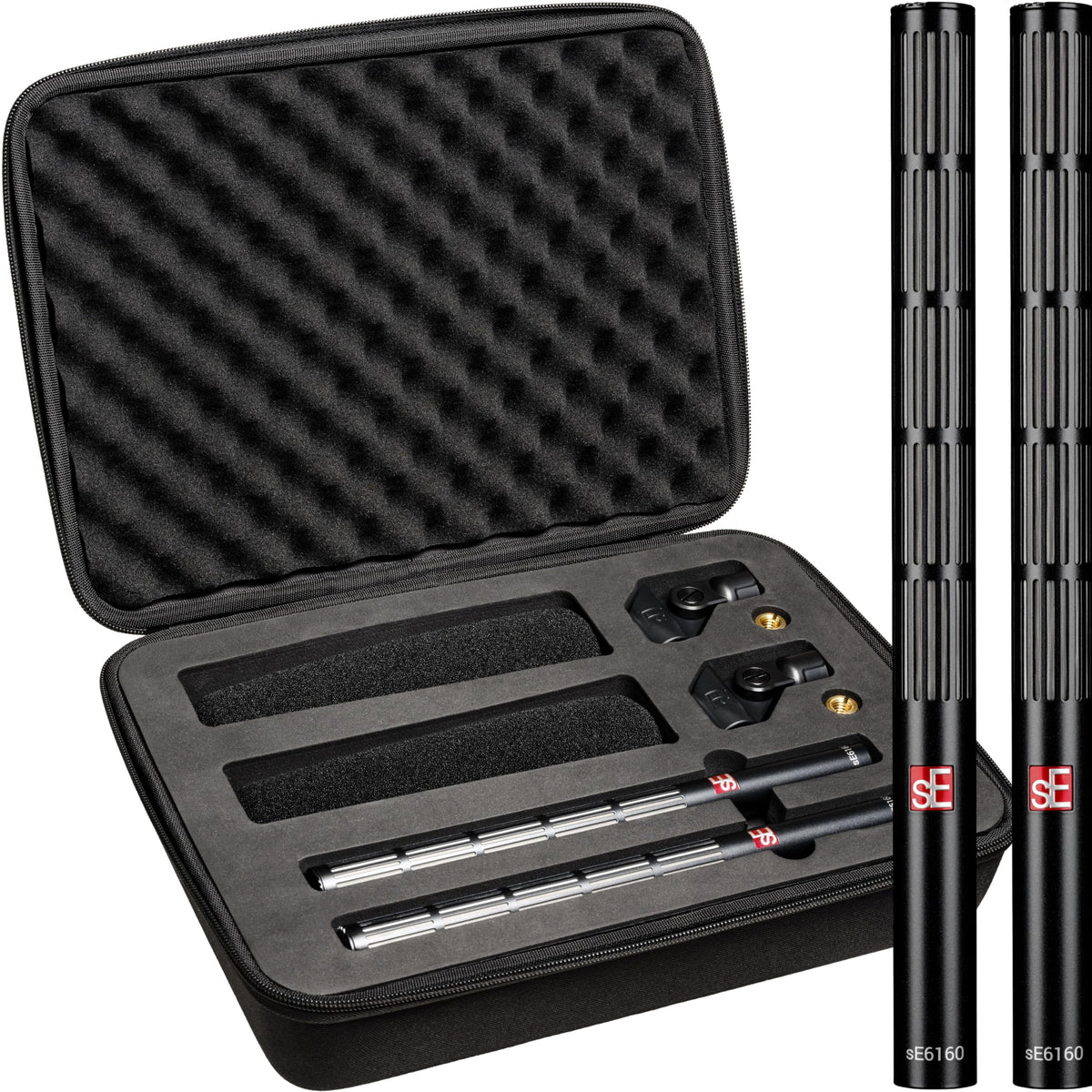

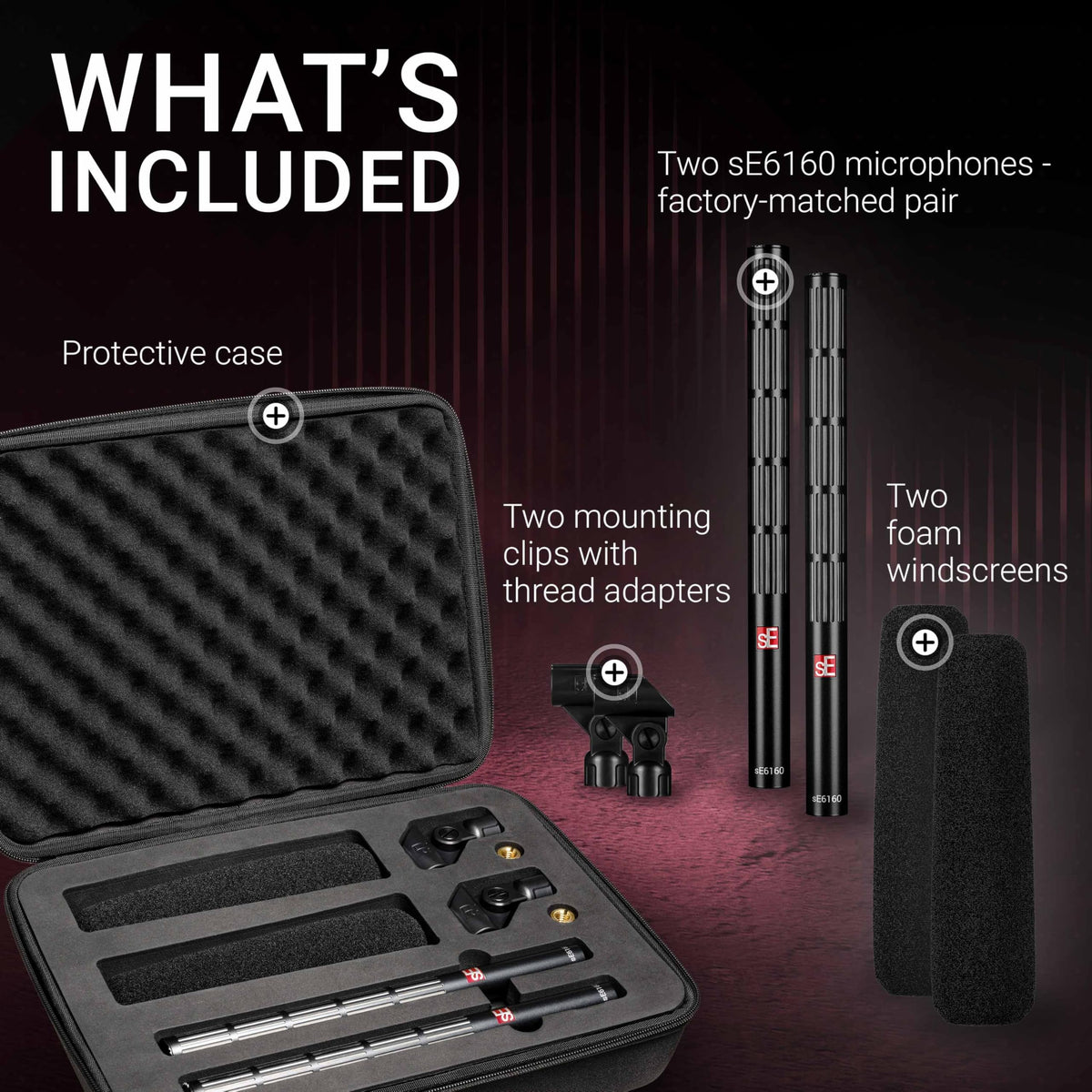

The matched-pair package gives engineers two compact microphones for spaced, stereo, or dual-ambient placement. Each microphone requires 48 V phantom power and connects to an XLR-equipped mixer, preamp, recorder, or audio interface. Included clips, thread adapters, windscreens, and a soft case help support transport and practical setup.

Key Features

• Factory-Matched Pair: Two sE6160 microphones selected as a matched set for consistent stereo and ambient capture.
• Shotgun Polar Pattern: Supercardioid/lobar directionality focuses on the front while reducing off-axis sound.
• True Condenser Capsule: Hand-crafted small-diaphragm capsule uses a gold-sputtered diaphragm for detailed capture.
• Switchable Attenuation Pad: Select 0 dB, -10 dB, or -20 dB operation for sources with different sound-pressure levels.
• Selectable Low-Cut Filter: 80 Hz and 160 Hz filter positions help manage rumble and excessive bass.
• Professional XLR Output: 3-pin male XLR connections work with phantom-powered mic preamps, mixers, and recorders.

Design & Installation

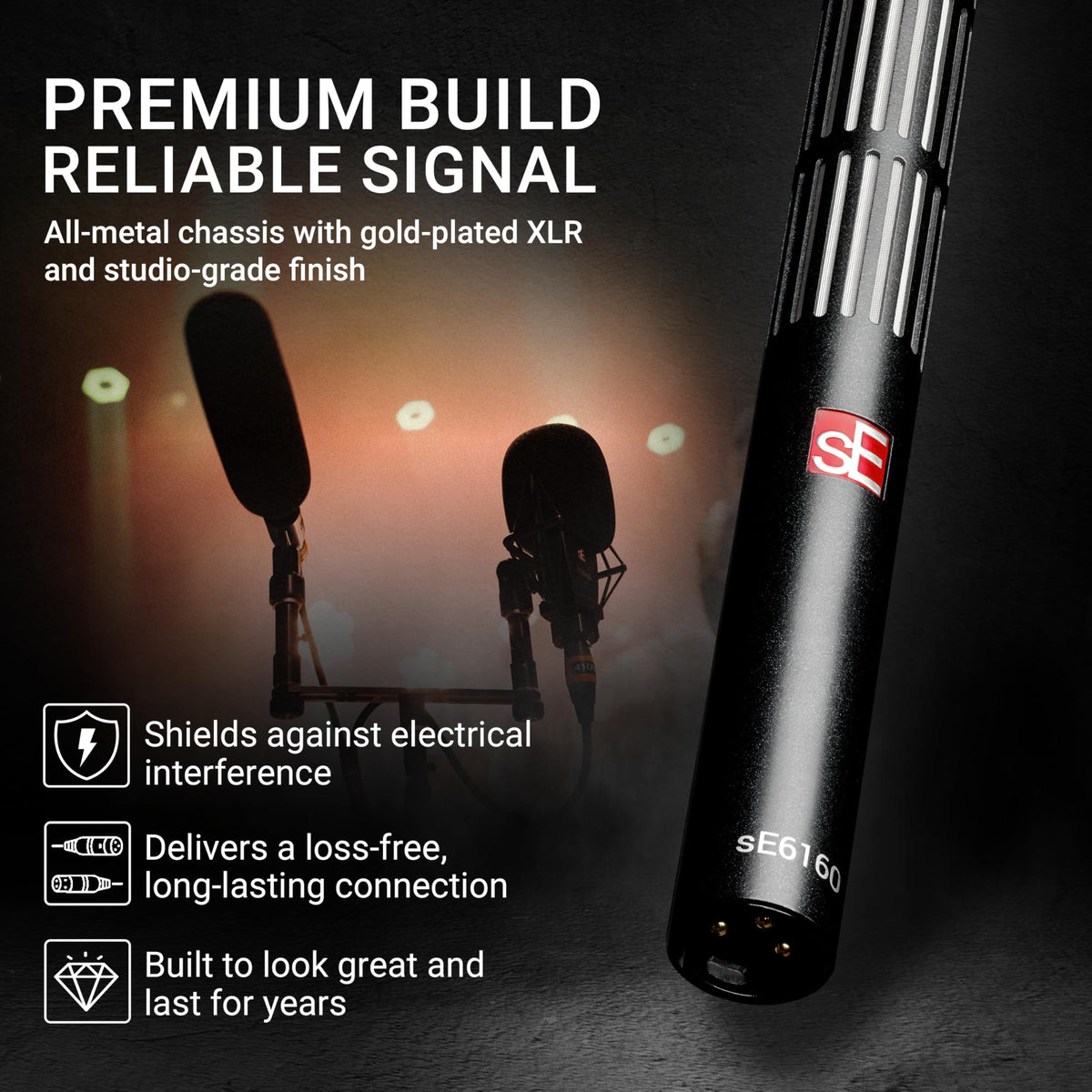

Each microphone has a roadworthy die-cast metal housing and a compact 19.6 mm diameter by 250 mm length format. At 110 g per microphone, the sE6160 is light enough for many boom, stand, and mobile-recording applications. Its all-metal construction also provides a durable platform for routine stage, studio, and location use.

Connect each microphone with a balanced XLR microphone cable to a mixer, recorder, or audio interface that supplies 48 V phantom power in accordance with IEC 61938. Use the included microphone clips and thread adapters to mount the pair on compatible stands, stereo bars, or boom hardware. Start with the pad and low-cut switches centered, then select attenuation or low-cut settings when the source level or low-frequency noise calls for them.
