sE Electronics sE2300 Multi-Pattern Condenser Microphone

The sE Electronics sE2300 is a large-diaphragm, multi-pattern condenser microphone designed for studio recording, voice work, and close-miking instruments. It gives creators one microphone platform for vocals, acoustic instruments, guitar cabinets, drums, brass, piano, and room capture. Its selectable pickup patterns help adapt the microphone to different recording spaces and source-placement needs.

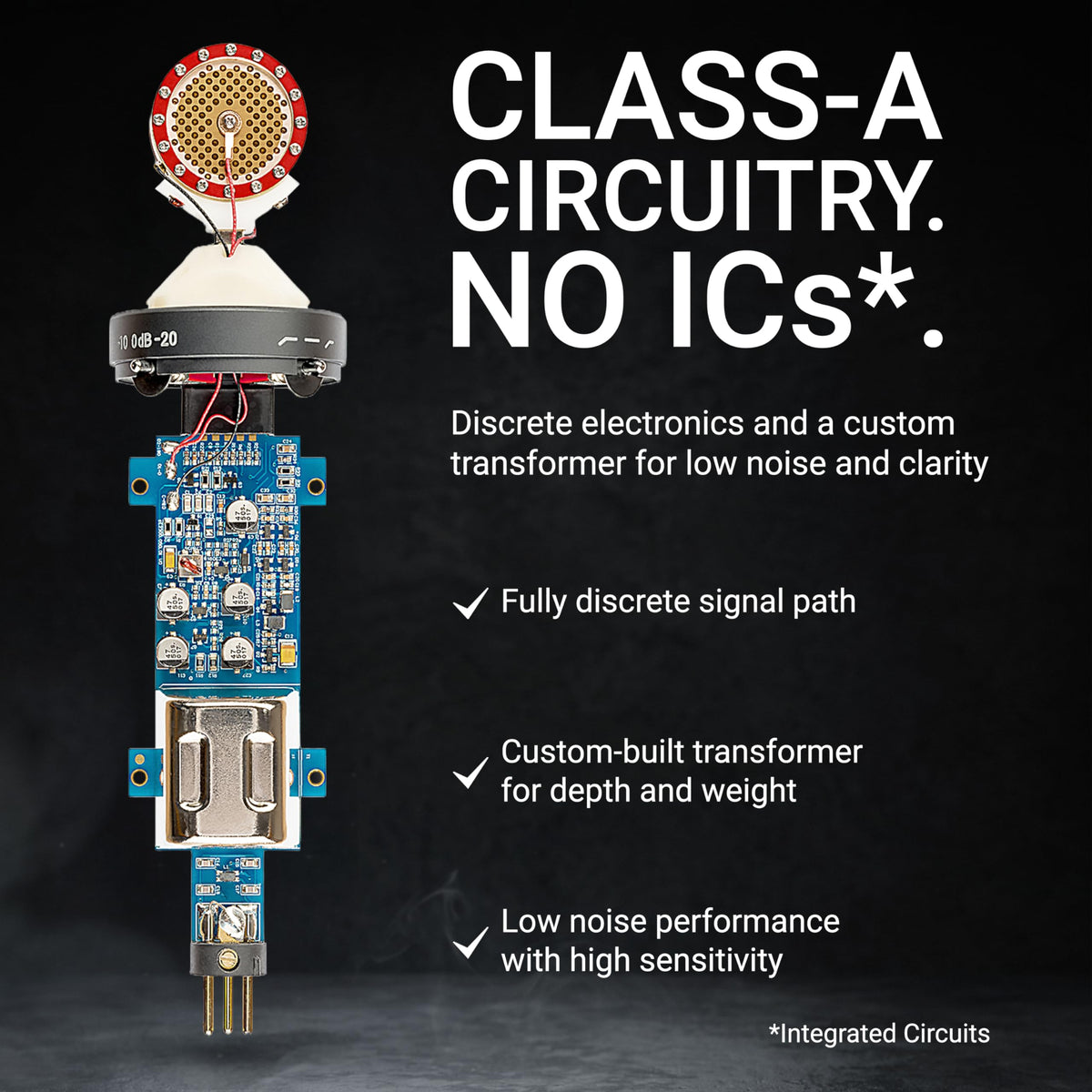

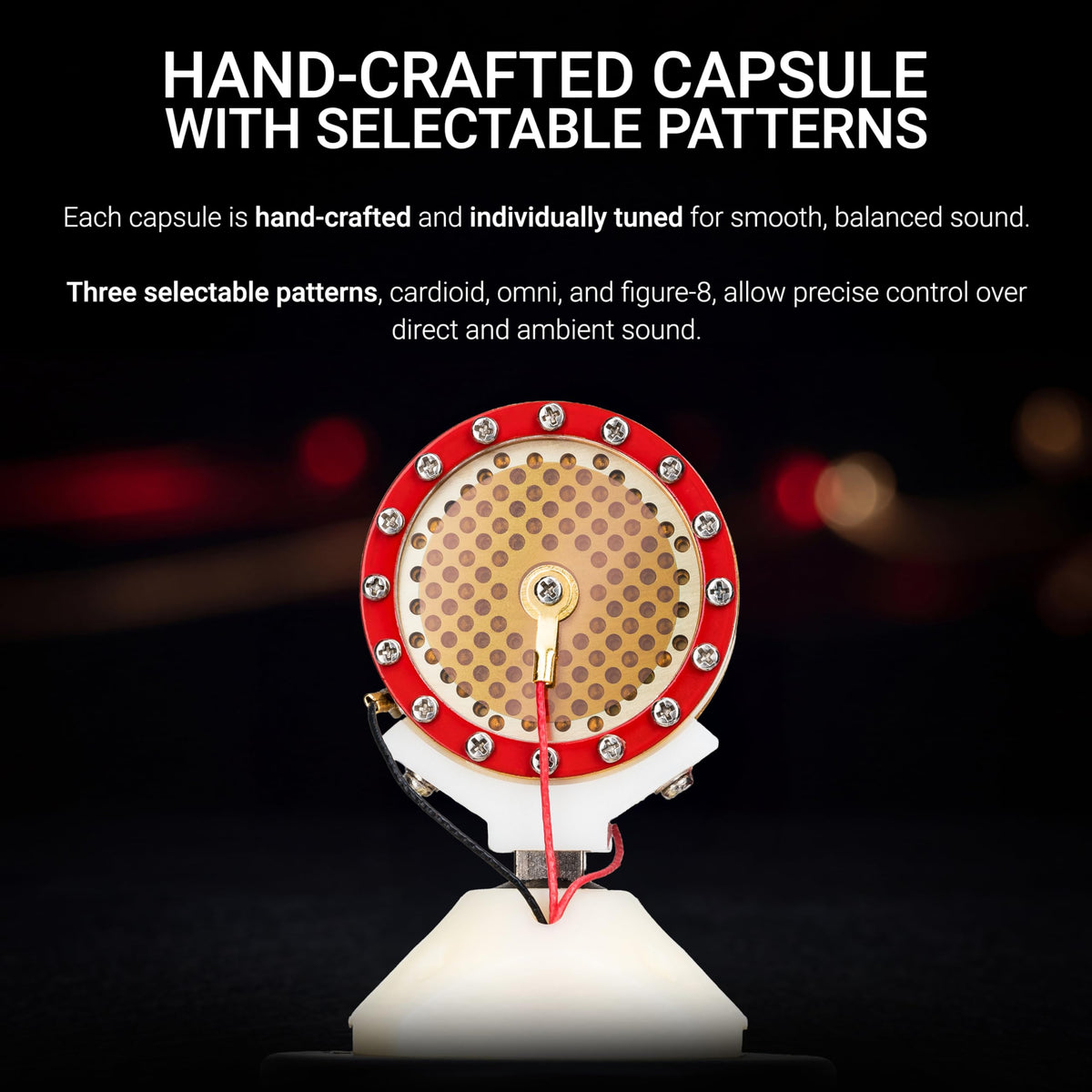

A hand-crafted 1-inch true condenser capsule is individually tuned and paired with discrete Class-A electronics. The design uses a custom output transformer and a short, optimized signal path to support detailed, balanced capture with low self-noise. This makes the sE2300 suitable for sessions where a clear, controlled condenser sound is needed across multiple sources.

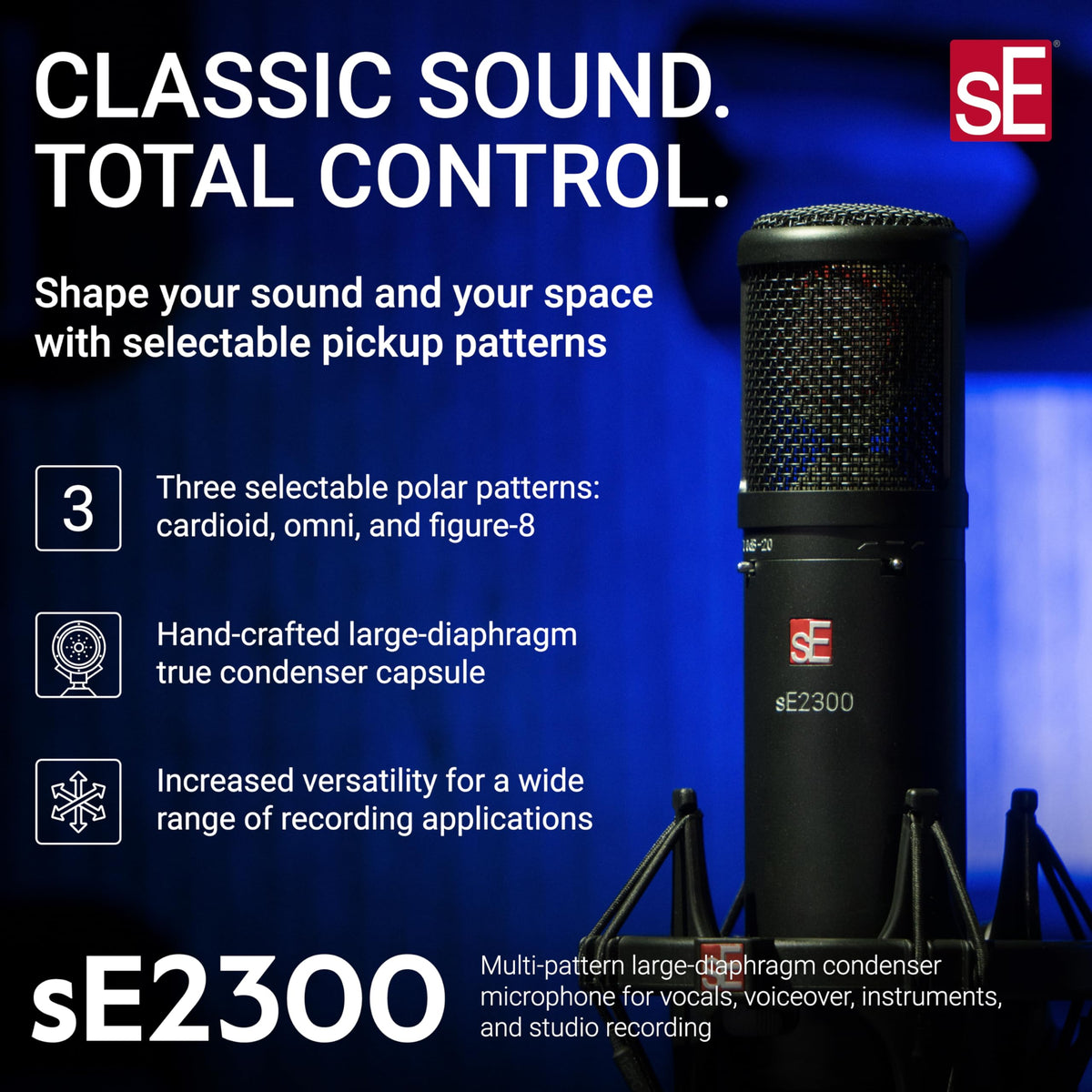

Three selectable polar patterns—cardioid, omnidirectional, and figure-8—provide practical flexibility. Cardioid can focus on a source while reducing pickup from behind the microphone, omnidirectional can capture a more open sound, and figure-8 supports front-and-rear pickup techniques. This versatility is useful for solo vocals, room ambience, duets, and stereo recording methods.

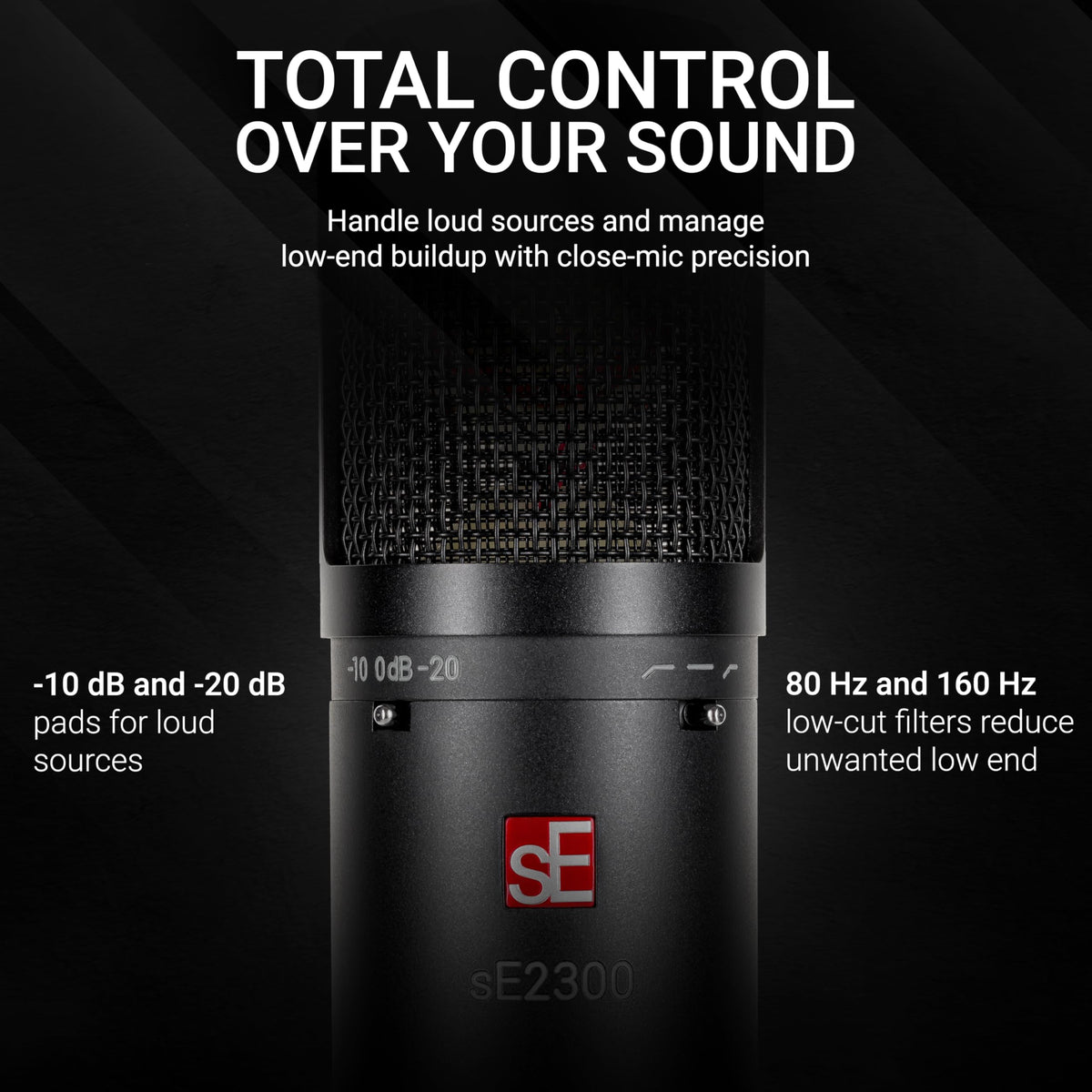

The sE2300 includes switchable -10 dB and -20 dB attenuation pads for louder sources. Its 80 Hz and 160 Hz low-cut filter settings help reduce rumble, footfall noise, and excess low-frequency buildup from close placement. Together, these controls allow the microphone to be used nearer to loud instruments and amplifiers with more control over the recorded signal.

Built for home studios, commercial studios, and portable recording setups, the sE2300 connects through a standard 3-pin XLR output and requires 48V phantom power. The included Isolation Pack combines a shockmount and adjustable metal pop filter to support stable vocal recording. It is a practical upgrade for users who need more pattern and level-control options than a fixed-cardioid condenser microphone provides.

Key Features

• Three Polar Patterns: Select cardioid, omnidirectional, or figure-8 pickup for different sources and recording techniques.
• 1-Inch True Condenser Capsule: Hand-crafted and individually tuned for consistent large-diaphragm condenser performance.
• Discrete Class-A Circuitry: Uses a traditional Class-A design without integrated circuits.
• Switchable Attenuation Pads: -10 dB and -20 dB settings support close-miking of louder sound sources.
• Selectable Low-Cut Filters: 80 Hz and 160 Hz filters help manage rumble and proximity-effect buildup.

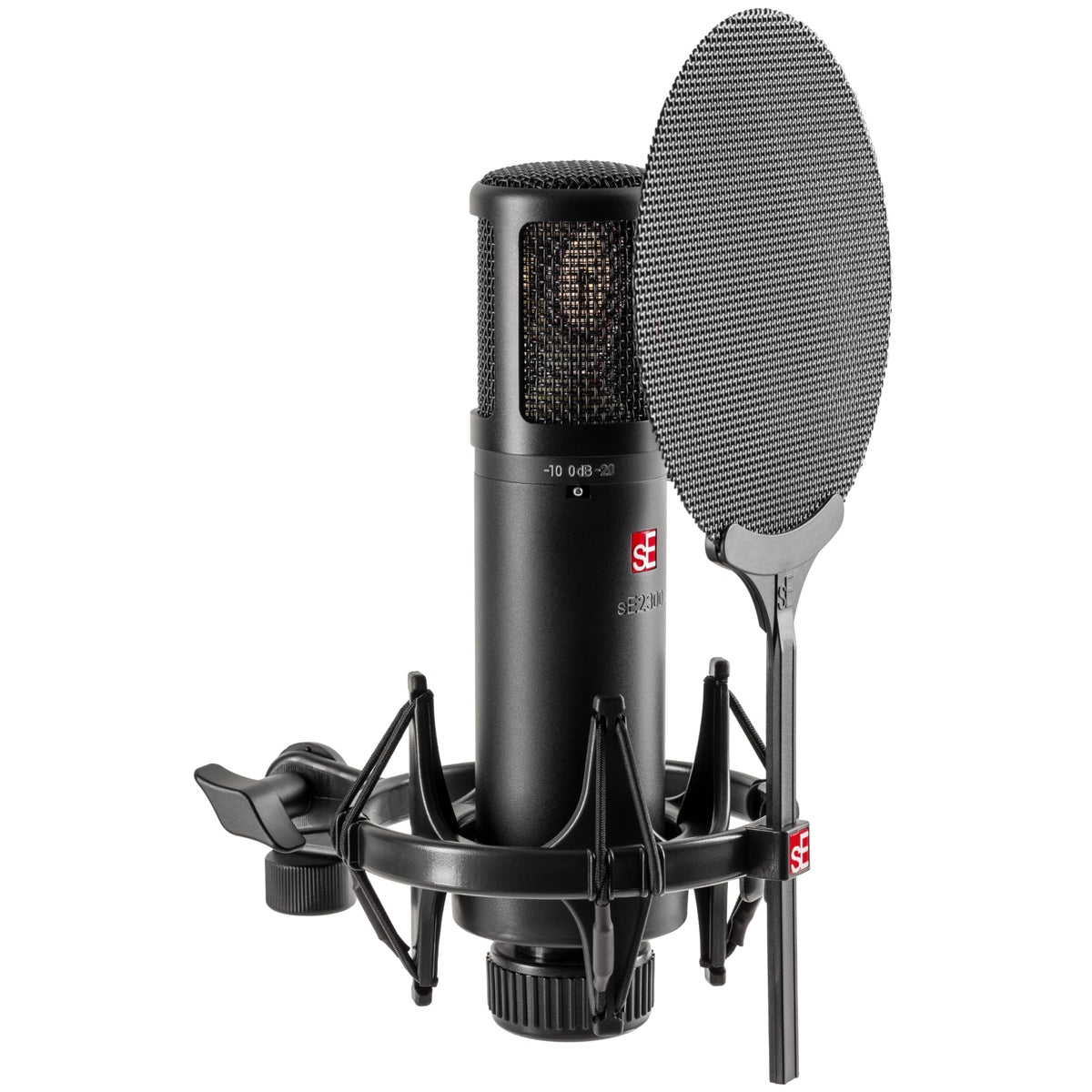

• Isolation Pack Included: Includes a quick-release shockmount and adjustable all-metal pop filter.

Design & Installation

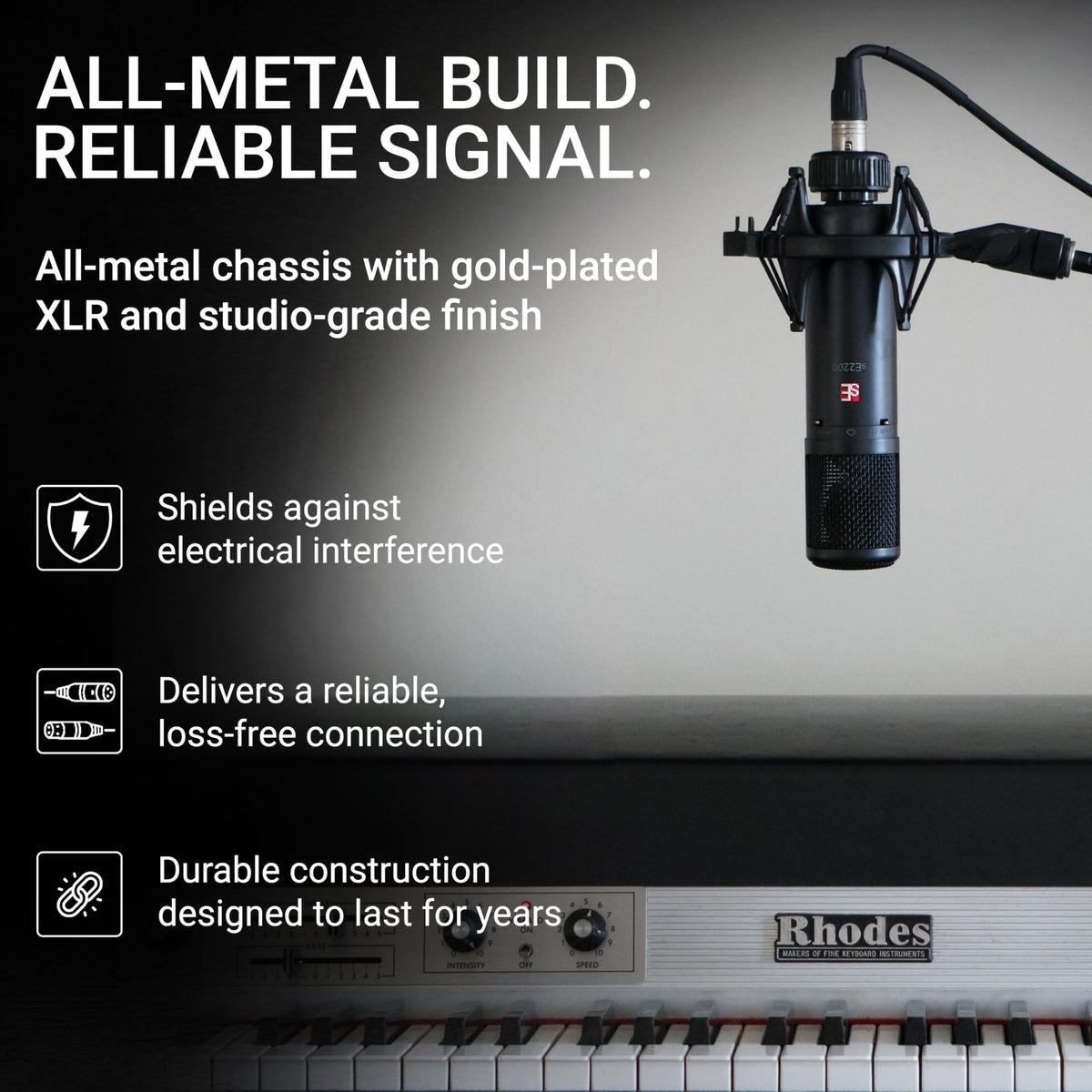

The sE2300 uses a hand-crafted true condenser capsule, custom output transformer, and all-metal shielded housing. Its metal chassis is designed to help reduce electrical interference while providing a durable platform for studio and stage use. Front and rear switches provide direct access to pad, filter, and polar-pattern settings.

Connect the microphone to a compatible XLR microphone preamp, mixer, recorder, or audio interface that supplies 48V phantom power. Use the included shockmount to isolate the microphone from stand-borne vibration, then position the pop filter for vocal work or remove it when preferred. Start with cardioid for most single-source recording, then use the pad and low-cut controls as needed for loud or close-miked sources.
