Zoom LiveTrak L-12 Digital Mixer and Multitrack Recorder

The Zoom LiveTrak L-12 is a compact digital mixer, multitrack recorder, and USB audio interface designed to bring live mixing and recording together in one tabletop unit. It provides 12 input channels, including eight mono mic/line channels and two stereo line channels. This makes it well suited to small bands, rehearsal rooms, live-streaming setups, podcasters, and creators who need hands-on control without assembling separate mixer and recorder systems.

The L-12 records individual channels directly to an SD card while supporting a live mix, helping users capture performances for later editing and remixing. At 44.1 or 48 kHz, it can record up to 14 tracks simultaneously; at 96 kHz, it records up to 12 tracks simultaneously. Recordings use WAV files at 16- or 24-bit resolution, giving projects a practical path from live session to DAW editing.

Its eight mono inputs use mic preamps rated at -128 dB EIN with up to +60 dB of gain, supporting detailed capture from microphones and instruments. Channels 1 and 2 include Hi-Z mode for direct guitar or bass connection, while channels 3 through 8 include 26 dB pads for higher-level sources. Each mono channel also has single-knob compression, and all input channels include EQ and low-cut processing for straightforward mix shaping.

Five monitor outputs let performers or hosts work from separate monitor mixes rather than sharing one headphone balance. Each monitor mix can be customized and saved, and the unit includes five powered headphone outputs for direct headphone or in-ear monitoring. This approach is useful for group recording, small live performances, and multi-person podcast sessions where each participant needs a different listening level.

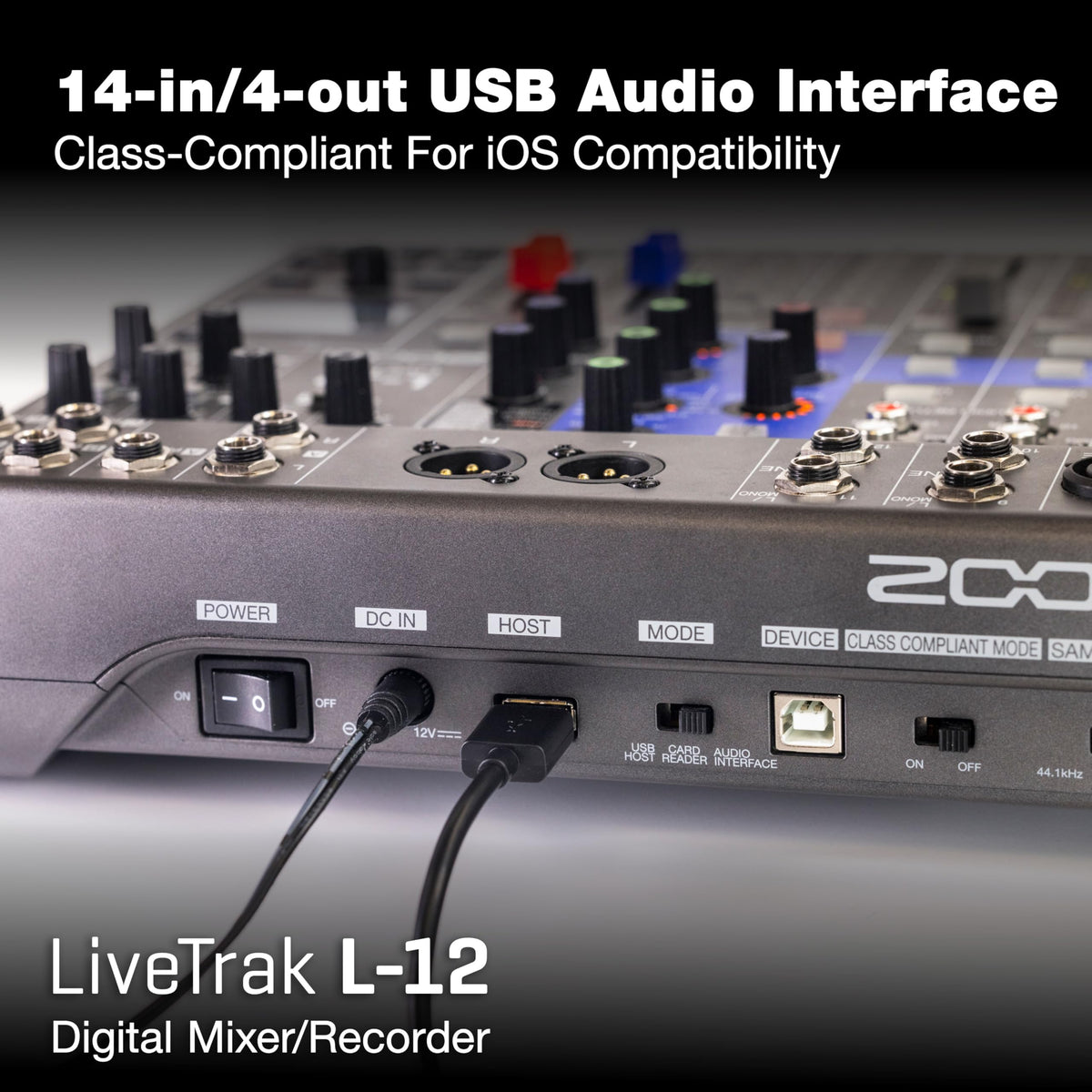

For computer-based production, the L-12 functions as a 14-input, 4-output USB 2.0 audio interface at 44.1 or 48 kHz. Class-compliant mode supports compatible iOS devices, and USB Host and Card Reader modes help move projects and audio files between storage and a computer. It can serve as the central mixer for a compact PA, recording rig, streaming workstation, or hybrid live-and-DAW setup.

Key Features

• 12-Channel Mixer: Eight mono and two stereo channels support small-group productions.
• Multitrack SD Recording: Captures individual channels directly as WAV files.
• Five Monitor Mixes: Gives performers independent headphone mixes and volume control.
• Quiet Mic Preamps: Provides up to +60 dB gain with -128 dB EIN.
• USB Audio Interface: Sends 14 inputs and receives four computer playback channels.
• Channel Processing: Includes compression, 3-band EQ, low-cut, and 16 effects.

Design & Installation

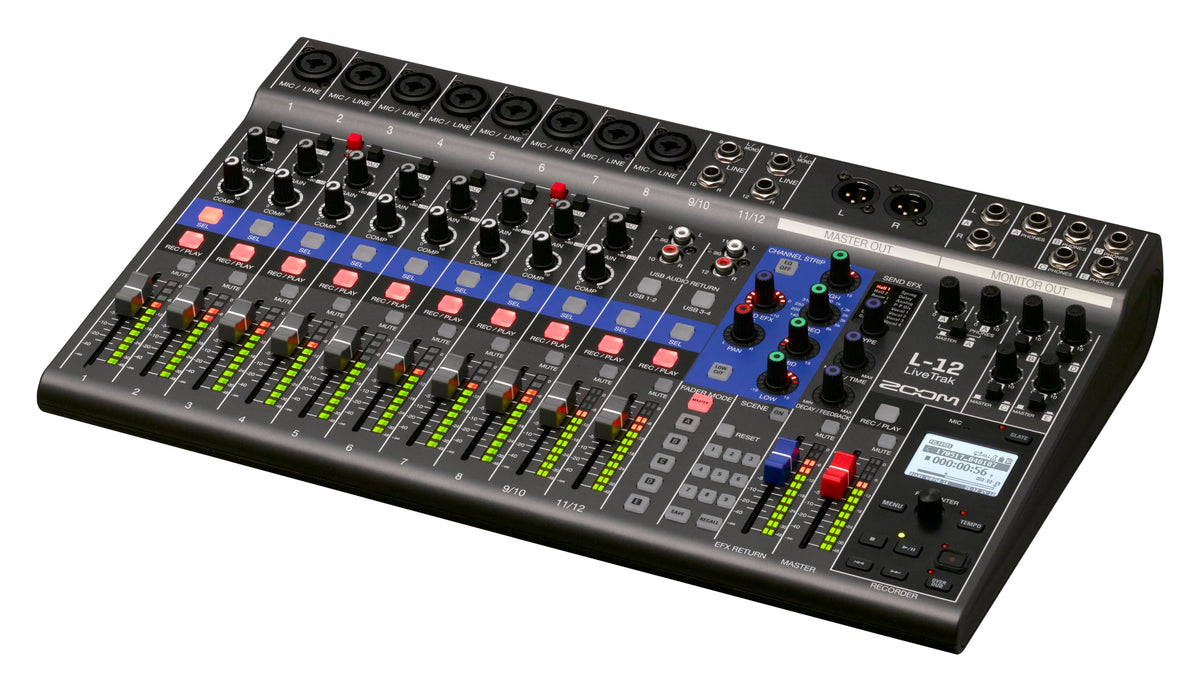

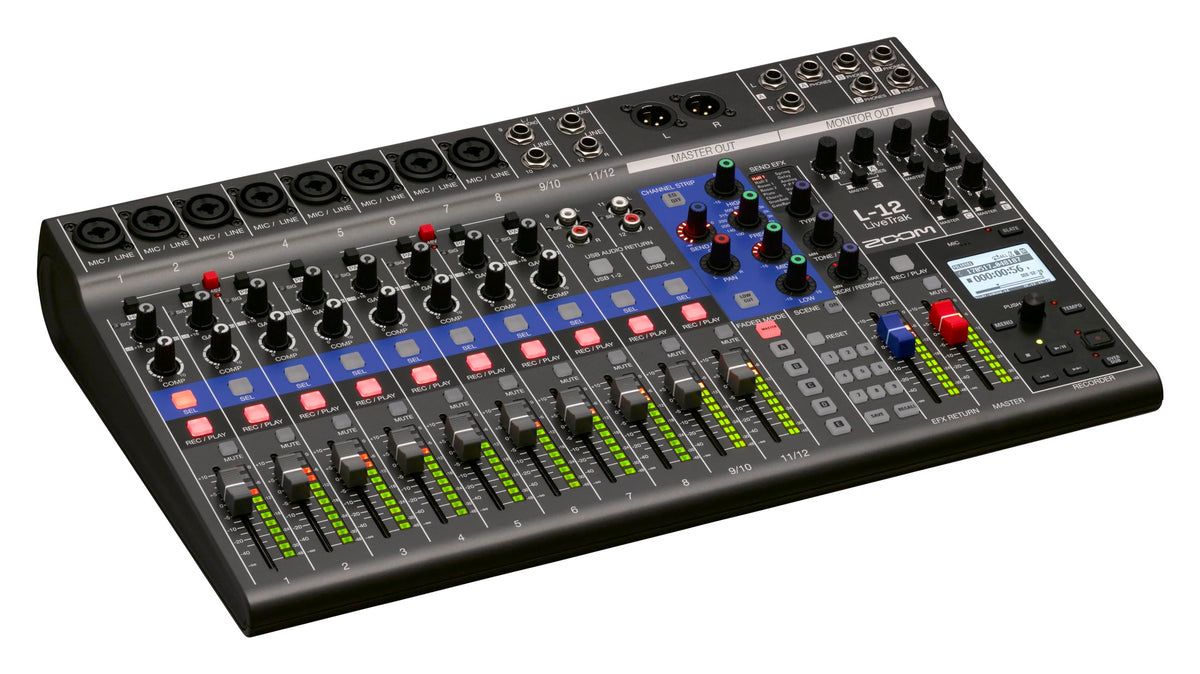

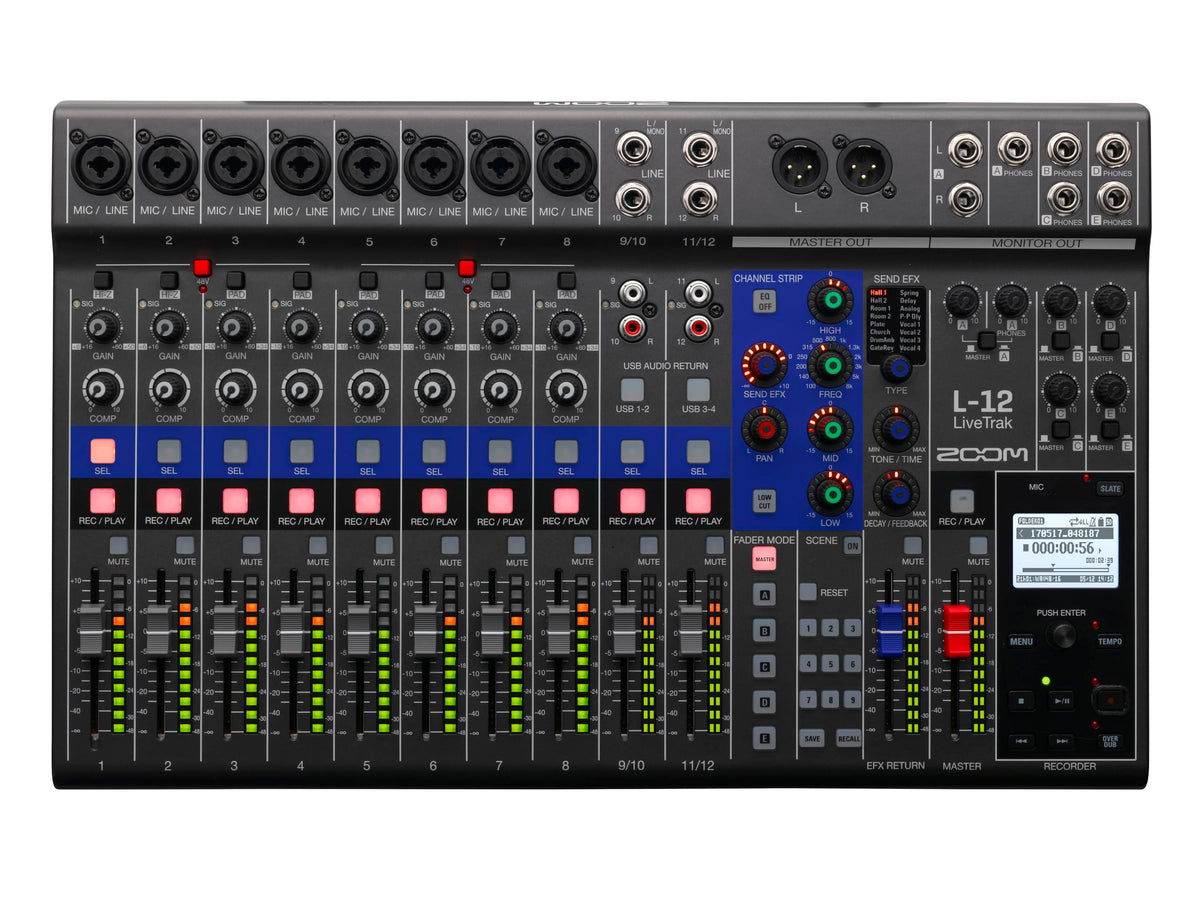

The LiveTrak L-12 uses a compact tabletop mixer format with dedicated faders, gain controls, channel buttons, level meters, a backlit 128 x 64 LCD, and a central encoder for menu navigation. Zoom specifies external dimensions of 445 x 282 x 70.5 mm and a main-unit weight of 2.53 kg. The manufacturer does not specify a chassis material, but the control layout is designed for direct access during mixing, recording, and monitoring.

Connect microphones and line-level sources to the eight XLR/TRS combo inputs, connect stereo devices to the TRS or RCA stereo inputs, and route the balanced XLR master outputs to a PA system or powered speakers. Use the five headphone outputs for separate performer mixes, insert a supported SD, SDHC, or SDXC card for standalone recording, and connect USB 2.0 for interface, card-reader, or USB Host functions. The included AD-19 AC adapter and USB 2.0 cable provide the basic power and computer connection needed to begin setup.
