Mackie DL32SE 32-Channel Digital Rack Mixer

The Mackie DL32SE is a 32-channel digital rack mixer built for live sound systems that need substantial input capacity without a traditional front-of-house console. Its stagebox-style format places microphone, line-level, output, USB, and network connections in one rack-mountable unit. Mixing is handled remotely through the Master Fader SE control app, helping engineers work from the audience area, stage, or control position.

This mixer is well suited to bands, installed venues, houses of worship, production systems, and recording setups that need many sources and flexible monitor routing. It provides 16 XLR inputs plus 16 XLR/TRS combo inputs, allowing microphones, DI sources, keyboards, playback devices, and instruments to connect in one system. Inputs 31 and 32 support Hi-Z instrument connection with unbalanced 1/4-inch cables.

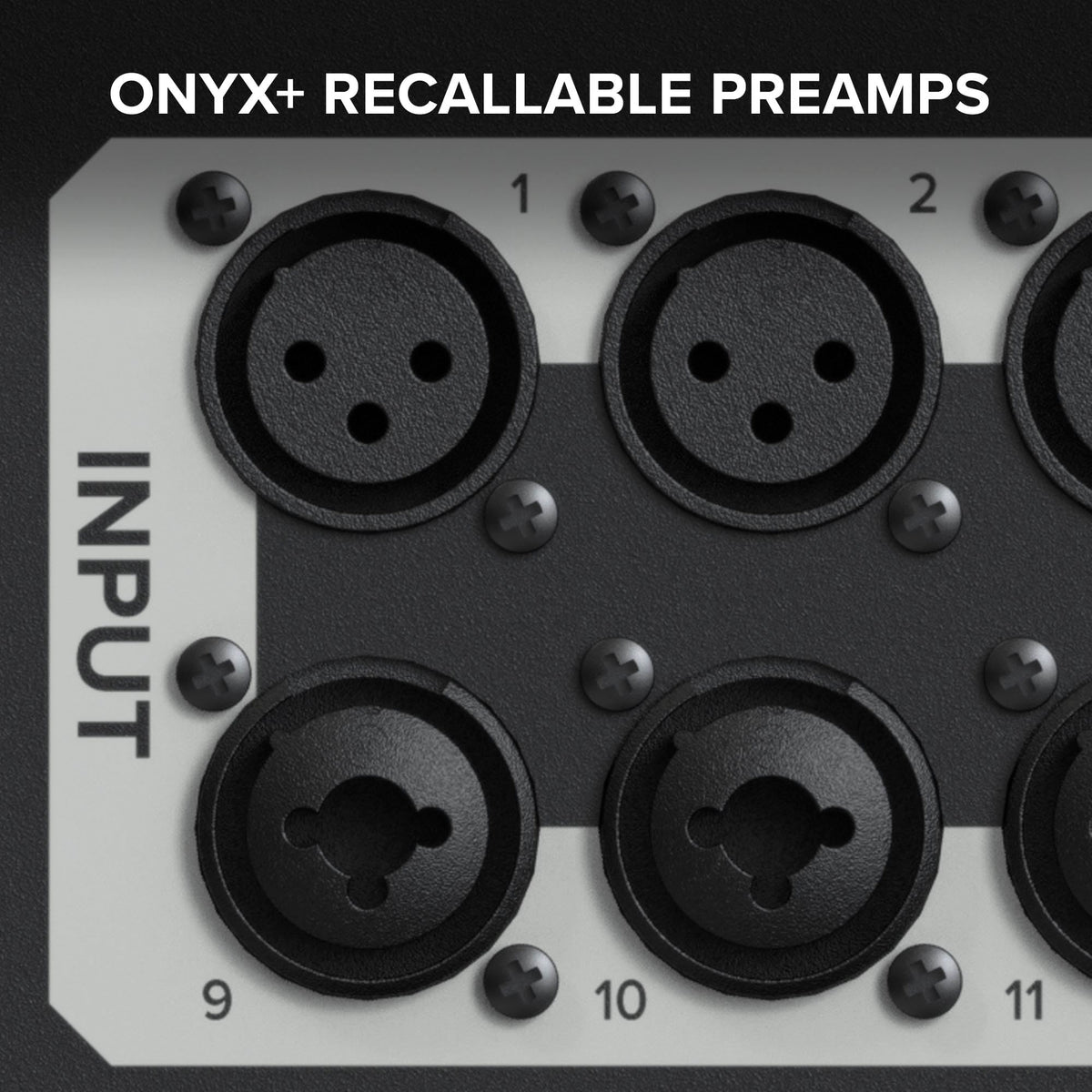

Onyx+ microphone preamps provide the analog input stage, while 24-bit conversion and a 48 kHz sample rate support its digital mixing workflow. Each input channel includes 4-band parametric EQ, a high-pass filter, gate, compression, and RTA/Spectrograph tools. Output processing adds high-pass and low-pass filters, 31-band graphic EQ, compressor/limiter, alignment delay, and analysis tools.

The DL32SE offers 10 fully assignable balanced XLR outputs, eight stereo-linkable aux sends, six stereo-linkable subgroups, and a main L/R bus. This routing capacity supports separate main, monitor, in-ear, subgroup, and effects feeds from a single compact mixer. Four stereo effects processors have dedicated sends and returns, so effects processing does not consume the main output busses.

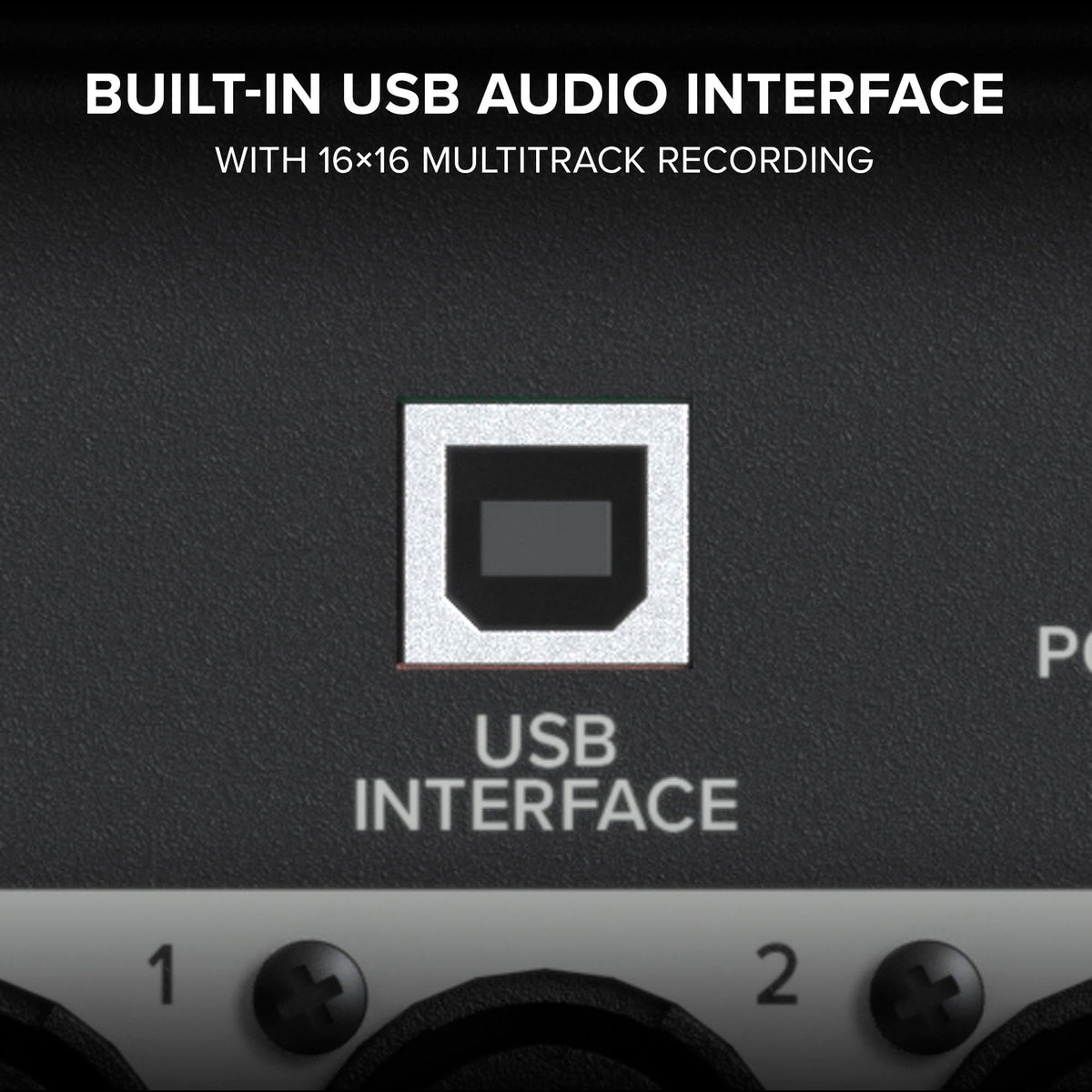

For recording and playback, the DL32SE functions as a 32-in/32-out USB 2.0 audio interface for Mac or PC. It can capture multitrack performances, return backing tracks through a dedicated stereo return channel, and support virtual soundchecks. The included Waveform OEM software and DAW Essentials plug-in bundle extend the mixer into a compact recording and production workflow.

Key Features

• 32 Onyx+ Preamps: Connect microphones and line-level sources across 32 input channels.
• Flexible Analog I/O: Provides 10 assignable XLR outputs and a headphone output.

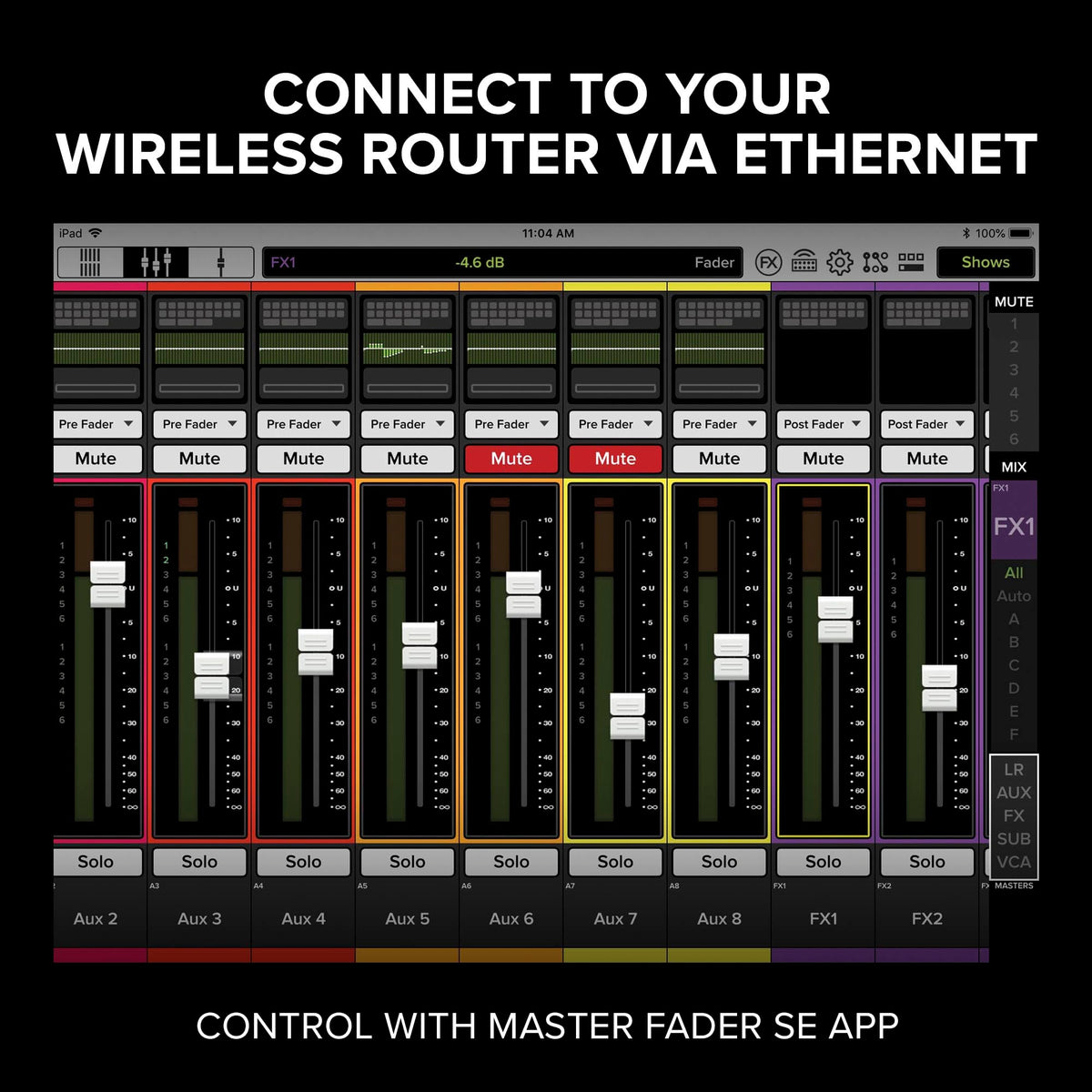

• Remote Master Fader SE Control: Mix from compatible iOS, Android, macOS, or Windows devices.
• 32x32 USB Recording: Record and play back multitrack audio through USB.
• Channel And Bus DSP: Shape sources and outputs with EQ, dynamics, filters, and analysis.

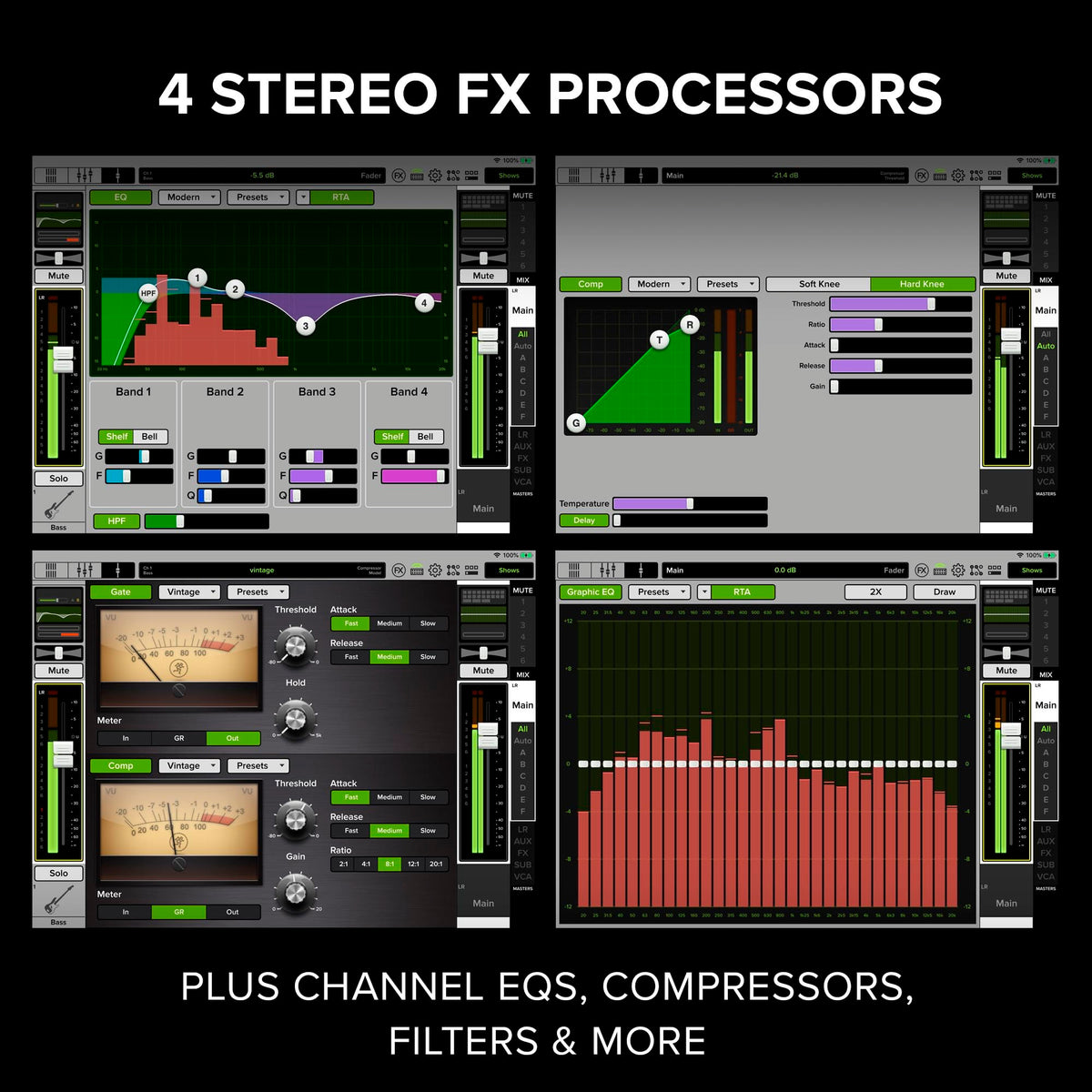

• Four Stereo FX Engines: Add dedicated reverbs, delays, chorus, flanger, and other effects.

Design & Installation

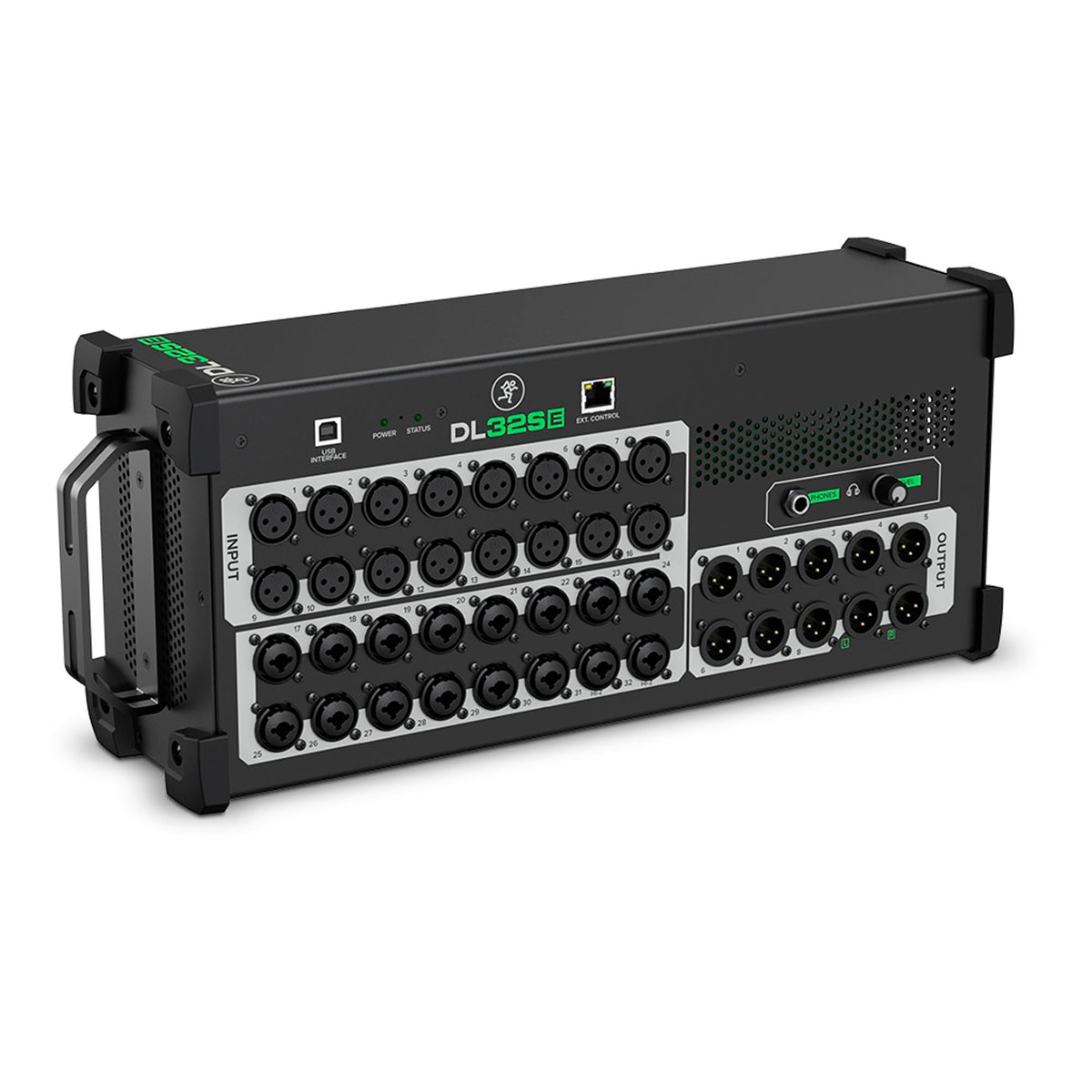

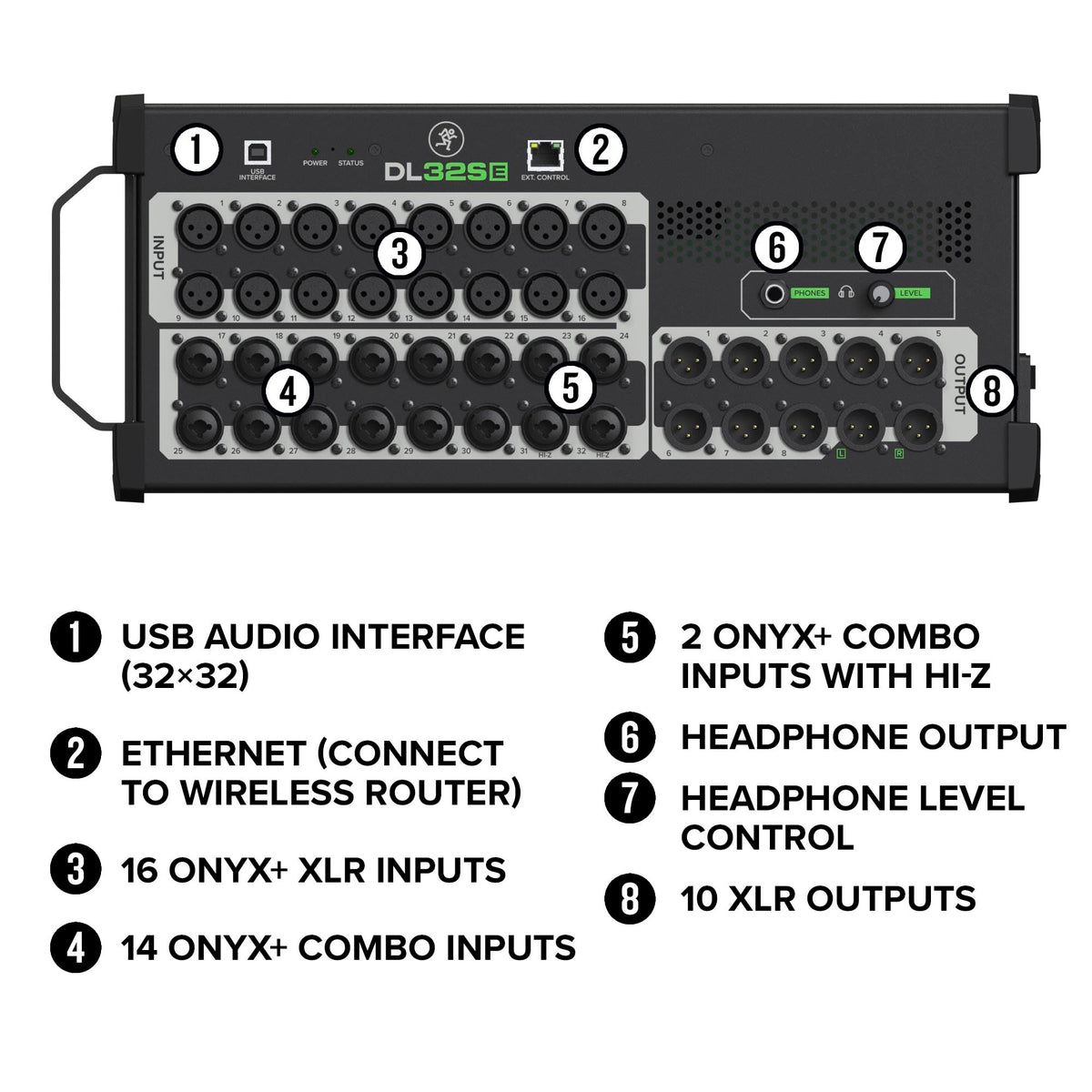

The DL32SE uses a compact stagebox-style chassis with a built-in handle and included rack ears for 4U rack installation. Its connection layout includes 16 balanced XLR inputs, 16 combo XLR/TRS inputs, 10 balanced XLR outputs, a 1/4-inch stereo headphone output, USB-B, Ethernet, IEC power, and a Kensington security slot. The detachable IEC power cord is user-replaceable.

For wireless mixing, connect the mixer’s external-control Ethernet port to a LAN port on a compatible wireless router using CAT5 Ethernet cable, then place compatible control devices on that network. Connect the XLR outputs to powered speakers, amplifier inputs, monitor systems, in-ear monitor transmitters, or other line-level devices as needed. For computer recording, connect USB-B to a Mac or Windows computer; macOS is class-compliant, while Windows requires the Mackie USB driver.
