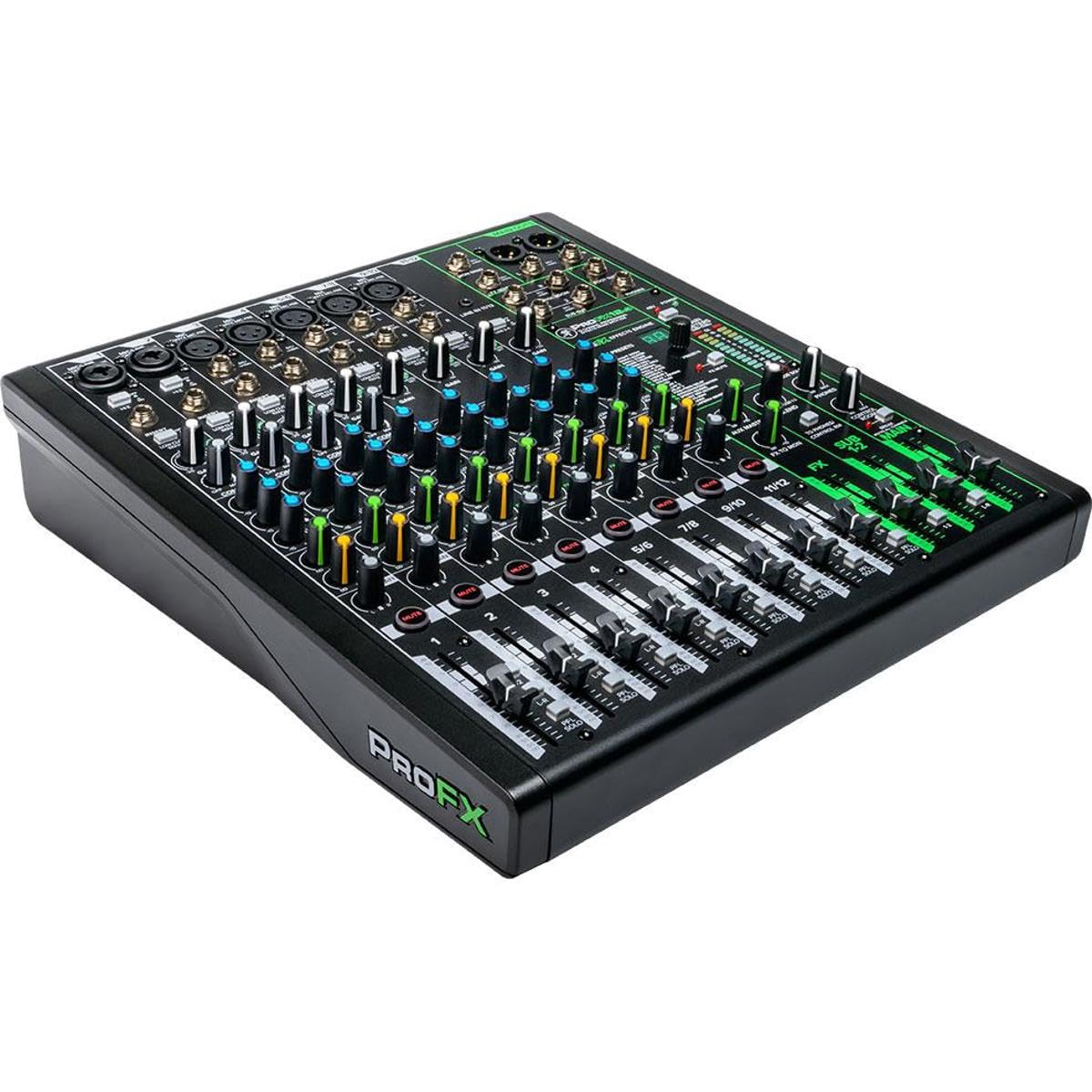

Mackie ProFX12v3 12-Channel Analog USB Mixer

The Mackie ProFX12v3 is a 12-channel analog mixer designed for small live-sound rigs, recording setups, podcasts, streaming, and content production. It brings microphone, instrument, stereo line, computer-audio, monitoring, and effects control together in one compact console. The mixer is suited to users who need hands-on level control without moving to a large-format board.

Seven Onyx microphone preamps provide up to 60 dB of gain for microphones and compatible line-level sources. Channels 1 and 2 also include switchable Hi-Z operation for directly connecting guitars or basses. The analog channel layout provides straightforward gain, EQ, routing, and level adjustment during a performance or recording session.

The built-in GigFX engine provides 24 selectable effects presets, including reverb, delay, and chorus-style options. Four mono channels include single-knob compression with a variable threshold, helping manage changing vocal or instrument levels. A three-band EQ and 100 Hz low-cut filter on microphone-input channels provide practical tone-shaping tools.

Its USB interface supports high-resolution 24-bit audio at sample rates up to 192 kHz for connection to Mac or PC. The 2x4 USB I/O arrangement supports stereo recording and separate stereo playback returns, while the direct-monitor blend control helps avoid monitoring latency during overdubs. USB 3/4 return routing can be used for computer playback such as backing tracks, streamed audio, or game audio.

The ProFX12v3 fits naturally between source devices and powered speakers, power amplifiers, monitors, headphones, and a computer. It includes a dedicated monitor send, stereo subgroup routing, main outputs, control-room outputs, and a separate headphone level and blend control. Waveform OEM recording software is included to support a simple recording workflow after the mixer is connected to a compatible computer.

Key Features

• 12-Channel Mixing: Combines microphone, mono line, stereo line, 1/8-inch stereo, and USB-return sources.
• Seven Onyx Preamps: Provides up to 60 dB of gain for microphone inputs.
• GigFX Effects Engine: Offers 24 onboard presets for adding effects without external processors.
• 24-Bit/192 kHz USB: Supports high-resolution computer recording and playback through USB.
• Single-Knob Compression: Helps control dynamics on channels 1 through 4.
• Monitor and Subgroup Routing: Supports a dedicated monitor mix and stereo subgroup control.

Design & Installation

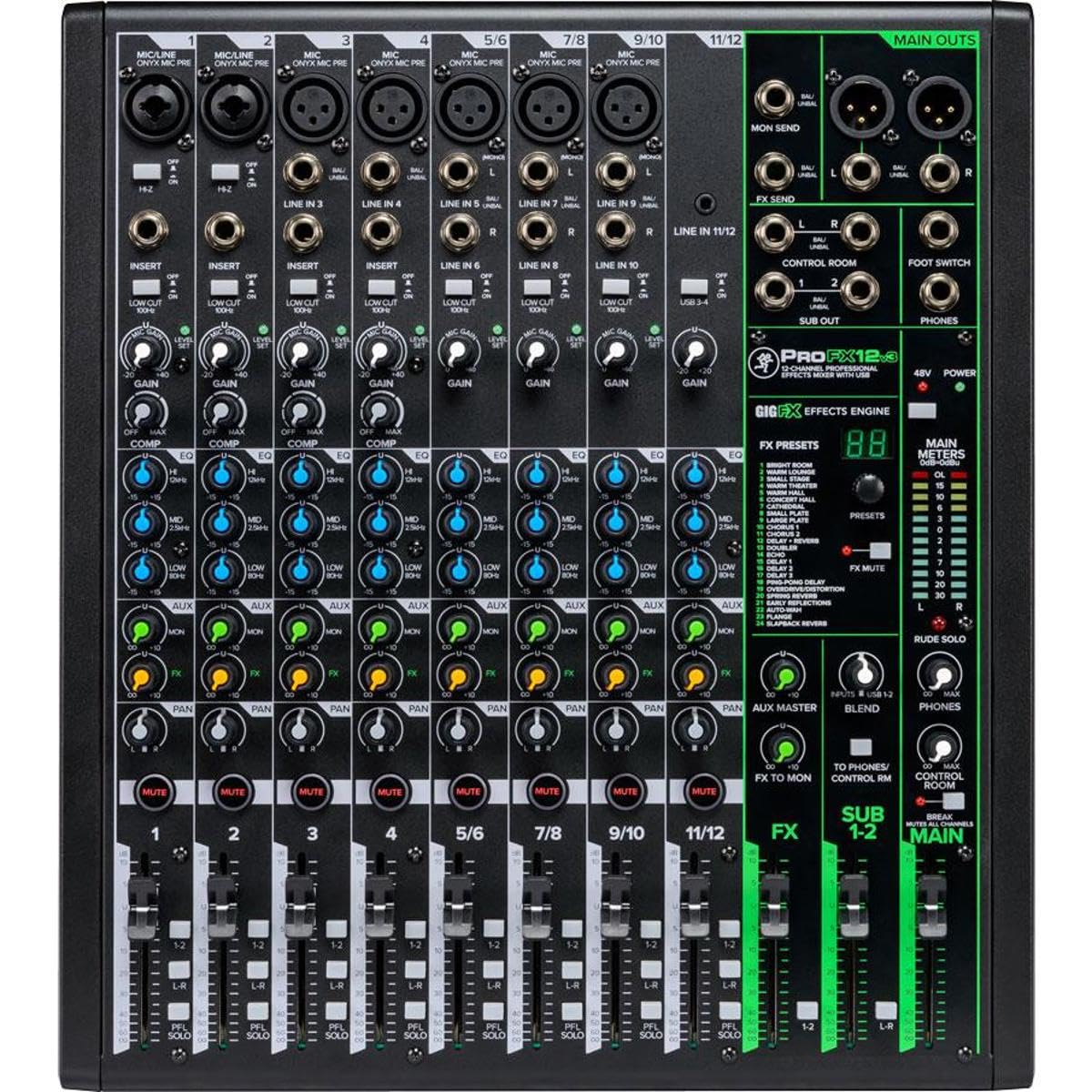

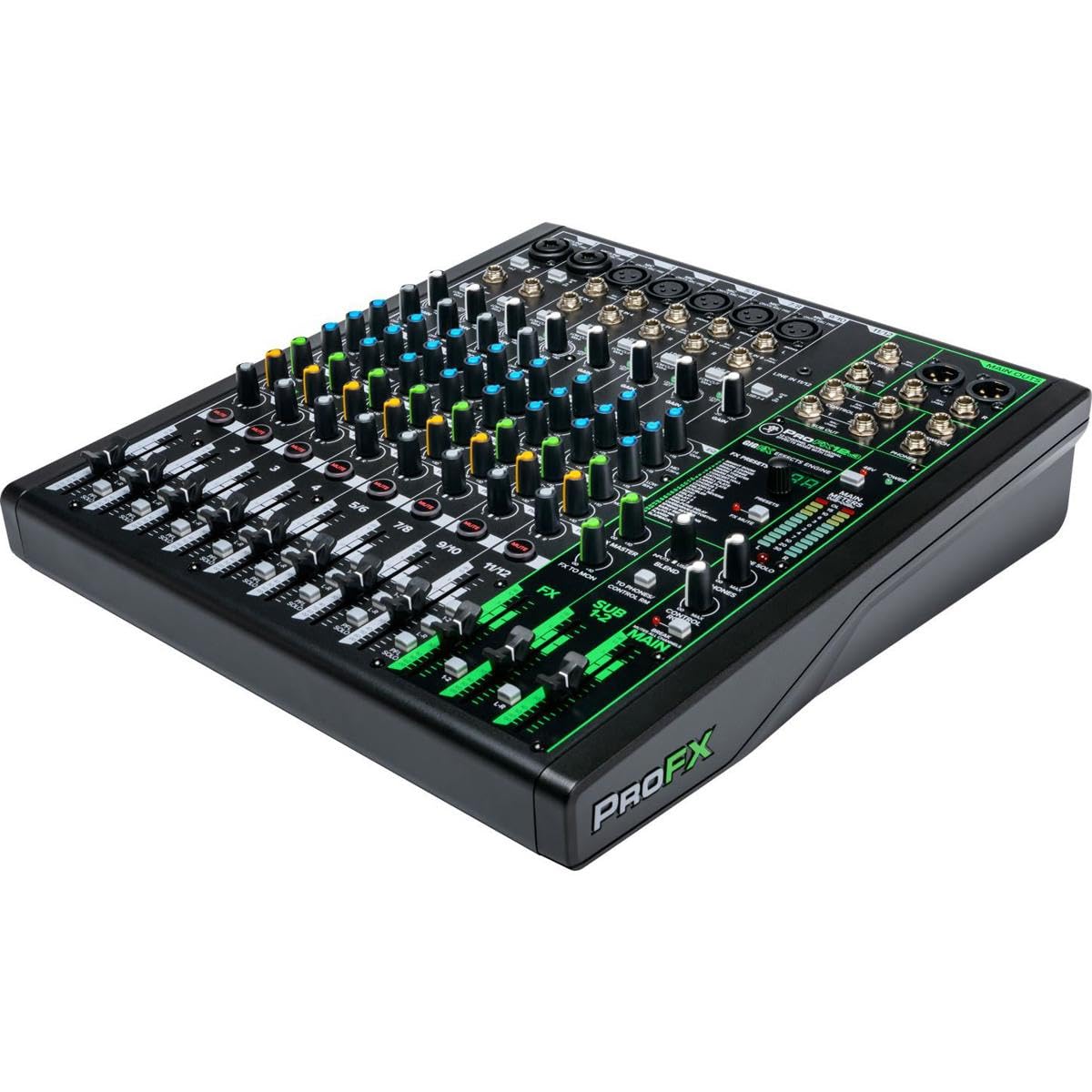

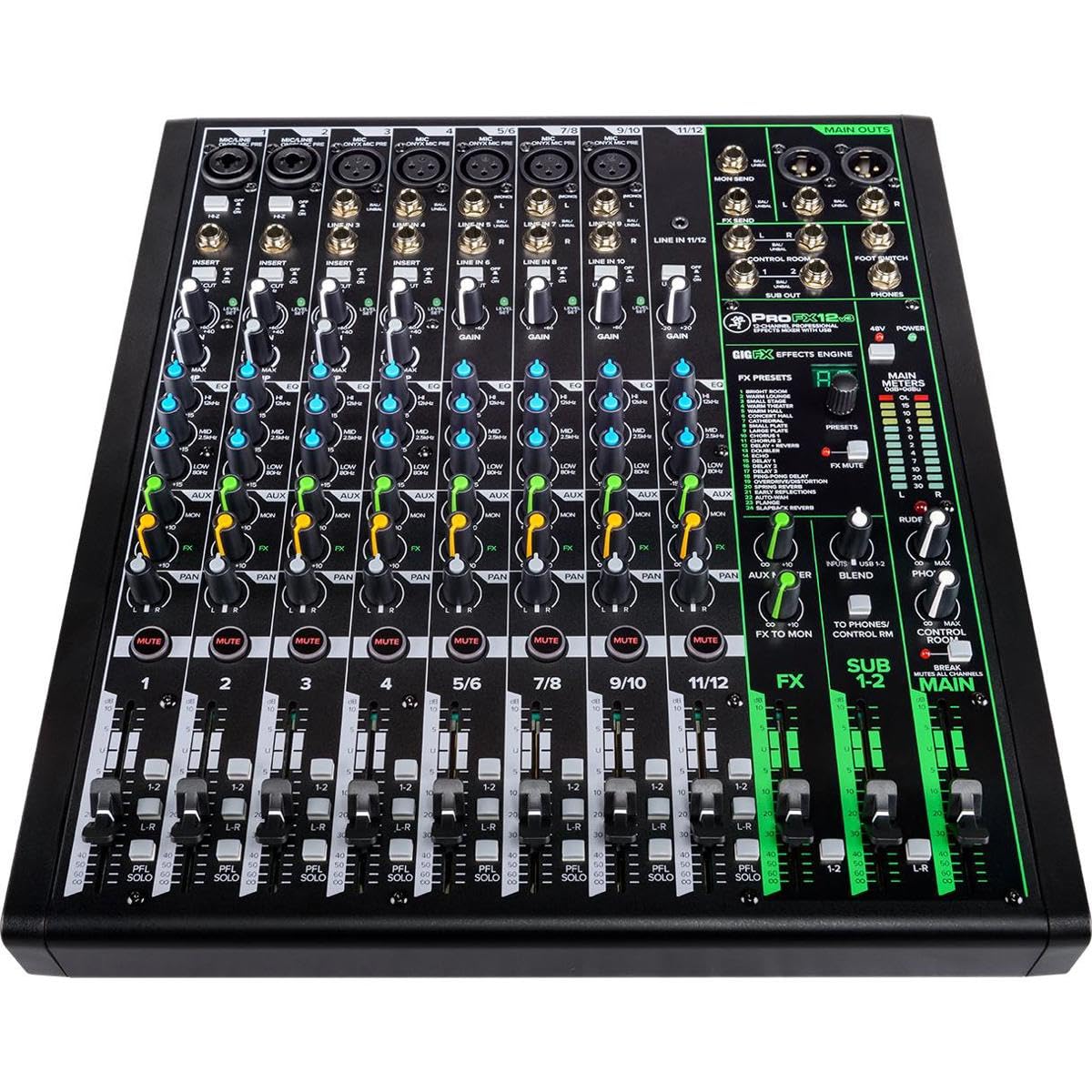

The ProFX12v3 uses a compact mixer format with an organized channel-strip layout, dedicated main and subgroup faders, illuminated metering, and a built-in effects display. Mackie specifies a rugged design for regular portable or fixed-location use. Its net dimensions are 13.0 inches wide, 14.8 inches deep, and 4.0 inches high.

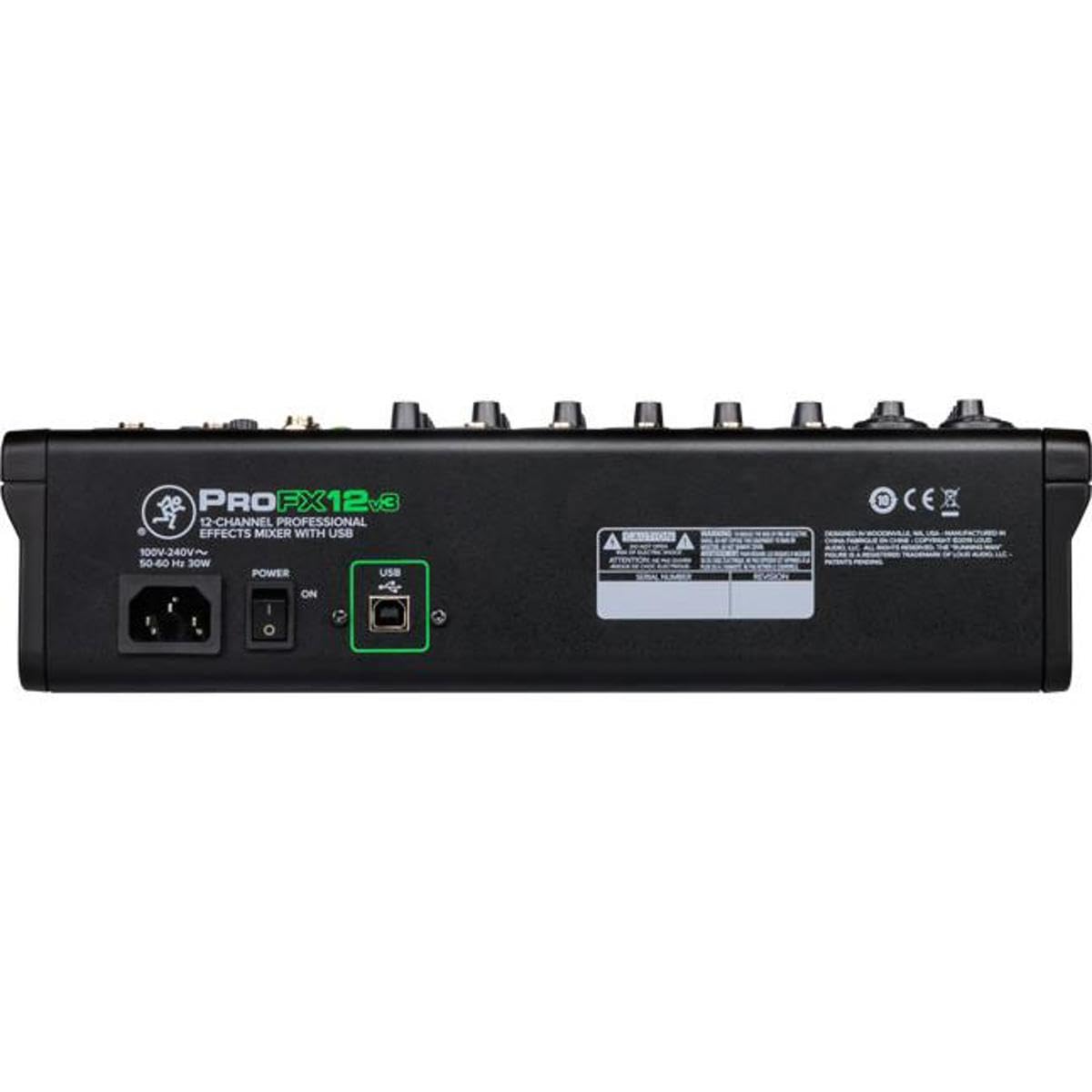

Connect microphones, instruments, and line-level devices to the appropriate inputs before routing the main outputs to powered speakers or an amplifier. Use the dedicated monitor output for a separate pre-fader monitor mix, and connect the USB-B port to a Mac or PC for recording or playback. The mixer uses a standard 3-pin IEC line cord and can be fitted with an optional rack-ear kit for rack installation.
