PreSonus StudioLive AR8c 8-Channel Analog Mixer

The PreSonus StudioLive AR8c is an 8-channel analog mixer, USB audio interface, and stereo SD recorder in one compact console. It gives musicians, podcasters, livestreamers, and small production teams a straightforward way to mix multiple sources while recording to a computer or SD card. Physical channel controls keep hands-on setup practical for recording sessions, rehearsals, and simple live applications.

Four Class A XMAX microphone preamps provide the primary front end for vocal and instrument microphones, while two high-impedance instrument/line inputs accommodate guitars, basses, and line-level sources. Additional stereo line inputs and the Stereo Super Channel expand connection options for playback devices and external sources. Global +48V phantom power supports compatible condenser microphones across the mic inputs.

The AR8c combines its analog signal path with an 8x4, 24-bit/96 kHz USB 2.0 interface using a USB-C connection. It can send individual channels and the main mix to recording software, allowing multitrack capture rather than only a stereo recording. The included Capture recording software is designed for direct session capture, while the bundled DAW software supports further editing and production on Mac and Windows.

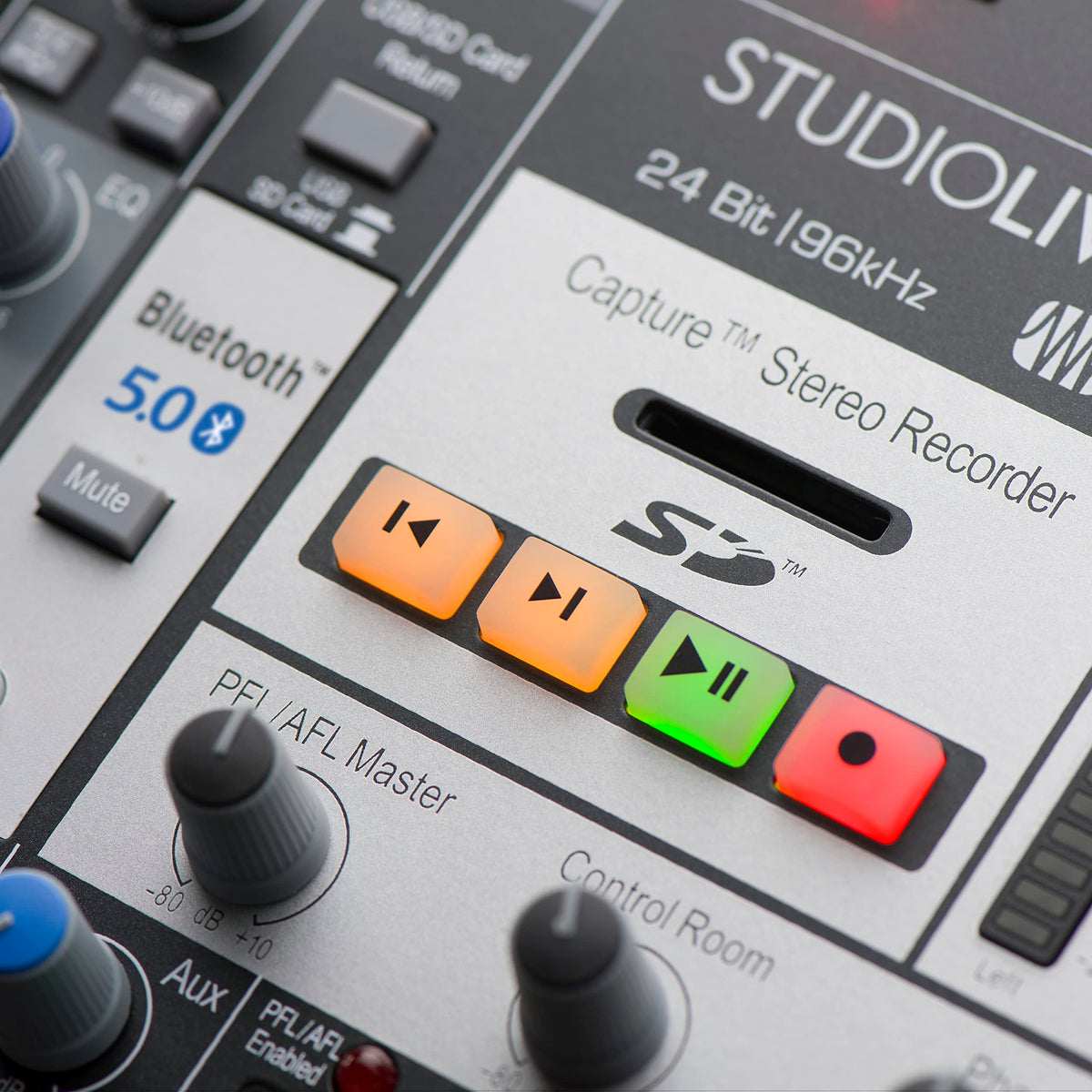

For standalone recording, the onboard 2x2 SD recorder captures the main stereo mix as a WAV file without requiring a computer. The Super Channel adds Bluetooth 5.0 wireless playback, RCA inputs, a 1/8-inch stereo input, and selectable SD or USB playback. A 16-preset stereo effects processor adds reverb, delay, and chorus options for monitoring or mixing.

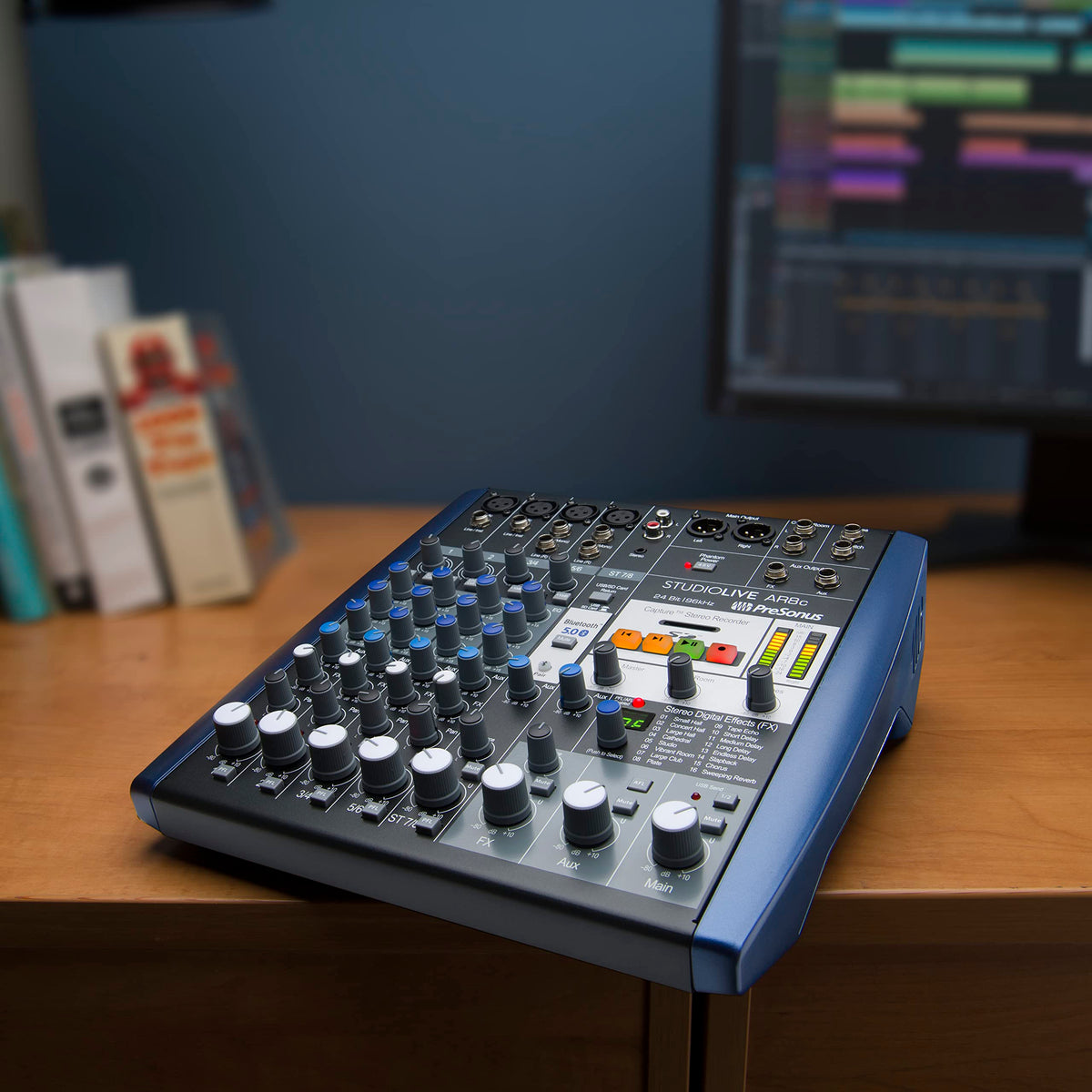

This mixer fits well at the center of a small recording or streaming setup, connecting microphones, instruments, playback devices, headphones, monitors, and a computer from one location. Balanced main XLR outputs and additional balanced TRS outputs support integration with powered speakers, monitors, and external effects paths. Its compact format also makes it suitable for portable production systems where multitrack USB recording and standalone stereo recording are both useful.

Key Features

• 8x4 USB Audio Interface: Records individual channels plus the main mix at up to 24-bit/96 kHz through USB-C.
• Four XMAX Mic Preamps: Provides four balanced XLR microphone inputs with Class A preamp design and global phantom power.
• Stereo SD Recorder: Captures the main mix directly to compatible SD or SDHC media without a computer.
• Bluetooth 5.0 Super Channel: Adds wireless playback along with RCA, 1/8-inch stereo, SD, and USB playback sources.

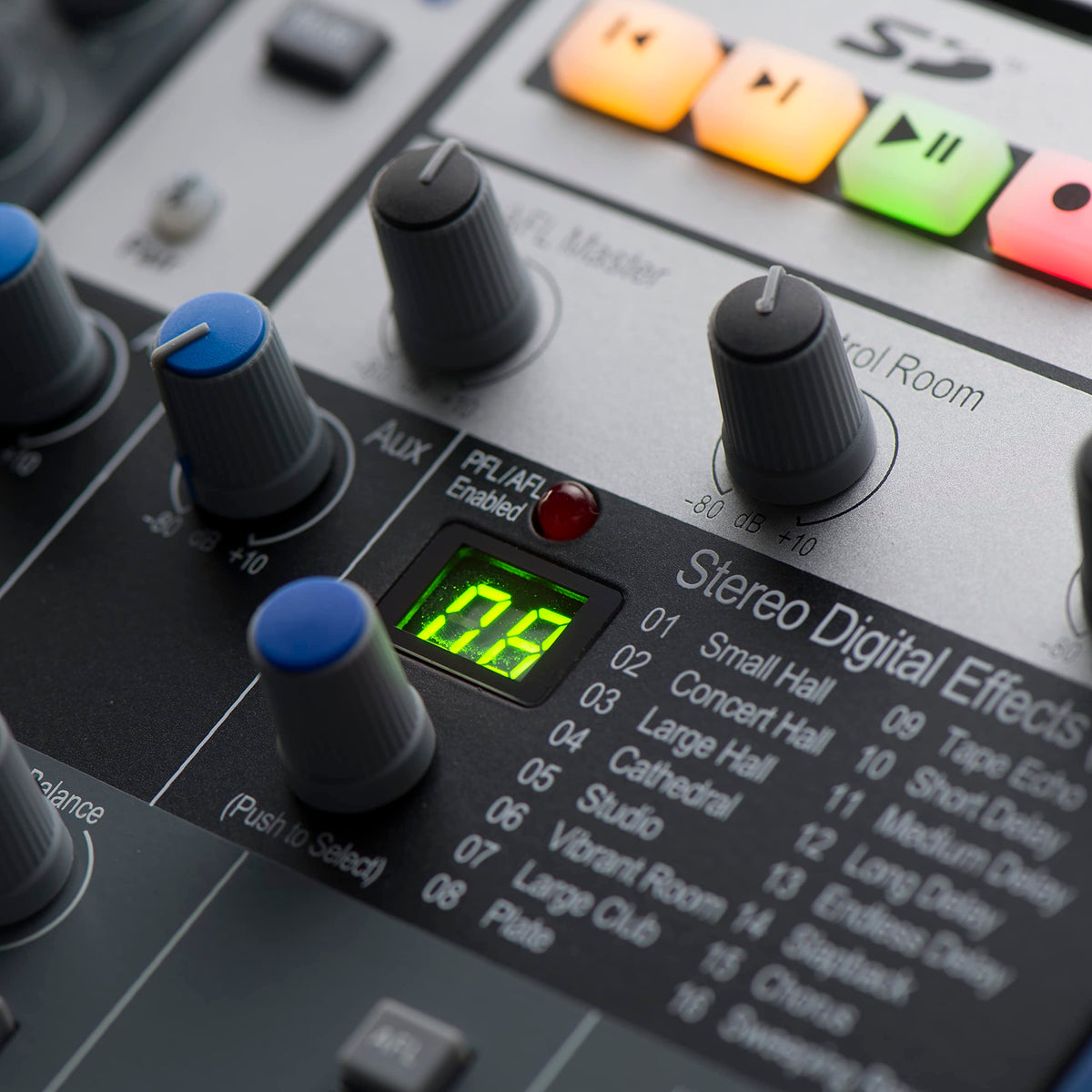

• 16-Preset Effects Processor: Supplies onboard stereo reverb, delay, and chorus effects with dedicated send and return routing.
• Recording Software Included: Includes Capture software and a Studio One Pro/Fender Studio Pro software license for recording and production.

Design & Installation

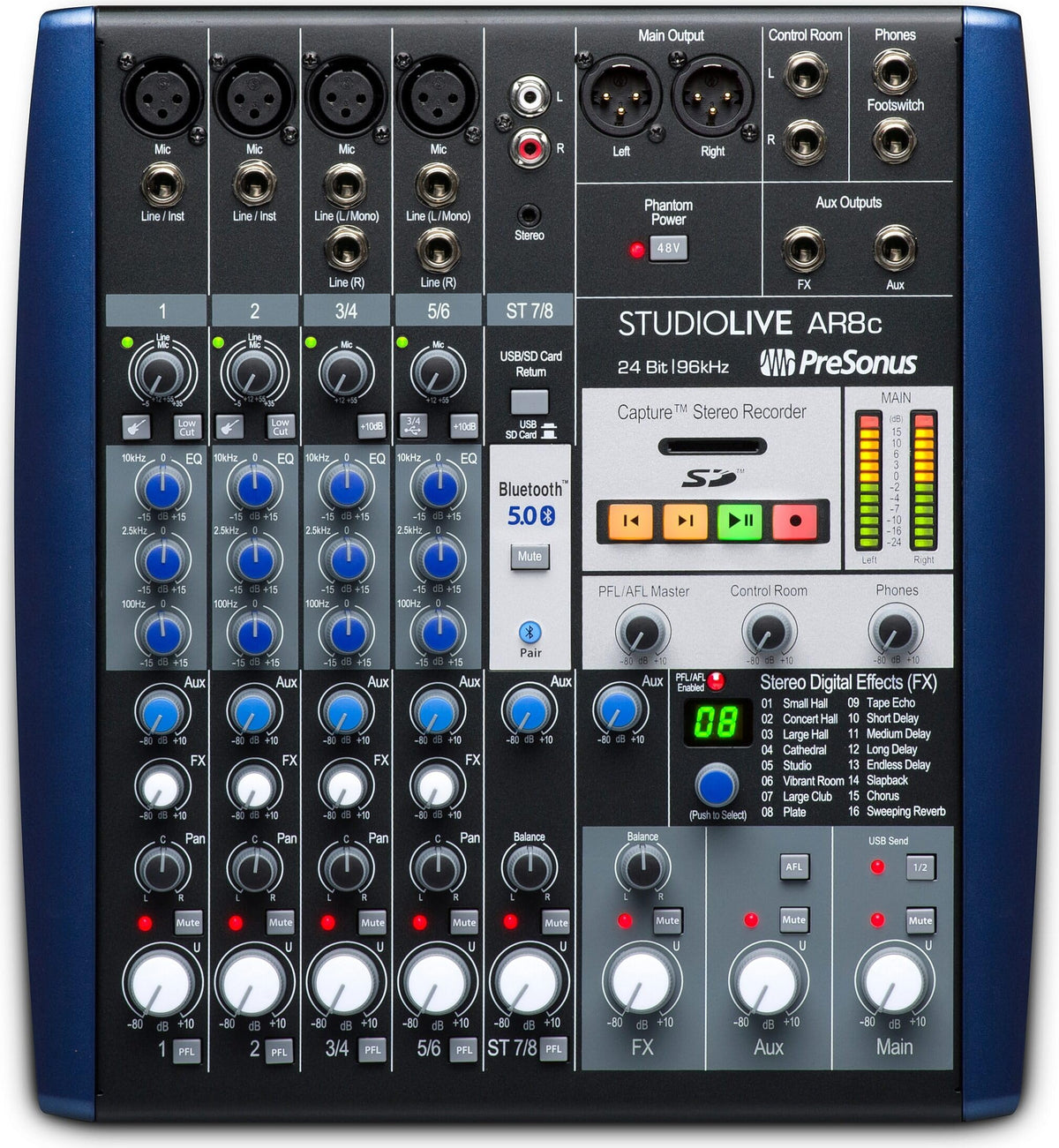

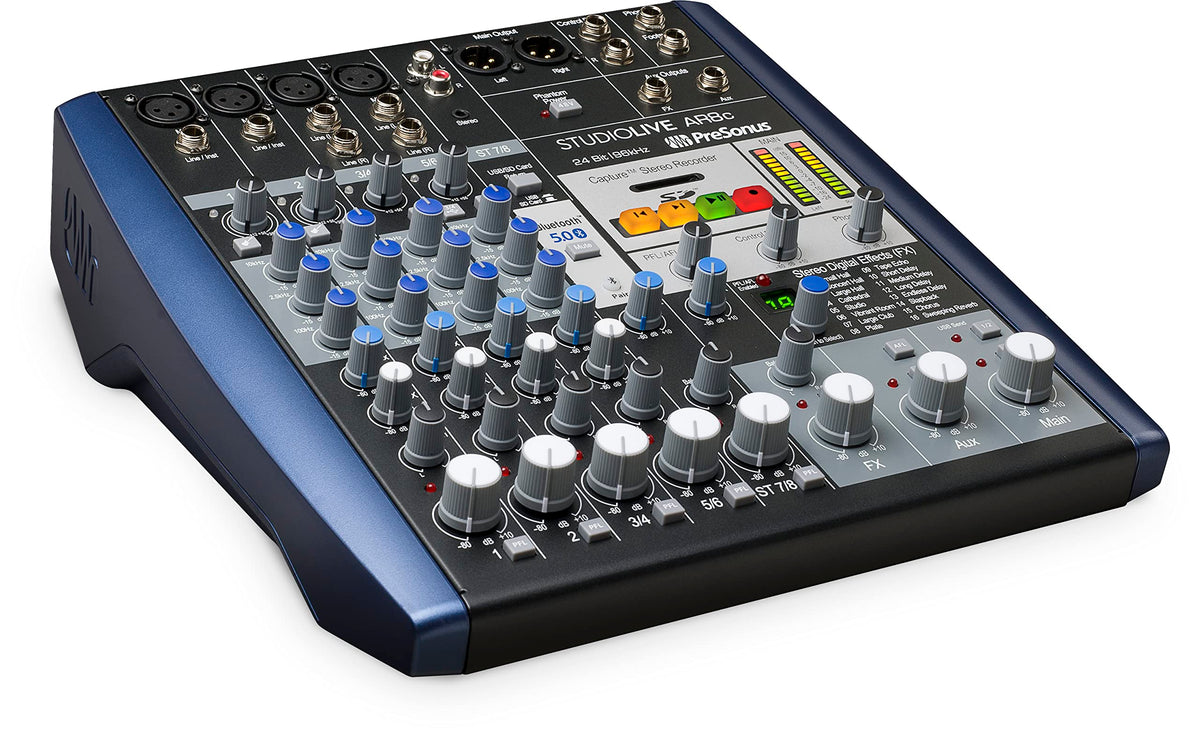

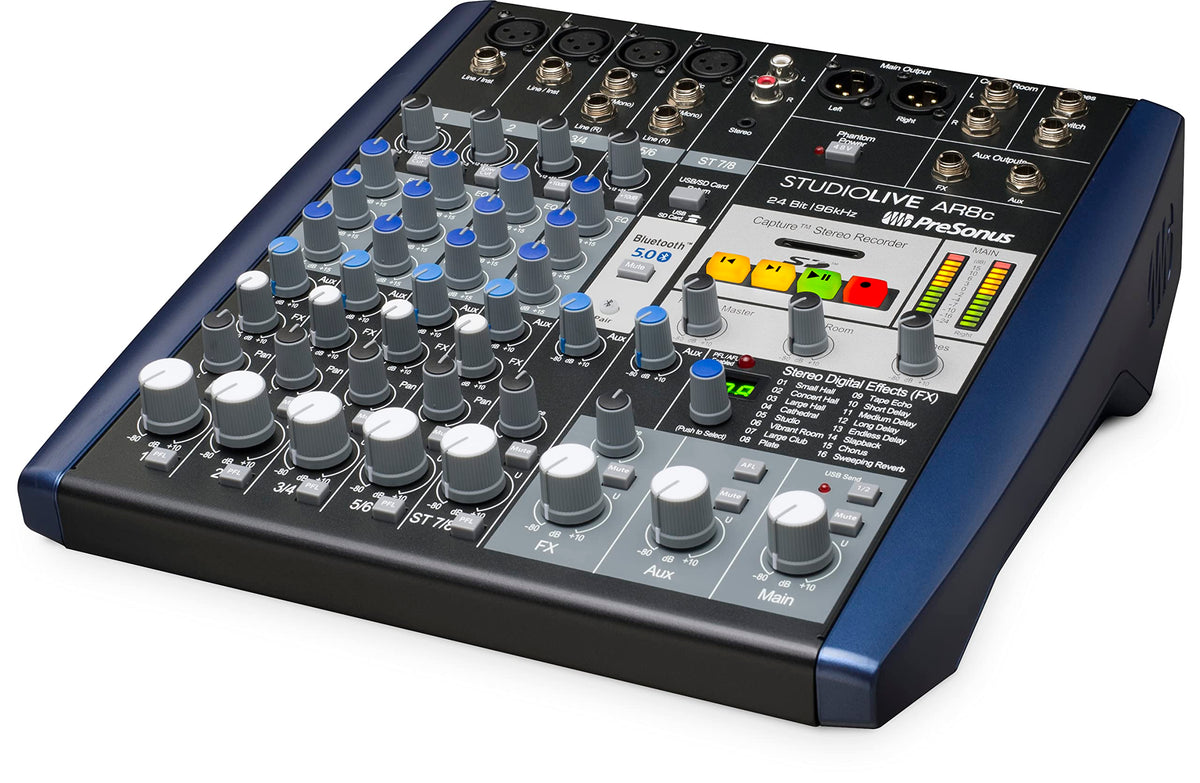

The StudioLive AR8c uses a compact blue-and-black mixer chassis with dedicated knobs, faders, switches, input connectors, and LED level indication. Its analog control layout provides direct access to levels, EQ, sends, monitoring, and playback routing. The unit uses an internal power supply with a standard IEC power connection.

Place the mixer on a stable, ventilated desktop or production surface, then connect microphones by XLR, instruments by 1/4-inch TS, and balanced line sources by 1/4-inch TRS as appropriate. Connect a computer through the USB-C-compatible USB 2.0 port for multitrack recording, or use a properly formatted SD/SDHC card for stereo main-mix recording. Main XLR outputs are suited to balanced connections with powered speakers or a PA system, while headphones, control-room, monitor, and effects connections support monitoring and routing needs.
