Mackie DLZ-CREATORXS Compact Adaptive Digital Mixer

The Mackie DLZ-CREATORXS is a compact adaptive digital mixer designed for podcasting, livestreaming, video production, and desktop content creation. It brings microphone inputs, source mixing, monitoring, recording, and computer interfacing into one tabletop unit. This makes it a practical choice for creators who want more direct control than a basic USB microphone or simple audio interface provides.

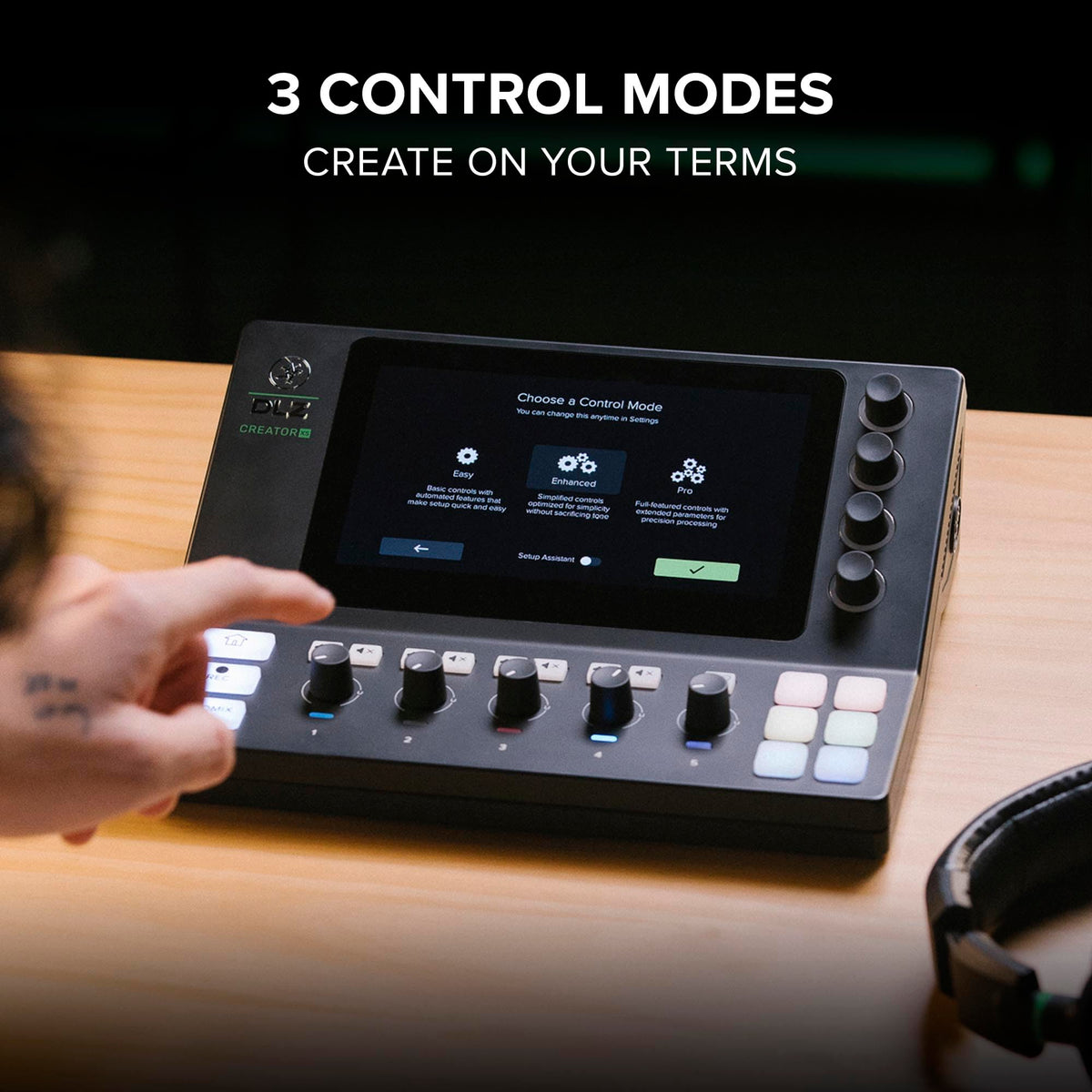

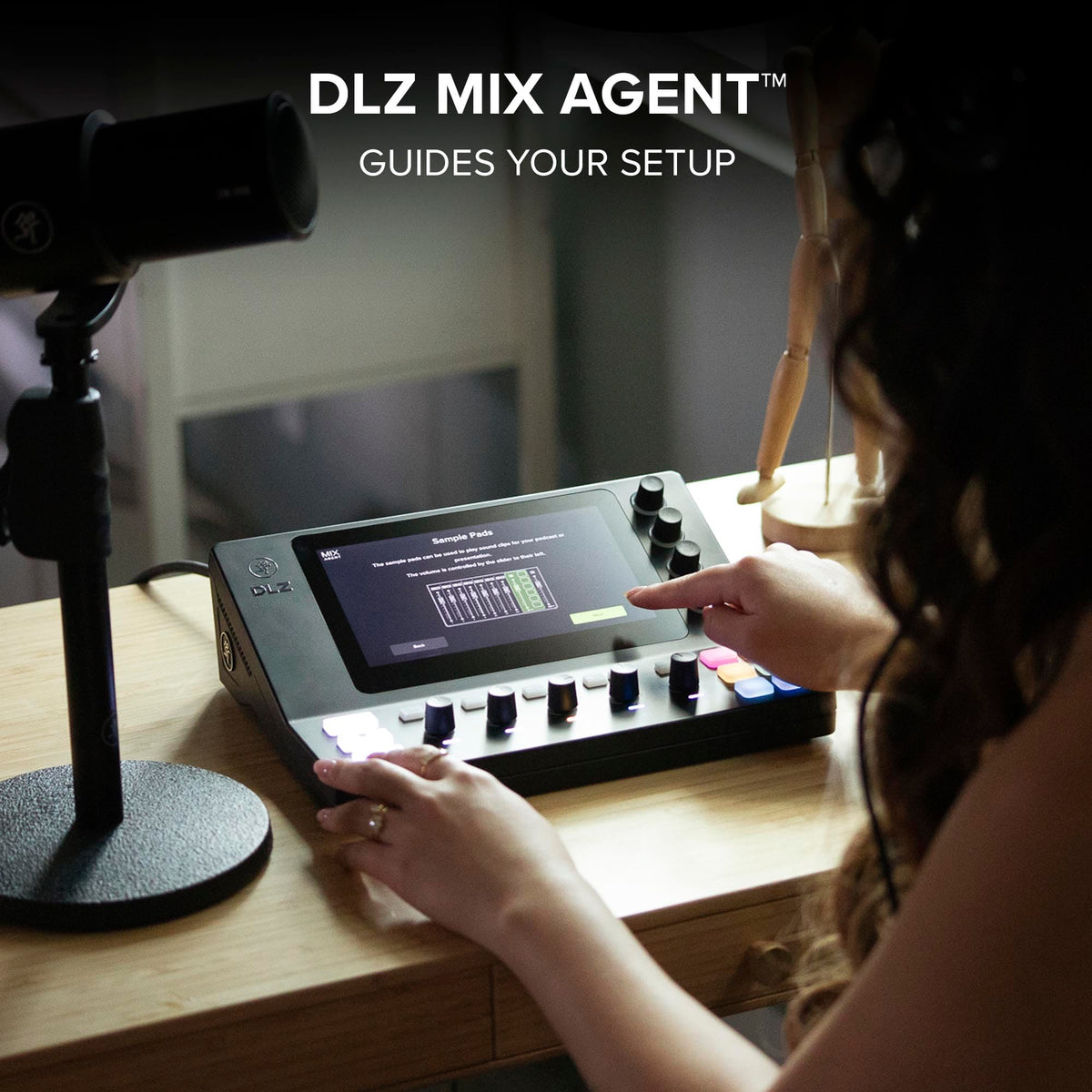

Its adaptive workflow is built for users at different experience levels. Easy, Enhanced, and Pro control modes change the touchscreen interface to provide a more guided or more detailed operating experience. Mix Agent technology assists with setup and sound checks, helping users establish usable input settings before recording or streaming.

Two Onyx80 microphone preamps provide up to 80 dB of gain for connected microphones. The mixer also includes AutoMix for managing microphone levels, plus onboard processing such as parametric EQ, noise gate, de-esser, compressor, reverb, and delay. These tools help maintain a controlled, intelligible presentation for spoken-word productions.

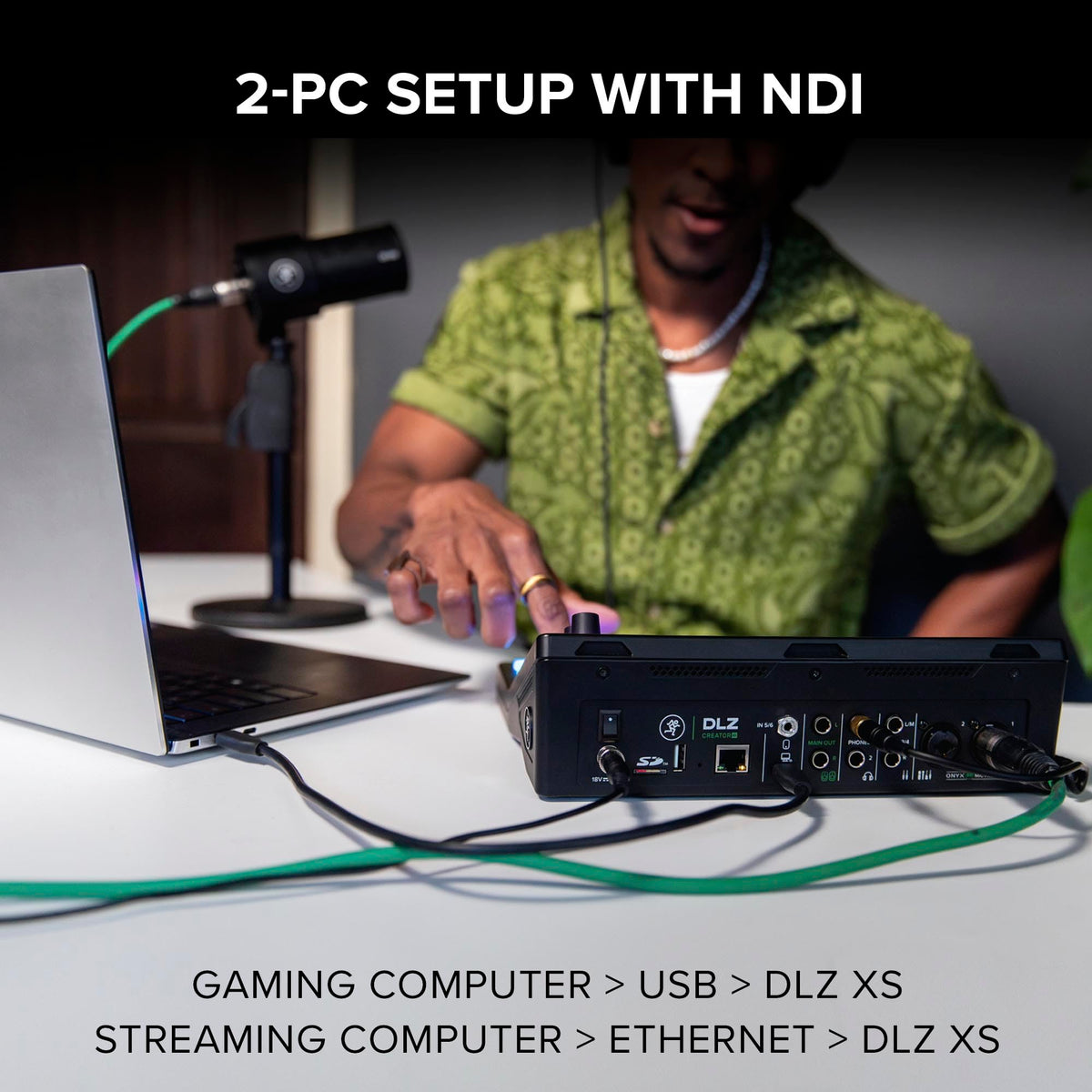

DLZ-CREATORXS supports computer-based recording and streaming through its USB-C connection, while direct multitrack recording to compatible microSD media or a USB-A drive enables a computer-free workflow. Bluetooth connectivity provides a stereo wireless source channel, and Mix Minus can be used with a Bluetooth-connected phone for call-in guests. Two independent headphone outputs support separate monitoring mixes for a host and guest.

The compact mixer is well suited to a two-person podcast, interview program, streaming desk, or small creator studio. Its main outputs can feed powered monitors, a recorder, or another audio system, while the physical controls and touchscreen keep frequently used functions accessible. Six customizable pads add quick access to samples, effects, and commands such as fade, duck, censor, and locals-only operation.

Key Features

• Adaptive Control Modes: Easy, Enhanced, and Pro modes tailor the touchscreen workflow to the user's experience level.
• Onyx80 Mic Preamps: Two microphone preamps provide up to 80 dB of gain for connected mics.
• AutoMix Processing: Automatically manages microphone levels to help keep conversations balanced.
• USB-C Audio Interface: Provides 14x4 audio interfacing with compatible Mac and PC computers.
• Multitrack Recording: Records up to 12 channels plus the main mix at 24-bit/48 kHz.
• Customizable Sample Pads: Six pads can trigger samples, voice effects, and useful production commands.

Design & Installation

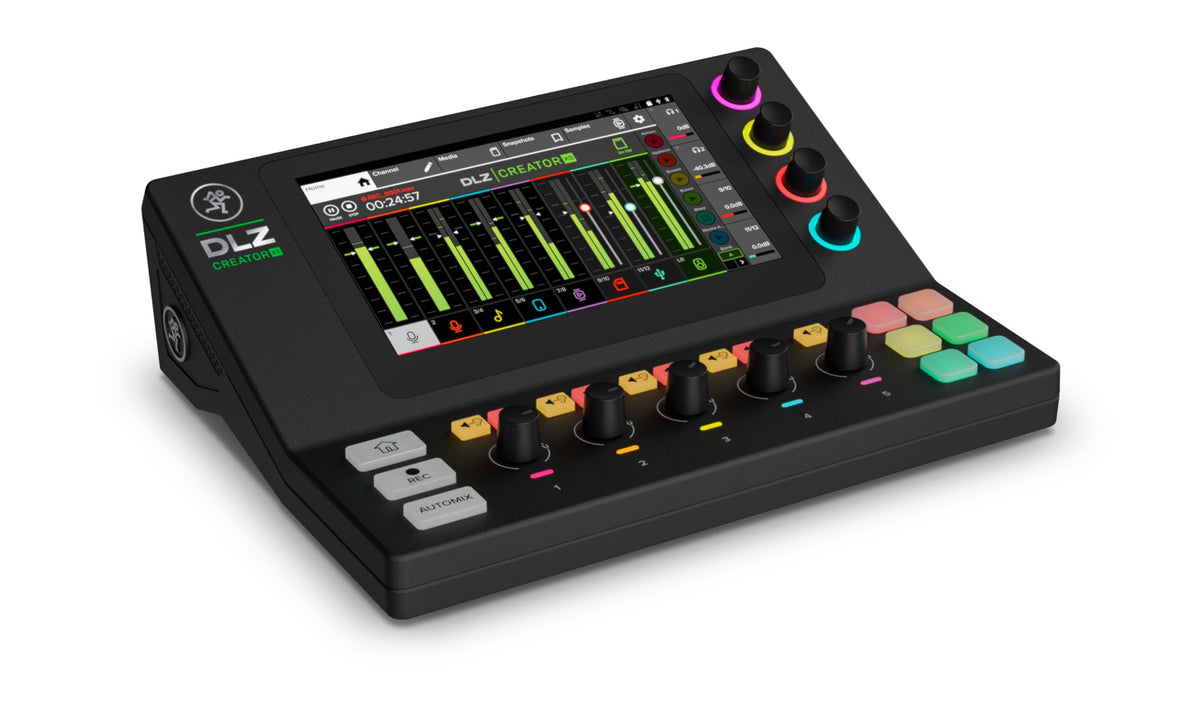

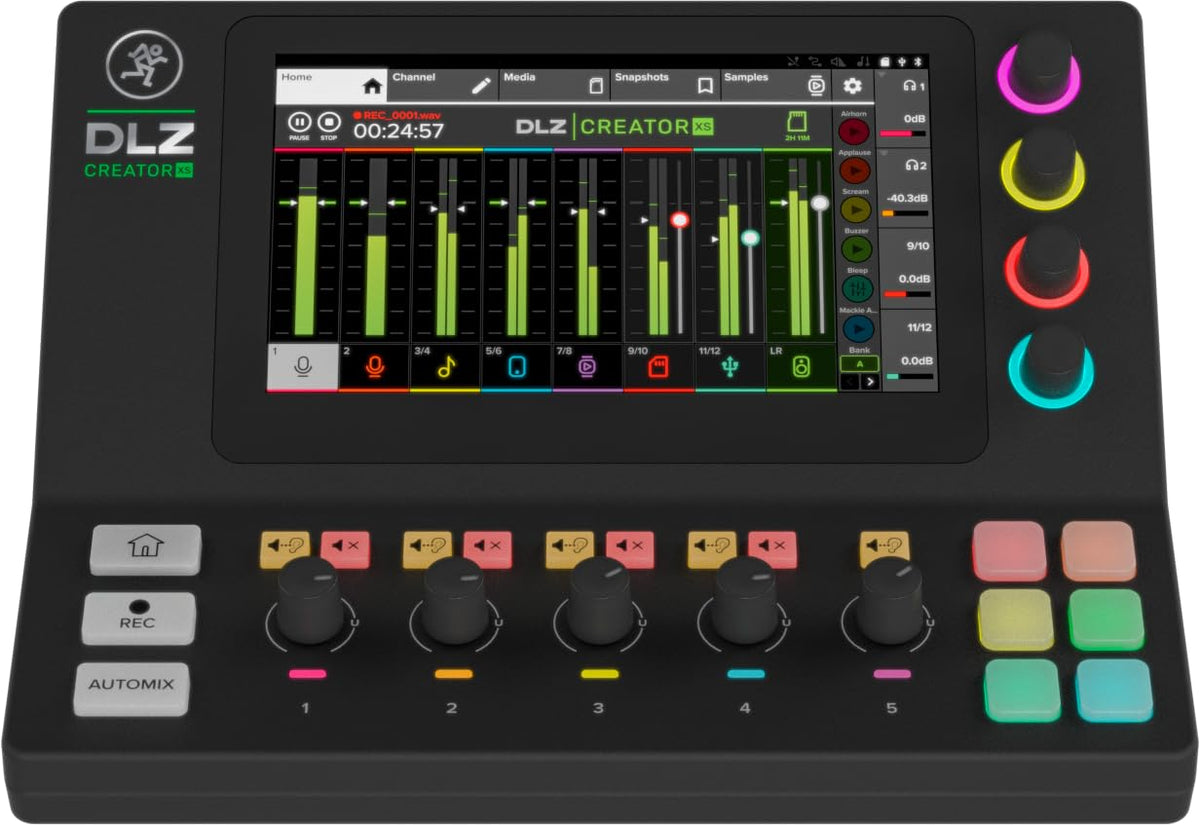

DLZ-CREATORXS uses a compact desktop format with a 7-inch high-resolution full-color touchscreen featuring an anti-glare coating. Four dynamically color-coded rotary encoders, five LED-indicated potentiometers, and backlit mute, solo, and navigation buttons provide hands-on control alongside the display. The unit measures 10.2 inches wide by 8.0 inches deep and weighs 2.6 pounds.

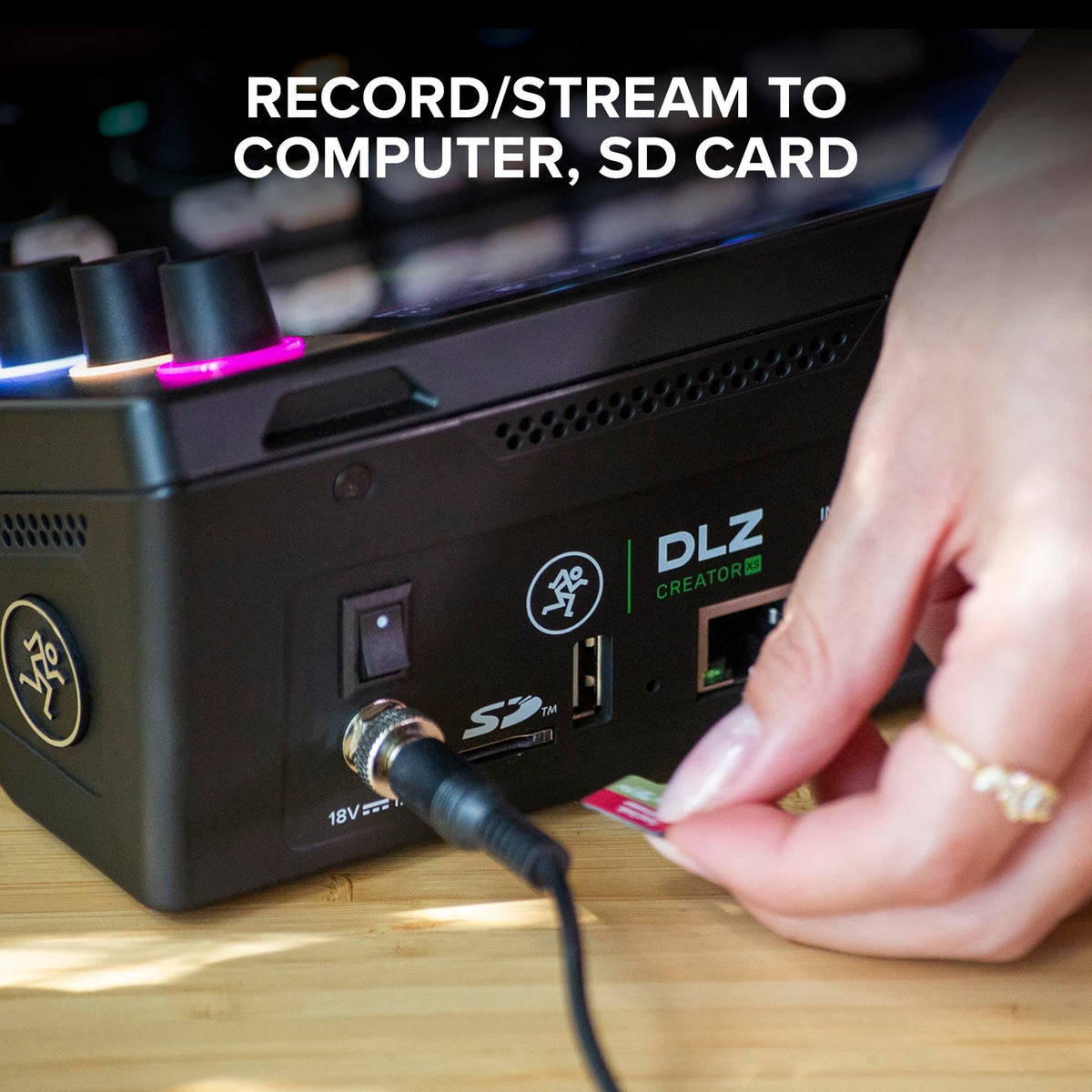

Place the mixer on a stable desktop or production surface with clear access to its rear-panel connections. Connect microphones to the two XLR/TRS combo inputs, connect headphones to either independent headphone output, and use the balanced 1/4-inch main outputs for monitors or downstream equipment. For direct recording, use compatible microSDHC/microSDXC media or a FAT32-formatted USB-A removable drive meeting the stated speed requirement; connect the included-style external power supply requirement of 18V DC, 1.5A before use.
