Warzone WZ600XW Digital Bass Processor

The Warzone WZ600XW is a digital bass processor for vehicle audio systems that is designed to restore and shape low-frequency information in an audio signal. It is intended for listeners building or refining a subwoofer-focused system where the source material or factory signal lacks the desired bass presence. The processor installs inline in the signal path and provides dedicated controls for tailoring its effect.

Its digital bass-restoration circuit is designed to recreate low-frequency detail and reinject it into the music signal. This approach gives the installer a separate bass-processing stage before the signal reaches downstream equipment. The result can be adjusted to suit the vehicle, source unit, subwoofers, and listener preference.

The front-panel SWEEP control selects a bass center frequency from 27Hz to 63Hz, while the WIDE control adjusts the affected frequency range. A separate SUB level control provides direct adjustment of the processed bass output. These controls support more deliberate tuning than a simple fixed bass boost.

Balanced RCA inputs accept signals up to 15V RMS and are specified with more than 62dB of noise rejection. This makes the WZ600XW suitable for RCA-based systems using either factory or aftermarket source units. Its specified 10Hz to 35kHz response, 133dB signal-to-noise ratio, and 0.0025% total harmonic distortion describe a processor built to preserve signal quality while adding bass processing.

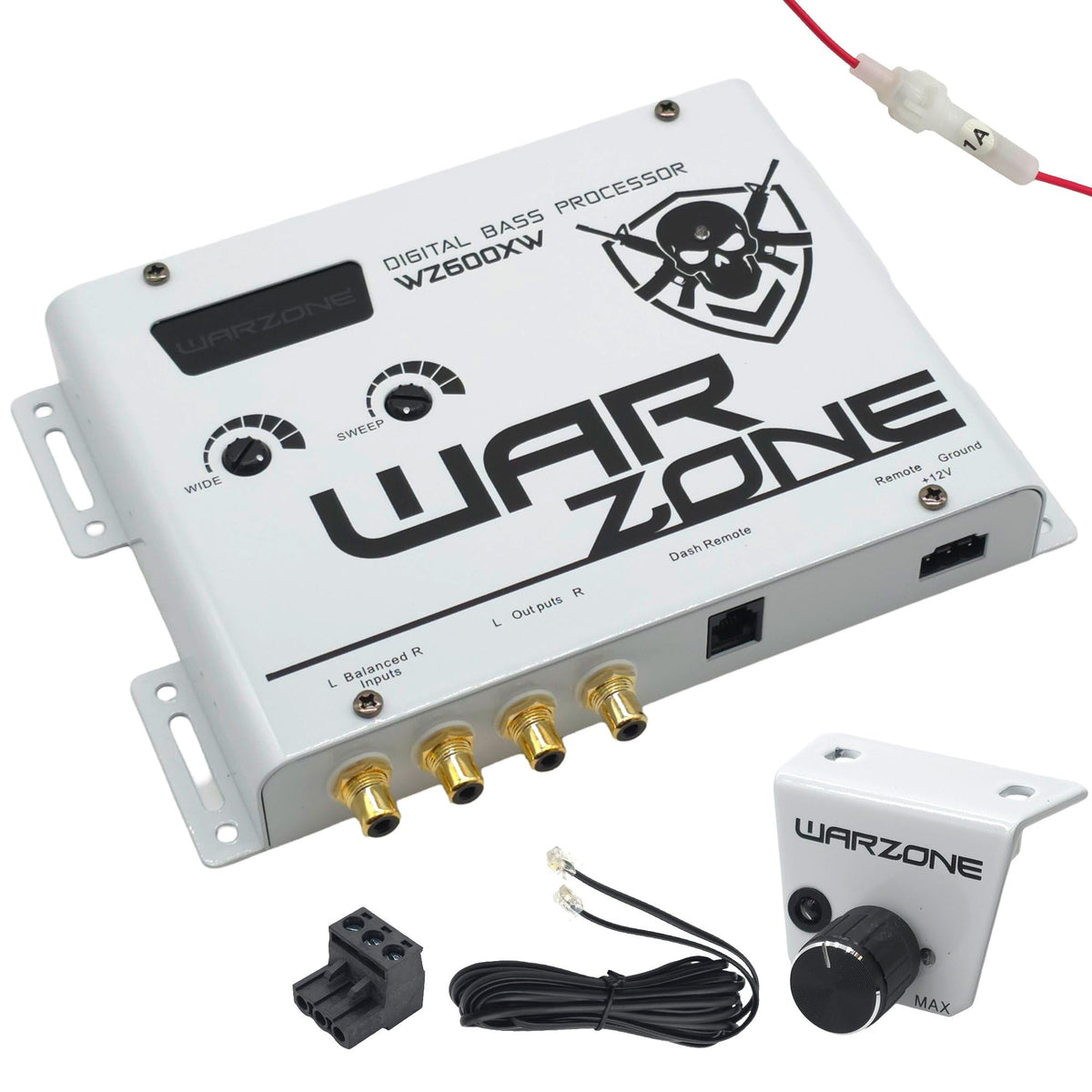

The WZ600XW includes a dash-mount remote with an LED indicator for convenient bass-level adjustment from the driver's seat. A PFM subsonic filter is included to reduce very low-frequency content that can consume amplifier power and increase subwoofer excursion. It is a practical addition when upgrading a system with external crossovers, equalizers, or amplifiers.

Key Features

• Digital Bass Restoration: Recreates low-frequency detail for a fuller bass signal.
• Adjustable SWEEP Control: Selects a bass center frequency from 27Hz to 63Hz.
• WIDE Control: Adjusts the range of frequencies affected by processing.
• Balanced RCA Inputs: Accept high-level RCA signals while helping reject noise.
• PFM Subsonic Filter: Reduces very low frequencies that can waste amplifier power.
• Dash-Mount Remote: Provides in-seat bass-level adjustment with LED indication.

Design & Installation

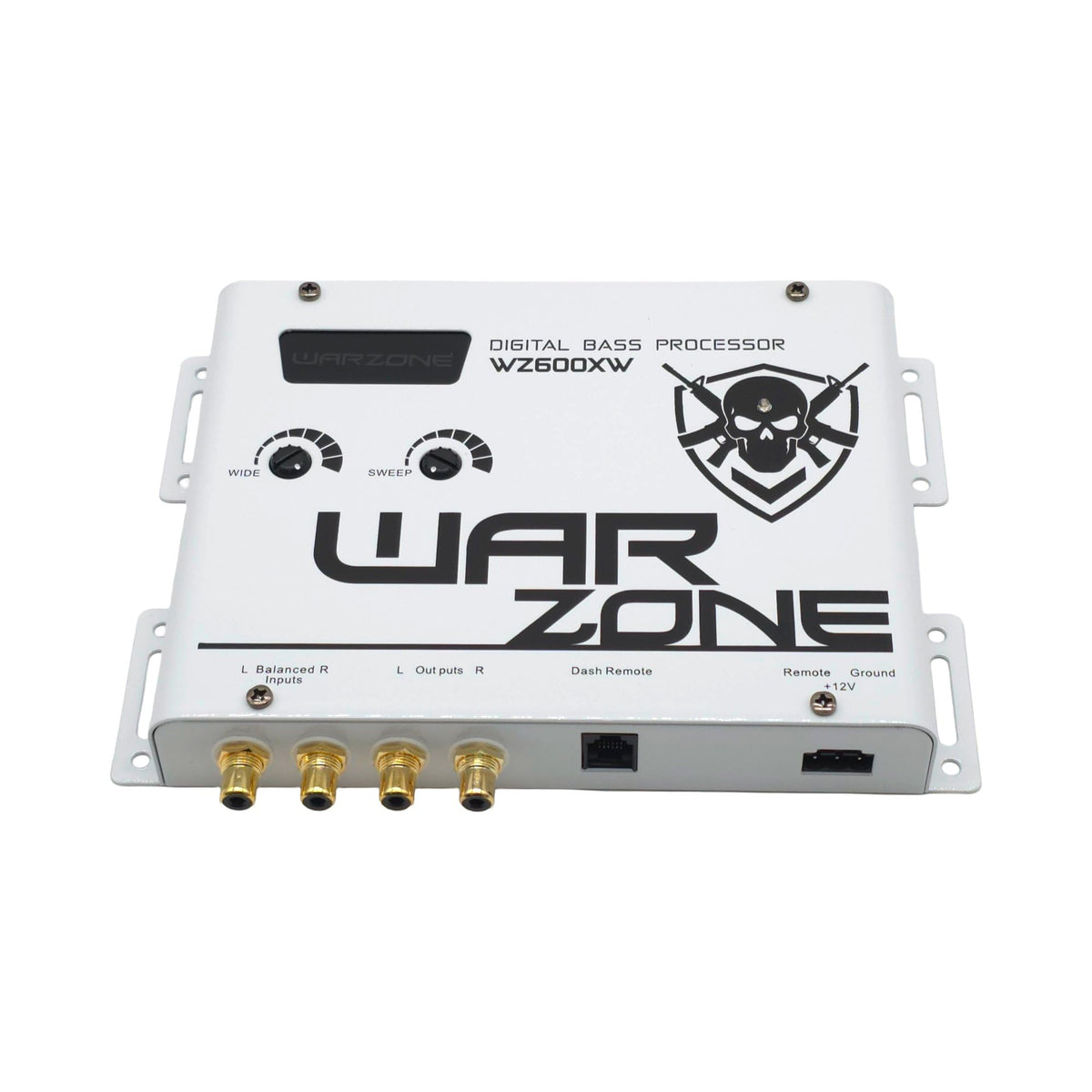

The WZ600XW uses a white chassis with a control-focused layout for bass tuning and system integration. Its documented design includes rotary controls for SWEEP, WIDE, and SUB level, plus RCA signal connections and a remote-control interface. The chassis material and physical dimensions are not specified in the available product information.

Install the processor inline before downstream crossovers, equalizers, or amplifiers, using the balanced RCA inputs and RCA outputs. It operates from a 12V DC vehicle electrical system with an 11-16V operating range. Set the SWEEP, WIDE, SUB level, remote level, and PFM filter as part of final system tuning, ideally after amplifier gains and crossover settings have been established.
