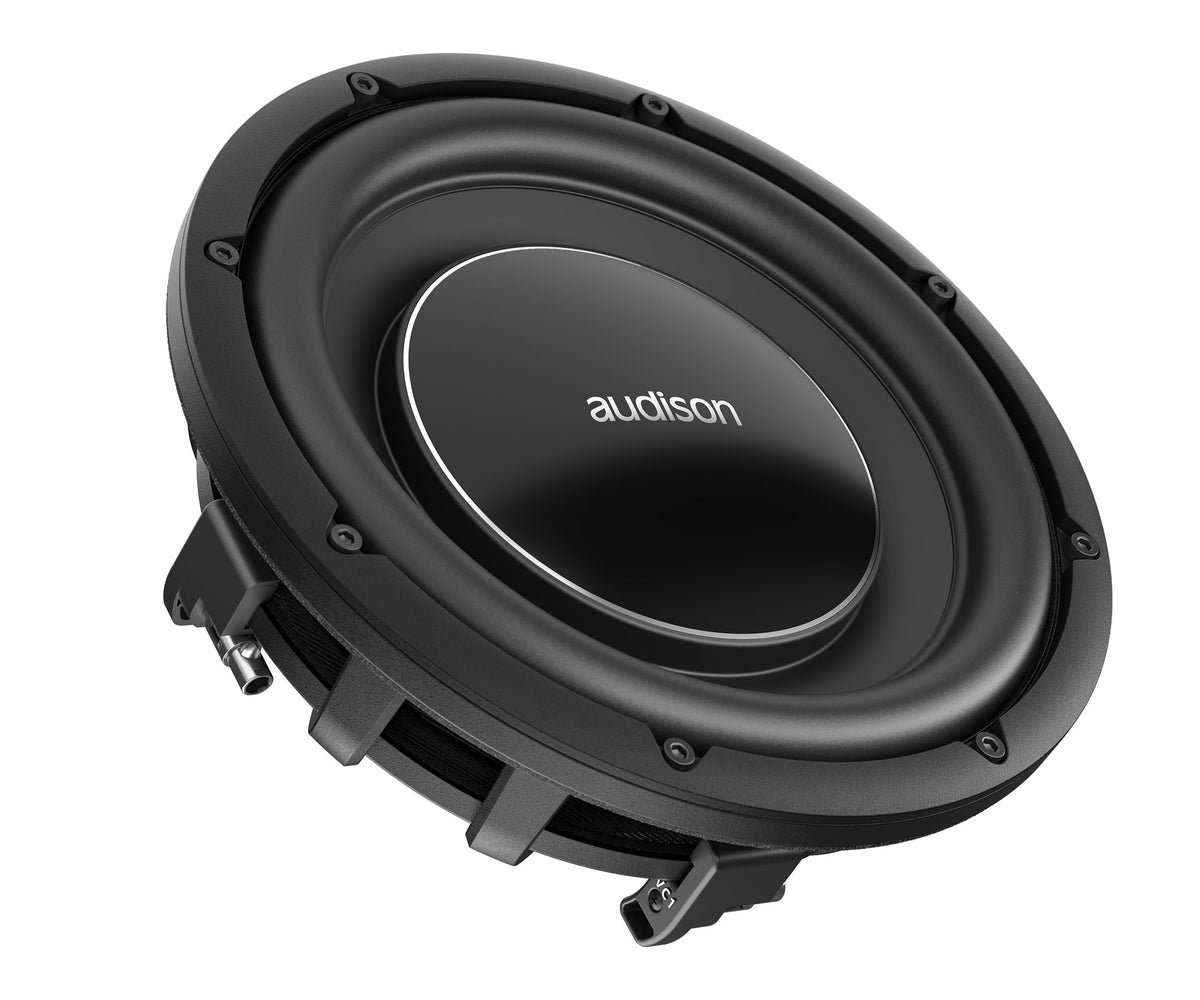

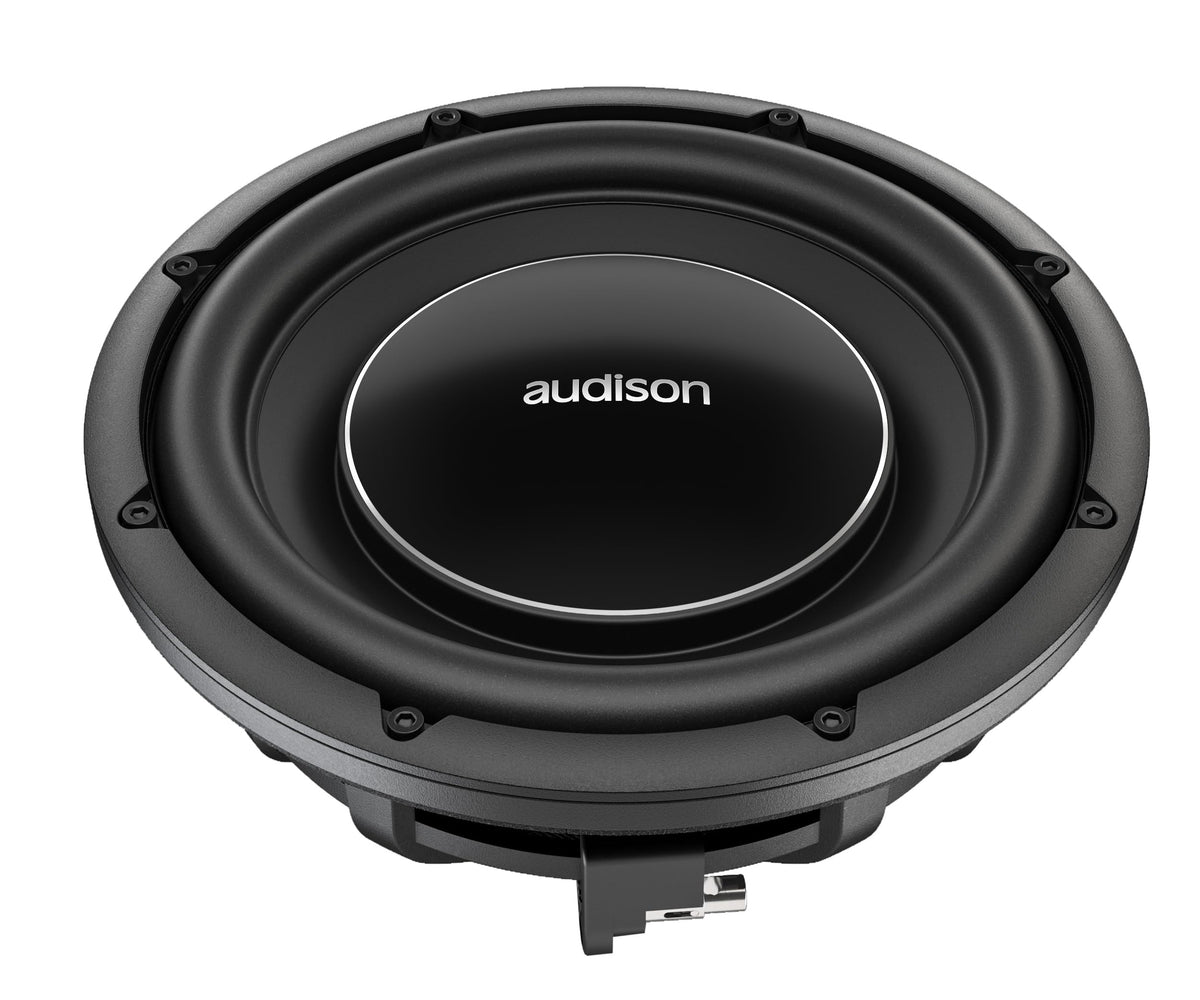

Audison AV 10 D2 II 10" Shallow Subwoofer

The Audison AV 10 D2 II is a 10-inch shallow subwoofer designed to add controlled low-frequency output where installation depth and enclosure space are limited. Its dual 2-ohm voice-coil design gives system builders flexibility when matching the subwoofer to a compatible amplifier. It is a focused option for listeners building a compact, sound-quality-oriented car audio system.

With 550 watts RMS continuous power handling and an 1,100-watt peak rating, the AV 10 D2 II is built for substantial bass output without requiring an oversized driver. Its stated 25 Hz to 400 Hz frequency response supports low bass reproduction as well as flexible crossover integration. The sound character is intended to be deep, articulate, and controlled rather than loose or boomy.

A 38.6 mm CCAW voice coil combines copper-clad aluminum wire construction with a glass-fiber former to support thermal management and moving-mass control. Audison's Airflow Venting Cooling system is designed to improve internal airflow around the motor structure. This helps the driver maintain more consistent operation during extended high-output use.

The subwoofer uses a die-cast aluminum chassis, high-density-flux ferrite magnet, polypropylene cone, and nitrile rubber surround. Its extended-profile dust cap and internal Radial Reinforcement Framework are intended to reinforce cone and basket behavior during high-excursion operation. The result is a rigid shallow-driver platform designed for accurate cone control.

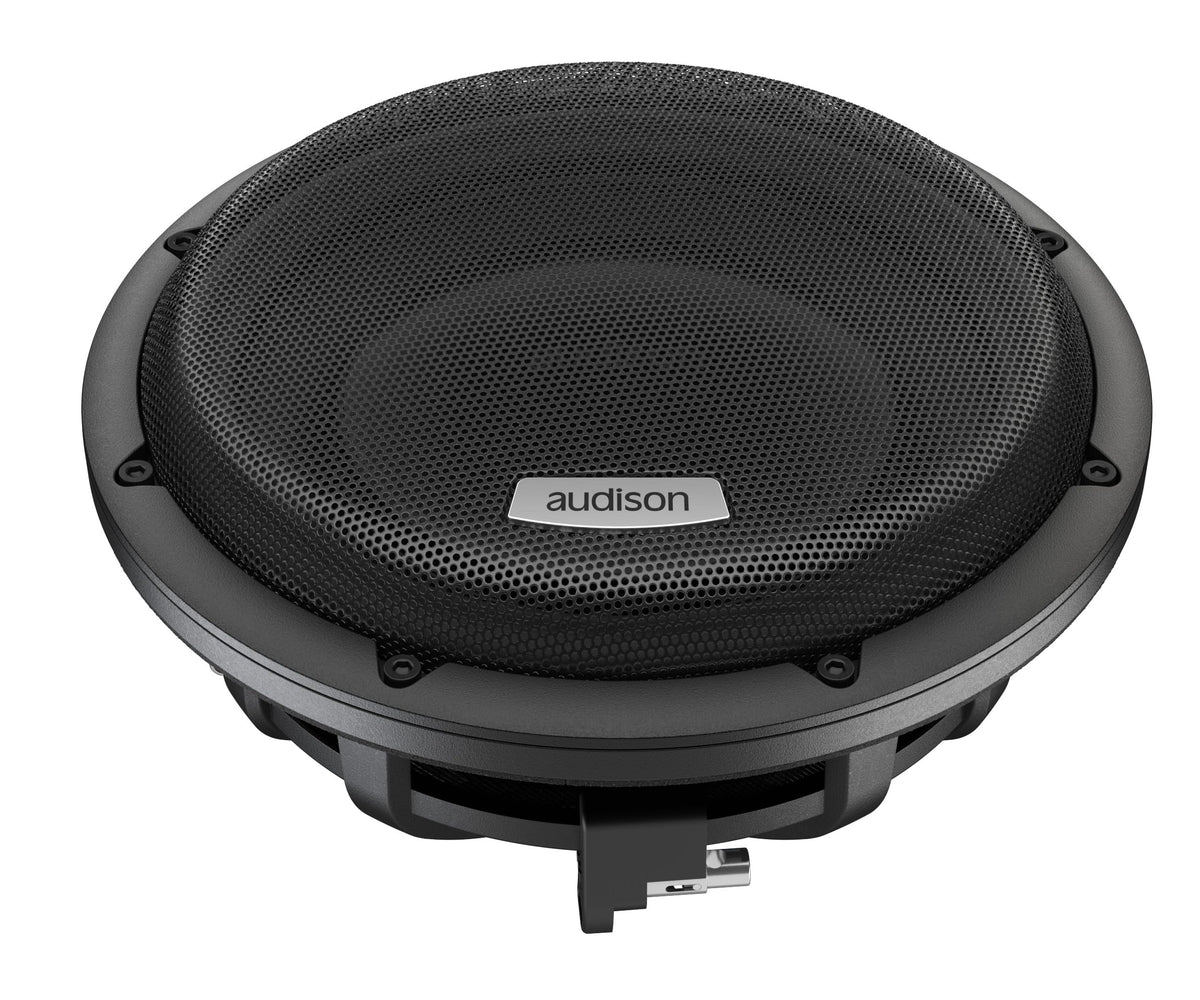

The AV 10 D2 II is optimized for compact sealed enclosures, with Audison listing a 13.2 L recommended enclosure and also providing sealed and reflex enclosure designs. It can serve as the low-frequency foundation of a VOCE II speaker system or complement other quality front-stage components. A protective metal mesh grille and mounting screws are included for cone protection and installation.

Key Features

• 10-Inch Shallow Design: Fits systems where available mounting depth is limited.
• Dual 2-Ohm Voice Coils: Provides wiring flexibility for compatible amplifier configurations.
• 550W RMS Handling: Supports sustained bass output with appropriate amplification.
• CCAW Voice Coil: Balances thermal capability with reduced moving mass.
• Airflow Venting Cooling: Helps manage heat during extended listening sessions.
• Compact Enclosure Optimization: Delivers controlled bass from small sealed-box designs.

Design & Installation

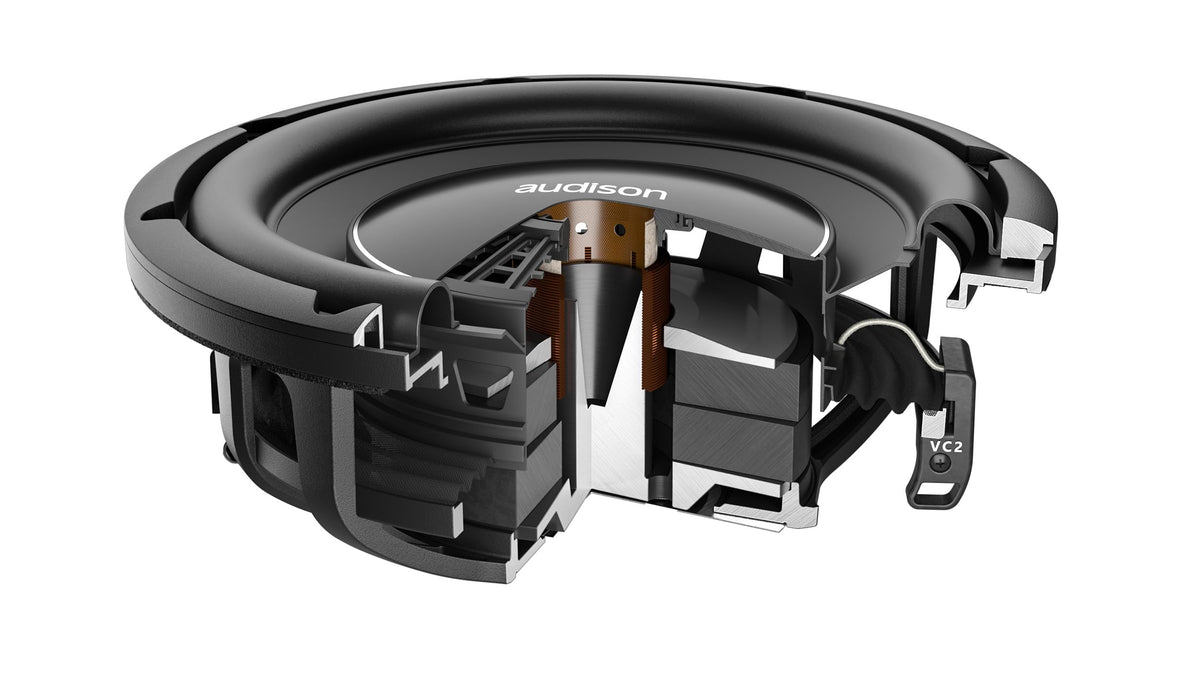

The AV 10 D2 II uses a die-cast aluminum basket for rigidity and heat dissipation, paired with a high-density-flux ferrite motor. Its polypropylene cone, nitrile rubber surround, glass-fiber voice-coil former, and reinforced mechanical structure are selected for stable operation at higher excursion. A black protective metal mesh grille is included to help protect the cone after installation.

Use an enclosure designed around Audison's published recommendations and confirm the mounting cutout, depth, and clearance in the intended vehicle before installation. The dual 2-ohm coils should be wired only to an amplifier that is stable at the resulting load, with crossover and subsonic-filter settings matched to the enclosure type. Audison suggests a 70-80 Hz low-pass filter at 24 dB/octave and a 15 Hz subsonic filter at 24 dB/octave for its sealed-box design.
