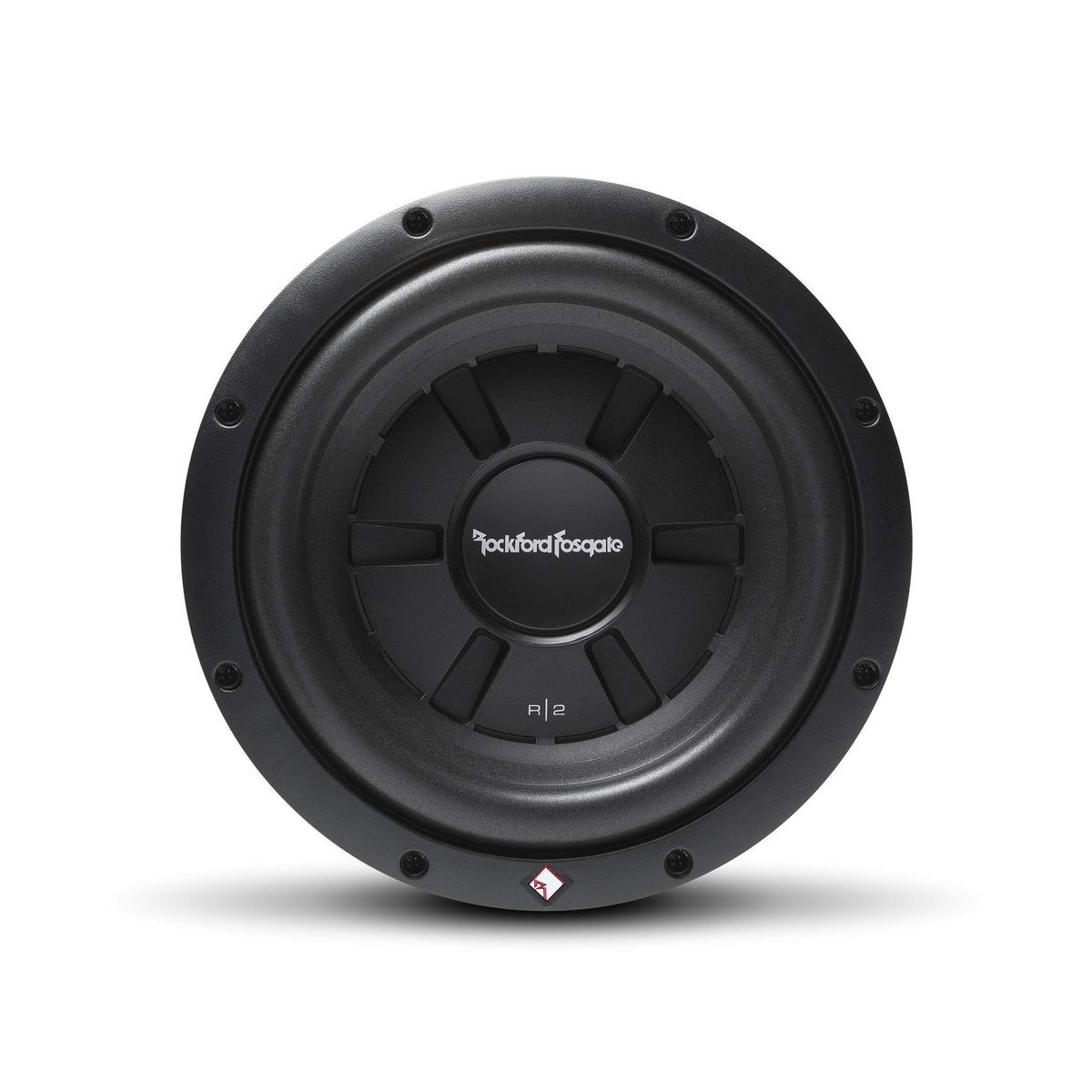

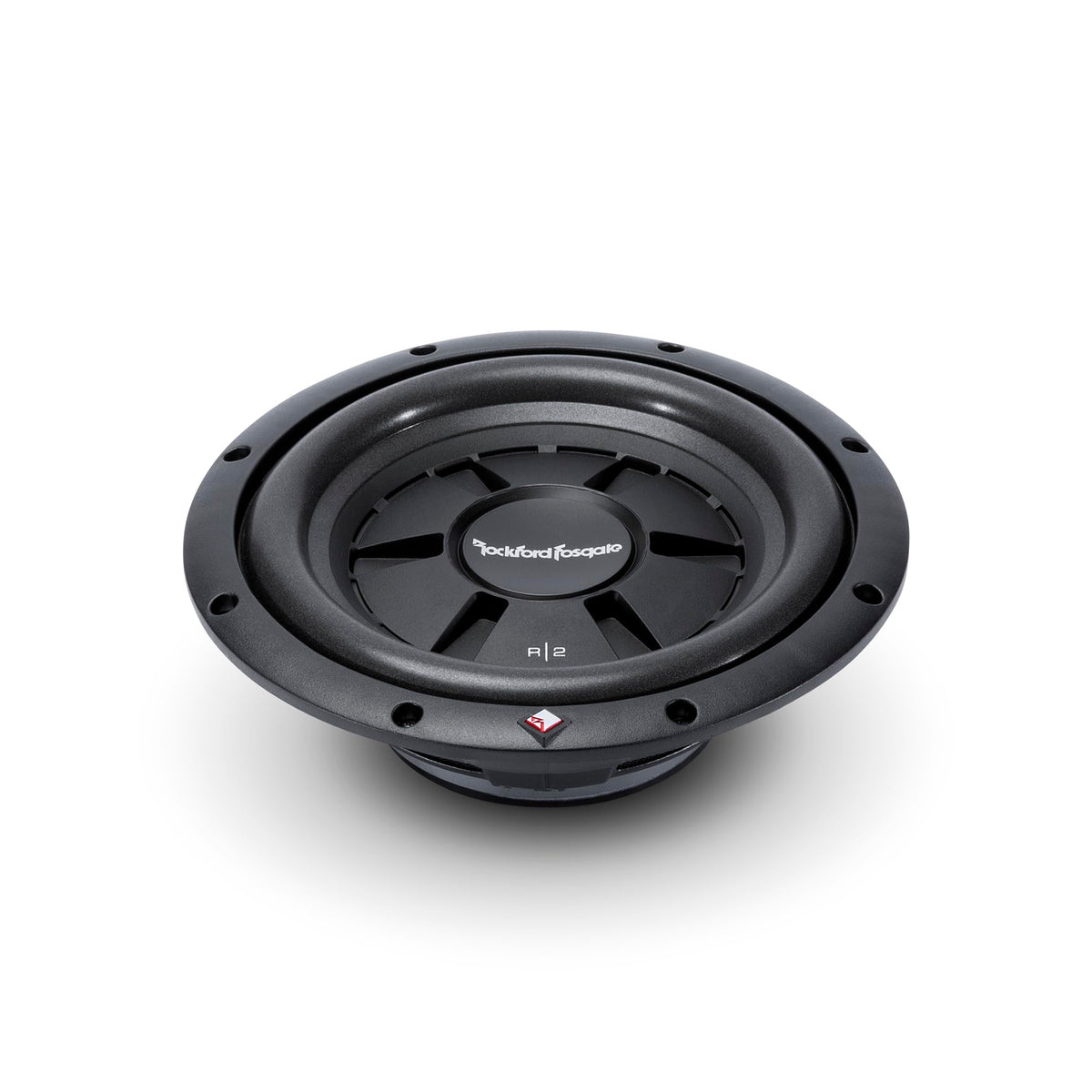

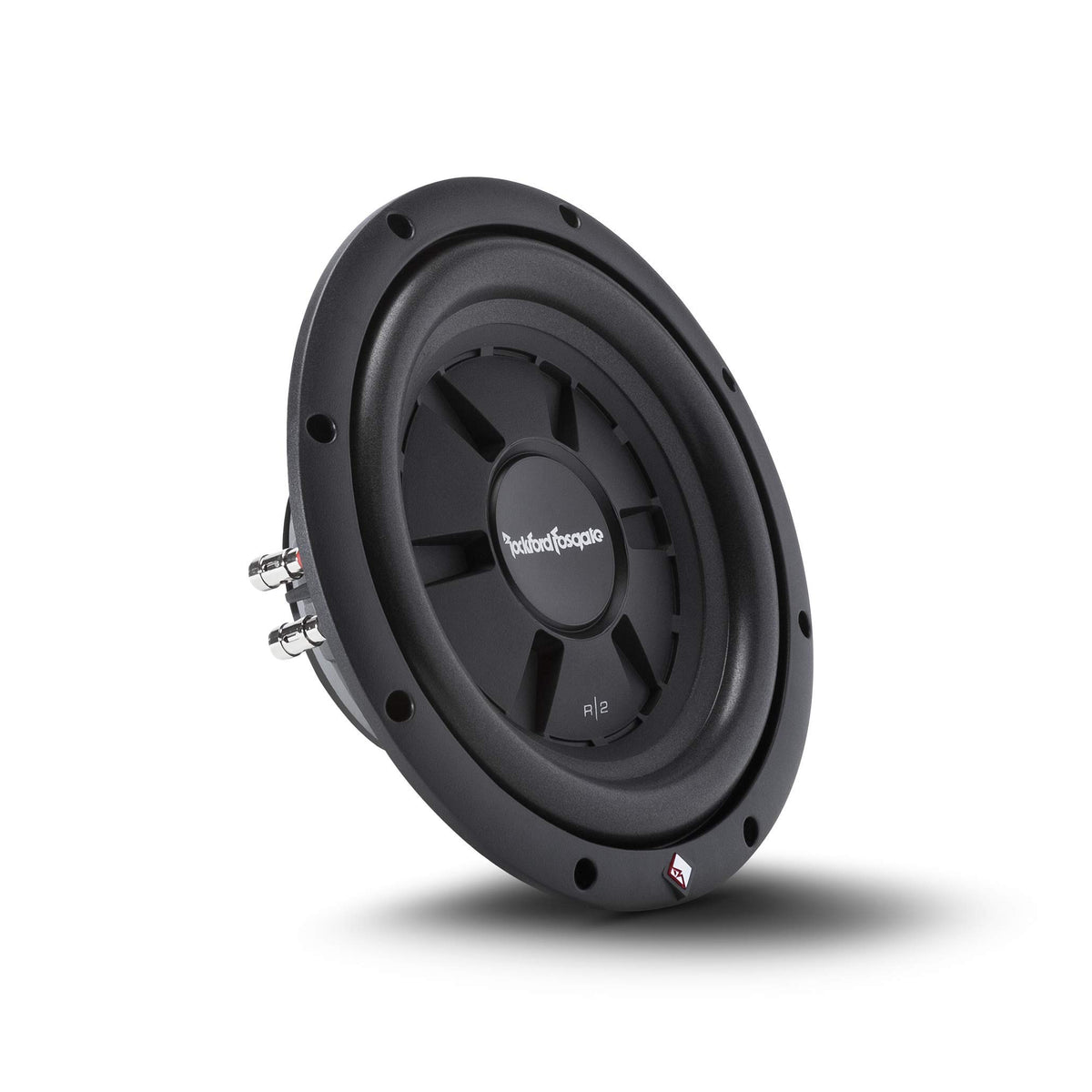

Rockford Fosgate R2SD2-10 10" Shallow DVC Subwoofer

The Rockford Fosgate R2SD2-10 is a 10-inch shallow-mount car subwoofer designed for vehicles where conventional subwoofer depth is difficult to accommodate. Its low-profile motor structure helps it fit in compact enclosures and restricted mounting locations. It is a practical choice for adding low-frequency output to trucks, coupes, hatchbacks, and other space-conscious installations.

This Prime R2 model uses dual 2-ohm voice coils, giving installers wiring flexibility when matching the subwoofer to a compatible amplifier. It is rated for 200 watts RMS and 400 watts maximum power. The design is intended for a controlled, bass-focused upgrade rather than a full-range speaker application.

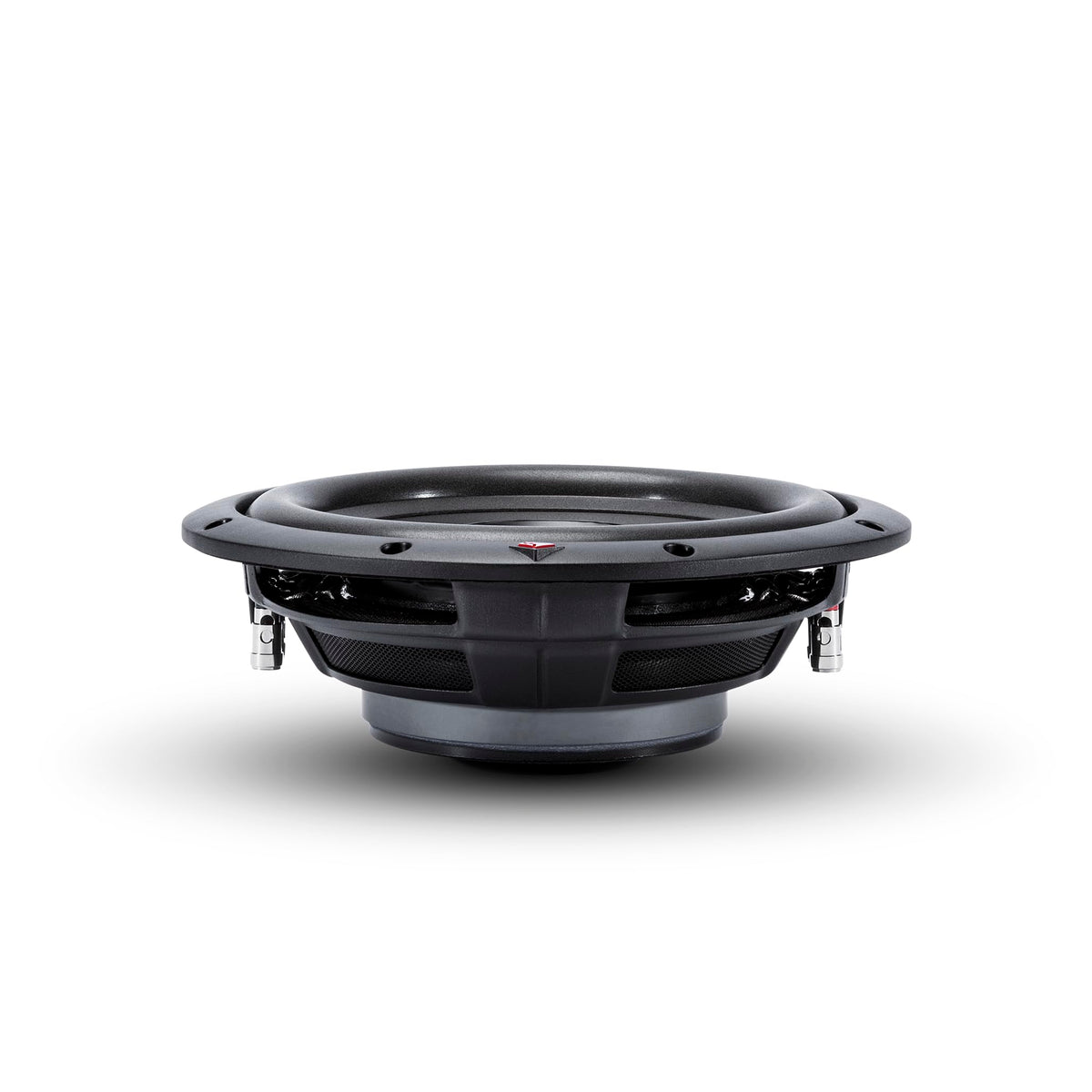

A mica-injected polypropylene cone and poly-foam surround provide a durable moving assembly for everyday automotive use. The shallow motor assembly and high-excursion design help the driver produce bass while keeping mounting depth to 3.417 inches. Its 83 dB sensitivity specification and 38.1 Hz free-air resonance support use in a properly designed enclosure.

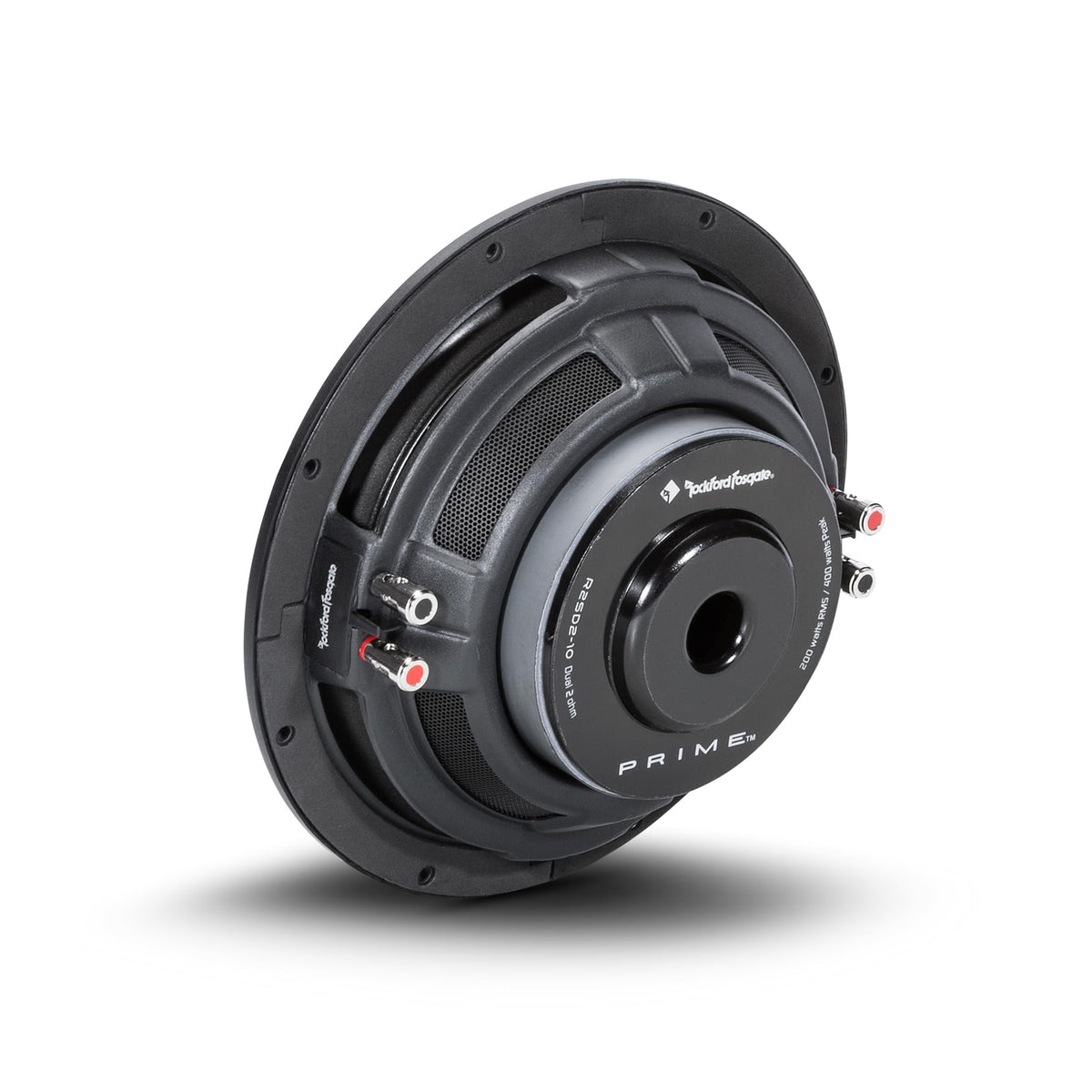

The R2SD2-10 uses a StampCast basket with integrated spider venting to promote airflow around the motor structure. An anodized aluminum voice-coil former, linear spider, and embedded 16 AWG tinsel leads support the driver’s mechanical design. Dual 12 AWG compression terminals provide a secure connection point for speaker wire.

Rockford Fosgate optimizes this model for sealed enclosures, with a recommended sealed volume of 0.7 cubic foot. It can also be used in a vented enclosure when built to the published 1.4 cubic foot recommendation and port specifications. Pair it with an amplifier that is stable at the final impedance created by the selected dual-voice-coil wiring configuration.

Key Features

• Shallow-Mount Design: A 3.417-inch mounting depth helps fit bass into compact locations.
• 200W RMS Handling: Supports an amplifier system matched for 200 watts RMS.
• Dual 2-Ohm Voice Coils: Provides wiring options for compatible amplifier impedance loads.
• Mica-Injected Polypropylene Cone: Delivers a rigid, moisture-resistant cone material for vehicle use.
• Spider-Vented StampCast Basket: Helps promote motor cooling while supporting the shallow structure.
• Sealed-Enclosure Optimization: Designed around a 0.7-cubic-foot sealed enclosure recommendation.

Design & Installation

The R2SD2-10 combines a shallow motor assembly with a StampCast basket, integrated PVC trim ring, mica-injected polypropylene cone, and poly-foam surround. Its linear spider incorporates embedded 16 AWG tinsel leads, while the voice coil uses an anodized aluminum former. Dual 12 AWG compression terminals are provided for speaker-wire connection.

Confirm that the installation location has at least 3.417 inches of mounting depth and supports a 9.125-inch cutout. For a sealed build, use the recommended 0.7-cubic-foot enclosure volume; a 1.4-cubic-foot vented enclosure is also specified with a 4-inch port, 13.7-inch port length, and 42 Hz tuning frequency. Wire both 2-ohm voice coils according to the amplifier’s supported load and use an active low-pass crossover in the recommended 80–100 Hz range.
