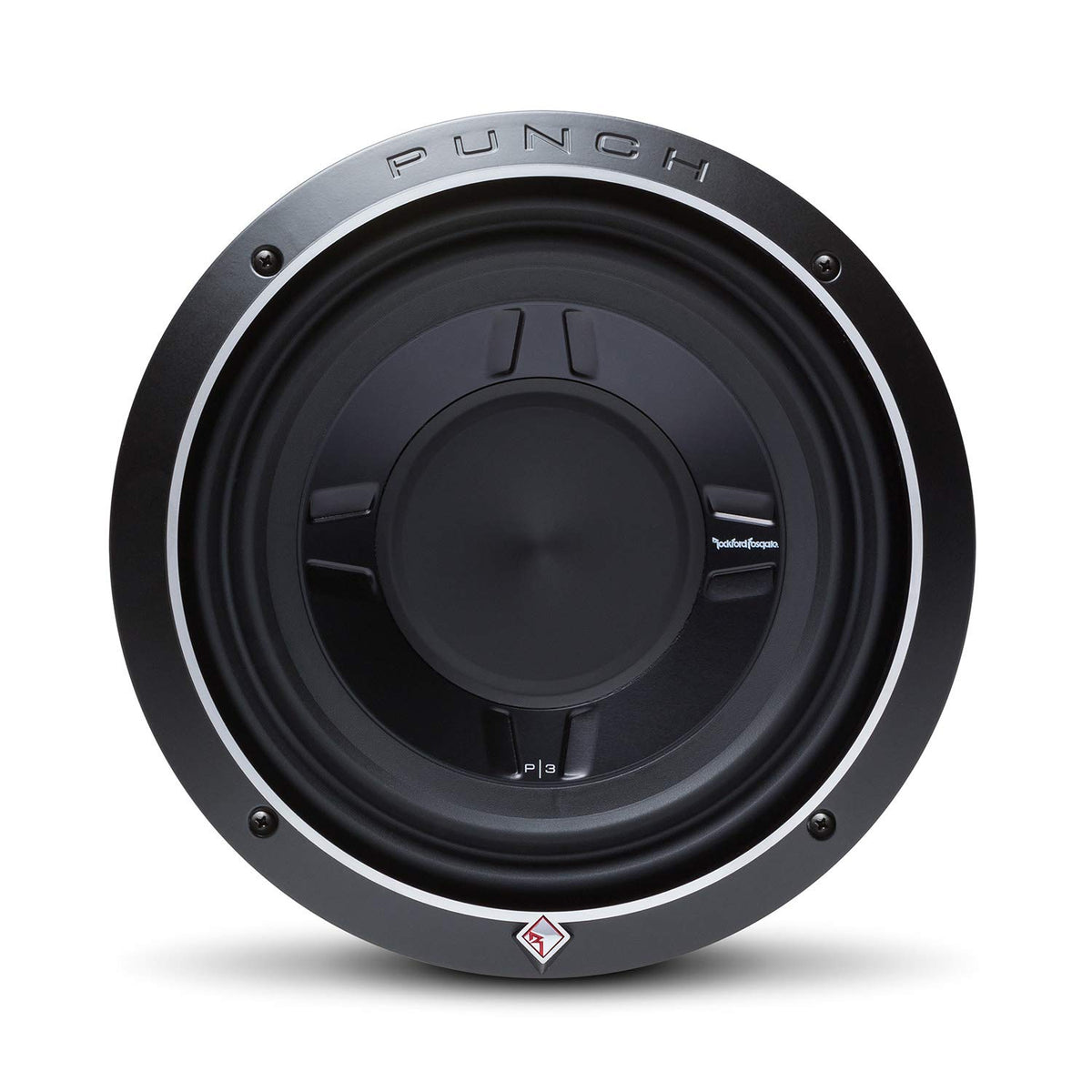

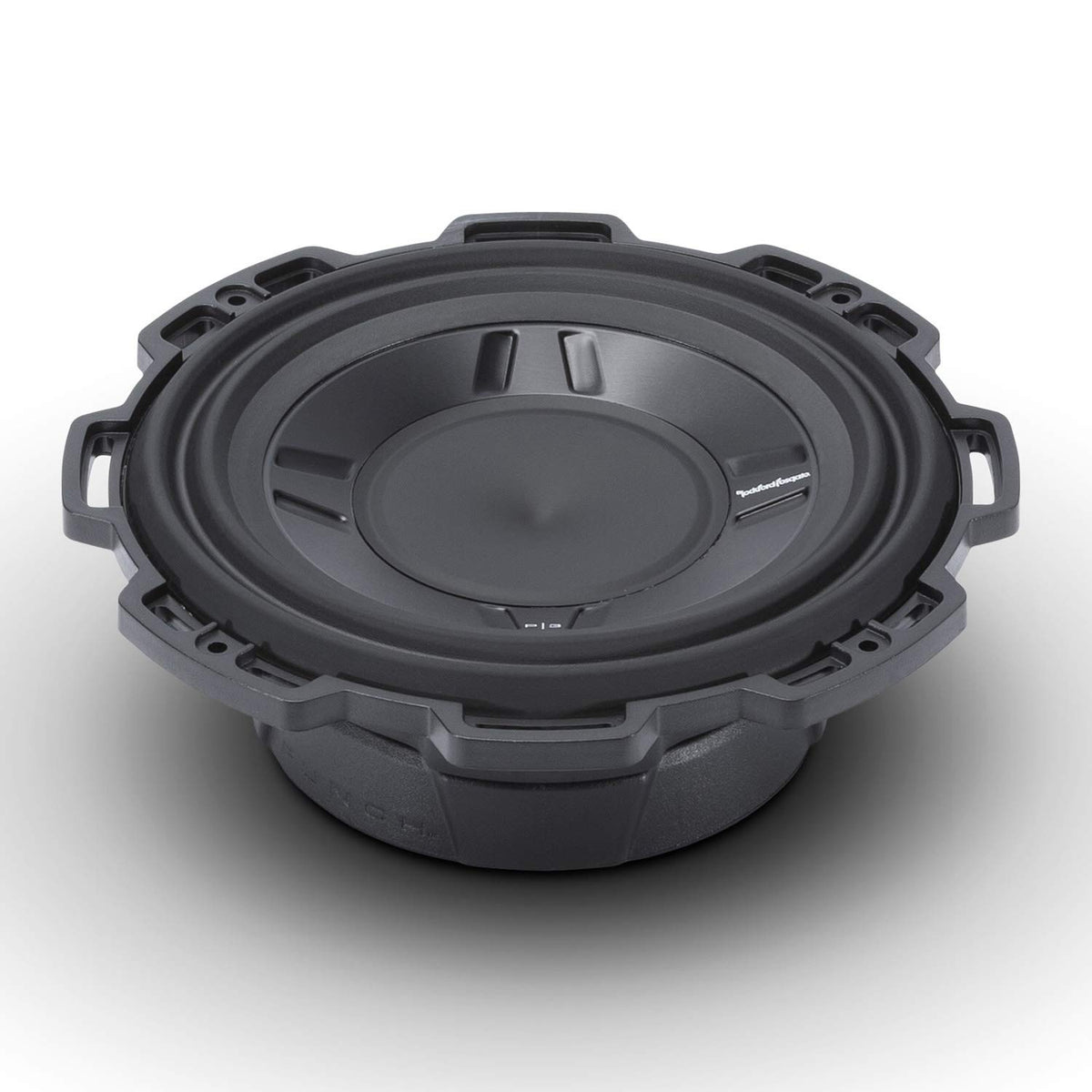

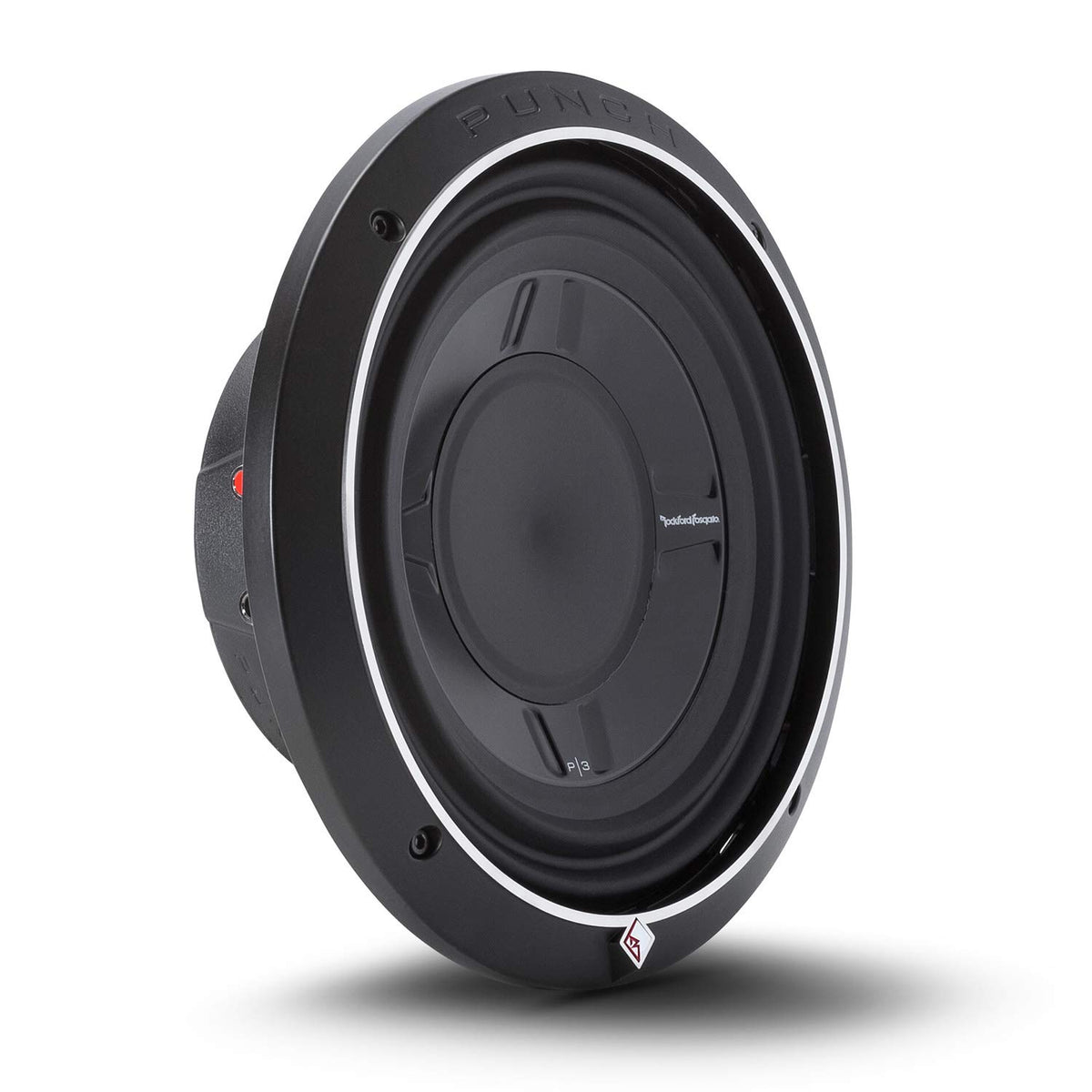

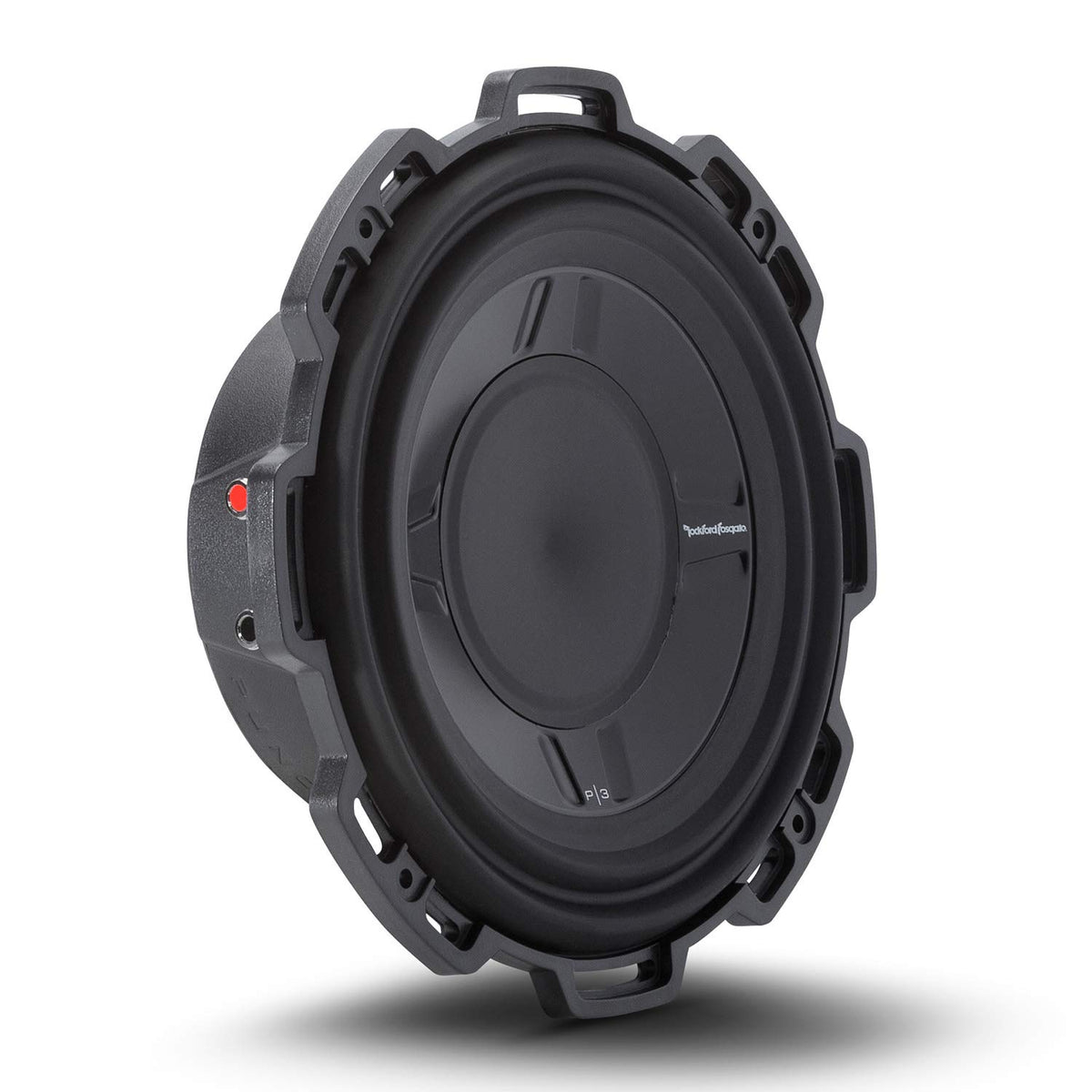

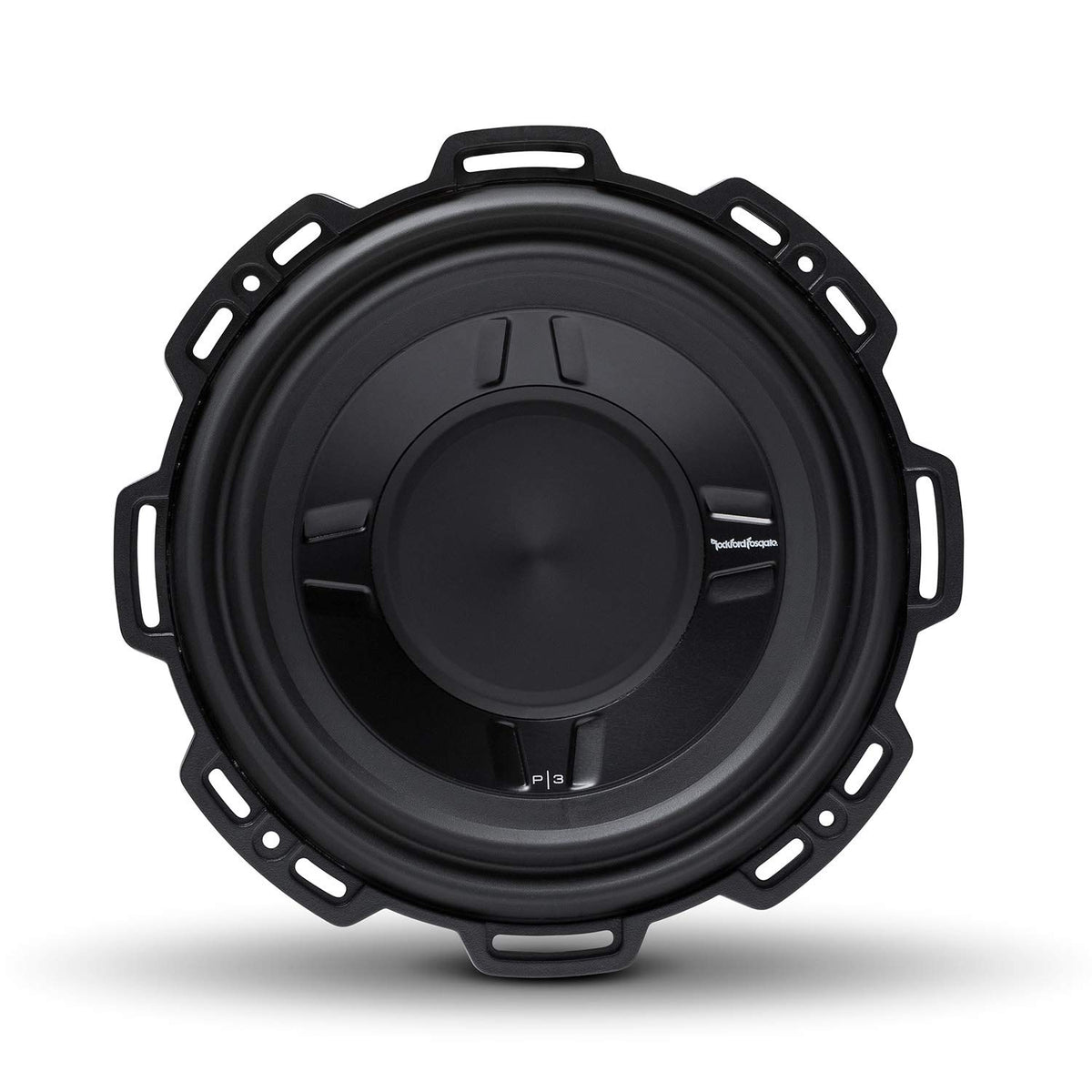

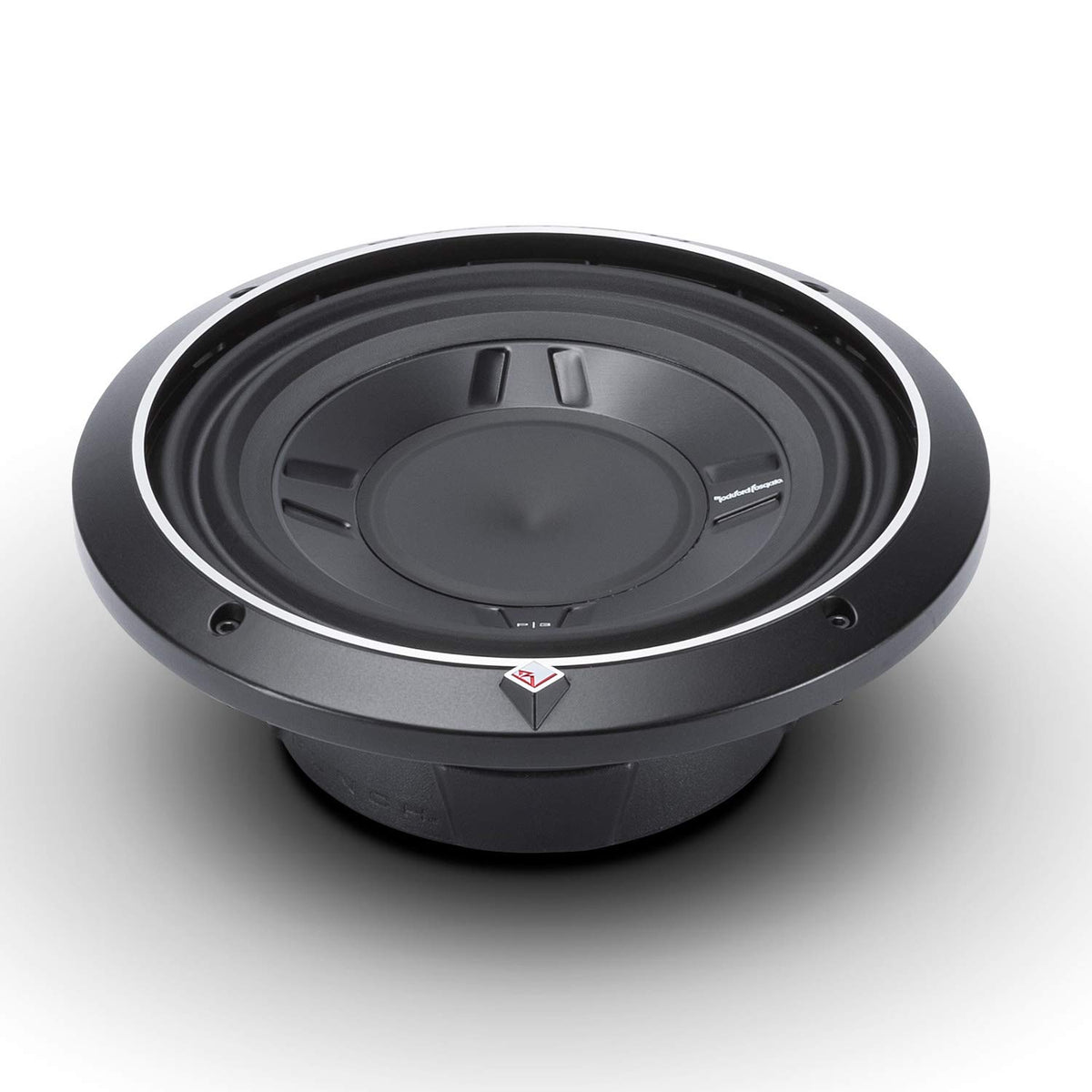

Rockford Fosgate P3SD2-10 10" Shallow DVC Subwoofer

The Rockford Fosgate P3SD2-10 is a 10-inch shallow-mount car subwoofer designed for installations where conventional subwoofers are too deep. Its low-profile 3.50-inch mounting depth helps make bass upgrades possible in compact enclosures and space-limited vehicle locations. It uses dual 2-ohm voice coils for system-wiring flexibility.

Rated for 300 watts RMS and 600 watts maximum power, this Punch P3S model is intended for a properly matched car-audio amplifier and enclosure. It is suited to listeners building a focused low-frequency upgrade without requiring the depth of a full-size subwoofer motor structure. The 83 dB sensitivity specification and 40 Hz resonance frequency provide useful design information when matching it with an enclosure and amplifier.

An anodized aluminum cone and aluminum dustcap provide a rigid moving surface, while the M-Roll Santoprene surround supports controlled cone movement. The shallow motor assembly is paired with a dual linear spider design and embedded 16 AWG tinsel leads. These components are engineered for dependable operation in a shallow-format subwoofer.

The P3SD2-10 uses a StampCast basket with integrated spider venting to support the assembly and help manage motor heat. Its dual 10 AWG compression terminals provide substantial speaker-wire connection points. The subwoofer is also CEA-2031 compliant.

This model can be used in either sealed or vented enclosures, allowing the system design to be tailored to available space and preferred bass character. Rockford Fosgate specifies a 0.50 cubic-foot sealed enclosure as its recommended sealed volume and a 1.00 cubic-foot vented enclosure as its recommended vented volume. Measure the available mounting space, cutout, and enclosure volume before installation.

Key Features

• Shallow-Mount Design: A 3.50-inch mounting depth supports installations with limited rear clearance.
• Dual 2-Ohm Voice Coils: Provides wiring flexibility when matching the subwoofer to a compatible amplifier.
• 300-Watt RMS Rating: Supports amplifier matching for sustained, rated-power operation.
• Aluminum Cone And Dustcap: Uses rigid anodized aluminum moving components for the woofer assembly.
• StampCast Basket Venting: Integrated spider venting helps manage heat around the motor structure.
• Sealed Or Vented Use: Supports recommended enclosure designs for different installation priorities.

Design & Installation

The P3SD2-10 combines an anodized aluminum cone and dustcap, M-Roll Santoprene surround, dual linear spider, aluminum voice-coil former, and shallow motor assembly. Its hybrid StampCast basket provides structural support, while the diamond-cut cast-aluminum trim ring gives the installation a finished appearance. An optional grille is supported separately.

Use the 9.06-inch cutout diameter and 3.50-inch mounting depth when planning the baffle and available clearance. Connect both dual 2-ohm voice coils according to an amplifier-compatible wiring plan, and use the dual 10 AWG compression terminals for the speaker connections. For a vented enclosure, Rockford Fosgate specifies a 1.00 cubic-foot gross volume with one 4-inch by 12-inch port; a subsonic filter is recommended for vented use.
