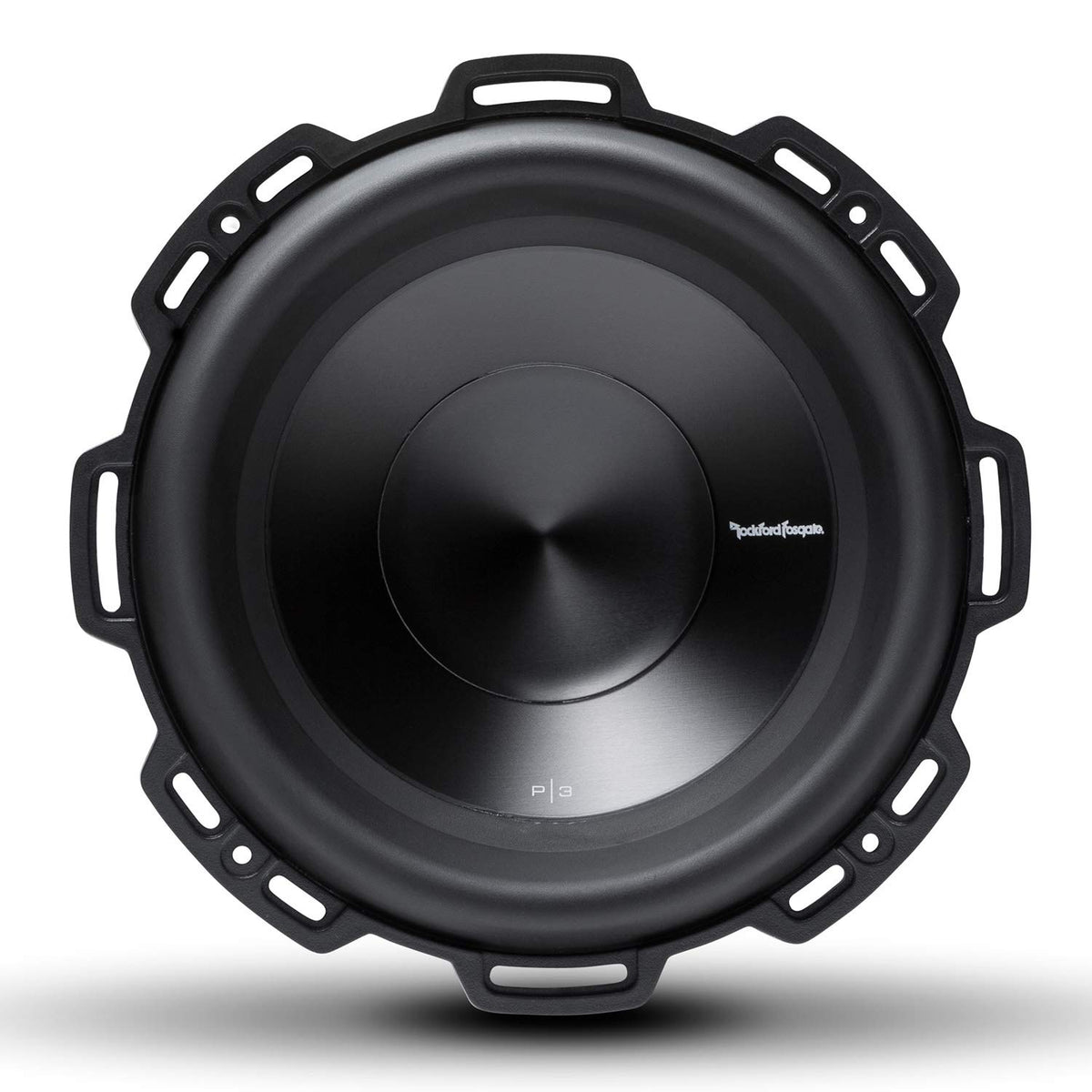

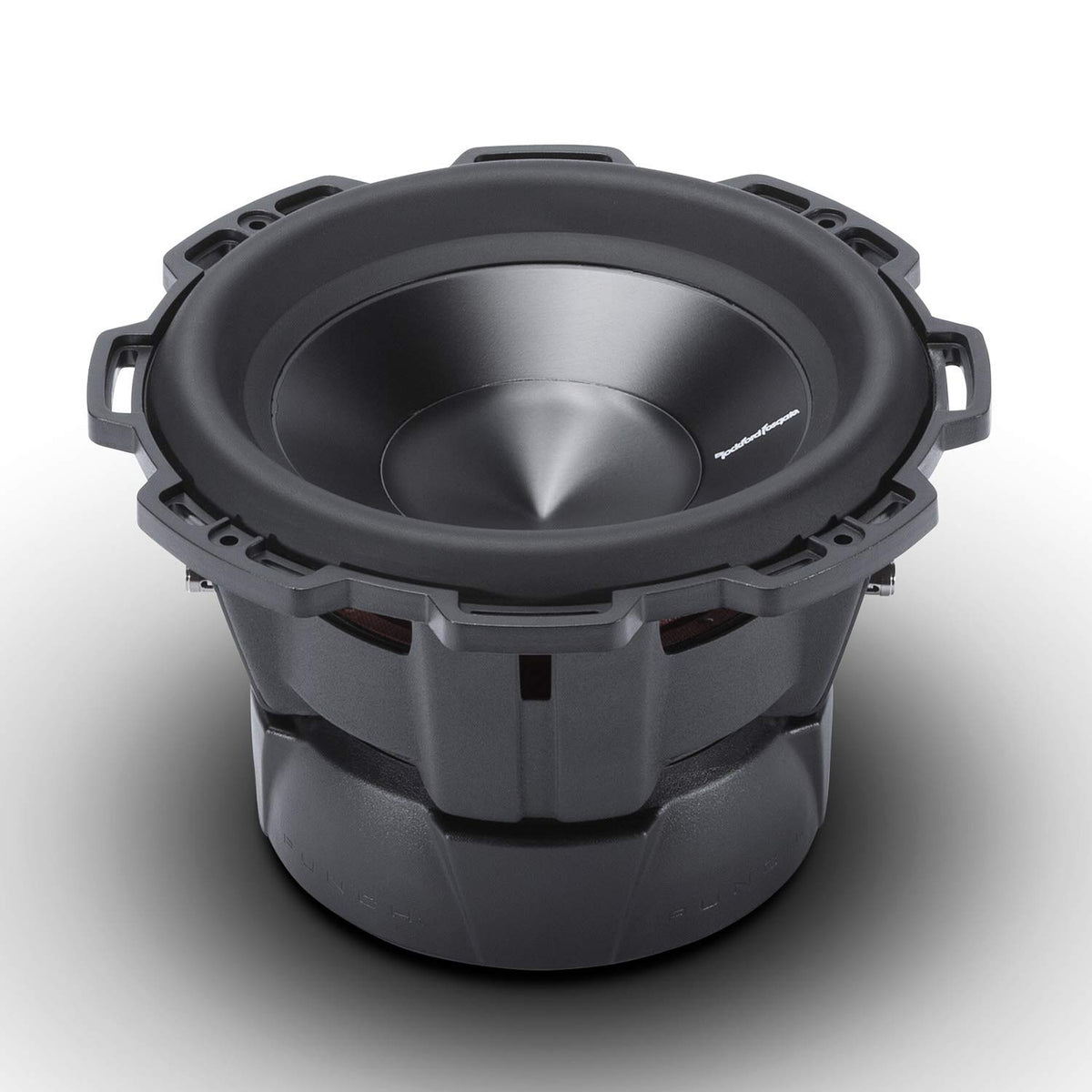

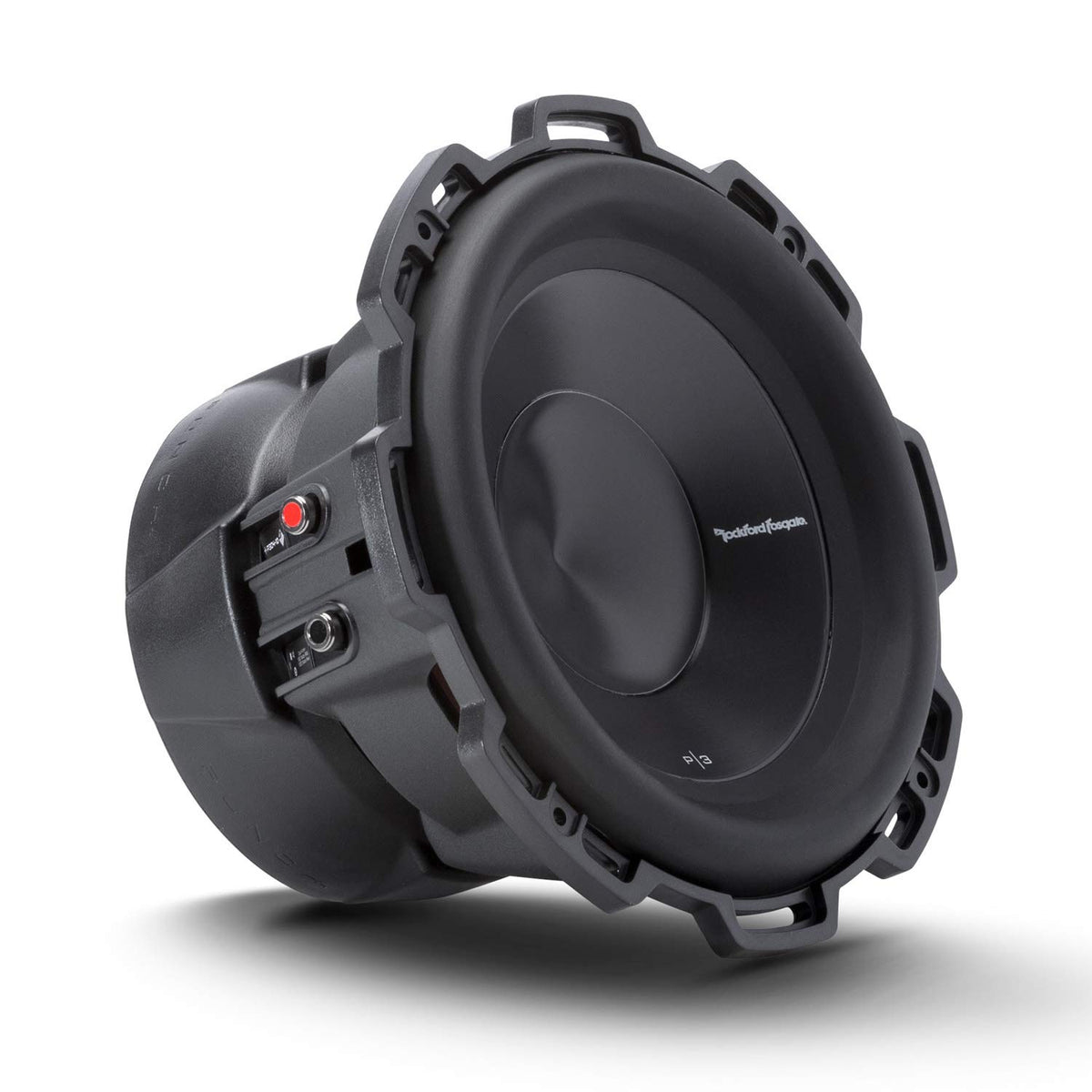

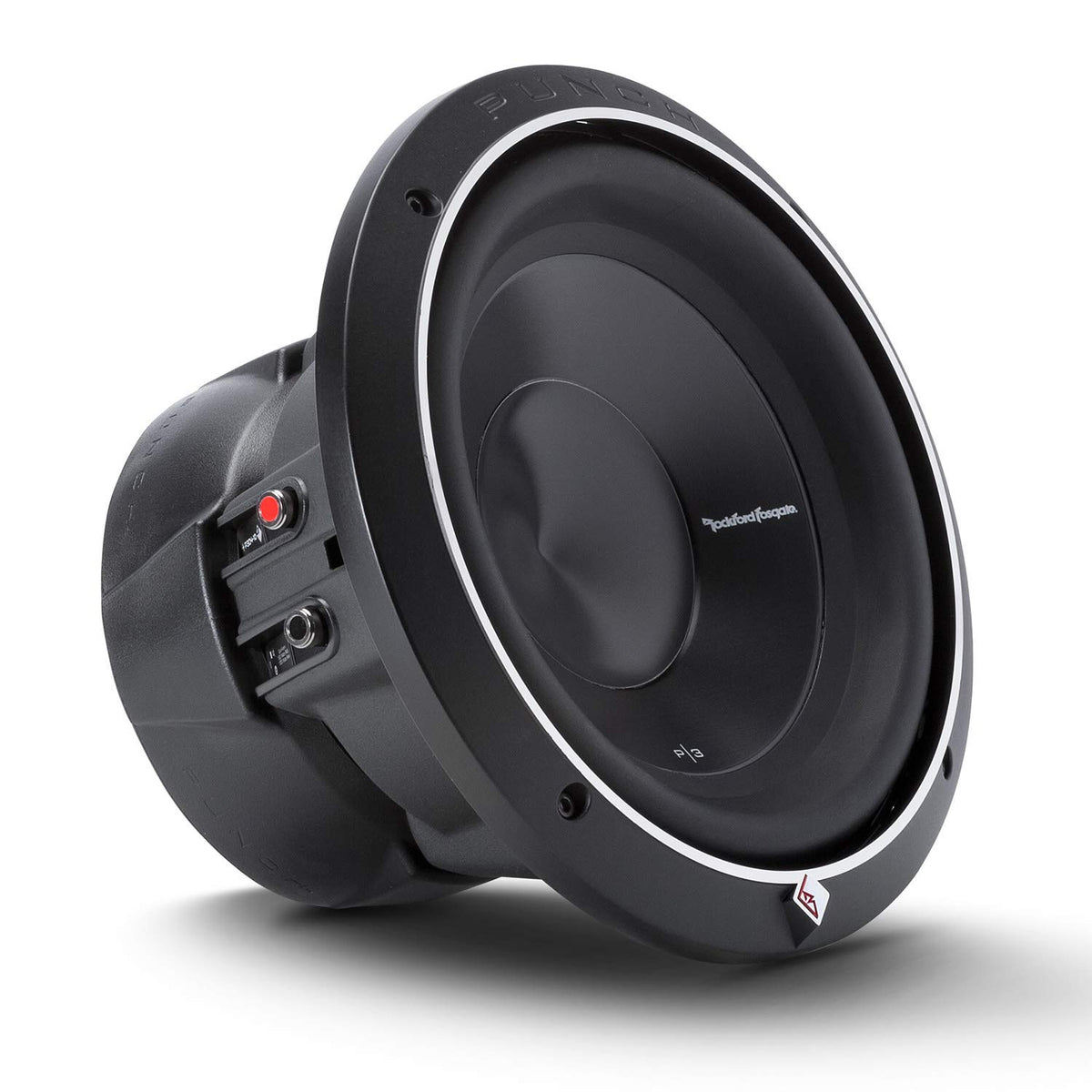

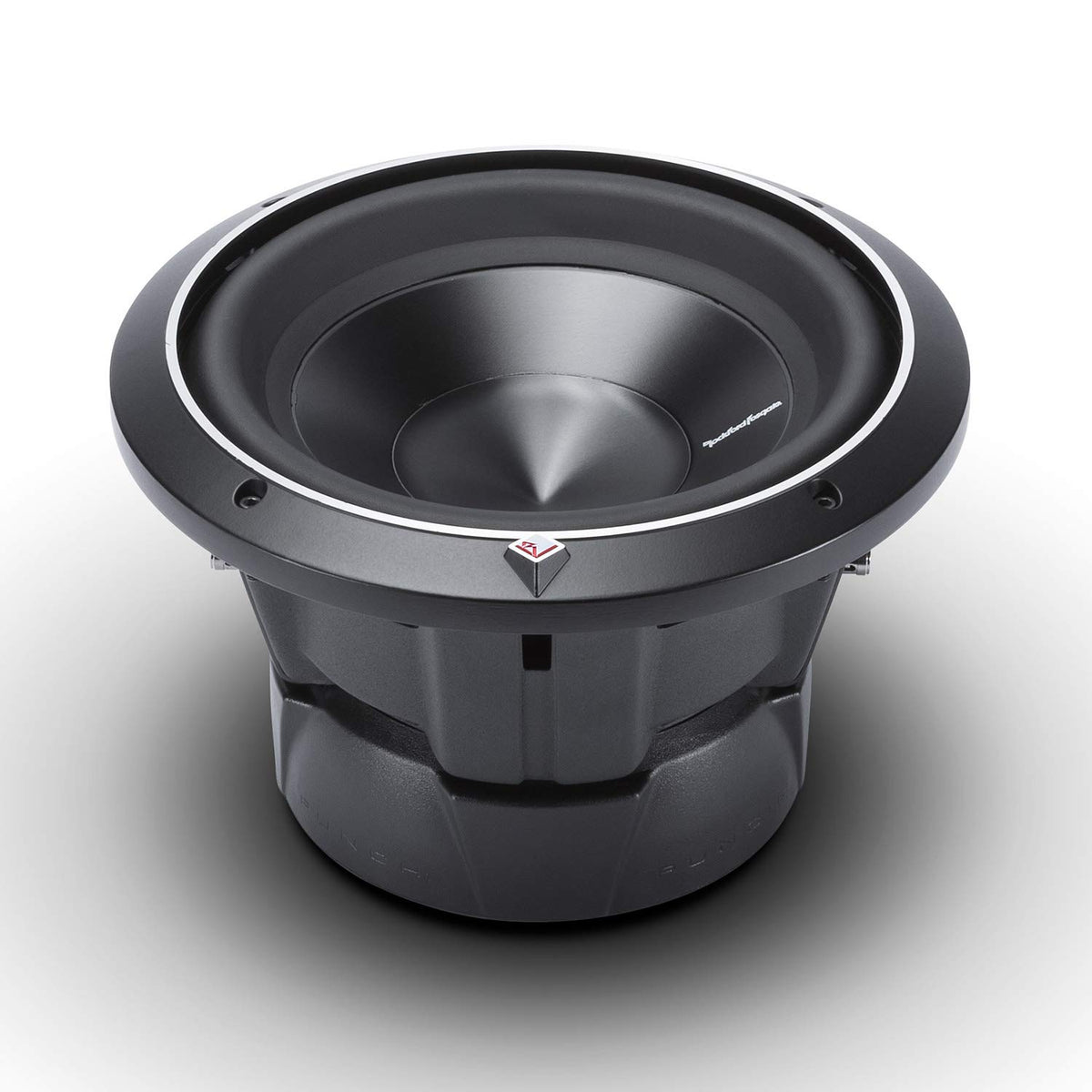

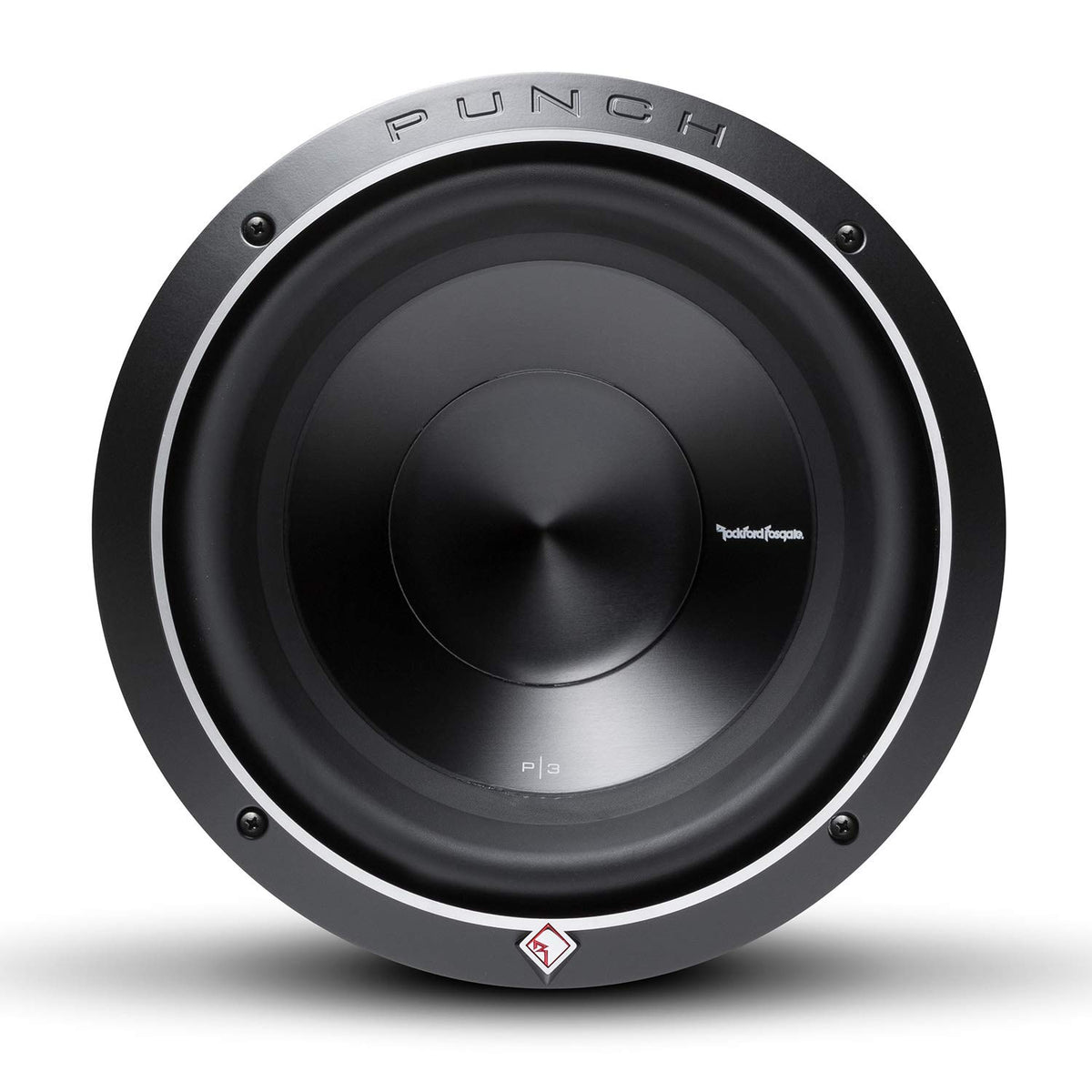

Rockford Fosgate P3-D2-10 10" Dual 2-Ohm Subwoofer

The Rockford Fosgate P3-D2-10 is a 10-inch dual-voice-coil subwoofer designed to add controlled low-frequency output to a car audio system. Its dual 2-ohm voice coils provide wiring flexibility for matching a compatible mono or multi-channel amplifier. It is intended for listeners building or upgrading a dedicated bass system rather than relying on factory full-range speakers alone.

With a 500-watt RMS power rating, the P3-D2-10 is suited to an amplifier selected and tuned for its continuous power capability and final impedance load. Its frequency response is rated from 26.6 to 250 Hz, supporting deep bass reproduction while allowing the system crossover to focus the driver on low frequencies. An 82 dB sensitivity rating helps describe its output efficiency under standardized measurement conditions.

The driver uses an anodized aluminum cone and dustcap, plus a high-temperature voice coil with a spun-laced Nomex reinforcement collar. Its motor design includes an extended pole piece, bumped vented backplate, and integrated spider venting to support cooling during demanding playback. A 2.5-inch, four-layer voice coil and double-stack ferrite magnet structure support the subwoofer's power-handling design.

Its StampCast basket combines stamped and cast construction to provide a rigid mounting structure while managing weight and resonance. The basket also incorporates FlexFit mounting provisions for installation flexibility. A protective PVC-textured magnet cover and diamond-cut cast aluminum trim ring complete the exterior design.

The P3-D2-10 can be installed in either sealed or vented enclosures, depending on the desired balance of enclosure size, bass character, and output. Rockford Fosgate specifies a 0.59-cubic-foot optimum sealed enclosure or a 1.40-cubic-foot optimum vented enclosure before driver and port displacement. Pair it with a properly configured low-pass crossover and an amplifier that remains stable at the selected series or parallel voice-coil wiring load.

Key Features

• Dual 2-Ohm Voice Coils: Supports 1-ohm parallel or 4-ohm series wiring for amplifier matching.
• 500-Watt RMS Handling: Provides a continuous-power target for selecting a compatible amplifier.
• Anodized Aluminum Cone: Adds a rigid cone and dustcap assembly for bass reproduction.
• Integrated Spider Venting: Helps move air around the motor assembly for cooling.
• StampCast Basket: Combines structural support with a resonance-conscious basket design.
• 10-AWG Push Terminals: Accepts substantial speaker wire for secure system connections.

Design & Installation

The P3-D2-10 uses an anodized aluminum cone and dustcap, a rubberized over-mold, a high-temperature voice coil, and a protective PVC-textured magnet cover. Its double-stack ferrite magnet structure, extended pole piece, and bumped vented backplate are part of the driver motor design. The included decorative trim ring is cast aluminum and is designed to accommodate an optional grille insert.

Allow for a 9.13-inch cutout diameter and 6.18 inches of mounting depth when planning the enclosure. Rockford Fosgate specifies sealed and vented enclosure alignments; enclosure volumes are gross internal volumes before speaker and port displacement. Use an active low-pass crossover in the 80-100 Hz range as recommended in the installation manual, and use a subsonic filter with vented enclosures for protection below the usable bass range.
