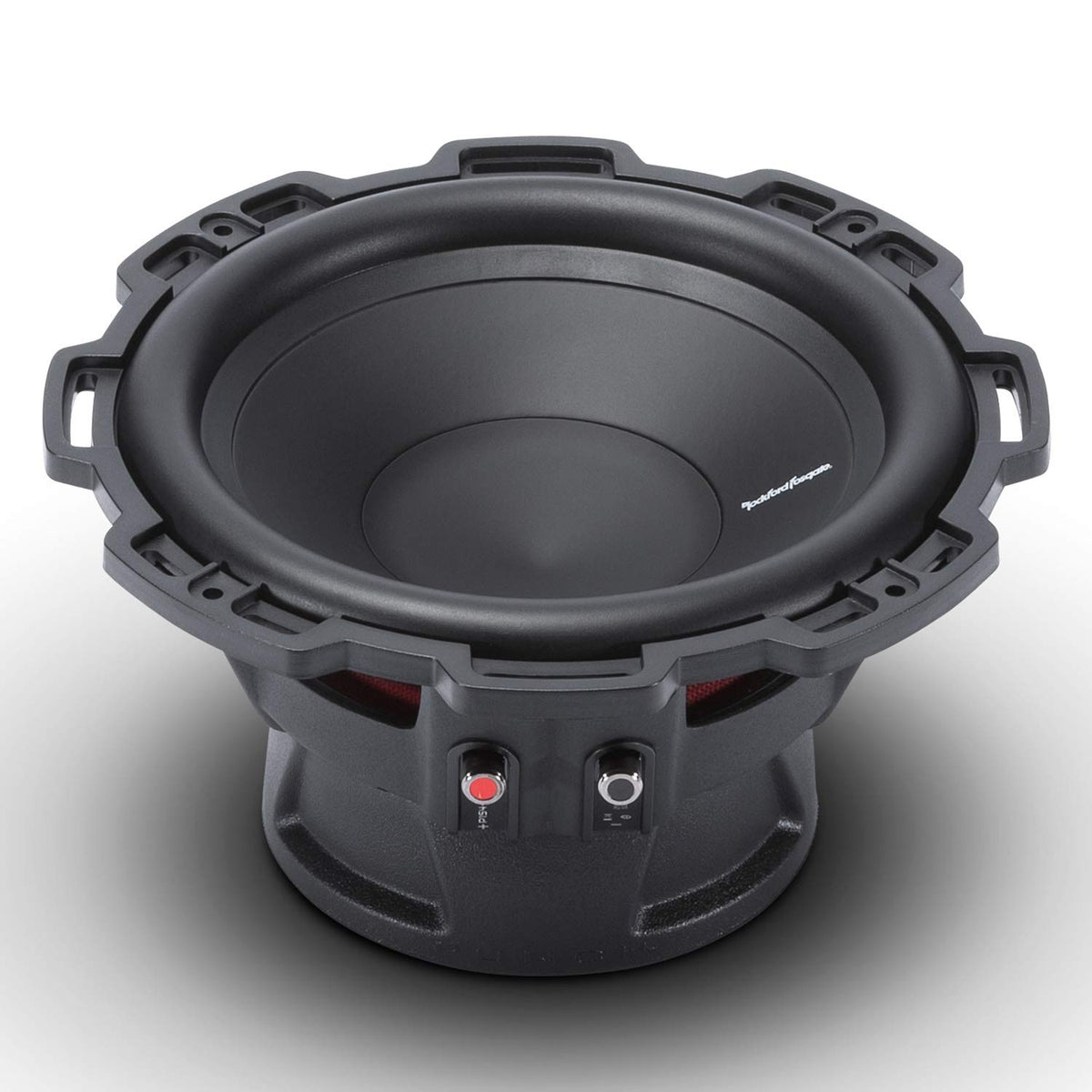

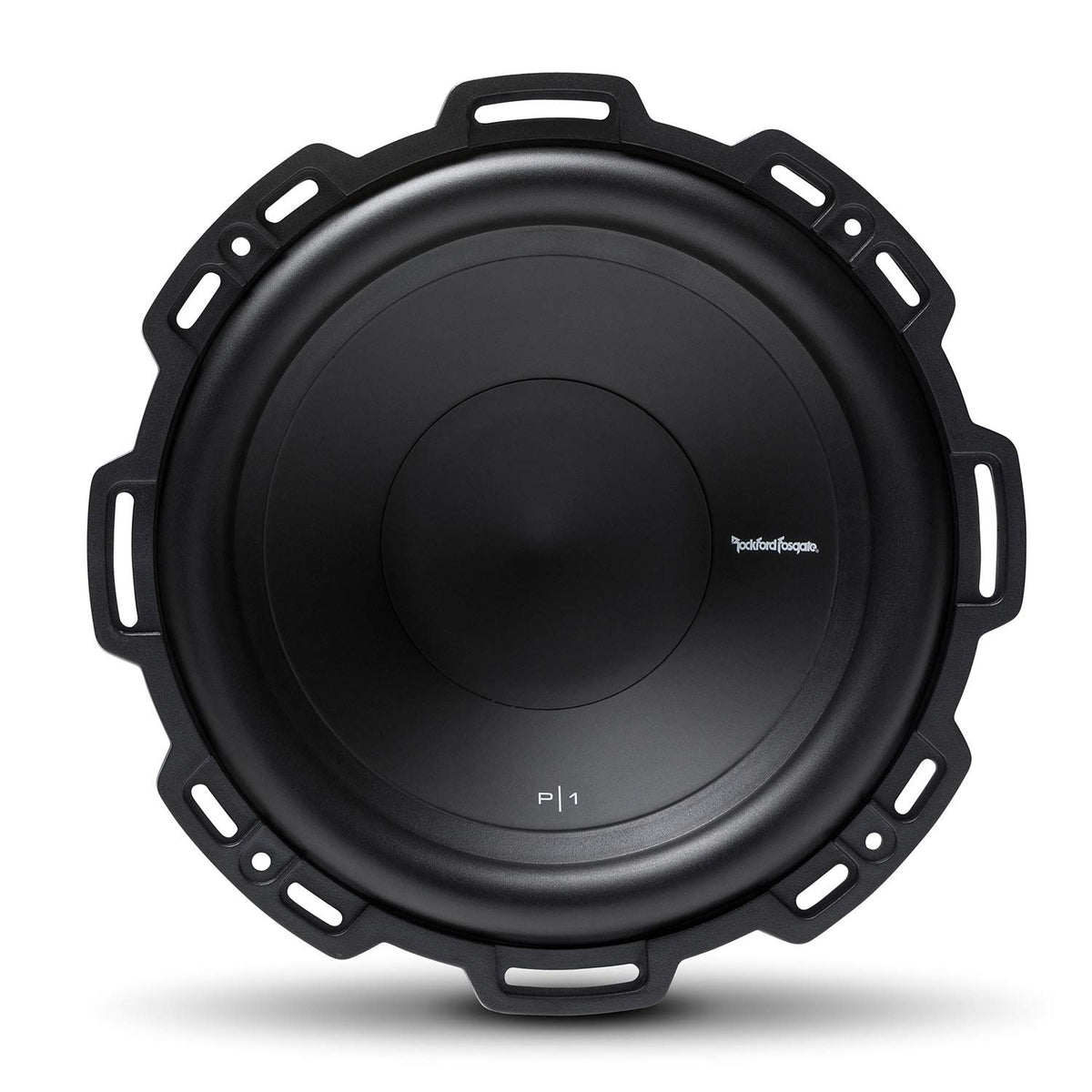

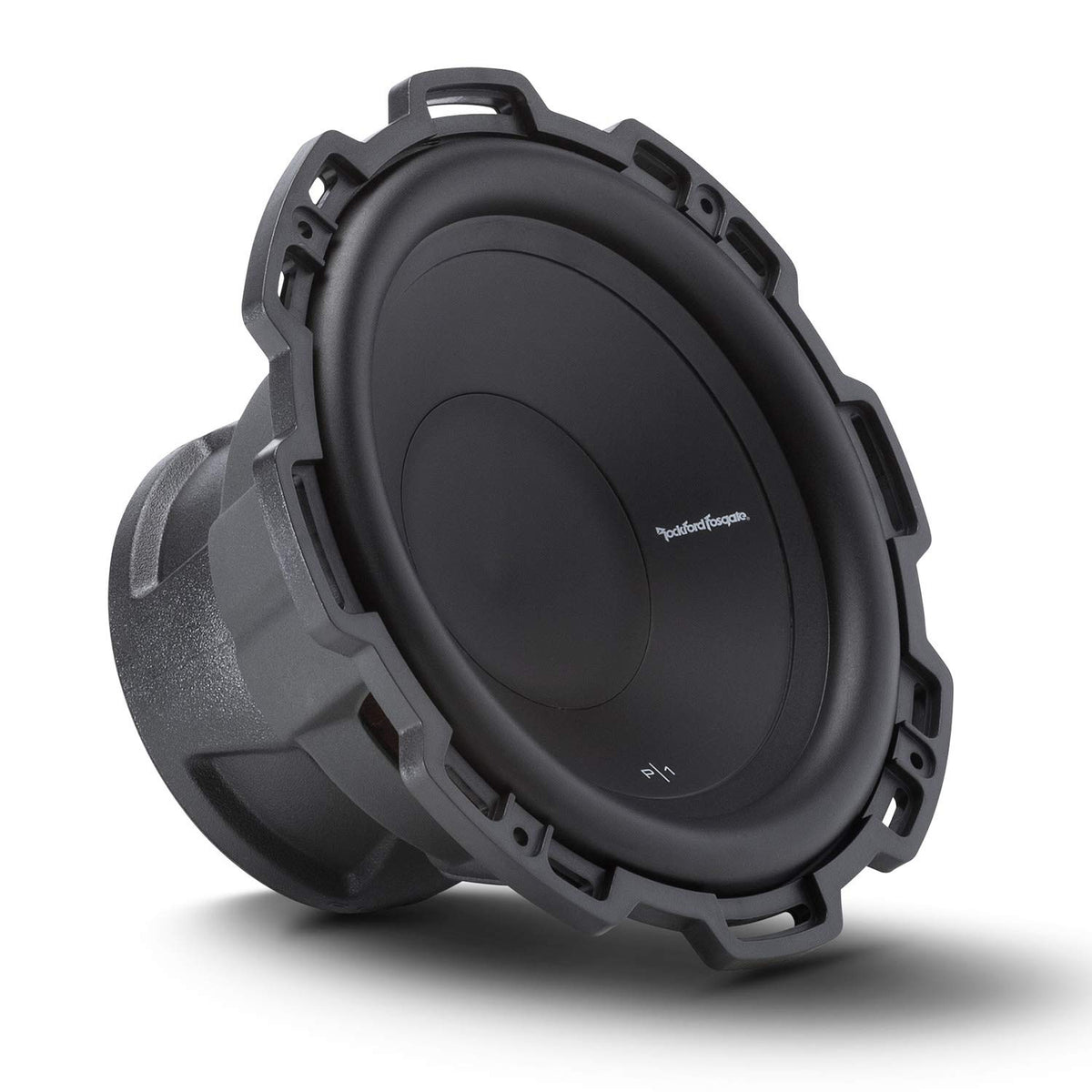

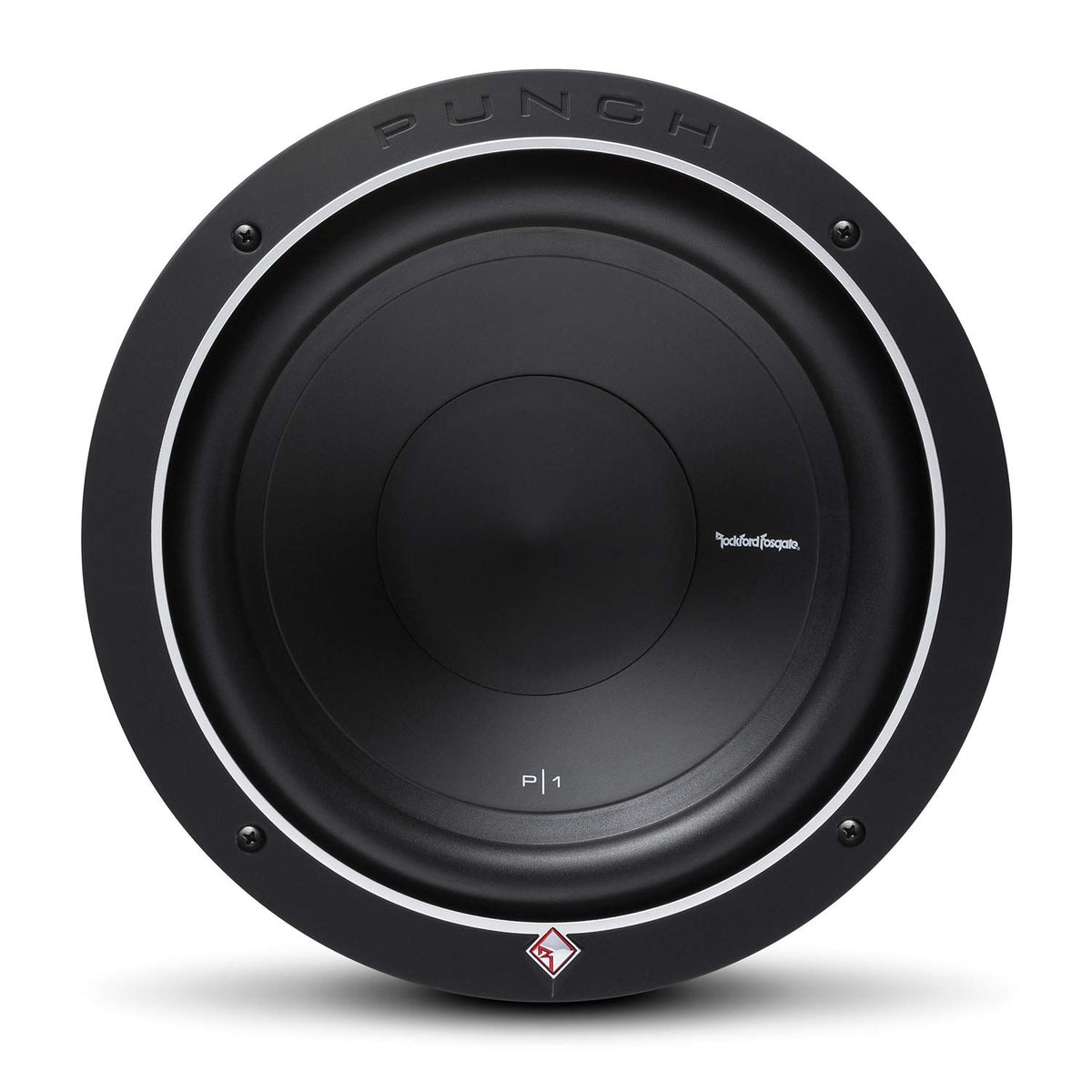

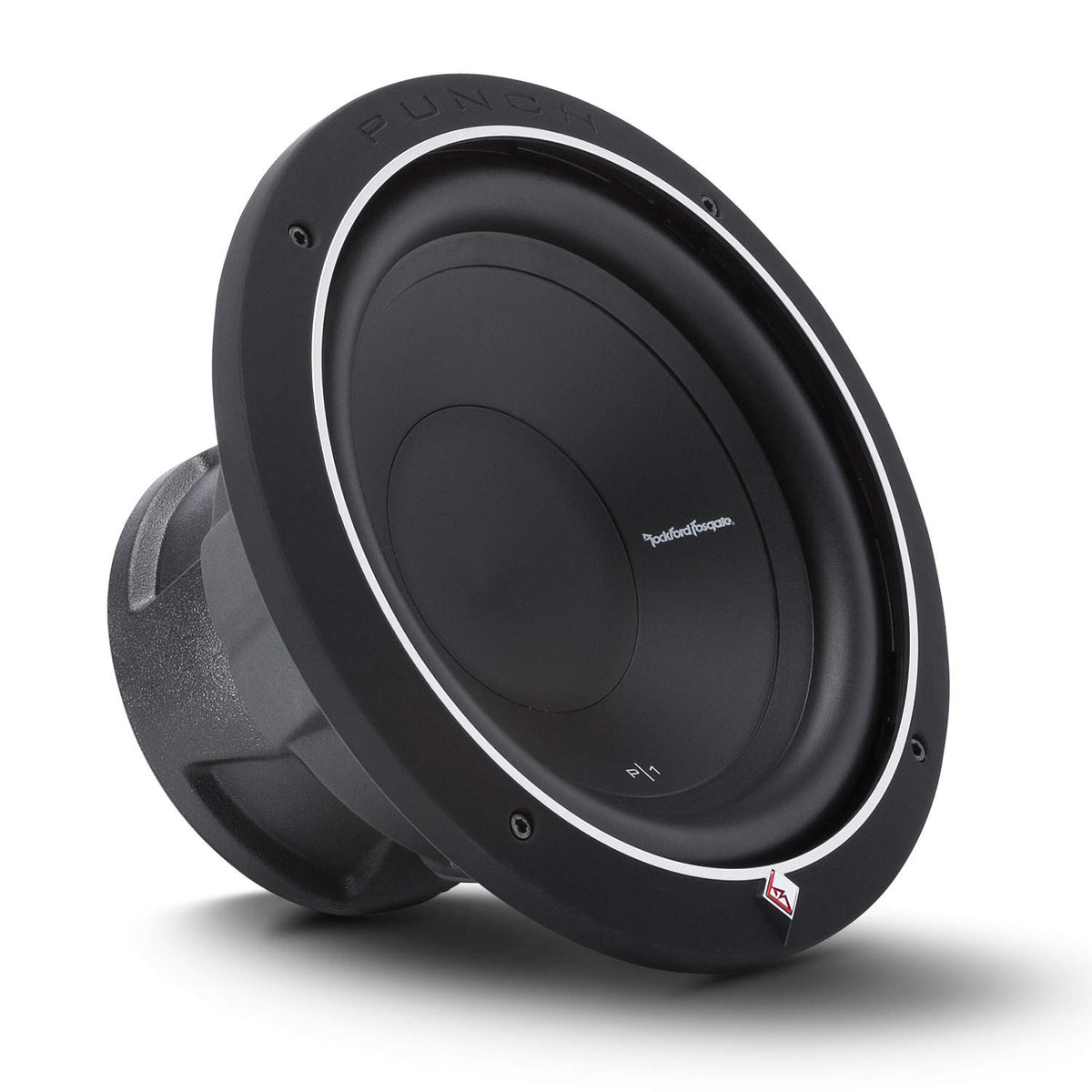

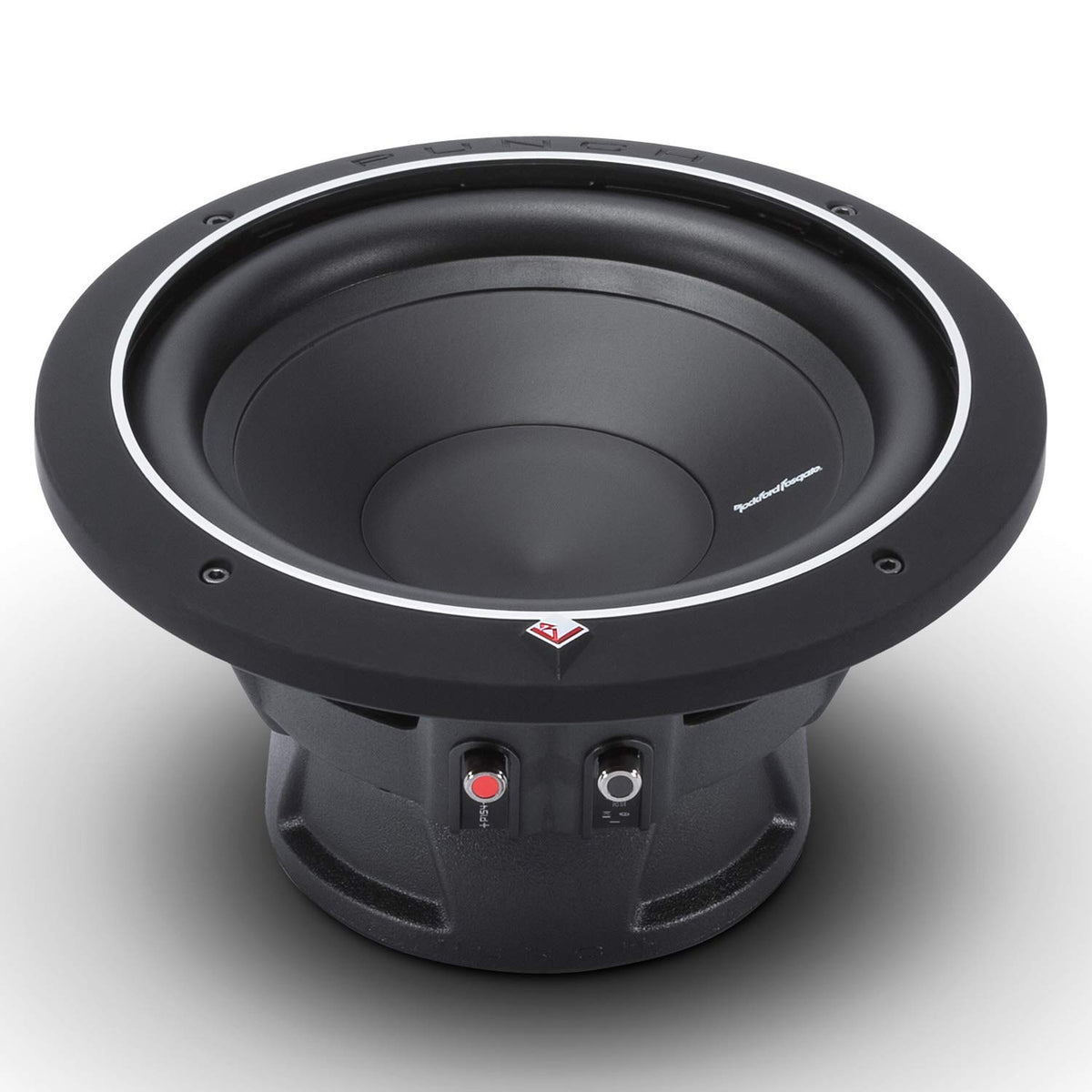

Rockford Fosgate P1S2-10 10" 2-Ohm Subwoofer

The Rockford Fosgate P1S2-10 is a 10-inch, single-voice-coil car subwoofer designed to add dedicated low-frequency output to an aftermarket audio system. Its 2-ohm nominal impedance and 250-watt RMS power rating make it suited to a properly matched mono amplifier. It is intended for listeners who want fuller bass than factory door speakers can reproduce.

This Punch P1 model uses a Kevlar-reinforced paper cone and dust cap to provide a rigid radiating surface for bass playback. A high-density NBR half-roll surround supports cone movement, while a poly-cotton spider is designed for resistance to tearing and fatigue. The result is a subwoofer built for controlled low-frequency reinforcement in a compact 10-inch format.

The P1S2-10 has a 2.0-inch, four-layer voice coil with a high-temperature design and a spun-laced Nomex reinforcement collar. Its vented spider cavity helps promote voice-coil cooling during operation. The motor system incorporates an extended pole piece and bumped backplate to support the woofer's excursion capability.

This subwoofer can be used in either a sealed or vented enclosure, allowing the system design to be tailored to available space and bass preference. Rockford Fosgate specifies a 0.59 cubic-foot sealed enclosure as its recommended sealed alignment. For a vented build, the published alignment is 1.40 cubic feet tuned to 37.3 Hz.

With a 5.33-inch mounting depth and 9.125-inch mounting cutout diameter, the P1S2-10 should be measured against the available enclosure and vehicle clearance before installation. Its single 2-ohm voice coil presents a 2-ohm load when used by itself. Pair it with an amplifier that is stable at 2 ohms and appropriately rated for its 250-watt RMS handling.

Key Features

• 250-Watt RMS Handling: Supports amplifier matching based on continuous power rather than peak-only ratings.
• 2-Ohm SVC Design: Provides a single 2-ohm nominal load for compatible amplifiers.
• Kevlar-Reinforced Paper Cone: Combines paper-cone character with added structural reinforcement.
• Vented Spider Cavity: Helps promote cooling around the voice-coil assembly.
• 10-AWG Push Terminals: Uses insulated, nickel-plated terminals for secure speaker-wire connections.
• Sealed Or Vented Compatibility: Supports enclosure options for different installation goals and space constraints.

Design & Installation

The P1S2-10 is constructed around a sturdy 16-gauge compound-bend frame with optimized motor magnetics, an extended pole piece, and bumped backplate. It uses a protective PVC-textured magnet cover, decorative ABS trim ring, high-density NBR half-roll surround, and a tear- and fatigue-resistant poly-cotton spider. These components support the woofer's mechanical structure and everyday car-audio use.

Allow at least 5.33 inches of mounting depth behind the baffle and cut a 9.125-inch mounting opening. Rockford Fosgate recommends a 0.50 to 0.85 cubic-foot sealed enclosure range, with 0.59 cubic feet specified as the reference sealed volume; its vented recommendation is 1.40 cubic feet tuned to 37.3 Hz using one 3-inch by 8-inch port. For system setup, the manual recommends an active 80-100 Hz low-pass crossover at 12 dB per octave for subwoofer operation.
