Rockford Fosgate P3S-1X10 10" Shallow Loaded Subwoofer

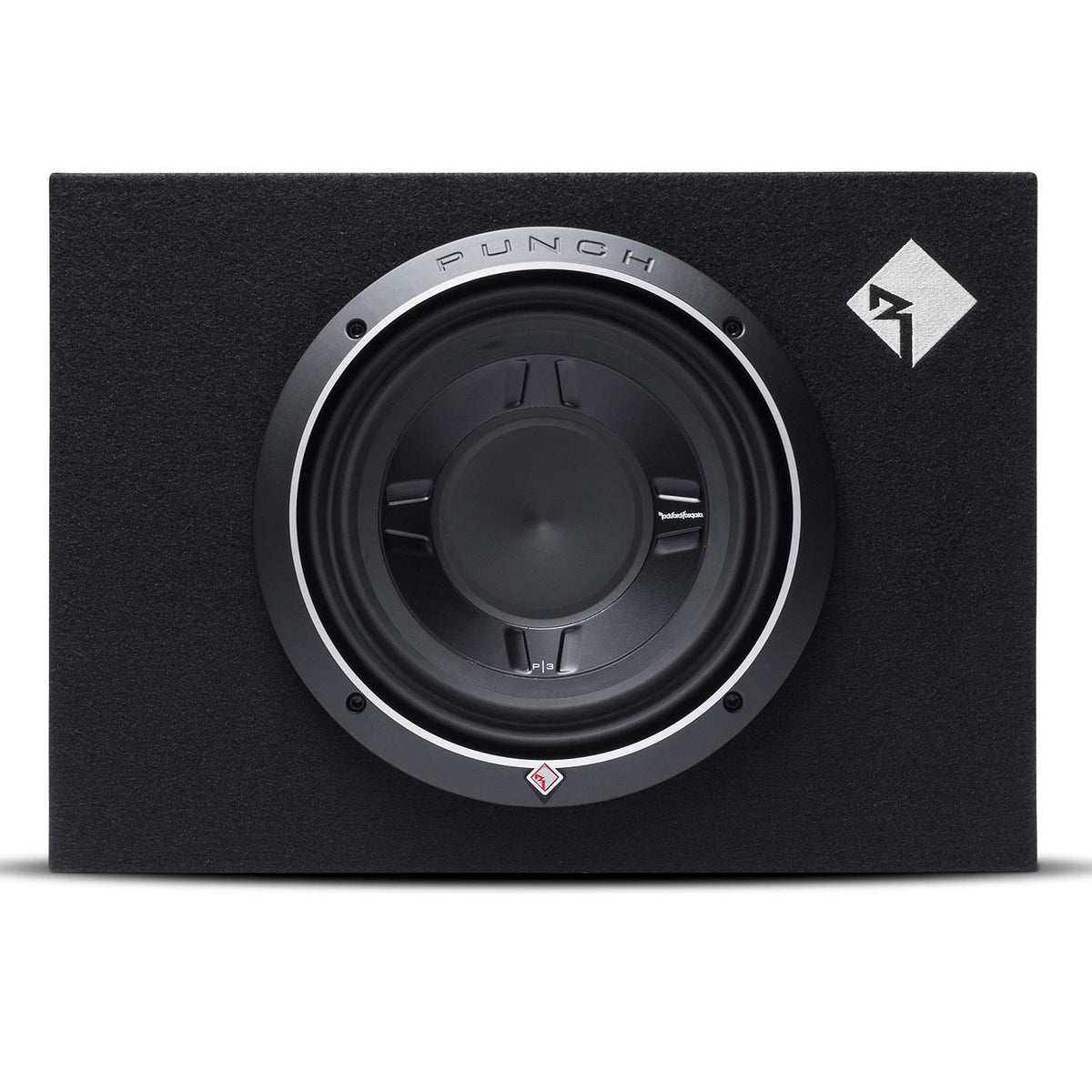

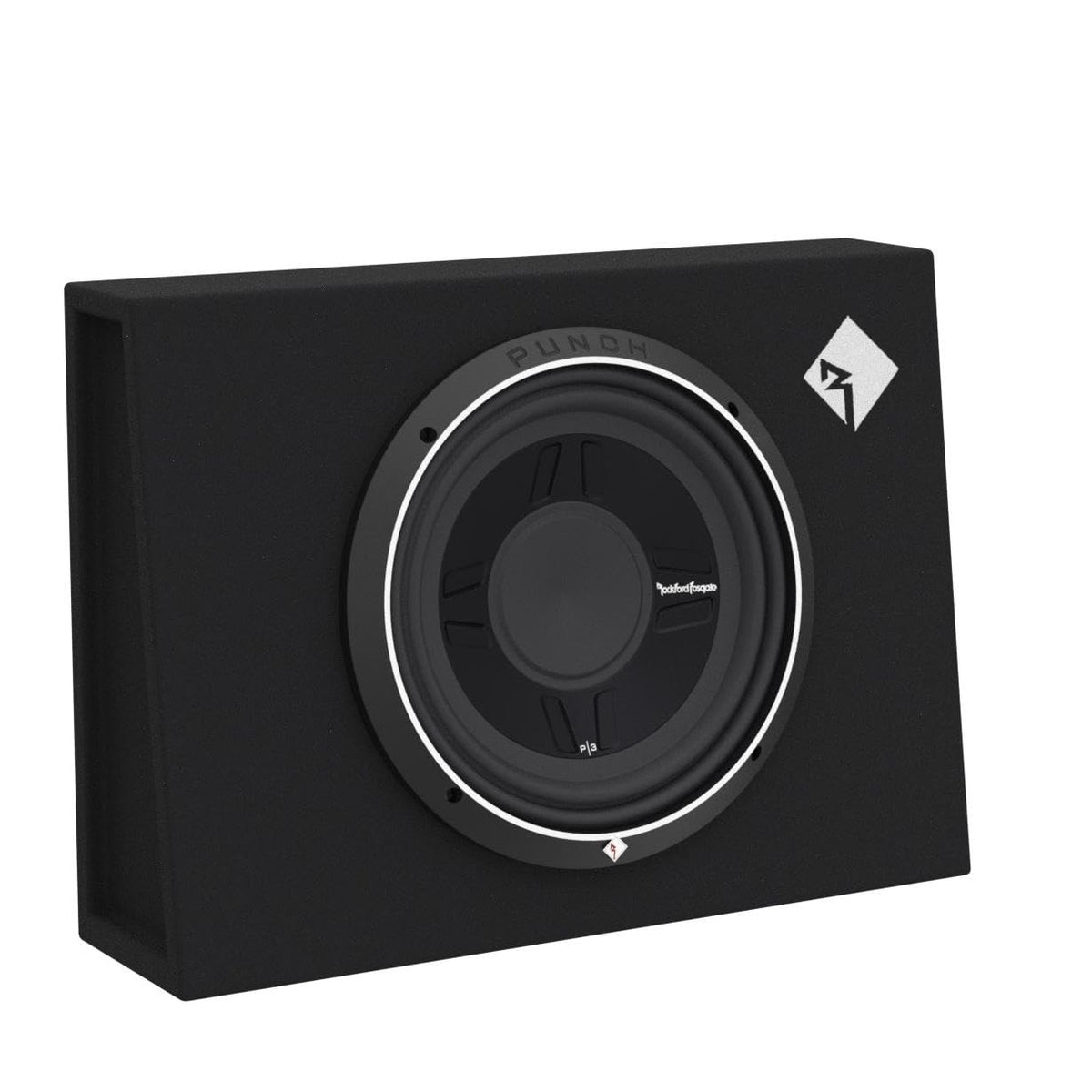

The Rockford Fosgate P3S-1X10 is a loaded 10-inch shallow subwoofer enclosure designed for vehicles with limited mounting depth. Its sealed wedge enclosure helps bring bass reinforcement to trucks and other installations where a conventional deep subwoofer box may not fit. The enclosure arrives with a Punch P3 shallow subwoofer already installed and wired.

This model is intended for listeners who need a compact bass upgrade without building a custom enclosure. Its slim profile is useful behind seats, in space-conscious cargo areas, and in other depth-limited locations. Measure the available space carefully before purchase, including clearance for terminals and wiring.

The sealed enclosure design supports controlled, focused low-frequency performance rather than the character of a larger vented enclosure. With 300 watts RMS power handling and a 1-ohm final load, it is suited to a compatible mono amplifier rated for stable 1-ohm operation. The loaded enclosure is specified for a 40-250 Hz frequency response.

Inside is a Rockford Fosgate P3SD2-10 shallow-mount subwoofer with dual 2-ohm voice coils wired internally to a 1-ohm load. The driver uses an anodized aluminum cone, Santoprene surround, dual spider construction, and a shallow motor assembly. These design elements allow the subwoofer to operate in a slim enclosure while maintaining its specified excursion and power capability.

The P3S-1X10 provides a straightforward path to adding a dedicated bass channel to an aftermarket audio system. Pair it with an appropriate amplifier, amplifier wiring kit, signal connection method, and installation hardware for the vehicle. Mounting brackets and self-tapping screws are included to help secure the enclosure during installation.

Key Features

• Loaded 10-Inch Design: Includes one factory-installed Punch P3 shallow subwoofer.
• 1-Ohm Final Load: Internally wired for a compatible 1-ohm-stable amplifier.
• 300W RMS Handling: Supports amplifier matching up to its continuous rating.
• Sealed Wedge Enclosure: Delivers compact placement with controlled bass response.
• Shallow-Mount Construction: Helps fit locations with limited available depth.

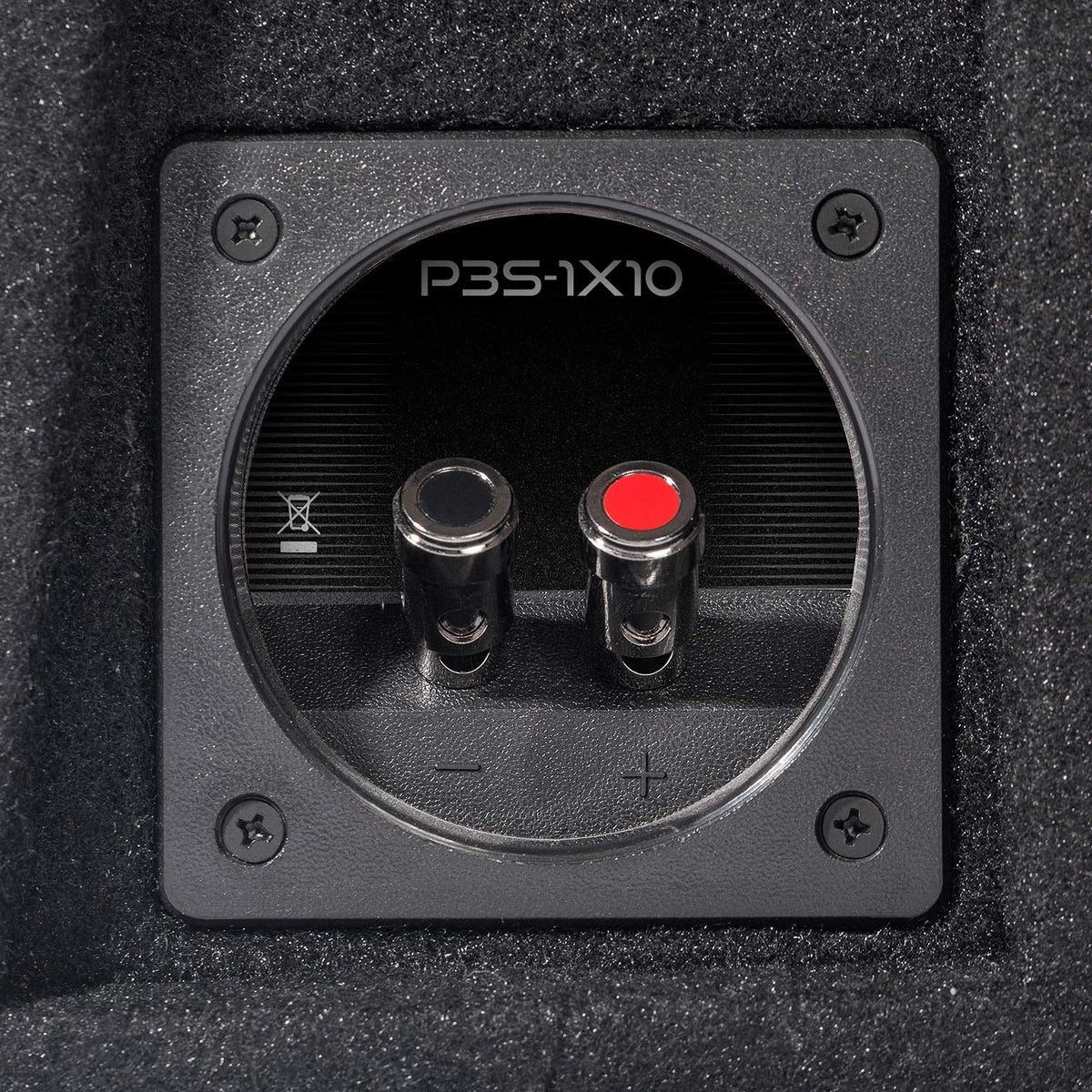

• Quick-Release Terminals: Accept speaker wire up to 10 AWG.

Design & Installation

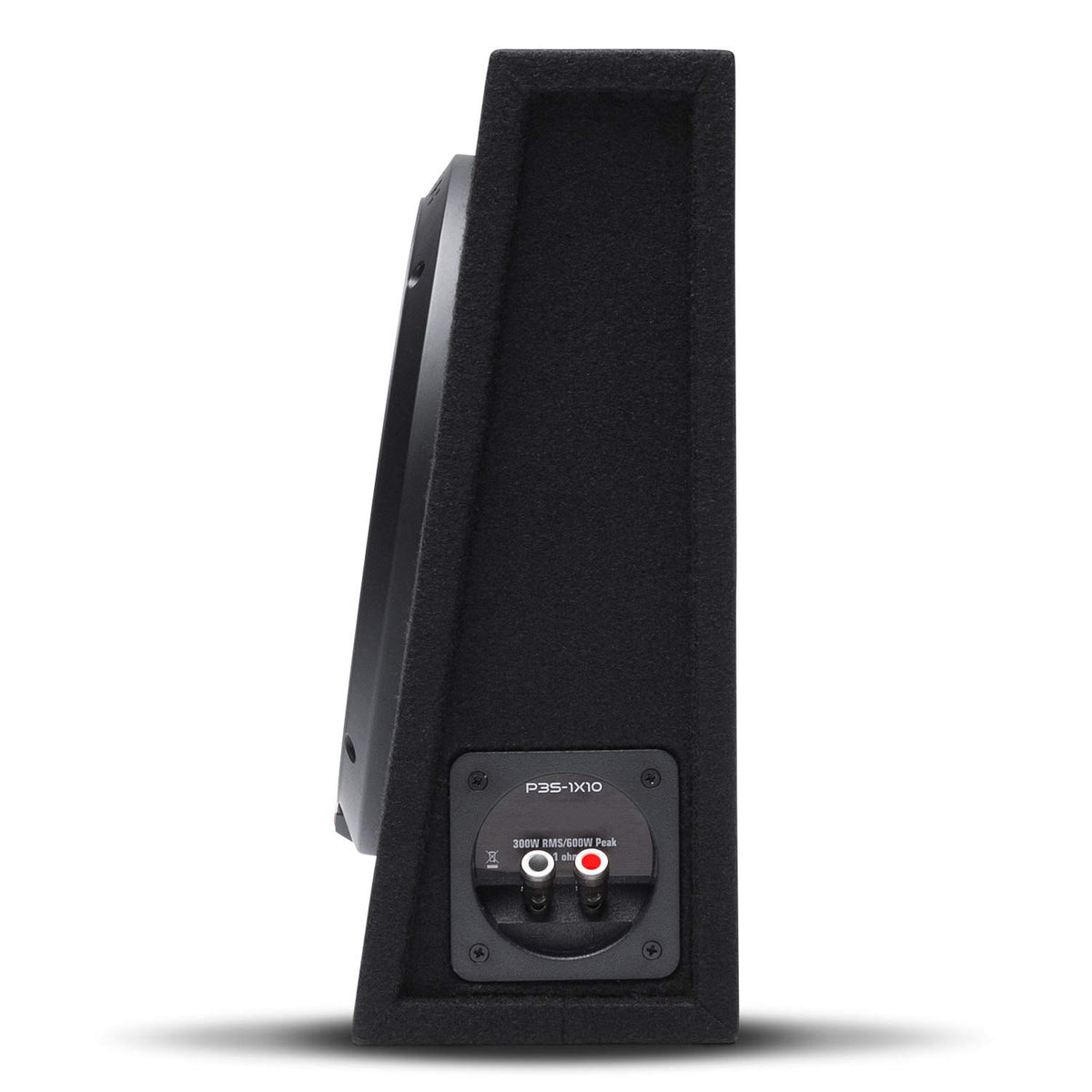

The enclosure is built from 5/8-inch medium-density fiberboard and covered in carpet, with a stitched Diamond-R logo. Its slim-line wedge shape measures 13.5 inches high by 19.0 inches wide, with a 5.25-inch bottom depth and 3.25-inch top depth. The installed P3SD2-10 uses an anodized aluminum cone, Santoprene surround, cast trim ring, and shallow motor assembly.

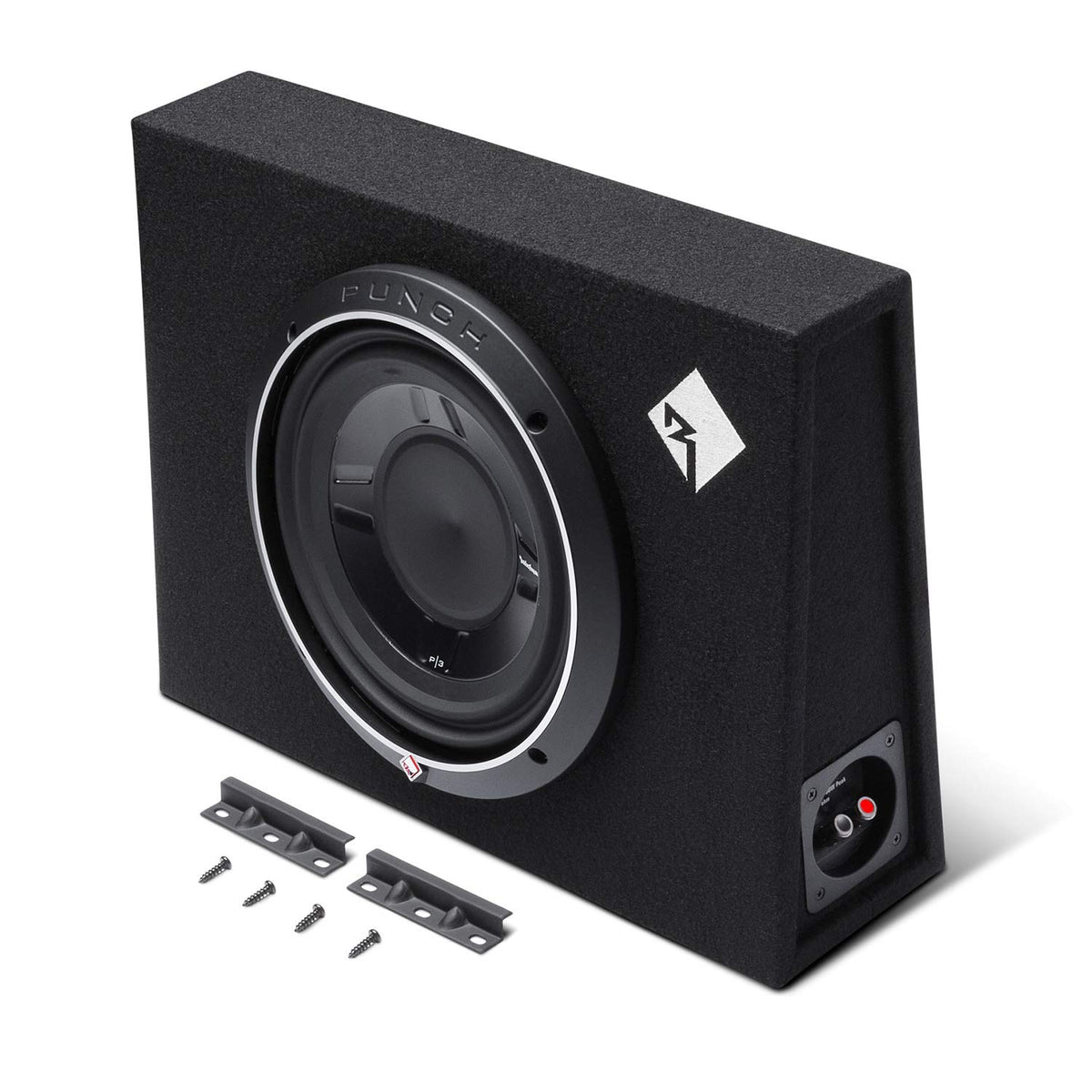

Use the included metal mounting brackets and four self-tapping screws to secure the enclosure to a suitable vehicle structure. Connect amplifier positive output to the red enclosure terminal and negative output to the black terminal, keeping speaker wire away from high-current vehicle wiring where practical. Because the enclosure presents a 1-ohm load, use only an amplifier specified to operate safely at 1 ohm and set gain appropriately for the 300-watt RMS rating.
