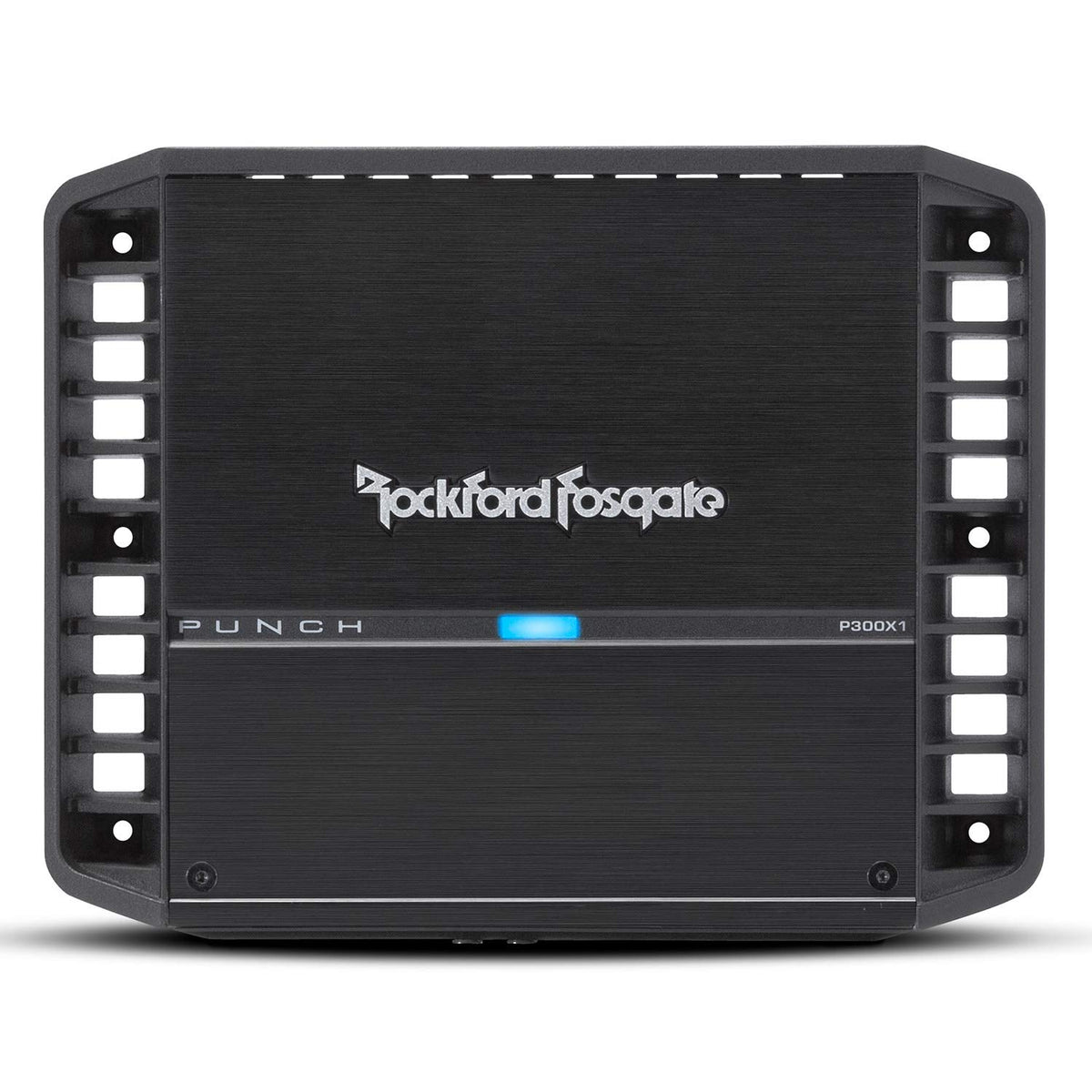

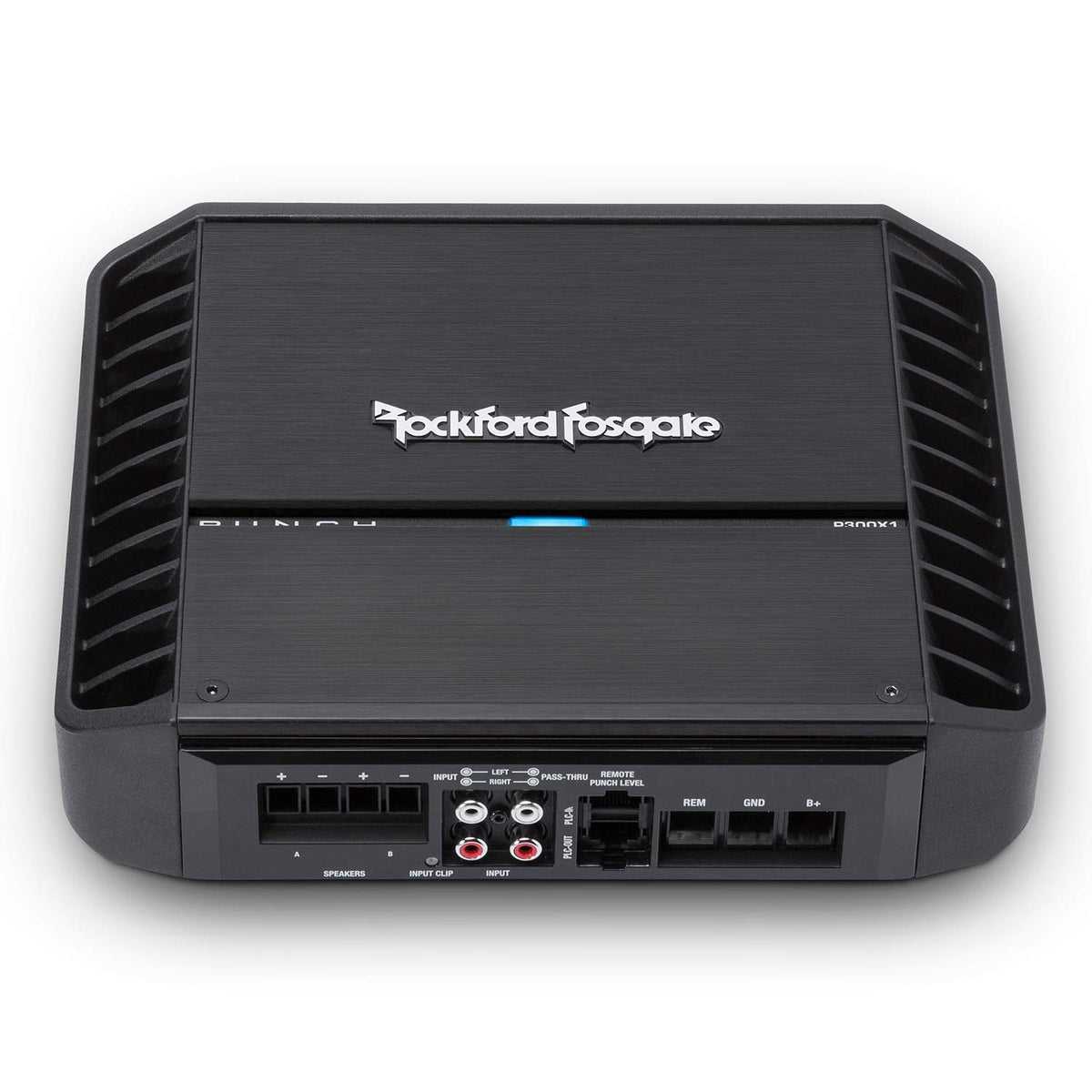

Rockford Fosgate P300X1 Mono Car Amplifier

The Rockford Fosgate Punch P300X1 is a compact full-range mono car amplifier designed to add dedicated power where a factory or aftermarket receiver cannot supply enough output. It delivers up to 300 watts RMS to a 2-ohm load, making it well suited to a single subwoofer system or a dedicated center-channel application. Its small chassis helps solve installation-space challenges in cars, trucks, and other vehicles with limited mounting room.

This amplifier is intended for listeners building a focused bass upgrade or adding a mono channel to a broader custom audio system. With 200 watts RMS at 4 ohms and 300 watts RMS at 2 ohms, it supports practical power matching for compatible speakers or subwoofers. The full-range frequency response also gives installers flexibility beyond a conventional low-frequency-only amplifier role.

The P300X1 uses Class A/B circuitry and a 12 dB/octave Butterworth crossover network for adjustable system tuning. Selectable high-pass, low-pass, and all-pass operation allows it to be configured around the speaker's role in the system. An on-board Punch EQ provides adjustable bass boost centered at 45 Hz when used in the applicable crossover modes.

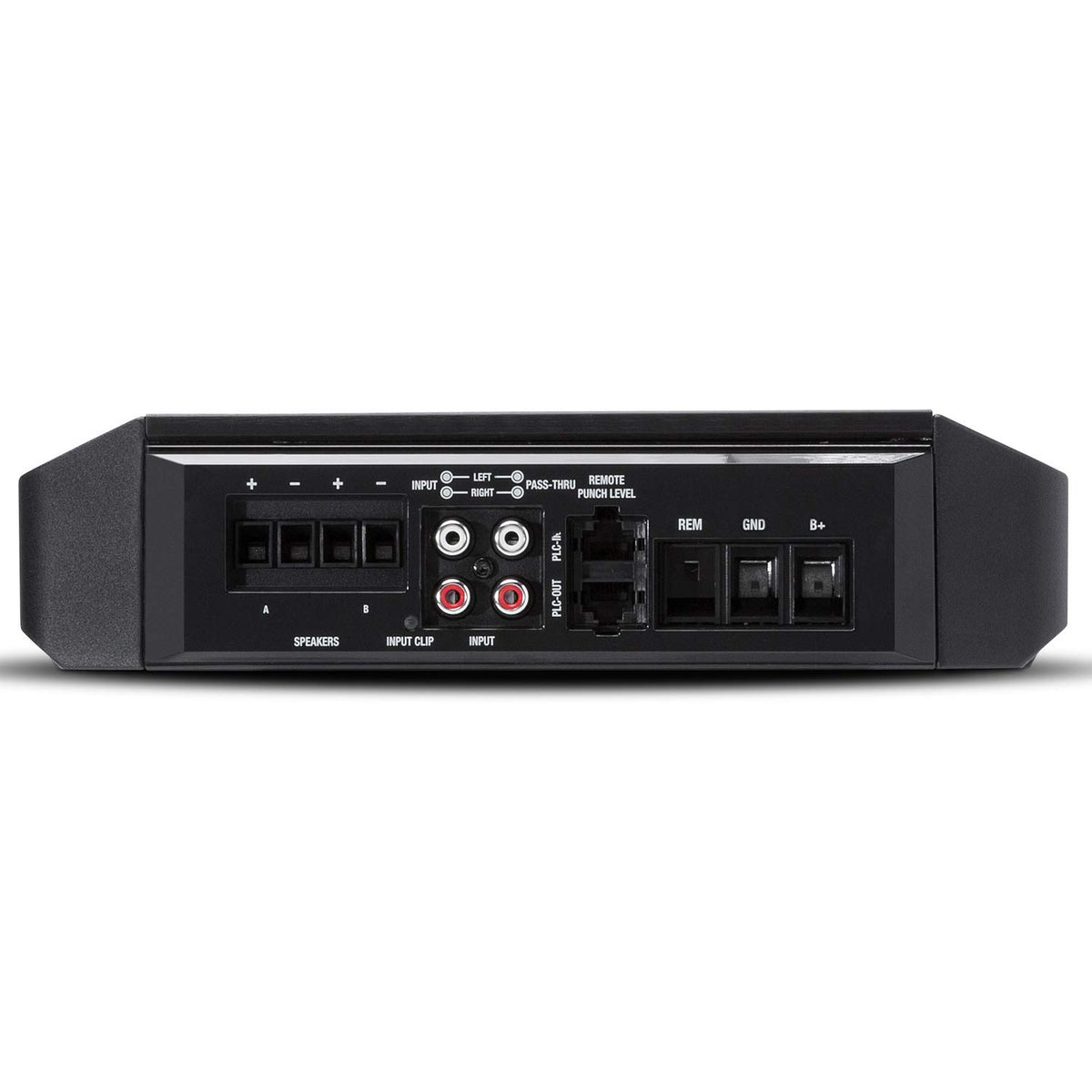

For signal integration, the amplifier accepts high- or low-level audio signals through its RCA input connection, reducing the need for a separate line-output converter in many installations. RCA pass-through outputs can help route signal onward to additional amplifiers. C.L.E.A.N. setup capability and clip-status indicators support more controlled gain adjustment during installation.

The P300X1 fits naturally into an upgrade path that begins with a factory stereo and expands to include an amplified subwoofer, center speaker, or additional amplifiers. Its optional Punch Level Control compatibility provides a convenient way to adjust output level from a remote mounting location. Protection circuitry, convection cooling, and a cast-aluminum heatsink support dependable operation when installed and wired correctly.

Key Features

• 300-Watt Mono Output: Supplies 300 watts RMS into a compatible 2-ohm load.
• Full-Range Operation: Supports subwoofer or dedicated center-channel amplifier duties.
• High/Low-Level Inputs: Integrates with many factory and aftermarket audio sources.
• Variable Butterworth Crossovers: Helps tailor the signal for the connected speaker.
• Punch EQ: Adds adjustable bass emphasis at 45 Hz.
• C.L.E.A.N. Setup: Clip indicators help guide gain-setting adjustments.

Design & Installation

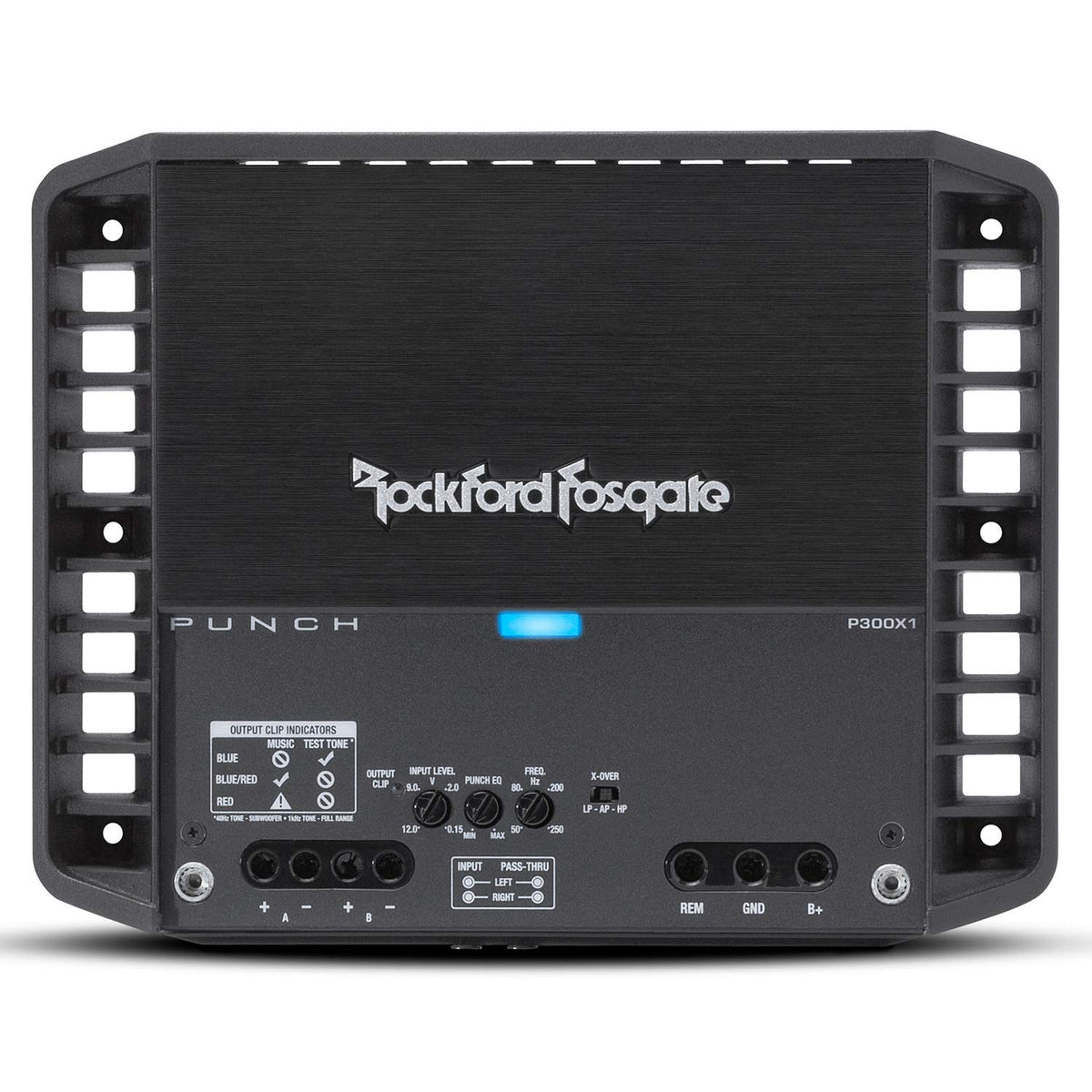

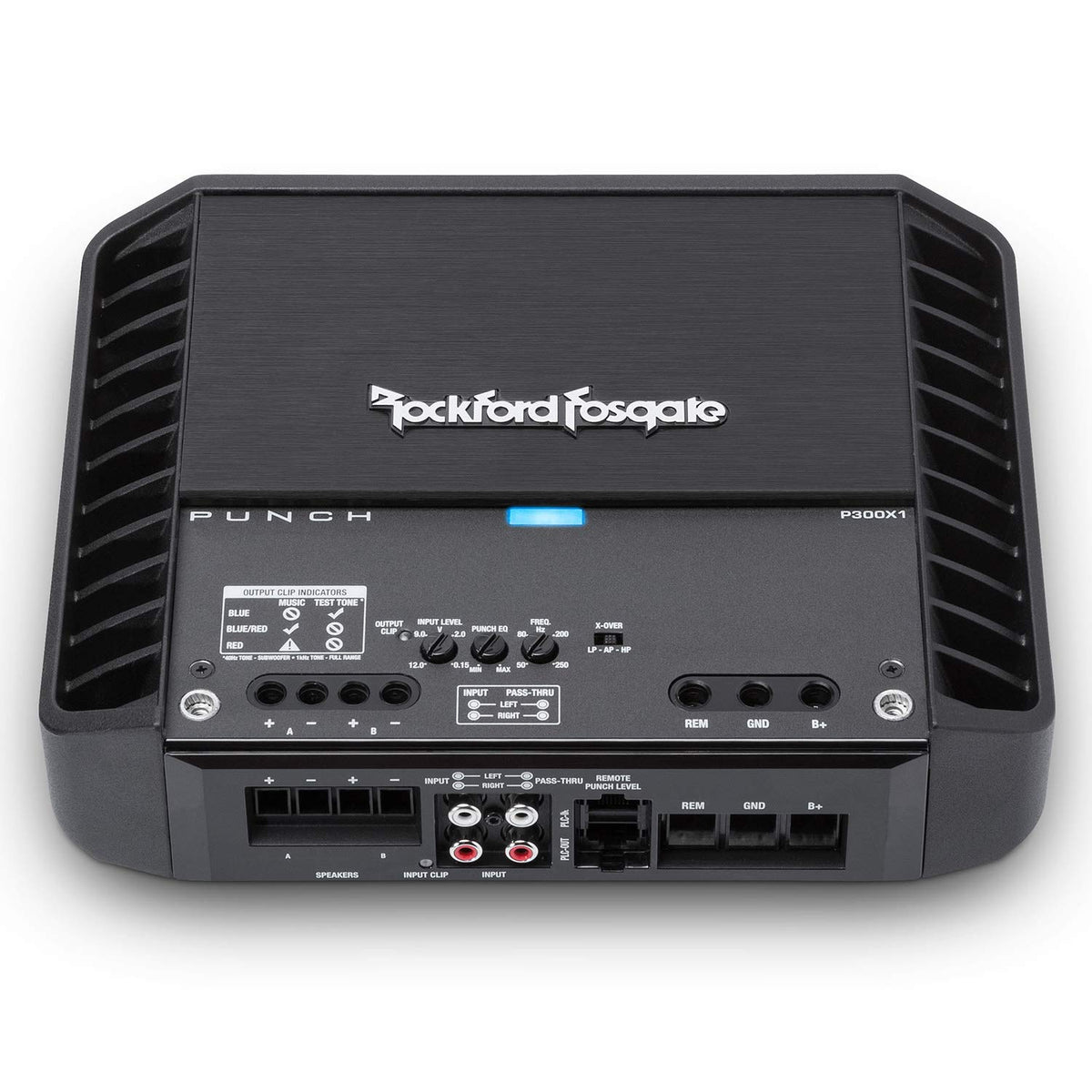

The P300X1 uses a compact chassis measuring 2.38 by 7.76 by 9.86 inches, with a cast-aluminum heatsink and convection cooling design. Its stealth top-mounted control panel keeps adjustments accessible while maintaining a clean installed appearance. Power, protection, thermal, input-clip, and output-clip LED indicators provide at-a-glance operating status.

Use this amplifier with a properly wired 2-ohm or 4-ohm speaker load and an appropriately matched subwoofer or center-channel speaker. It requires external power, ground, remote-turn-on, signal, and speaker wiring; Rockford Fosgate specifies 8 AWG to 4 AWG power wire, 8 AWG to 18 AWG speaker wire, and a 50-amp fuse that is not included. For low-frequency use, select the low-pass crossover and set gain and Punch EQ conservatively during system tuning.
