Rockford Fosgate T750X1BD 750W Mono Amplifier

The Rockford Fosgate T750X1BD is a compact mono amplifier designed to power a subwoofer system in vehicles where installation space is limited. It provides continuous power ratings of 500 watts at 4 ohms and 750 watts at either 2 or 1 ohm. Its single-channel configuration makes it a focused choice for adding controlled low-frequency output to a car, truck, motorcycle, or side-by-side audio system.

This amplifier is intended for listeners building a dedicated bass section rather than powering full-range speakers. Its low-pass crossover and infrasonic filter help tailor the signal sent to compatible subwoofers. The adjustable Punch EQ can add bass emphasis around 45 Hz when system tuning calls for it.

Rockford Fosgate uses Class BD circuitry and Constant Power technology in the T750X1BD. The regulated design maintains its rated 750-watt output at both 2-ohm and 1-ohm loads, while the amplifier's average efficiency is specified above 85 percent. This approach supports substantial bass output without requiring a large amplifier chassis.

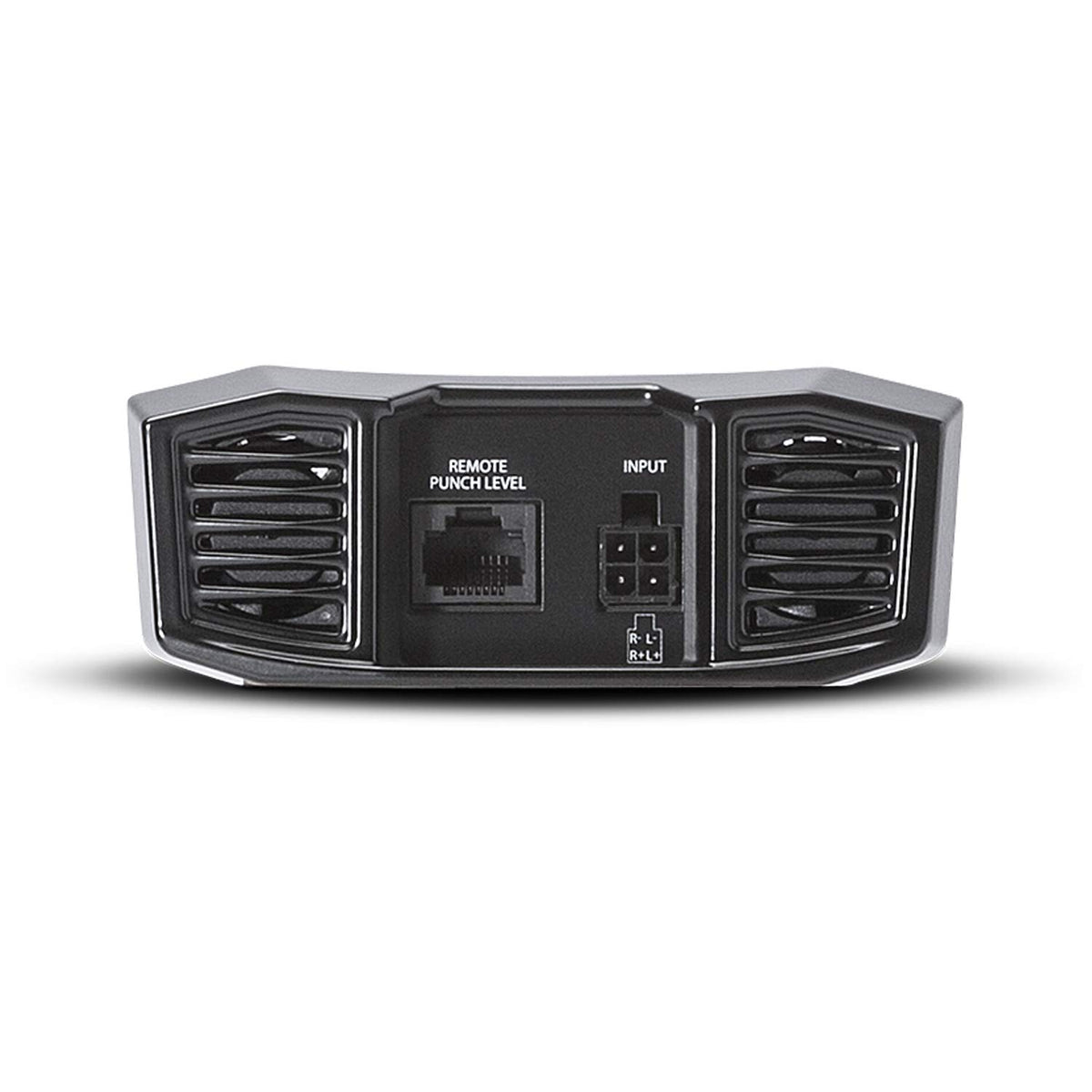

Installation flexibility is supported by a 4-pin input harness that accepts either high-level or low-level signals. Differential inputs are designed to help reject incoming noise, while high-level input use enables automatic turn-on capability. When configured for speaker-level input, the remote terminal can provide a remote-out signal for additional amplifiers.

The T750X1BD fits well into an upgrade path that includes a compatible subwoofer, properly sized wiring, and a fused power connection. Its top-mounted controls and C.L.E.A.N. input/output clip indicators assist with gain setup and system adjustment. Dual fans, dual extruded heat sinks, and thermal protection circuitry are incorporated to manage operating heat in compact installations.

Key Features

• 750W Mono Output: Delivers 750 watts RMS at 2 or 1 ohm.
• Constant Power Design: Maintains rated output across supported low-impedance loads.
• Class BD Circuitry: Combines efficient operation with dedicated subwoofer amplification.
• High- And Low-Level Inputs: Supports aftermarket radios and factory speaker-level signals.
• C.L.E.A.N. Clip Indicators: Helps set gains while monitoring input and output clipping.
• Dual-Fan Cooling: Uses forced-air cooling and thermal monitoring for heat management.

Design & Installation

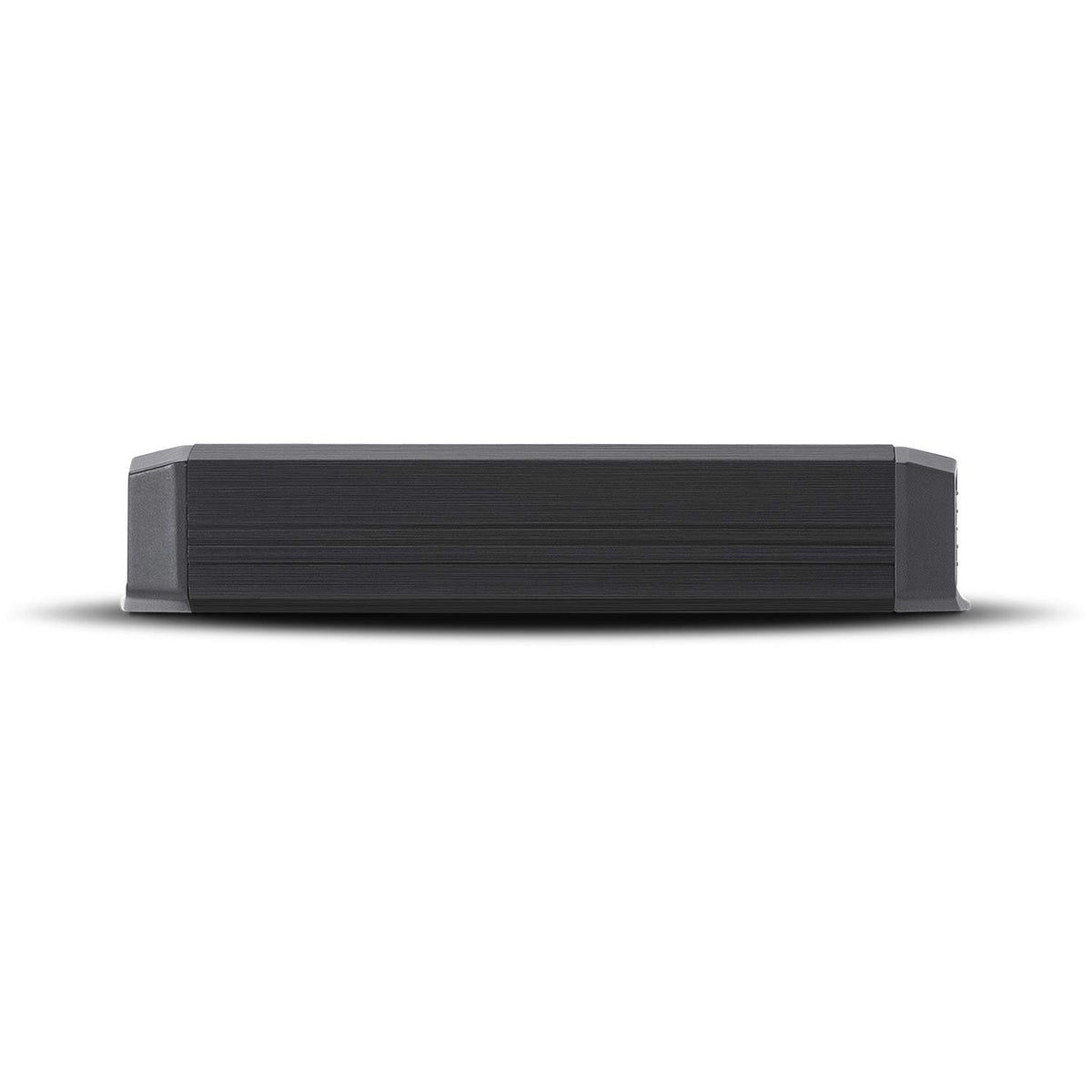

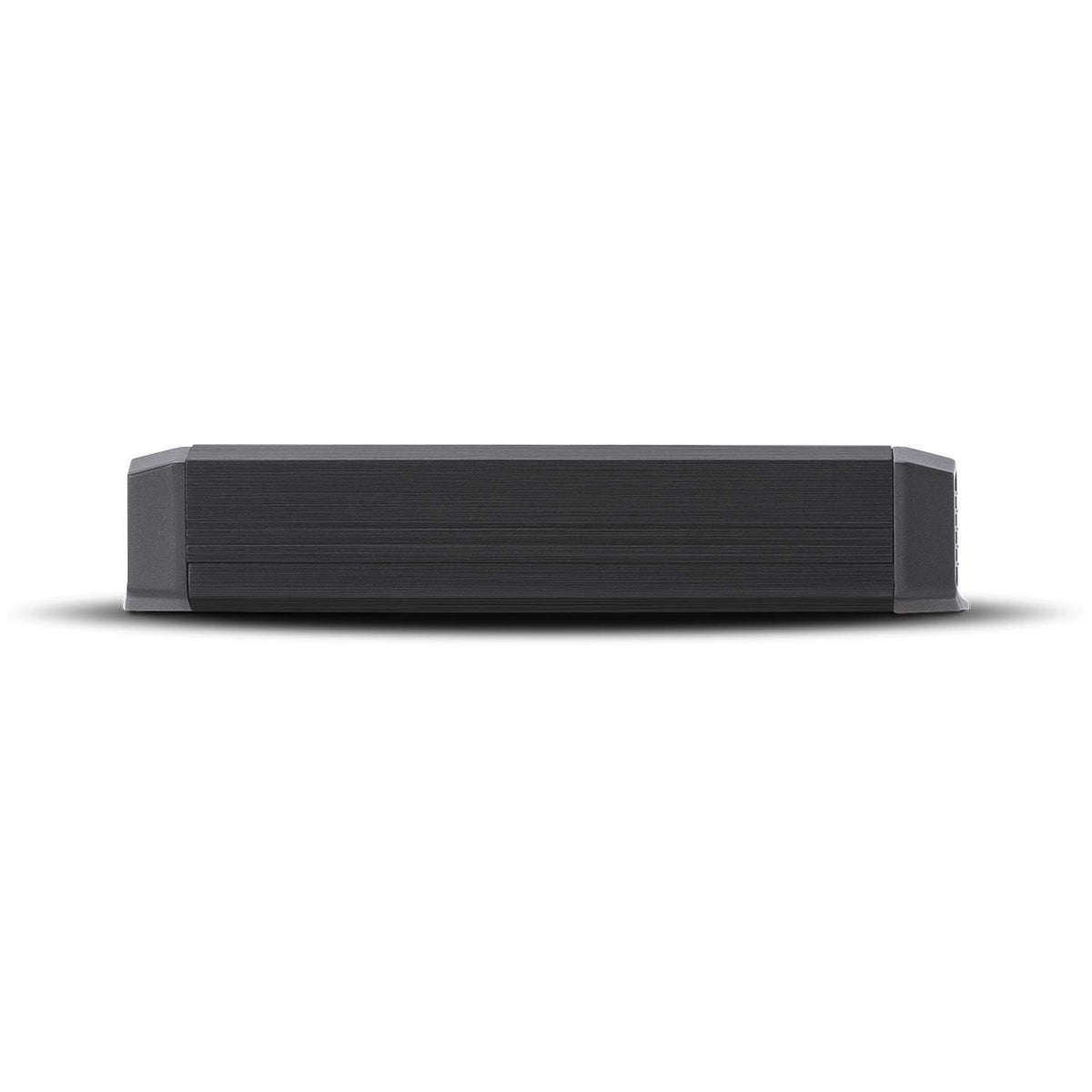

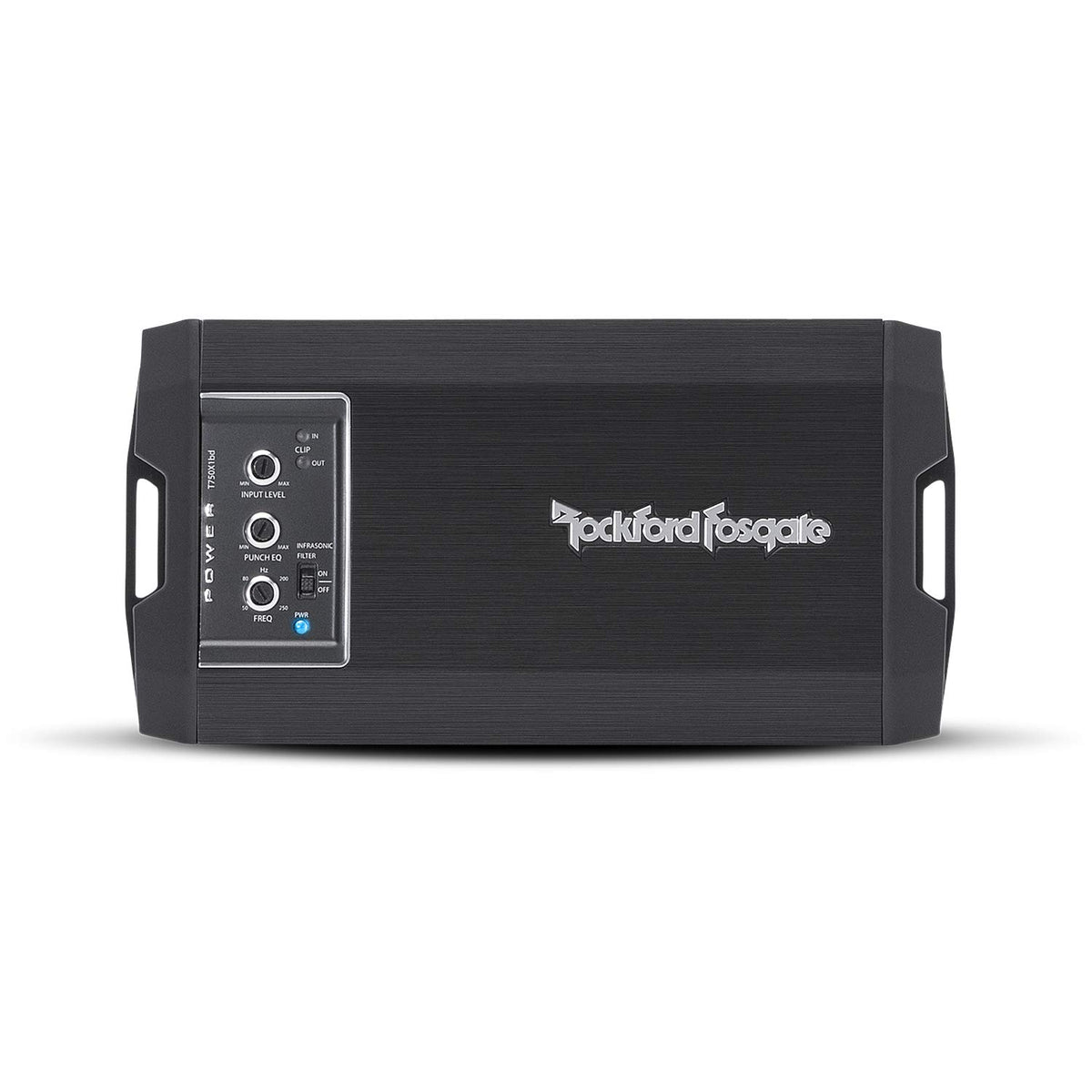

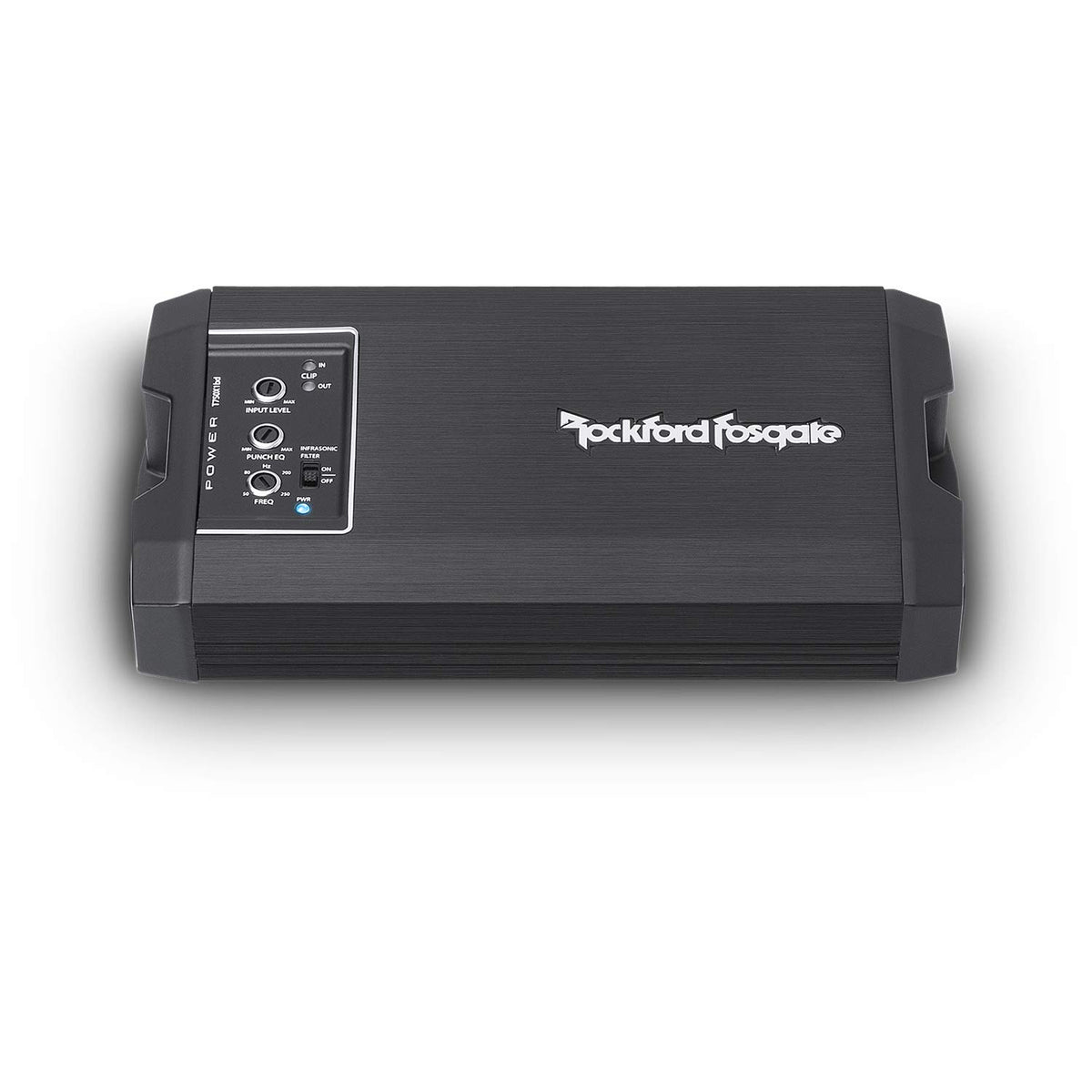

The T750X1BD uses a compact 1.6 x 4.3 x 8.3-inch chassis with dual extruded aluminum heat sinks. Top-mounted adjustments make crossover, Punch EQ, and gain controls accessible after mounting. Blue power, red protect, input-clip, and multicolor output-clip indicators provide system-status feedback.

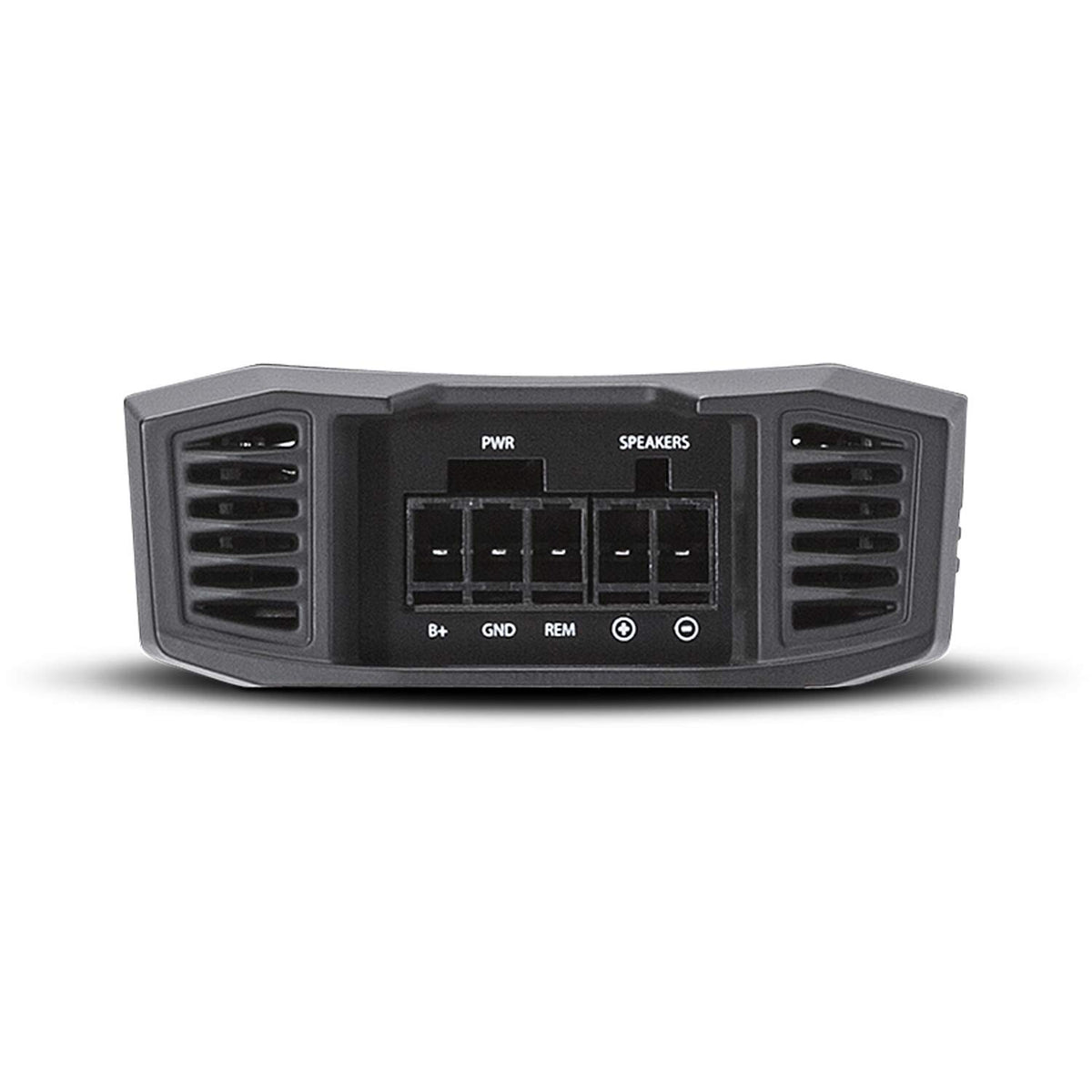

Use this amplifier with a subwoofer system whose final nominal impedance is 1, 2, or 4 ohms, and match the subwoofer's continuous power handling appropriately. The amplifier uses detachable compression terminals and accepts 8 AWG power/ground wire plus 10 AWG speaker wire; a 100 A external fuse is recommended and is not included. Mount it securely with ventilation around the dual fans, route power wiring safely inside the vehicle, and set gains using the C.L.E.A.N. indicators or appropriate test equipment.
