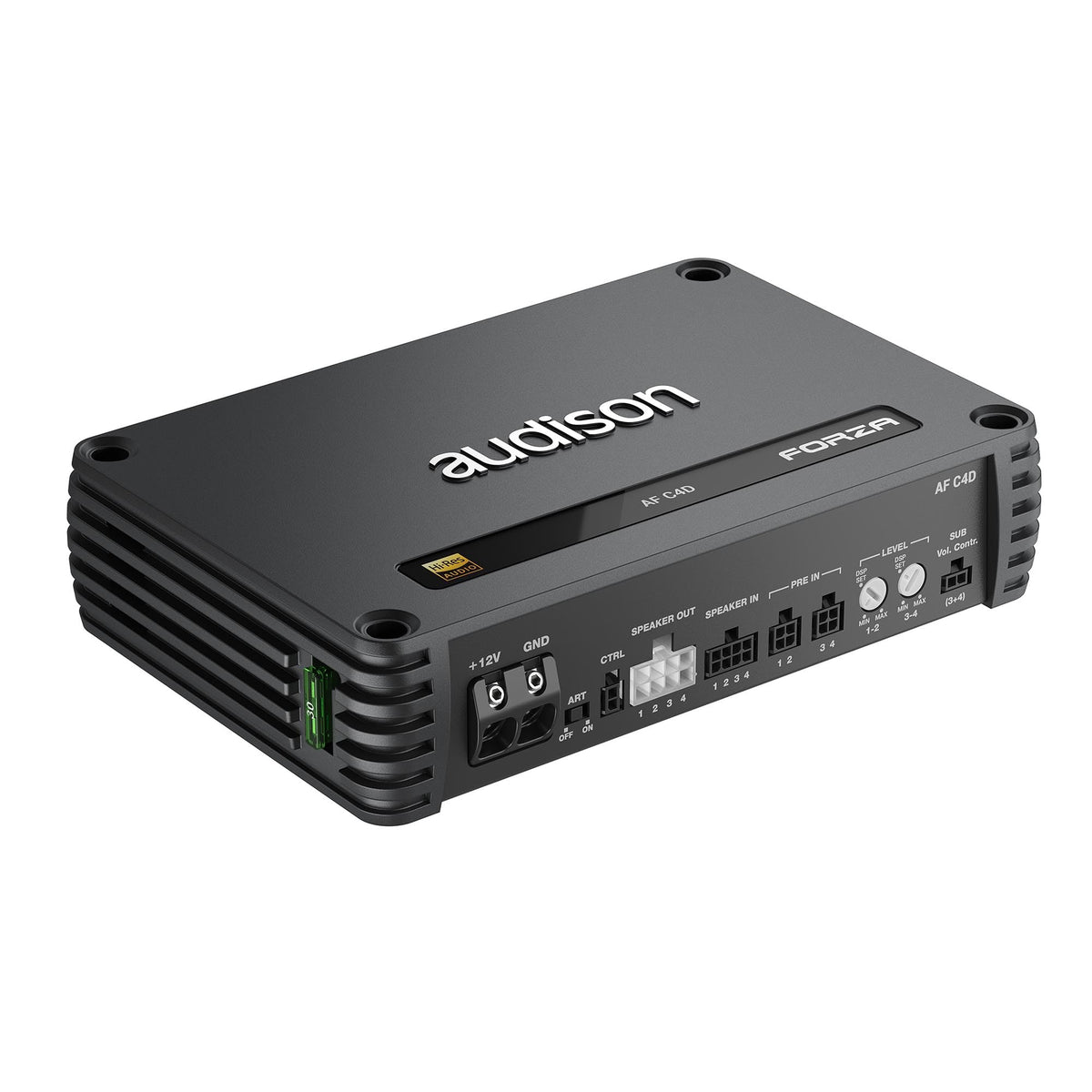

Audison AF C4D 4-Channel Class D Amplifier

The Audison AF C4D is a compact four-channel Class D amplifier designed to add clean, substantial power to an upgraded car audio system. It delivers 90 watts RMS to each of four 4-ohm channels, making it well suited to powering front and rear speakers or a fully active front stage. Its full-range output design also supports other system layouts when paired with appropriate external processing.

This amplifier is intended for listeners building a system around an Audison AF bit amplifier, a standalone DSP, or a compatible aftermarket head unit. It accepts both preamp-level and speaker-level signals, so it can be integrated with factory-source systems as well as aftermarket receivers. Included input and output harnesses help streamline the connection process.

At 4 ohms, the AF C4D provides 90 watts RMS per channel; at 2 ohms, it provides 150 watts RMS per channel. Each channel pair can also be bridged for 300 watts RMS into a 4-ohm load. This flexibility allows it to run four speakers, a front speaker pair plus a bridged subwoofer, or other processor-managed channel configurations.

Audison D-Class technology uses a high switching frequency, steep output filtering, and tightly specified components to support wide-bandwidth performance in a compact amplifier. The AF C4D has a specified 10 Hz to 40 kHz bandwidth and is compatible with Hi-Res playback requirements. Its measured signal-to-noise ratio is rated at 102 dBA at 1 V.

The AF C4D uses a straight-wire architecture without built-in analog crossover filtering, placing crossover, equalization, and tuning duties with the connected DSP or source equipment. This makes it a practical companion for a properly configured external processor rather than a standalone tuning amplifier. Its compact 200 x 134 x 47 mm enclosure helps fit high-power amplification into space-conscious installations.

Key Features

• Four Amplified Channels: Supplies 90 watts RMS x 4 at 4 ohms for multi-speaker systems.
• Bridgeable Channel Pairs: Delivers 300 watts RMS x 2 at 4 ohms when bridged.
• Class D Architecture: Provides efficient power delivery in a compact chassis.
• Hi-Res Bandwidth: Extends from 10 Hz to 40 kHz for wide-band playback.
• Pre-In And Speaker-In: Supports aftermarket RCA outputs and factory speaker-level signals.
• External DSP Focus: Straight-wire design leaves crossover and tuning to external processing.

Design & Installation

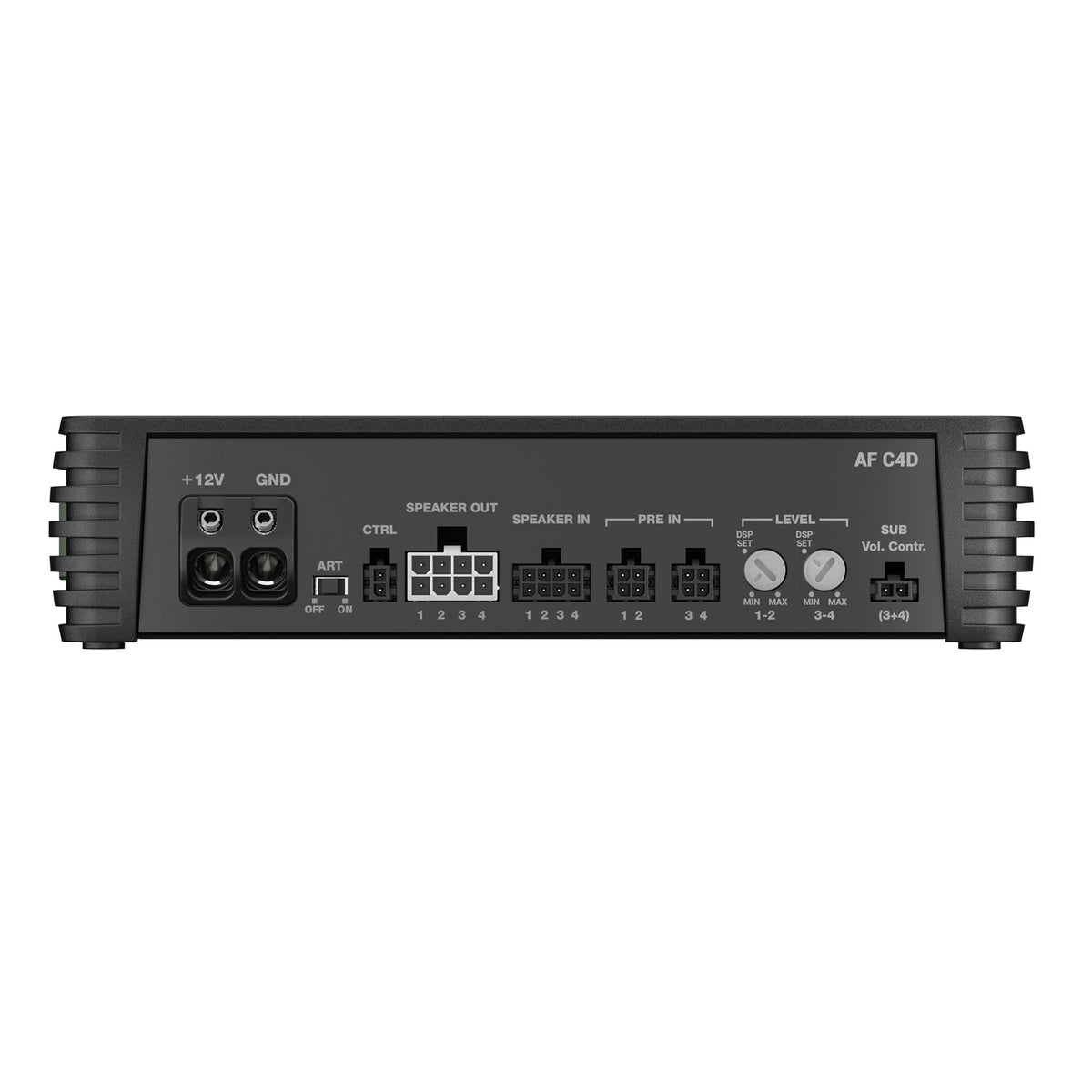

The AF C4D is built in a compact, low-profile enclosure measuring 200 mm long, 134 mm wide, and 47 mm high. Its connection panel groups power, speaker-output, speaker-input, pre-input, level, remote, and optional remote-volume connections in one area. Status indicators provide power, clipping, thermal, load, voltage, and service information.

Install the amplifier with the supplied mounting screws in a secure location with suitable ventilation and use the specified 30 A fuse arrangement. It can receive a factory head unit's speaker-level signal through the included Speaker In harness or preamp signal through the included Pre In cables. Because the AF C4D has no adjustable crossover, use a DSP, processor, or source unit to establish crossover points and system tuning before operating speakers or subwoofers.
