Shure NXN5 Nexadyne 5 Guitar Amp Microphone

The Shure Nexadyne 5 NXN5 is a dynamic guitar amplifier microphone designed to capture amplified electric-guitar sound for live performance, rehearsal, and recording. Its compact side-address format is made for close placement at a speaker cabinet. The supercardioid pickup pattern helps focus on the amp while reducing sound arriving from the sides and rear.

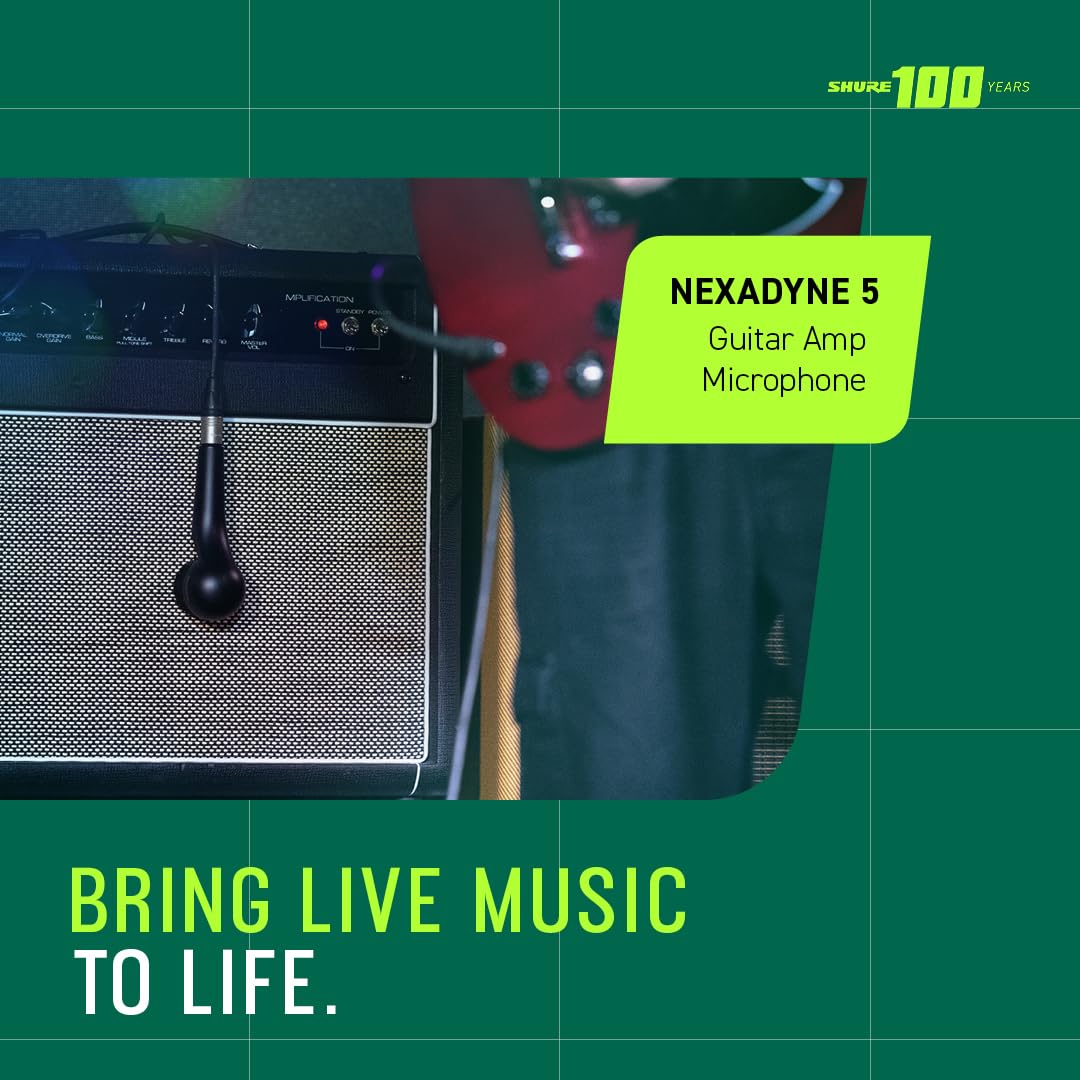

This microphone is intended for guitarists, engineers, and stage crews who need a dedicated amp mic with a professional three-pin XLR output. It can be hung over the front of a cabinet or mounted to a conventional microphone stand. That flexibility makes it suitable for compact stages as well as studio setups.

The NXN5 uses Shure Revonic dual-engine transducer technology, combining a primary moving-coil transducer with a secondary vibration-cancelling dynamic transducer. The matched transducers are electrically out of phase to help reduce unwanted vibration-related noise. Shure specifies a 50 Hz to 16 kHz frequency response and a supercardioid polar pattern.

Its 335-ohm output impedance and 0.94 mV/Pa typical sensitivity support connection to a microphone preamp through a standard XLR microphone cable. Shure recommends a preamp load impedance of at least 1,000 ohms for effective signal transfer. The microphone's polarity places positive diaphragm pressure on XLR pin 2 relative to pin 3.

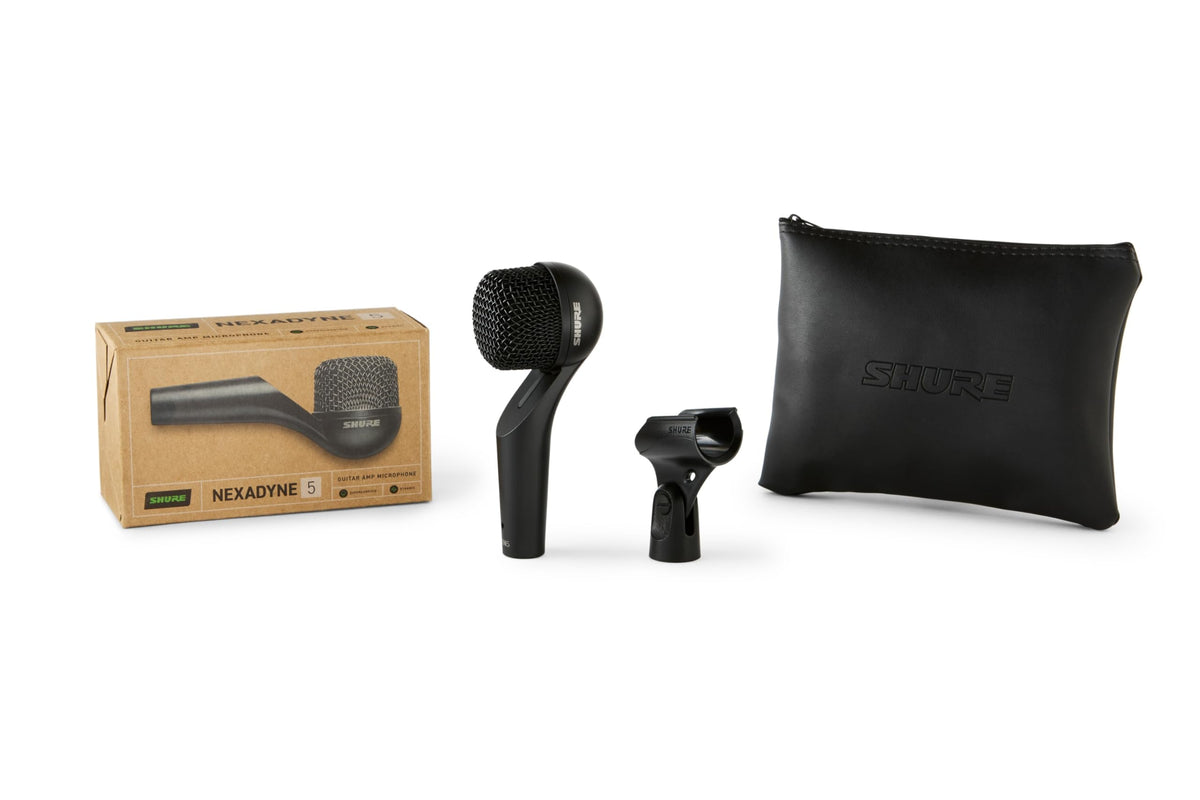

The Nexadyne 5 fits naturally into a PA, recording interface, mixer, or mic-preamp signal chain. Experimenting with speaker-cone position and microphone angle lets users emphasize different areas of an amp's tone. A mic clip, zippered pouch, and 5/8-inch to 3/8-inch brass thread adapter are included for transport and mounting.

Key Features

• Guitar Amp Voicing: Designed for close capture of amplified guitar cabinets.
• Revonic Dual-Engine Technology: Uses two calibrated dynamic transducers for controlled pickup.
• Supercardioid Pattern: Helps isolate the amp from nearby stage sound.
• Side-Address Housing: Supports low-profile placement in front of a cabinet.
• Dynamic Moving-Coil Design: Works with standard microphone preamps and XLR connections.
• Included Mounting Accessories: Includes a mic clip, pouch, and thread adapter.

Design & Installation

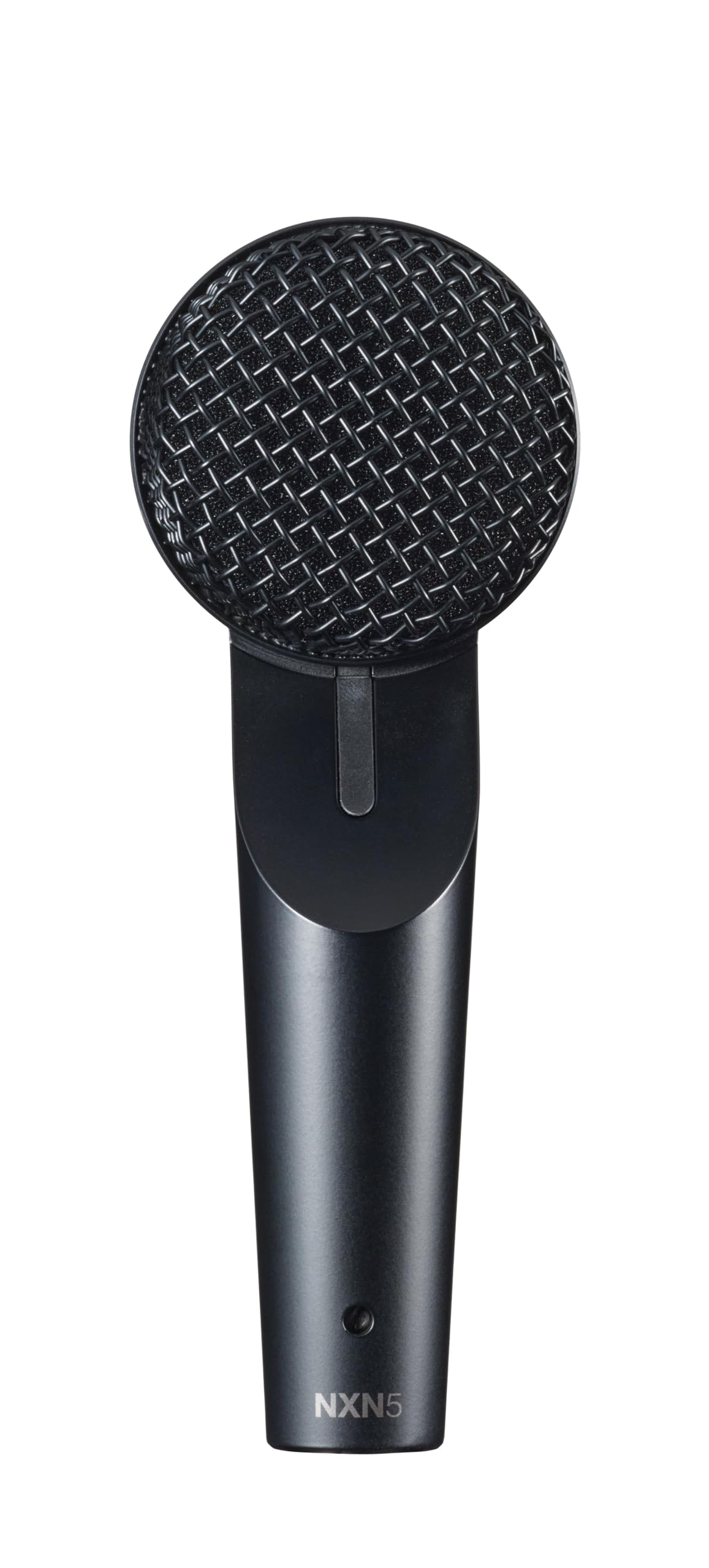

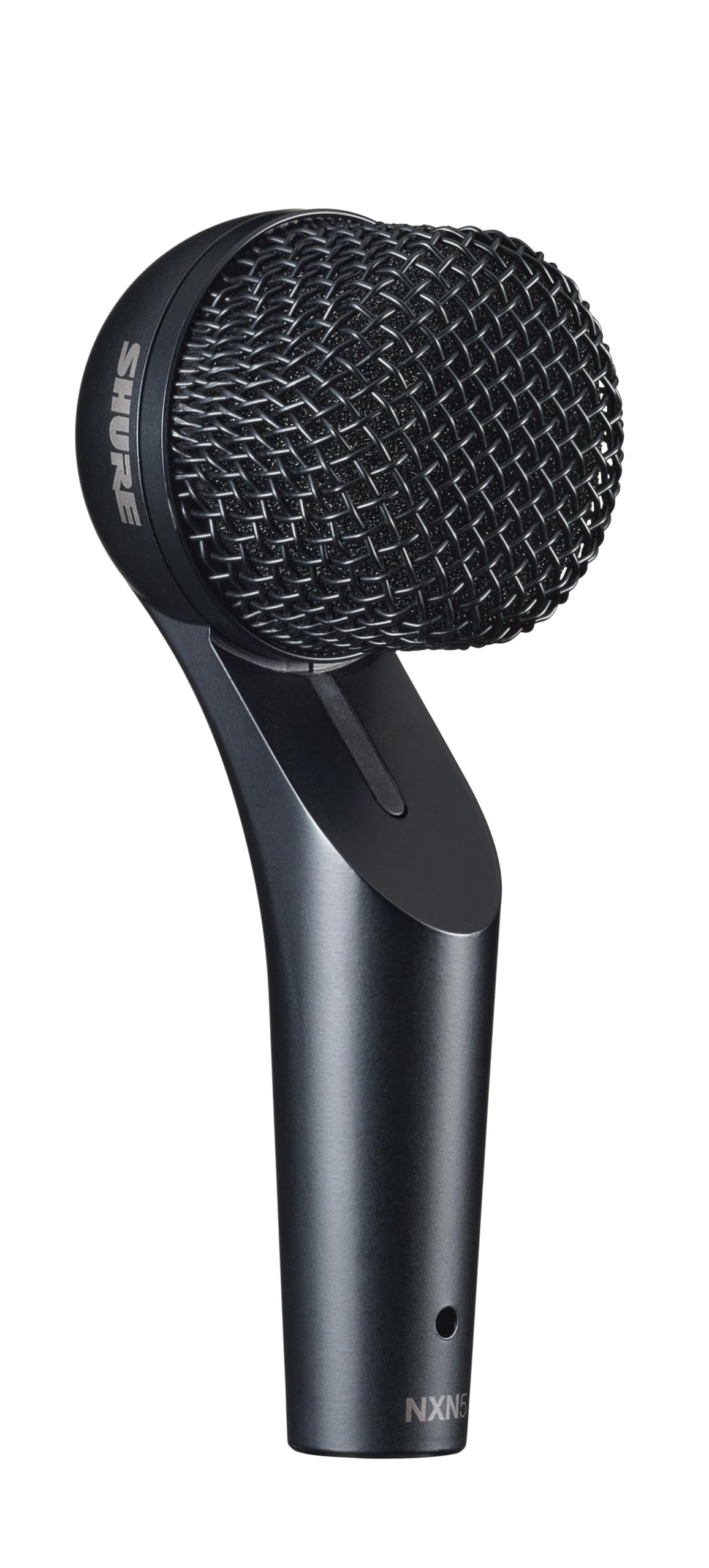

The NXN5 uses a die-cast aluminum housing with black paint and weighs 301 g (0.66 lb). Its compact side-address design is intended to sit unobtrusively at the front of a guitar cabinet. The microphone uses a three-pin professional male XLR connector.

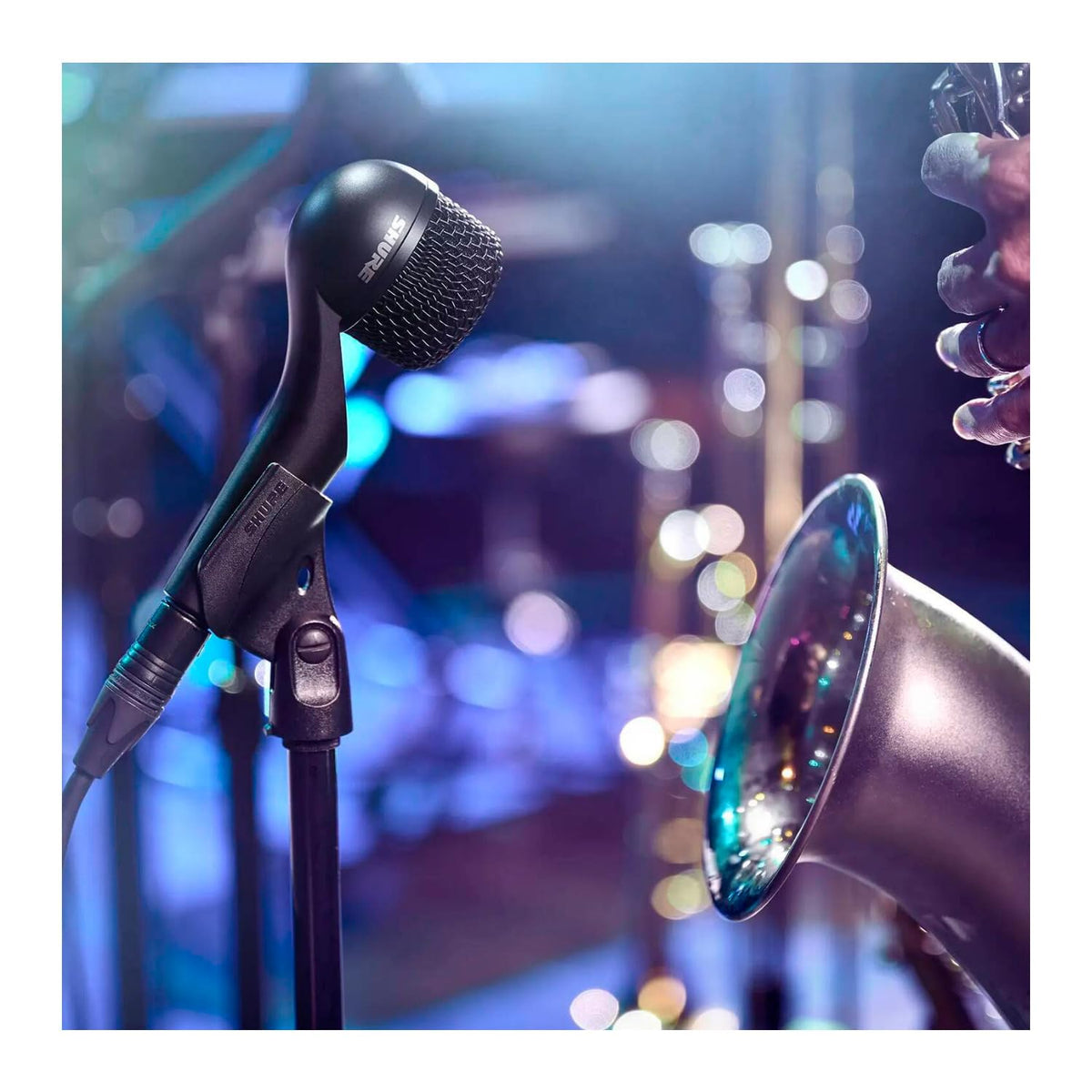

Connect the NXN5 to a mixer, audio interface, or microphone preamp with a standard XLR microphone cable; no cable is listed among the included accessories. Mount it with the included A25E mic clip on a stand, or drape it over the cabinet. For more bass and midrange emphasis, place it toward the center of the speaker cone; move it away from center or angle it to emphasize higher frequencies.
