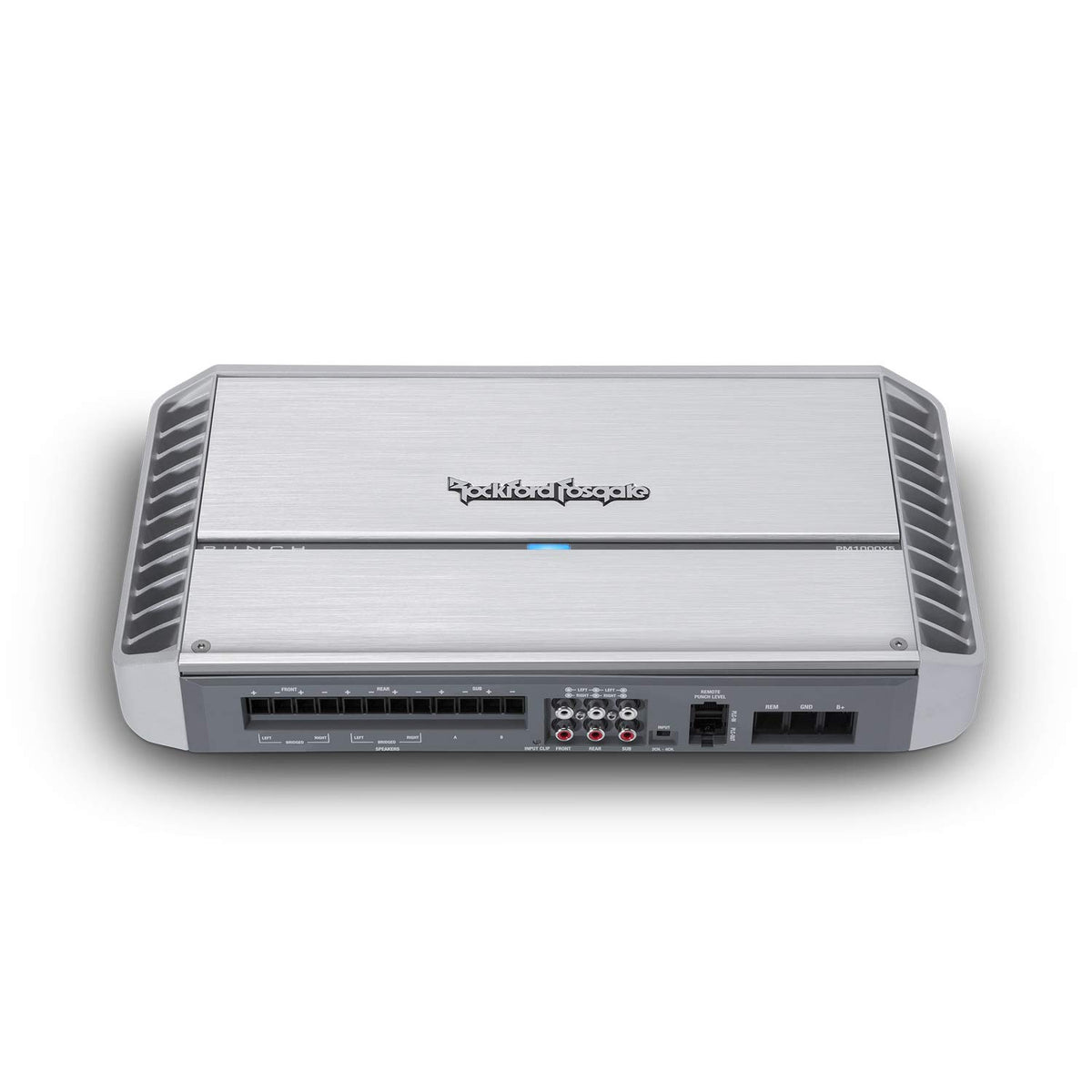

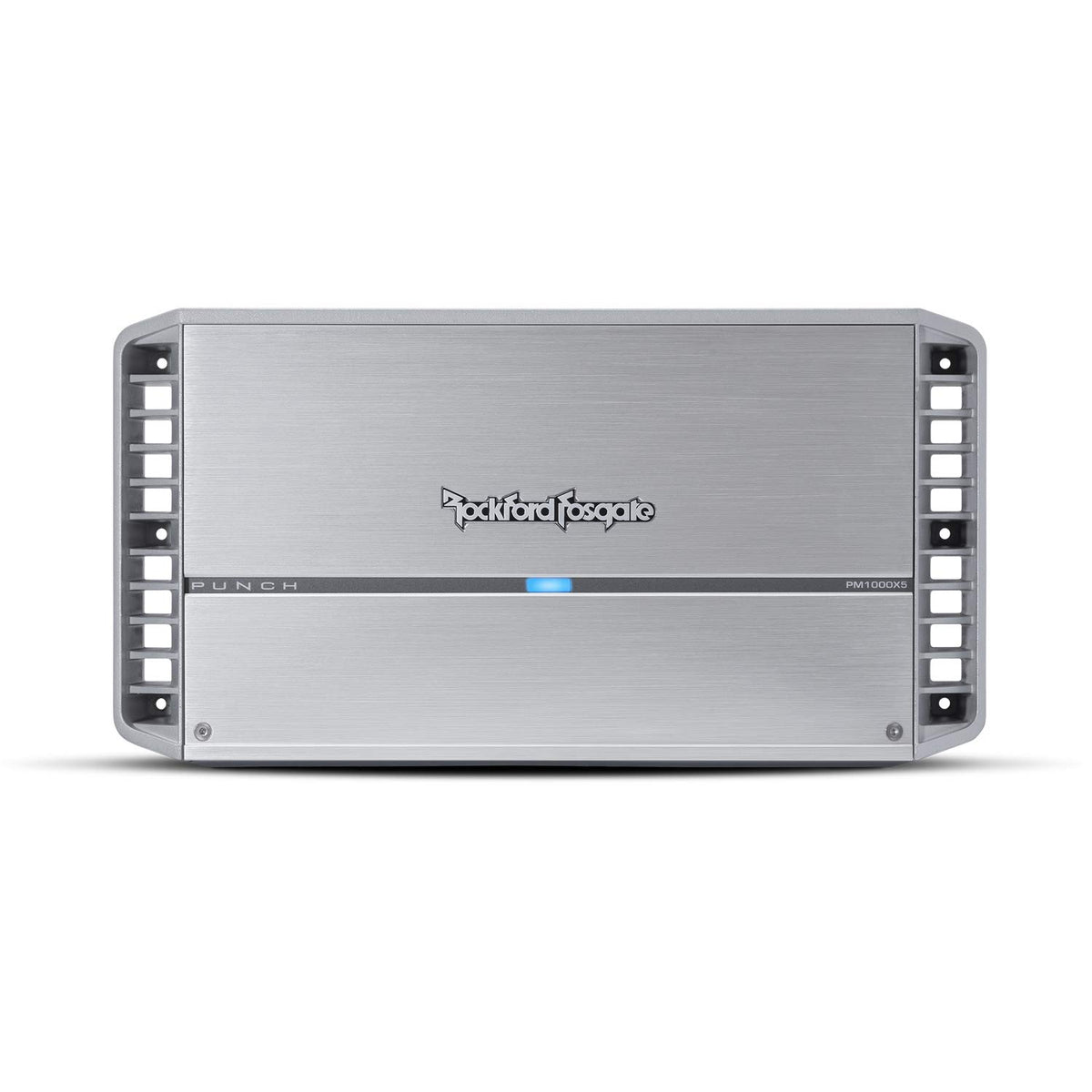

Rockford Fosgate PM1000X5 5-Channel Marine Amplifier

The Rockford Fosgate Punch PM1000X5 is a full-range, 5-channel marine and motorsports amplifier designed to power front speakers, rear speakers, and a subwoofer from one chassis. It provides separate full-range channels for a four-speaker system plus a dedicated subwoofer channel. This makes it a practical choice for boats, powersports vehicles, and other installations where space and system integration matter.

The front and rear channels use Class A/B amplification, while the dedicated subwoofer channel uses Class BD topology. This configuration supports clear full-range speaker amplification alongside efficient low-frequency power. Rated output is available for 4-ohm and 2-ohm speaker loads, with the subwoofer channel also rated at 1 ohm.

Its compact 2.38 x 7.76 x 15.03-inch footprint helps simplify multi-channel system layouts without requiring separate speaker and subwoofer amplifiers. The PM1000X5 can accept high-level or low-level input signals, making it suitable for use with many factory and aftermarket source units. An Auto Turn-On circuit supports high-level input installations.

Rockford Fosgate C.L.E.A.N. setup technology uses input and output clip indicators to assist with gain adjustment. The amplifier also includes variable crossover controls, a subwoofer infrasonic filter, and a Punch EQ bass boost circuit. These controls help tailor speaker and subwoofer output to the system and enclosure being used.

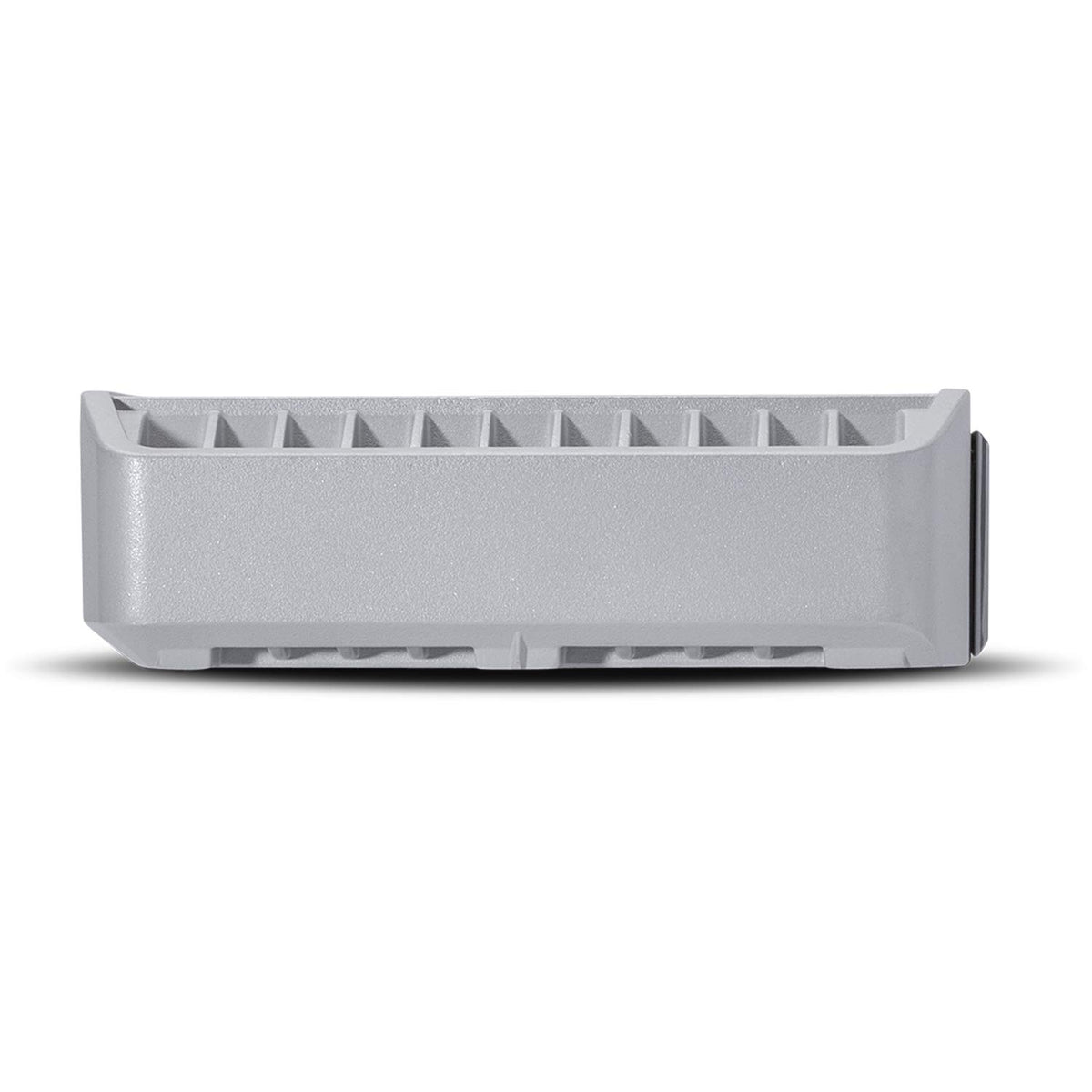

Built for marine and motorsports environments, the PM1000X5 uses a conformal-coated circuit board, marine-grade hardware, and a cast-aluminum heatsink. Tri-stage protection addresses thermal, over-current, and short-circuit conditions. It is well suited to a complete audio upgrade that combines four full-range speakers with one or more properly matched subwoofers.

Key Features

• Five-Channel Configuration: Powers four full-range speakers plus a dedicated subwoofer channel.
• 1,000-Watt Rated Power: Delivers 75 watts x 4 plus 150 watts x 1 at 4 ohms.
• Class A/B And Class BD Design: Uses Class A/B for speaker channels and Class BD for bass.
• High-Level Input Capability: Supports connection to compatible factory-radio speaker outputs.
• C.L.E.A.N. Setup Indicators: Input and output clip LEDs help set amplifier gain.
• Element-Ready Construction: Conformal coating and marine-grade hardware support outdoor installations.

Design & Installation

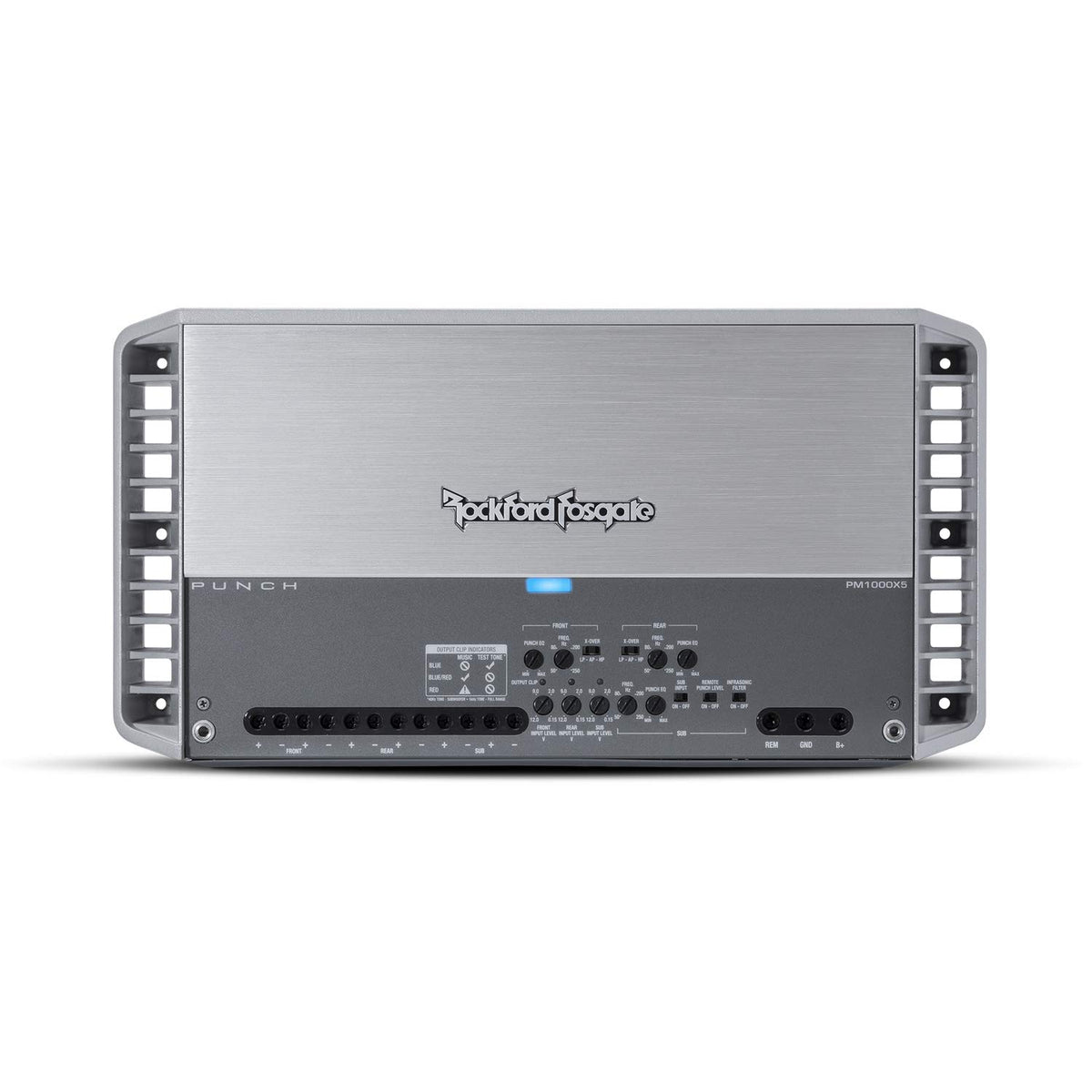

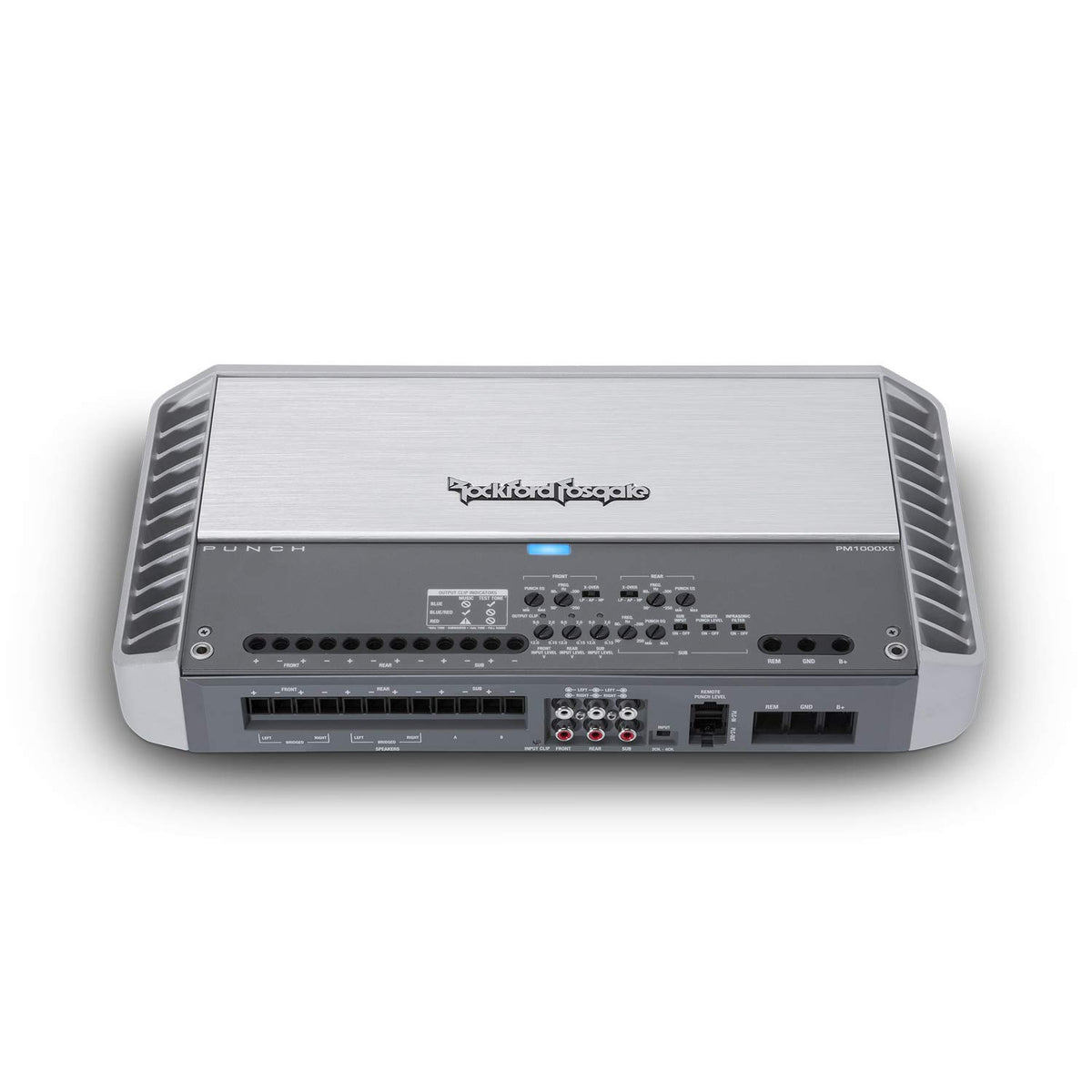

The PM1000X5 is built around a cast-aluminum heatsink with convection cooling, a conformal-coated circuit board, and marine-grade stainless-steel hardware. Its stealth top-mounted control panel keeps adjustments accessible while maintaining a clean installed appearance. Protection circuitry monitors thermal, over-current, and short-circuit conditions.

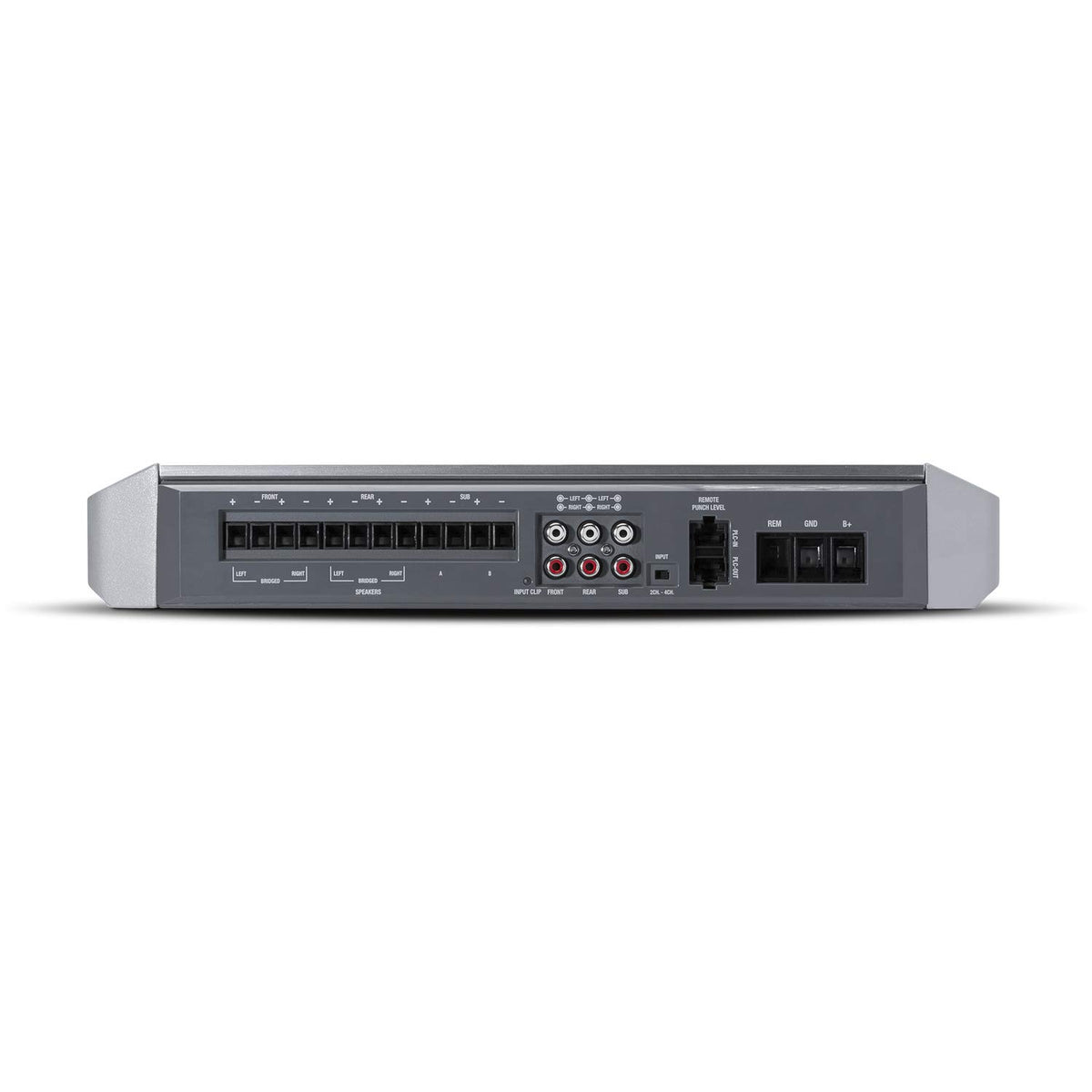

Use 4 AWG power wire, 12 AWG speaker wire, and a 150-amp external fuse as specified by Rockford Fosgate. The front and rear channels can be bridged, while the subwoofer channel is rated for 4-, 2-, or 1-ohm operation. For factory-radio integration, use the high-level input and Auto Turn-On capability; for output adjustment, use the C.L.E.A.N. clip indicators and crossover controls during setup.
