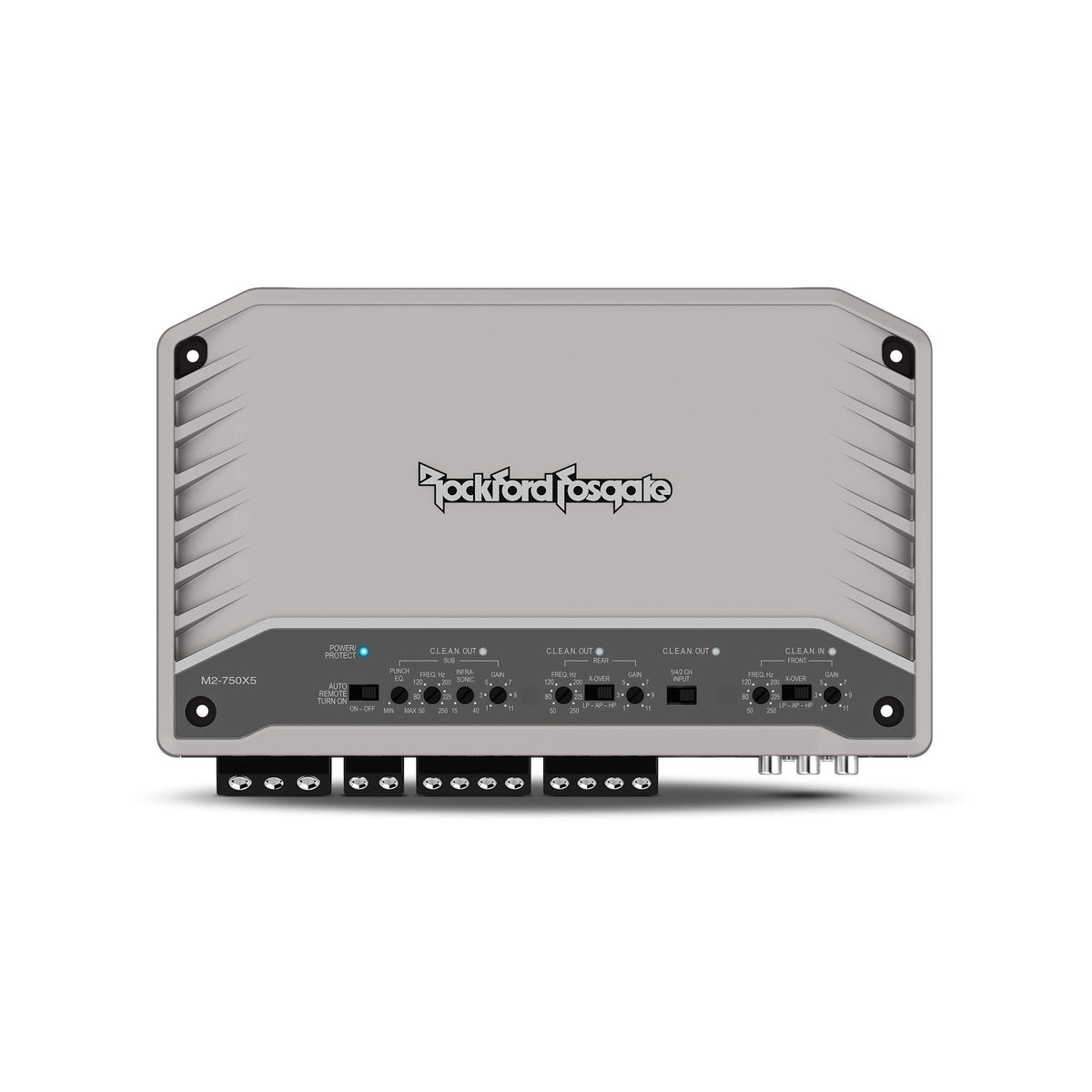

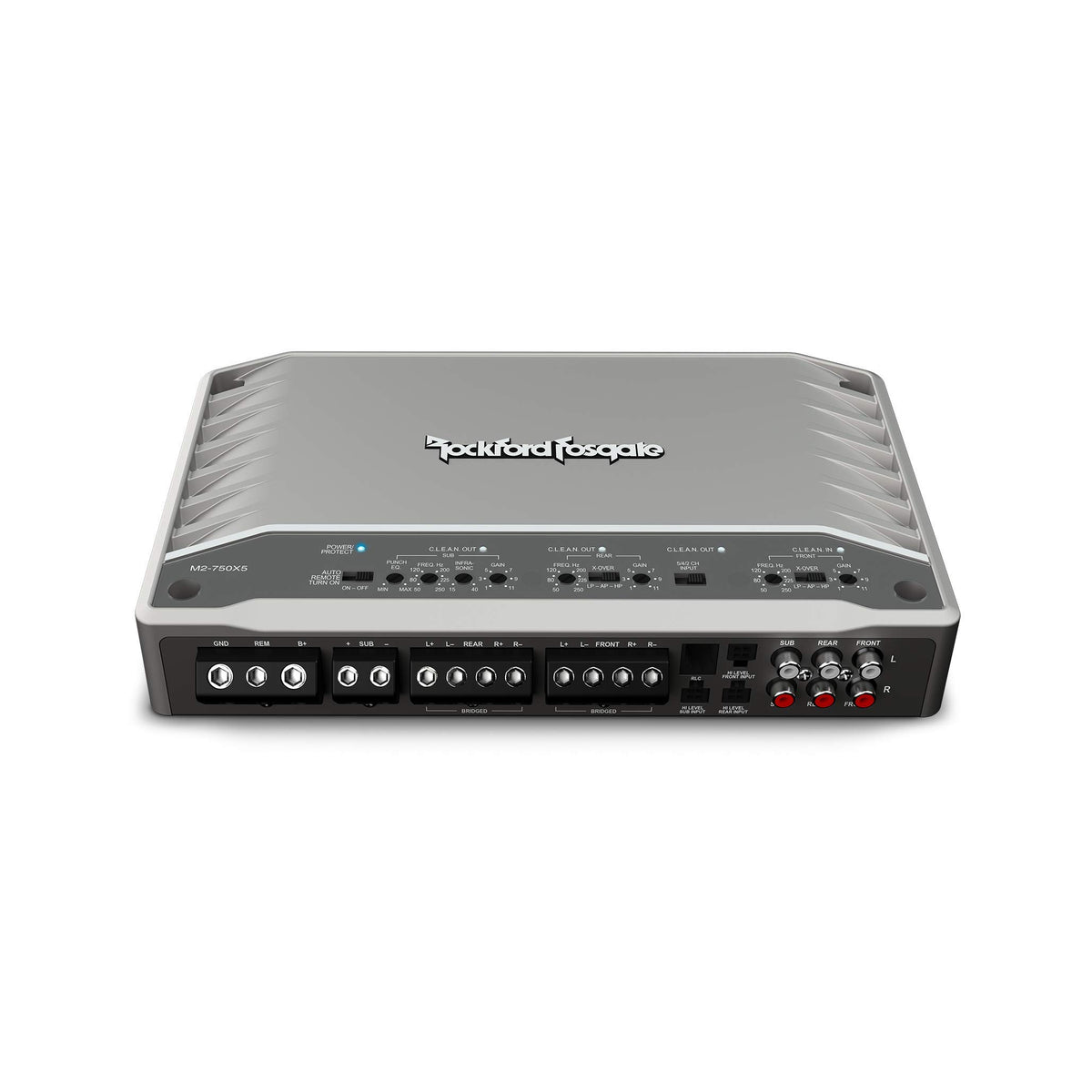

Rockford Fosgate M2-750X5 5-Channel Marine Amplifier

The Rockford Fosgate M2-750X5 is a five-channel Element Ready marine amplifier designed to power a complete boat or outdoor audio system from one compact chassis. It provides four full-range channels for marine speakers plus a dedicated subwoofer channel for low-frequency output. This configuration helps simplify installations that need amplified cabin, tower, or cockpit speakers along with a subwoofer.

At 4 ohms, the amplifier delivers 50 watts RMS to each full-range channel and 200 watts RMS to the subwoofer channel. It can also deliver 100 watts RMS x 4 plus 350 watts RMS x 1 at 2 ohms. The front and rear channels can be bridged to provide 200 watts RMS x 2 at 4 ohms when a system calls for higher-powered stereo pairs.

Its Class D circuit topology is intended to provide efficient power delivery while reducing demand on the vehicle or vessel electrical system. Variable front and rear high-pass and low-pass crossovers help match the amplifier to different speaker types. The dedicated subwoofer channel adds a variable low-pass crossover, infrasonic filter, and adjustable Punch EQ for system tuning.

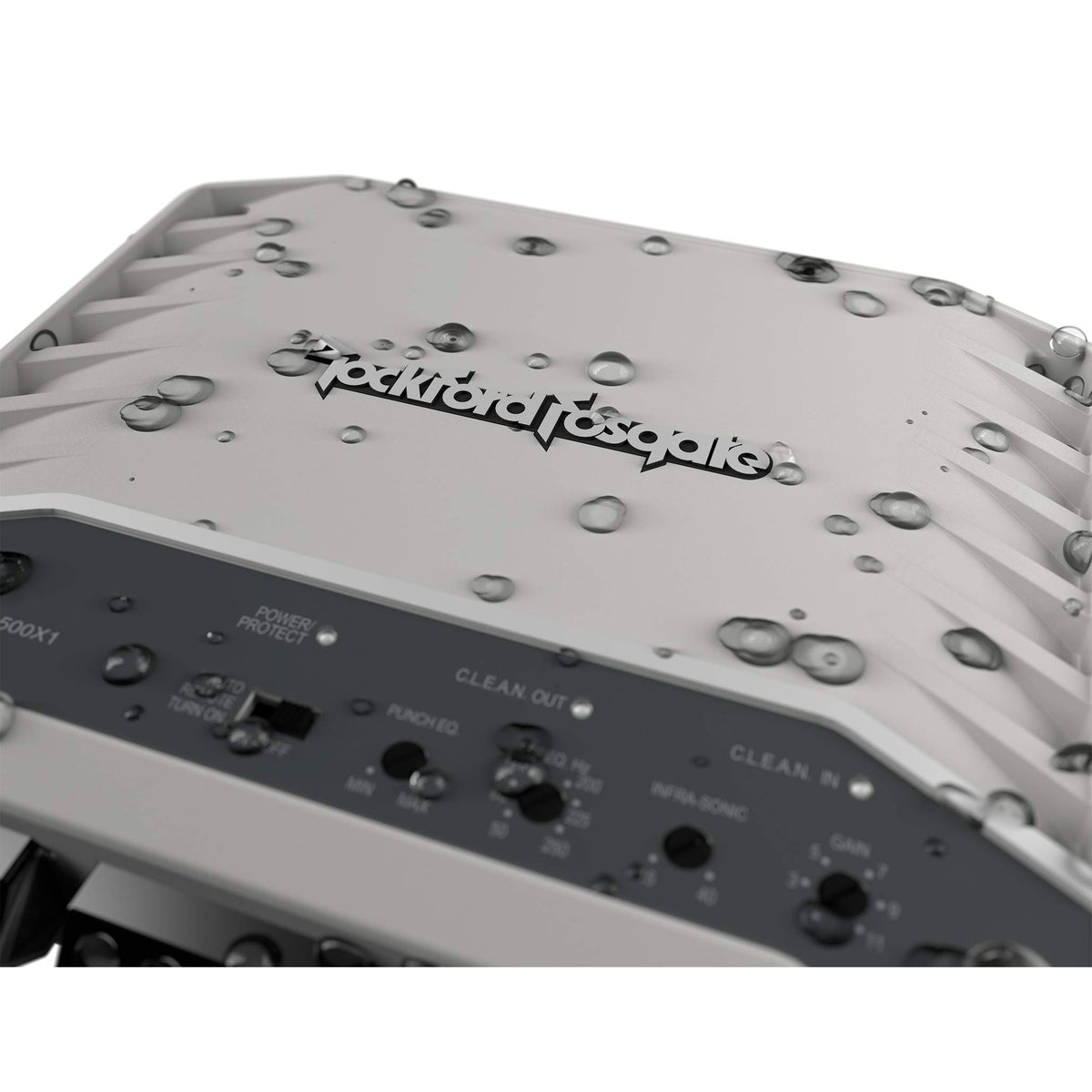

The M2-750X5 is built for exposure-prone installations with an Element Ready design, conformal-coated circuit board, and UV-stable powder-coated cast-aluminum heatsink. Zinc nickel-plated marine-grade brass terminals are used at the connections. These construction details support use in marine and outdoor audio environments where dust, water, UV exposure, corrosion, temperature changes, and vibration are concerns.

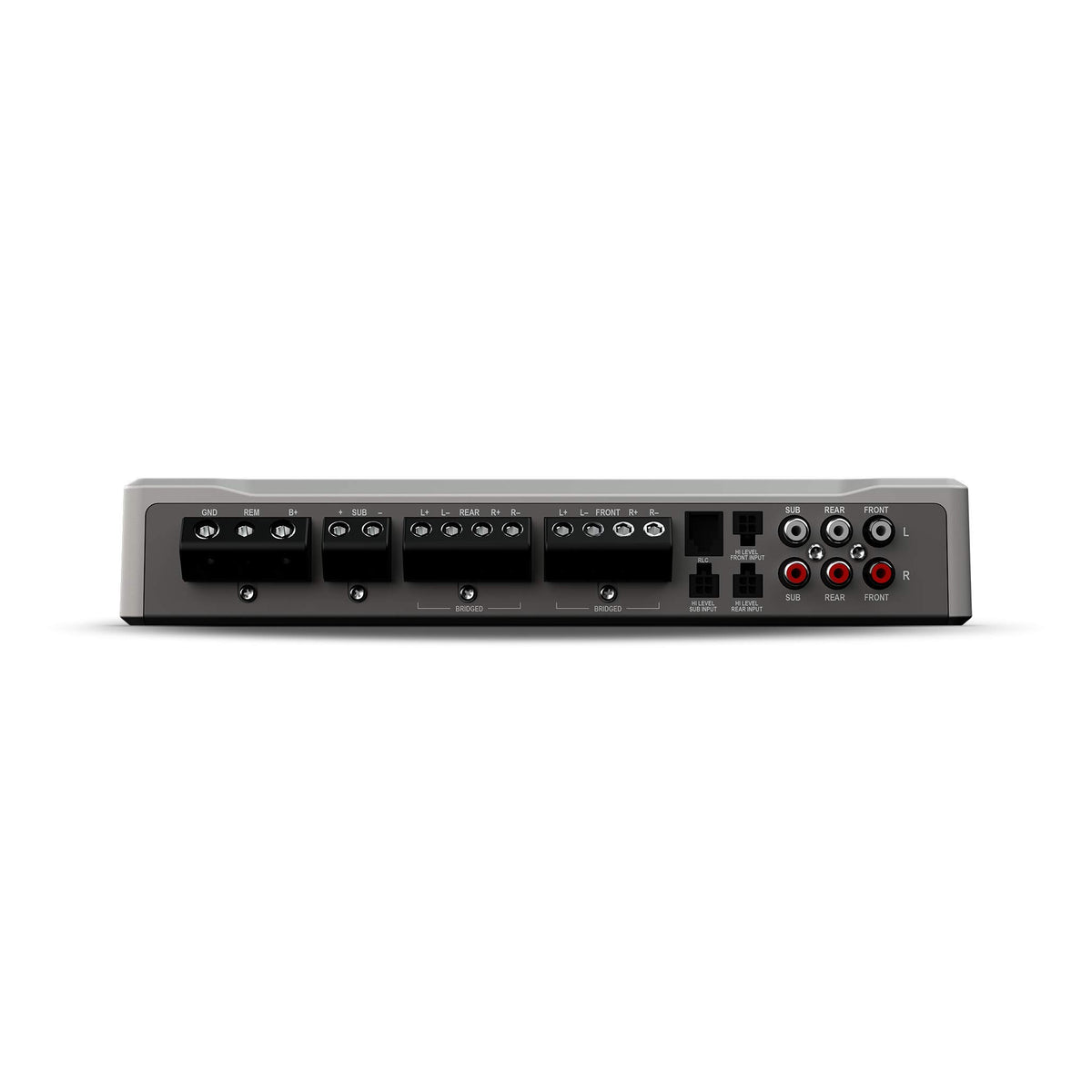

For integration flexibility, the amplifier accepts both RCA low-level and speaker-level input signals across its front, rear, and subwoofer sections. Rockford Fosgate C.L.E.A.N. input and output clip indicators assist with gain setup, while balanced differential inputs help reduce noise picked up by signal cables. An included wired Remote Level Control gives convenient adjustment of the amplifier's output level from the helm or listening area.

Key Features

• Five-Channel Configuration: Powers four full-range speaker channels and one dedicated subwoofer channel from one amplifier.
• 750 Watts RMS Total: Delivers rated continuous power for a complete amplified marine audio system.
• Element Ready Construction: Uses a conformal-coated board, marine-grade terminals, and UV-stable heatsink finish.
• Class D Topology: Provides efficient amplification designed to reduce electrical-system demand.
• C.L.E.A.N. Setup Circuitry: Clip indicators help establish appropriate source and amplifier gain settings.

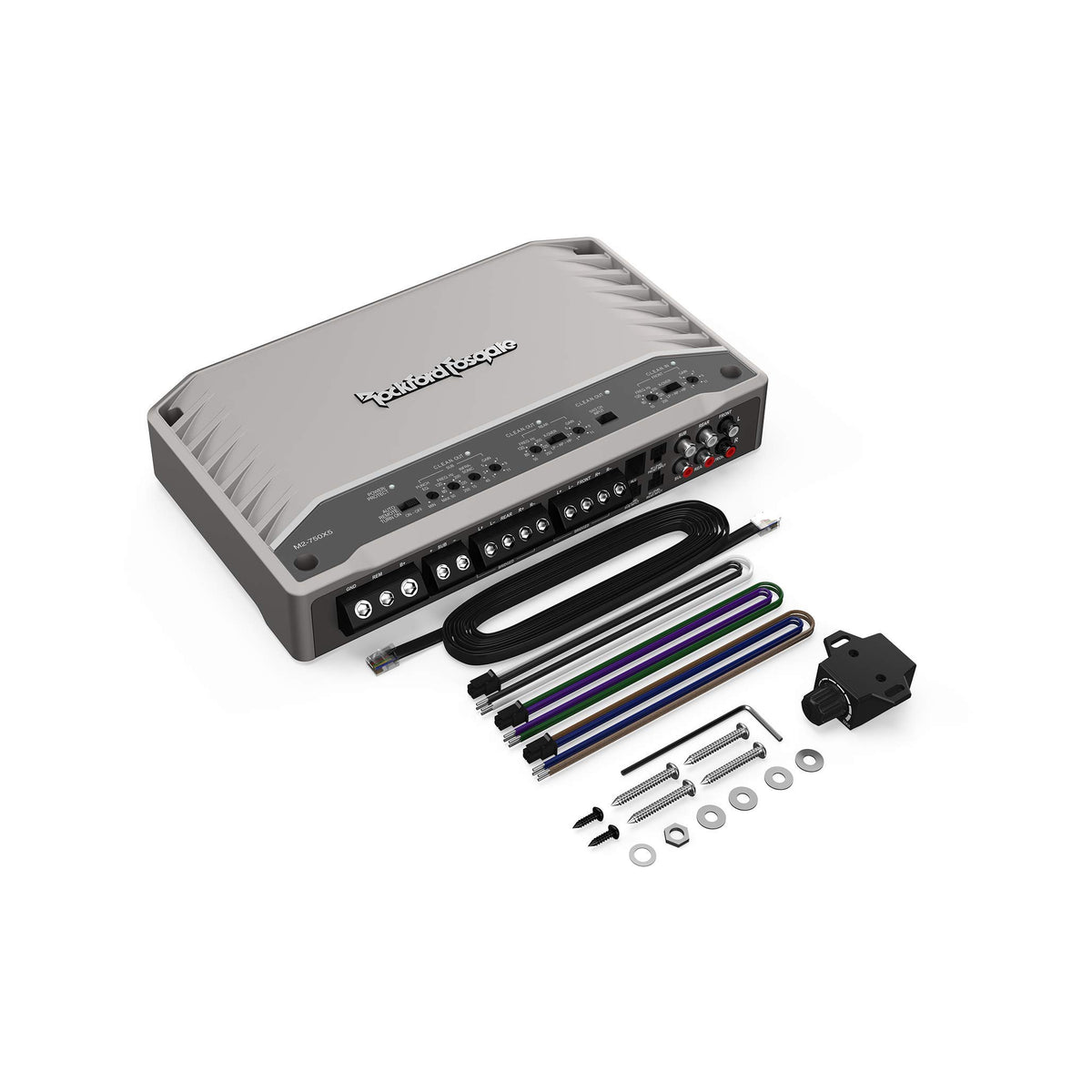

• Remote Level Control: Includes a wired controller for convenient output-level adjustment.

Design & Installation

The M2-750X5 uses a compact 1.9-inch-high chassis with a UV-stable powder-coated cast-aluminum heatsink and integrated power and speaker terminals. Its circuit board is conformal coated, and its connection terminals are zinc nickel-plated marine-grade brass. Top-mounted controls place setup adjustments in an accessible location after installation.

Use 4 AWG power wiring and a 120 A fuse, which is recommended but not included, and use up to 8 AWG speaker wire at the output terminals. The amplifier supports RCA low-level inputs or the included speaker-input harnesses for high-level integration; do not connect both input types simultaneously. Configure the 2/4/5-channel input selector, crossovers, gain settings, and remote level control to suit the speakers and subwoofer connected to the system.
