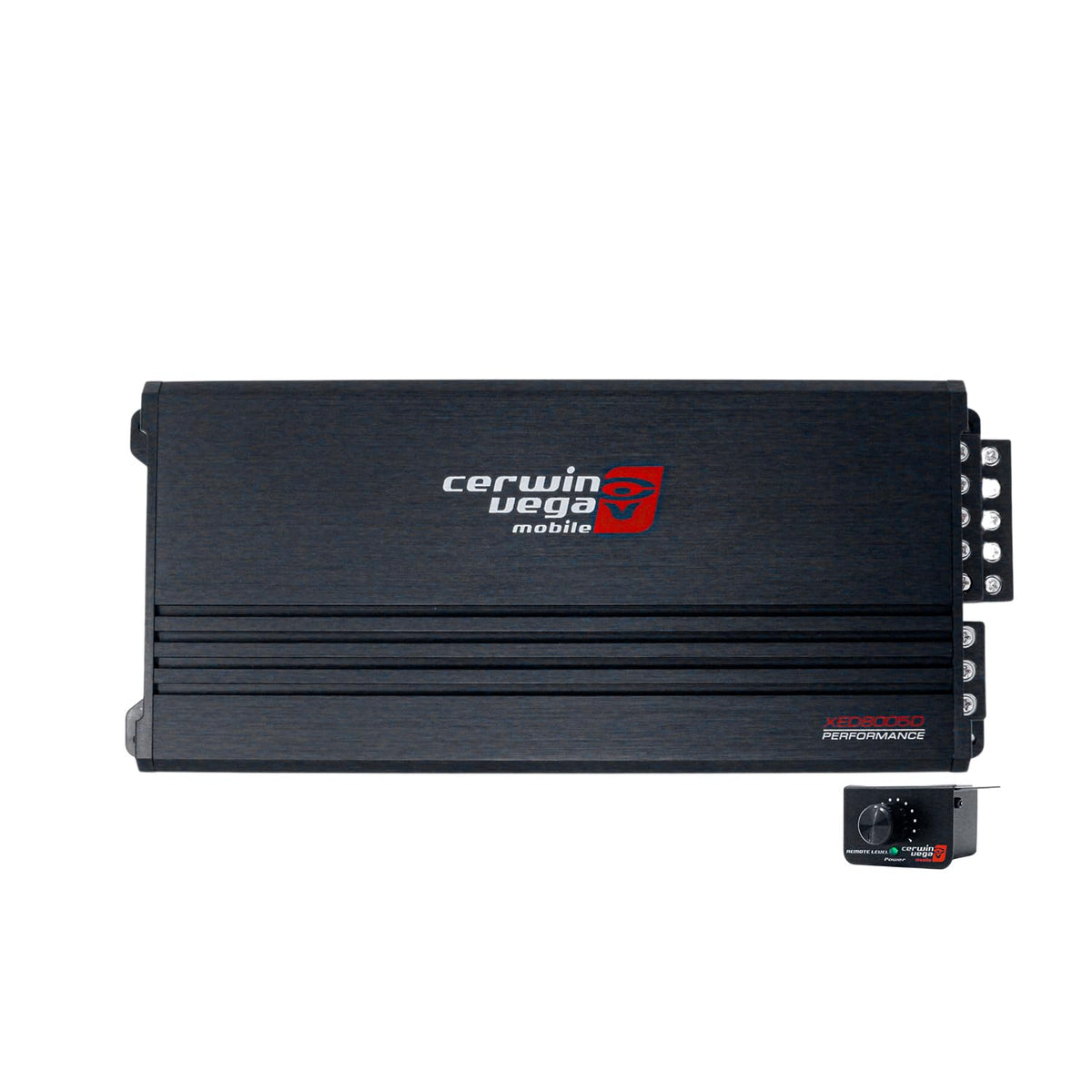

Cerwin Vega XED8005D 5-Channel Class-D Car Amplifier

The Cerwin Vega XED8005D is a compact five-channel Class-D car amplifier made to power front and rear speakers along with a dedicated subwoofer from one chassis. It provides an organized upgrade path for vehicles that need more output and control than a factory radio can deliver. Its channel layout suits systems that use four full-range speakers and one subwoofer.

At 4 ohms, the XED8005D supplies 65 watts RMS to each of four speaker channels and 200 watts RMS to the subwoofer channel. At 2 ohms, output increases to 90 watts RMS per speaker channel and 300 watts RMS on the subwoofer channel. This makes it appropriate for matching speakers and a subwoofer within the amplifier's rated impedance limits.

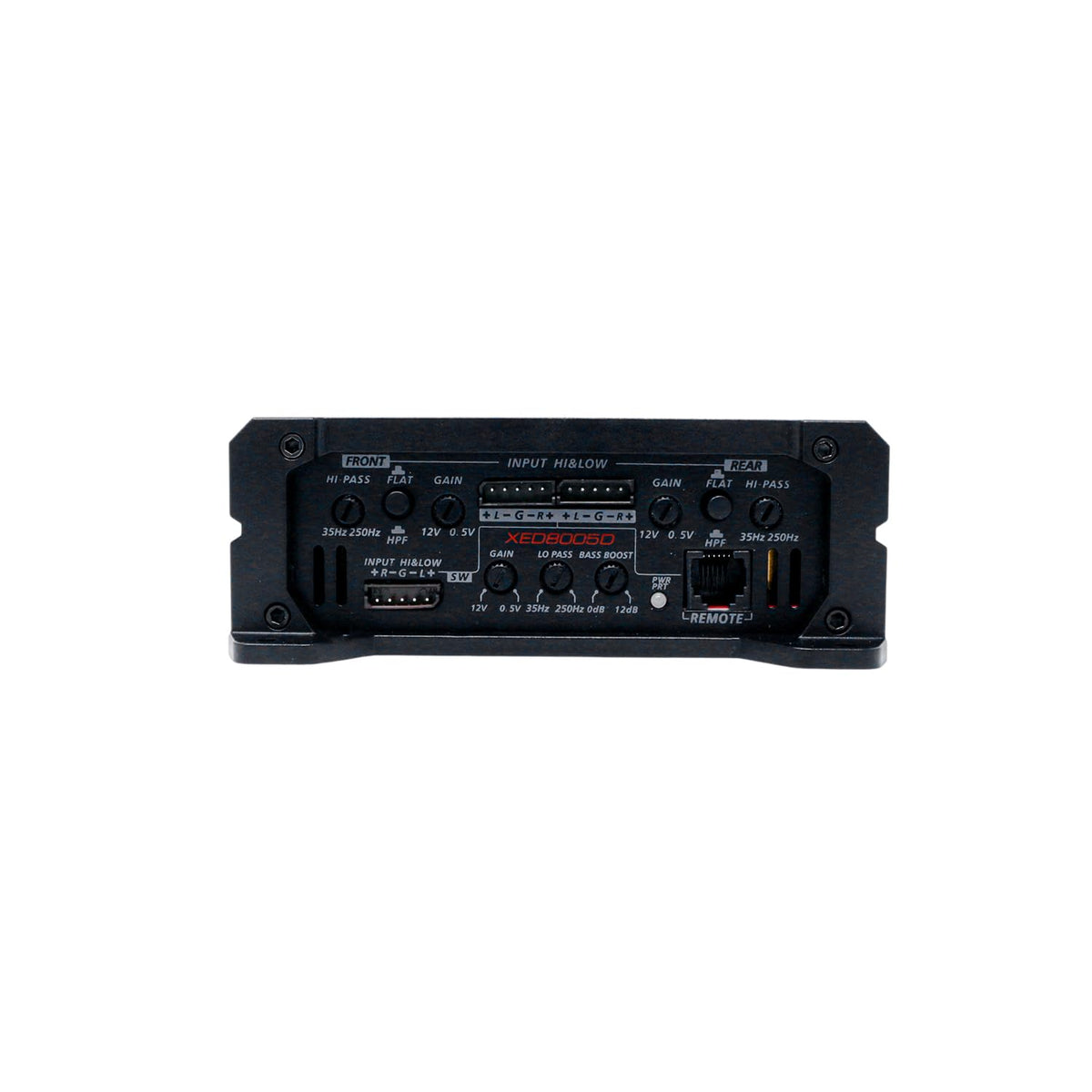

The full-range channels use a 10 Hz to 30 kHz bandwidth, while the subwoofer channel is specified from 10 Hz to 250 Hz. Variable high-pass and low-pass filters let an installer divide bass and full-range duties between the connected speakers. A selectable flat setting for the front and rear channels can also pass the full frequency range when an external crossover or processor is being used.

Class-D topology and a full PWM power supply support efficient operation in a small enclosure. The aluminum chassis is designed to help dissipate heat while keeping the amplifier's footprint manageable. Power and protection status LEDs provide a straightforward visual indication of operating condition.

The XED8005D can accept low-level RCA signals and includes high-level input capability for systems using a factory radio without RCA pre-outs. Its subwoofer section includes adjustable Vega Bass Boost from 0 to 12 dB at 45 Hz for careful low-frequency tailoring. A remote level-control connection supports convenient adjustment of the preset subwoofer level from the driver's seat.

Key Features

• Five-Channel Layout: Powers four speaker channels plus one dedicated subwoofer channel from one amplifier.
• Class-D Topology: Delivers efficient amplification in a compact car-audio format.
• Rated RMS Output: Provides 65W x 4 plus 200W x 1 at 4 ohms.
• Variable Crossovers: High-pass and low-pass filters adjust from 35 Hz to 250 Hz.
• Vega Bass Boost: Adds adjustable 0 to 12 dB bass emphasis centered at 45 Hz.
• Factory-Radio Compatibility: High-level input capability supports integration where RCA outputs are unavailable.

Design & Installation

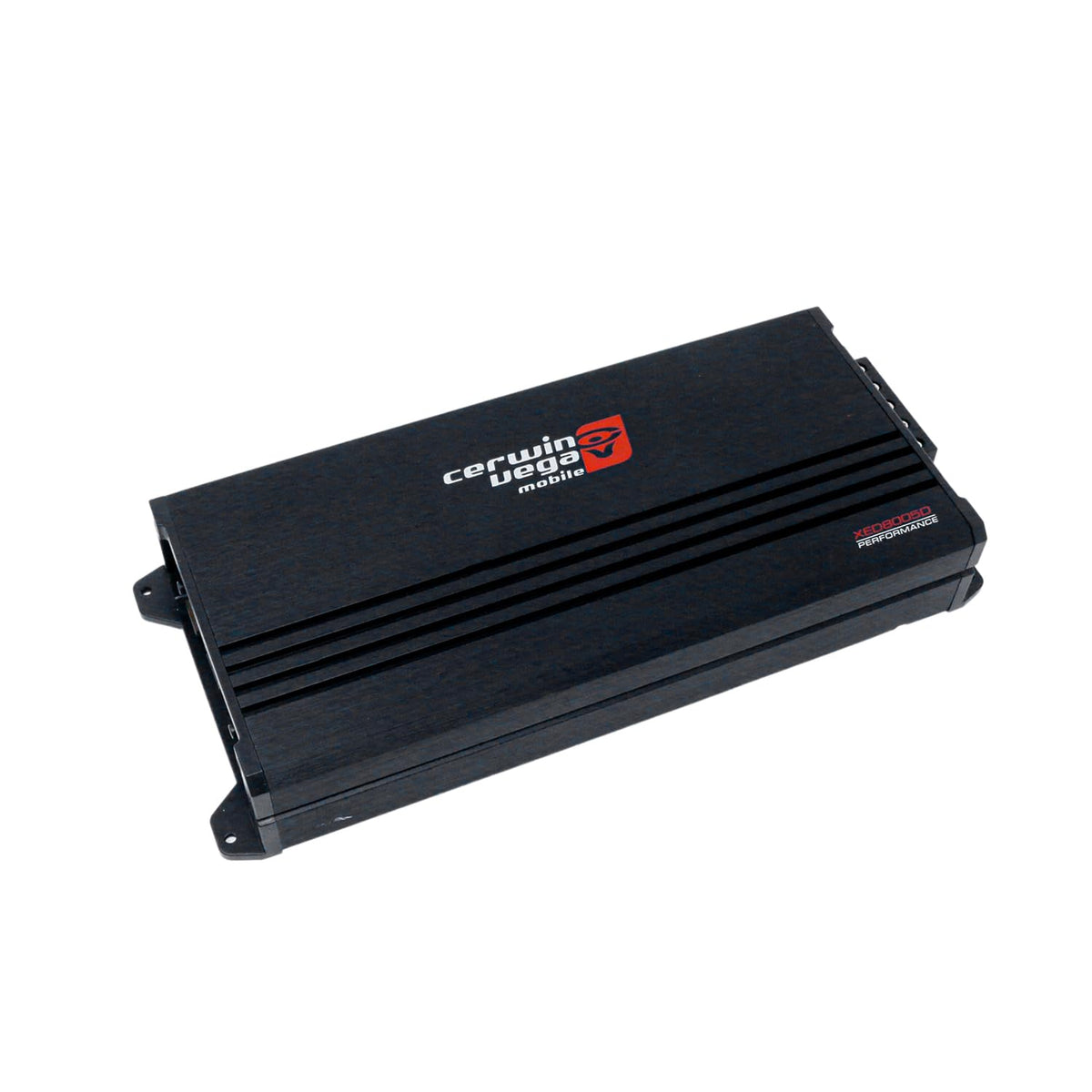

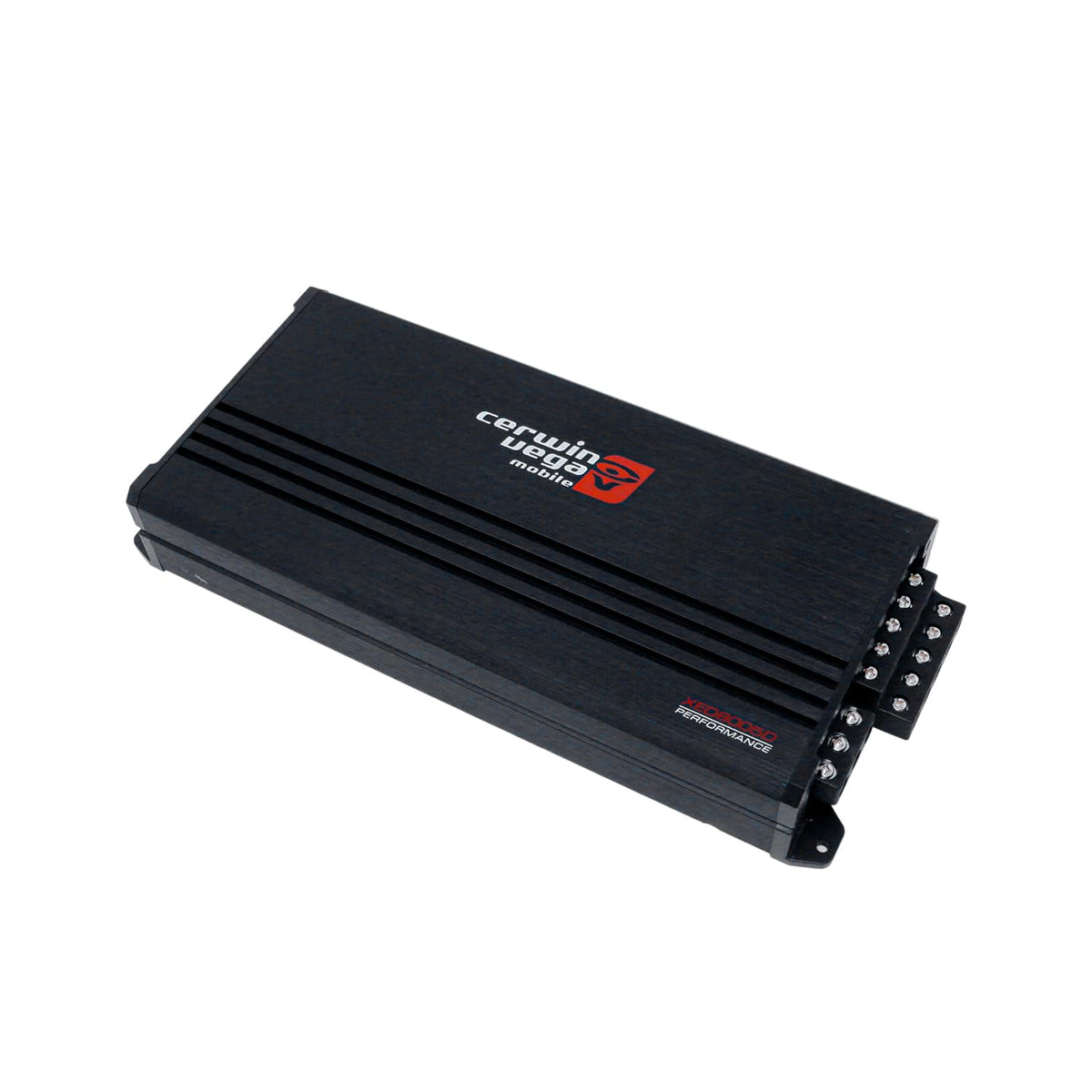

The XED8005D uses a lightweight aluminum chassis measuring 10.3 by 4.7 by 1.8 inches. Its compact form helps with placement in vehicles where amplifier mounting space is limited, while the chassis also serves as a heat-dissipating structure. The amplifier includes LED power and protection indicators for basic status monitoring.

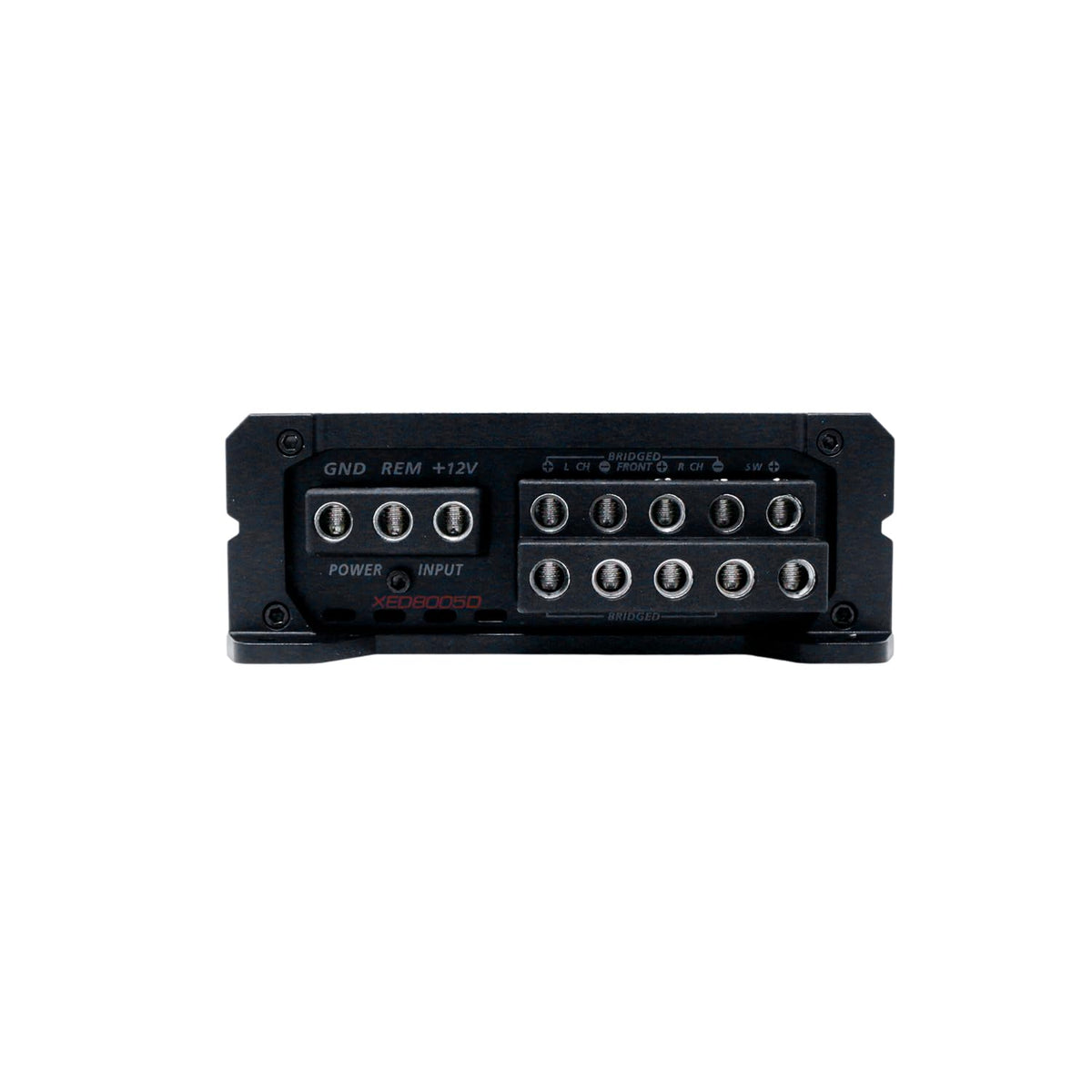

Mount the amplifier on a solid, well-ventilated surface with its controls accessible for tuning, and avoid covering it with carpet or wiring. Use a negative-ground 12V vehicle electrical system, secure power and ground connections, and fuse the positive power cable close to the battery. Configure the front and rear channels for flat or high-pass operation as needed, then set the subwoofer low-pass filter, gain, and bass boost to suit the connected speakers and enclosure.
