PreSonus AudioBox iTwo 2x2 USB/iPad Audio Interface

The PreSonus AudioBox iTwo is a compact 2x2 USB 2.0 and iPad audio interface for recording vocals, instruments, keyboards, and other line-level sources. It provides a practical front end for a computer- or iPad-based recording setup without requiring a separate USB power supply. Two combo inputs allow a small studio to capture one or two sources at a time.

It is suited to songwriters, musicians, podcasters, and mobile creators who need microphone, instrument, and line-input capability in one portable unit. The two Class A microphone preamps supply adjustable gain and switchable +48V phantom power for compatible condenser microphones. Each channel can also accept a 1/4-inch instrument or line-level source through its combo jack.

Audio is converted at up to 24-bit/96 kHz, giving the interface the resolution needed for detailed recording and playback sessions. Balanced 1/4-inch main outputs connect to powered monitors or other line-level equipment. A separate stereo headphone output with its own level control supports private monitoring.

For overdubbing, the AudioBox iTwo uses direct analog monitoring to blend live input with computer playback without monitoring latency. Input signal and clip LEDs help set levels before distortion reaches the converter. Its 1x1 MIDI input and output also provide a direct connection for compatible MIDI keyboards, controllers, and sound modules.

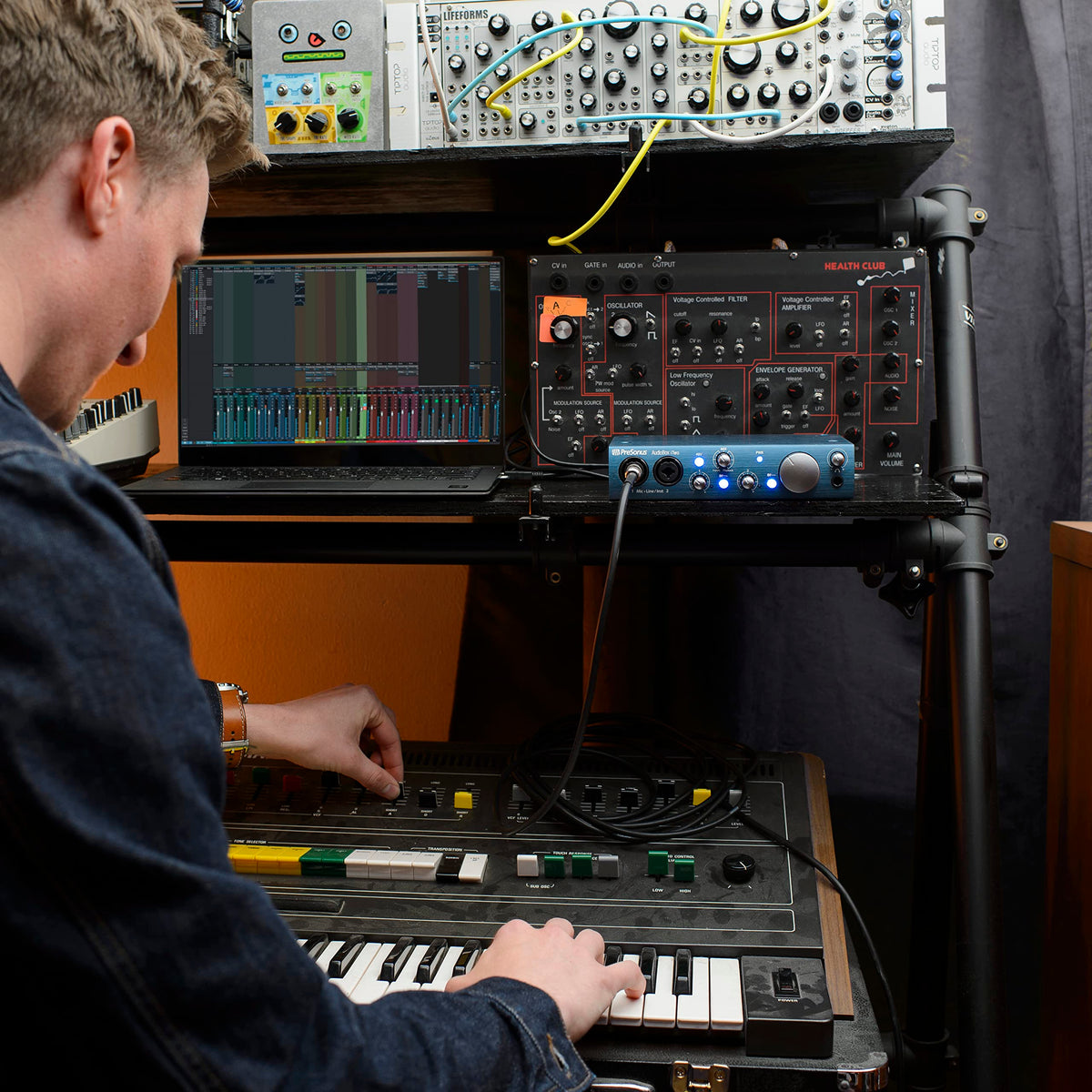

The metal chassis is sized for desktop use or travel and is bus-powered through USB 2.0. It can serve as the central interface in a compact recording rig with microphones, instruments, headphones, and powered speakers. The original package documentation also lists a USB cable, hookup guide, registration card, Studio One Artist download access, and Capture Duo for iPad availability.

Key Features

• 2x2 USB/iPad Audio: Records and plays back two channels through USB 2.0 or a compatible iPad setup.
• Dual Combo Inputs: Each channel accepts XLR microphones or 1/4-inch instrument and line-level sources.
• Class A Mic Preamps: Provides low-noise microphone gain with +48V phantom power for compatible condenser mics.
• 24-Bit/96 kHz Conversion: Supports high-resolution recording and playback at selectable sample rates up to 96 kHz.
• Direct Analog Monitoring: Blends live inputs and playback for latency-free monitoring while recording.
• Built-In MIDI I/O: Connects compatible MIDI controllers or sound modules through 5-pin DIN ports.

Design & Installation

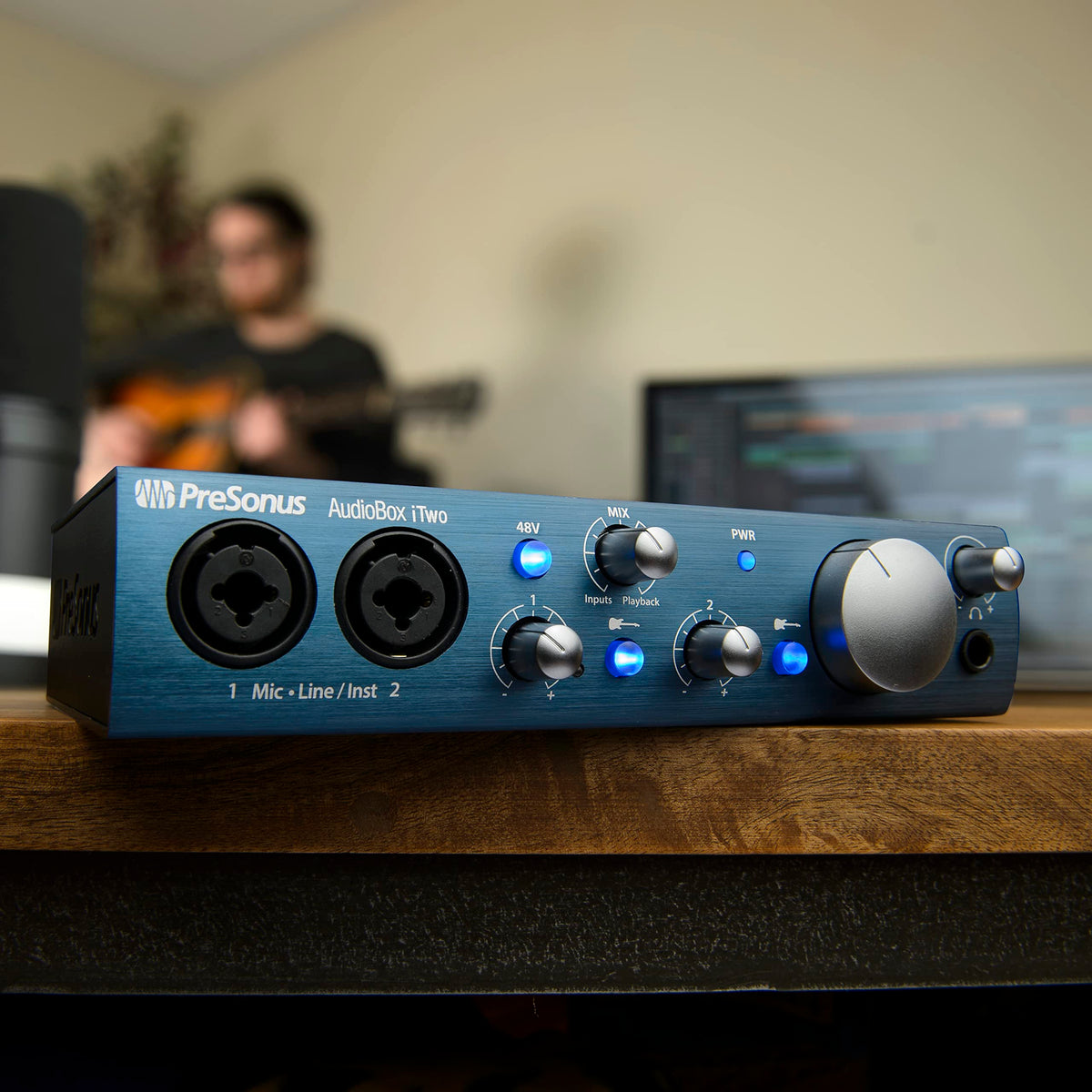

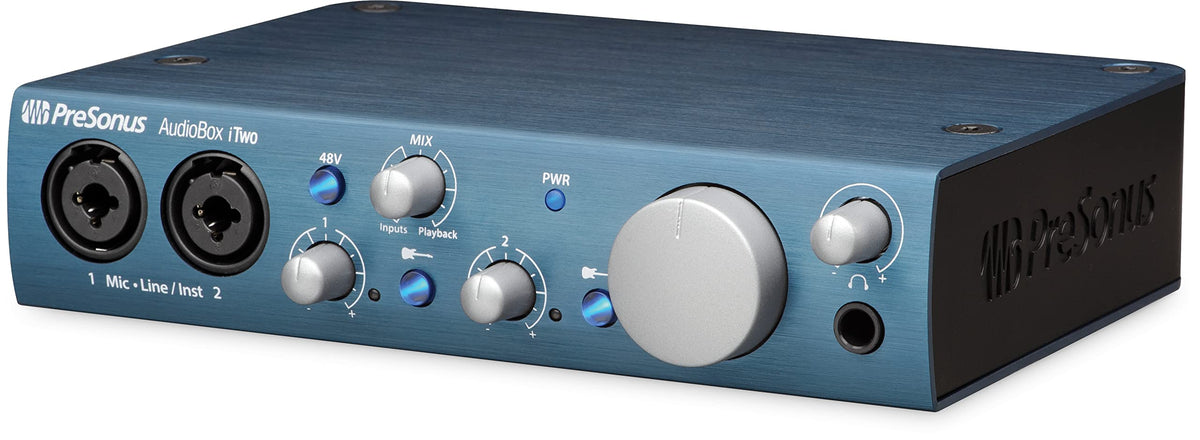

The AudioBox iTwo uses a compact metal chassis designed for portable recording use. Its front panel places input gain controls, source selection, phantom power, monitoring controls, headphone level, and status LEDs within easy reach. A large main output knob controls the level sent to the balanced main outputs.

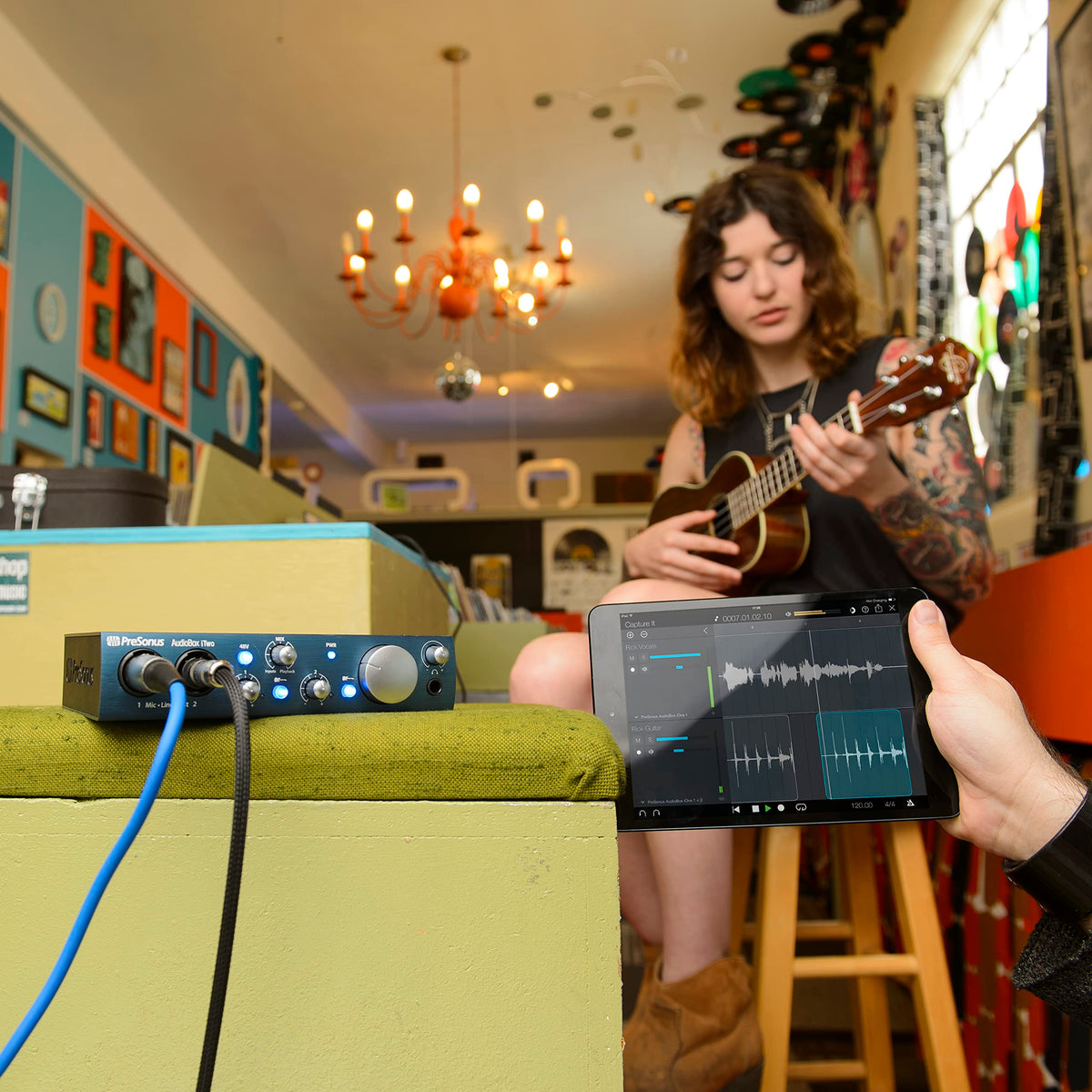

Connect the interface to a computer using USB 2.0, then attach microphones, instruments, or line-level gear to the two combo inputs. Use balanced 1/4-inch TRS cables for powered monitors when possible, and connect headphones to the front-panel stereo output for monitoring. For iPad recording, use the rear Device connection with compatible iOS power and connection accessories, then select the AudioBox iTwo in the recording app.
