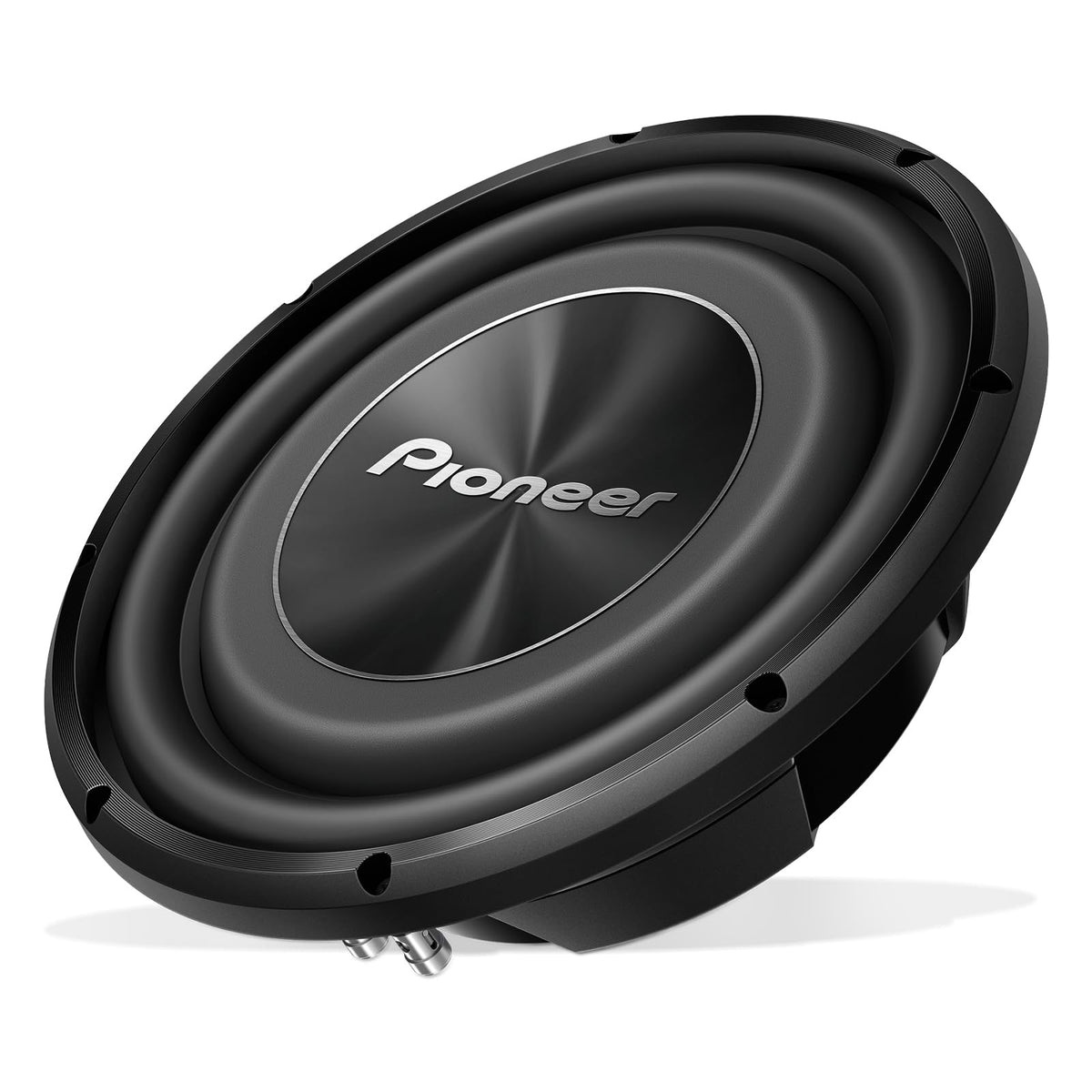

Pioneer TS-A3000LS4 12" Shallow-Mount Subwoofer

The Pioneer TS-A3000LS4 is a 12-inch shallow-mount component subwoofer designed for vehicle audio systems where installation depth is limited. Its low-profile design helps make room for bass in trucks, coupes, sedans, and other applications that cannot accommodate a conventional deep subwoofer. It is a passive subwoofer, so it requires an external amplifier and a properly designed enclosure.

With 400 watts RMS power handling and 1,500 watts maximum power handling, the TS-A3000LS4 is intended for a moderate-power bass upgrade. Its 4-ohm single voice coil provides a straightforward load for a compatible mono or bridged amplifier. The rated frequency response extends from 20 Hz to 1 kHz, supporting low-frequency reproduction in a complete speaker system.

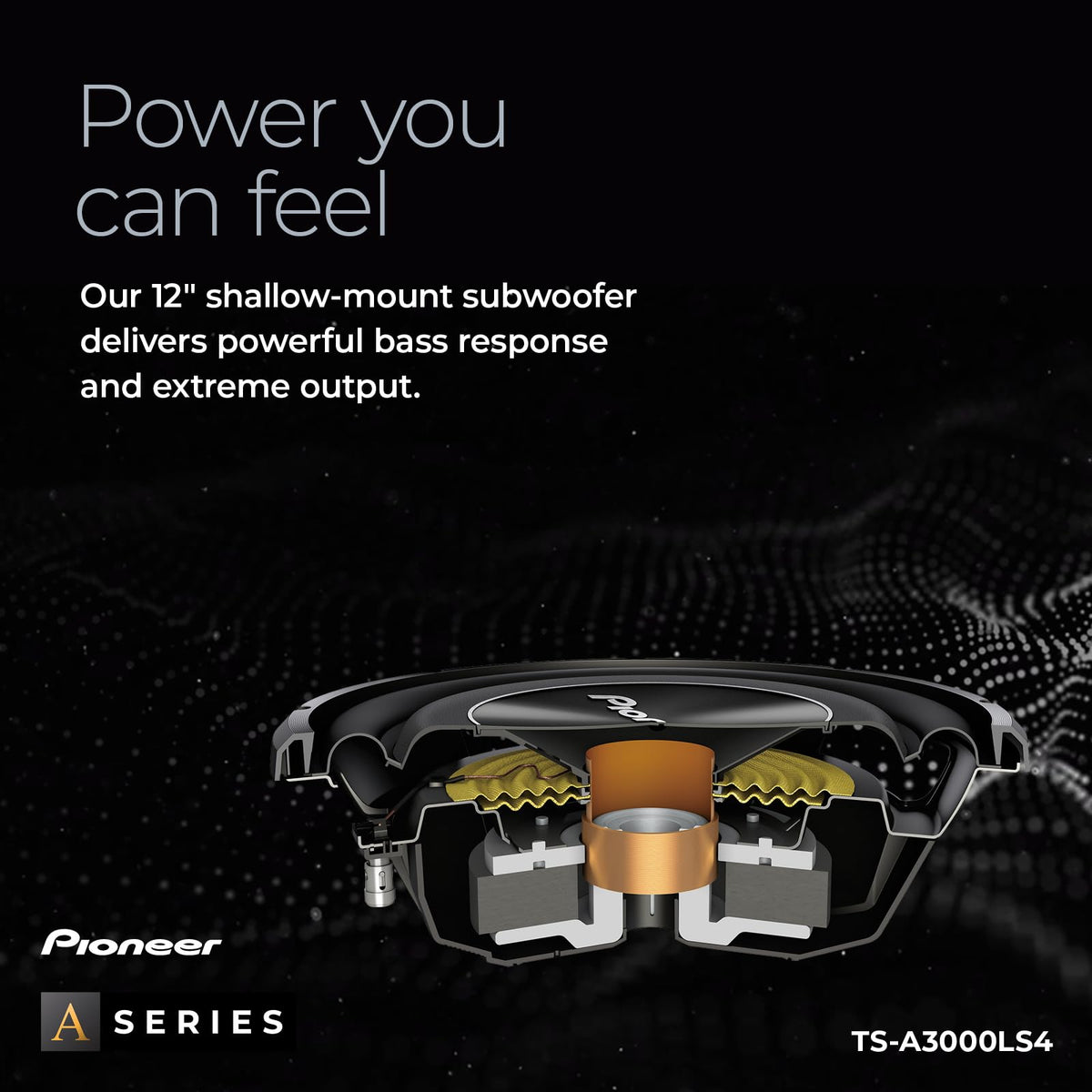

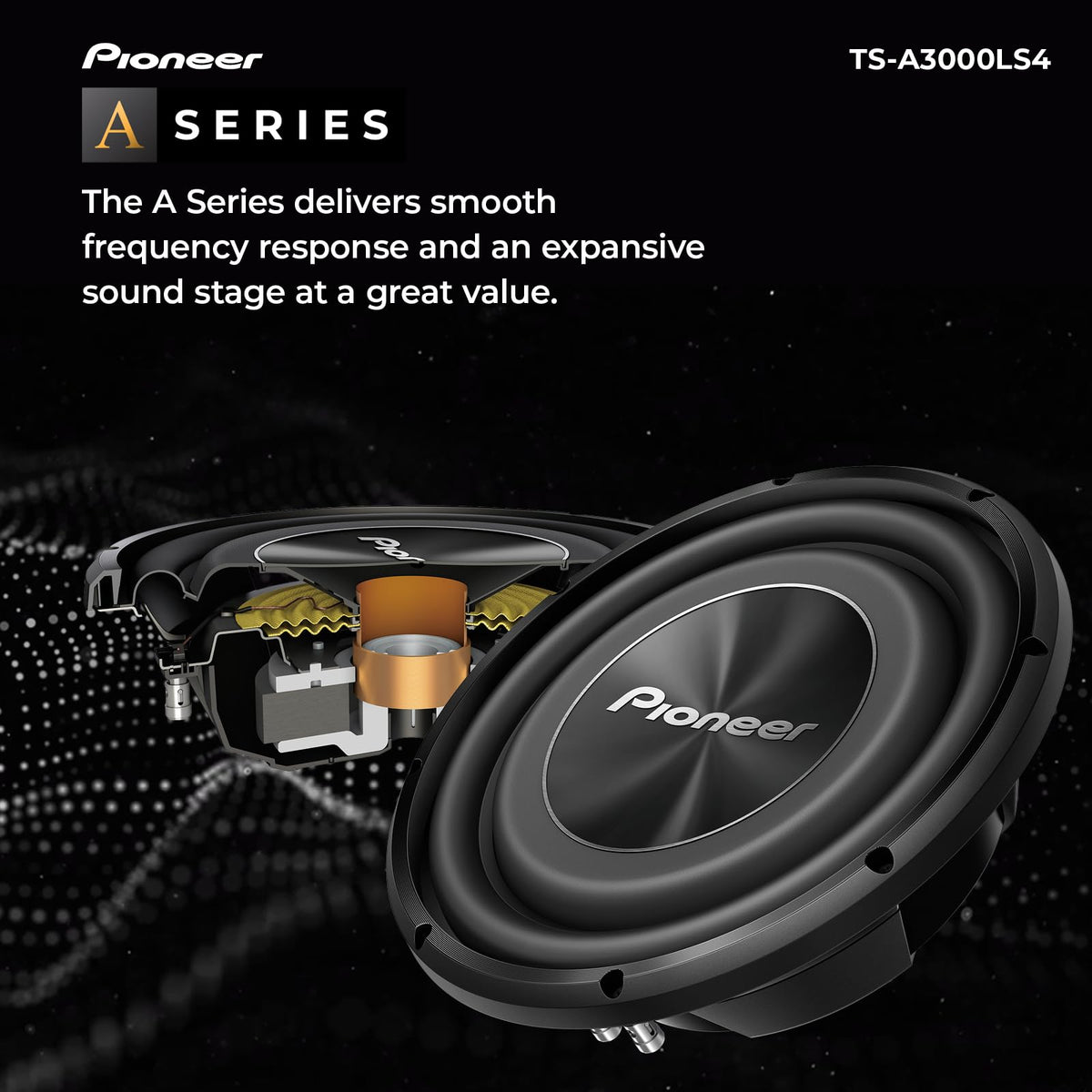

The woofer uses Pioneer’s Glass Fiber and Mica Reinforced IMPP composite cone. This cone is paired with a rubber surround and an aramid-fiber dual-spider design to support controlled cone movement. A ferrite magnet motor and extended voice-coil structure support the shallow mounting profile.

At just 3.5 inches of mounting depth, this subwoofer is made for installations where enclosure space and clearance are important considerations. Pioneer specifies a 0.8 cubic-foot sealed enclosure as the recommended enclosure volume. The compact depth can be useful for custom enclosures behind seats or in limited cargo areas.

The TS-A3000LS4 fits into a system built around an aftermarket head unit, amplifier, enclosure, and full-range speakers. Its 88 dB sensitivity rating and 4-ohm configuration help simplify amplifier selection when power is matched appropriately. It can also be paired with other Pioneer A-Series speakers as part of a coordinated vehicle audio upgrade.

Key Features

• Shallow-Mount 12-Inch Design: Uses a 3.5-inch mounting depth for installations with limited available space.
• 400W RMS Power Handling: Supports continuous amplifier power up to its 400-watt nominal rating.
• 4-Ohm Single Voice Coil: Provides a simple, fixed impedance load for a compatible external amplifier.
• Reinforced IMPP Cone: Glass fiber and mica reinforcement adds rigidity to the polypropylene composite cone.
• Dual-Spider Suspension: Aramid-fiber dual spiders help maintain controlled woofer movement.
• Sealed-Enclosure Recommendation: Designed around a recommended 0.8 cubic-foot sealed enclosure volume.

Design & Installation

The TS-A3000LS4 combines a Glass Fiber and Mica Reinforced IMPP composite cone with a rubber surround, aramid-fiber dual-spider suspension, and ferrite magnet. Its shallow basket profile measures 318 mm in overall diameter and 109 mm in overall depth. The speaker uses 8-AWG push terminals and accepts an optional Pioneer UD-12GL grille, sold separately.

Plan for an approximately 11-1/8-inch cutout and 3.5 inches of mounting depth, while allowing extra clearance for wiring and cone movement. Pioneer recommends a 0.8 cubic-foot sealed enclosure; the product information also identifies a 0.5 to 1.0 cubic-foot small-enclosure range. Use a compatible external amplifier rated appropriately for a 4-ohm subwoofer, and have the enclosure, amplifier wiring, and installation hardware ready before installation.
