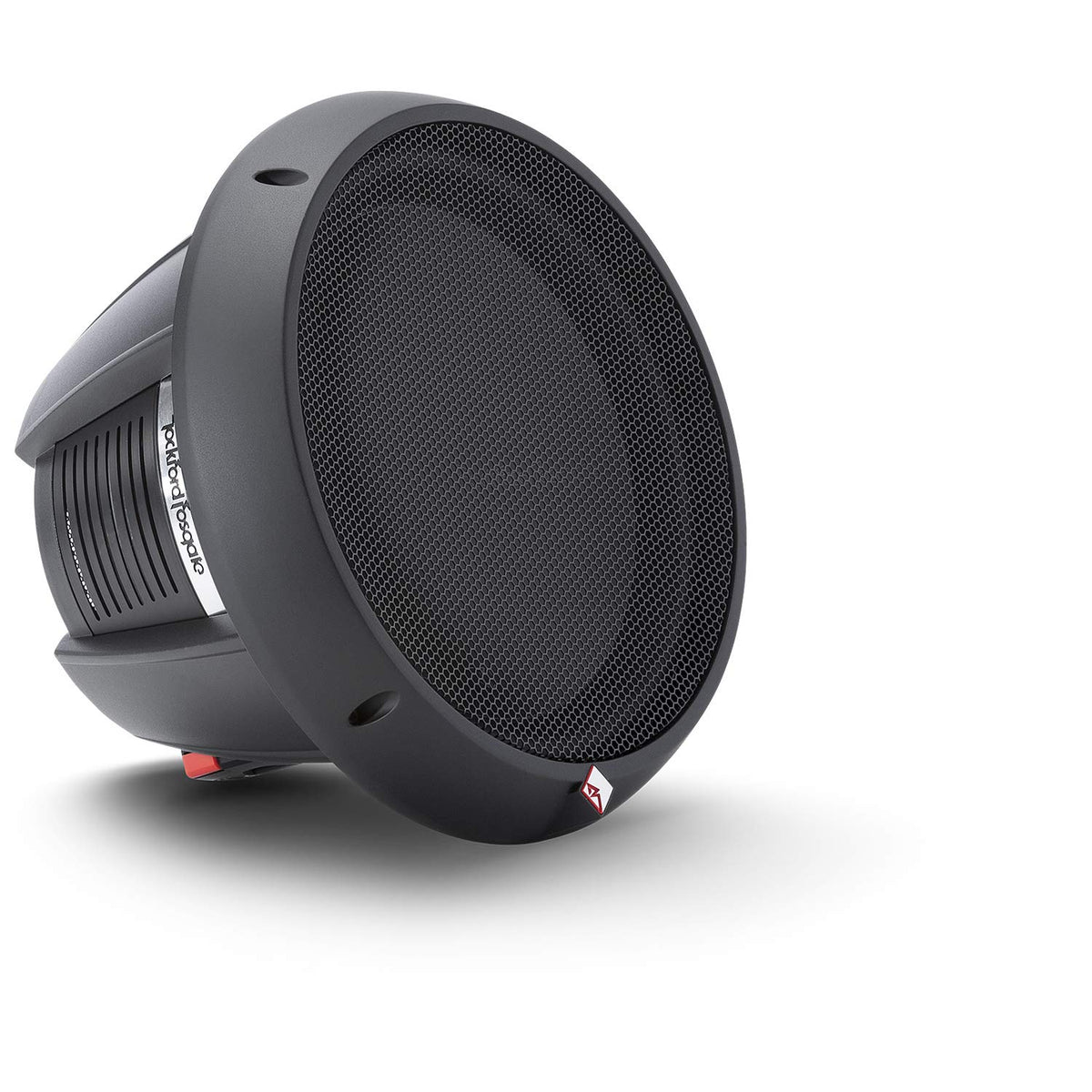

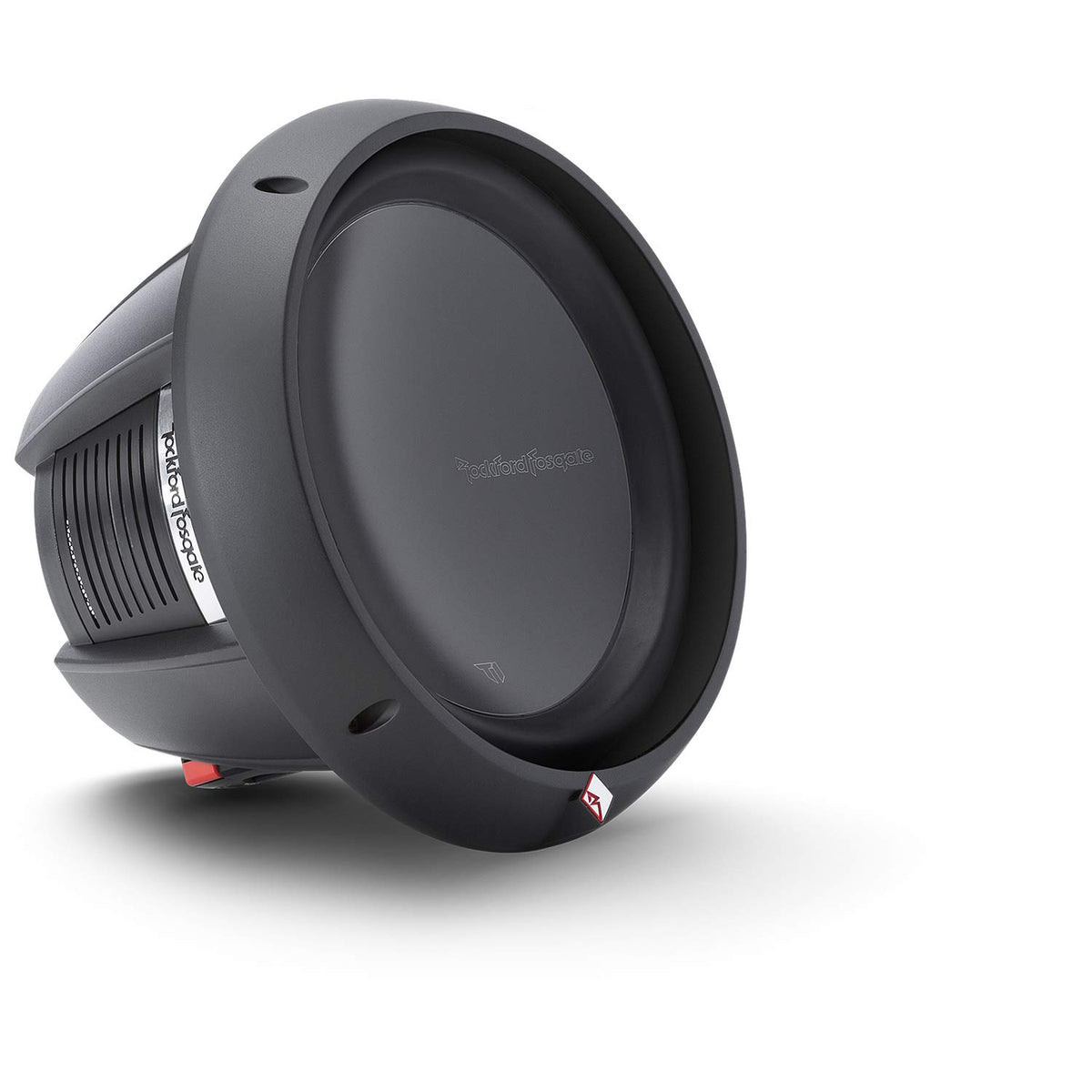

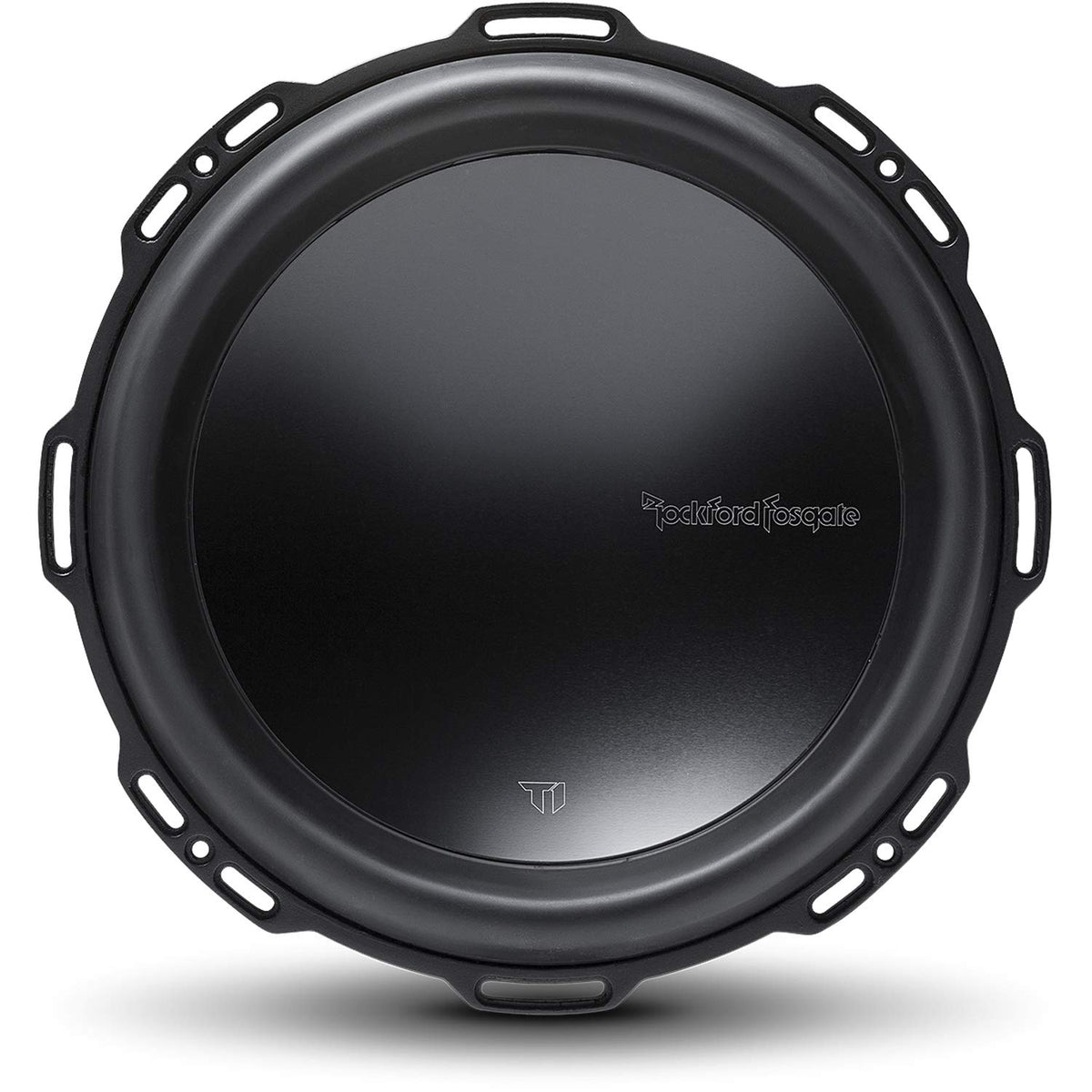

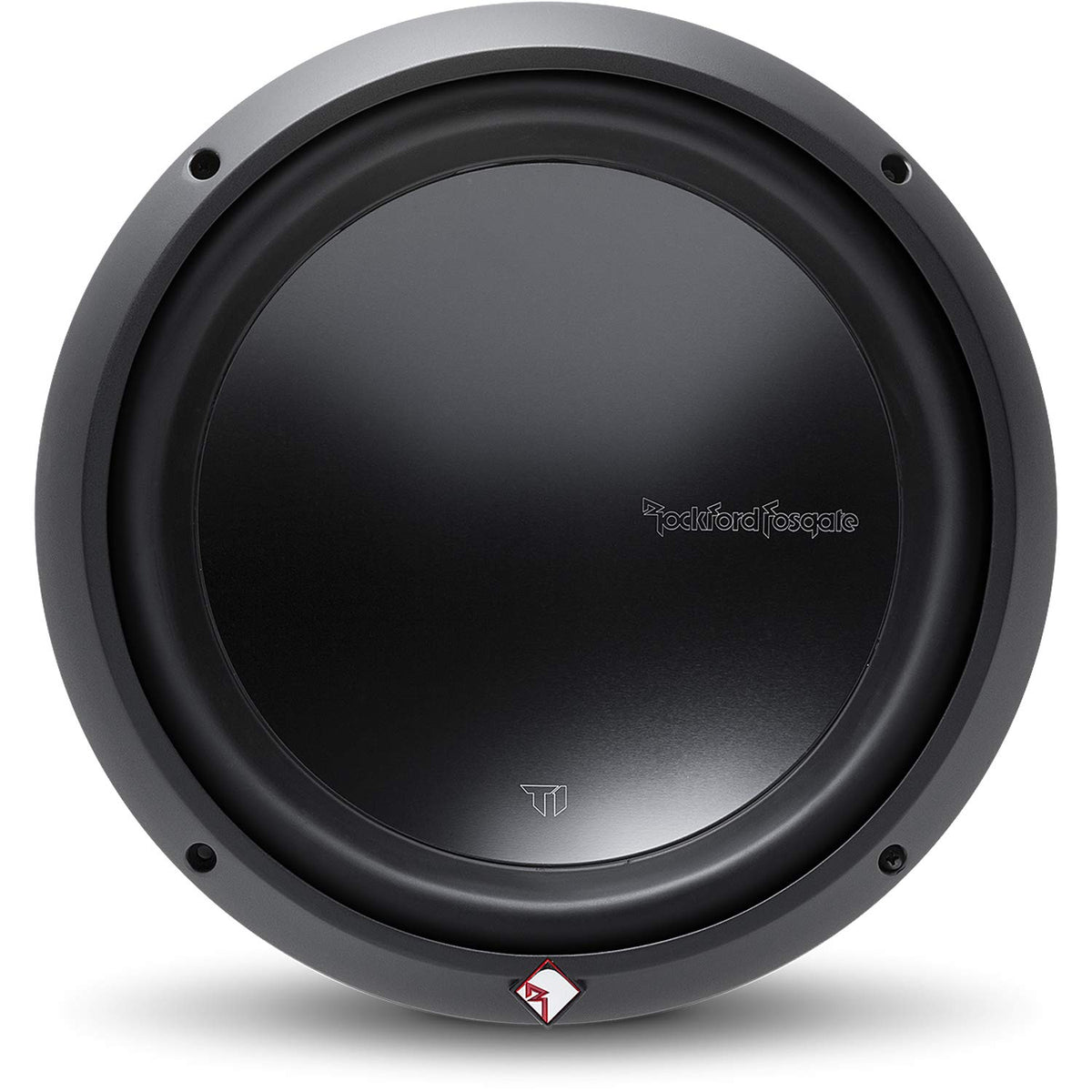

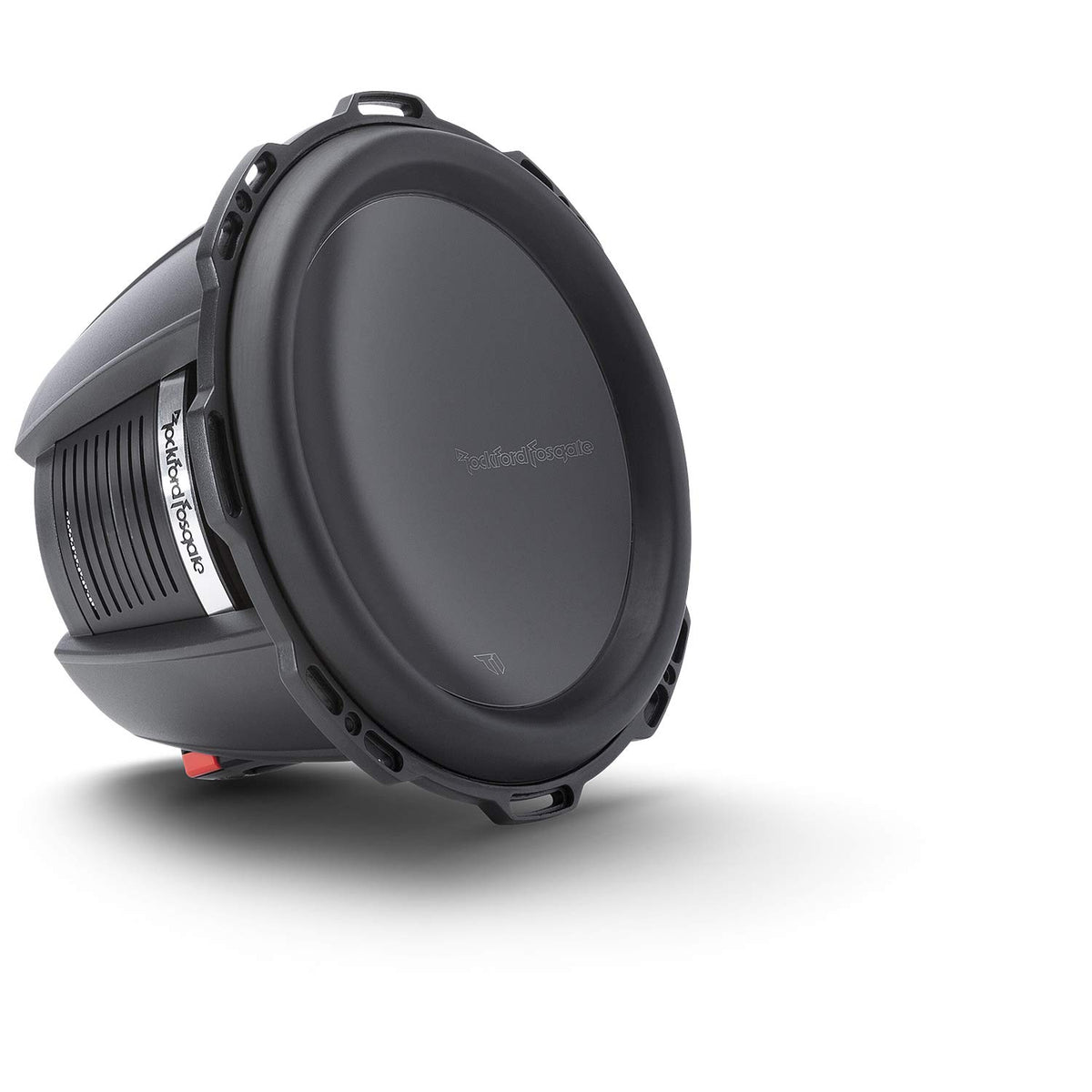

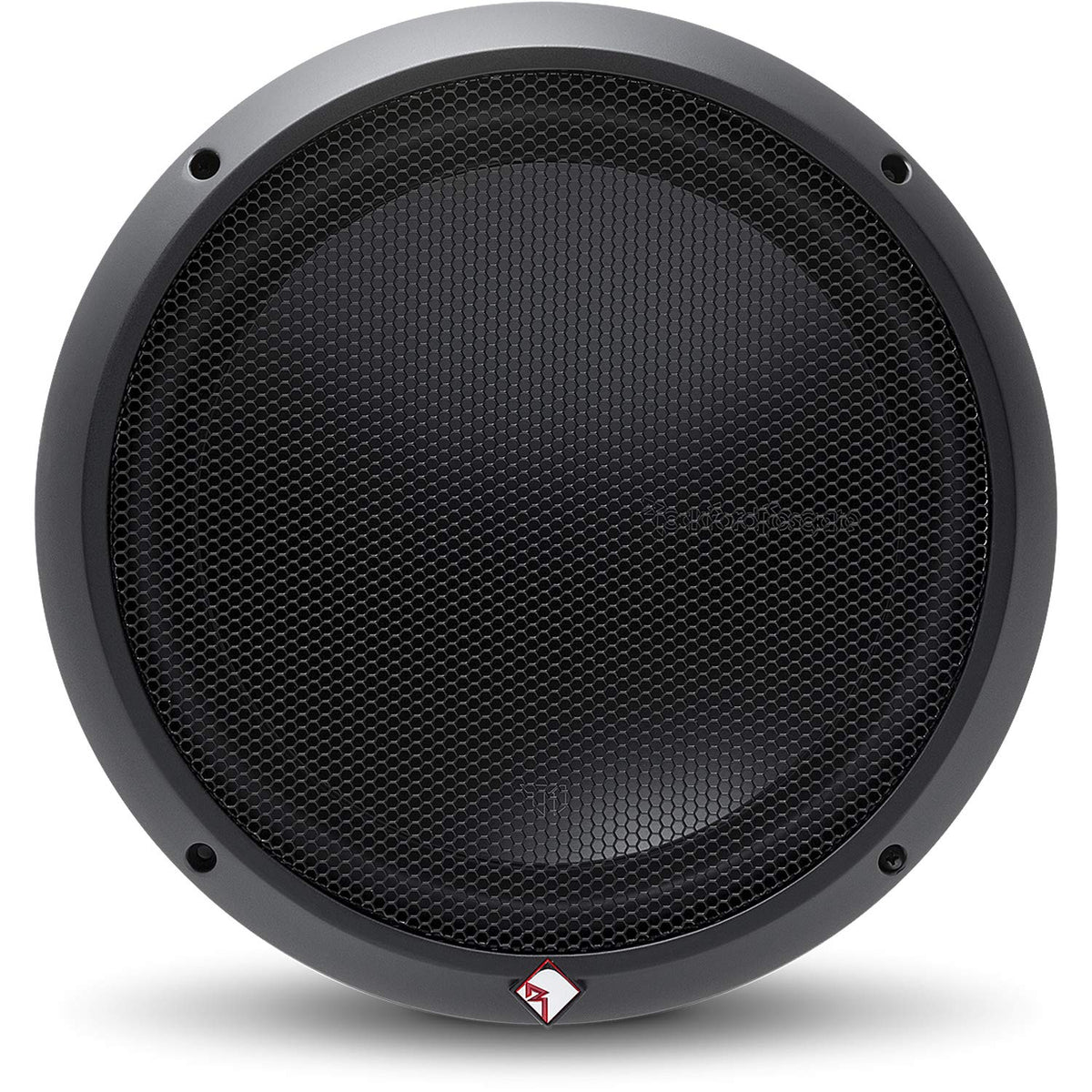

Rockford Fosgate T1D212 12" Dual 2-Ohm Subwoofer

The Rockford Fosgate T1D212 is a 12-inch Power Series subwoofer built for vehicle audio systems that need substantial low-frequency output from a single driver. Its dual 2-ohm voice-coil design provides installation flexibility when matching the subwoofer to a compatible mono amplifier. A grille and integral trim ring are included to give the installation a finished appearance.

Rated for 800 watts RMS and 1,600 watts maximum power, the T1D212 is intended for systems designed around serious bass reproduction. Its 3-inch high-temperature voice coils and heat-management components support sustained high-power use when the system is set up correctly. The 85 dB sensitivity rating and 28 Hz free-air resonance support deep-bass-oriented enclosure designs.

Rockford Fosgate VAST surround technology increases effective cone area compared with a conventional surround layout. The Kevlar fiber-reinforced paper cone, anodized aluminum dust cap, and rigid die-cast aluminum frame are designed to combine controlled cone movement with structural rigidity. Dual progressive-roll poly-cotton spiders and stitched tinsel leads further support the moving assembly.

The proprietary SWIFT terminal system allows the dual voice coils to be configured for a nominal 1-ohm or 4-ohm amplifier load through its selectable jumper arrangement. This makes the T1D212 suitable for builders who need to plan impedance around their amplifier and number of subwoofers. The terminal uses an insulated all-metal spring connection sized for 8 AWG speaker wire.

For enclosure planning, Rockford Fosgate specifies a 1.25 cubic-foot sealed enclosure or a 1.75 cubic-foot ported enclosure. The driver requires a 11.25-inch cutout and a 6.75-inch mounting depth, so enclosure clearance should be checked before installation. It is a practical choice for a dedicated bass upgrade when paired with an appropriately rated amplifier, enclosure, wiring, and system tuning.

Key Features

• 800-Watt RMS Rating: Supports amplifier matching for sustained high-power bass systems.
• Dual 2-Ohm Voice Coils: Enables nominal 1-ohm or 4-ohm wiring configurations.
• VAST Surround: Increases effective cone area for greater air movement.
• 3-Inch Voice Coils: High-temperature coils support demanding power applications.
• SWIFT Terminal System: Selectable jumper simplifies series or parallel coil configuration.
• Rigid Cast Frame: Die-cast aluminum basket supports stable driver mounting.

Design & Installation

The T1D212 uses a Kevlar fiber-reinforced paper cone, VAST Santoprene surround, anodized aluminum dust cap, dual Nomex-reinforced spiders, and a die-cast aluminum basket. Its magnetic assembly includes an Inductive Damping Heat Sink and venting around the pole piece and spider area. These components are engineered to manage heat, support excursion, and maintain the driver structure during use.

Plan for a 285 mm cutout and 171 mm mounting depth, plus sufficient clearance behind the magnet and terminals. Use the included SWIFT jumper only as directed to select the desired nominal 1-ohm or 4-ohm load, and pair the driver with an amplifier and enclosure appropriate for its 800-watt RMS rating. The package includes a grille, fused and non-fused SWIFT jumpers, mounting screws, an Allen bit, and an installation manual.
