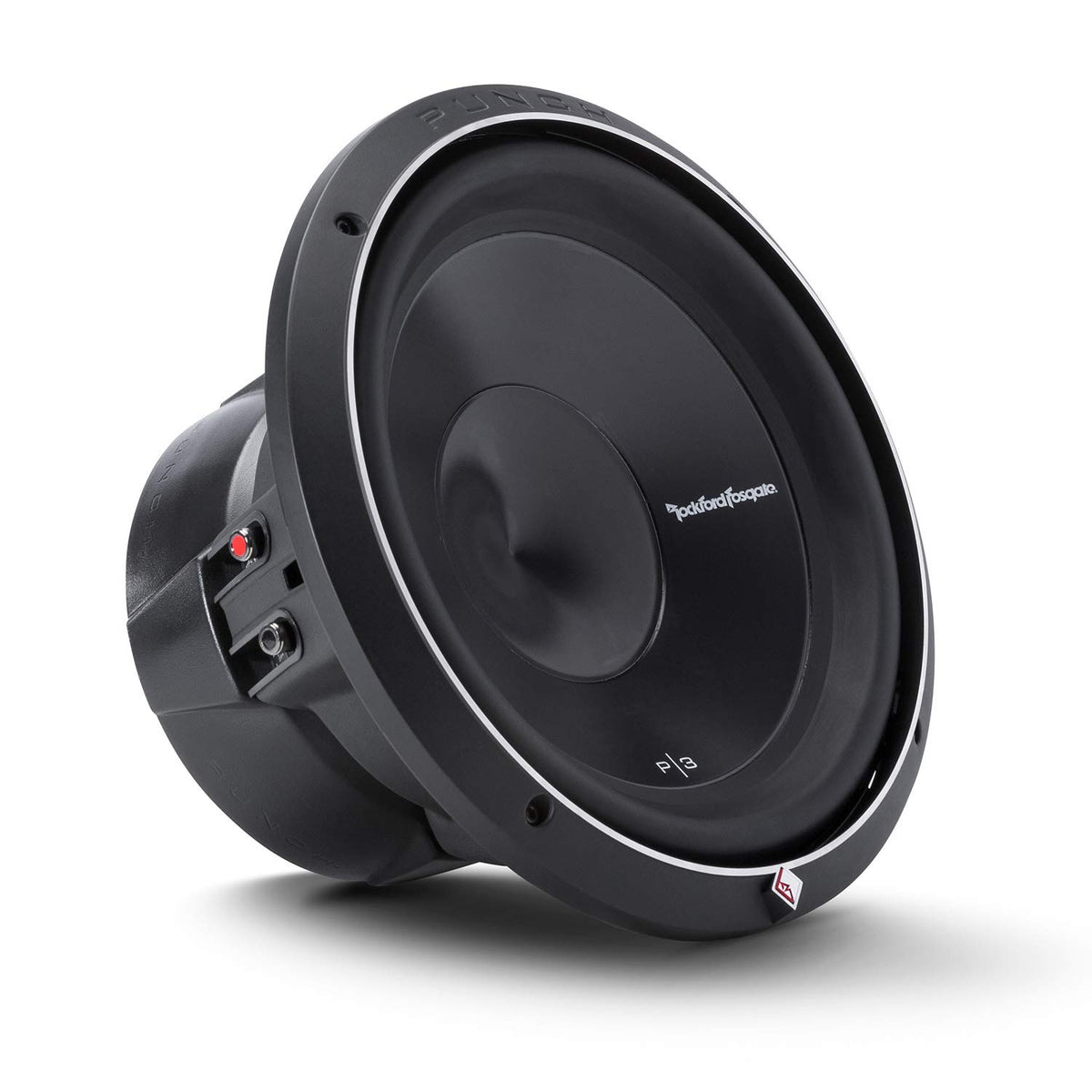

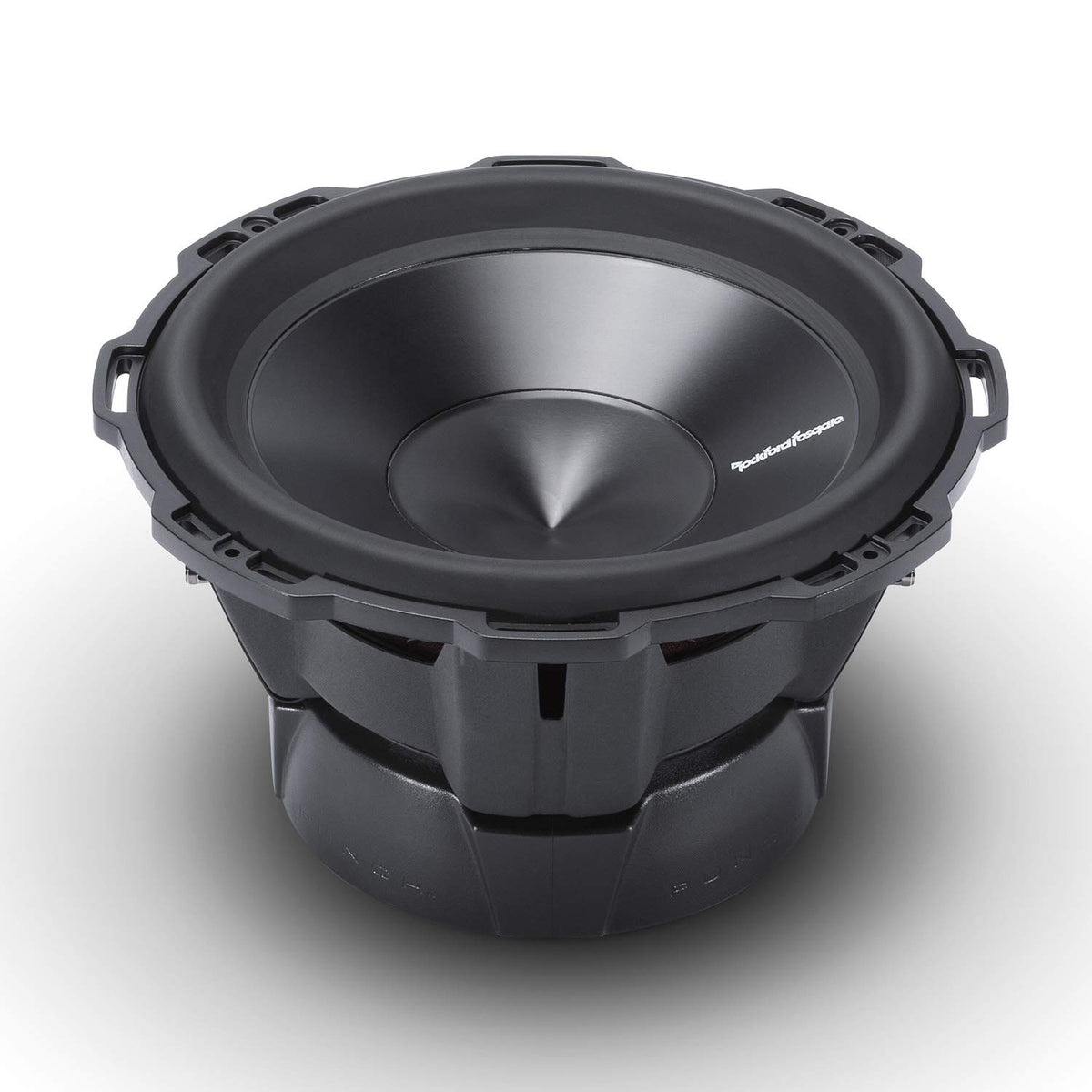

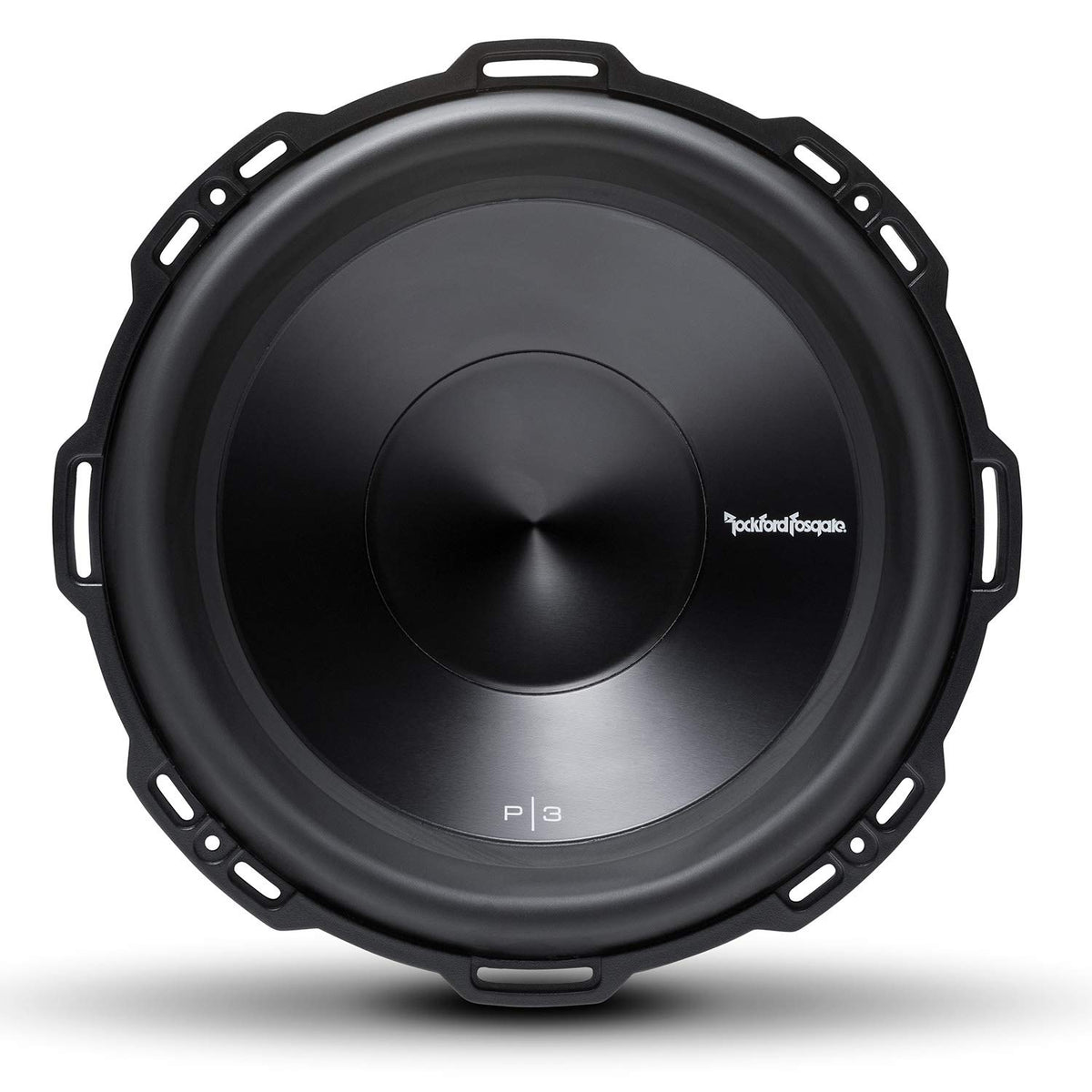

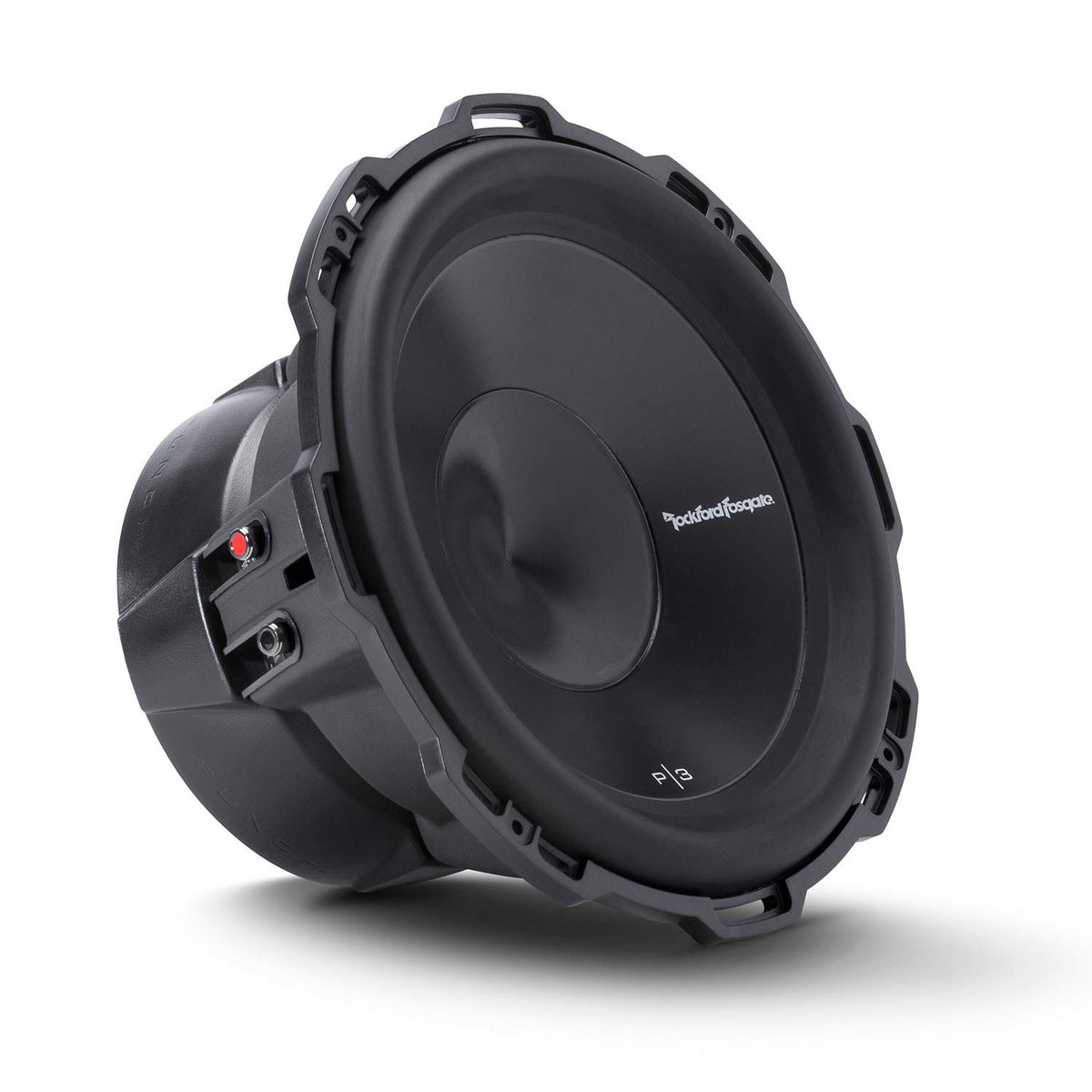

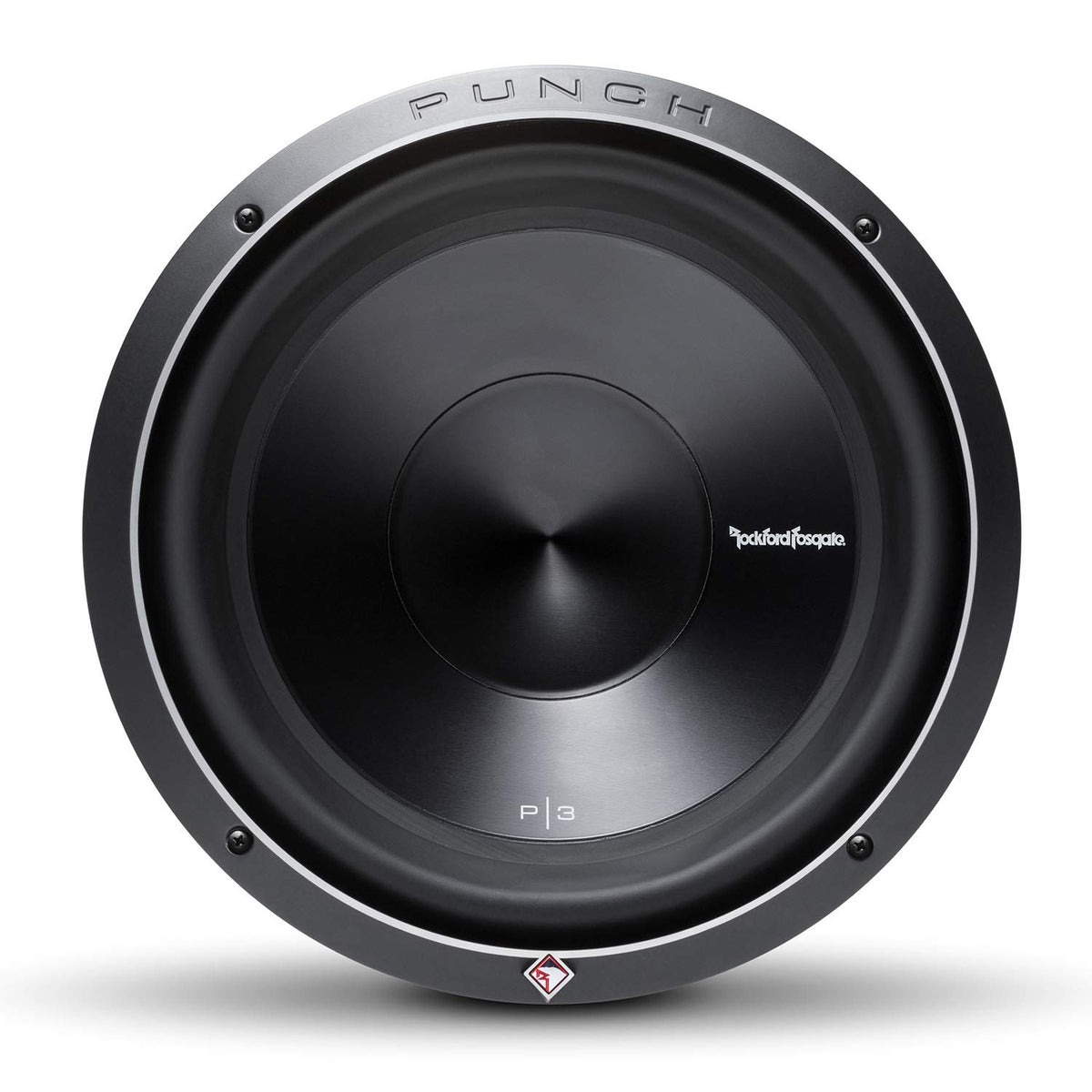

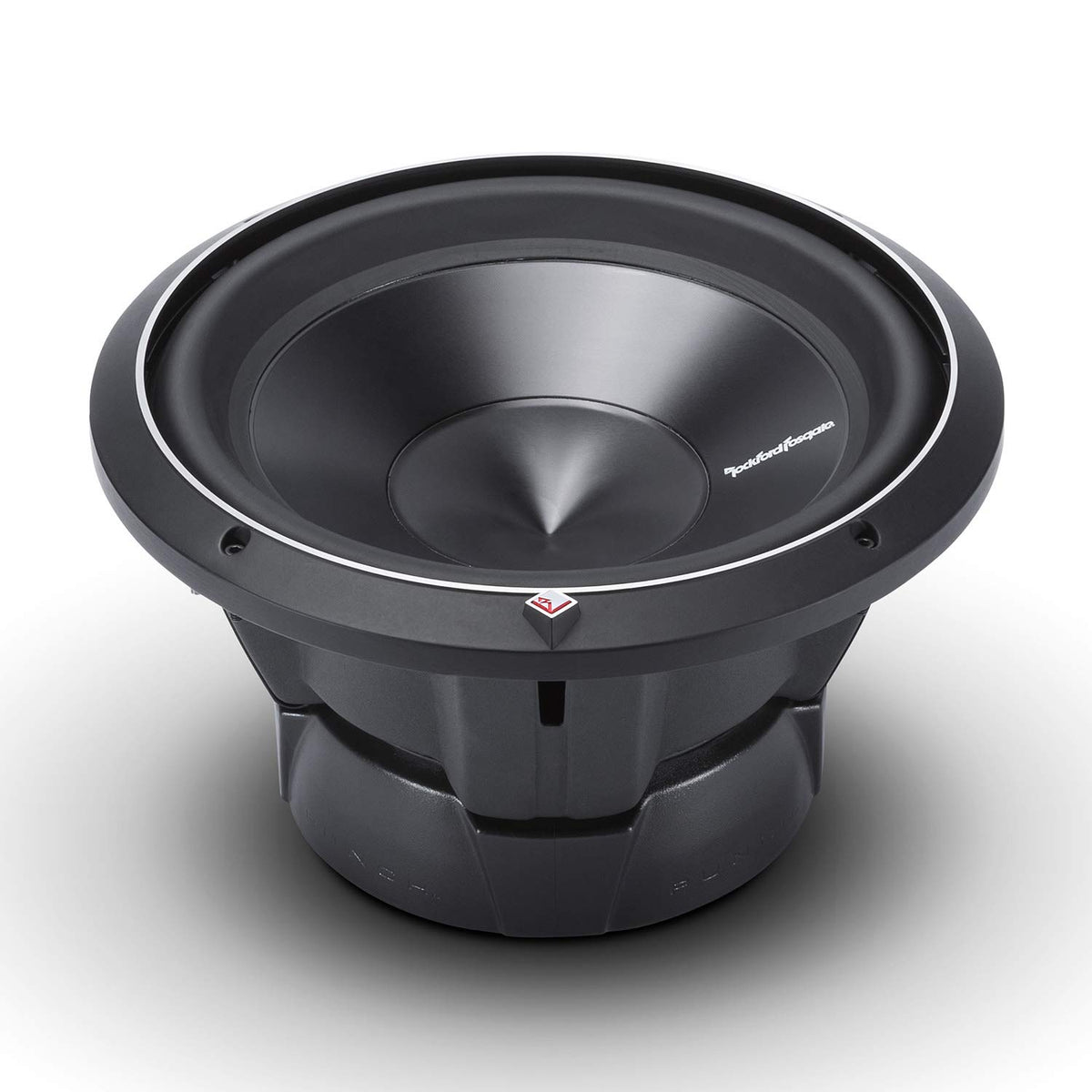

Rockford Fosgate P3D2-12 12" Dual 2-Ohm Subwoofer

The Rockford Fosgate P3D2-12 is a 12-inch car subwoofer designed to add controlled low-frequency output to a vehicle audio system. Its dual 2-ohm voice-coil design provides wiring flexibility when matching a compatible mono or multi-channel amplifier. It is intended for installation in a properly designed sealed or vented enclosure.

With a 600-watt RMS power rating and 1,200-watt maximum rating, this Punch P3 model is suited to systems built around a dedicated subwoofer amplifier. The design supports strong bass reproduction while allowing installers to select an enclosure alignment for the desired balance of response and output. A sealed box favors a compact, controlled setup, while a vented box can emphasize output around its tuning frequency.

The P3D2-12 uses an anodized aluminum cone and dustcap, paired with a dual linear spider assembly. These components are designed to maintain cone control during high-excursion operation. Embedded tinsel leads and a high-temperature voice coil support dependable signal transfer and thermal handling.

Its hybrid StampCast basket combines stamped and cast construction to provide a rigid mounting structure without unnecessary bulk. Integrated spider venting, an extended pole piece, and a vented backplate help manage heat around the motor structure. The protective PVC-textured magnet cover and aluminum trim ring complete the installation-oriented design.

This subwoofer works well as the foundation of a dedicated bass upgrade for cars and trucks with adequate enclosure space. Its dual 2-ohm coils can be wired to suit compatible amplifier impedance requirements, so amplifier selection and wiring should be planned together. For best results, use a properly sized enclosure and an active low-pass crossover.

Key Features

• 600-Watt RMS Handling: Supports use with a properly matched dedicated subwoofer amplifier.
• Dual 2-Ohm Voice Coils: Provides wiring flexibility for compatible amplifier loads.
• Anodized Aluminum Cone: Helps maintain cone rigidity during bass playback.
• Integrated Spider Venting: Helps move heat away from the motor structure.
• StampCast Basket: Combines rigidity with reduced resonance and weight.
• 10-AWG Terminals: Accommodate substantial speaker wire for secure connections.

Design & Installation

The P3D2-12 features an anodized aluminum cone and dustcap, a high-temperature 2.5-inch four-layer voice coil, dual linear spiders, and a hybrid StampCast basket. Its motor design includes an extended pole piece and bumped vented backplate, while the basket integrates spider venting. A diamond-cut cast aluminum trim ring and PVC-textured magnet cover provide finished exterior details.

Plan for an 11.25-inch cutout diameter and 6.66-inch mounting depth before building or selecting an enclosure. Rockford Fosgate specifies 1.02 cubic feet for an optimum sealed enclosure or 1.79 cubic feet for an optimum vented enclosure, with gross internal volume measured before speaker and port displacement. Use an amplifier compatible with the final voice-coil wiring load, and use an active 80–100 Hz low-pass crossover at 12 dB/octave as recommended in the owner's manual.
