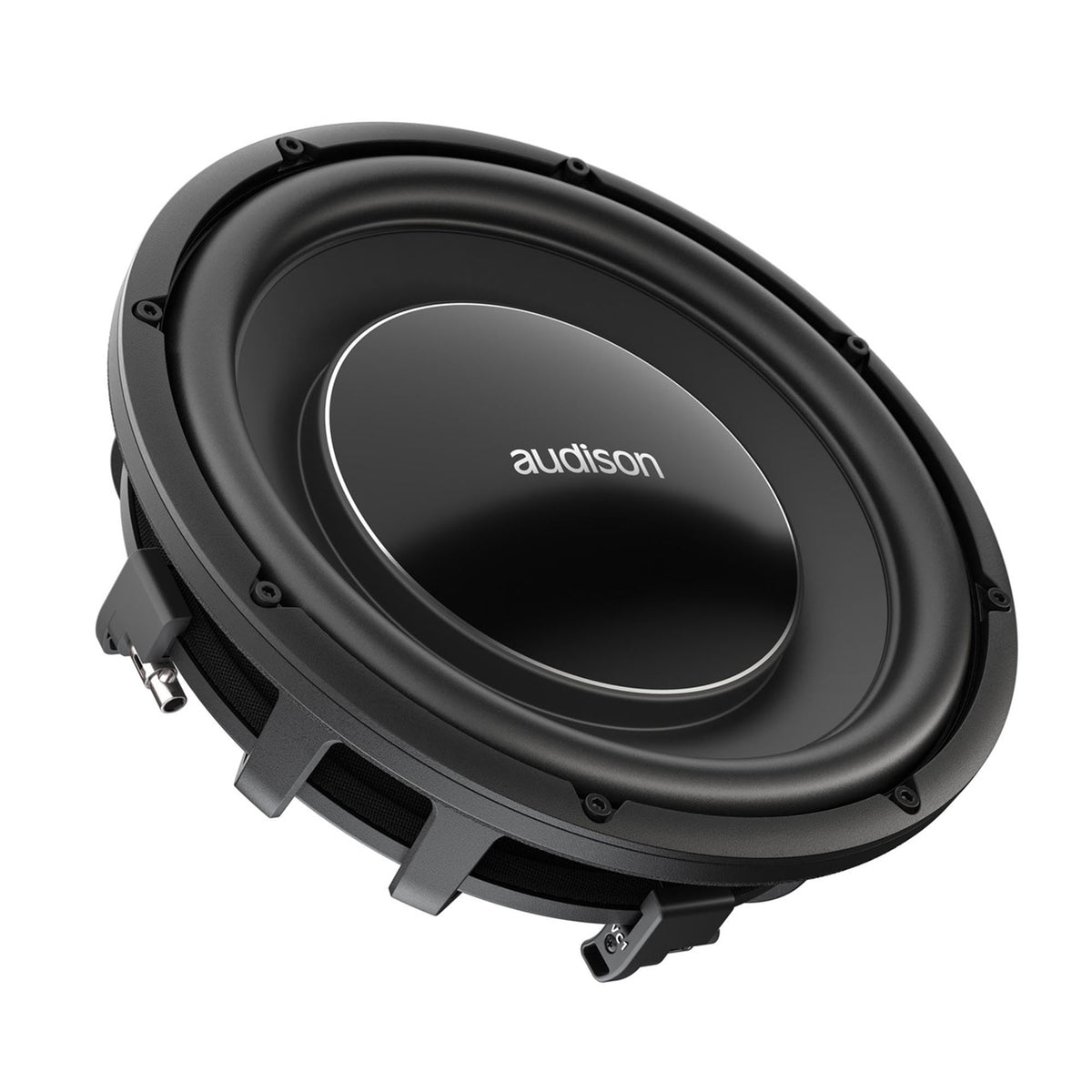

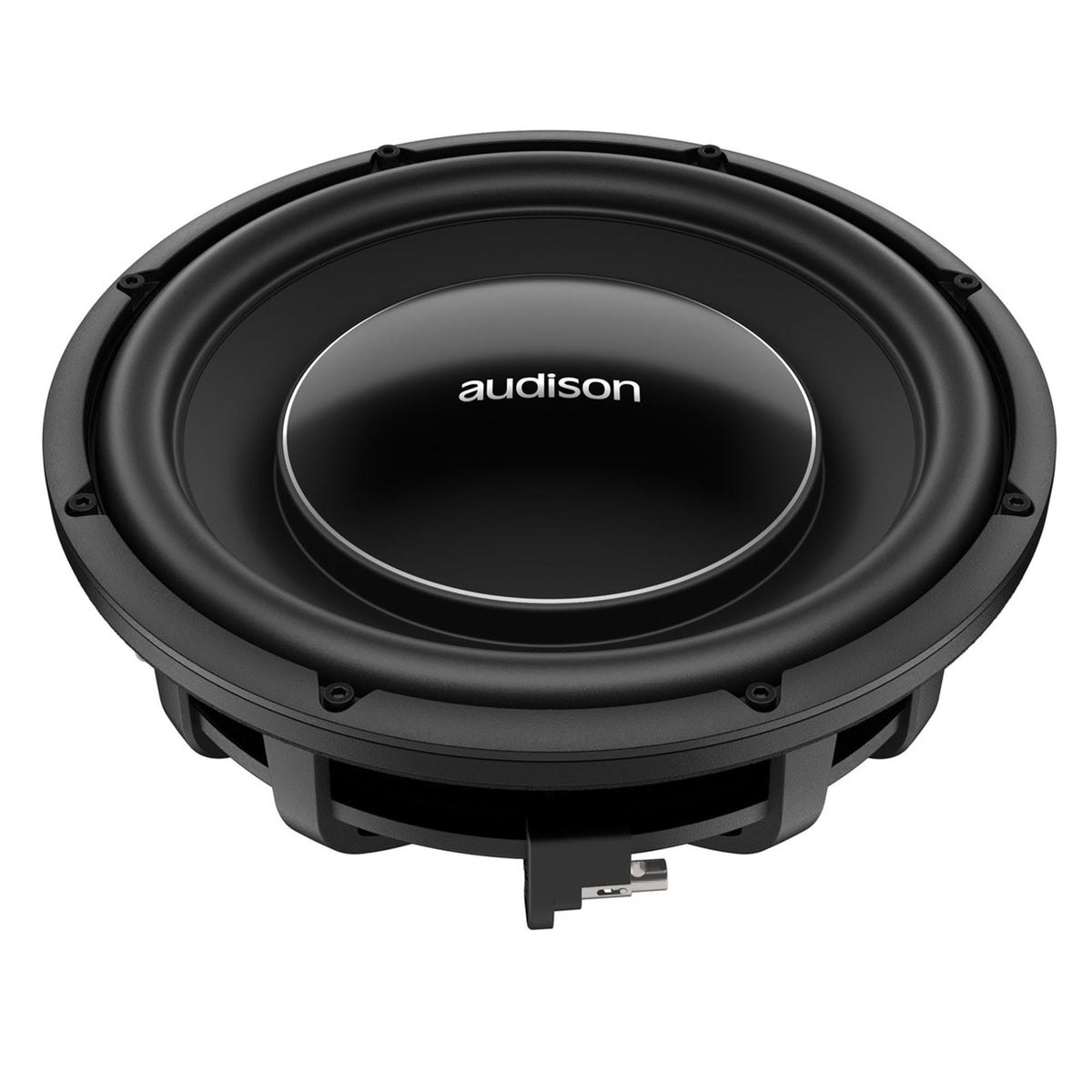

Audison AV 12 D2 II 12" Dual 2-Ohm Subwoofer

The Audison AV 12 D2 II is a 12-inch dual-2-ohm subwoofer designed for vehicle audio systems that need substantial low-frequency output without requiring an oversized enclosure. Its dual voice coils provide wiring flexibility when matching the subwoofer to a compatible mono or multi-channel amplifier. The design is intended for listeners building a sound-quality-focused bass system in a limited amount of vehicle space.

With 550 watts continuous power handling and 1,100 watts peak power handling, the AV 12 D2 II is built for amplified systems with appropriately matched power. Its 25 to 400 Hz frequency-response specification supports use as a dedicated low-frequency driver. The 85 dB sensitivity rating and 23 Hz resonant frequency reflect a design centered on controlled bass extension rather than shallow, decorative installation.

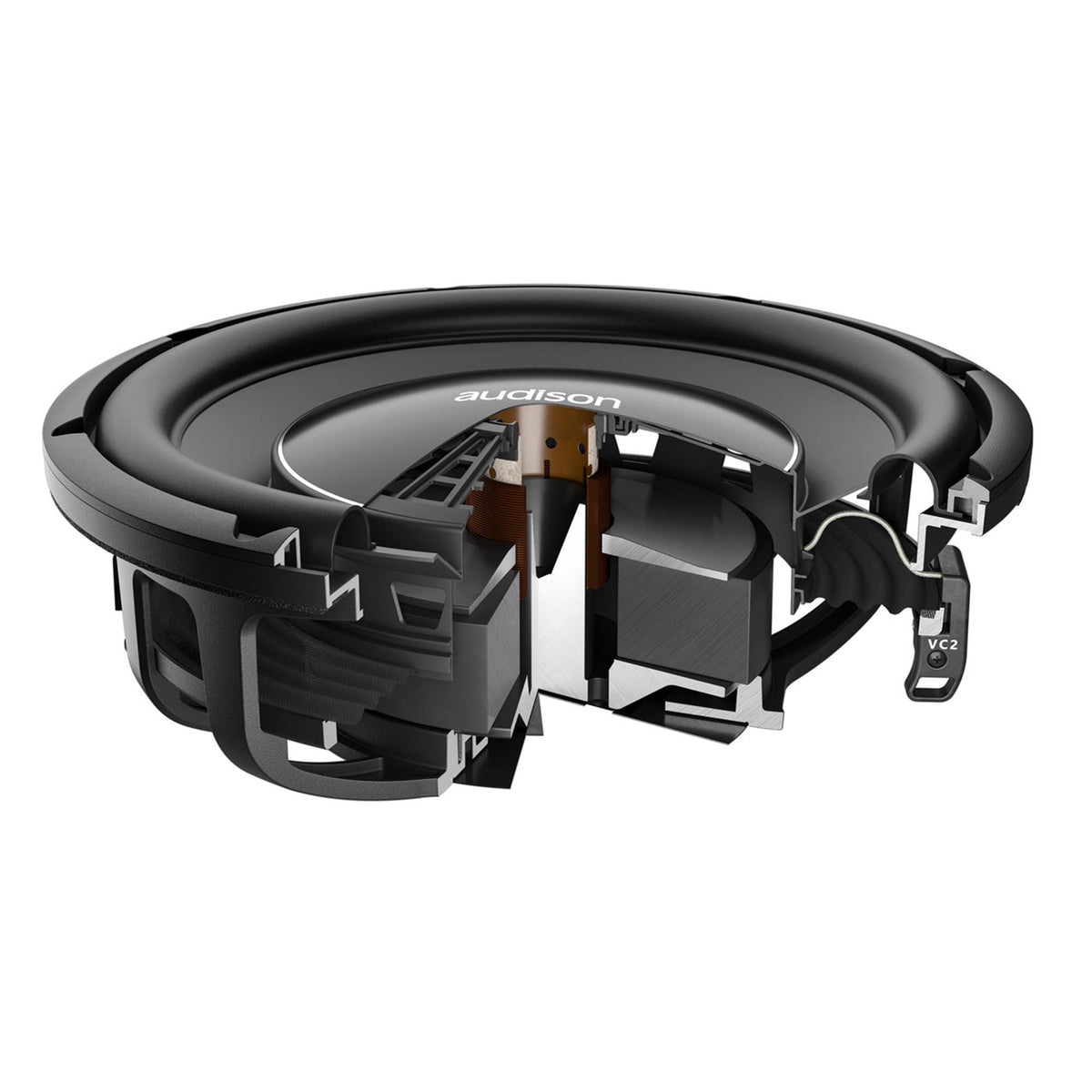

A 38.6 mm CCAW voice coil uses copper-clad aluminum wire to balance thermal capability with reduced moving mass. The motor system uses a high-density-flux ferrite magnet, while Audison Airflow Venting Cooling technology is designed to help manage voice-coil temperature during sustained operation. These elements support stable performance when the subwoofer is installed, filtered, and powered within its specifications.

The polypropylene cone uses a FEM-optimized dust cap and a radial reinforcement framework beneath the cone to increase rigidity during high-excursion movement. A nitrile-rubber surround supports the cone through its rated 16.8 mm Xmax. Together with the die-cast aluminum chassis, these materials are intended to maintain controlled cone motion and durable operation.

The AV 12 D2 II can be used in sealed or vented enclosure designs, with manufacturer data provided for compact and performance-oriented examples. It is supplied with a protective metal mesh grille and mounting screws for cone protection. Pair it with an amplifier that is stable at the final impedance created by the selected series or parallel voice-coil wiring, and use the manufacturer enclosure and crossover guidance as the foundation for system tuning.

Key Features

• Dual 2-Ohm Voice Coils: Supports series or parallel wiring options for compatible amplifiers.
• 550W Continuous Handling: Accommodates substantial amplifier power when correctly configured.
• CCAW Voice Coil: Combines thermal capability with reduced moving mass.
• Airflow Venting Cooling: Helps dissipate heat around the voice coil.
• Reinforced Polypropylene Cone: Supports rigid, controlled movement at high excursion.
• Protective Metal Grille: Helps protect the cone in exposed installations.

Design & Installation

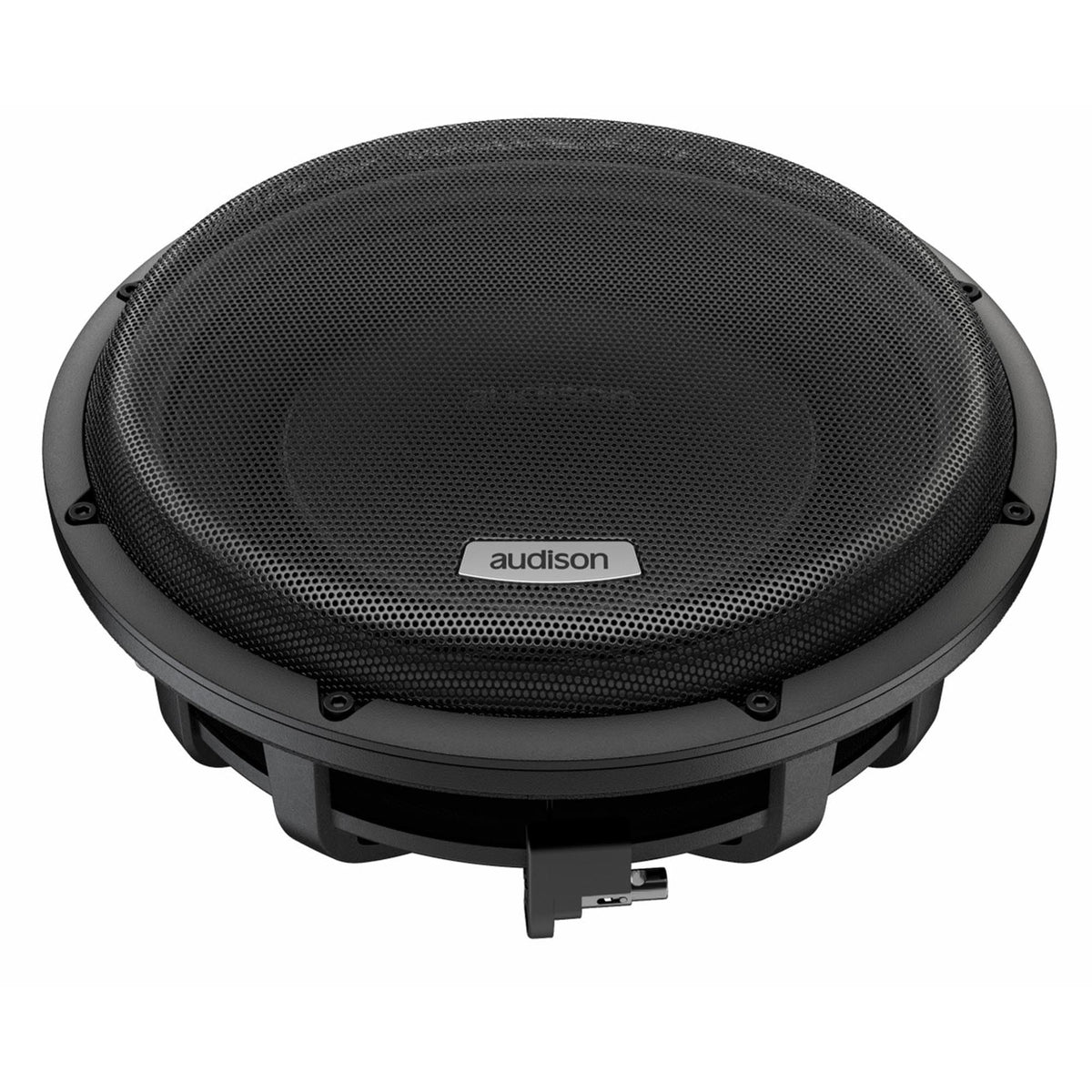

The AV 12 D2 II uses a die-cast aluminum basket, high-density-flux ferrite magnet, polypropylene cone, nitrile-rubber surround, glass-fiber former, and CCAW voice coil. The basket includes cable-routing hooks, and the spring-loaded terminals accept up to 8 AWG speaker cable. A black metal mesh grille and mounting screws are included.

Use the 284 mm mounting-hole specification when planning the baffle cutout, and allow sufficient rear clearance for the listed mounting dimensions. Audison provides sealed and reflex enclosure examples; the compact sealed design uses 21 L, while the compact reflex design uses 27.1 L tuned to 26.5 Hz. Confirm the final load presented by the dual 2-ohm coils before selecting an amplifier, and apply suitable low-pass and subsonic filtering for the chosen enclosure type.
