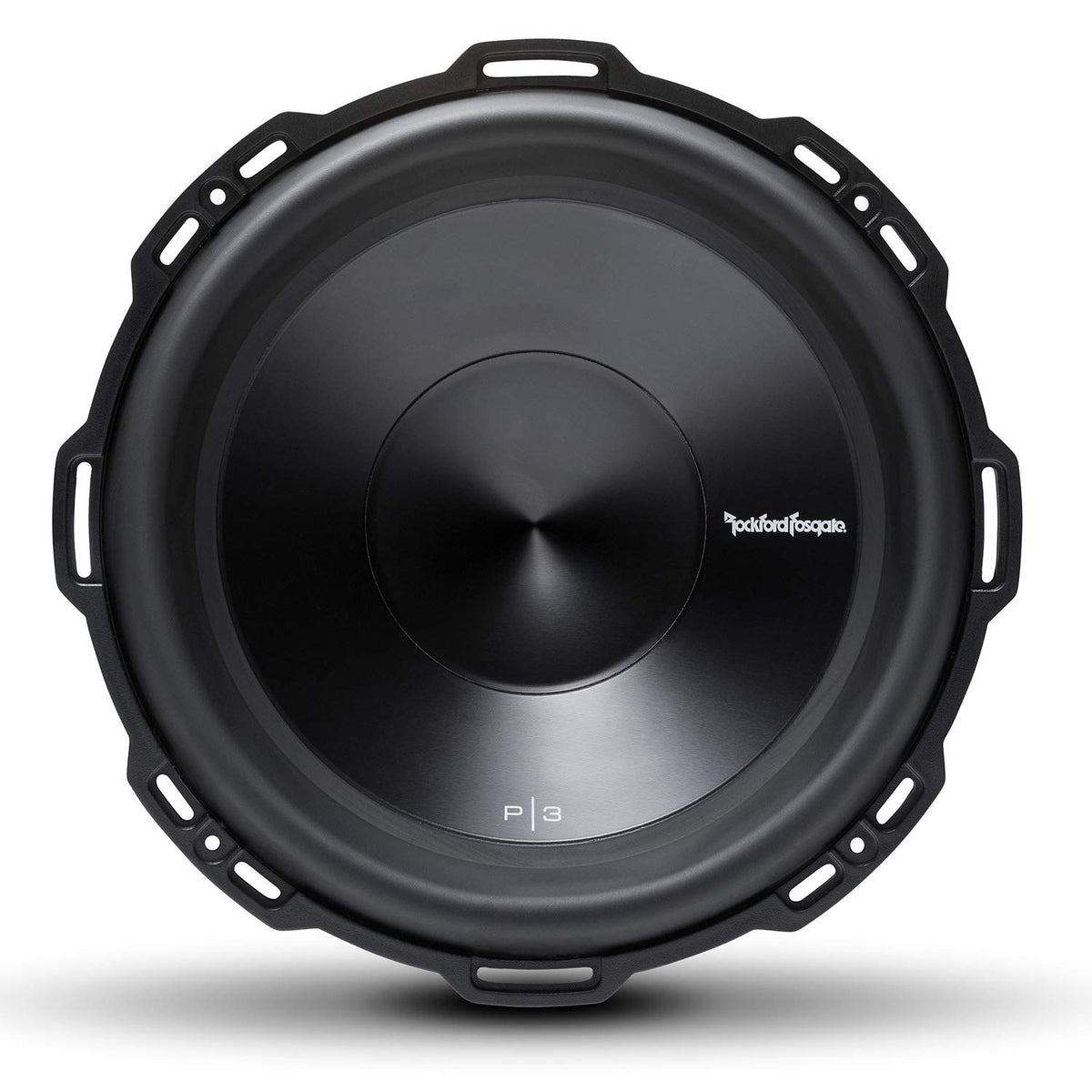

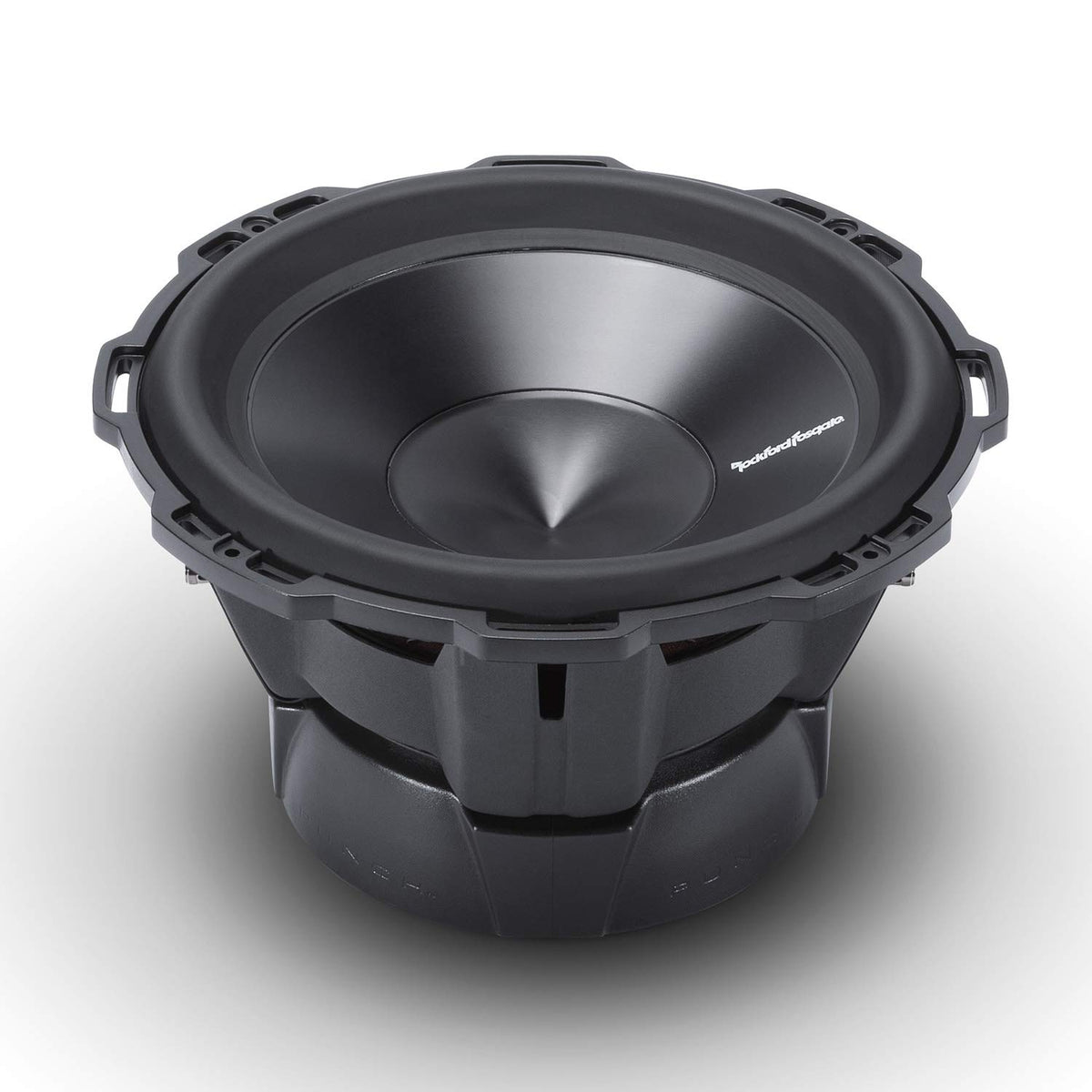

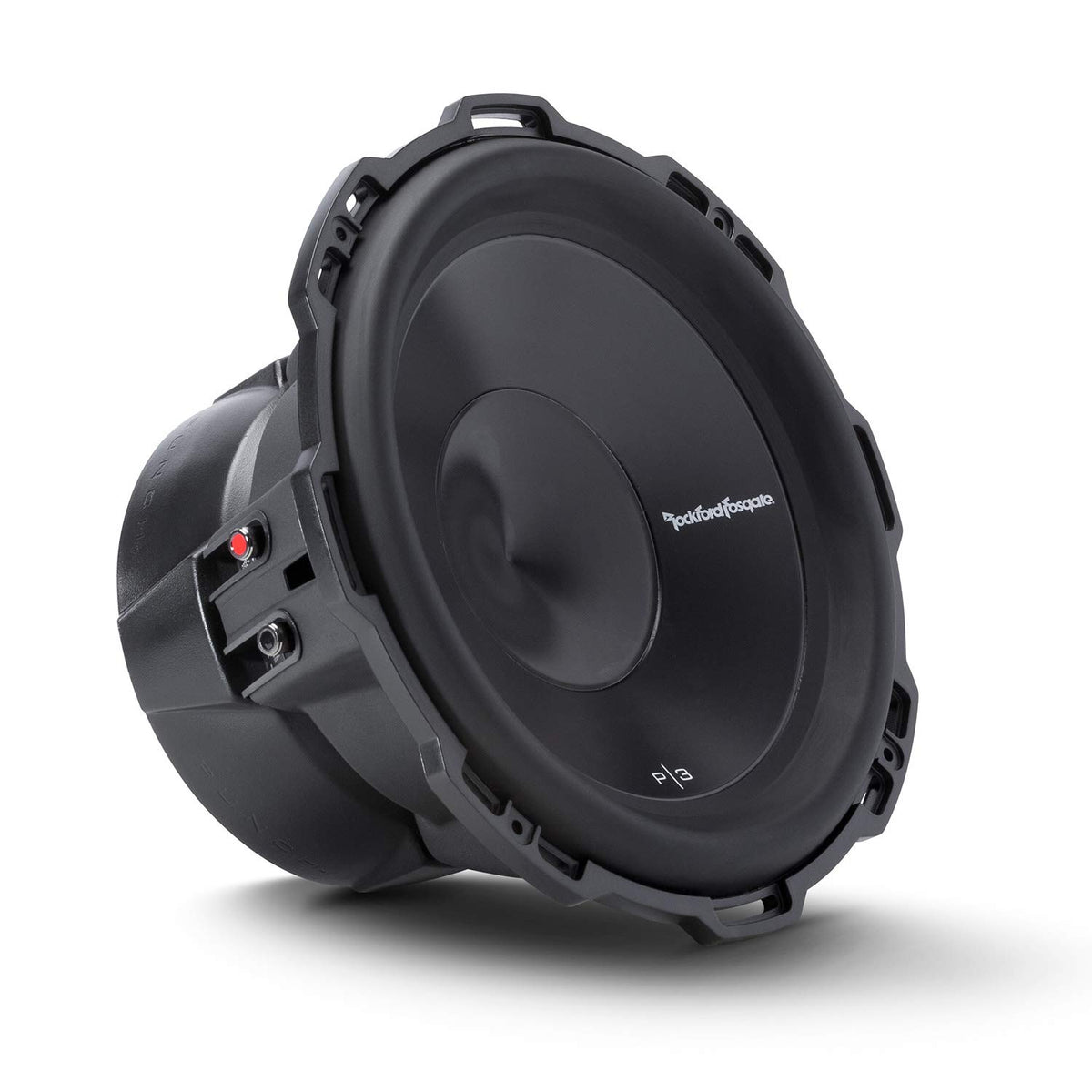

Rockford Fosgate P3D4-12 12" Dual 4-Ohm Subwoofer

The Rockford Fosgate P3D4-12 is a 12-inch dual 4-ohm voice coil subwoofer designed to add controlled low-frequency output to a car audio system. Its dual-coil configuration provides wiring flexibility for matching a compatible mono or multi-channel amplifier. It is suited to listeners building a dedicated bass system or upgrading an existing subwoofer enclosure.

With a 600-watt RMS power rating and 1,200-watt maximum rating, this subwoofer is intended for amplified installations rather than direct connection to a factory radio. Its stated frequency response reaches from 28 Hz to 250 Hz for bass-focused playback. The 85 dB sensitivity specification and 12-inch cone make it appropriate for systems designed around solid, sustained low-end output.

The P3D4-12 uses an anodized aluminum cone and dustcap with a Santoprene rubber surround. This combination is built to support cone control and durability during high-excursion bass reproduction. A 2.5-inch, four-layer high-temperature voice coil is reinforced with a spun-laced Nomex collar.

Rockford Fosgate incorporates a StampCast hybrid basket, integrated spider venting, and an extended pole piece with a bumped vented backplate. These design elements are intended to support structural rigidity and motor cooling. The VAST surround design increases effective cone area compared with a conventional surround attachment.

This subwoofer can be used in sealed or vented enclosures depending on the desired system response and available vehicle space. A sealed box offers a compact installation path, while the recommended vented design is tuned for stronger output around its port tuning frequency. Its dual 4-ohm coils can be wired in series or parallel to create an 8-ohm or 2-ohm nominal load for a compatible amplifier.

Key Features

• 600-Watt RMS Rating: Supports amplifier matching for sustained bass playback.
• Dual 4-Ohm Voice Coils: Allows 2-ohm or 8-ohm wiring configurations.
• Anodized Aluminum Cone: Provides a rigid diaphragm for bass reproduction.
• StampCast Hybrid Basket: Combines strength with reduced resonance and weight.
• Spider Venting: Helps move air around the motor structure.
• 10-AWG Push Terminals: Accommodate substantial speaker wire for secure connections.

Design & Installation

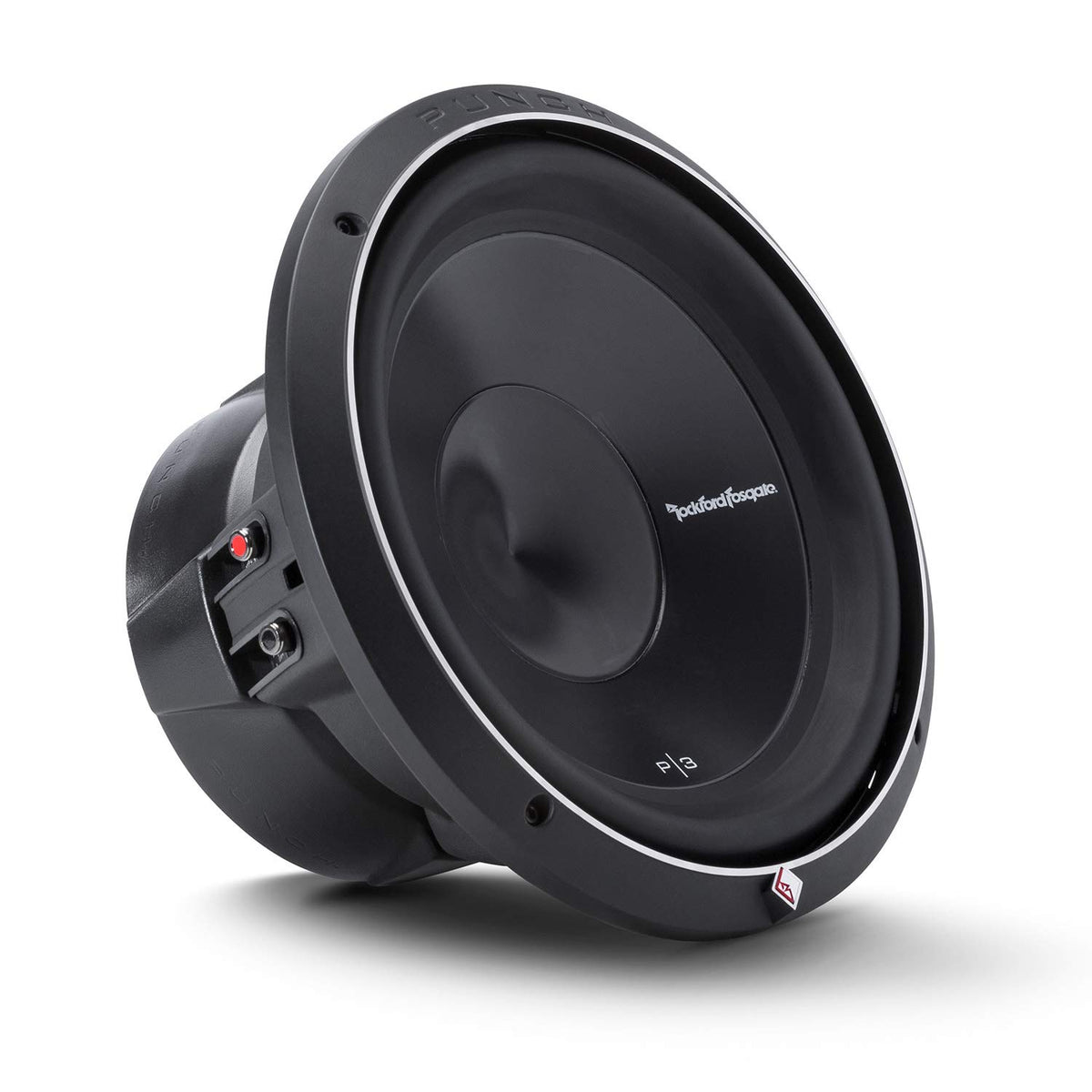

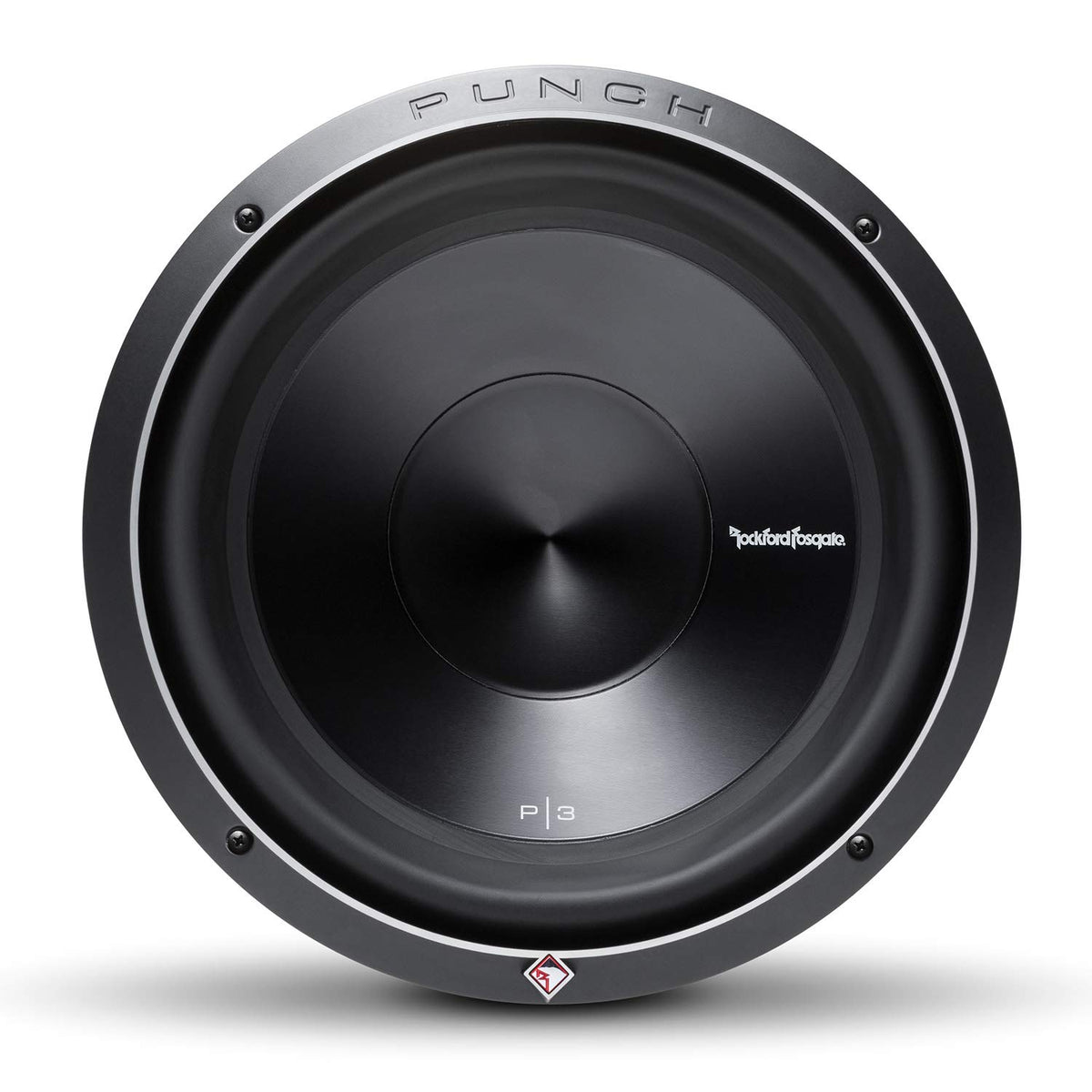

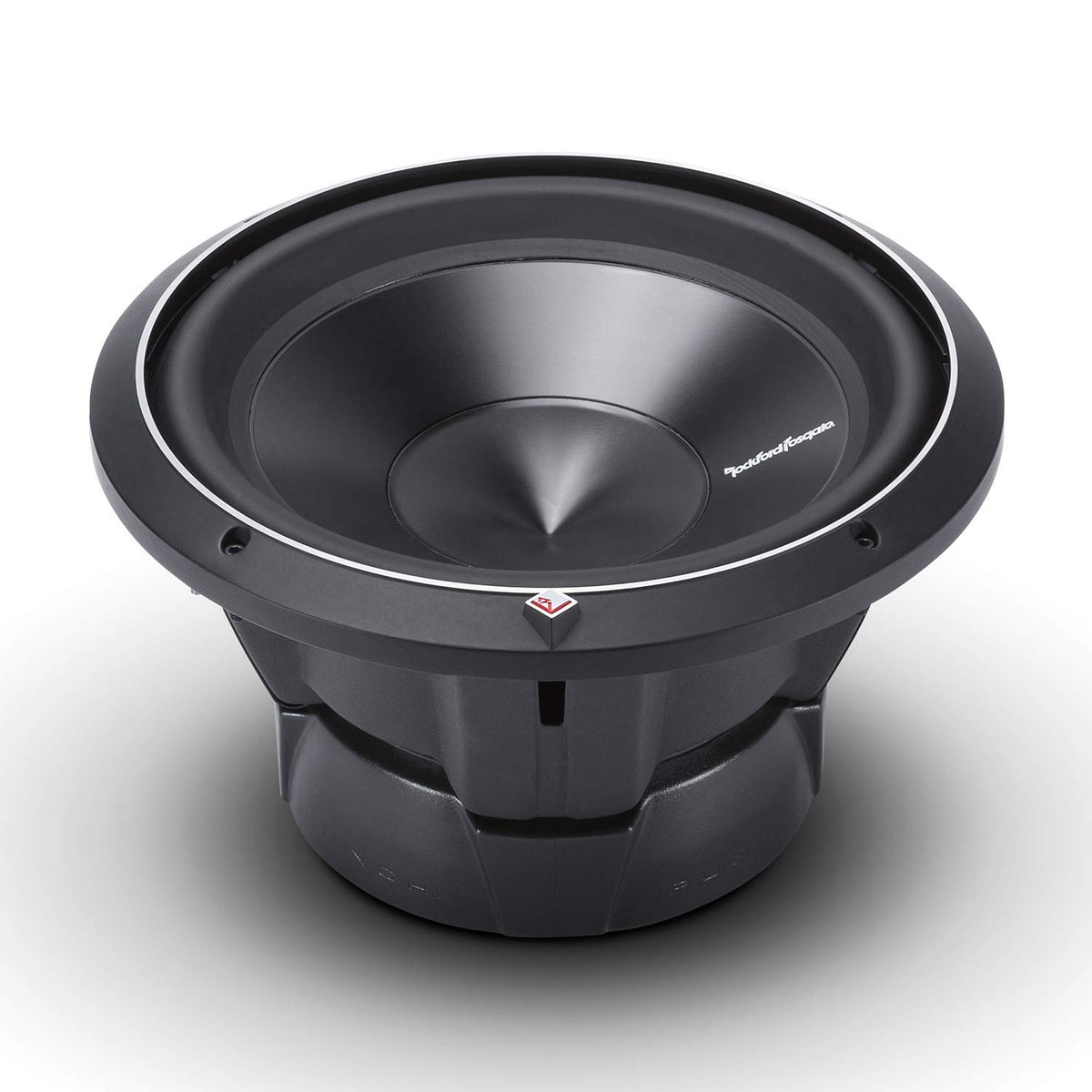

The P3D4-12 uses an anodized aluminum cone and dustcap, Santoprene surround, dual linear spiders, and a protective PVC-textured magnet cover. Its high-temperature, four-layer voice coil uses a spun-laced Nomex reinforcement collar, while the basket integrates venting around the spider area. A diamond-cut cast-aluminum trim ring is included, and the design accepts an optional grille.

Allow for an 11.25-inch cutout and 6.66-inch mounting depth, plus sufficient clearance behind the motor and terminals. Rockford Fosgate specifies a 0.75 to 1.25 cubic-foot sealed enclosure range or a 1.79 cubic-foot optimum vented enclosure; enclosure volume should account for driver and port displacement. Use an amplifier and wiring configuration compatible with the final 2-ohm or 8-ohm nominal load, and use a subsonic filter with a vented enclosure.
