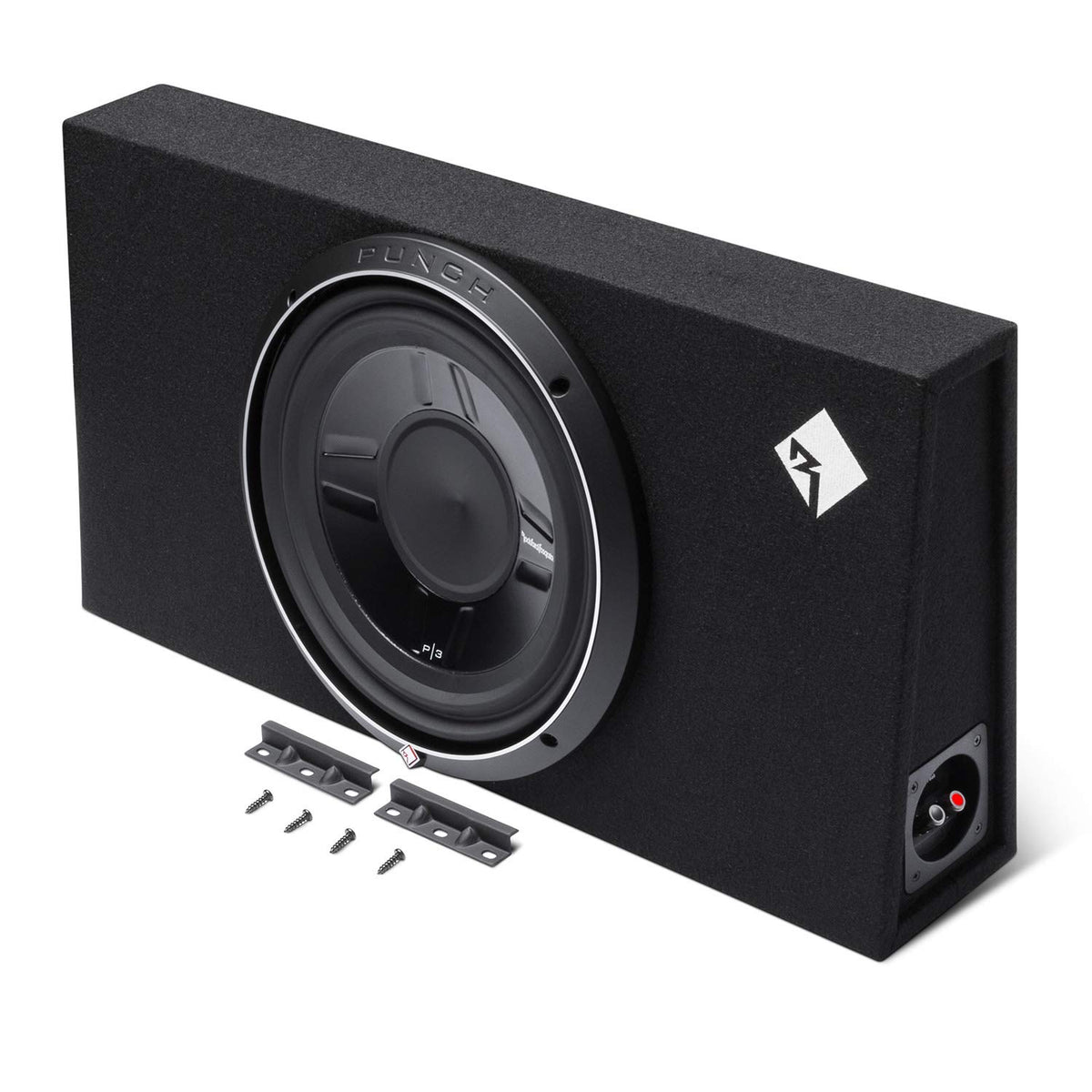

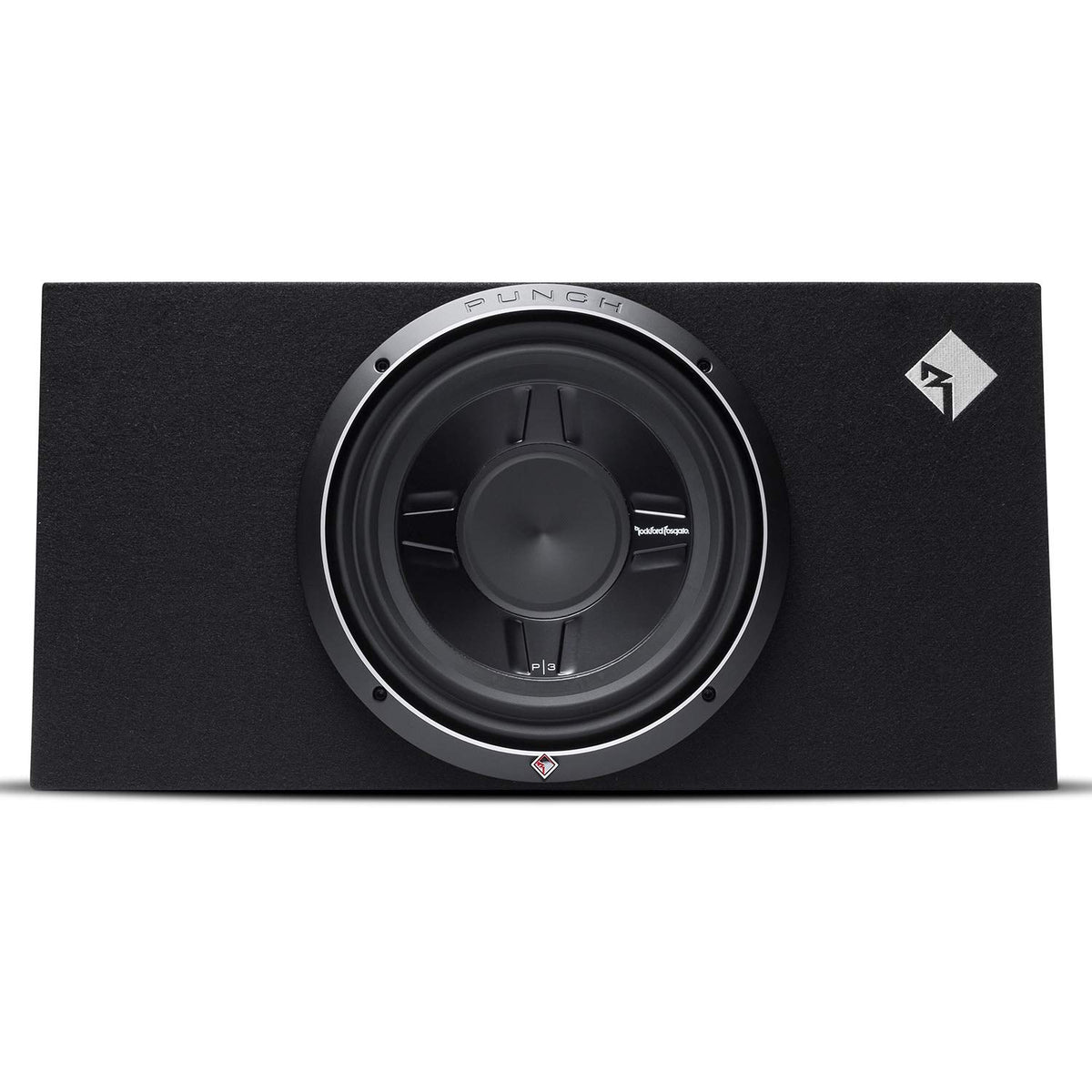

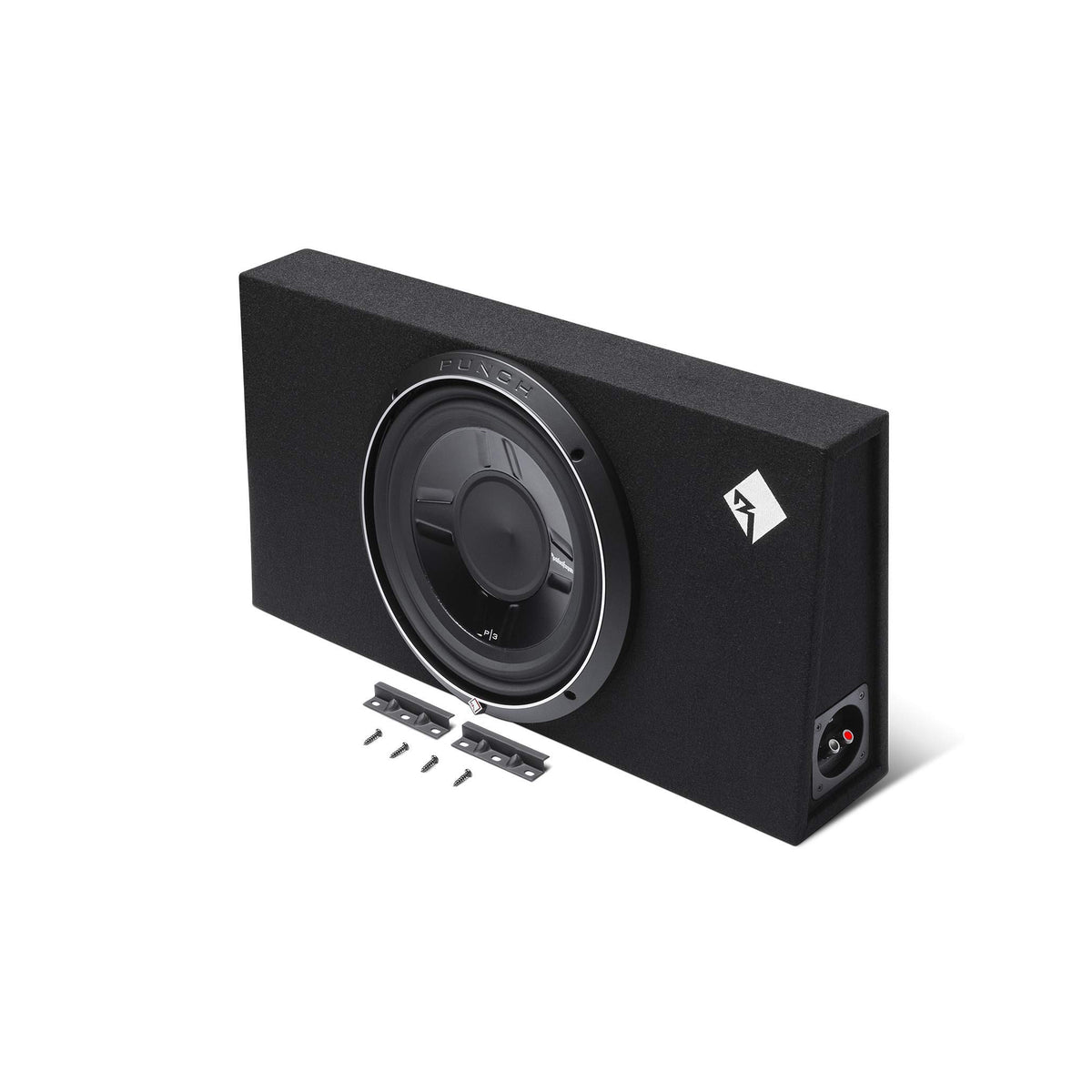

Rockford Fosgate P3S-1X12 12" Shallow Loaded Subwoofer

The Rockford Fosgate P3S-1X12 is a loaded 12-inch shallow subwoofer enclosure designed for vehicles with limited mounting depth. Its sealed, slim wedge enclosure is well suited to locations such as behind a truck seat or other space-restricted areas. The enclosure arrives with its subwoofer installed and internally wired, simplifying the bass upgrade process.

This system uses one Punch P3 shallow-mount dual voice coil subwoofer and presents a final 1-ohm load. It is rated for 400 watts RMS and 800 watts peak power handling. Pair it with an amplifier that is stable at 1 ohm and appropriately rated for the enclosure's continuous power capability.

The sealed enclosure design is intended for controlled, accurate low-frequency reproduction rather than the character of a vented box. A 12-inch driver provides meaningful cone area while the shallow motor design helps keep the enclosure depth low. This makes it a practical choice for drivers who need bass without dedicating a large portion of the cabin or cargo area.

The loaded P3SD2-12 subwoofer uses an anodized aluminum cone, Santoprene surround, dual linear spiders, and a shallow motor assembly. Its 2.5-inch high-temperature voice coil and integrated spider venting support sustained operation within its rated power range. The enclosure is internally configured from the driver's dual 2-ohm voice coils to a 1-ohm final impedance.

The P3S-1X12 can be used as the dedicated low-frequency section of an aftermarket car-audio system. It requires a compatible external amplifier, speaker wire, and secure vehicle mounting. Its compact wedge profile helps it integrate into trucks and other vehicles where a conventional deep subwoofer enclosure is impractical.

Key Features

• Shallow 12-Inch Design: Fits applications with limited enclosure depth.
• Loaded Sealed Enclosure: Provides a pre-installed subwoofer and enclosure.
• 1-Ohm Final Load: Internally wired for compatible 1-ohm-stable amplifiers.
• 400-Watt RMS Rating: Supports properly matched continuous amplifier power.
• Anodized Aluminum Cone: Combines rigidity with low moving mass.
• 5/8-Inch MDF Cabinet: Adds a durable foundation for the enclosure.

Design & Installation

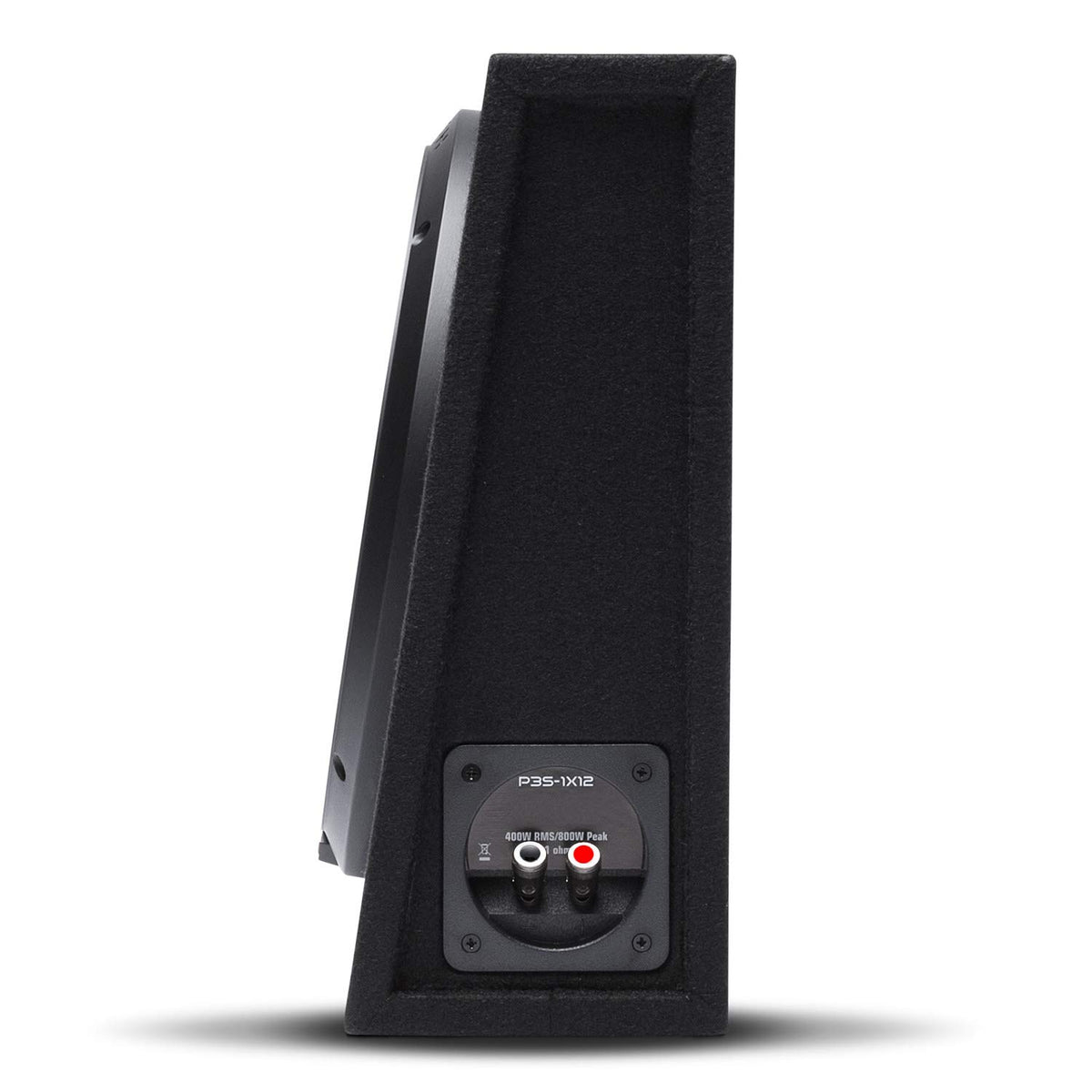

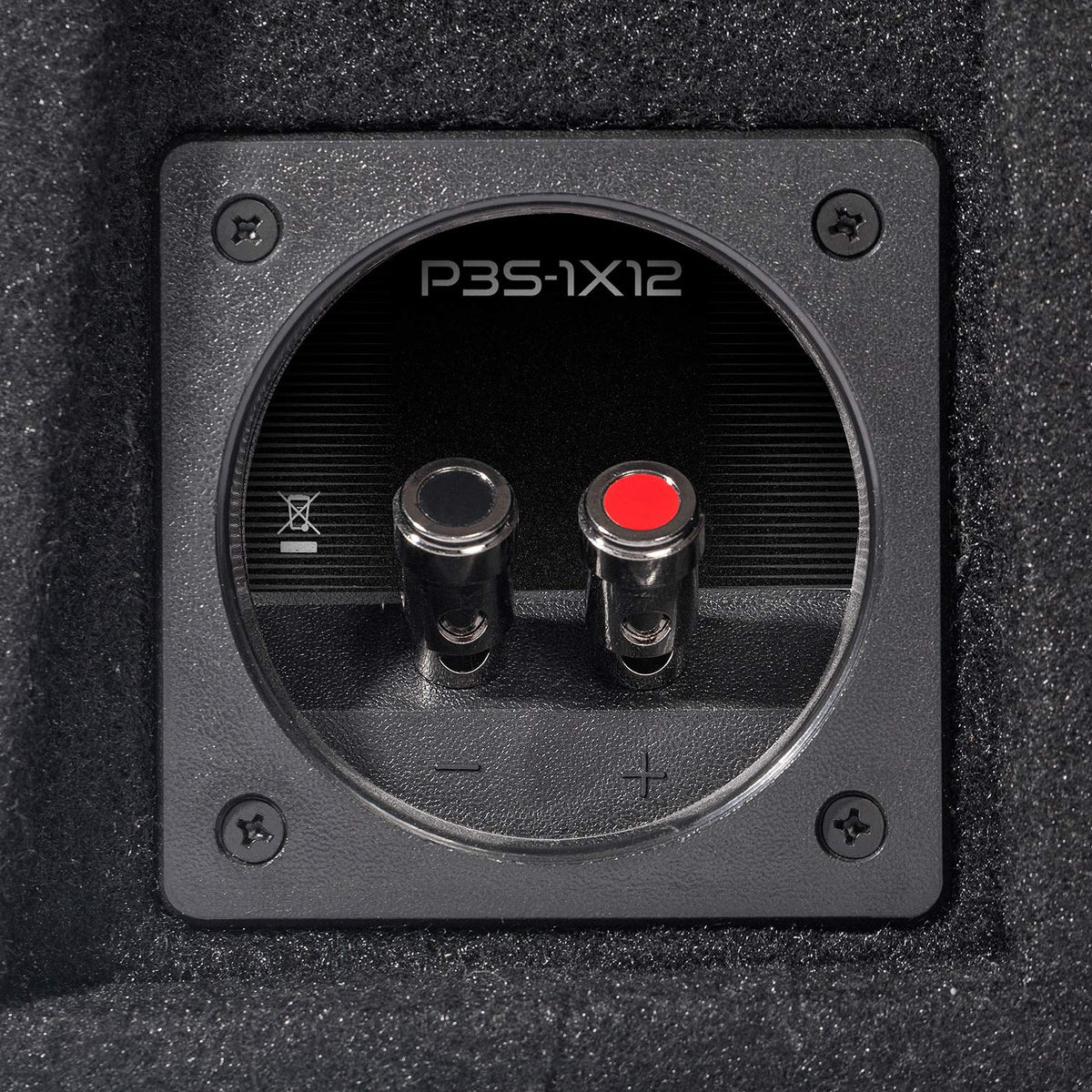

The P3S-1X12 uses a sealed slim-line wedge enclosure constructed from 5/8-inch MDF and finished in black carpet. It includes a stitched Diamond-R logo, a single input terminal connection, and quick-release 10 AWG input terminals. The installed P3SD2-12 driver includes a StampCast basket, integrated spider venting, a cast-aluminum trim ring, and a shallow magnet motor structure.

Measure the intended location before purchase, allowing for the enclosure's 13.5-inch height, 27.375-inch width, and wedge depth. Secure the enclosure to the vehicle using appropriate mounting hardware so it cannot shift during driving. Connect it only to an amplifier rated to operate safely at a 1-ohm load, and set gain and crossover controls carefully to avoid exceeding its 400-watt RMS rating.
