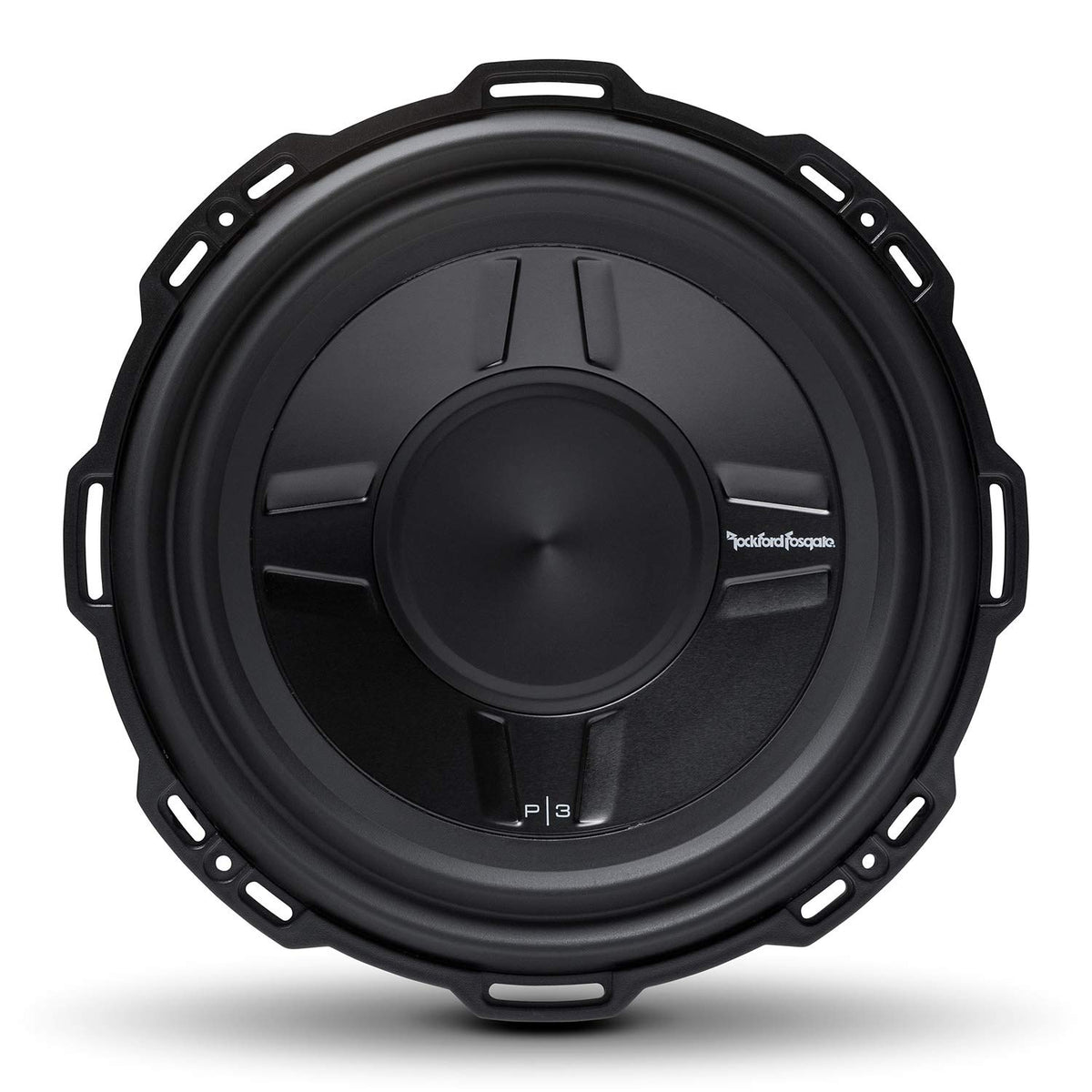

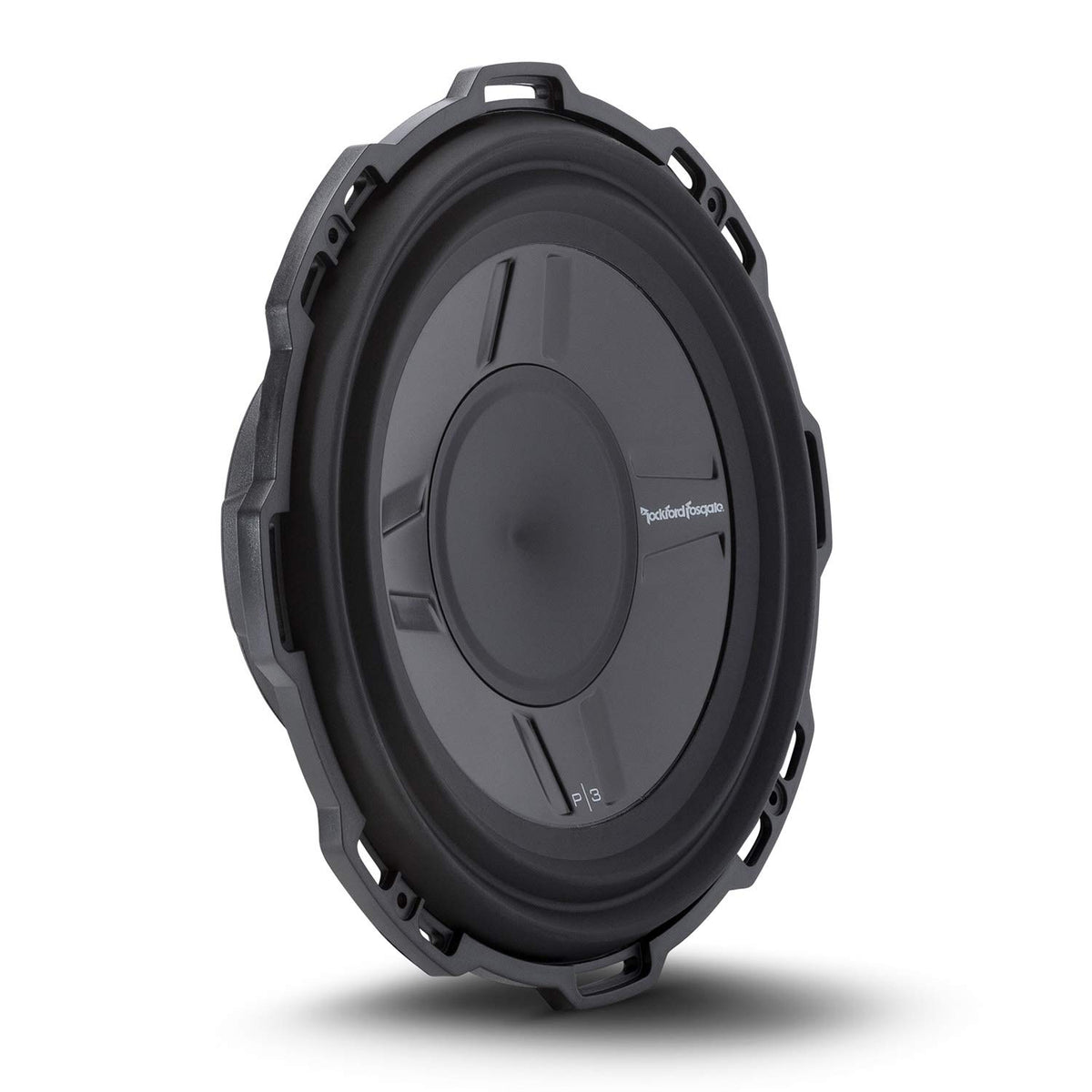

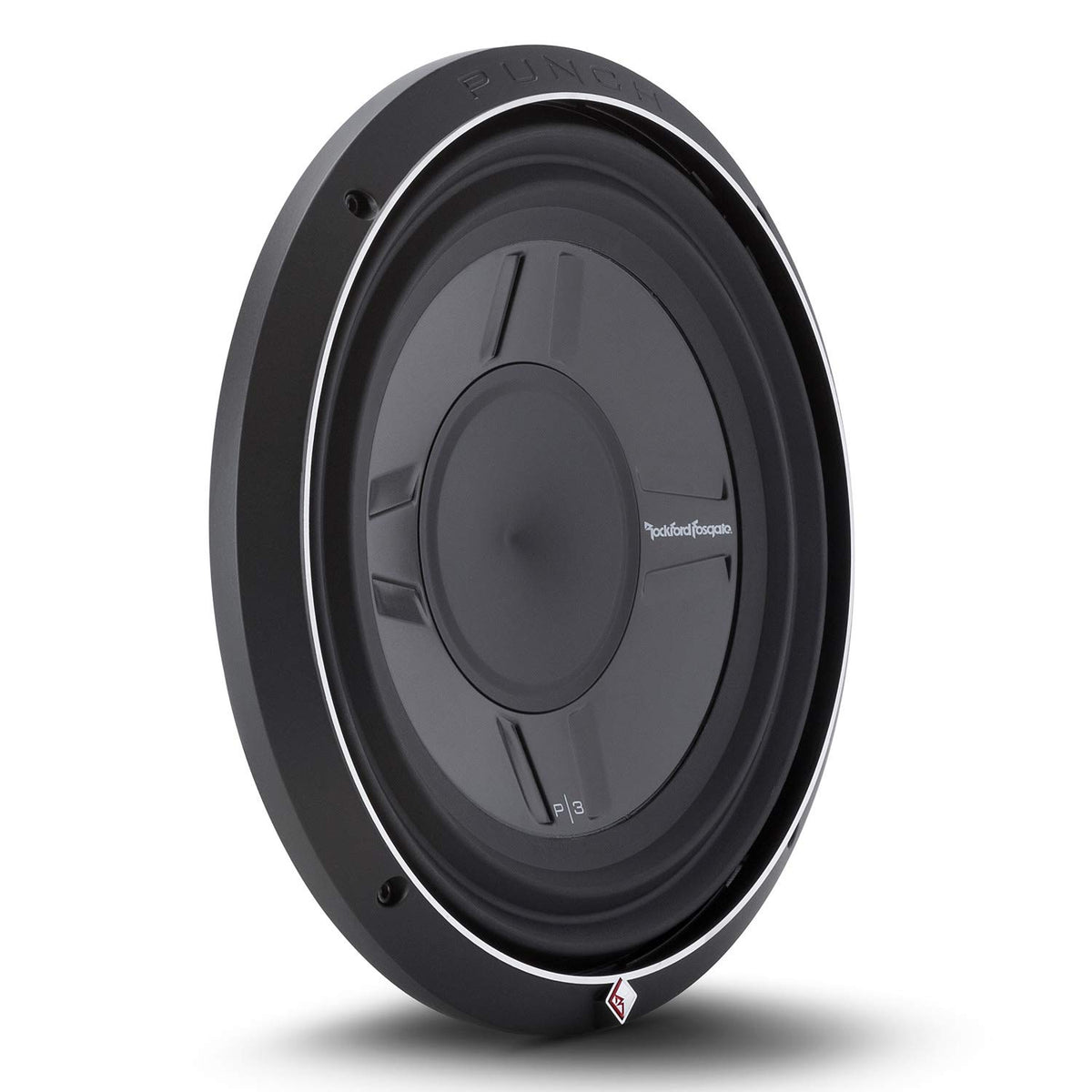

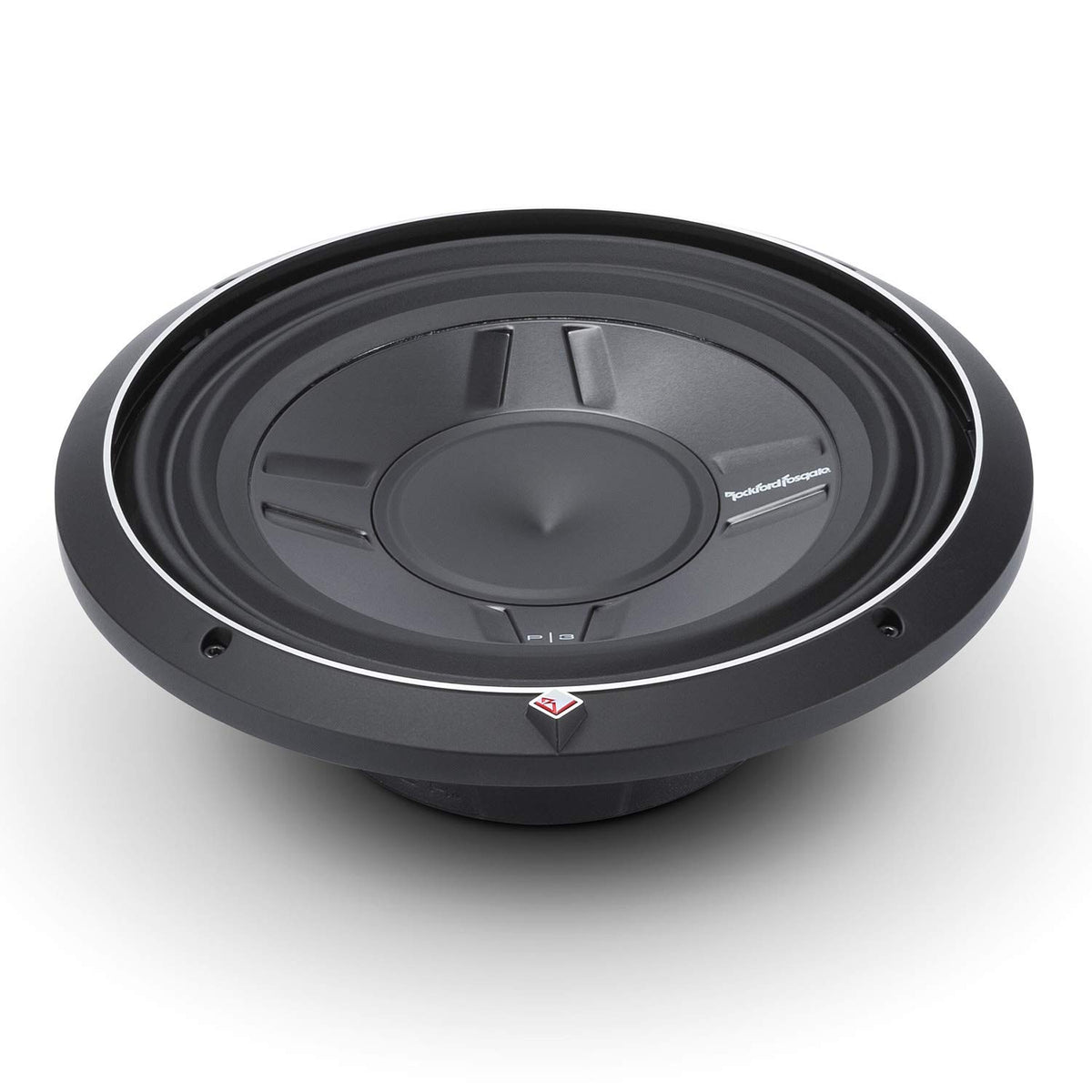

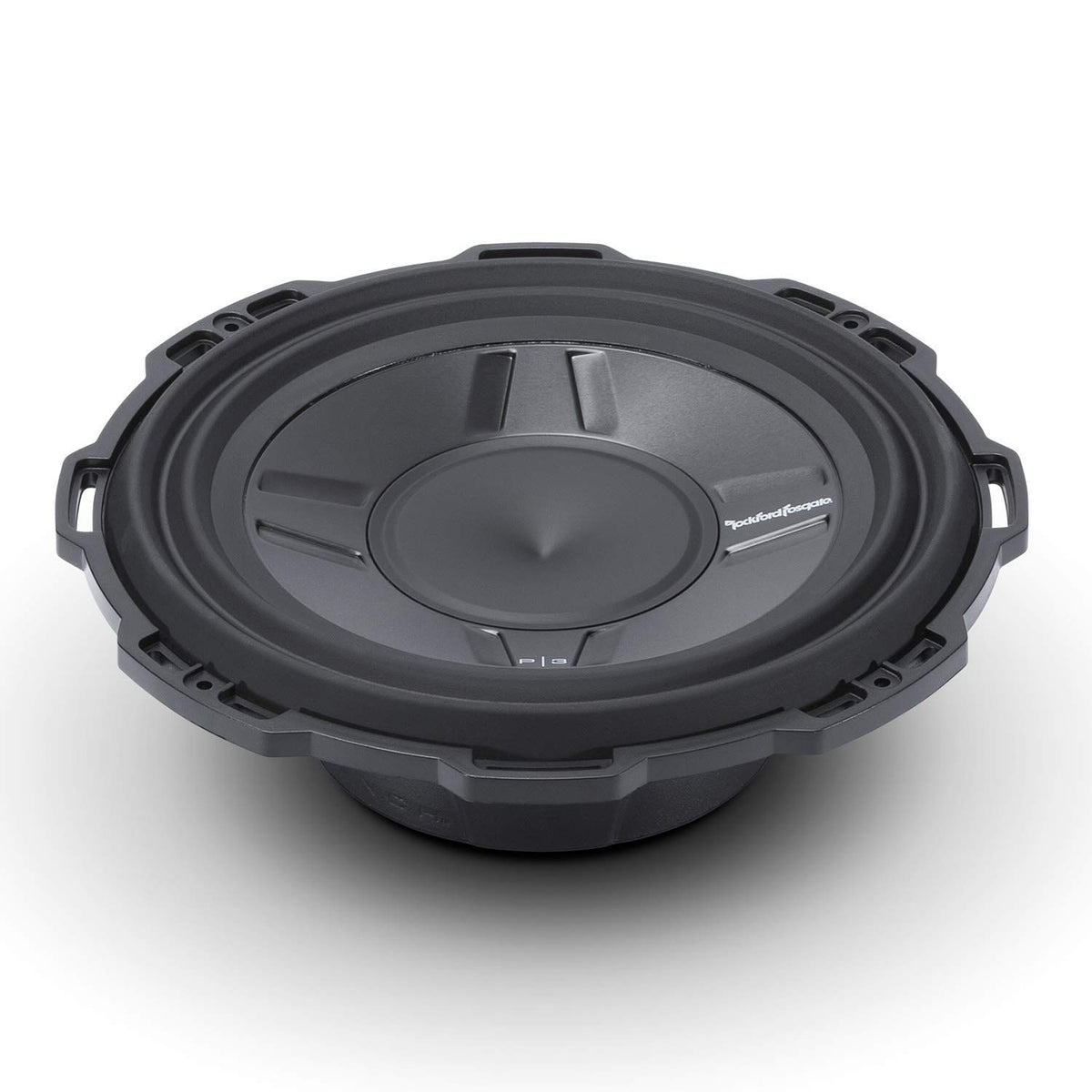

Rockford Fosgate P3SD4-12 12" Shallow DVC Subwoofer

The Rockford Fosgate P3SD4-12 is a 12-inch shallow-mount car subwoofer designed to add substantial low-frequency output where conventional deep subwoofers will not fit. Its low-profile mounting depth helps make bass upgrades practical in trucks, compact vehicles, and custom enclosures with limited behind-panel space. Dual 4-ohm voice coils provide wiring flexibility for matching a compatible mono or multi-channel amplifier.

Rated for 400 watts RMS and 800 watts maximum power, this Punch P3S model is intended for systems that need controlled, full-bodied bass without requiring an oversized enclosure. Its 34-250 Hz frequency response supports the low bass and upper-bass range typically handed off by a subwoofer crossover. The 85 dB sensitivity specification and 12-inch cone area make it suitable for a properly matched amplified system.

The P3SD4-12 uses an anodized aluminum cone and aluminum dustcap to provide a rigid moving surface, while the M-Roll Santoprene surround supports cone movement. A dual linear spider and aluminum voice-coil former are part of the motor and suspension assembly. These components are designed to support stable operation in a compact shallow-mount format.

Rockford Fosgate uses a StampCast basket with integrated spider venting to help manage airflow around the motor structure. The shallow motor assembly preserves installation clearance while maintaining a 2.5-inch, 4-layer voice coil. Custom 10-AWG nickel-plated push terminals simplify connection of appropriately sized speaker wire.

This subwoofer can be used in either a sealed or vented enclosure, letting the installer choose between compact sealed-box behavior or the increased output available from a properly tuned ported design. A 1.00 cubic-foot sealed enclosure is the published recommendation, while the recommended vented enclosure volume is 1.25 cubic feet. Pair it with an amplifier and enclosure designed around its final wired impedance and 400-watt RMS rating.

Key Features

• Shallow-Mount 12-Inch Design: Fits systems where mounting depth is limited.
• Dual 4-Ohm Voice Coils: Supports 2-ohm or 8-ohm single-sub wiring options.
• 400-Watt RMS Rating: Matches appropriately sized subwoofer amplification.
• Anodized Aluminum Cone: Provides a rigid, lightweight cone surface.
• Integrated Spider Venting: Helps move air around the motor assembly.
• Sealed Or Vented Compatible: Allows enclosure tuning for installation goals.

Design & Installation

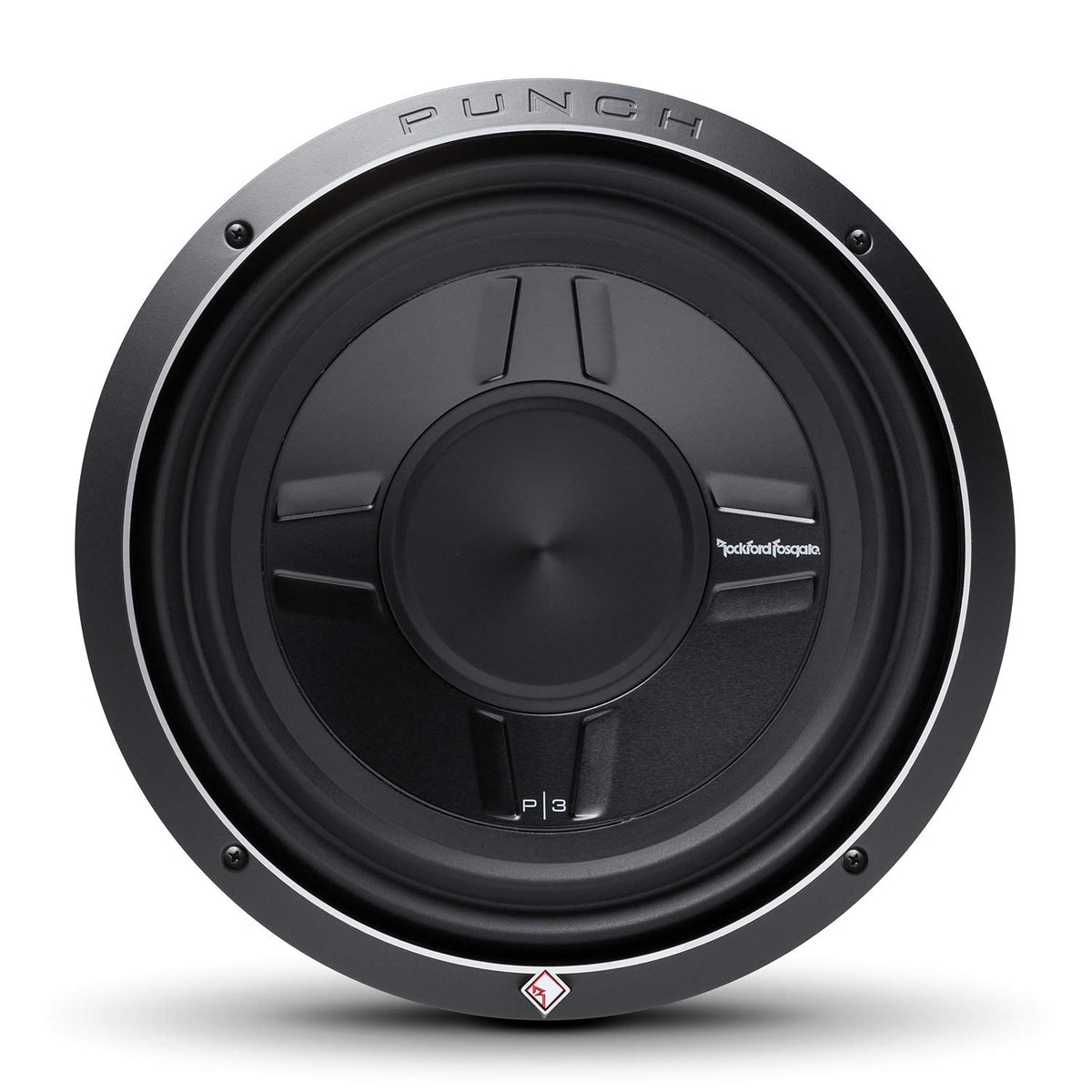

The P3SD4-12 combines an anodized aluminum cone and dustcap, M-Roll Santoprene surround, dual linear spider, and aluminum voice-coil former. Its StampCast basket is built with integrated spider venting, and the subwoofer includes a diamond-cut cast-aluminum trim ring. The assembly is engineered around a shallow 3.65-inch mounting depth.

Confirm that the enclosure has at least an 11.22-inch cutout and sufficient mounting clearance before installation. For a sealed build, use the published 1.00 cubic-foot recommendation or the 0.60-1.20 cubic-foot recommended range; for a vented build, use the 1.25 cubic-foot recommendation with the specified port configuration. Set amplifier gain conservatively, use a low-pass crossover, and use a subsonic filter with a vented enclosure.
