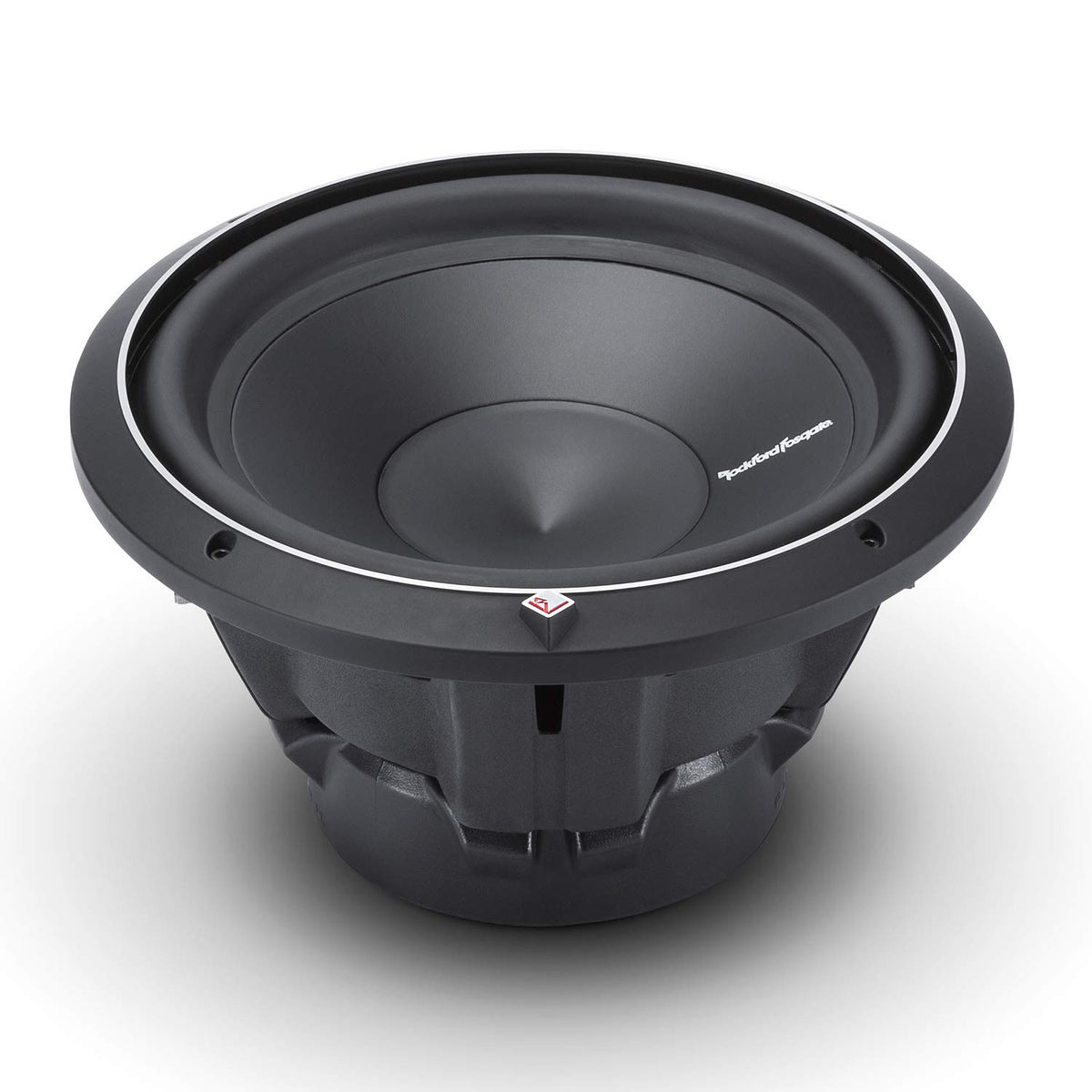

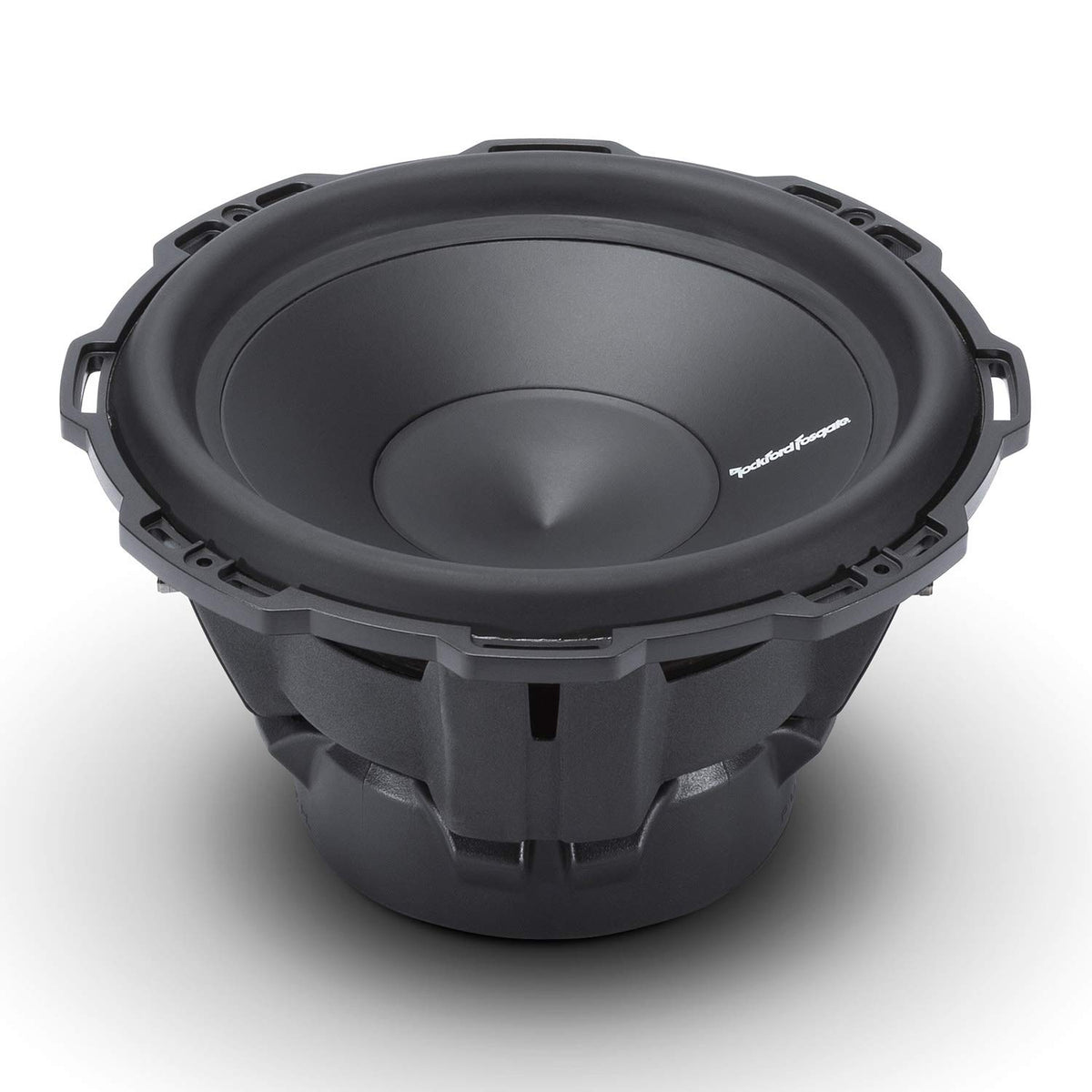

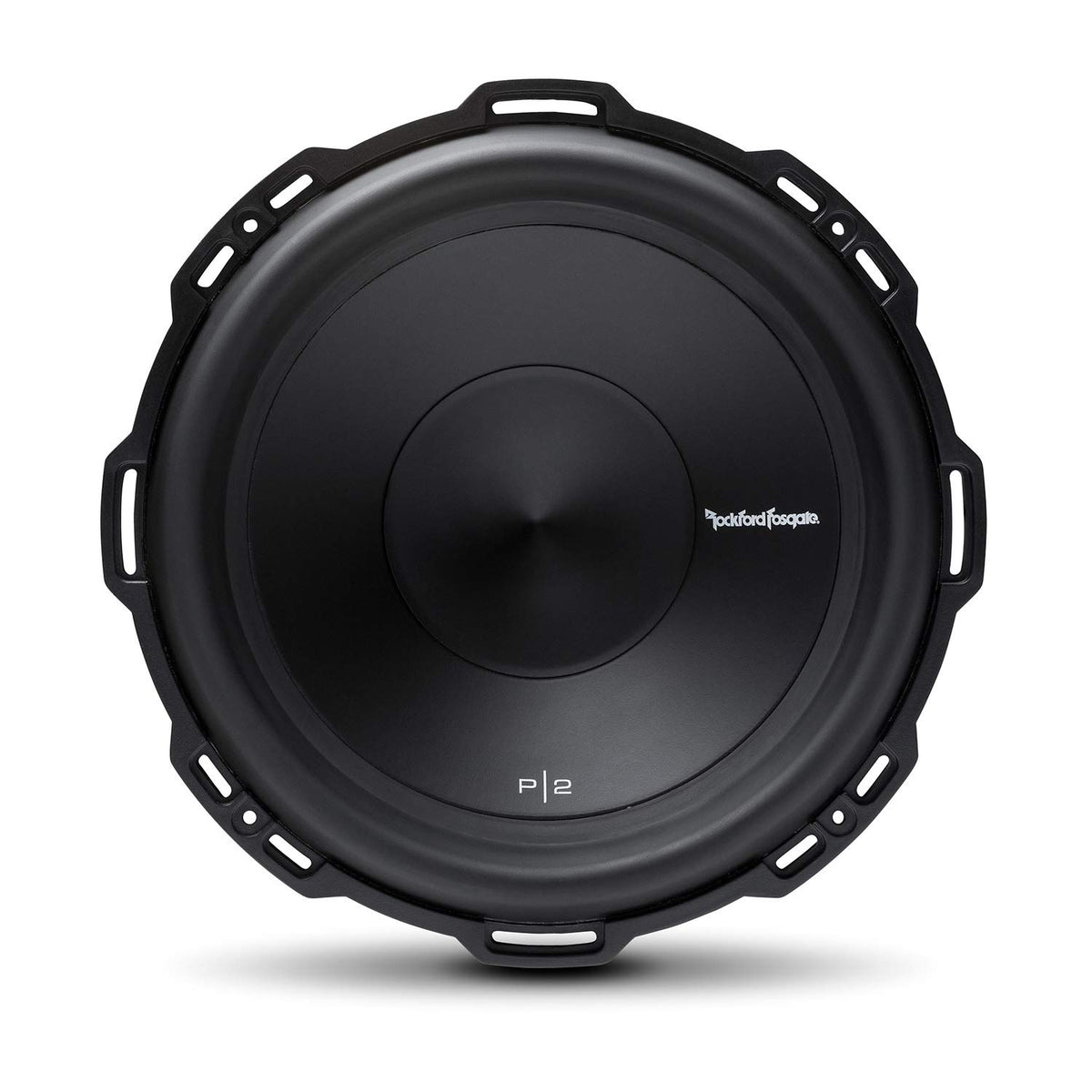

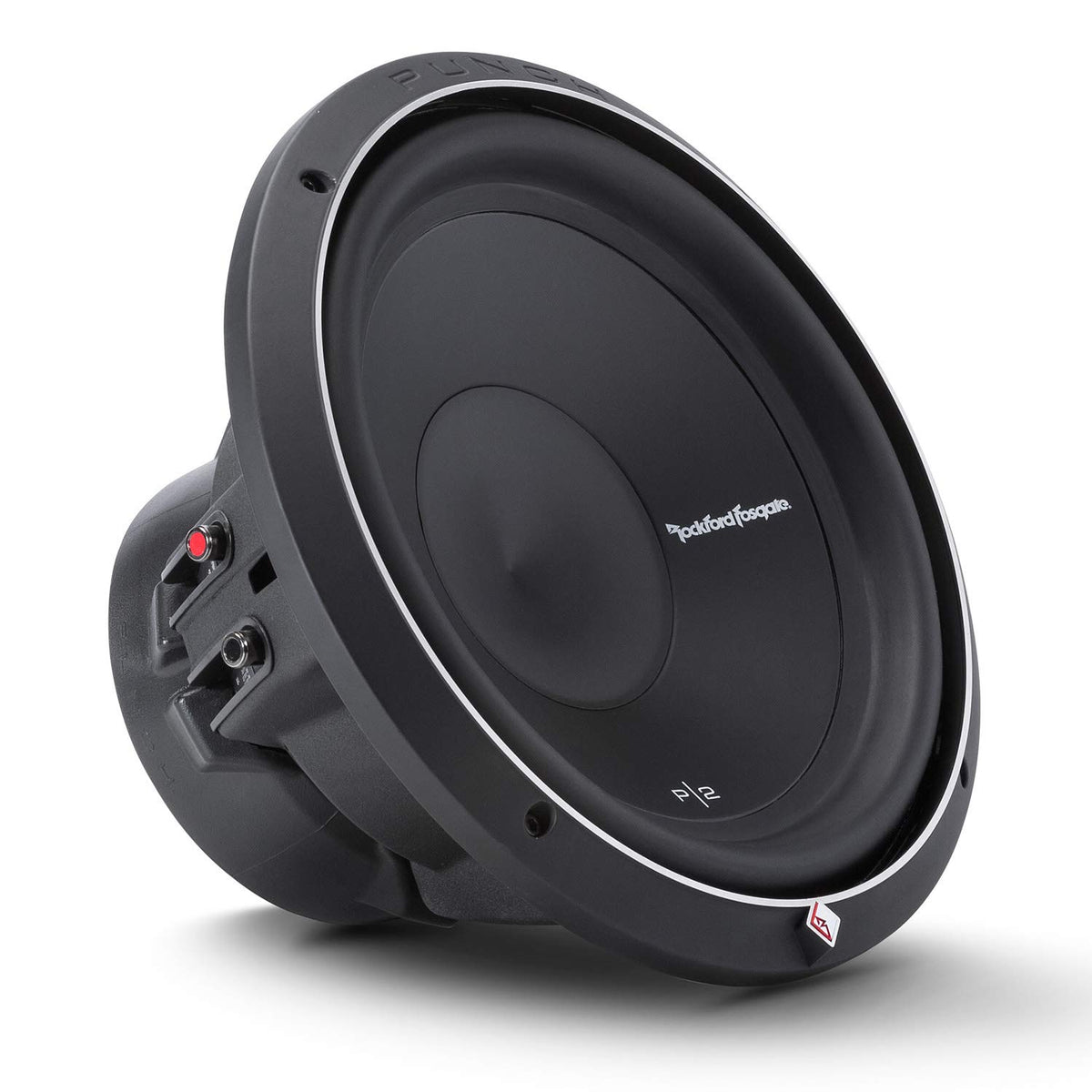

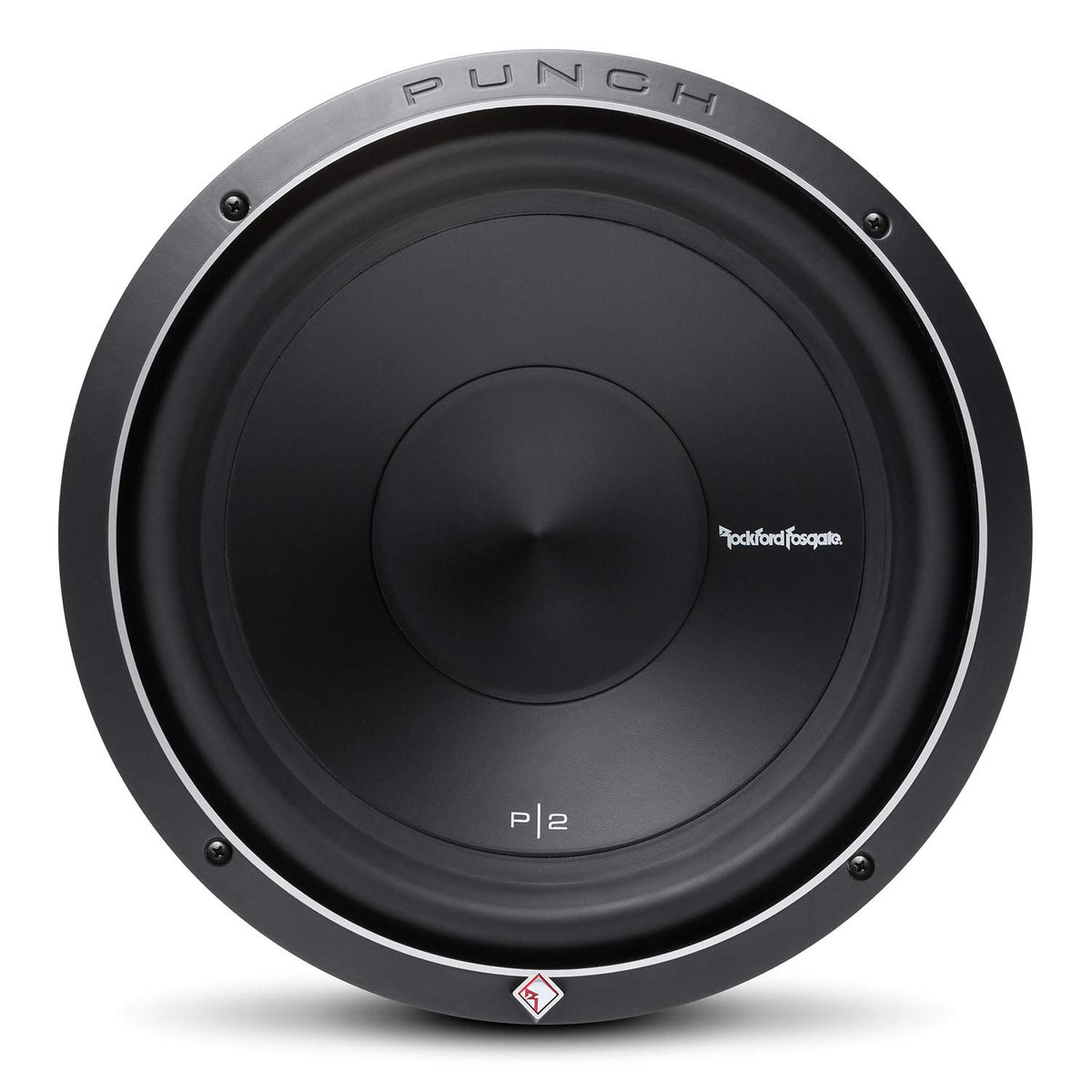

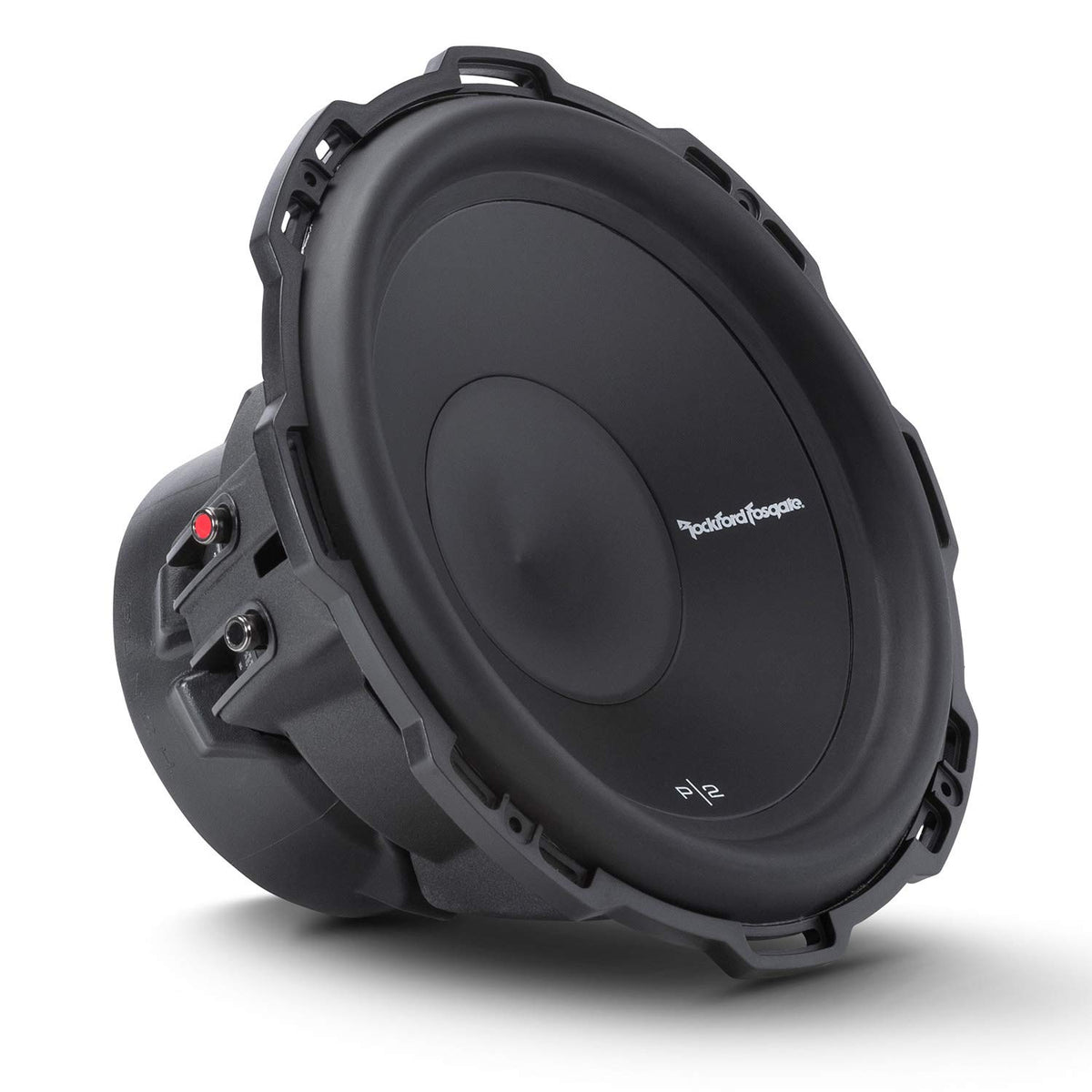

Rockford Fosgate P2D4-12 12" Dual 4-Ohm Subwoofer

The Rockford Fosgate P2D4-12 is a 12-inch dual-4-ohm car subwoofer designed to add dedicated low-frequency output to an aftermarket audio system. Its 400-watt RMS power rating makes it appropriate for systems that need more bass capacity than factory speakers can provide. The dual voice coil design gives installers flexibility when matching the subwoofer to a compatible amplifier load.

This Punch P2 model is intended for listeners building a focused bass upgrade in a car, truck, or SUV. It can be used in either a sealed or vented enclosure, allowing the enclosure choice to be based on available space and the desired system response. A properly matched amplifier and enclosure are important for realizing its rated performance.

The P2D4-12 uses a Kevlar-reinforced paper-pulp cone and a tall-profile VAST Santoprene surround. This combination is engineered to support controlled cone movement while increasing effective radiating area. Its 2.25-inch, four-layer voice coil is designed for thermal durability at its rated power range.

Rockford Fosgate incorporates a vented motor structure and proprietary spider venting to help move heat away from the voice coil assembly. The subwoofer also uses dual poly-cotton spiders, stitched flexible lead wires, and a bumped vented backplate. These construction details support repeated cone travel in a vehicle audio environment.

For a straightforward single-subwoofer build, the P2D4-12 can be paired with an amplifier that delivers power within its 400-watt RMS rating at the final wired impedance. Its recommended sealed enclosure volume is 1.02 cubic feet, while the recommended vented enclosure volume is 1.79 cubic feet. The mounting dimensions should be checked against the selected enclosure before installation.

Key Features

• 400-Watt RMS Handling: Supports amplifier matching for sustained bass output.
• Dual 4-Ohm Voice Coils: Provides wiring flexibility for compatible amplifiers.
• Kevlar-Reinforced Paper Cone: Supports durable, controlled low-frequency reproduction.
• VAST Santoprene Surround: Increases effective cone area and supports excursion.
• Spider Plateau Venting: Helps cool the voice coil during operation.
• 10-AWG Compression Terminals: Accept substantial speaker wire for secure connections.

Design & Installation

The P2D4-12 uses a sturdy 16-gauge compound-bend frame, a semi-flexible PVC protective motor cover, and a die-cast aluminum trim ring. Its cone is reinforced paper pulp, while the surround is Santoprene and the voice coil uses a Nomex insulating reinforcement collar. The FlexFit mounting pattern is designed to assist with fitment during installation.

Allow for a 6.40-inch mounting depth and an 11.22-inch cutout diameter when planning the enclosure. Rockford Fosgate specifies a 1.02-cubic-foot sealed enclosure or a 1.79-cubic-foot vented enclosure for this model; the vented recommendation uses a 4-inch-diameter, 11.8-inch-long port. Select an amplifier and wire the dual 4-ohm coils only to a final impedance the amplifier is rated to drive.
