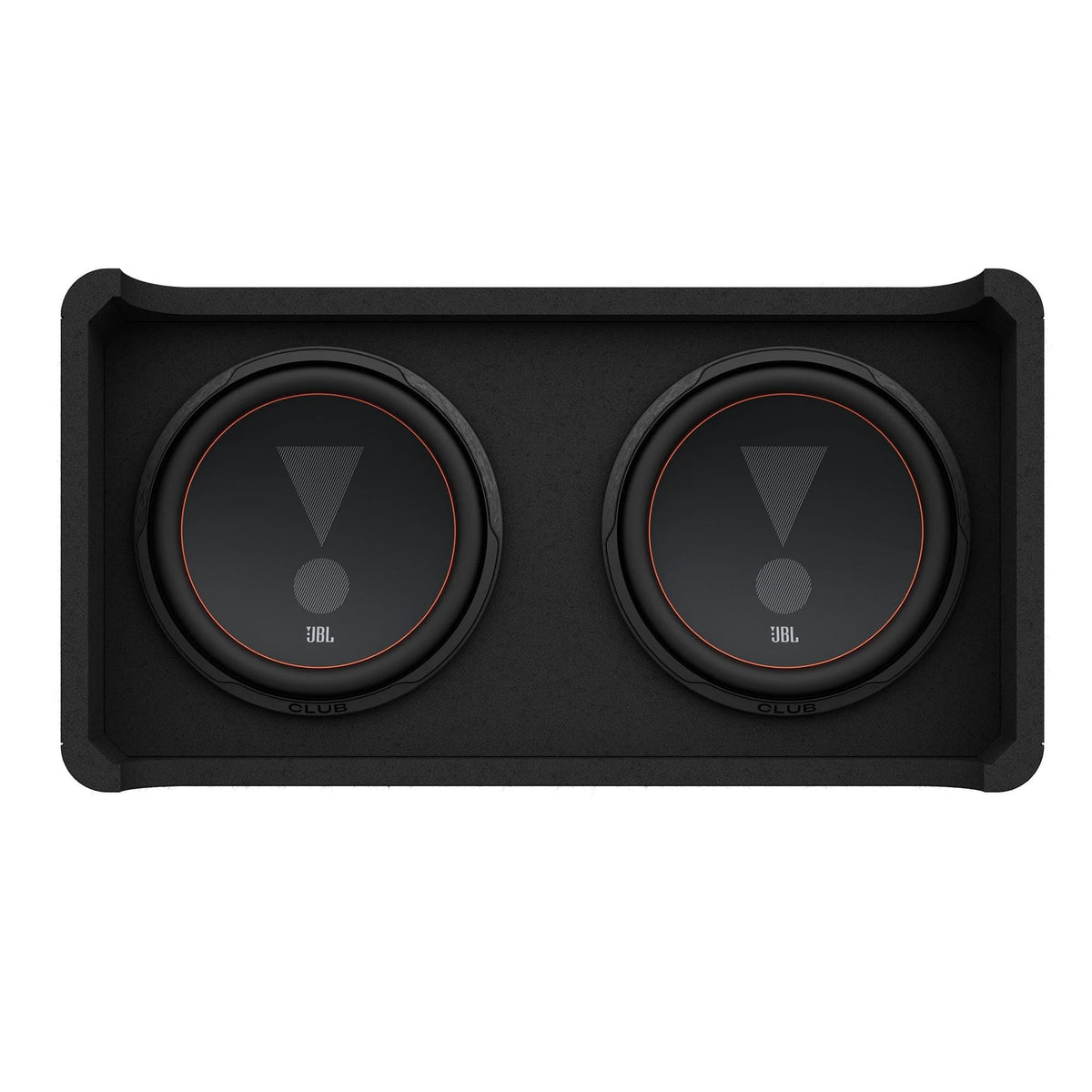

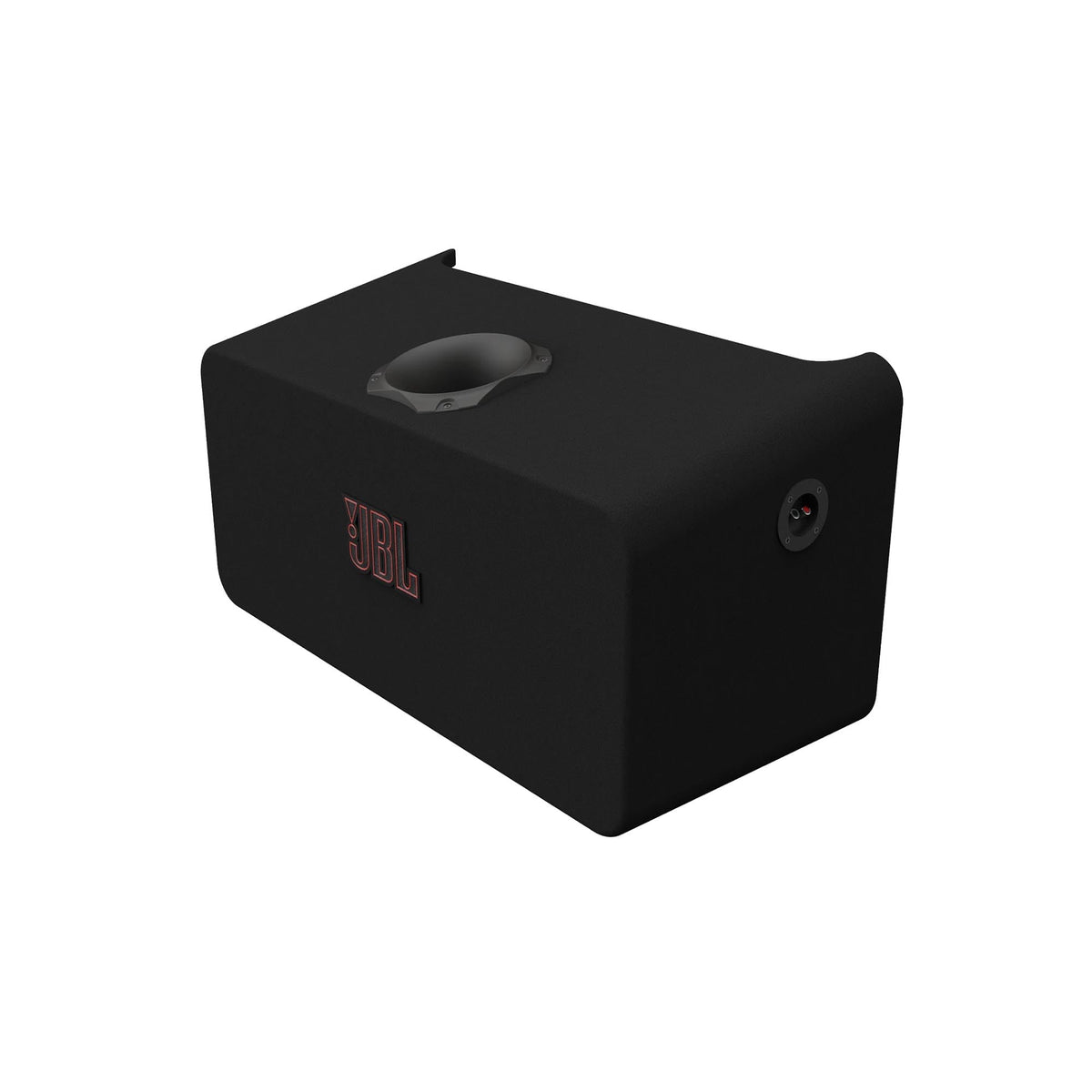

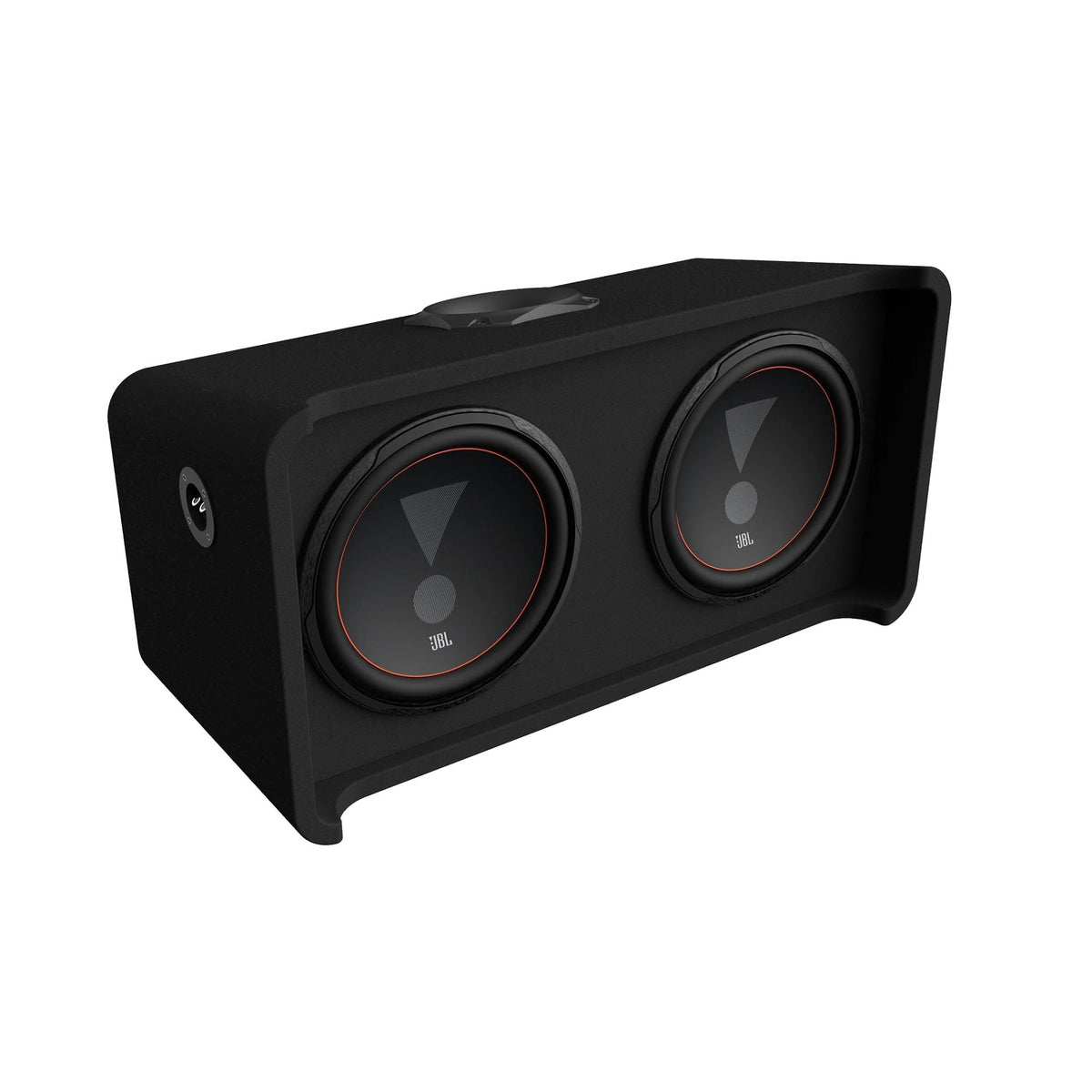

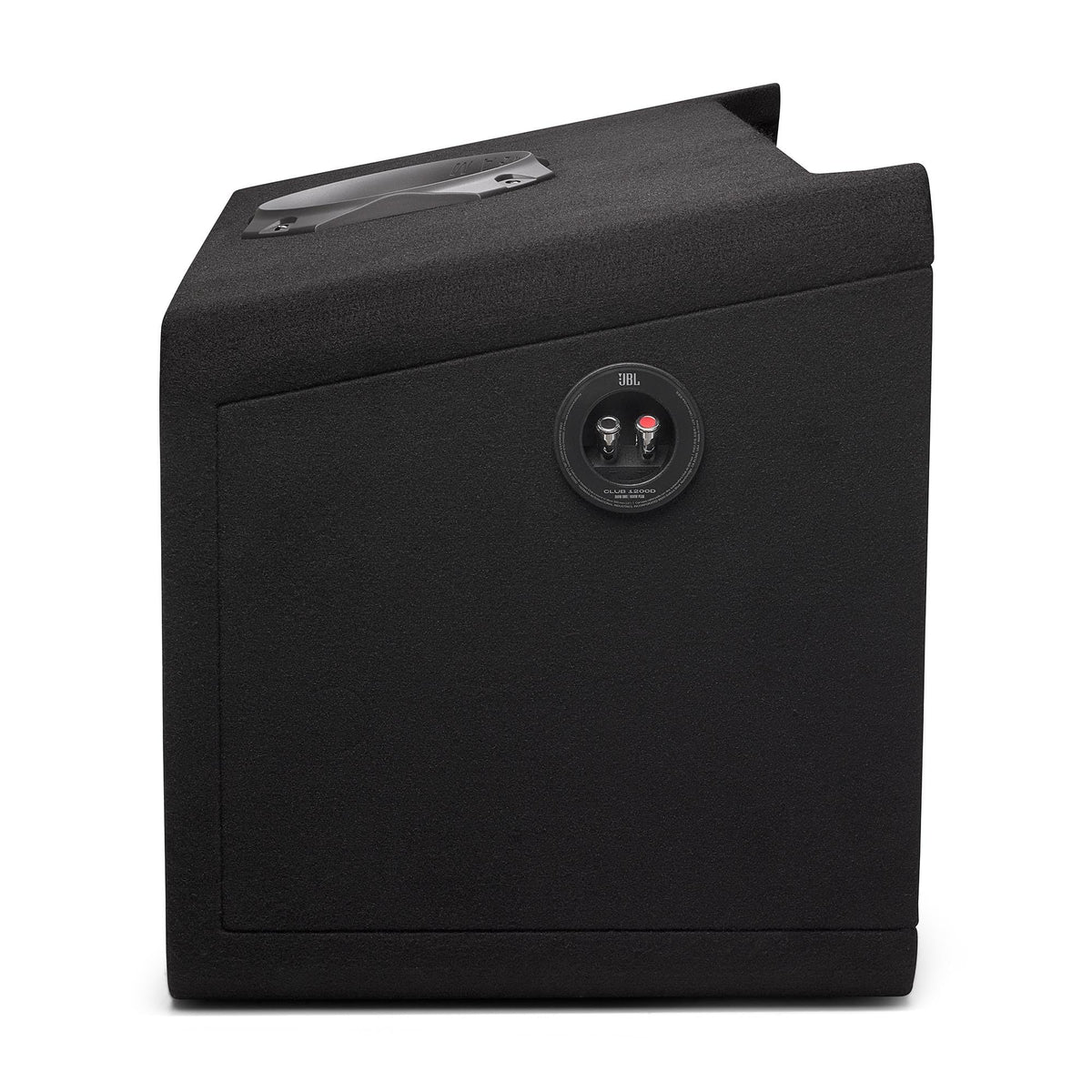

JBL JBLSUBCB1200D Dual 12" Ported Subwoofer Enclosure

The JBL JBLSUBCB1200D is a loaded, ported car subwoofer enclosure built around two 12-inch JBL Club polypropylene drivers. It provides a ready-made bass foundation for vehicle audio systems that need more low-frequency output without designing and building a custom enclosure. With a final nominal impedance of 2 ohms and 800 watts RMS power handling, it is intended for use with a properly matched external subwoofer amplifier.

This dual-subwoofer enclosure is designed for listeners who want a substantial bass upgrade in a vehicle with adequate cargo space. Its 30 Hz to 400 Hz frequency response specification supports deep bass reproduction while allowing the enclosure to integrate with a system's main speakers through appropriate amplifier crossover settings. The 89 dB sensitivity rating helps describe its output efficiency when measured at 1 watt/1 meter.

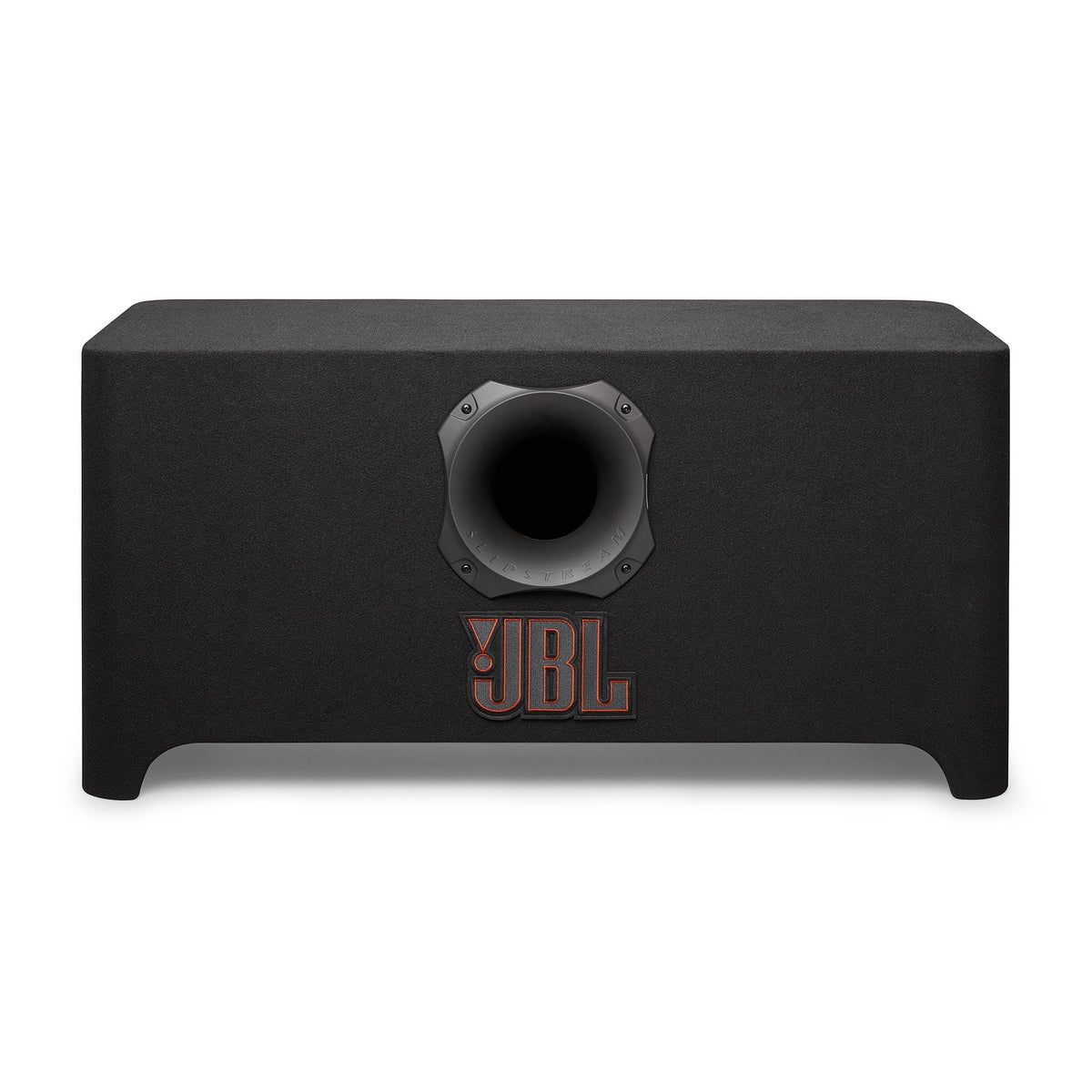

JBL's Slipstream Port Technology uses a double-flared port design intended to reduce turbulence inside the port. Reducing turbulence helps limit port noise and distortion that can occur in compact ported enclosures. The result is a cleaner ported-bass presentation when the enclosure is powered and tuned appropriately.

The enclosure uses a wedge-box profile with rounded corners, allowing flexibility when positioning it in a trunk or cargo area. This shape can help make better use of available vehicle space while giving installers options for enclosure orientation. The black carpet finish provides a traditional car-audio appearance that coordinates easily with many interiors.

For a complete bass system, pair the Club 1200D with an external amplifier that is stable at its 2-ohm nominal load and whose output is matched thoughtfully to the enclosure's 800-watt RMS rating. An amplifier installation kit, power wiring, signal connection, and secure vehicle mounting are also required but are not listed as included. A removable JBL logo badge lets the finished installation retain a cleaner or more customized look.

Key Features

• Dual 12-Inch Drivers: Two 300 mm polypropylene drivers provide a preloaded bass enclosure.
• 800W RMS Handling: Supports substantial continuous amplifier power when properly matched.
• 2-Ohm Nominal Load: Designed for a compatible external subwoofer amplifier.
• Slipstream Port Technology: Double-flared port design helps reduce turbulence and port noise.
• Wedge Enclosure Profile: Offers flexible placement options in vehicle cargo areas.
• Removable JBL Badge: Lets you choose the logo placement or remove it.

Design & Installation

The Club 1200D uses a 13/16-inch (21 mm) MDF enclosure with a black carpet covering. Its wedge-box shape and rounded corners are designed for flexible placement, while the ported layout incorporates JBL Slipstream Port Technology. The enclosure contains two 12-inch polypropylene drivers and measures 32-1/16 inches wide by 15-1/16 inches high, with 14-1/16-inch and 17-1/8-inch depth measurements.

Confirm available cargo-area clearance before purchase, accounting for the enclosure's width, height, and wedge depth. Connect it only to an external amplifier compatible with a 2-ohm nominal speaker load, and set amplifier gain and crossover controls carefully for the system. Secure the enclosure to prevent movement during driving, and follow the included owner's manual or use a qualified car-audio installer for vehicle-specific installation.
