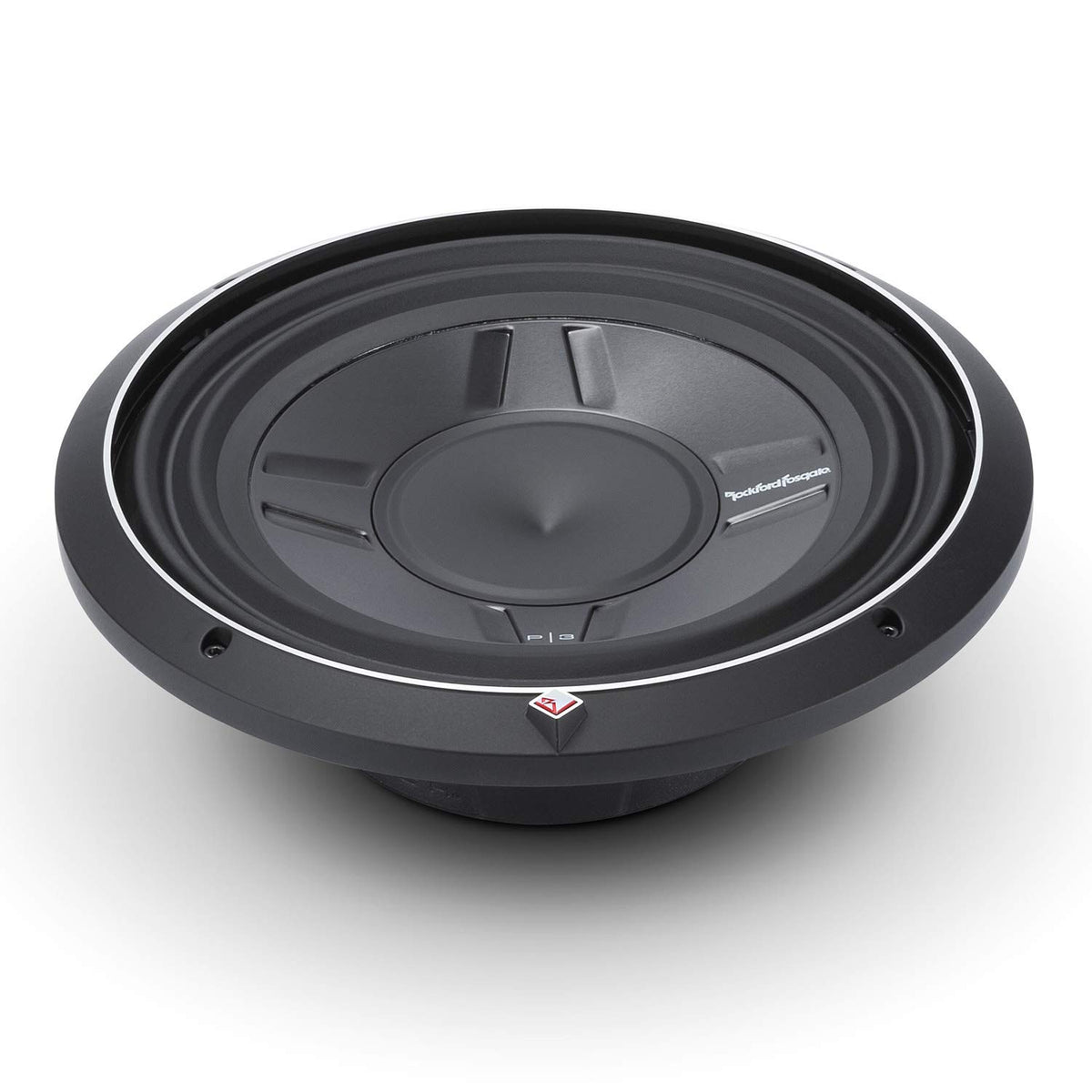

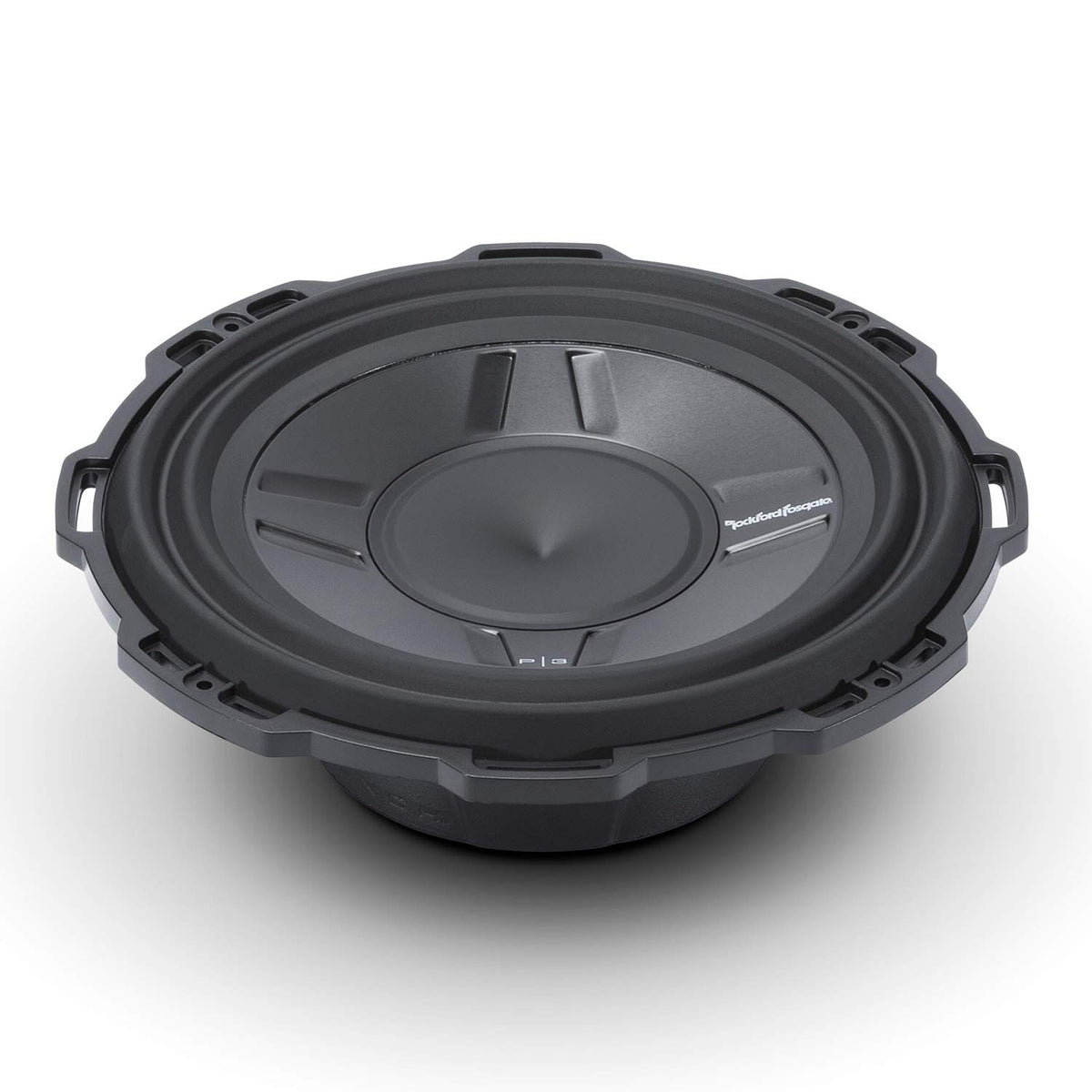

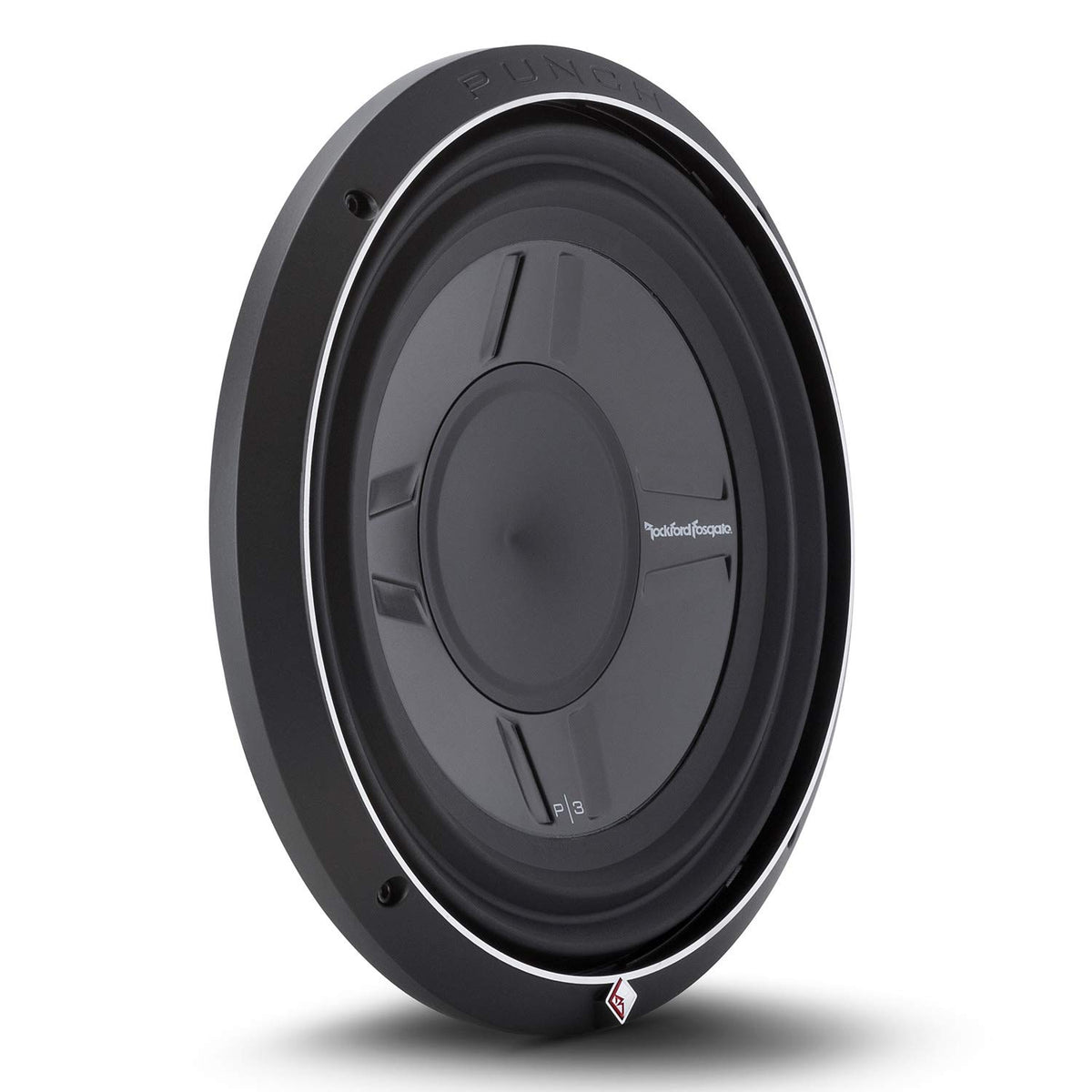

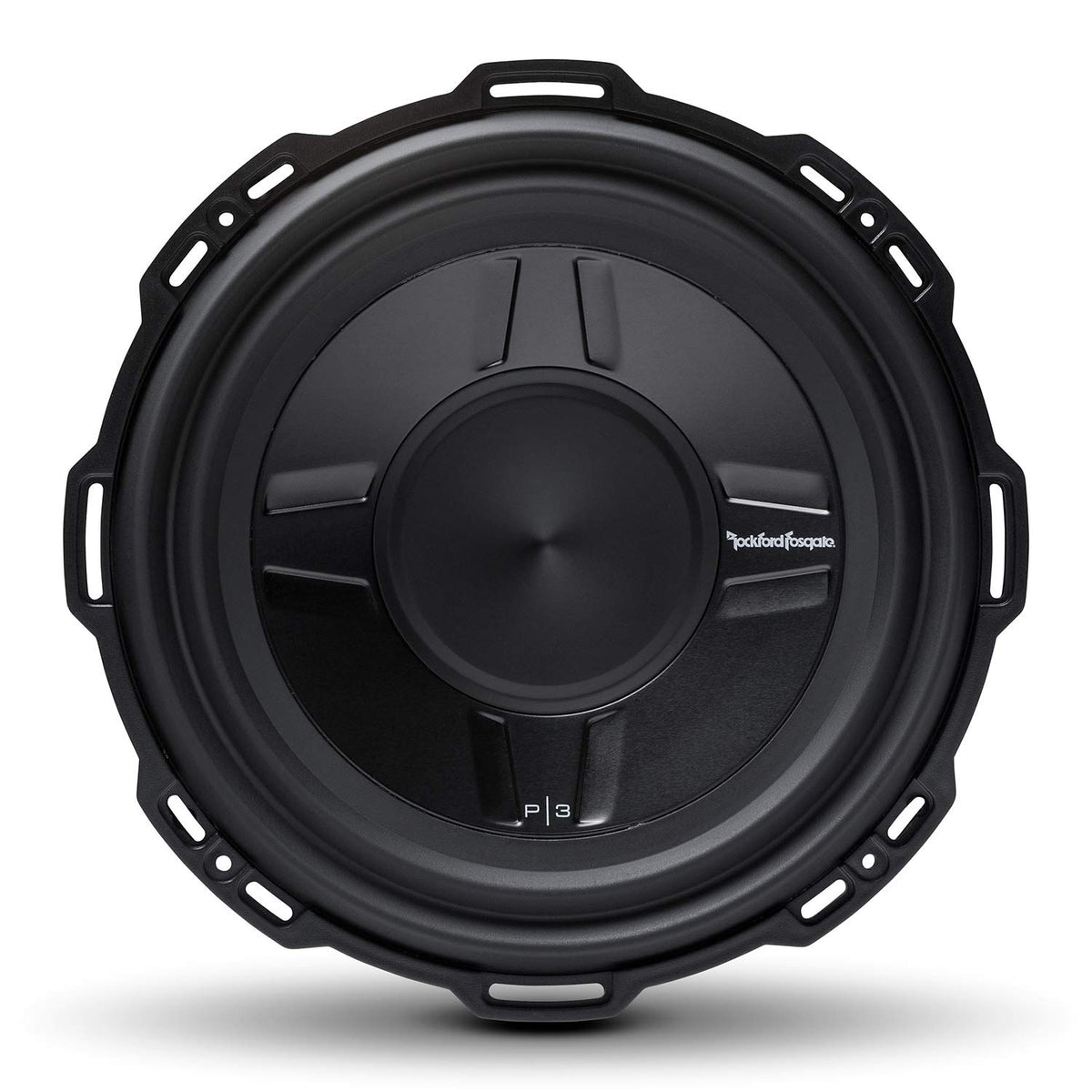

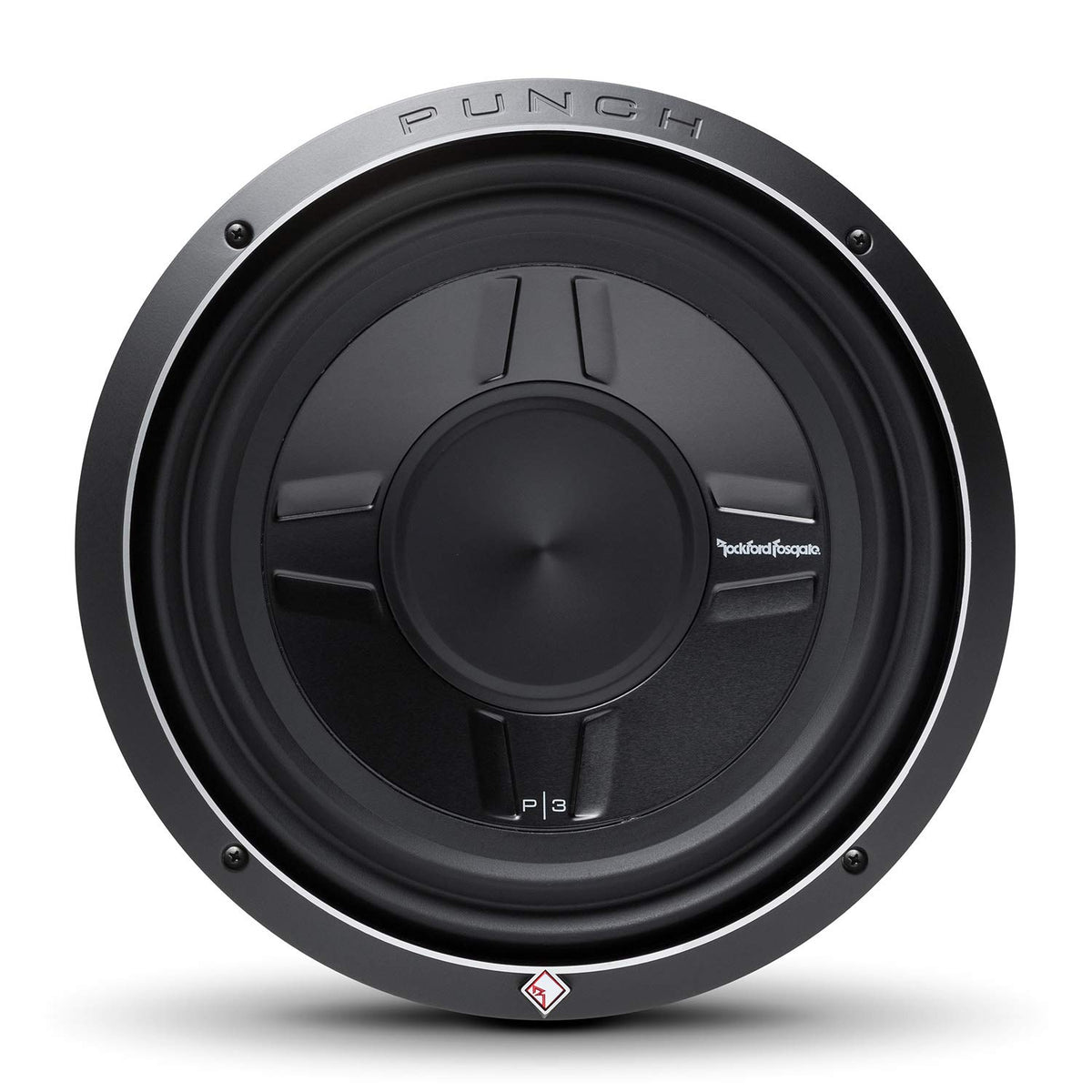

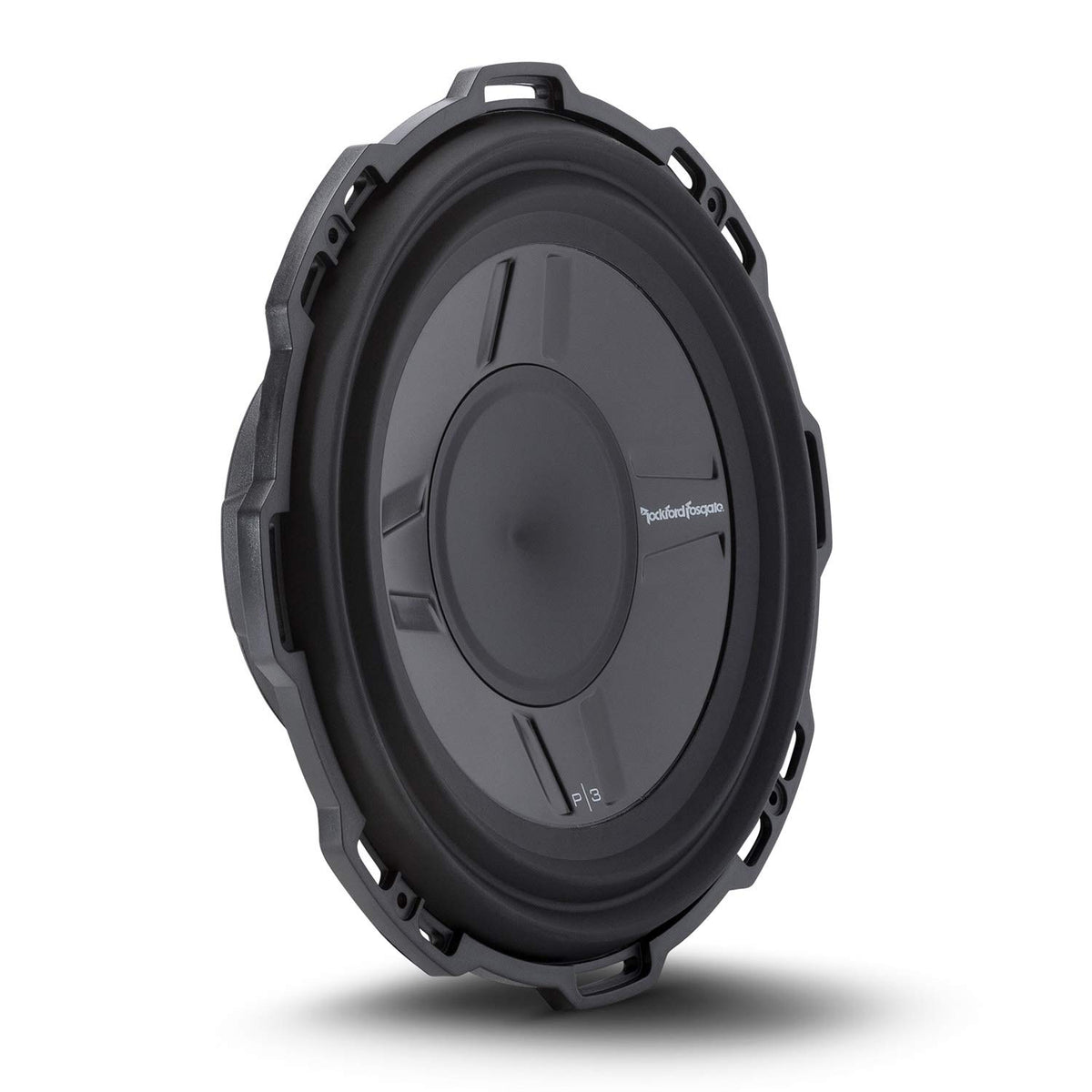

Rockford Fosgate P3SD2-12 12" Shallow DVC Subwoofer

The Rockford Fosgate P3SD2-12 is a 12-inch shallow-mount subwoofer designed for vehicle audio systems with limited mounting depth. Its dual 2-ohm voice coils provide flexible wiring options for compatible mono amplifiers. It is intended for listeners who want dedicated low-frequency reinforcement without using the depth required by a conventional full-size subwoofer.

With 400 watts RMS power handling and an 800-watt maximum rating, this Punch P3 shallow subwoofer is suited to properly matched amplified systems. The anodized aluminum cone and dustcap support a rigid moving assembly, while the Santoprene surround is designed for repeated excursion. Its published frequency response is 34-250 Hz, placing it in the bass and upper-bass range of a vehicle sound system.

The shallow motor assembly helps this driver fit custom enclosures for trucks, coupes, compact vehicles, and other depth-constrained installations. A 3.65-inch mounting depth and 11.22-inch cutout requirement should be checked against the available enclosure space before installation. The driver can be used in either sealed or vented enclosures built to the manufacturer recommendations.

Rockford Fosgate uses an M-Roll Santoprene surround with VAST, or Vertical Attach Surround Technique, to maximize usable cone area within the speaker frame. The StampCast basket combines stamped and cast construction, with integrated spider venting to support airflow around the motor assembly. Dual linear spiders and embedded 16 AWG tinsel leads help support cone movement and lead durability.

The P3SD2-12 is a component subwoofer, so it requires a separate enclosure, compatible amplifier, power wiring, and signal integration as part of a complete system. Its two 2-ohm voice coils can be wired for a 1-ohm or 4-ohm final load when using one subwoofer, depending on amplifier capability. A properly configured low-pass crossover and enclosure are important for integrating it with full-range speakers.

Key Features

• Shallow Motor Assembly: Fits installations with less mounting depth than conventional subwoofers.
• Dual 2-Ohm Voice Coils: Supports 1-ohm or 4-ohm wiring options for one woofer.
• Anodized Aluminum Cone: Provides a rigid cone and matching aluminum dustcap.
• M-Roll Santoprene Surround: Supports excursion with a durable surround material.
• StampCast Basket: Combines a rigid frame with integrated spider venting.
• Dual Linear Spiders: Help control cone movement and support tinsel leads.

Design & Installation

The P3SD2-12 uses an anodized aluminum cone and dustcap, M-Roll Santoprene surround, StampCast basket, and a 51-ounce double-stacked magnet structure. Its 2.5-inch, four-layer voice coil and dual linear spider assembly are part of a shallow driver design intended for restricted-depth enclosures. A painted aluminum decorative trim ring is included.

Plan for an 11.22-inch mounting cutout, 3.65-inch mounting depth, and 0.086 cubic feet of woofer displacement when calculating enclosure volume. Rockford Fosgate specifies a 1.00-cubic-foot sealed enclosure or 1.25-cubic-foot vented enclosure as recommended designs, with a sealed range of 0.60-1.20 cubic feet. Match the amplifier to the selected final impedance, use dual 10 AWG compression terminals, and use an active 80-100 Hz low-pass crossover at 12 dB/octave as recommended in the manual.
