Rockford Fosgate P3-1X12 12" Loaded Ported Subwoofer

The Rockford Fosgate P3-1X12 is a loaded 12-inch subwoofer enclosure designed to add low-frequency impact to a car audio system without requiring a separate box build. It combines one Punch P3D2-12 dual-voice-coil subwoofer with a factory-matched vented enclosure. The enclosure is internally wired for a 1-ohm final load, simplifying amplifier matching for an appropriate 1-ohm-stable mono amplifier.

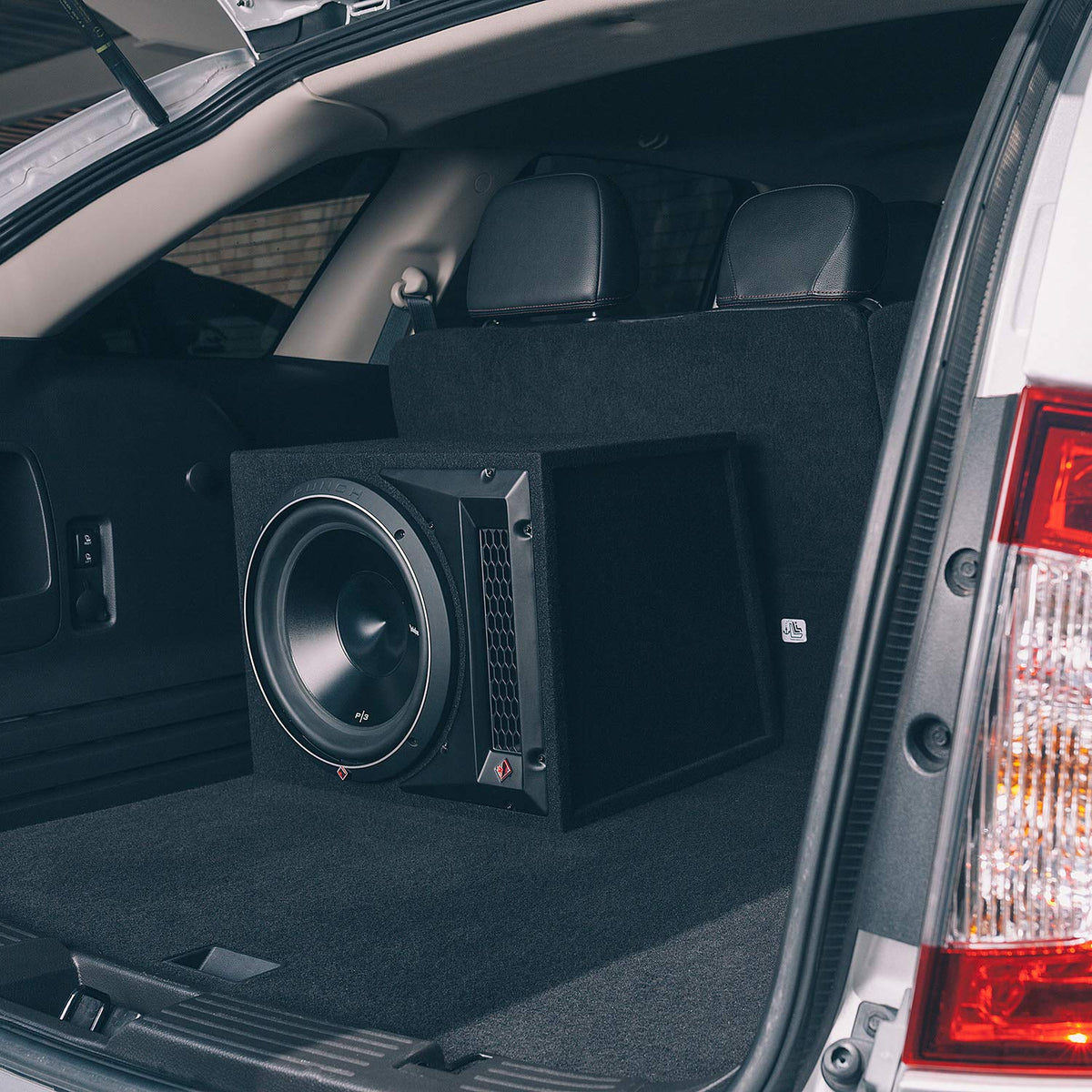

This model suits listeners who want a ready-to-install bass upgrade for a trunk, hatchback, SUV, or other vehicle with adequate cargo space. Its vented enclosure is intended to support strong output and extended low-bass response. With 600 watts RMS power handling, it is designed for systems built around a substantial dedicated subwoofer amplifier.

The P3-1X12 uses a Punch P3D2-12 woofer with an anodized aluminum cone and dustcap, Santoprene surround, and dual 2-ohm voice coils. The cone structure and vented motor design are intended to help manage heat during sustained playback. Its published system frequency response is 27-250 Hz, covering the bass range normally assigned to a subwoofer.

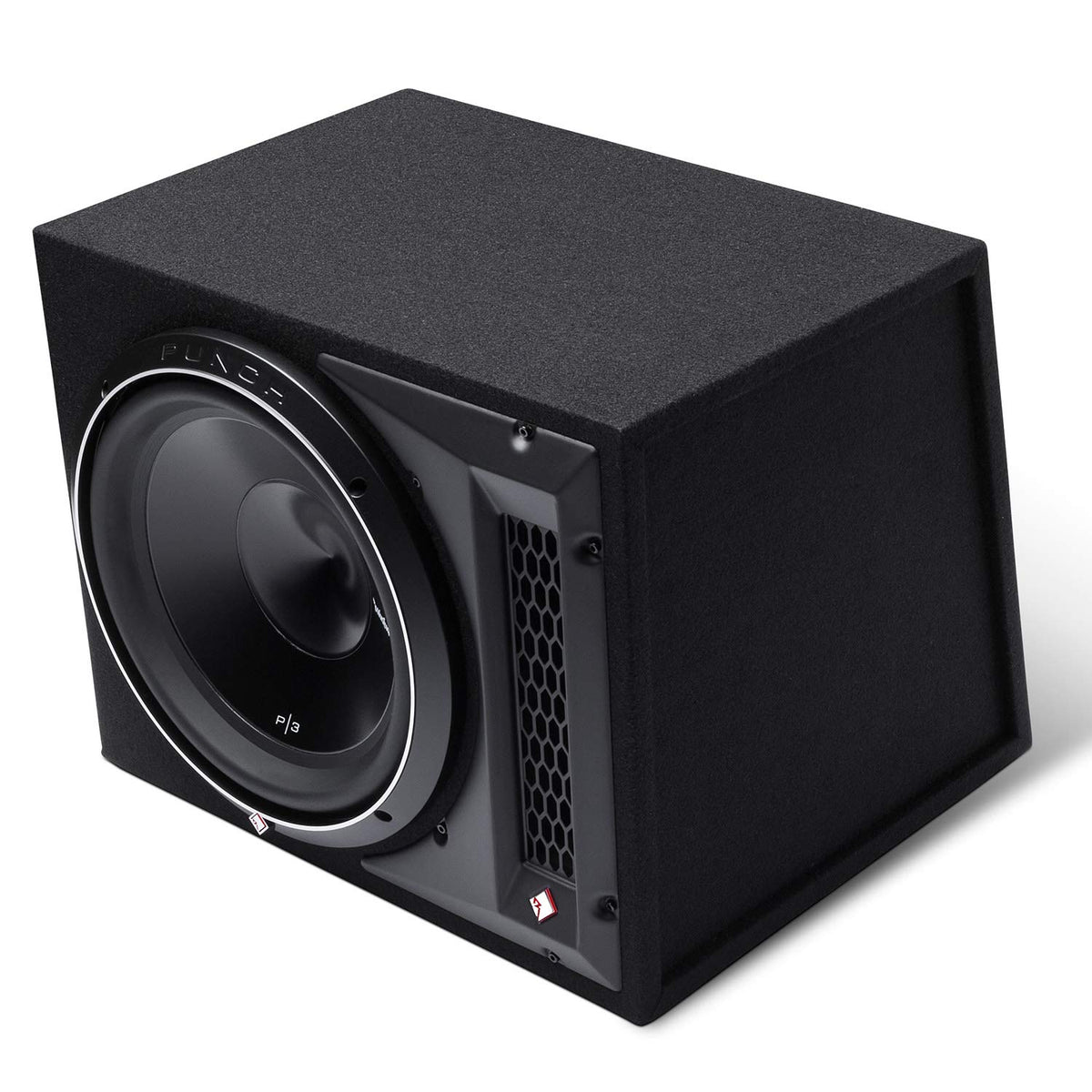

The enclosure uses a proprietary high-flow, low-noise front port to move air efficiently while helping reduce port noise. A 5/8-inch MDF cabinet provides a rigid foundation for the driver, while black carpeting gives the enclosure a finished appearance. High-current binding posts provide a direct connection point for the amplifier's speaker output.

Because the woofer and enclosure are already matched, the P3-1X12 can be a practical alternative to selecting a raw subwoofer and designing a custom enclosure. Pair it with an amplifier that is stable at 1 ohm and rated within the enclosure's 300-600 watt RMS range. Proper gain setting, a low-pass crossover, secure mounting, and correctly sized wiring are important parts of a reliable installation.

Key Features

• Loaded 12-Inch P3 System: Includes one factory-installed Punch P3D2-12 subwoofer in a vented enclosure.
• 1-Ohm Final Load: Dual 2-ohm voice coils are internally wired in parallel for compatible mono amplifiers.
• 600-Watt RMS Handling: Supports amplifier power in the published 300-600 watt RMS operating range.
• Vented Port Design: High-flow, low-noise port supports efficient bass output from the enclosure.
• Anodized Aluminum Cone: Rigid, lightweight cone material helps maintain controlled woofer movement.
• 5/8-Inch MDF Cabinet: Medium-density fiberboard construction helps resist enclosure flex during playback.

Design & Installation

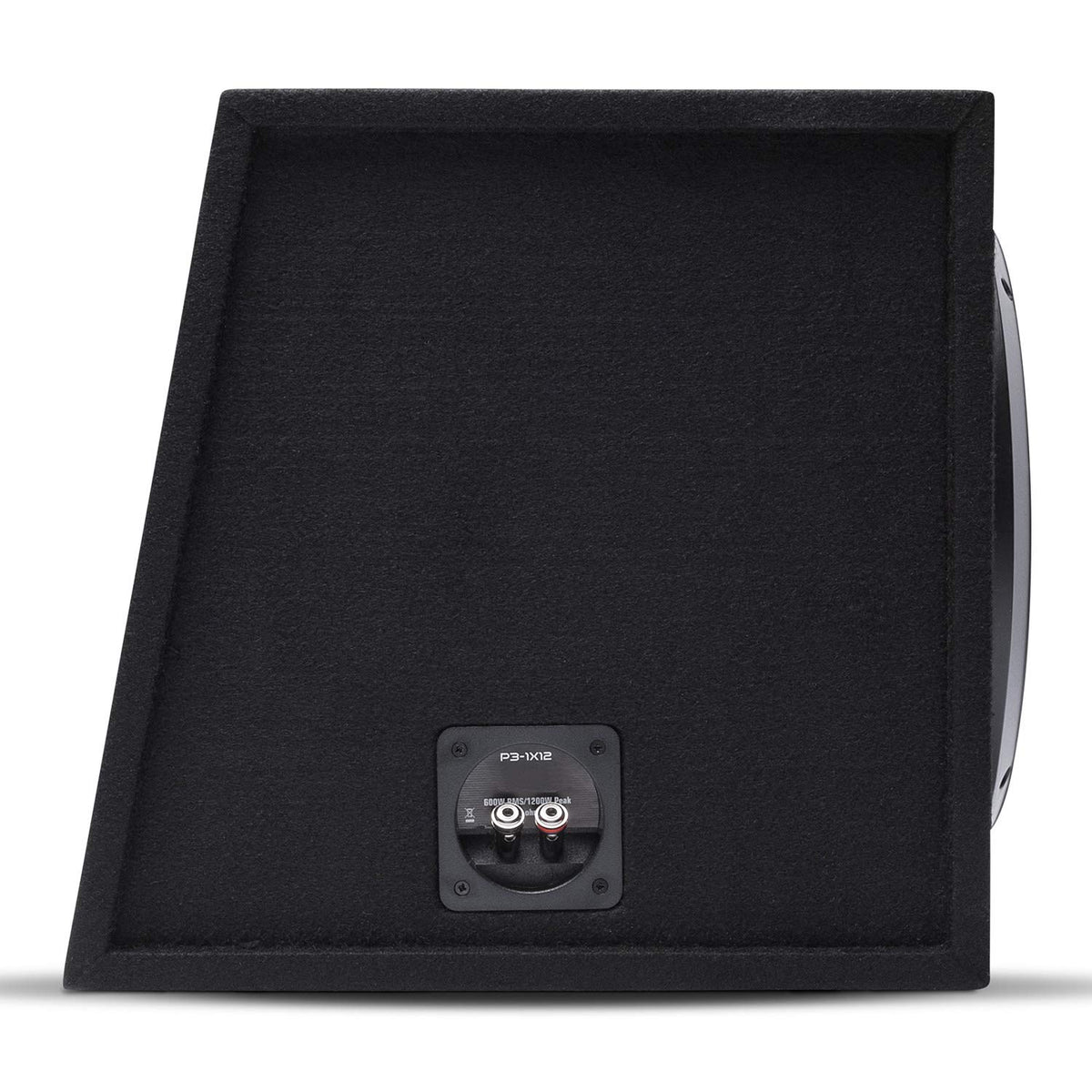

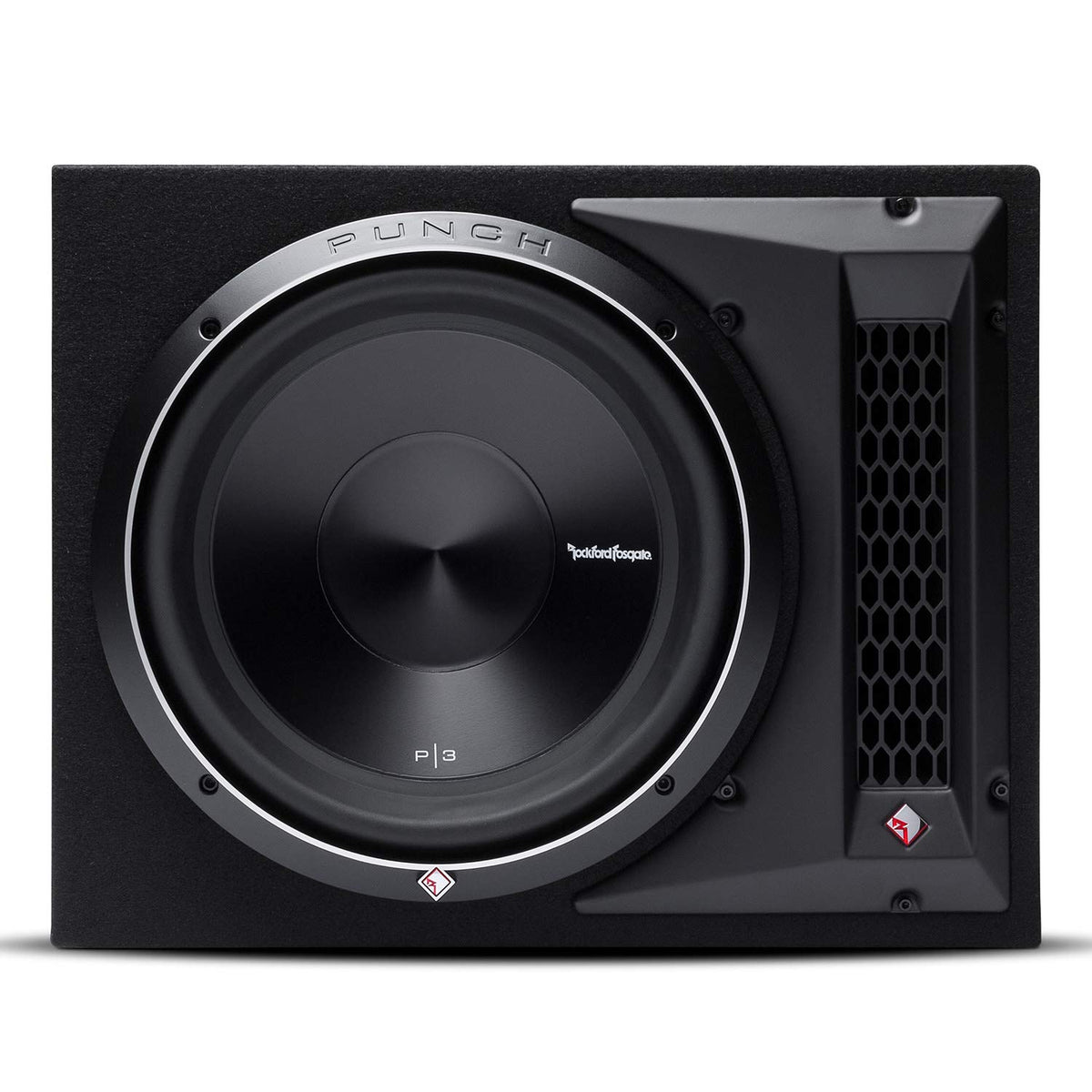

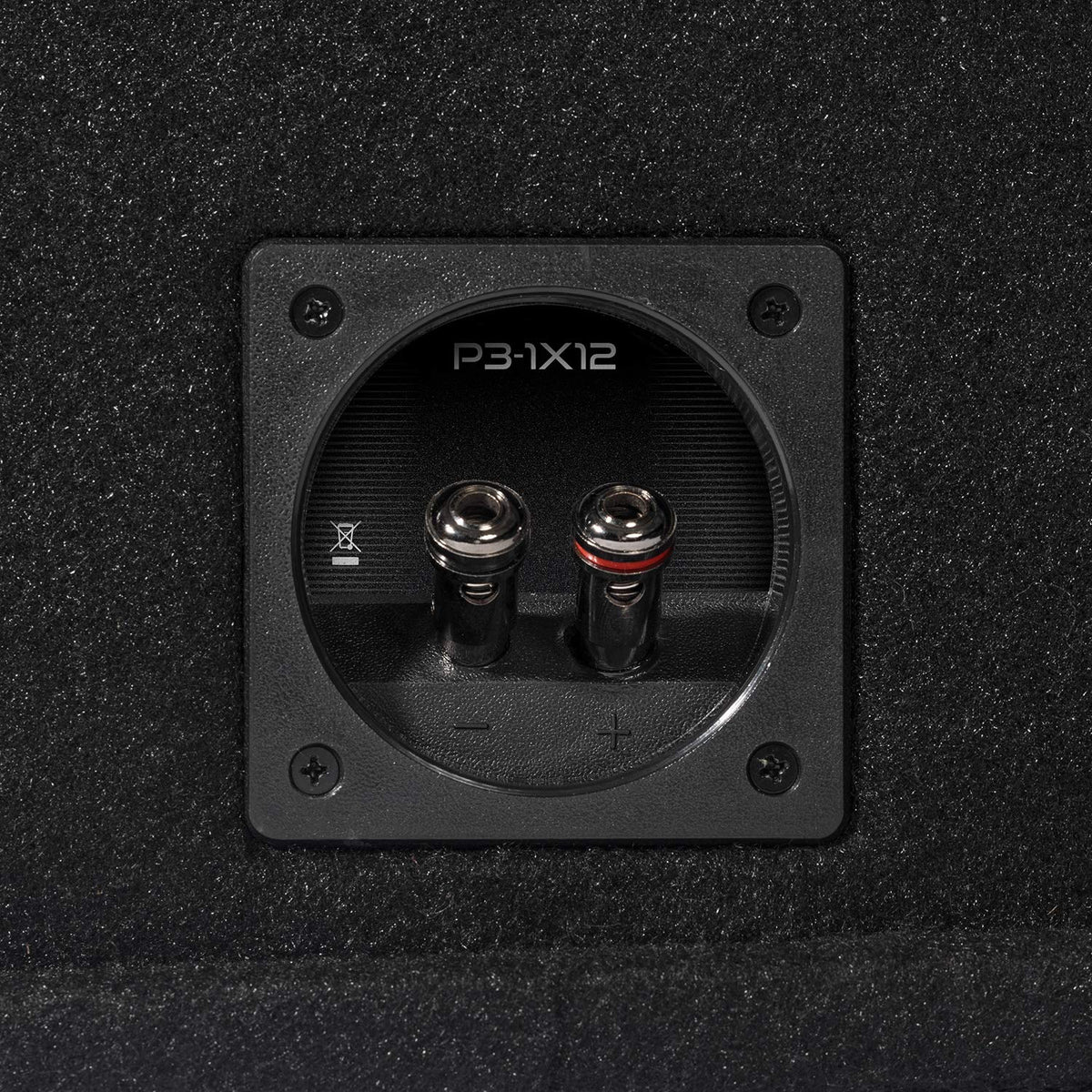

The P3-1X12 combines a black-carpeted 5/8-inch MDF enclosure with a front-firing 12-inch woofer and proprietary port. The loaded P3D2-12 driver includes a StampCast basket with integrated spider venting, a protective PVC magnet cover, a cast-aluminum trim ring, and a Santoprene surround. The enclosure uses high-current spring-loaded binding posts and accepts speaker wire up to 10 AWG.

Allow space for the enclosure's 15.125-inch height, 19.125-inch width, and 15.75-inch bottom depth before purchase. Connect it only to an amplifier that is rated stable at a 1-ohm speaker load, then set gain conservatively and use a low-pass crossover appropriate for the rest of the system. Secure the enclosure so it cannot shift while driving, and keep the port and woofer area clear of cargo.
