Ortofon STYLUS MK2 DIGITAL Replacement Stylus

The Ortofon STYLUS MK2 DIGITAL is a replacement stylus assembly made for the Concorde MKII Digital DJ cartridge. It is intended for DJs using timecode vinyl and digital vinyl systems that depend on reliable record-to-software signal decoding. Replacing a worn stylus helps restore the intended tracking behavior of the matching cartridge.

This stylus is designed for timecoded-vinyl use, where consistent tracking and a clear control signal are important during playback. Its spherical R 18 μm stylus profile is specified for a 3 to 5 g tracking-force range, with 4 g recommended. The design supports both timecode records and conventional vinyl when installed on the matching Concorde MKII Digital cartridge body.

With the matching Concorde MKII Digital cartridge, the system is specified for 10 mV output at 1 kHz, 5 cm/sec and 22 dB channel separation at 1 kHz. This output level is designed to provide a strong signal to DJ software for timecode interpretation. The matched system also has a specified 20 Hz to 18 kHz frequency range.

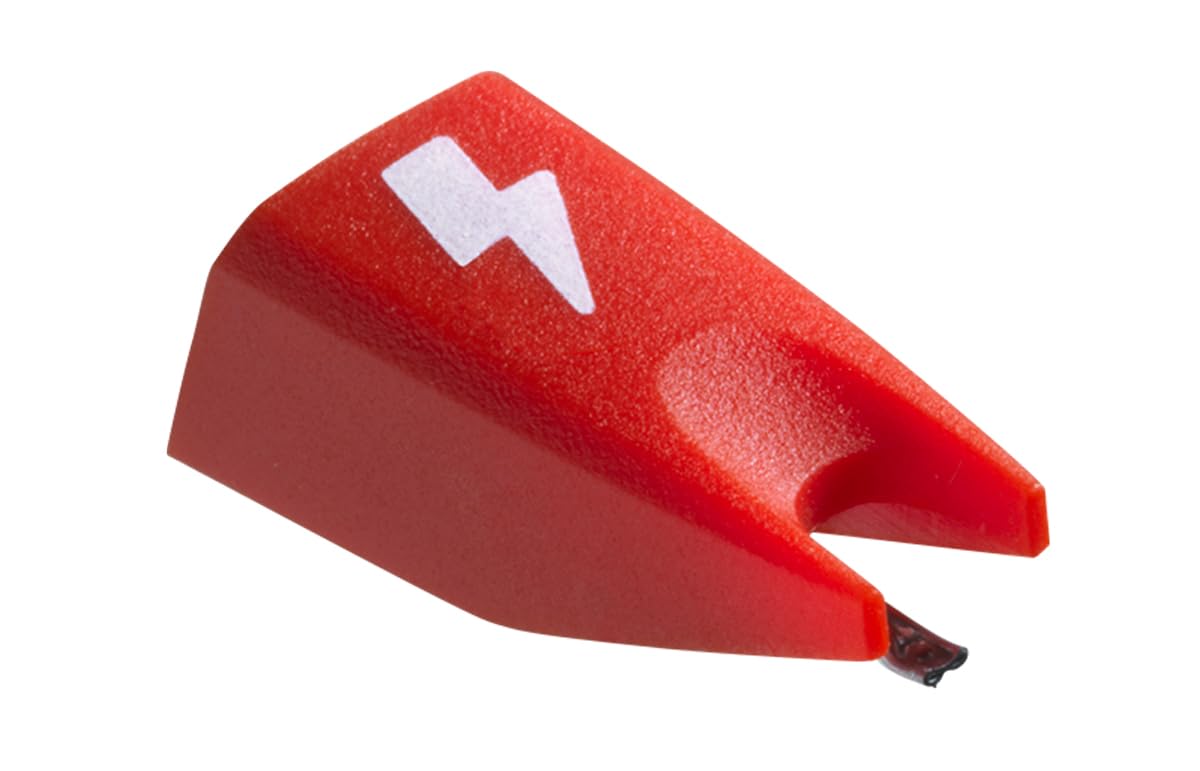

A cut-out section at the front of the assembly gives the DJ a clearer view of the stylus tip area for more precise needle drops. The stylus also provides tactile feedback as it is seated on the cartridge body, helping indicate that it is fitted securely. These practical details support quick stylus changes and cueing in a DJ workflow.

The STYLUS MK2 DIGITAL is an upgrade-path and maintenance item for an existing Concorde MKII Digital setup rather than a complete cartridge. It replaces the stylus assembly while retaining the installed cartridge body and its integrated Concorde mounting format. Set the tonearm tracking force within Ortofon's specified range after replacement for proper operation.

Key Features

• Concorde MKII Digital Replacement: Made specifically for the Concorde MKII Digital cartridge.
• Timecode Vinyl Focus: Designed to support accurate timecode-signal decoding.
• Spherical R 18 μm Stylus: Uses a spherical diamond stylus profile.
• 4 g Recommended Tracking: Targets the specified recommended tracking-force setting.
• Front Cut-Out: Improves visibility for more accurate needle drops.
• Tactile Seating Feedback: Helps confirm a snug stylus-to-cartridge fit.

Design & Installation

The STYLUS MK2 DIGITAL is a purpose-built replacement assembly with a spherical R 18 μm stylus and a front cut-out for better cueing visibility. Its seating design provides tactile feedback when installed on the compatible cartridge body. The stylus assembly itself is specified at 1 g.

Use this stylus with an Ortofon Concorde MKII Digital cartridge body. Seat the replacement assembly fully until the fit feels secure, then set the tonearm tracking force between 3 and 5 g; Ortofon recommends 4 g. It is intended as a stylus replacement, so a compatible cartridge and turntable setup are required for use.
