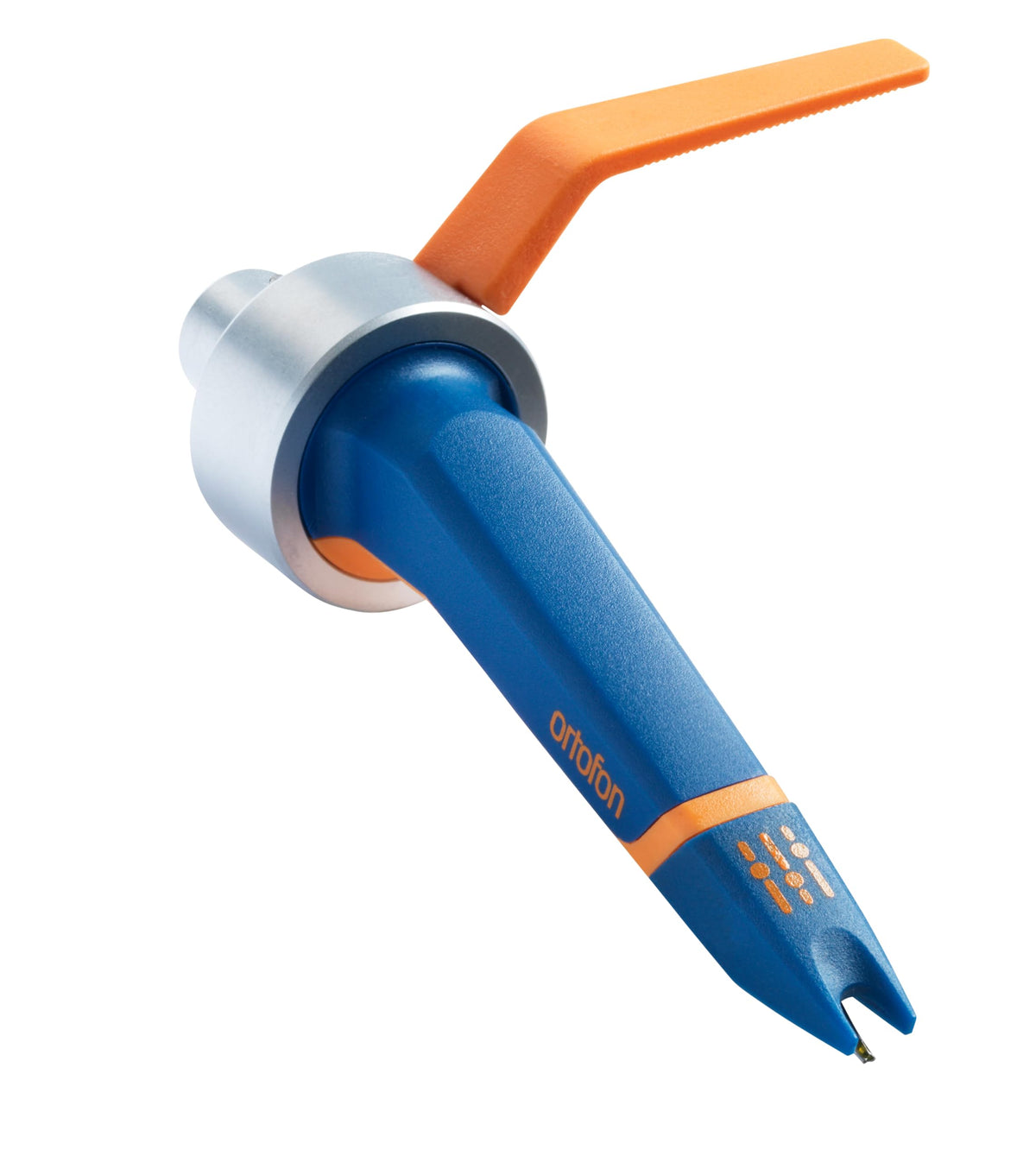

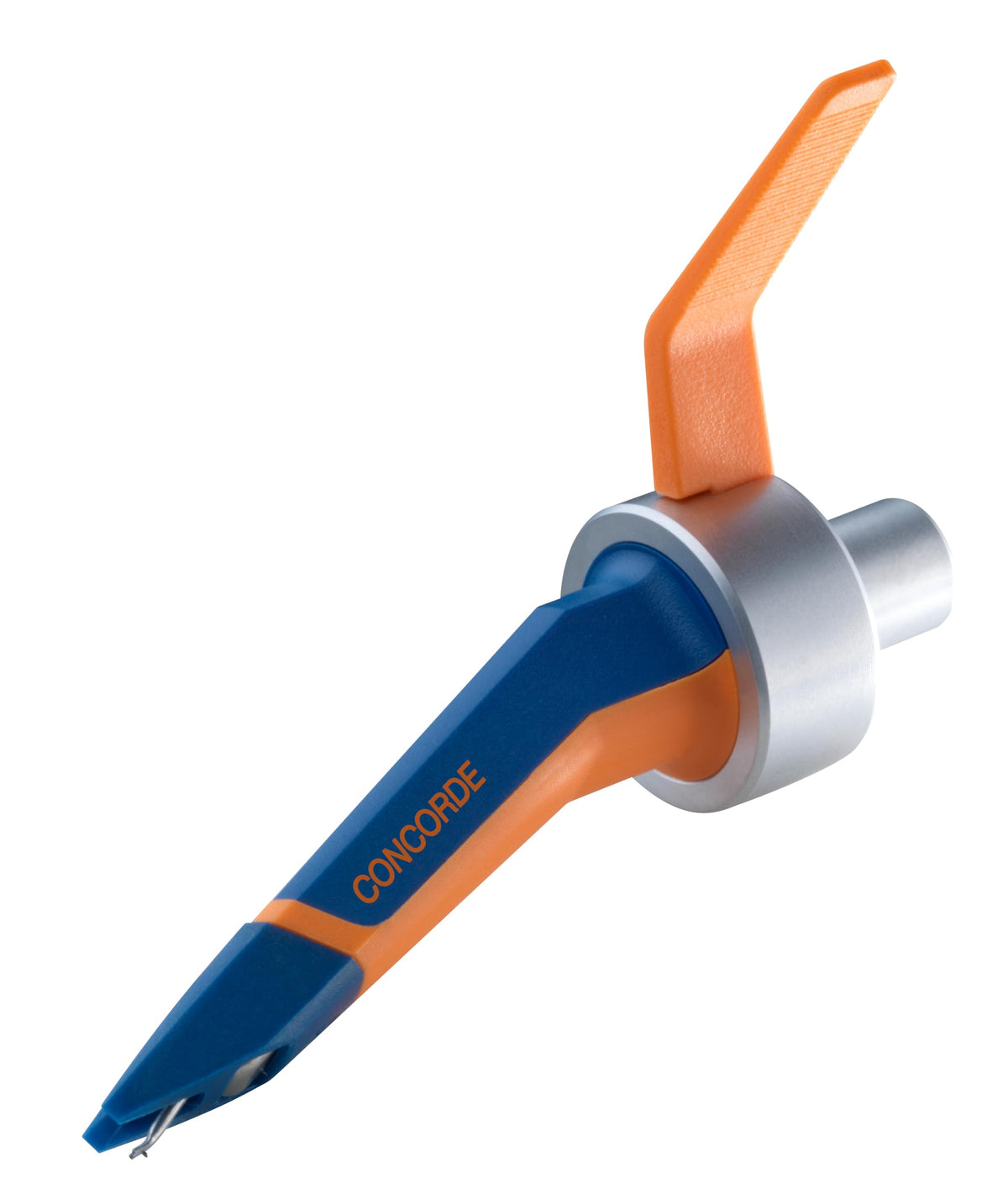

Ortofon CC-MK2 DJ SINGLE Concorde MKII DJ Cartridge

The Ortofon Concorde MKII DJ is a single moving-magnet DJ cartridge with a pre-mounted stylus for turntables using a compatible bayonet/SME tonearm connection. It is designed for DJs who need dependable cueing, mixing, back-cueing, and scratching performance without mounting a separate cartridge to a headshell. Its integrated Concorde-format body provides a direct, practical connection to compatible DJ turntables.

This model is intended as an all-purpose option for a wide range of music styles and DJ techniques. A spherical diamond stylus and aluminum cantilever are selected for stable groove contact and rugged day-to-day use. The cartridge is specified for 100 µm tracking ability at 315 Hz when set to its recommended tracking force.

The Concorde MKII DJ delivers a 6 mV output at 1 kHz and 5 cm/sec, making it appropriate for phono inputs used in typical DJ mixers and turntable systems. Its 20 Hz to 20 kHz frequency range and 22 dB channel separation at 1 kHz support clear stereo playback. The recommended 4 g tracking force is tailored to its stated DJ-use performance characteristics.

Ortofon uses an aluminum cantilever with a spherical diamond tip rated at an R 18 µm radius. This configuration emphasizes reliable groove handling for common DJ tasks, including back-cueing and scratch-oriented operation. The cartridge is also designed to maintain low record wear when correctly installed and adjusted.

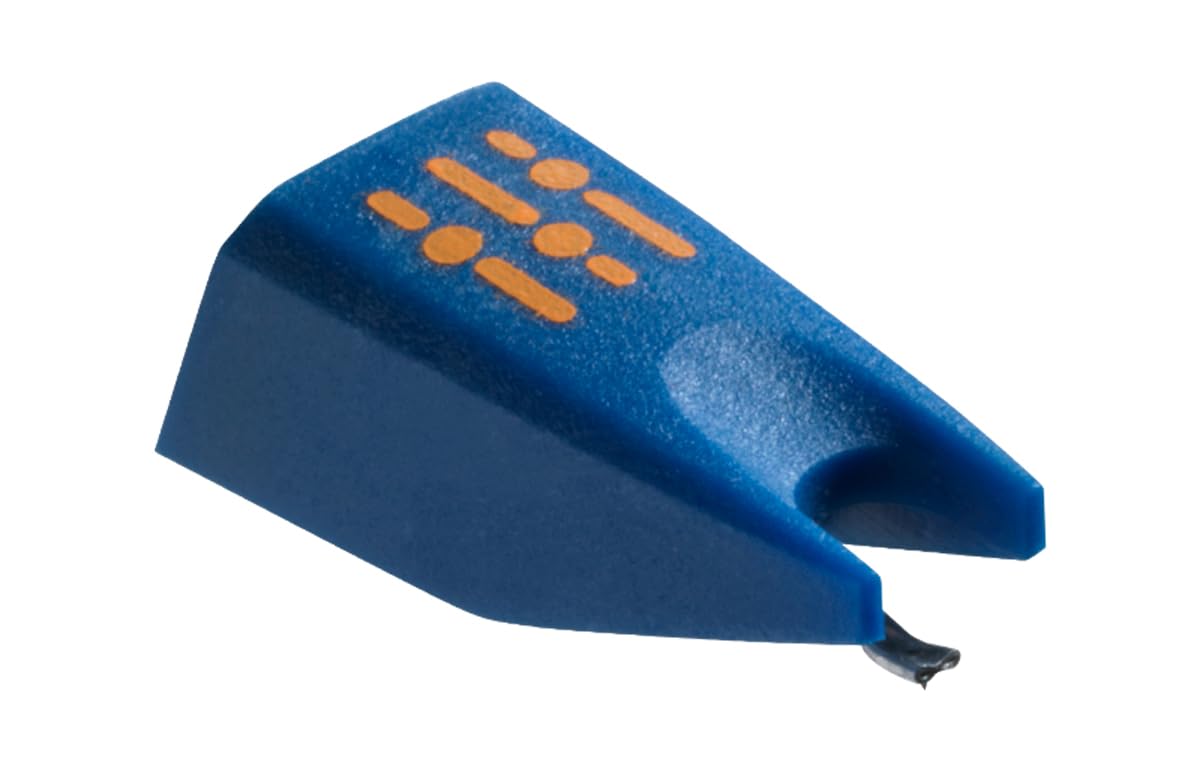

For a straightforward upgrade, the integrated bayonet/SME mount eliminates the need for cartridge screws, headshell leads, or alignment hardware on compatible tonearms. The Stylus CC MKII DJ is available as the designated replacement stylus. A single cartridge is included, so a second matching cartridge is needed for two-turntable stereo DJ setups.

Key Features

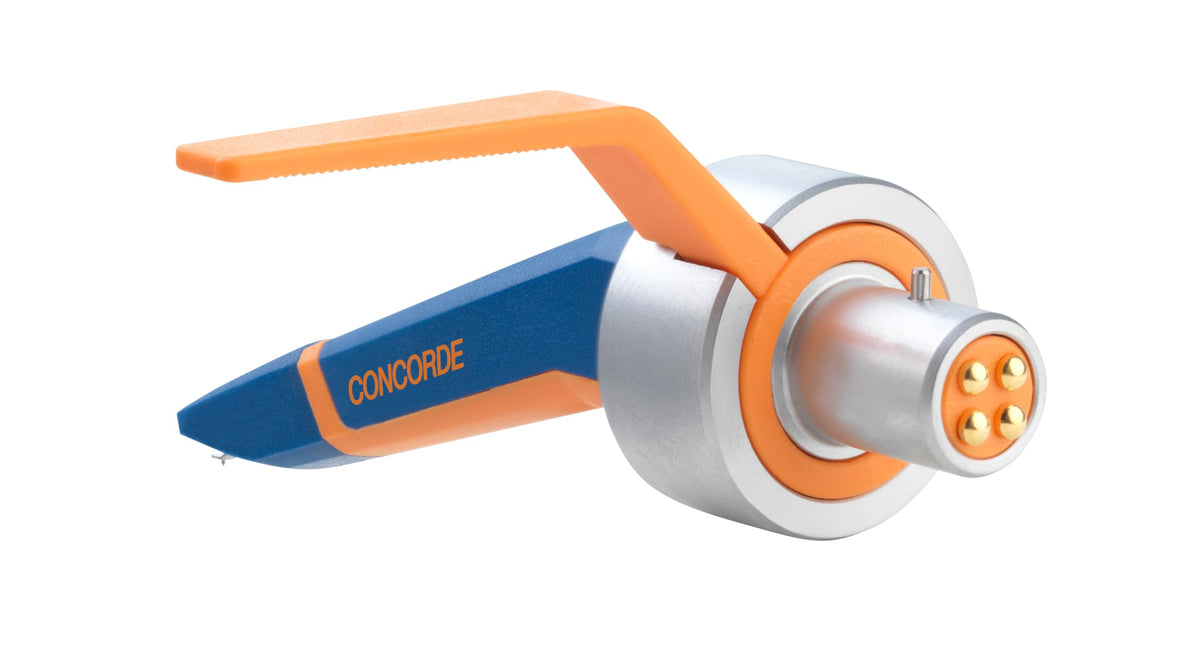

• Integrated Concorde Mount: Connects directly to compatible bayonet/SME DJ tonearms.
• Spherical Diamond Stylus: Supports durable tracking for DJ record handling.
• 6 mV Output: Provides a strong moving-magnet phono signal.
• 4 g Recommended Tracking Force: Optimized for the cartridge's specified groove handling.
• Aluminum Cantilever: Provides a rigid platform for the stylus assembly.
• Replaceable Stylus: Uses the dedicated Stylus CC MKII DJ replacement.

Design & Installation

The Concorde MKII DJ combines the cartridge body, tonearm connector, and stylus assembly into one purpose-built DJ format. Its aluminum cantilever carries a spherical diamond stylus with an R 18 µm tip radius, while the cartridge body weighs 18.5 g. The integrated design is made for direct handling and installation on compatible DJ tonearms.

Install the cartridge only on a turntable tonearm with a compatible bayonet/SME connection, then set the tracking force within the specified 3 to 5 g range; Ortofon recommends 4 g. Connect the turntable to a phono input with a 47 kOhm load resistance and 200 to 600 pF load capacitance. For a two-deck DJ system, use a second matching cartridge to maintain consistent output and tracking characteristics between turntables.
