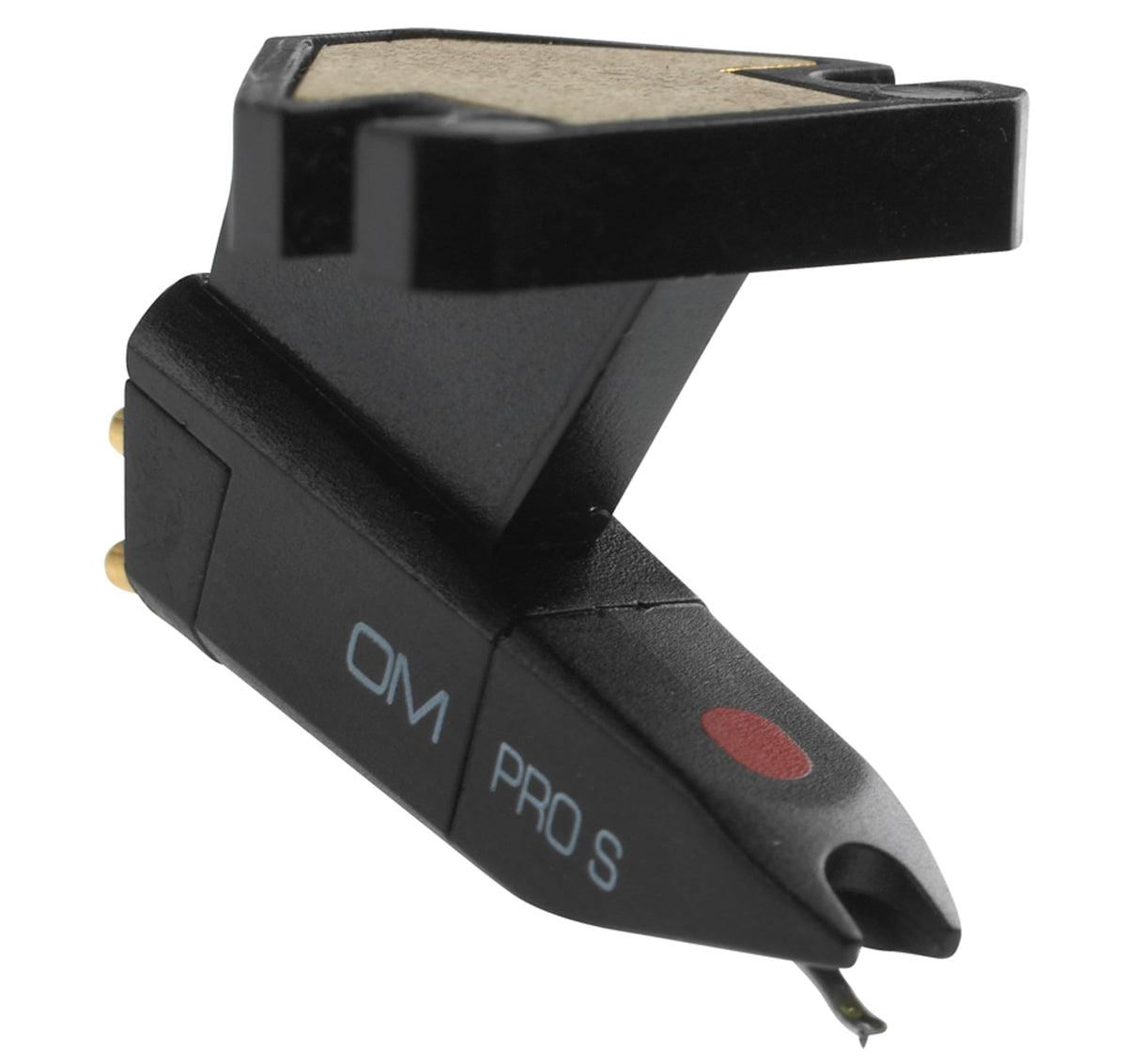

Ortofon OM PRO S DJ Cartridge

The Ortofon OM PRO S is a single DJ phono cartridge designed for turntables using a standard half-inch headshell mount. It provides a practical replacement or starting point for DJs who need a cartridge suited to cueing, mixing, and general vinyl playback. Its 5 mV output is intended for use with standard moving-magnet phono inputs.

This cartridge is aimed at new and working DJs who want dependable operation without moving into a specialized scratch or high-output model. The spherical diamond stylus is selected for durable, straightforward tracking in active turntable use. Its performance profile makes it suitable for general-purpose DJ applications and everyday record listening.

The OM PRO S uses an aluminum cantilever and a spherical stylus with an 18 μm tip radius. Ortofon specifies a 3 to 5 g tracking-force range, with 4 g recommended for normal use. At the recommended setting, it is rated for 70 μm tracking ability at 315 Hz.

With a 20 Hz to 18 kHz frequency range and 20 dB channel separation at 1 kHz, the OM PRO S is engineered for clear stereo playback in a DJ system. Its 5 mV output supports conventional phono-stage gain requirements. The 5 g cartridge weight can help when matching it to a compatible headshell and tonearm.

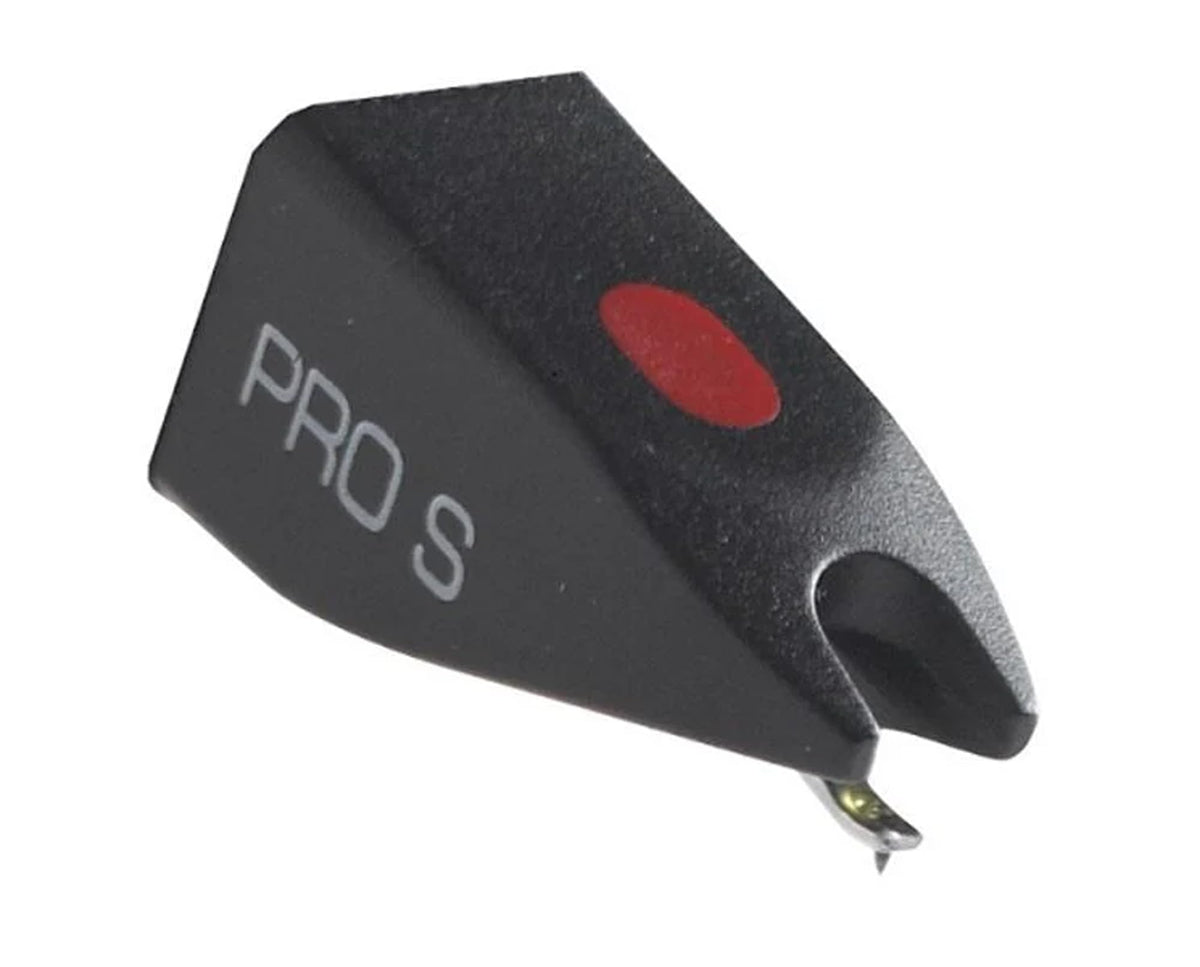

The OM PRO S is the headshell-mount version of the Pro S cartridge design, making it appropriate for turntables that accept standard mounted cartridges. It can be paired with a compatible headshell, tonearm, phono preamp, mixer, or receiver with a moving-magnet phono input. When the stylus eventually requires service, Ortofon specifies the Stylus PRO S as the replacement stylus.

Key Features

• Spherical Diamond Stylus: Supports durable tracking for general DJ use.
• Aluminum Cantilever: Provides a solid stylus support structure.
• 5 mV Output: Works with standard moving-magnet phono inputs.
• Half-Inch Mount: Fits compatible headshell-based turntable setups.
• 4 g Recommended Force: Establishes the specified normal tracking setting.
• Replaceable Stylus: Uses the separately available Stylus PRO S.

Design & Installation

The OM PRO S combines a 5 g cartridge body with an aluminum cantilever and spherical diamond stylus. Its construction is intended for the repeated handling and active use associated with DJ turntables. The spherical stylus profile and specified tracking-force range support its general-purpose operating role.

Install the cartridge on a compatible standard half-inch headshell, connect the headshell lead wires correctly, then align the cartridge according to the turntable or tonearm instructions. Set tracking force within the 3 to 5 g specification, using 4 g as the recommended setting, and adjust the tonearm setup as required by the turntable manufacturer. Use it with a moving-magnet-compatible phono input and replace the stylus with an Ortofon Stylus PRO S when needed.
